Physics and Physical Measurement Topic 1.2 Measurement and Uncertainties
Standards of Measurement • SI units are those of the Système International d’Unités adopted in 1960 • Used for general measurement in most countries
Fundamental Quantities • Some quantities cannot be measured in a simpler form and for convenience they have been selected as the basic quanitities • They are termed Fundamental Quantities, Units and Symbols
The Fundamentals • Length metre m • Mass kilogram kg • Time second s • Electric current ampere A • Thermodynamic temp Kelvin K • Amount of a substance mole mol • Luminous intensity candela cd
Derived Quantities • When a quantity involves the measurement of 2 or more fundamental quantities it is called a Derived Quantity • The units of these are called Derived Units
The Derived Units • Acceleration ms-2 • Angular acceleration rad s-2 • Momentum kgms-1 or Ns • Others have specific names and symbols • Force kg ms-2 or N
Standards of Measurement • Scientists and engineers need to make accurate measurements so that they can exchange information • To be useful a standard of measurement must be • Invariant, Accessible and Reproducible
3 Standards (for information) • The Metre :- the distance traveled by a beam of light in a vacuum over a defined time interval ( 1/299 792 458 seconds) • The Kilogram :- a particular platinum-iridium cylinder kept in Sevres, France • The Second :- the time interval between the vibrations in the cesium atom (1 sec = time for 9 192 631 770 vibrations)
Conversions • You will need to be able to convert from one unit to another for the same quantity • J to kWh • J to eV • Years to seconds • And between other systems and SI
KWh to J • 1 kWh = 1kW x 1 h • = 1000W x 60 x 60 s • = 1000 Js-1 x 3600 s • = 3600000 J • = 3.6 x 106 J
J to eV • 1 eV = 1.6 x 10-19 J
SI Format • The accepted SI format is • ms-1 not m/s • ms-2 not m/s/s • i.e. we use the suffix not dashes
Errors • Errors can be divided into 2 main classes • Random errors • Systematic errors
Mistakes • Mistakes on the part of an individual such as • misreading scales • poor arithmetic and computational skills • wrongly transferring raw data to the final report • using the wrong theory and equations • These are a source of error but are not considered as an experimental error

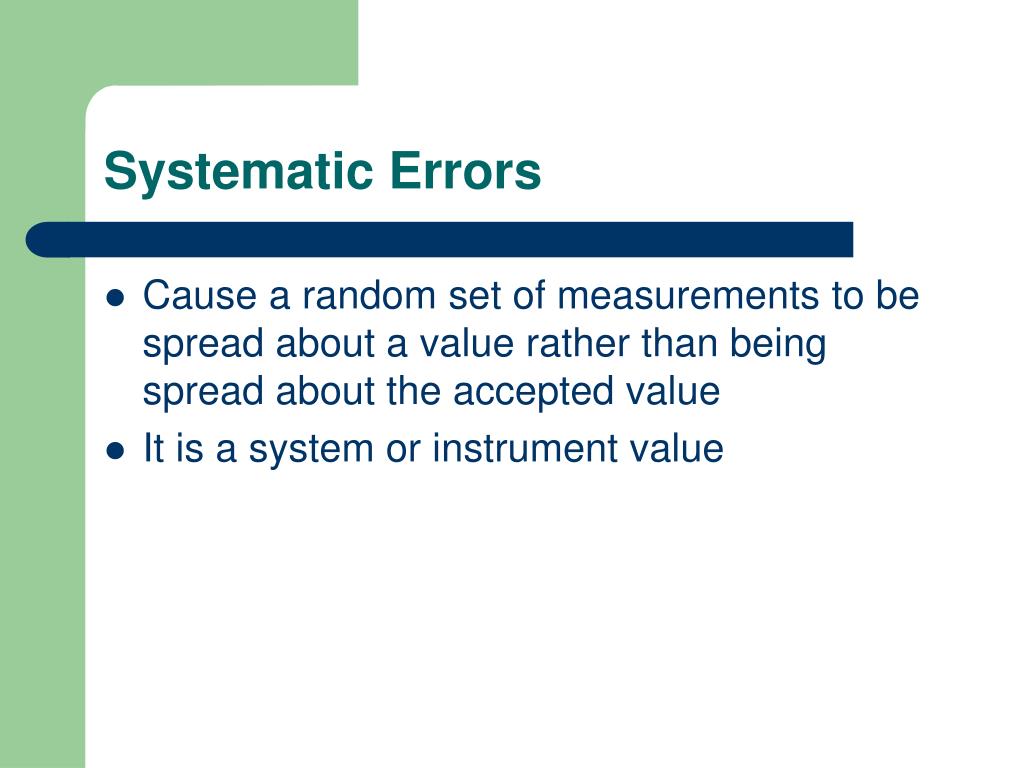

Systematic Errors • Cause a random set of measurements to be spread about a value rather than being spread about the accepted value • It is a system or instrument value
Systematic Errors result from • Badly made instruments • Poorly calibrated instruments • An instrument having a zero error, a form of calibration • Poorly timed actions • Note that systematic errors are not reduced by multiple readings
Random Errors • Are due to variations in performance of the instrument and the operator • Even when systematic errors have been allowed for, there exists error.
Random Errors result from • Vibrations and air convection • Misreading (the unavoidable kind) • Variation in thickness of surface being measured • Using less sensitive instrument when a more sensitive instrument is available • Human parallax error
Reducing Random Errors • Random errors can be reduced by • taking multiple readings, and eliminating obviously erroneous result • or by averaging the range of results.
Accuracy • Accuracy is an indication of how close a measurement is to the accepted value indicated by the relative or percentage error in the measurement • An accurate experiment has a low systematic error
Precision • Precision is an indication of the agreement among a number of measurements made in the same way indicated by the absolute error • A precise experiment has a low random error
Limit of Reading and Uncertainty • The Limit of Reading of a measurement is equal to the smallest graduation of the scale of an instrument (not including digital) • The Degree of Uncertainty of a measurement is equal to half the limit of reading • e.g. If the limit of reading is 0.1cm then the uncertainty range is 0.05cm • This is the absolute uncertainty
Reducing the Effects of Random Uncertainties • Take multiple readings • When a series of readings are taken for a measurement, then the arithmetic mean of the reading is taken as the most probable answer • The greatest deviation or residual from the mean is taken as the absolute error
Absolute/fractional errors and percentage errors • We use ± to show an error in a measurement • (208 ± 1) mm is a fairly accurate measurement • (2 ± 1) mm is highly inaccurate
Uncertainty (Cont'd) • In order to compare uncertainties, use is made of absolute, fractional and percentage uncertainties. • 1 mm is the absolute uncertainty • 1/208 is the fractional uncertainty (0.0048) • 0.48 % is the percentage uncertainity
Combining uncertainties • For addition and subtraction, add absolute uncertainties • y = b-c then y ± dy = (b-c) ± (db + dc)
Combining uncertainties • For multiplication and division add percentage uncertainties • x = b * c then dx = db + dc x b c
Combining uncertainties • When using powers, multiply the percentage uncertainty by the power • z = bn then dz = n db z b
Combining uncertainties • If one uncertainty is much larger than others, the approximate uncertainty in the calculated result may be taken as due to that quantity alone
Plotting Uncertainties on Graphs • Points are plotted with a fine pencil cross • Uncertainty or error bars are required • These are short lines drawn from the plotted points parallel to the axes indicating the absolute error (or percent error) of the measurement
y x Uncertainties on a Graph
Approaching and Solving Problems • You need to be able to state and explain any simplifying assumptions that you make solving problems • e.g. Reasonable assumptions as to why certain quantities may be neglected or ignored • i.e. Heat loss, internal resistance • Or that behaviour is approximately linear
Graphical Techniques • Graphs are very useful for analysing the data that is collected during investigations • Graphing is one of the most valuable tools used because
Why Graph • it gives a visual display of the relationship between two or more variables • shows which data points do not obey the relationship • gives an indication at which point a relationship ceases to be true • used to determine the constants in an equation relating two variables
Graphing (Cont'd) • You need to be able to give a qualitative physical interpretation of a particular graph • e.g. as the potential difference increases, the ionization current also increases until it reaches a maximum at…..
Plotting Graphs • Independent variables are plotted on the x-axis • Dependent variables are plotted on the y-axis • Most graphs occur in the 1st quadrant however some may appear in all 4
Plotting Graphs - Choice of Axis • When you are asked to plot a graph of a against b, the first variable mentioned is plotted on the y axis • Graphs should be plotted by hand
Plotting Graphs - Scales • Size of graph should be large, to fill as much space as possible • choose a convenient scale that is easily subdivided
Plotting Graphs - Labels • Each axis is labeled with the name and symbol, as well as the relevant unit used • The graph should also be given a descriptive title
Plotting Graphs - Line of Best Fit • When choosing the line or curve it is best to use a transparent ruler • Position the ruler until it lies along an ideal line • The line or curve does not have to pass through every point • Do not assume that all lines should pass through the origin • Do not do dot to dot!
y x
Analyzing the Graph • Often a relationship between variables will first produce a parabola, hyperbola or an exponential growth or decay. These can be transformed to a straight line relationship • General equation for a straight line is • y = mx + c • y is the dependent variable, x is the independent variable, m is the gradient and c is the y-intercept

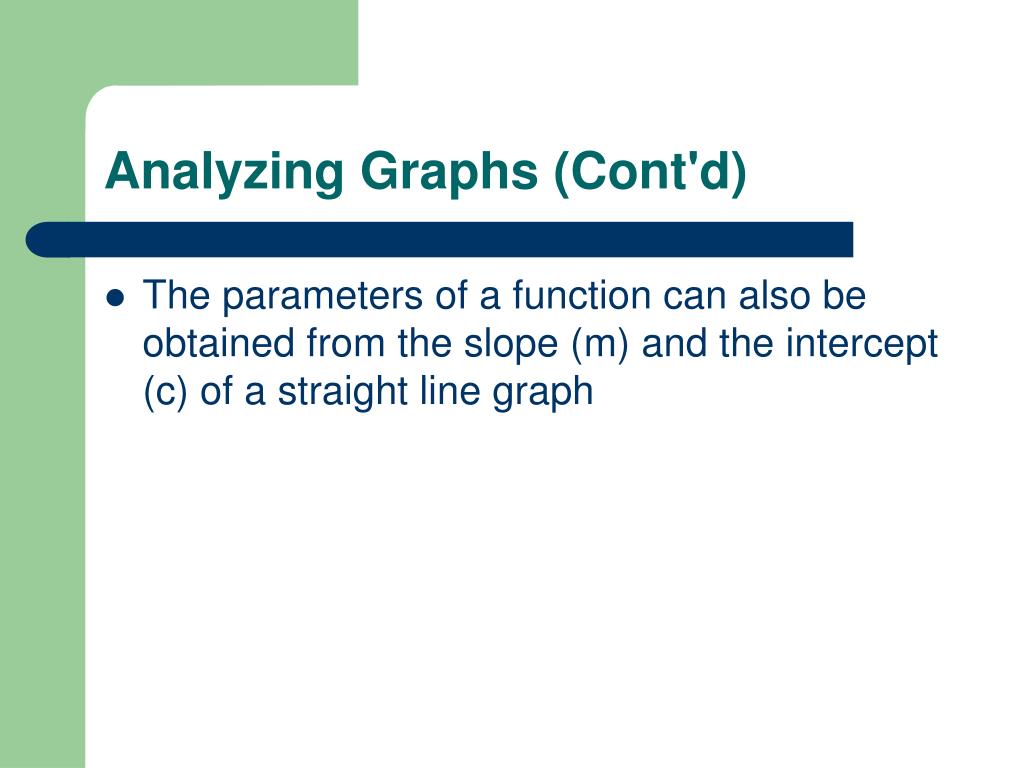

Analyzing Graphs (Cont'd) • The parameters of a function can also be obtained from the slope (m) and the intercept (c) of a straight line graph
Slope (a.k.a. Gradients) • Slope = vertical run / horizontal run • or Slope = y / x • uphill slope is positive and downhill slope is negative • Don´t forget to give the units of the slope
Areas under Graphs • The area under a graph is a useful tool • e.g. on a force displacement graph the area is work (N x m = J) • e.g. on a speed time graph the area is distance (ms-1 x s = m) • Again, don´t forget the units of the area
y x Standard Graphs - linear graphs • A straight line passing through the origin shows proportionality y x y = k x k = rise/run Where k is the constant of proportionality
y y x x2 Standard Graphs - parabola • A parabola shows that y is directly proportional to x2 • i.e. y x2 or y = kx2 • where k is the constant of proportionality
