Java Security Model (GS: Ch. 7)

1. Java Security Model(GS: Ch. 7) csci5931 Web Security

2. Topics • Basics of Java Security Model • Cryptographic Signatures • Permissions • Customized Permissions csci5931 Web Security

3. Basics of Java Security Model • Java 2 security is policy-based. • The policy defined in java.policy file controls the resources that Java codes have access to. • Codesource = codebase + signer • codebase: The location that the code comes from, either locally or from a remote site. • signer: the entity that signed the code in question csci5931 Web Security

4. Basics of Java Security Model • Permissions: specific actions that a codesource is allowed to take (e.g., access a file, connect to a machine) • Types of Java codes: • Java applications • Java applets • Java servlets • Java beans, JEB csci5931 Web Security

5. Managing Cryptographic Signatures • Tools provided by Sun: keytool jarsigner policytool • keytool (pp. 157-161): An application that ships with JDK It manages keystores and can create certificates. It replaces javakey, found in Java 1.1. Note: Keystores are linked to the provider (e.g., Sun’s JCA provider). A keystore file generated by one provider will not work with a keystore file generated by another provider. csci5931 Web Security

6. Managing Cryptographic Signatures • jarsigner A signing and verification tool for Java archive (JAR) files Attaches a specific signer to a specific set of codes Usage: jarsigner [options] jar-file alias jarsigner -verify [options] jar-file [-keystore <url>] keystore location [-storepass <password>] password for keystore integrity [-storetype <type>] keystore type [-keypass <password>] password for private key (if different) [-sigfile <file>] name of .SF/.DSA file [-signedjar <file>] name of signed JAR file [-verify] verify a signed JAR file ... csci5931 Web Security

7. Managing Cryptographic Signatures • Jarsigner • It signs JAR files. • It verifies signatures on JAR files. • JAR (Java Archive): a .zip file that supports signatures. • To sign a JAR file: You must have a private key and a certificate in your keystore. • For your signed JAR file to be verifiable by others: Your certificate must be signed by a CA. csci5931 Web Security

8. Managing Cryptographic Signatures • A signed JAR file allows the user to determine whether the Java codes contained in the JAR can be trusted or not. • Applets are usually signed, if extra permissions (beyond those defined as defaults) need to be granted. • In Java 1.2.1 or higher, every class within the same package inside a signed JAR must be signed by the same certificate. Q: Why is this important? csci5931 Web Security

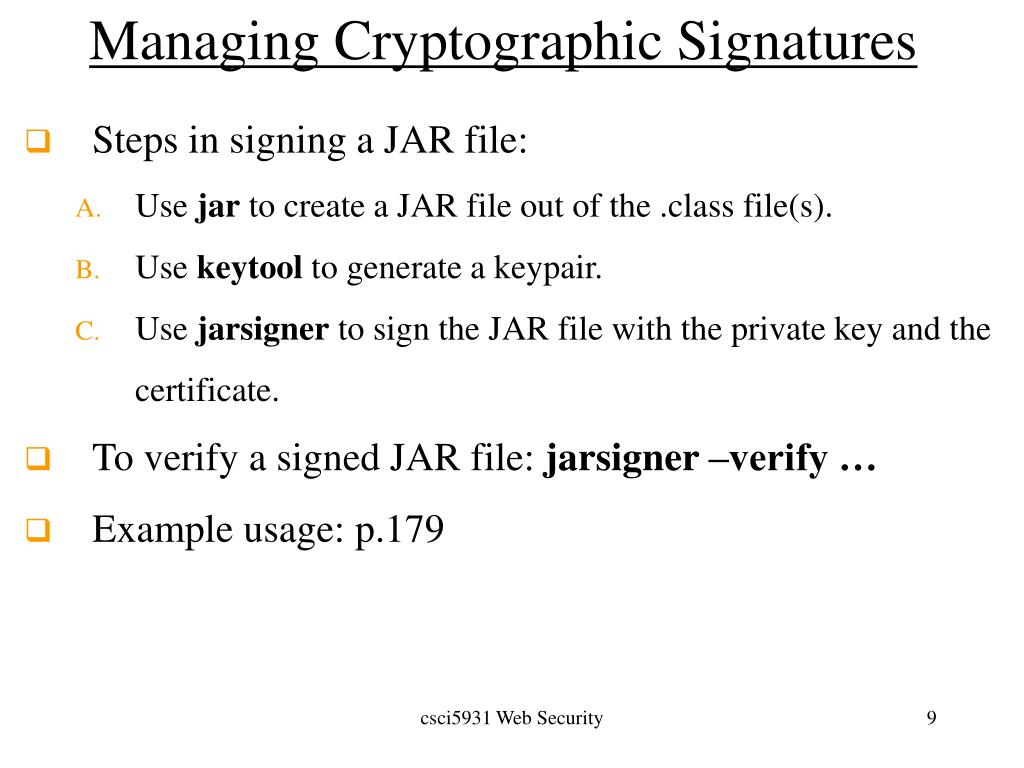

9. Managing Cryptographic Signatures • Steps in signing a JAR file: • Use jar to create a JAR file out of the .class file(s). • Use keytool to generate a keypair. • Use jarsigner to sign the JAR file with the private key and the certificate. • To verify a signed JAR file: jarsigner –verify … • Example usage: p.179 csci5931 Web Security

10. Managing Cryptographic Signatures • When a JAR is signed, it is not the JAR itself that is signed, but some or all of the files it contains. • A signed JAR contains three files: • The manifest (HelloWorld.mf) • The signature file (HelloWorld.sf) • The digital signature file (HelloWorld.dsf) csci5931 Web Security

11. Managing Cryptographic Signatures • To view the content of a JAR file: • Use jar command > jar tvf HelloWorld.jar 140 Wed Mar 19 10:22:24 CST 2003 META-INF/MANIFEST.MF 193 Wed Mar 19 10:22:24 CST 2003 META-INF/EXAMPLES.SF 1013 Wed Mar 19 10:22:24 CST 2003 META-INF/EXAMPLES.DSA 0 Wed Mar 19 10:13:58 CST 2003 META-INF/ 426 Wed Mar 19 10:13:30 CST 2003 HelloWorld.class • Use winzip or something like that csci5931 Web Security

12. Managing Permissions • The Java security manager handles the checking of permissions as needed. • The default implementation: java.lang.SecurityManager, which can be sub-classed or overwritten if necessary. • Java enforces security by asking the security manager for permissions before taking any action that is considered potentially unsafe. csci5931 Web Security

13. Managing Permissions • Permissions are defined in the java.policy file, which is stored in $JAVA_HOME/jre/lib/security/java.policy. • Two ways to edit java.policy file: • Manually by using a text editor • Use policytool, which is a GUI tool for editing Java security policies (See examples on pp.188-189) • An example: pp.182, 187 (FileWriteTest.java) csci5931 Web Security

14. Managing Permissions • The syntax for the grant command in java.policy file: grant signedBy “signer_names”, codeBase “URL” { permission permission_class_name “target_name”, “action”, signedBy “signer_names”; … } • See sample listing on pp.183-184. • More samples on p.186. csci5931 Web Security

15. Managing Permissions • Default permission classes in Java: p.190 • AllPermission • BasicPermission • FilePermission • SocketPermission • Subclasses of BasicPermission: • AudioPermission, AWTPermission, NetPermission, … csci5931 Web Security

16. Managing Permissions • Customized Permissions: • You may want to restrict access to certain classes based on the caller’s codesource. • To prevent untrusted codes from calling some sensitive classes. • An example (p.191): extending BasicPermission by creating a subclass. csci5931 Web Security

17. Managing Permissions • Customized Permissions: Example > java -cp SecretWordTest.jar -Djava.security.manager -Djava.security.policy=SecretWord.policy SecretWordTest The secret word is: ossifrage csci5931 Web Security

18. Managing Permissions • Security properties for the JVM are defined in the java.security file, which is stored in $JAVA_HOME/jre/lib/security/java.security. • Security providers, policy provider, keystore type, etc. (pp.194-195) csci5931 Web Security

19. Next • Team Presentations • SSL (GS: 9) • Applet security (GS: 7) • Servlets security (GS: 8) • … csci5931 Web Security
