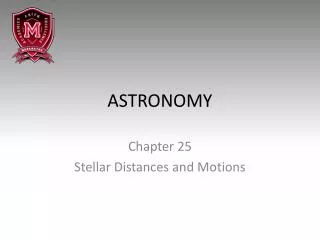

  1. ASTRONOMY Chapter 25 Stellar Distances and Motions

  2. Apparent Brightness • In the night sky, some stars are brighter than others. • What can cause this? • One star can shine brighter (put out more energy) than another • One star can be closer to us than the other.

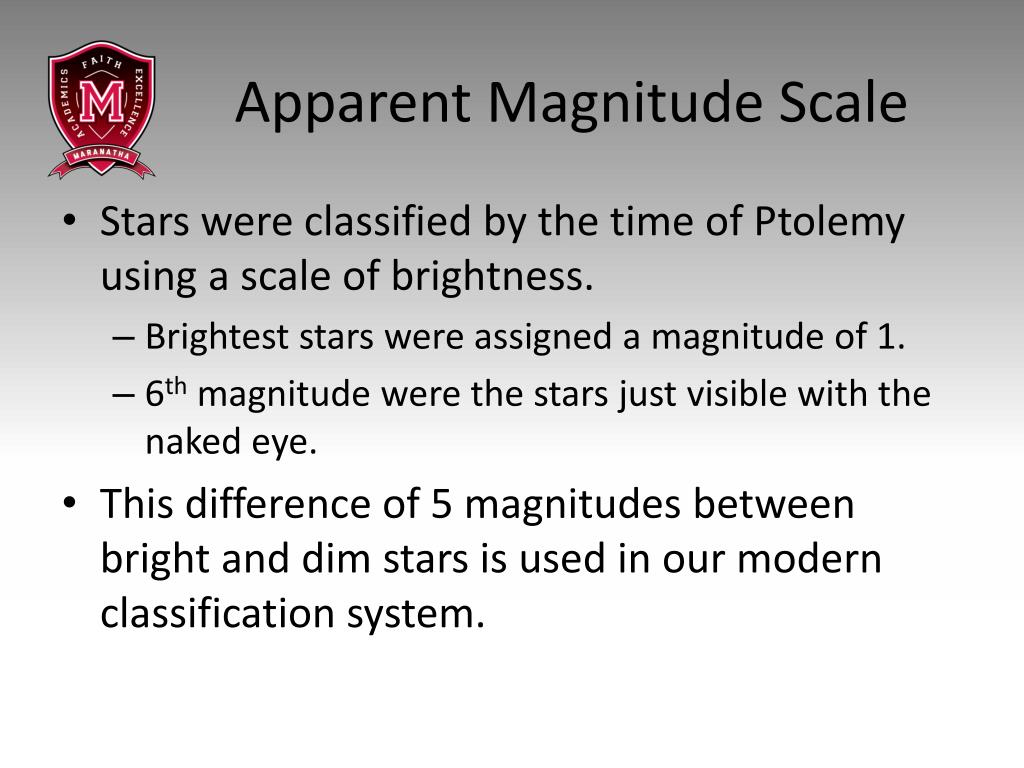

  3. Apparent Magnitude Scale • Stars were classified by the time of Ptolemy using a scale of brightness. • Brightest stars were assigned a magnitude of 1. • 6th magnitude were the stars just visible with the naked eye. • This difference of 5 magnitudes between bright and dim stars is used in our modern classification system.

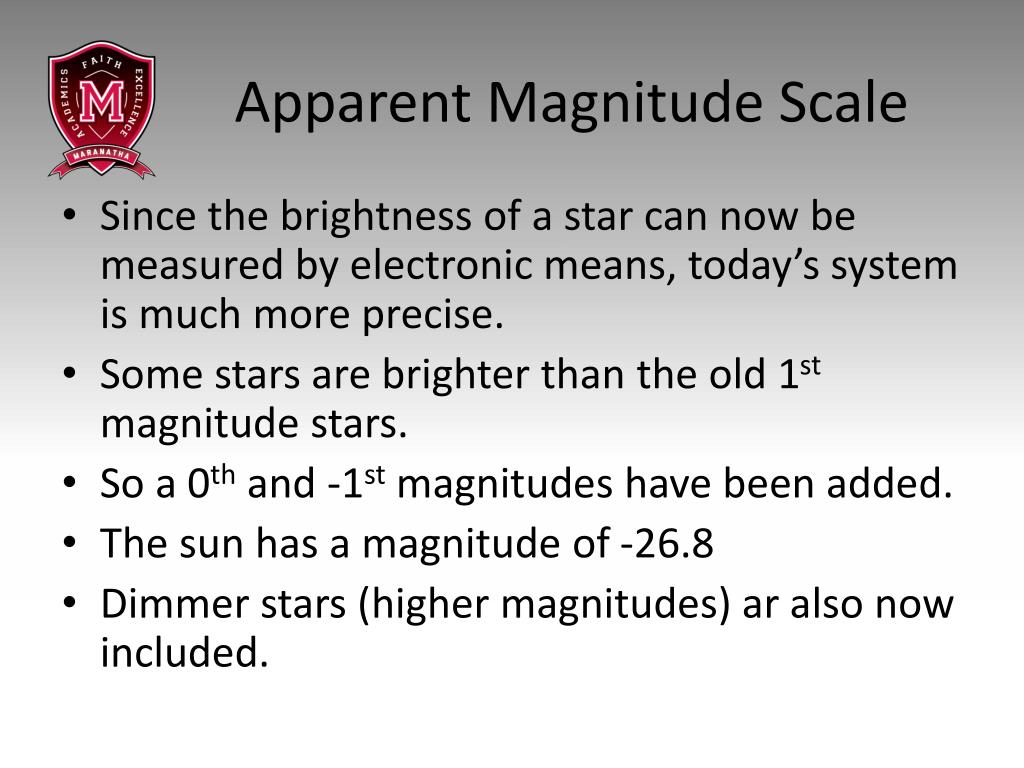

  4. Apparent Magnitude Scale • Since the brightness of a star can now be measured by electronic means, today’s system is much more precise. • Some stars are brighter than the old 1st magnitude stars. • So a 0th and -1st magnitudes have been added. • The sun has a magnitude of -26.8 • Dimmer stars (higher magnitudes) ar also now included.

  5. Note!!! • The BRIGHTER the star, the LOWER the magnitude number.

  6. Calculations with Magnitudes • A magnitude difference of 5 means a difference in brightness of exactly 100 times. • A magnitude 3 star is exactly 100 times brighter than a magnitude 8 star. • A magnitude difference of 1 is a brightness difference of 2.5 (actually 2.512).

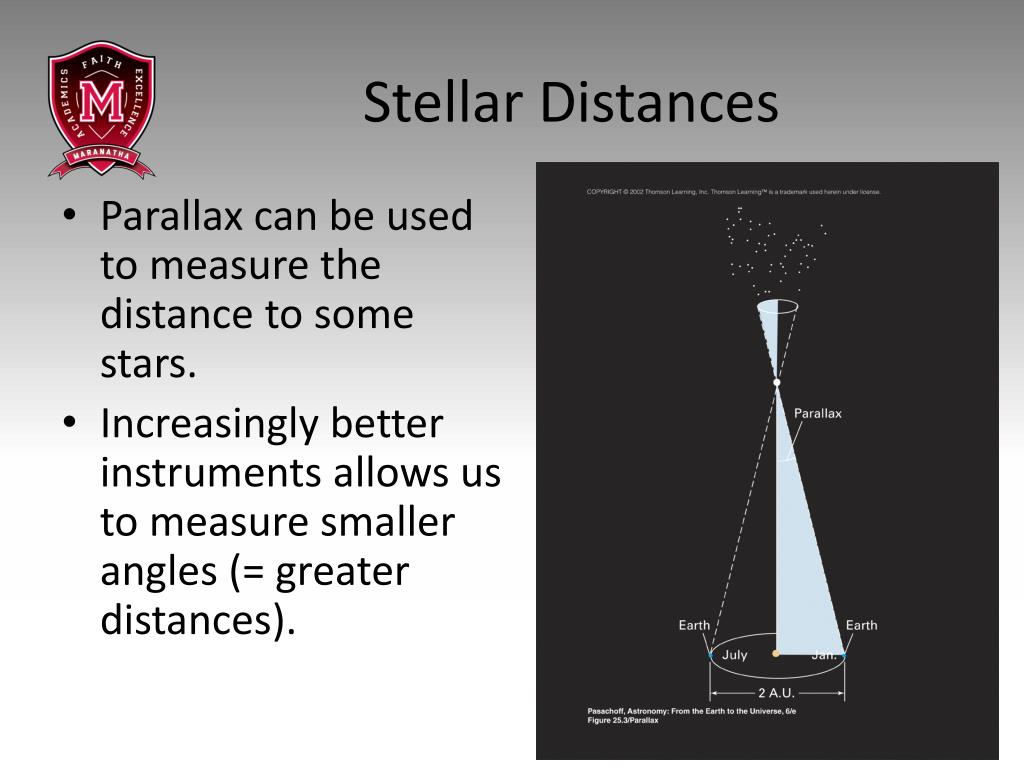

  7. Stellar Distances • Parallax can be used to measure the distance to some stars. • Increasingly better instruments allows us to measure smaller angles (= greater distances).

  8. Parsecs • A parsec is the distance from the Earth that a star would be if it subtends an angle of parallax of one arc second using a baseline of 1 AU. • 1 parsec = 3.26 light years • Both of these are units of distance • One light year is about 6 trillion miles.

  9. Hipparcos • In 1989 the European space agency launched a satellite to measure the parallax of thousands of stars. • Accuracy was 1-2 milliarcseconds. • Result is distances accurate to within 10% for stars within 300 ly.

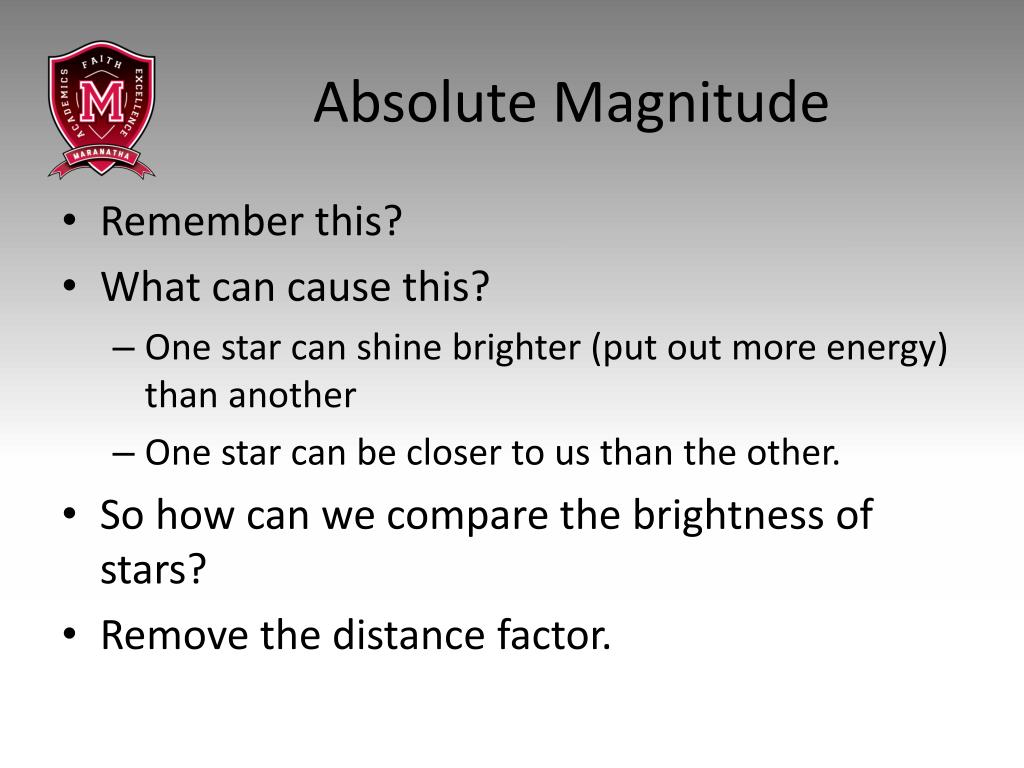

  10. Absolute Magnitude • Remember this? • What can cause this? • One star can shine brighter (put out more energy) than another • One star can be closer to us than the other. • So how can we compare the brightness of stars? • Remove the distance factor.

  11. Inverse Square Law • As the distance from a light source increases, it is spread out further making it dimmer. • At n times the distance, it is spread out n2 times. This makes it times as bright.

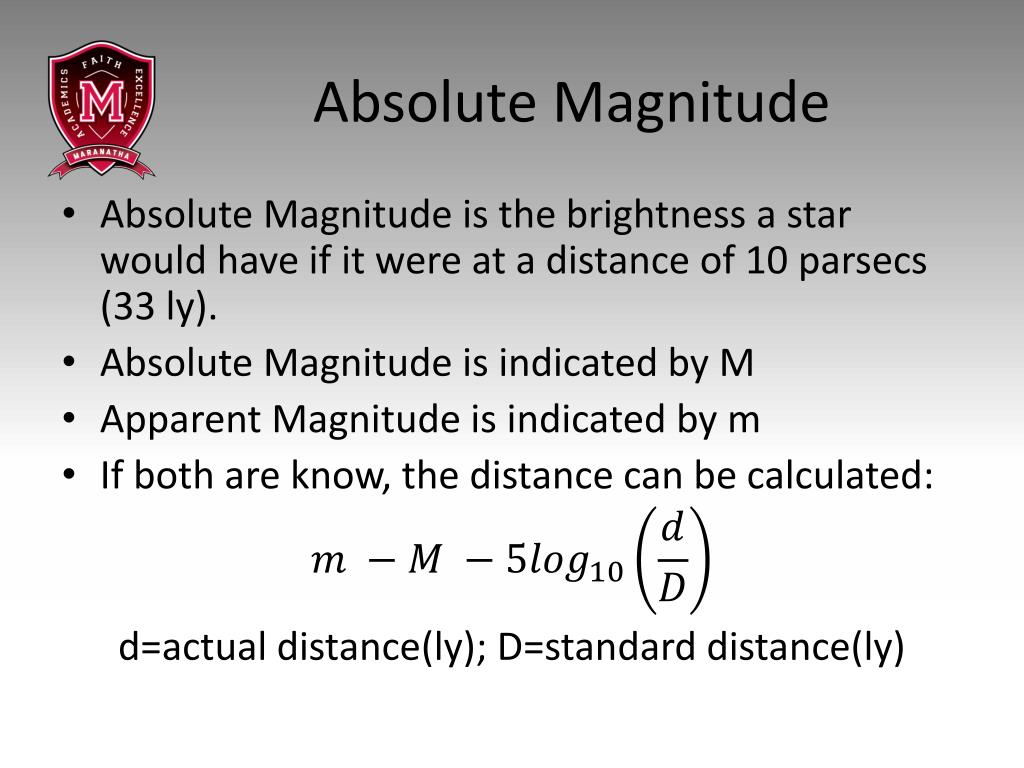

  12. Absolute Magnitude • Absolute Magnitude is the brightness a star would have if it were at a distance of 10 parsecs (33 ly). • Absolute Magnitude is indicated by M • Apparent Magnitude is indicated by m • If both are know, the distance can be calculated: d=actual distance(ly); D=standard distance(ly)

  13. Hertzsprung-Russell Diagram • When the absolute magnitude of stars is graphed vs. the spectral type, an interesting pattern is seen. • Hottest stars are to the left. • Brightest stars are near the top. • Several groups are apparent.

  14. Hertzsprung-Russell Diagram http://astronomyonline.org/OurGalaxy/Images/hrdiagram.jpg

  15. Hertzsprung-Russell Diagram • The majority of stars fall along a diagonal from top left to bottom right called the main sequence or dwarf stars. • Two groups above the main sequence are the giants and supergiants. • The white dwarfs are below and to the left of the main sequence stars.

  16. The Doppler Effect • The Doppler Effect is an apparent change in the frequency (color) of light waves due to the motion of the observer or the source. • Doppler effect is a result of radial motion – motion towards or away from each other.

  17. The Doppler Effect

  18. Stellar Motion • To find the space velocity of a star, you need to know the distance to the star, the proper motion of the star, and the radial velocity of the star. • The space velocity can be calculated with simple trigonometry.
