  1. Chapter Overview • Network Operating Systems • Network Clients • Directory Services

  2. Microsoft Windows for Workgroups Microsoft Windows 95 Microsoft Windows 98 Microsoft Windows Me Windows Operating Systems • Microsoft Windows NT • Microsoft Windows 2000 • Microsoft Windows XP Professional • Microsoft Windows .NET Server

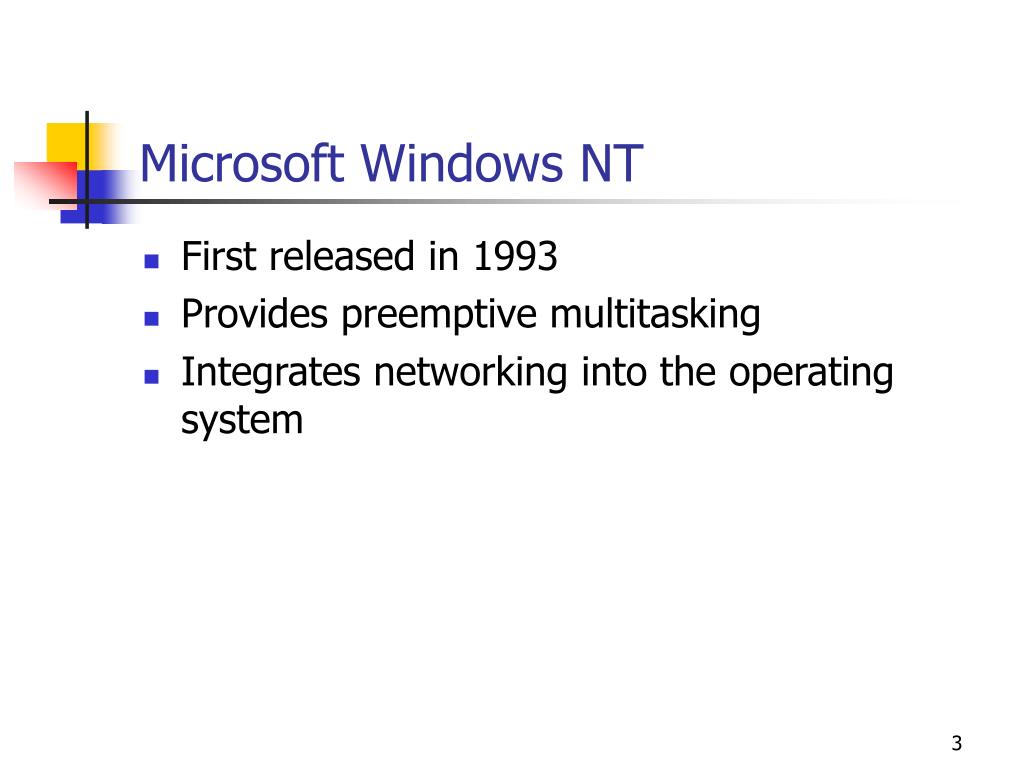

  3. Microsoft Windows NT • First released in 1993 • Provides preemptive multitasking • Integrates networking into the operating system

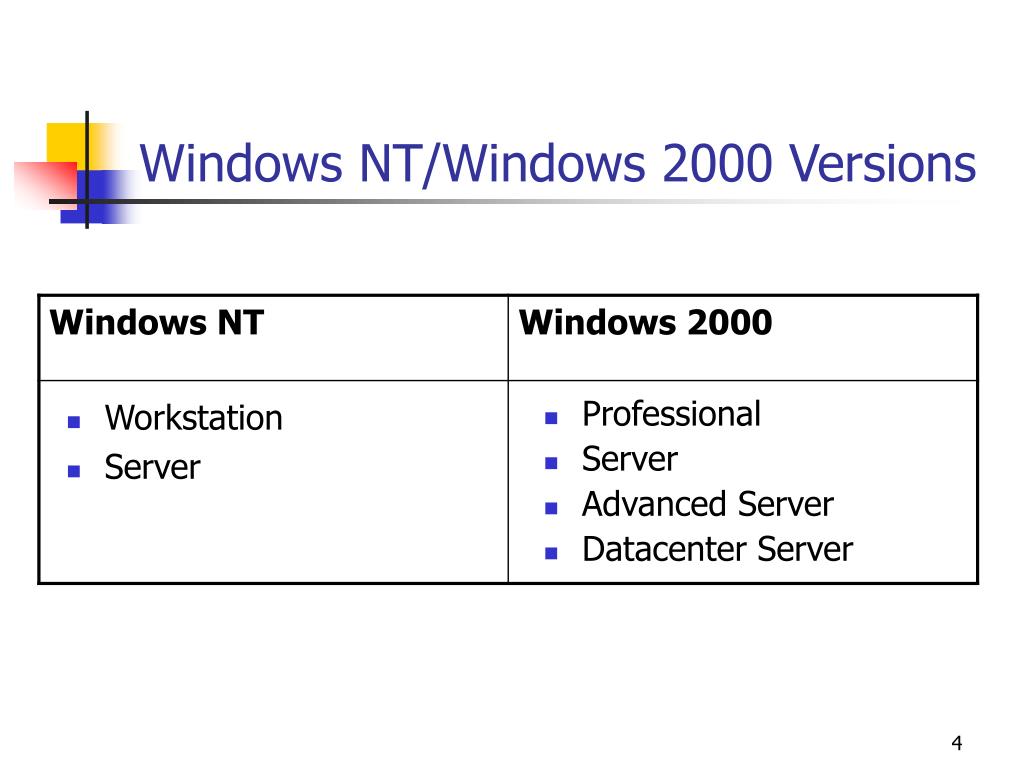

  4. Workstation Server Windows NT/Windows 2000 Versions • Professional • Server • Advanced Server • Datacenter Server

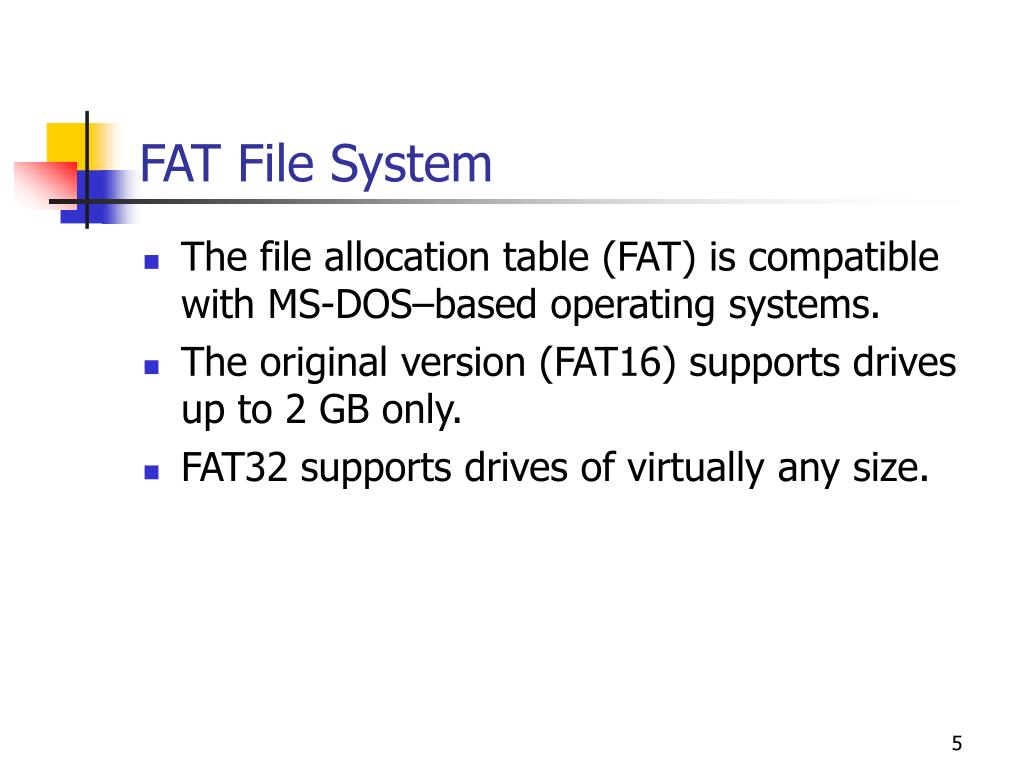

  5. FAT File System • The file allocation table (FAT) is compatible with MS-DOS–based operating systems. • The original version (FAT16) supports drives up to 2 GB only. • FAT32 supports drives of virtually any size.

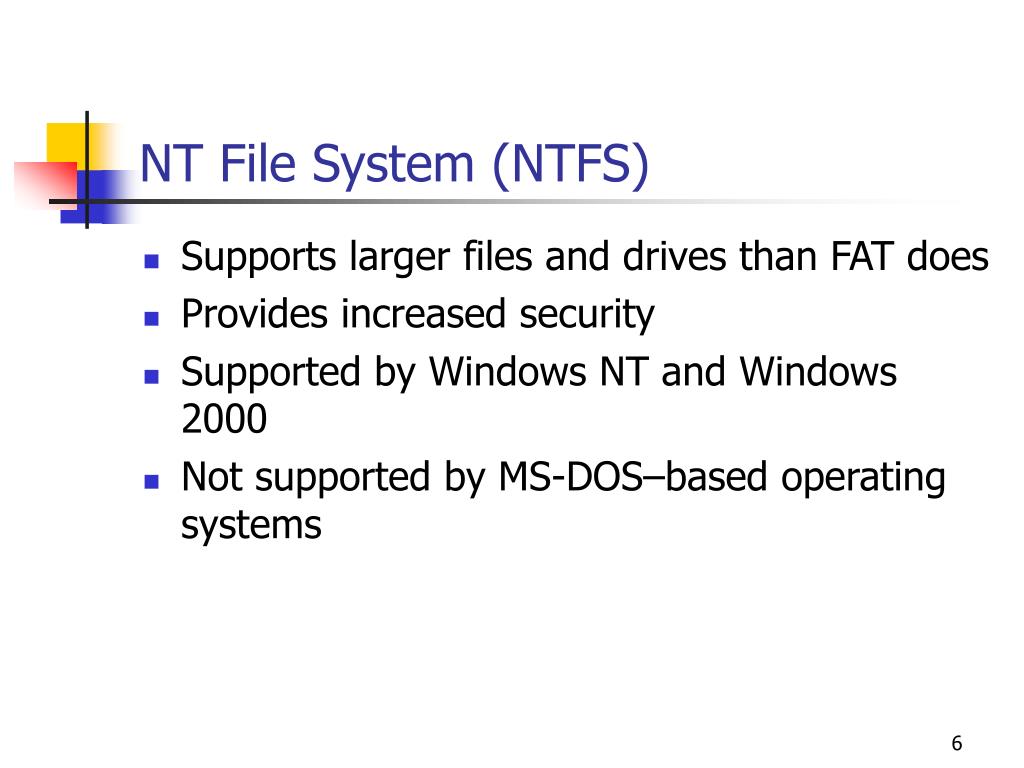

  6. NT File System (NTFS) • Supports larger files and drives than FAT does • Provides increased security • Supported by Windows NT and Windows 2000 • Not supported by MS-DOS–based operating systems

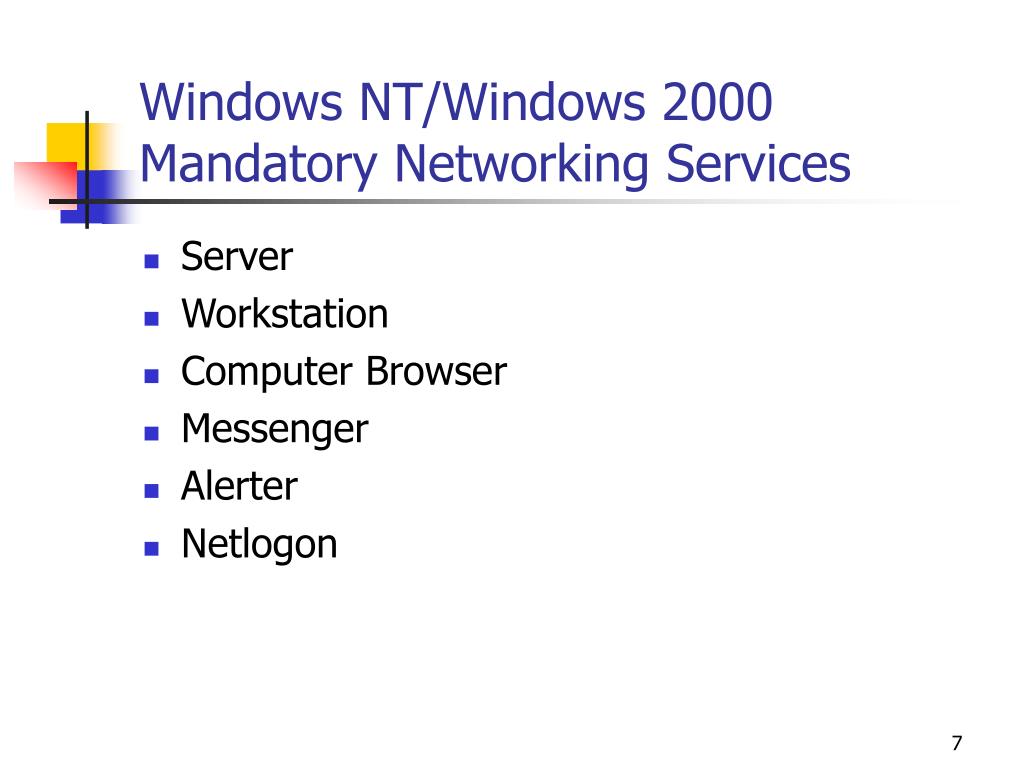

  7. Windows NT/Windows 2000 Mandatory Networking Services • Server • Workstation • Computer Browser • Messenger • Alerter • Netlogon

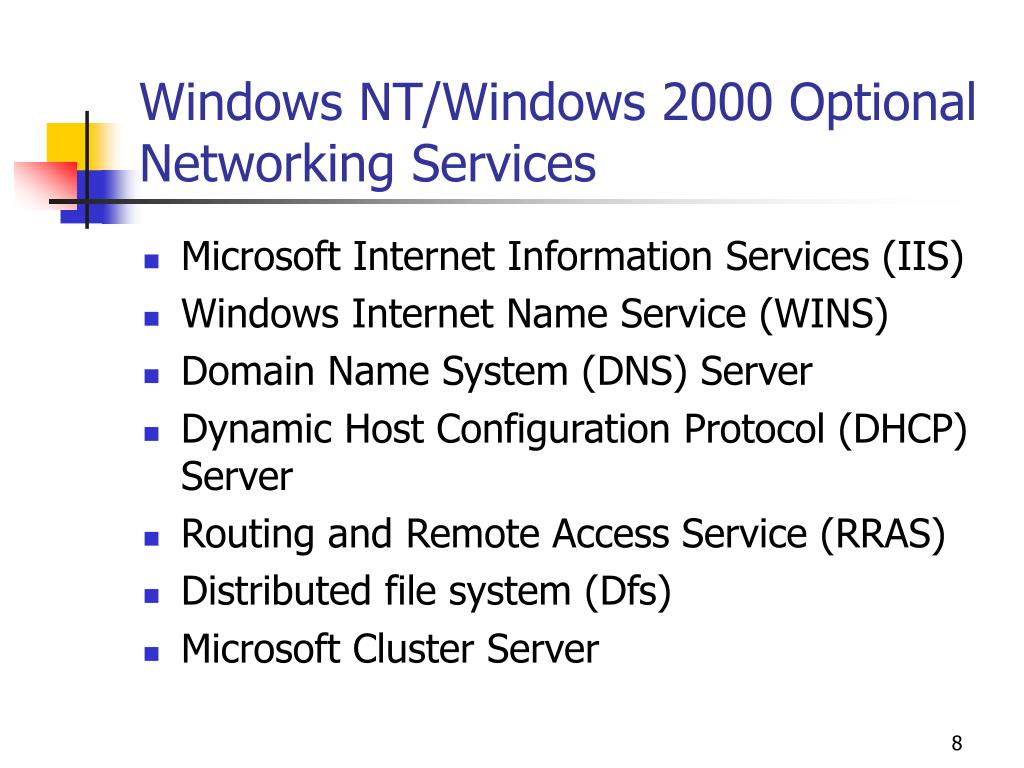

  8. Windows NT/Windows 2000 Optional Networking Services • Microsoft Internet Information Services (IIS) • Windows Internet Name Service (WINS) • Domain Name System (DNS) Server • Dynamic Host Configuration Protocol (DHCP) Server • Routing and Remote Access Service (RRAS) • Distributed file system (Dfs) • Microsoft Cluster Server

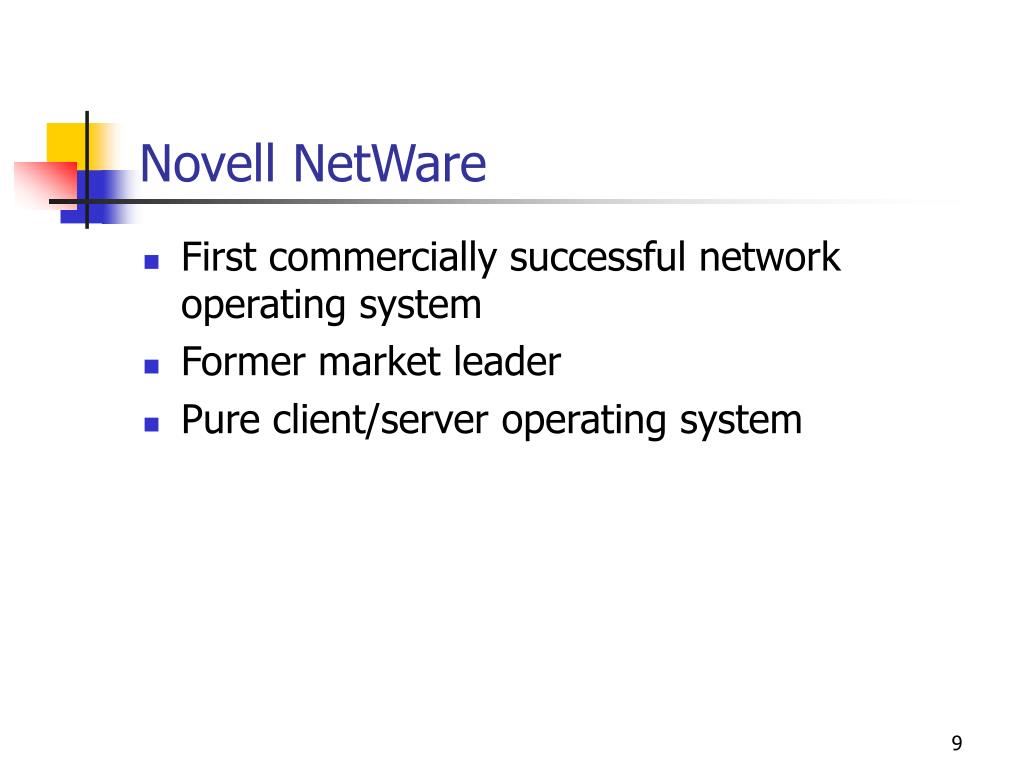

  9. Novell NetWare • First commercially successful network operating system • Former market leader • Pure client/server operating system

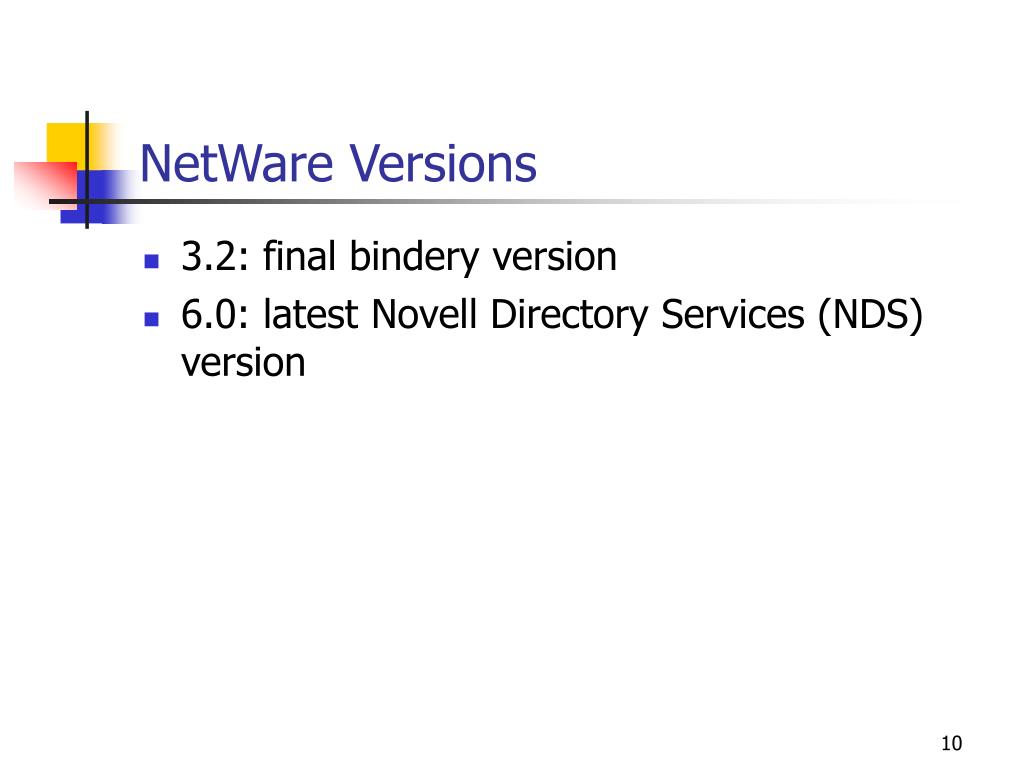

  10. NetWare Versions • 3.2: final bindery version • 6.0: latest Novell Directory Services (NDS) version

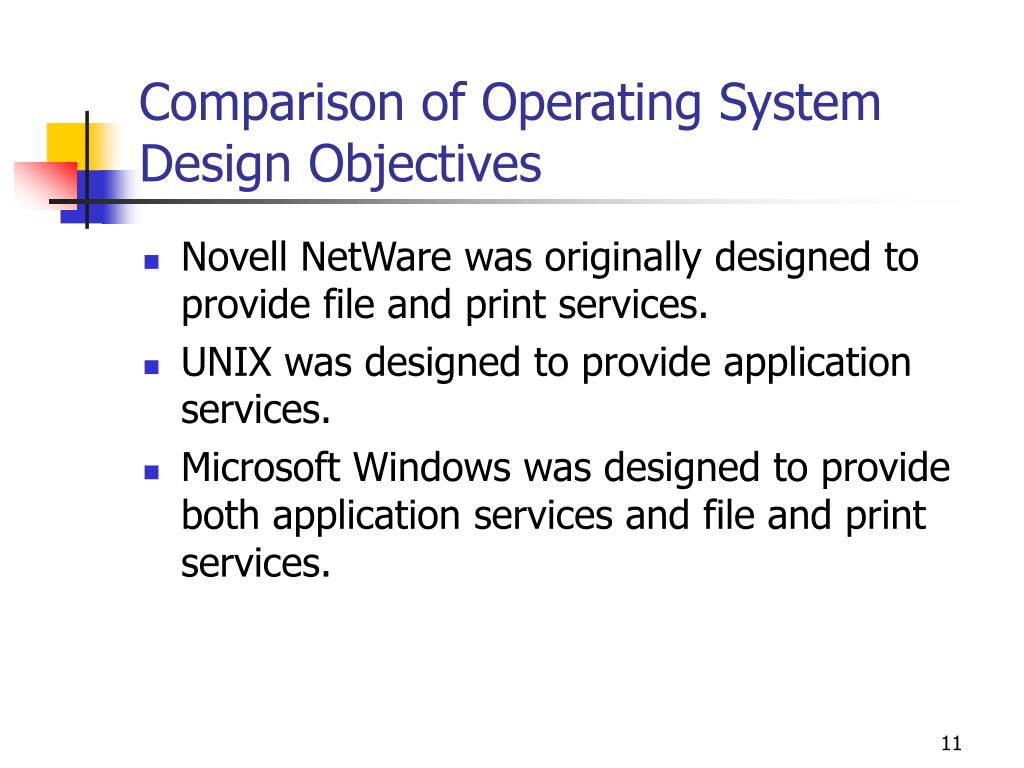

  11. Comparison of Operating System Design Objectives • Novell NetWare was originally designed to provide file and print services. • UNIX was designed to provide application services. • Microsoft Windows was designed to provide both application services and file and print services.

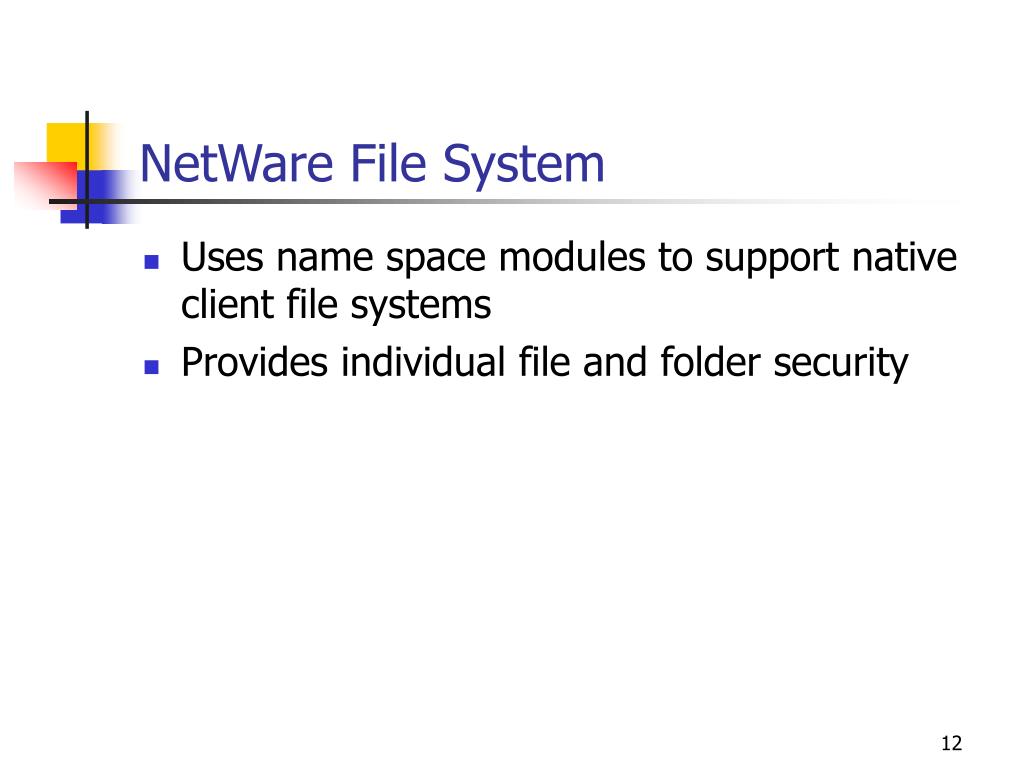

  12. NetWare File System • Uses name space modules to support native client file systems • Provides individual file and folder security

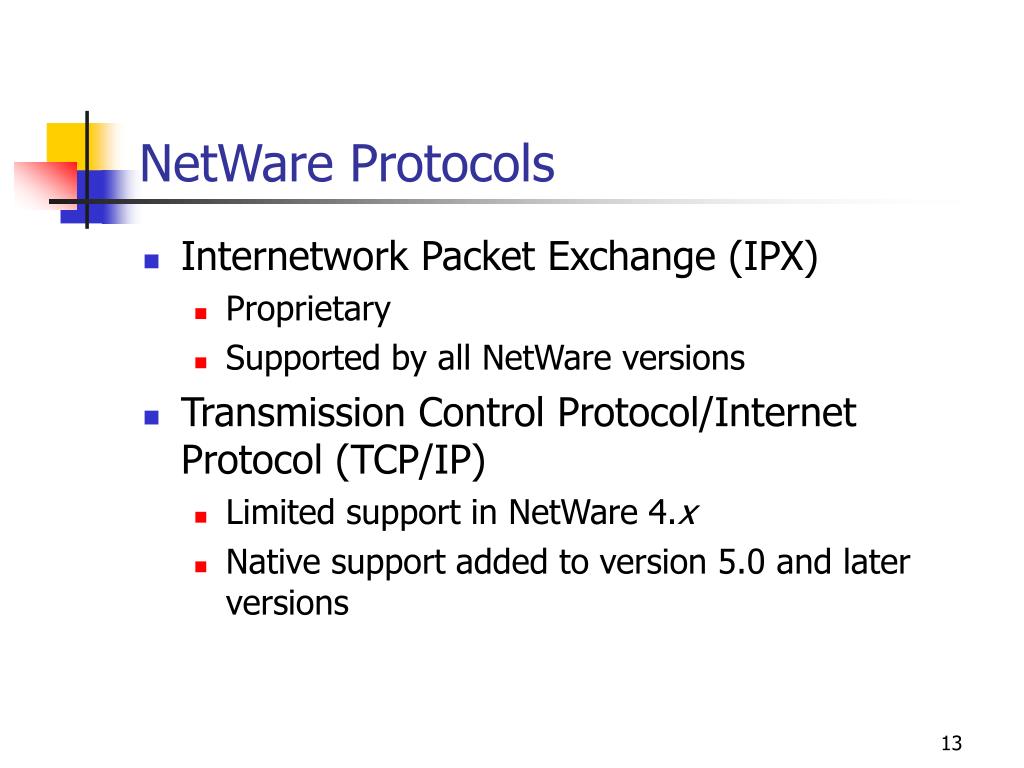

  13. NetWare Protocols • Internetwork Packet Exchange (IPX) • Proprietary • Supported by all NetWare versions • Transmission Control Protocol/Internet Protocol (TCP/IP) • Limited support in NetWare 4.x • Native support added to version 5.0and later versions

  14. UNIX Variants • UNIX System V • Berkeley Software Distribution (BSD) UNIX • Sun Solaris • Linux • Hardware-specific UNIX variants

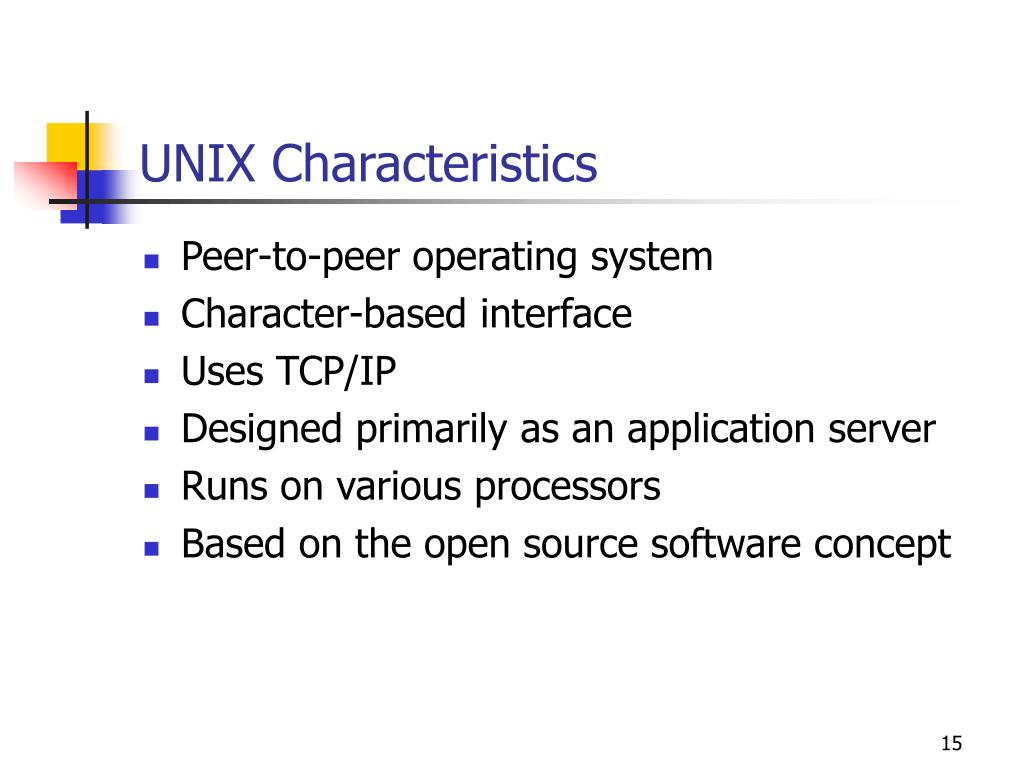

  15. UNIX Characteristics • Peer-to-peer operating system • Character-based interface • Uses TCP/IP • Designed primarily as an application server • Runs on various processors • Based on the open source software concept

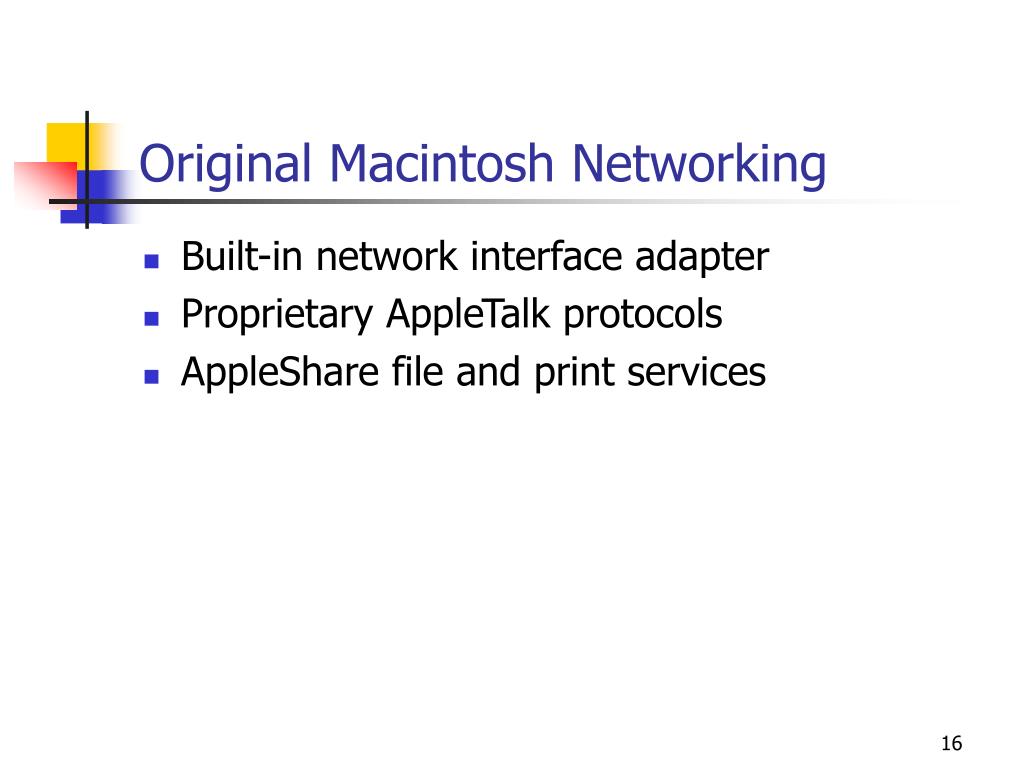

  16. Original Macintosh Networking • Built-in network interface adapter • Proprietary AppleTalk protocols • AppleShare file and print services

  17. Current Macintosh Networking • Uses EtherTalk and TokenTalk • Uses TCP/IP • Usually used on all-Macintosh networks

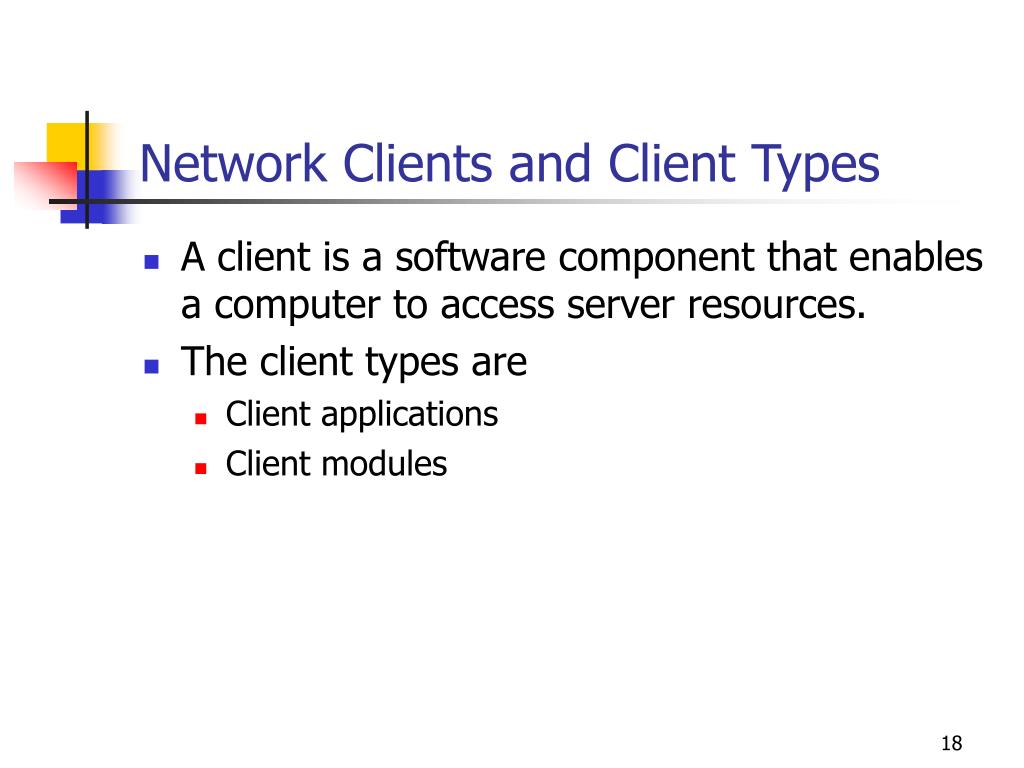

  18. Network Clients and Client Types • A client is a software component that enables a computer to access server resources. • The client types are • Client applications • Client modules

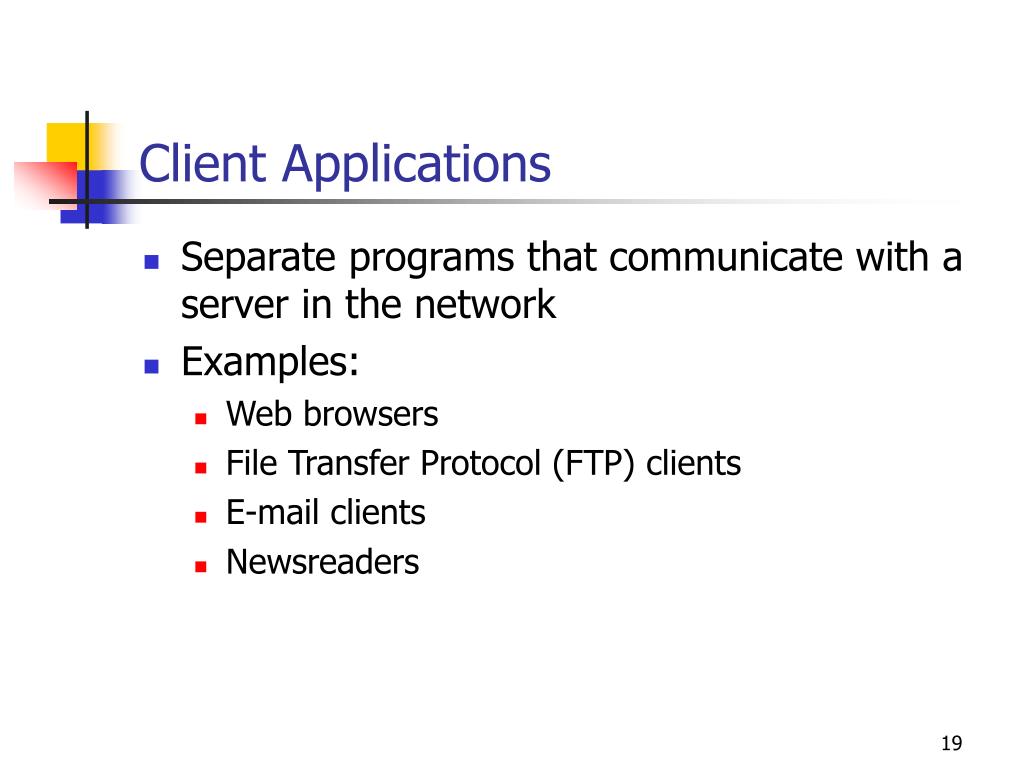

  19. Client Applications • Separate programs that communicate with a server in the network • Examples: • Web browsers • File Transfer Protocol (FTP) clients • E-mail clients • Newsreaders

  20. Client Modules • Integrated into an operating system • Provide other applications with access to server resources

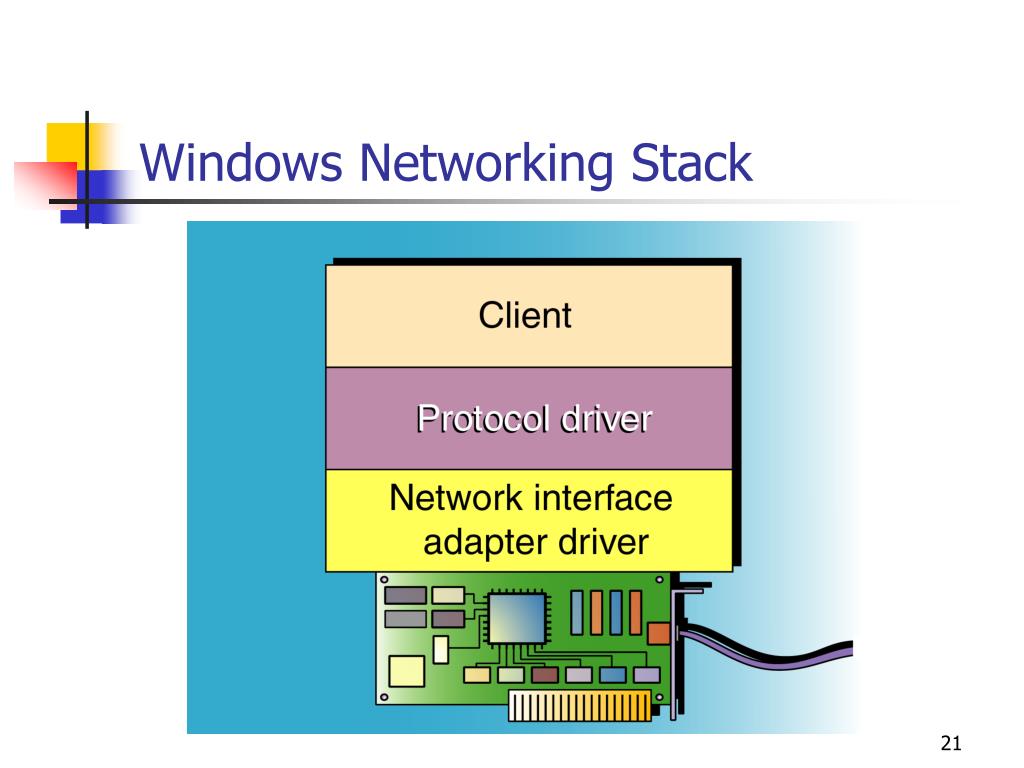

  21. Windows Networking Stack

  22. Redirectors • A redirector is an operating system component that forwards resource requests generated by an application to a network server. • Windows can run multiple client redirectors simultaneously. • Multiple redirectors can use different protocols.

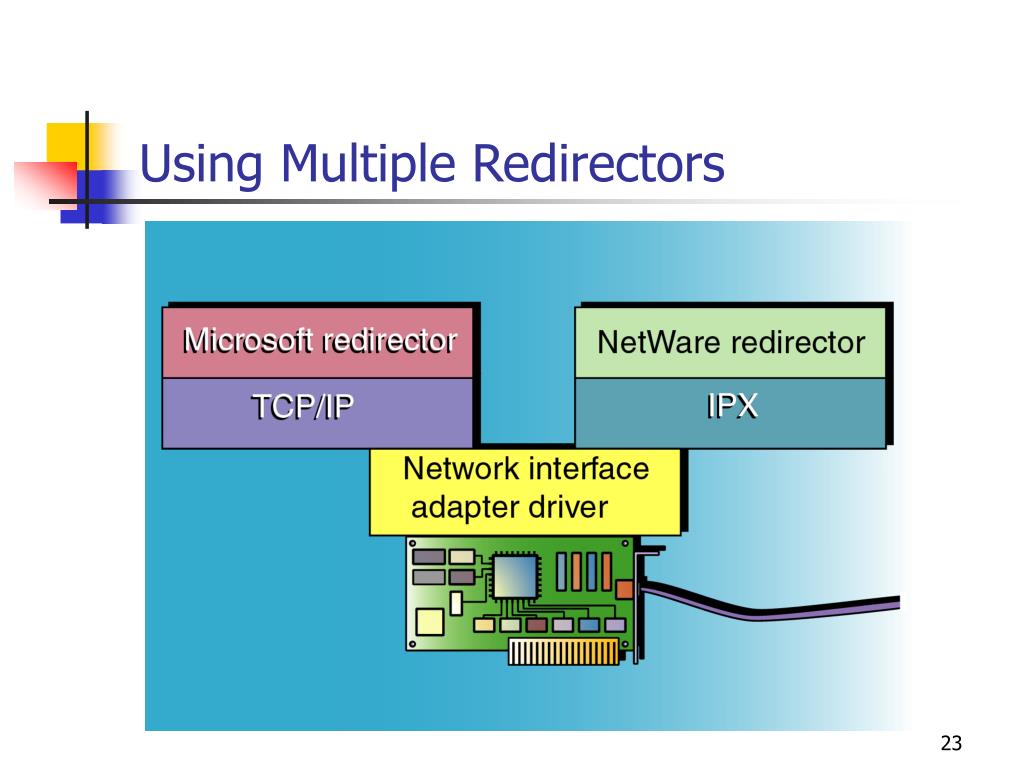

  23. Using Multiple Redirectors

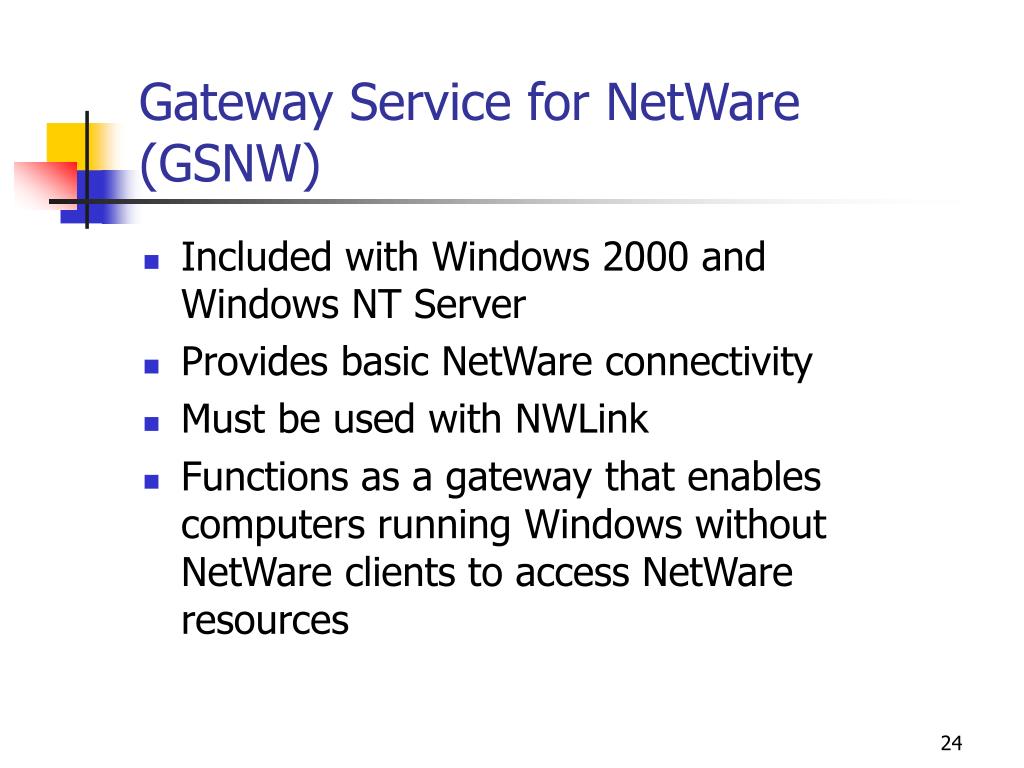

  24. Gateway Service for NetWare (GSNW) • Included with Windows 2000 and Windows NT Server • Provides basic NetWare connectivity • Must be used with NWLink • Functions as a gateway that enables computers running Windows without NetWare clients to access NetWare resources

  25. Novell Clients for Windows • Included with Novell NetWare • Offers the following versions: • Novell Client for DOS/Windows • Novell Client for Windows 95/Windows 98/Windows Me • Novell Client for Windows NT/Windows 2000

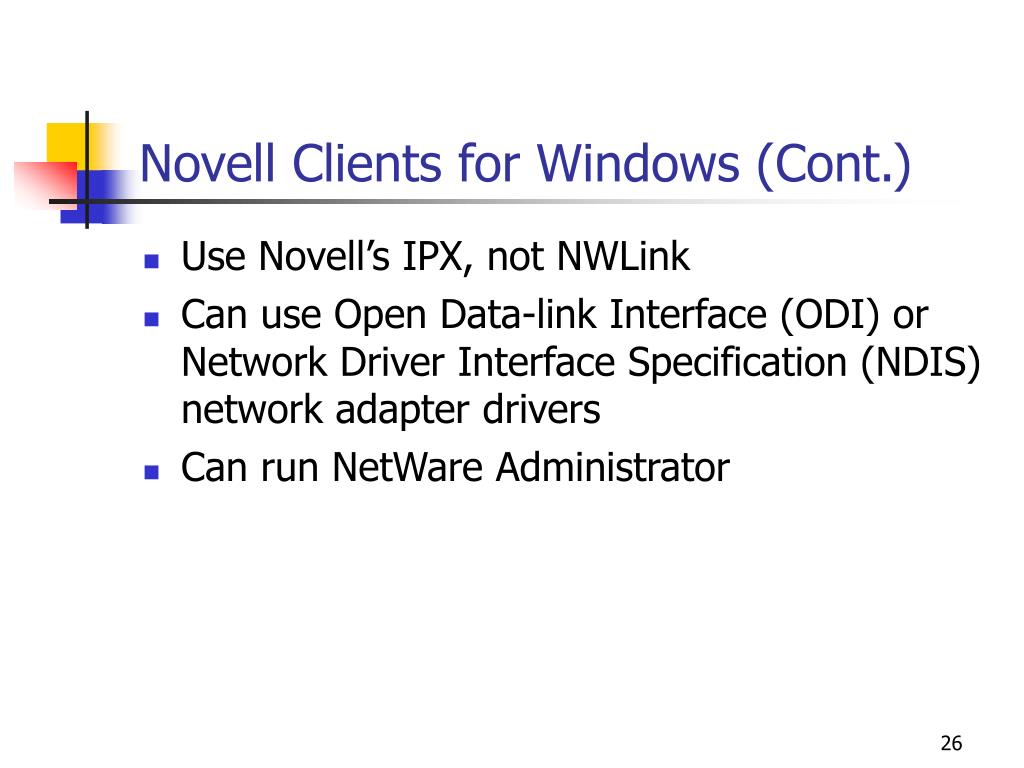

  26. Novell Clients for Windows (Cont.) • Use Novell’s IPX, not NWLink • Can use Open Data-link Interface (ODI) or Network Driver Interface Specification (NDIS) network adapter drivers • Can run NetWare Administrator

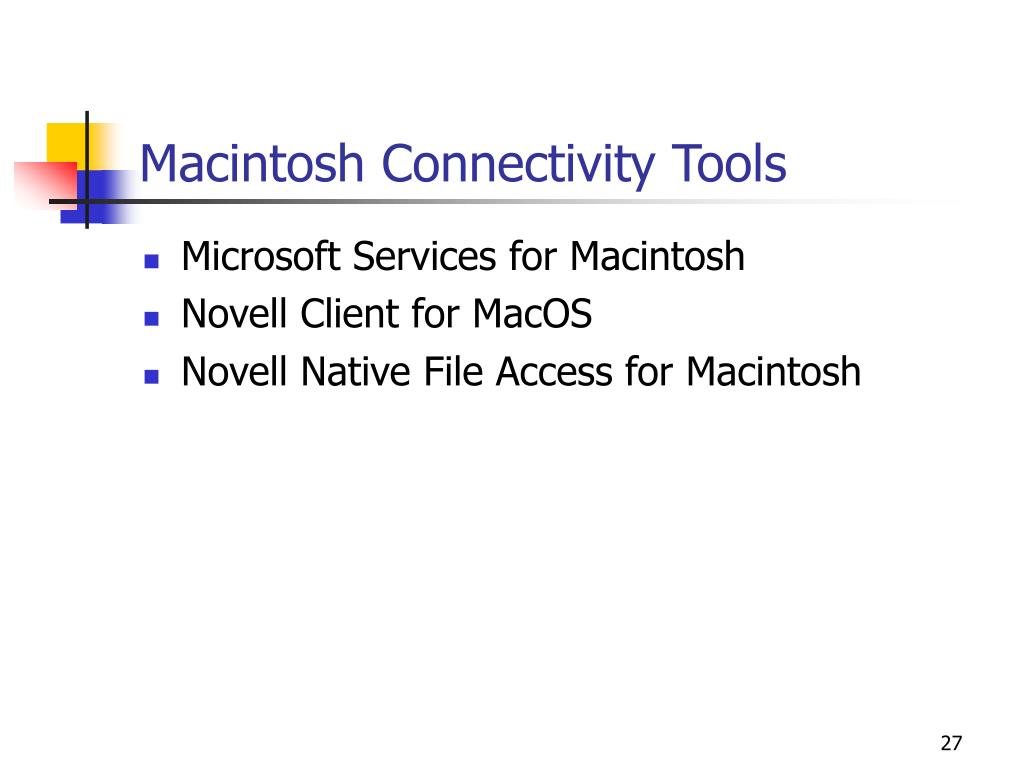

  27. Macintosh Connectivity Tools • Microsoft Services for Macintosh • Novell Client for MacOS • Novell Native File Access for Macintosh

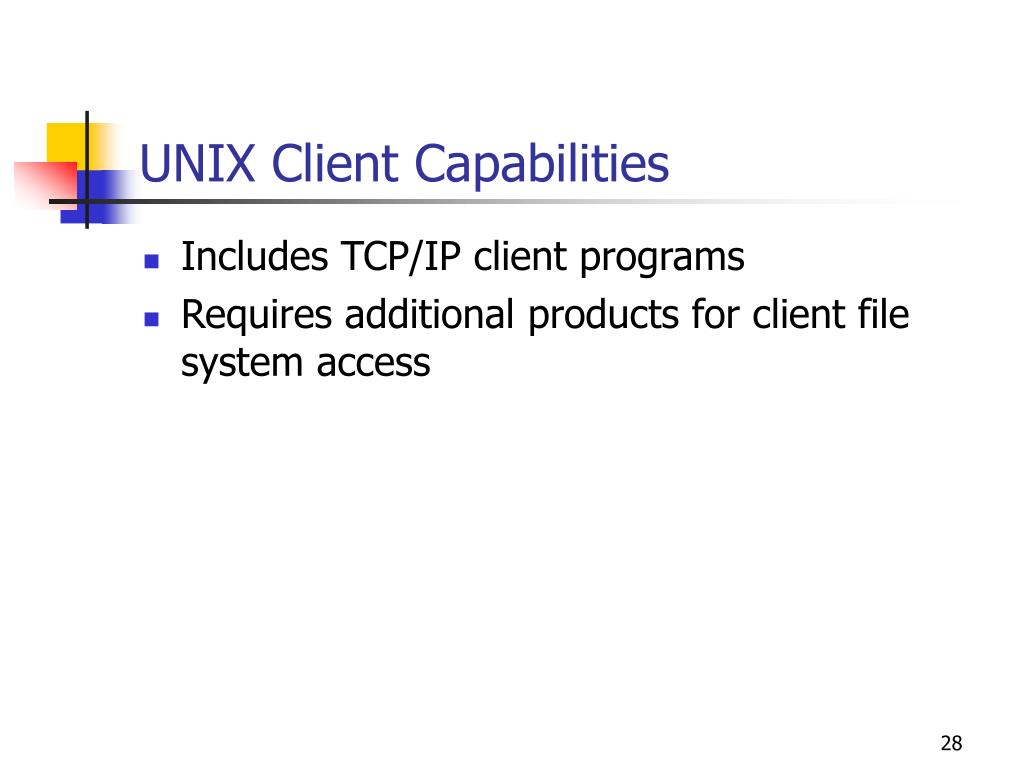

  28. UNIX Client Capabilities • Includes TCP/IP client programs • Requires additional products for client file system access

  29. Directory Service Types • Flat file • Hierarchical

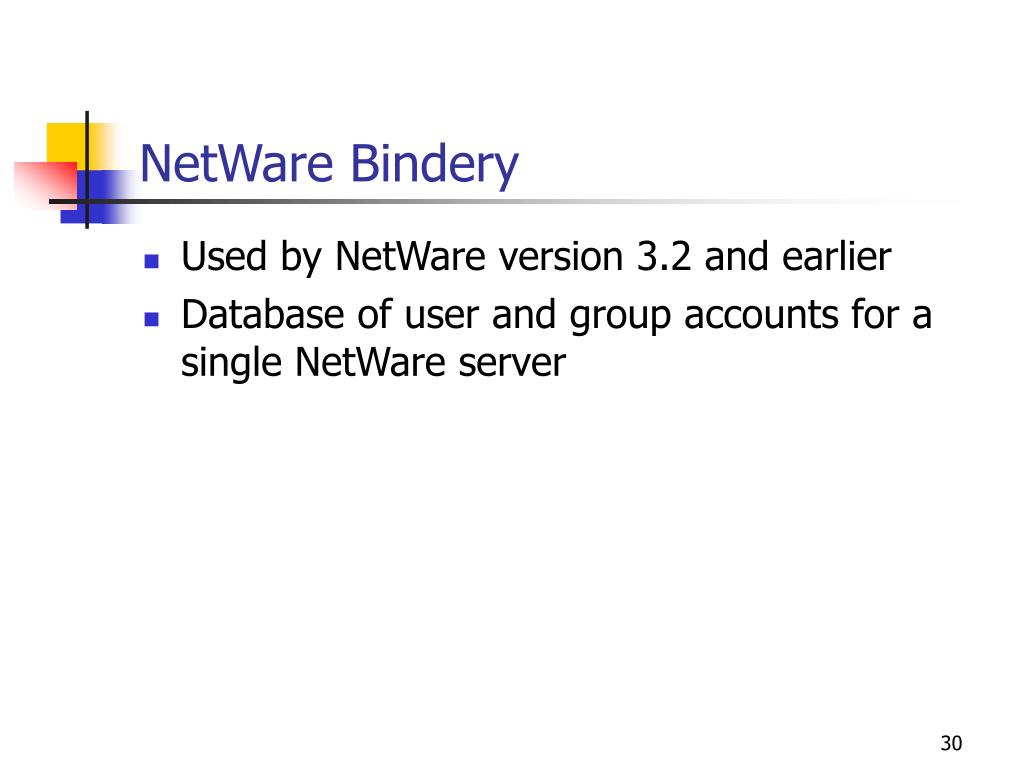

  30. NetWare Bindery • Used by NetWare version 3.2 and earlier • Database of user and group accounts for a single NetWare server

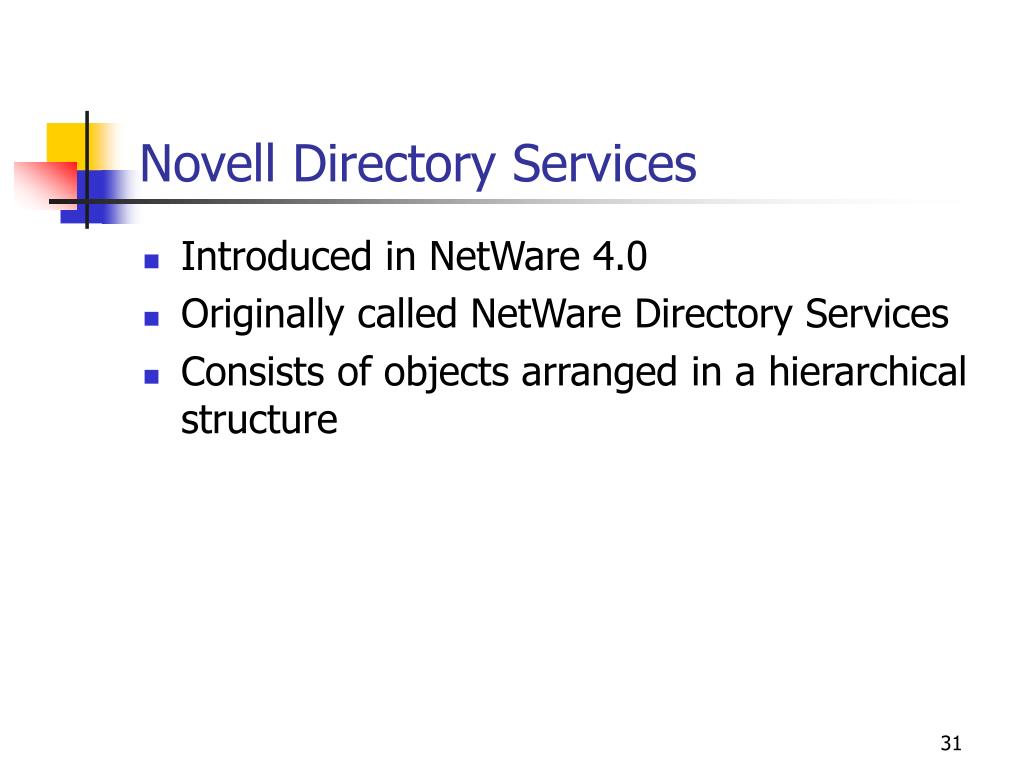

  31. Novell Directory Services • Introduced in NetWare 4.0 • Originally called NetWare Directory Services • Consists of objects arranged in a hierarchical structure

  32. NDS Hierarchy

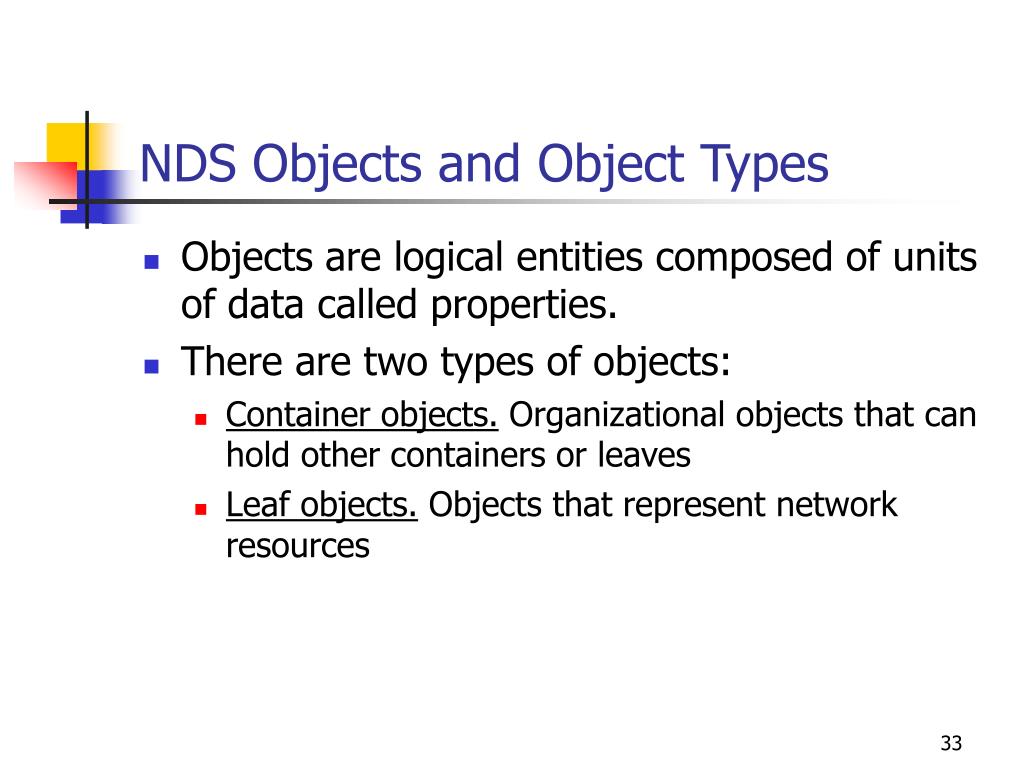

  33. NDS Objects and Object Types • Objects are logical entities composed of units of data called properties. • There are two types of objects: • Container objects. Organizational objects that can hold other containers or leaves • Leaf objects. Objects that represent network resources

  34. Windows NT Domains • Flat file directory database • Not server specific • Stored on domain controllers

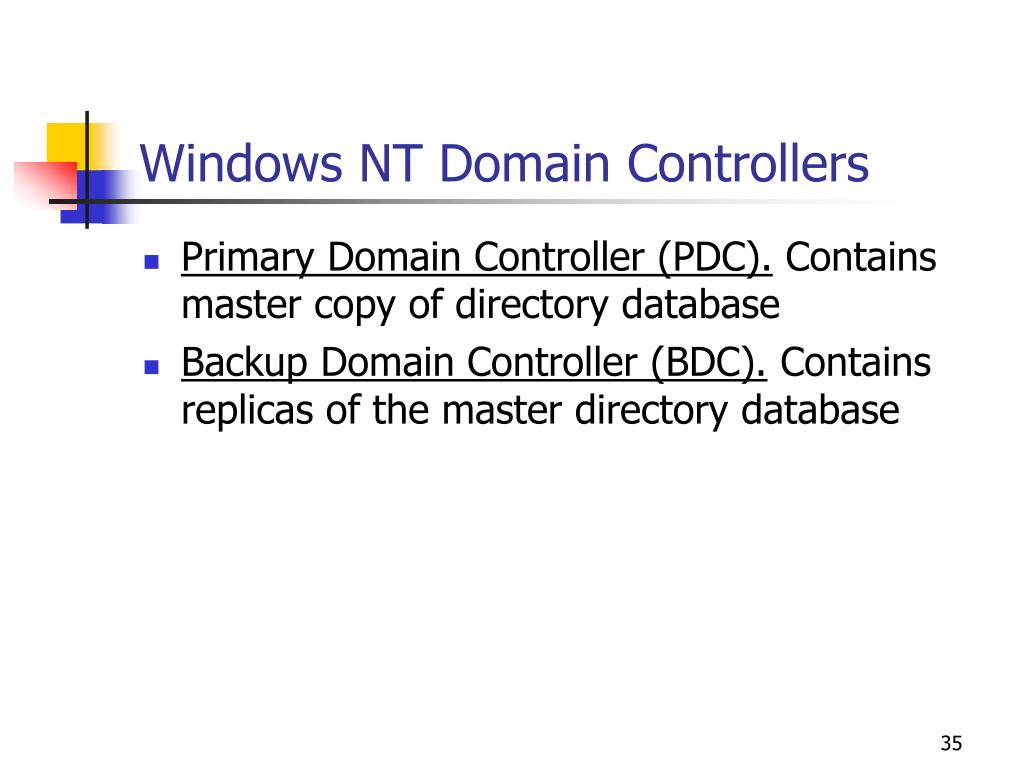

  35. Windows NT Domain Controllers • Primary Domain Controller (PDC). Contains master copy of directory database • Backup Domain Controller (BDC). Contains replicas of the master directory database

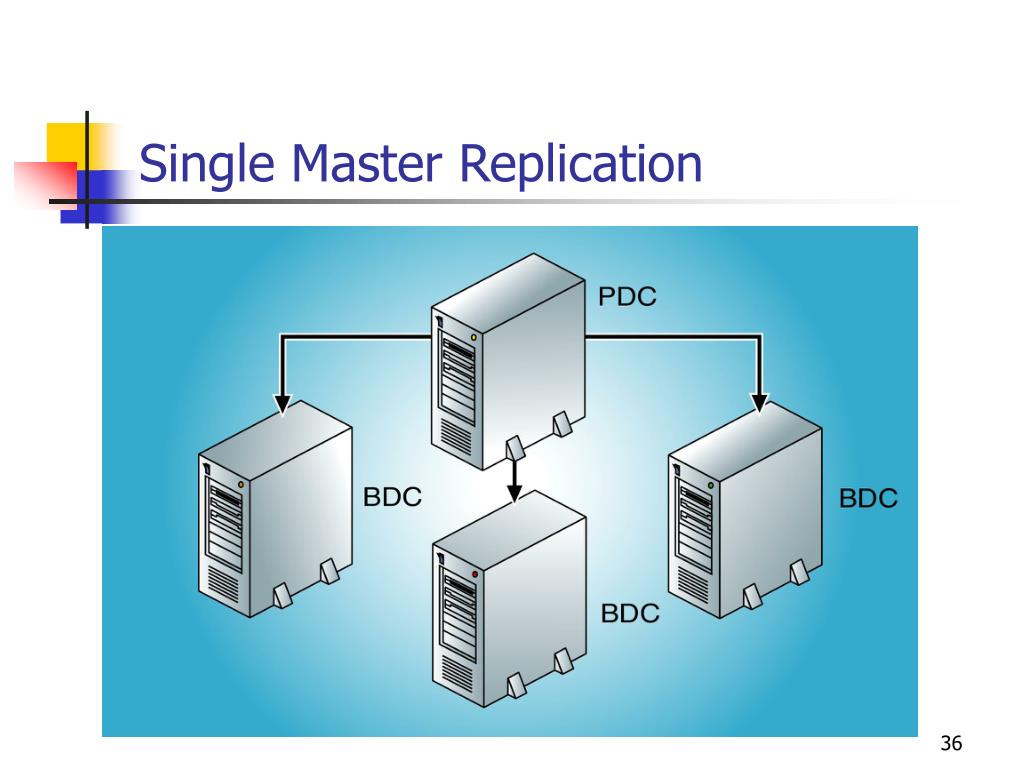

  36. Single Master Replication

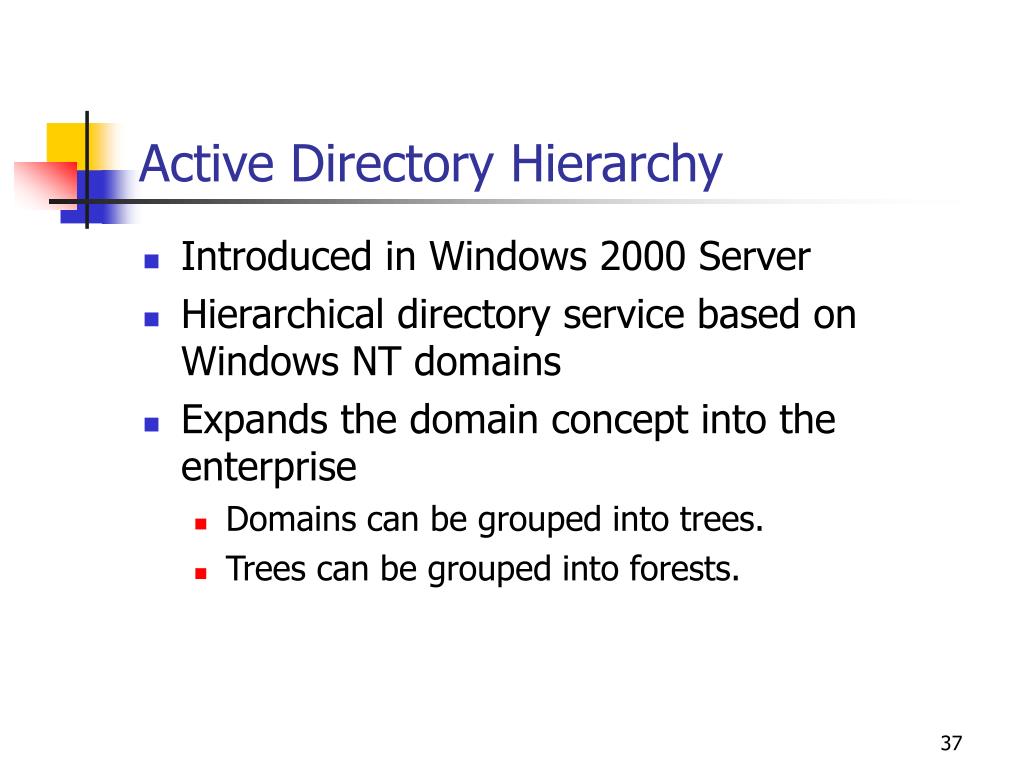

  37. Active Directory Hierarchy • Introduced in Windows 2000 Server • Hierarchical directory service based on Windows NT domains • Expands the domain concept into the enterprise • Domains can be grouped into trees. • Trees can be grouped into forests.

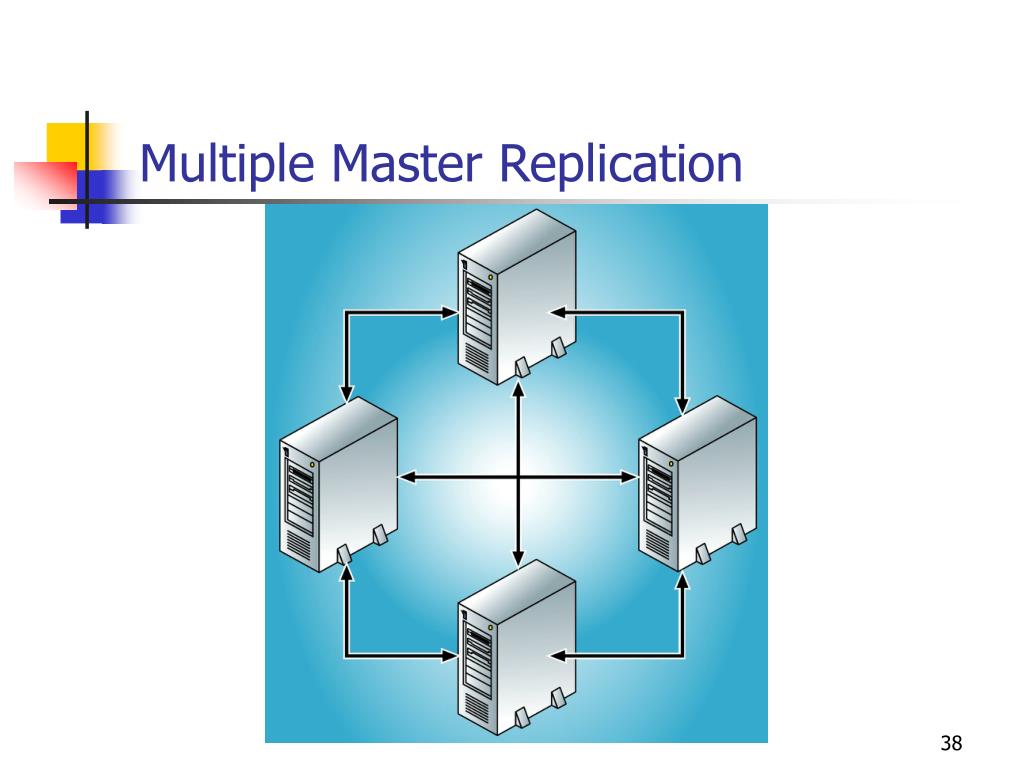

  38. Multiple Master Replication

  39. Chapter Summary • The Windows NT, Windows 2000, and UNIX operating systems include both server and client functionality. • Novell NetWare is strictly a client/server network operating system. • Windows NT and Windows 2000 were designed to provide application services and file and print services. • A client is a software component that enables a computer to access server resources. • Client types include client applications and client modules. • A directory service is a centralized database of user accounts and other information that administrators use to control access to shared network resources. • Active Directory replicates changes to the data on any domain controller to all of the other domain controllers on the network.
