  1. Is There Light at the Ends of the Tunnel?Wireless Sensor Networks for Adaptive Lighting in Road Tunnels IPSN 2011 Sean

  2. Outline • Goal • Challenge • Contribution • System Architecture • Hardware & Software • Testbed • Evaluation • Conclusion

  3. Goal • WSN-based Close-loop adaptive lighting in road tunnel • Improve tunnel safety • Reduce power consumption • State-of-the-art solutions • Pre-set lighting based on date and time • Relying only on external sensor • Testbed evaluation • Real deployment • Project TRITon • 630m, two-way, two-lane tunnel

  4. Challenge • Peculiarities of Tunnels • harsh environment, relatively studied on WSN • Vehicular traffic • dirt and dust accumulation • Periodic tunnel cleaning • Limited deployment & debugging • Light variation • Need filtering • Better connectivity • Robustness • Packet collision o. Interference with WSN radio o. Occlusion &noise to light sensor direct sunlight Variation caused by vehicle

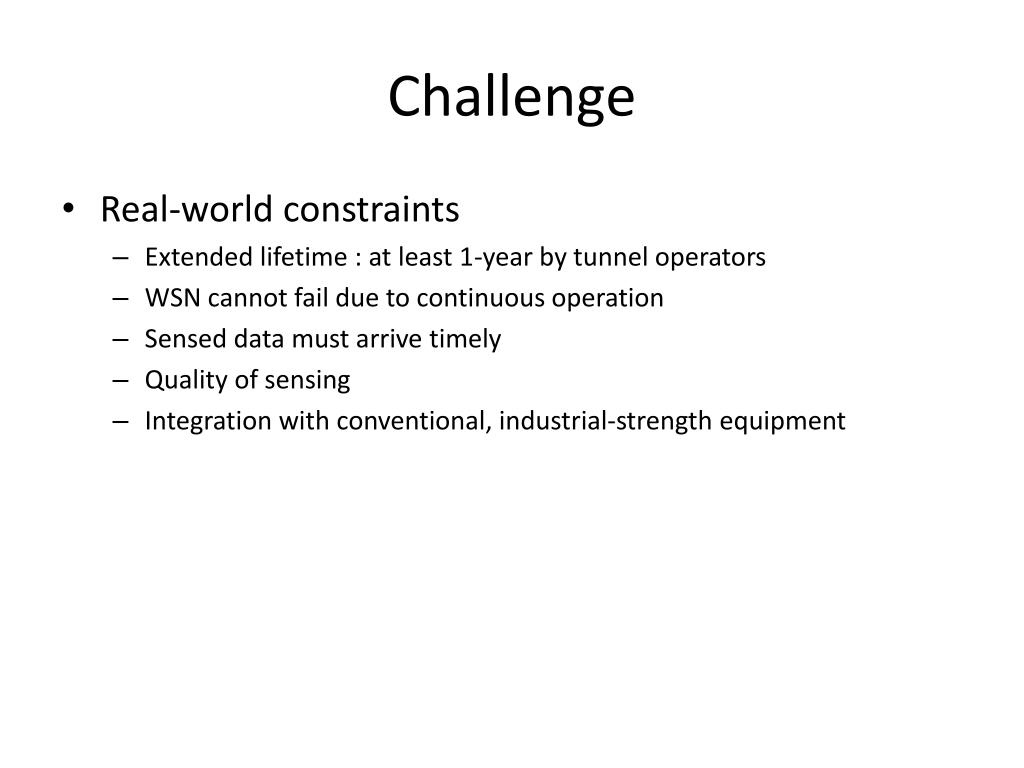

  5. Challenge • Real-world constraints • Extended lifetime : at least 1-year by tunnel operators • WSN cannot fail due to continuous operation • Sensed data must arrive timely • Quality of sensing • Integration with conventional, industrial-strength equipment

  6. Contribution • Verify WSN-based solution to adaptive lighting is feasible • Understand what extent the mainstream WSN technology can achieve • Real testbed implement • Gaining practical insight into tunnel scenario • Real-world lesson asset

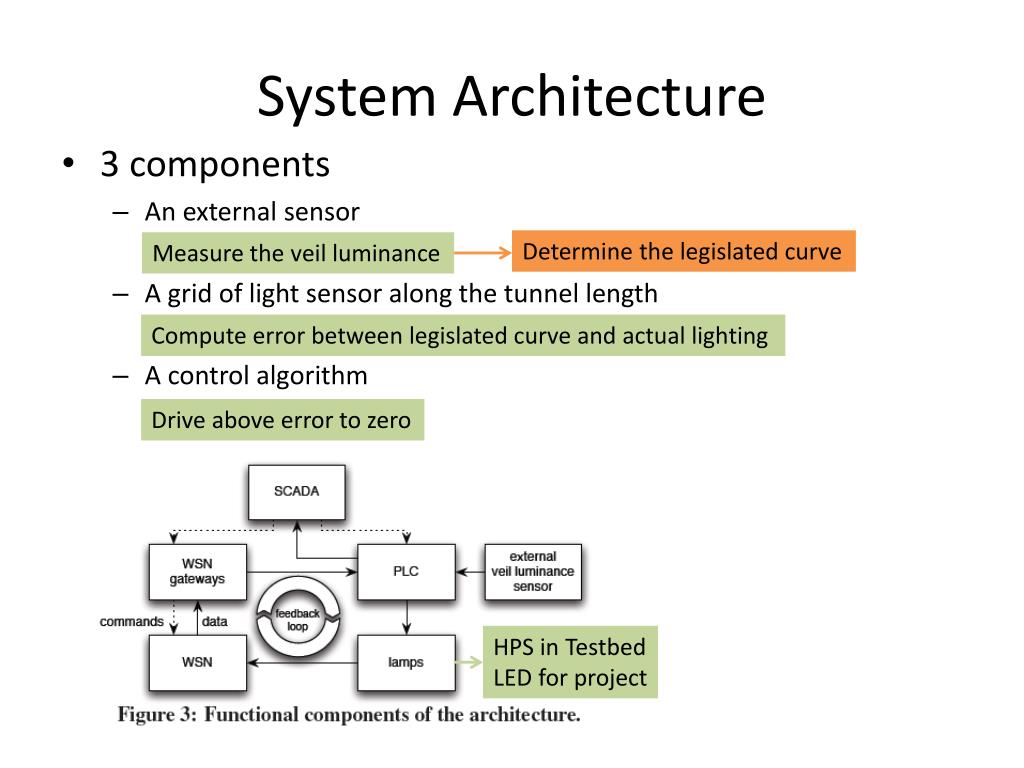

  7. System Architecture • 3 components • An external sensor • A grid of light sensor along the tunnel length • A control algorithm Determine the legislated curve Measure the veil luminance Compute error between legislated curve and actual lighting Drive above error to zero HPS in Testbed LED for project

  8. Hardware & Software • Collection tree • Use LQI as path cost • Periodically reconstructed every 3min • Light Sensing • Average 4 sensor value into S(i) • Average all S(i) into S(all) • if |S(all) – S(i)| differs from S(all) by 50%, discard it • Recompute S(all)

  9. Testbed • 40 nodes, 260m-long, two-way, two-lane tunnel • PLC relies only on first 15 node • 7-month experiments • More dense than TRITon • 44 nodes, 630m • Light sensor sample every 5s, PLC collects data every 30s

  10. Evaluation • Light adaptive effect • Loss rate • Timely delivery • Resilience to gateway failures • Retransmission cost • Expected lifetime

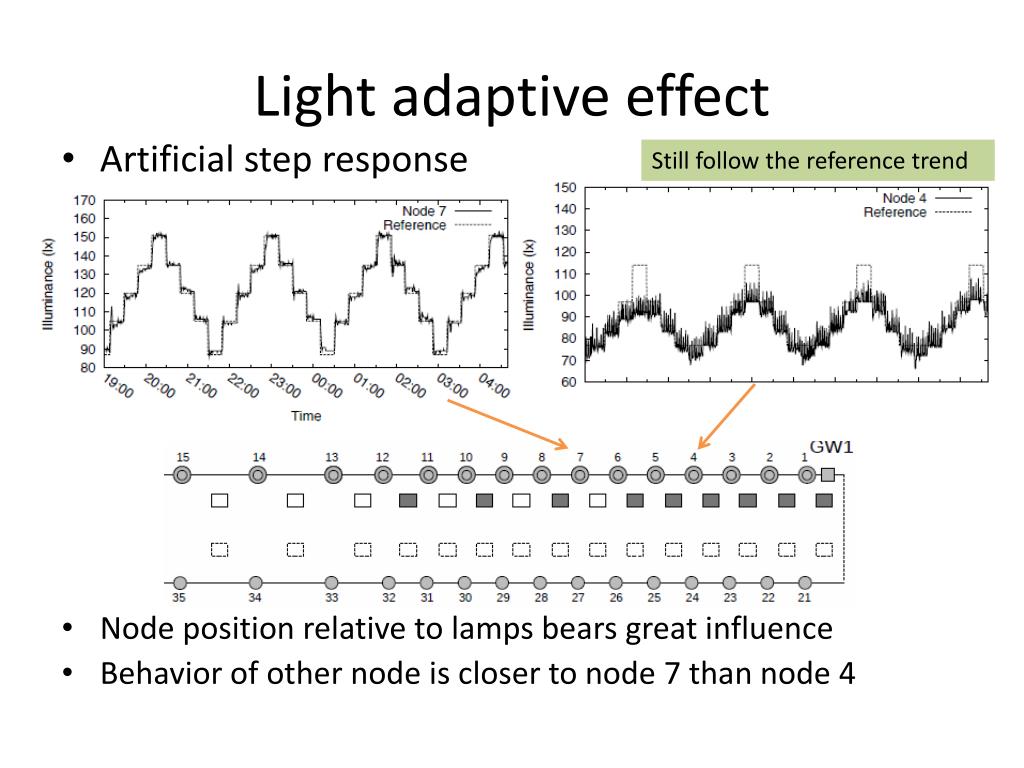

  11. Light adaptive effect Still follow the reference trend • Artificial step response • Node position relative to lamps bears great influence • Behavior of other node is closer to node 7 than node 4

  12. Light adaptive effect • Real-world reference Bound by the dynamic range of light actuator Only 150 lx maximum

  13. Loss rate Time spent transmitting and waiting for receiver to wake up becomes significant

  14. Timely delivery > 60s: PLC will loss more than one sample in its cycle 30~60s: PLC may loss a sample in its cycle

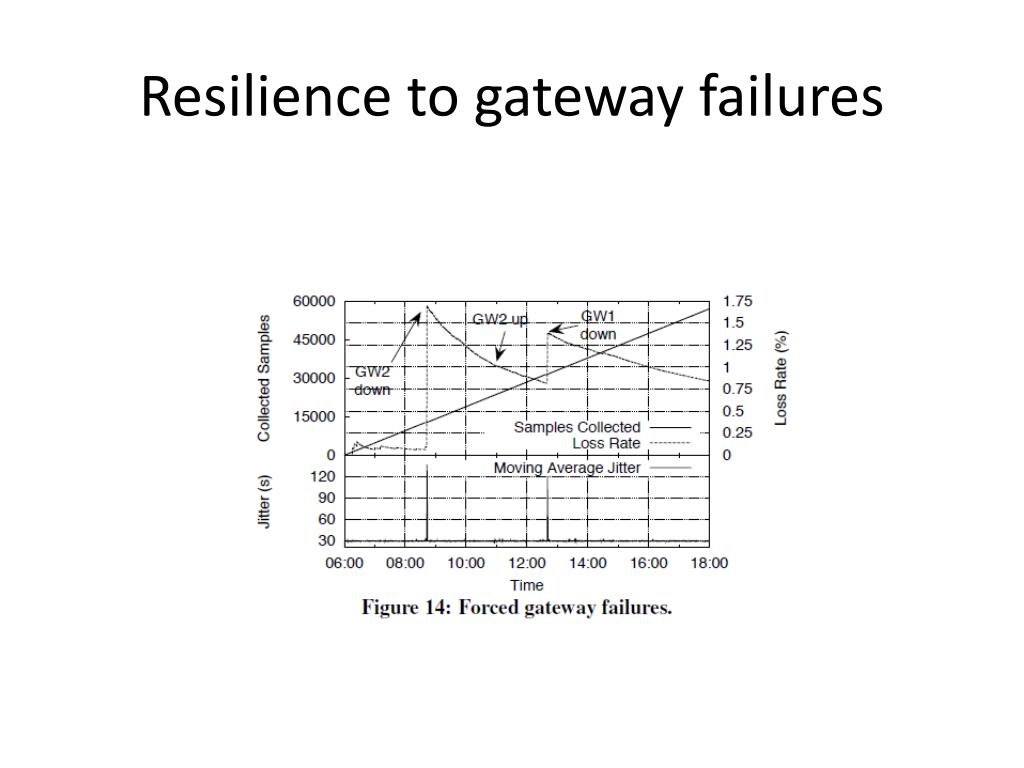

  15. Resilience to gateway failures

  16. Retransmission cost

  17. Expected lifetime • Battery discharge profile • Temperature • Voltage • Discharge current • Underestimate • Use average discharge current of 100mA • LPL-like MAC only consume a few mA • 250ms LPL is better • Power consumed in channel check • Packet strobe time Trade-off

  18. Conclusion • Reach the goal of close-loop adaptive lighting • Provide real-world insights and experience by using WSN in road tunnel

  19. Any Problem?
