  1. IA-64 ISAA Summary JinLin Yang Phil Varner Shuoqi Li

  2. Overview • Summary of IA-64 • Register model • Instruction format and support for explicit parallelism • Instruction set basics • Predication and speculation support • Conclusion

  3. Summary of IA-64 • RISC-style • Register-Register ISA • Compiler-based ILP support (VLIW) • Predication • Memory-reference speculation • Basis for Intel Itanium processor

  4. The IA-64 Register Model

  5. Components 128 64-bit general-purpose registers (actually 65-bits); 128 82-bit floating point registers; 64 1-bit predicate registers; 8 64-bit branch registers; several registers used for system control, memory mapping, performance counters, and communication with the OS.

  6. Register Stack Mechanism(1) This technique is used by integer registers to accelerate procedure calls. (similar to register windows in SPARC) Registers 0-31 are always accessible. Registers 32-128 are used as a register stack and each procedure is allocated a set of registers for its use.

  7. Register Stack Mechanism(2) CFM pointer CFM pointer points to the set of registers to be used by a given procedure

  8. Register Stack Mechanism(3) How does it work? 1) The new register stack frame is created by registers renaming. So the registers to be used by a given procedure always starts at R32. 2) The callee executes an alloc instruction to allocate both local and output registers for caller.

  9. Register Stack Mechanism(4) 3) The CFM pointer is updated, so R32 of the called procedure points to the output registers of the calling procedure. (I think there is a typo in the text!)

  10. Register Rotation • Both the integer and floating point registers support register rotation for registers 32-128

  11. Benefits of register rotation • Makes it easy to allocate registers in software pipelined loops • When combined with predication, it can reduce the code expansion incurred by using software pipelining. • Makes this technique usable for loops with small number of iterations.

  12. Instruction Format and Support for Explicit Parallelism IA-64 has the combination of : • Major benefits of VLIW-approach • Greater Flexibility

  13. Inherit major benefits of VLIW • Implicit parallelism among operations in an instruction • Fixed formatting of the operation fields • Relying on the compiler to detect ILP and schedule insts into slots

  14. Greater Flexibility • Flexibility in formatting of instructions • Allowing the compiler to indicate when an inst cannot be executed in parallel with its successors

  15. Implicit Parallelism • Placing instructions into instruction groups

  16. Instruction group • a sequence of consecutive instructions with no register data dependency • Instructions in the group can be executed in parallel • Instruction group can be arbitrarily long • Compiler must explicitly indicate group boundary by a “stop”

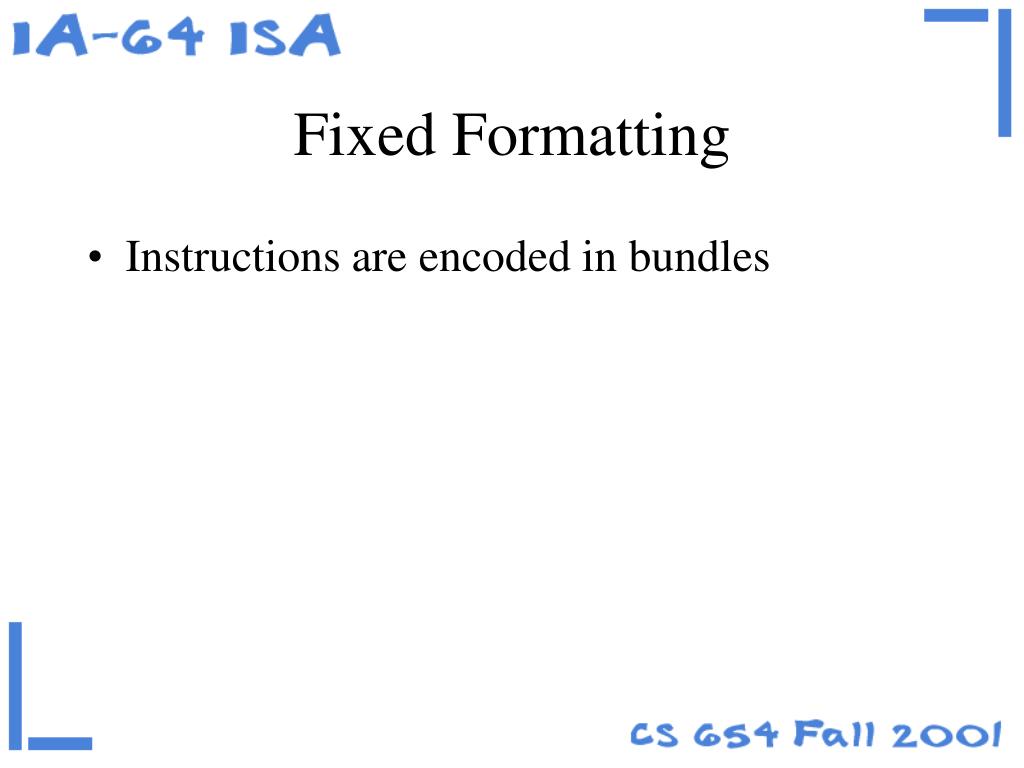

  17. Fixed Formatting • Instructions are encoded in bundles

  18. Bundles • 128-bit wide • 5-bit template field -- specify exec unit type needed by each inst in the bundle and possible presence of stop • I-unit, M-unit, F-unit, B-unit, L + X(used to encode 64-bit immediate and a few special instructions) • One Execution Unit Slot can hold more than one type of Instruction • Three 41-bit instructions

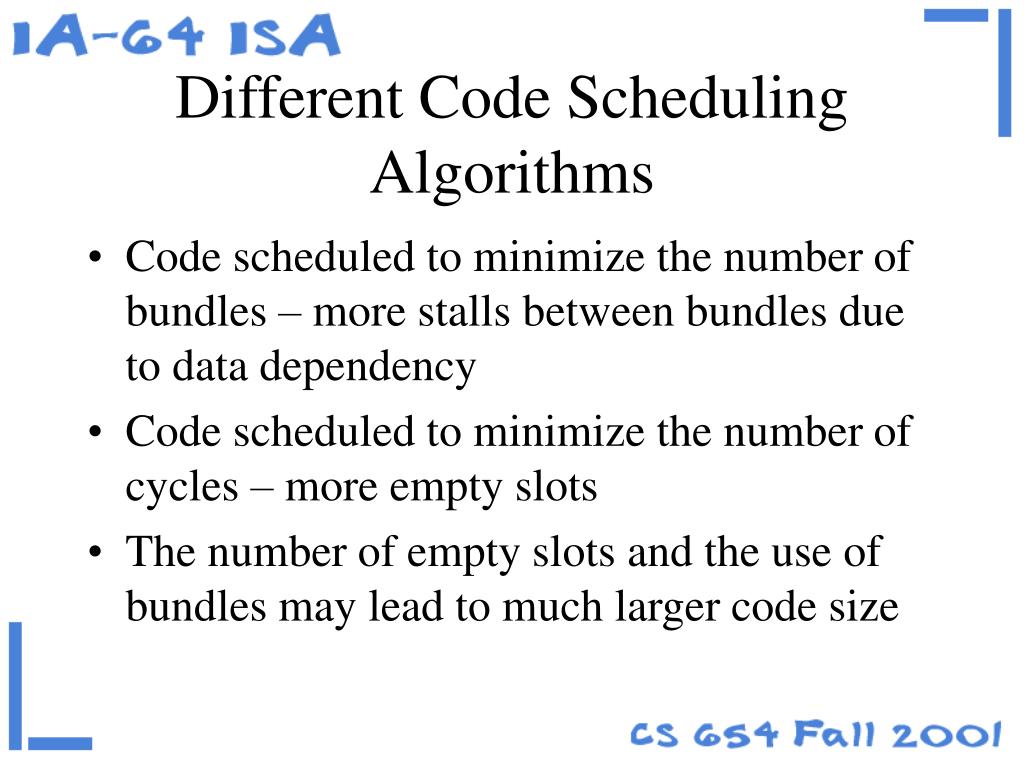

  19. Different Code Scheduling Algorithms • Code scheduled to minimize the number of bundles – more stalls between bundles due to data dependency • Code scheduled to minimize the number of cycles – more empty slots • The number of empty slots and the use of bundles may lead to much larger code size

  20. Instruction Set Basics • Inst encoding • Major opcode (high-order 4-bit opcode+exec unit slot designation bits) • Specification bits of predicate register that guards the instruction (low order 6 bits) • The encoding strategy leads to various inst formats for each inst type

  21. Predication and Speculation • Nearly every instruction can be predicated • Specify by predicate register (lower six bits of each inst) • if-conversion and code motion have lower overhead • Conditional branch is just branch with guarding predicate

  22. Setting predicates • Predicates set using compare or test instructions • compare • 10 different tests • two predicate register destinations • written: result + complement or logical function + complement • multiple comparisons

  23. Speculation • control speculation - speculated inst past branch • exception handling • memory reference speculation

  24. Deferred exception handling • NaT - Not A Thing • equivalent of poison bits • make GPRs 65 bits wide • NaTVal - FP registers - Not A Thing Value • invalid IEEE FP value • FP exceptions handled separately

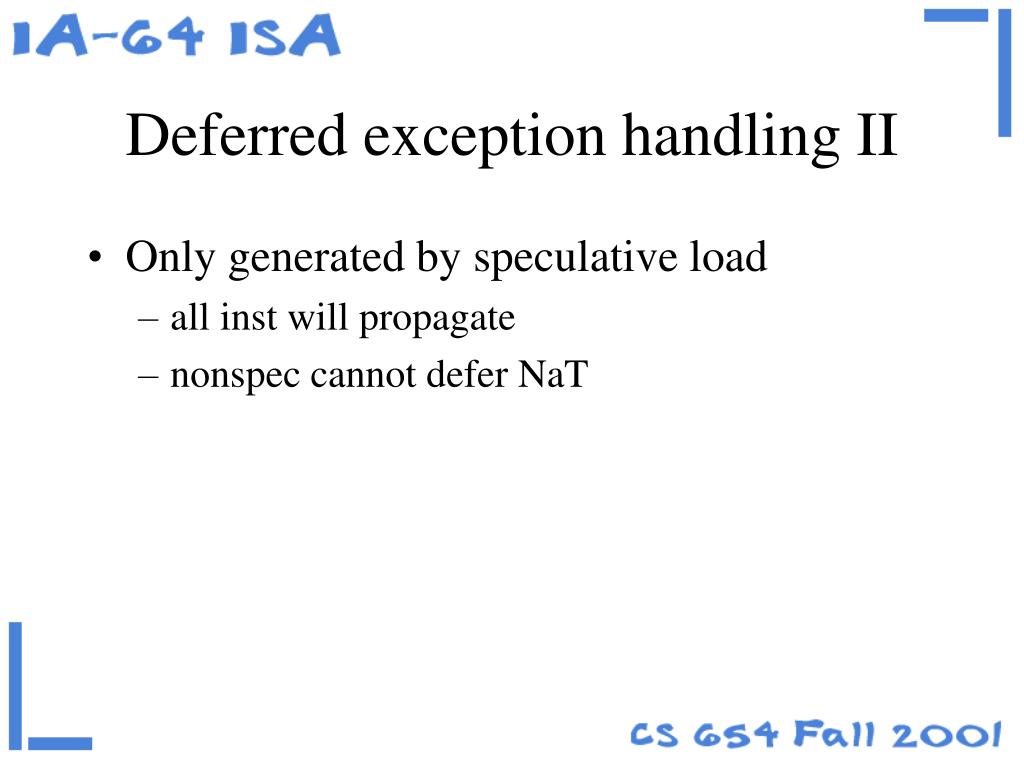

  25. Deferred exception handling II • Only generated by speculative load • all inst will propagate • nonspec cannot defer NaT

  26. Deferred exception handling III • Non-speculated instruction gets NaT - immediate and unrecoverable exception • chk.s • detect NaT or NaTVal • branch to routine • provides special instructions for storing NaT and NaTVal registers for saving processor state

  27. Memory reference • advanced loads - spec moved from a store on which it was dependant • ld.a • special entry in ALAT • register destination of the load • address of the accessed memory location

  28. Memory reference II • when store is executed - active ALAT entries looked up, if ALAT entry with same address, ALAT entry marked as invalid • Any nonspeculative instruction must check ALAT before using value from ld.a • if ALAT value is valid, clear ALAT entry • if not, • ld.c - reload from memory (only used with ld.a) • chk.a - reload and execute "clean up" code

  29. Conclusion • Hits a lot of hot technologies • RISC • VLIW • Predication • Speculation • Itanium will/may show viability of approach
