Lazy Symbolic Execution for Enhanced Learning

1. Lazy Symbolic Execution for Enhanced Learning VijayaraghavanMurali National University of Singapore Co-authors: Duc-Hiep Chu, JoxanJaffar

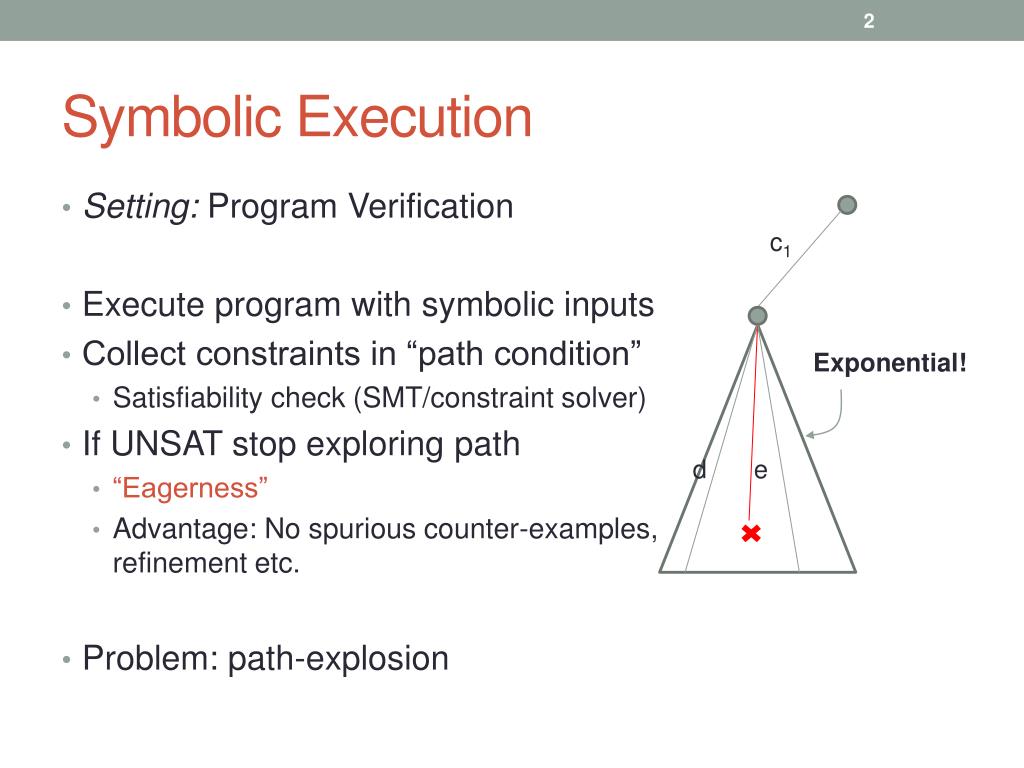

2. Symbolic Execution • Setting: Program Verification • Execute program with symbolic inputs • Collect constraints in “path condition” • Satisfiability check (SMT/constraint solver) • If UNSAT stop exploring path • “Eagerness” • Advantage: No spurious counter-examples, refinement etc. • Problem: path-explosion c1 Exponential! d e

3. Symbolic Execution • Interpolation [Jaffar CP’09] [McMillan CAV’10] • “Learn” interpolants from symbolic paths • Formula that succinctly captures reason for infeasibility of paths (reason for safety) • If interpolant is implied by path condition, subsume/cover/prune the path • IMPACT, TRACER, UFO, etc. • Quality of interpolantscontrols the amount of subsumption • The more general (weaker) the better c1 c2 c2 d e

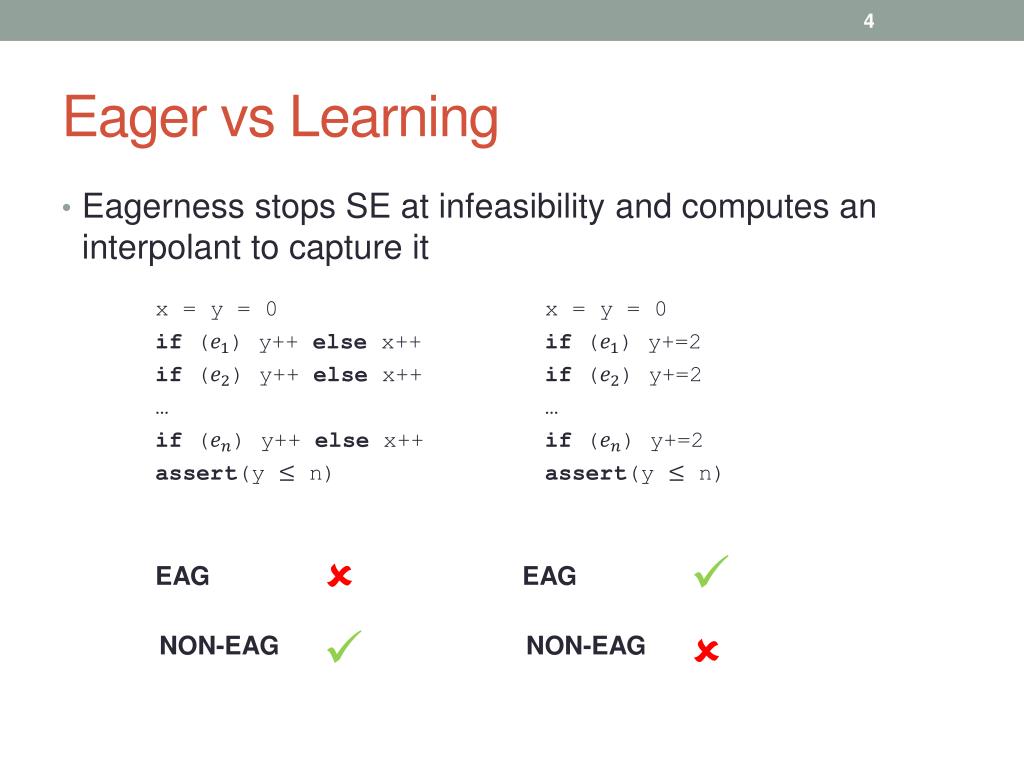

4. Eager vs Learning • Eagerness stops SE at infeasibility and computes an interpolant to capture it x = y = 0 if () y++ else x++ if () y++ else x++ … if () y++ else x++ assert(y n) x = y = 0 if () y+=2 if () y+=2 … if () y+=2 assert(y n) û ü EAG EAG ü û NON-EAG NON-EAG

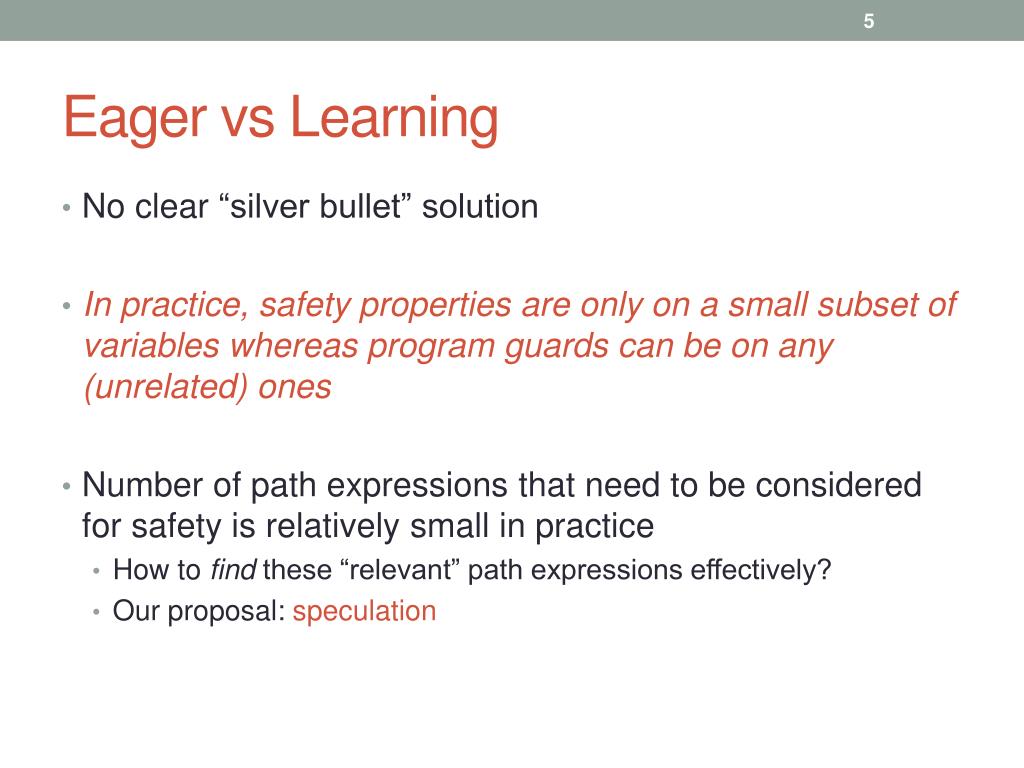

5. Eager vsLearning • No clear “silver bullet” solution • In practice, safety properties are only on a small subset of variables whereas program guards can be on any (unrelated) ones • Number of path expressions that need to be considered for safety is relatively small in practice • How to find these “relevant” path expressions effectively? • Our proposal: speculation

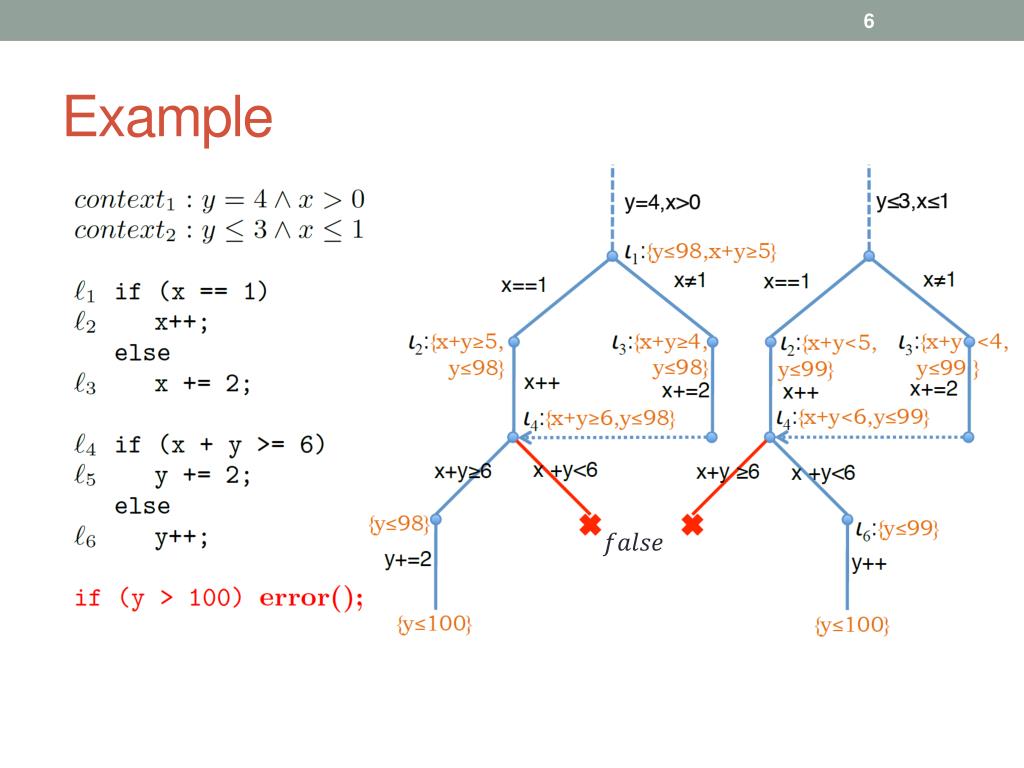

6. Example

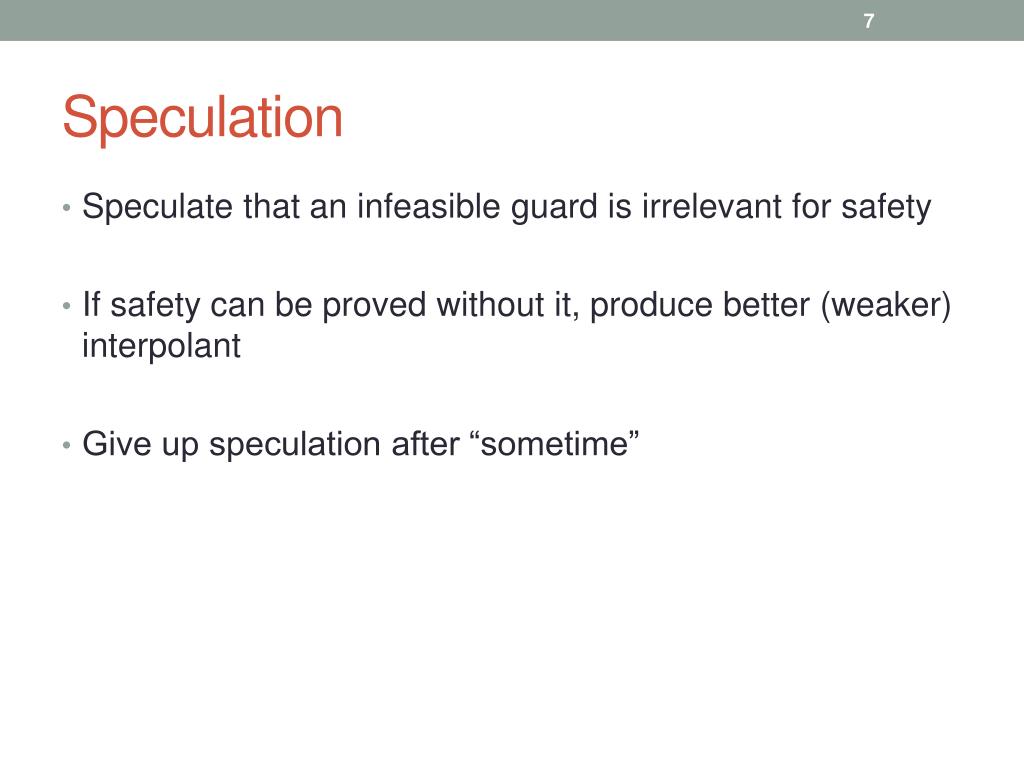

7. Speculation • Speculate that an infeasible guard is irrelevant for safety • If safety can be proved without it, produce better (weaker) interpolant • Give up speculation after “sometime”

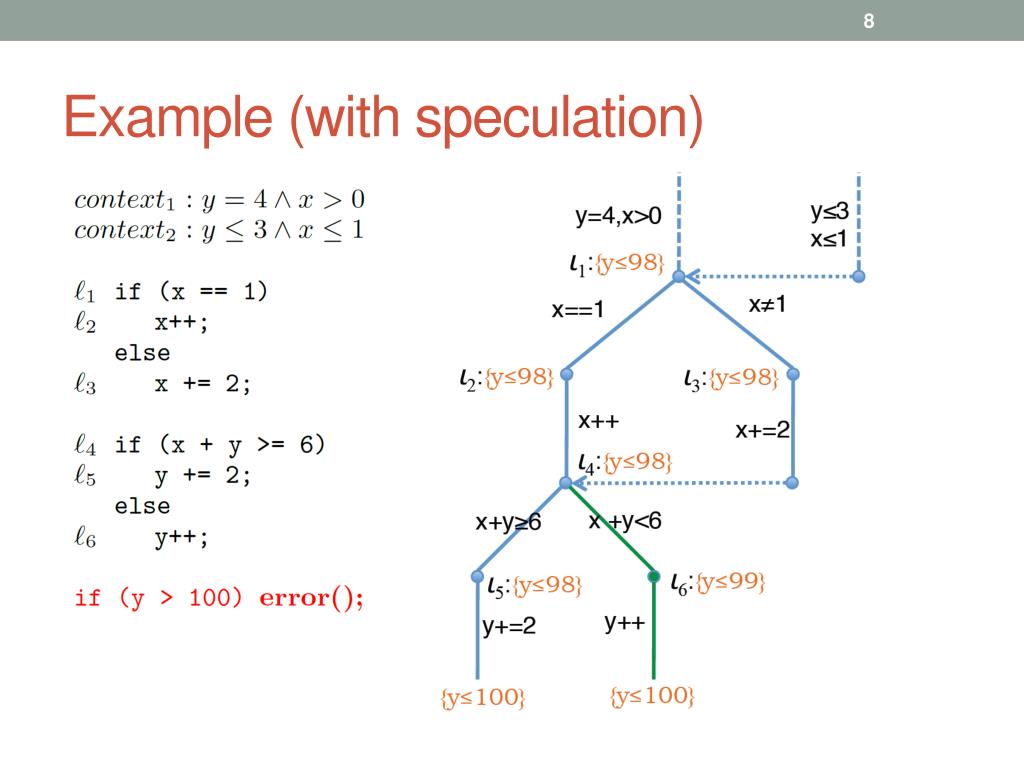

8. Example (with speculation)

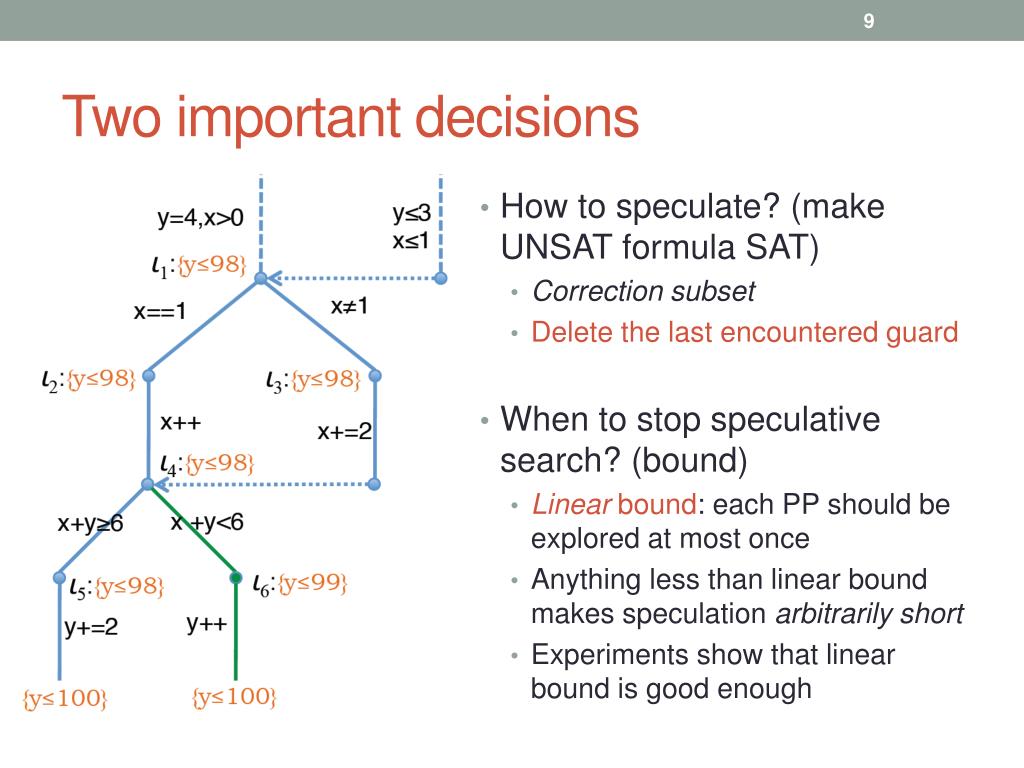

9. Two important decisions • How to speculate? (make UNSAT formula SAT) • Correction subset • Delete the last encountered guard • When to stop speculative search? (bound) • Linear bound: each PP should be explored at most once • Anything less than linear bound makes speculation arbitrarily short • Experiments show that linear bound is good enough

10. Points to note • Speculation can fail if • The guard was relevant for safety – we can still learn interpolants on other (irrelevant) guards during speculation • The bound was exceeded – increasing the bound not likely to result in better interpolants • Does speculation always produce better interpolants? • Monotonic(when , interpolant wrtinterpolant wrt)

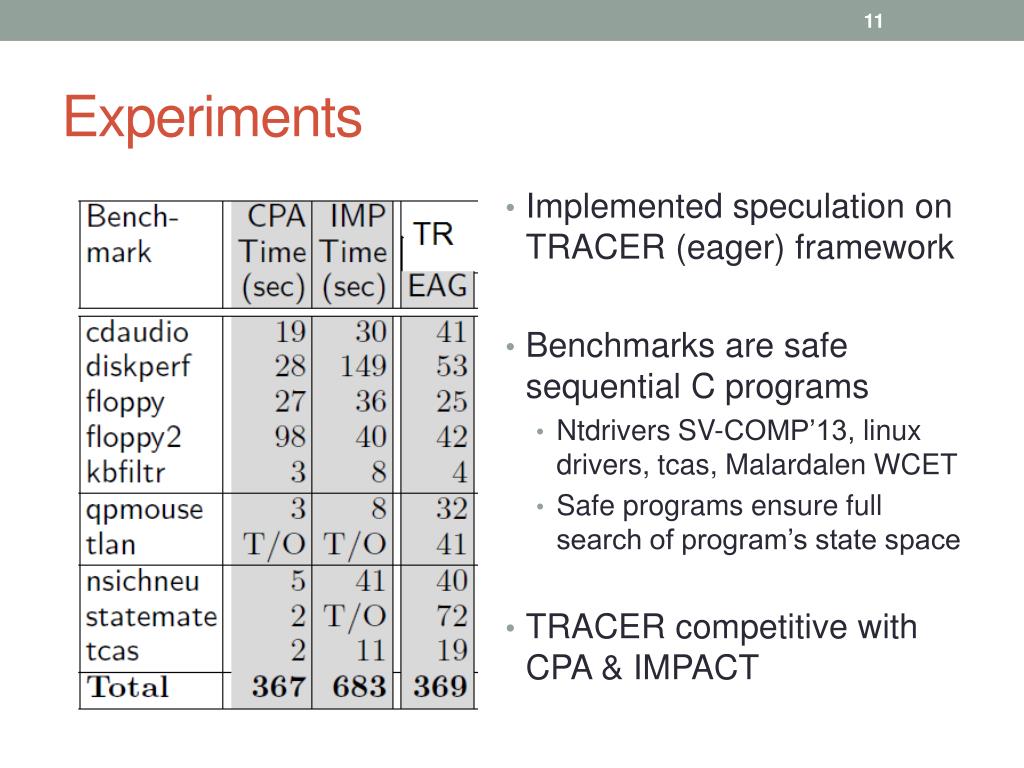

11. Experiments • Implemented speculation on TRACER (eager) framework • Benchmarks are safe sequential C programs • Ntdrivers SV-COMP’13, linux drivers, tcas, Malardalen WCET • Safe programs ensure full search of program’s state space • TRACER competitive with CPA & IMPACT

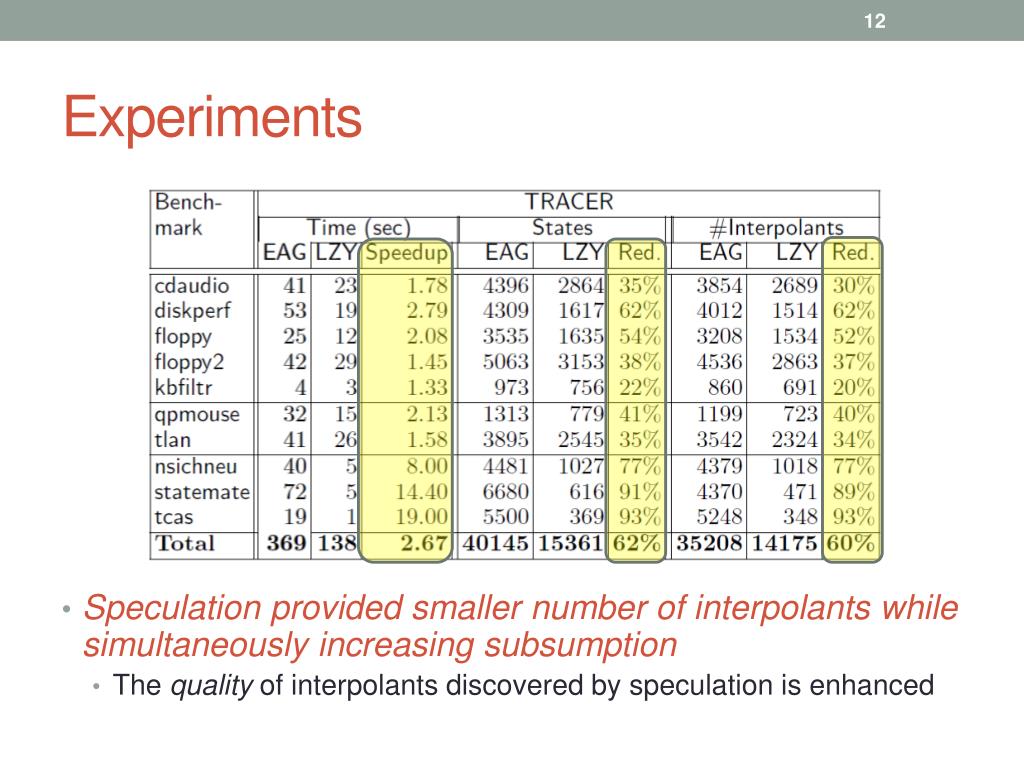

12. Experiments • Speculation provided smaller number of interpolants while simultaneously increasing subsumption • The quality of interpolants discovered by speculation is enhanced

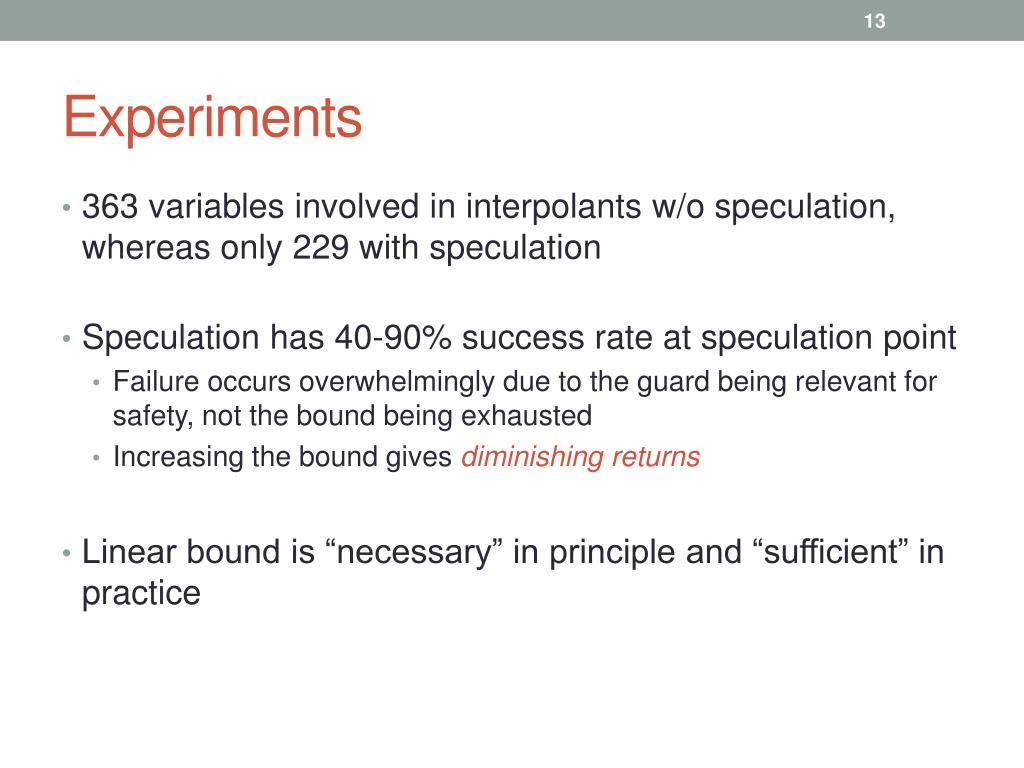

13. Experiments • 363 variables involved in interpolants w/o speculation, whereas only 229 with speculation • Speculation has 40-90% success rate at speculation point • Failure occurs overwhelmingly due to the guard being relevant for safety, not the bound being exhausted • Increasing the bound gives diminishing returns • Linear bound is “necessary” in principle and “sufficient” in practice

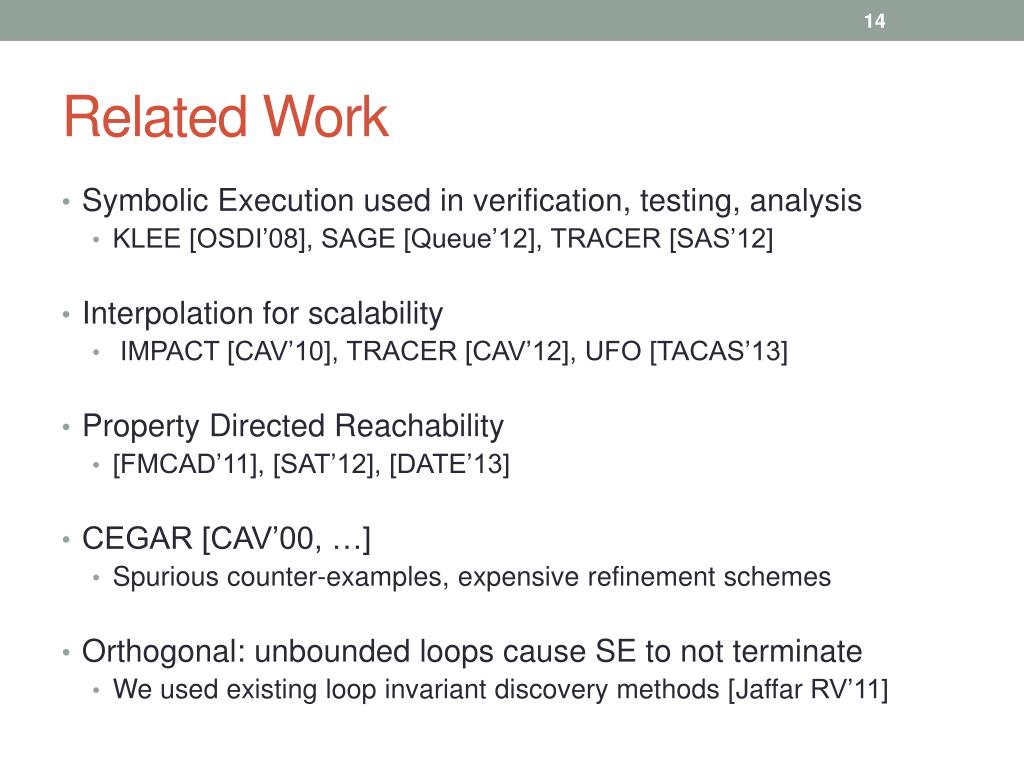

14. Related Work • Symbolic Execution used in verification, testing, analysis • KLEE [OSDI’08], SAGE [Queue’12], TRACER [SAS’12] • Interpolation for scalability • IMPACT [CAV’10], TRACER [CAV’12], UFO [TACAS’13] • Property Directed Reachability • [FMCAD’11], [SAT’12], [DATE’13] • CEGAR [CAV’00, …] • Spurious counter-examples, expensive refinement schemes • Orthogonal: unbounded loops cause SE to not terminate • We used existing loop invariant discovery methods [Jaffar RV’11]

15. Future Work • SMT solver = DPLL SAT + T-solvers • Eager – at conflict, DPLL propagates “conflict clauses” (interpolants) and immediately backtracks • Speculation can discover conflict clauses related to property • Challenges • Decision graph - speculation bound needs to be redefined • No error locations • Dynamic Heuristics

16. Thank You!
