  1. garnet Hornblende Plag garnet garnet Metabasites / Metacarbonates Francis, 2014

  2. Metabasites: Mafic volcanics such as basalts and andesites have more complicated and variable compositions than shales, containing significant quantities of Ca and Na, in addition to Si, Al, Mg Fe, K, and H2O. At least 8 components are necessary to describe such systems, and it is no longer possible to construct a simple projection scheme that is thermodynamically rigorous. The metamorphic mineral assemblages of mafic volcanic rocks are commonly portrayed in an ACF projection, but it should be remembered that, unlike the metapelite AFM diagram, 3 phase regions in the ACF diagram are not strictly invariant and crossing tie lines are not uncommon.

  3. Zeolite Facies The beginning of metamorphism in volcanic rocks and volcanogenic sediments is marked by the development of zeolites in vesicles and fractures under conditions of shallow burial. In consequence, volcanic rocks change from being vesicular to amygdular. Apart from the filling of vesicules and void spaces with these secondary minerals, rocks in the zeolite facies look essentially unmetamorphosed, although they often appear somewhat weathered in hand specimen: dirty, brownish, and oxidized because the processes of weathering have continued into the zeolite facies. Massive samples may still be quite pristine, however, retaining their original igneous mineralogy, especially if they have been isolated from extensive weathering and are relatively dry. General Zeolite formula:WnTmO2m.sH2O W = Na, Ca, K, (Ba, Sr,…) T = Si, Al Ca Zeolites Na Zeolites Low T Chabazite Phillipsite CaAl2Si4O12.6H2O Na3Al3Si5O16.6H2O Stilbite CaAl2Si7O18.7H2O Heulandite Analcime CaAl2Si7O18.6H2O NaAlSi2O6.H2O Laumontite Natrolite CaAl2Si4O12.4H2O Na4Al4Si6O20.4H2O High T Wairakite Albite - Feldspar CaAl2Si4O12.2H2O NaAlSi3O8

  4. Zeolites in volcanic amygdules

  5. Zeolite assemblages are stable only at relatively low PCO2. Even at relatively modest levels of CO2, zeolite mineral assemblages are commonly replaced by carbonate and clay minerals. Laumontite + CO2 Calcite + Kaolinite + Quartz + Water CaAl2Si4O12.4H2O + CO2 CaCO3 + Al2Si2O5(OH)4 + 2SiO2 + 2H2O (XCO2 > 0.01)

  6. Prehnite - Pumpellyite sub-Facies of the Greenschist Facies The development of prehnite and pumpellyite in the both the groundmass and void spaces marks the beginning of the prehnite - pumpellyite sub-facies in metavolcanic and metavolcanogenic sedimentary rocks. Volcanic rocks in this metamorphic facies begin to take on a greenish colour, although they typically are relatively unstrained and unrecrystallized, and commonly appear little metamorphosed in hand specimen, except for the development of a greenish colour. The presence of prehnite and pumpellyite are best recognized in thin section. Prehnite Ca2Al(AlSi3)O10(OH)2 brittle mica Pumpellyite W4X(OH,O)Y5O(OH)3(TO4)2(T2O7)2.2H2O sorosilicate T = Si, Al Y = Al, Fe3+, Ti4+ X = Mn, Fe2+, Mg, Al, Fe3+ W = Ca, K, Na meta-pillow basalt

  7. Greenschist Facies epidote & actinolite - in prehnite + qtz + chlorite zoisite + actinolite + water Ca2Al(AlSi3)O10(OH)2 + SiO2 + Ca2(Fe,Al)3O(SiO4)(Si2O7)(OH) + Ca2(Mg,Fe)5Si8O22(OH)2 (Mg,Fe)3(Al,Si)4O10(OH)2(Mg,Fe)3(OH)6 epidote & actinolite - in pumpellyite + qtz + chlorite zoisite + actinolite + water Ca4(Mg,Fe)(Al,Fe3+)5O(OH)3(Si2O7)2(SiO4)2.2H2O Ca2(Fe,Al)3O(SiO4)(Si2O7)(OH) + Ca2(Mg,Fe)5Si8O22(OH) + SiO2 + (Mg,Fe)3(Al,Si)4O10(OH)2(Mg,Fe)3(OH)6

  8. Ca-plag - in chlorite + zoisite + qtz actinolite + plagioclase + water (Mg,Fe)3(Al,Si)4O10(OH)2(Mg,Fe)3(OH)6 Ca2(Mg,Fe)5Si8O22(OH) + (Ca,Na)(Al,Si)4O8 + Ca2(Fe,Al)3O(SiO4)(Si2O7)(OH) + SiO2

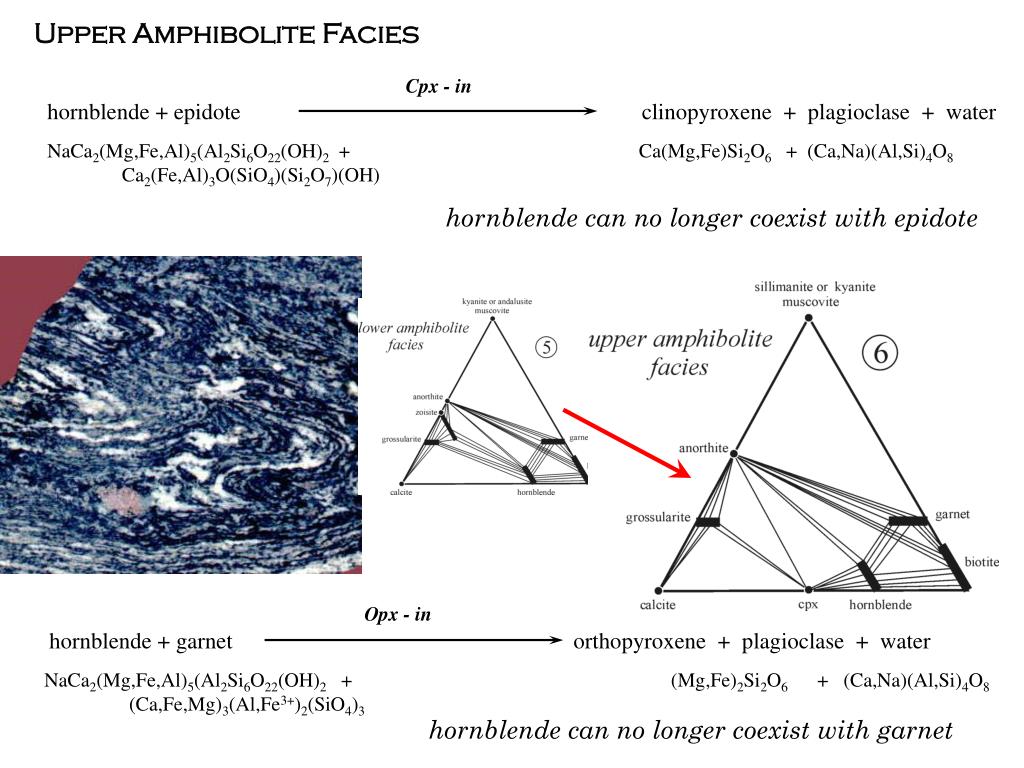

  9. Amphibolite Facies Hornblende - in actinolite hornblende Ca2(Mg,Fe)5(Si8O22)(OH)2 NaCa2(Mg,Fe,Al)5(Al2Si6O22)(OH)2 Garnet & Hb - in epidote + chlorite hornblende + garnet + water Ca2(Fe,Al)3O(SiO4)(Si2O7)(OH) NaCa2(Mg,Fe,Al)5(Al2Si6O22(OH)2 + (Mg,Fe)3(Al,Si)4O10(OH)2(Mg,Fe)3(OH)6 (Ca,Fe,Mg)3(Al,Fe3+)2(SiO4)3

  10. Upper Amphibolite Facies Cpx - in hornblende + epidote clinopyroxene + plagioclase + water NaCa2(Mg,Fe,Al)5(Al2Si6O22(OH)2 + Ca(Mg,Fe)Si2O6 + (Ca,Na)(Al,Si)4O8 Ca2(Fe,Al)3O(SiO4)(Si2O7)(OH) hornblende can no longer coexist with epidote Opx - in hornblende + garnet orthopyroxene + plagioclase + water NaCa2(Mg,Fe,Al)5(Al2Si6O22(OH)2 + (Mg,Fe)2Si2O6 + (Ca,Na)(Al,Si)4O8 (Ca,Fe,Mg)3(Al,Fe3+)2(SiO4)3 hornblende can no longer coexist with garnet

  11. Granulite Facies Hornblende - out hornblende clinopyroxene + plagioclase + opx + water NaCa2(Mg,Fe,Al)5(Al2Si6O22(OH)2 Ca(Mg,Fe)Si2O6 + (Ca,Na)(Al,Si)4O8 + (MgFe)SiO3

  12. Garnet - in anorthite + orthopyroxene garnet + clinopyroxene CaAl2Si2O8 5(Fe,Mg)SiO3 (Fe,Mg)3Al2(SiO4)3 Ca(Mg,Fe)2Si2O6

  13. Summary of Metabasic Volcanic Rocks granular gneissic brownish weathered blackish Crystalline gneissic greenish fine-grain schitose if deformed hydrous partial melt bluish un-equilibrated phyllites

  14. Oliv + Plag Opx + Cpx + Spin / Garn Garnet Pyroxenite Plag Oliv Oliv Eclogite Oliv Oliv Plag

  15. The complete transition from granulite to eclogite facies occurs over a 5 kb pressure range, beginning with the: • appearance of Garnet: Pyroxene GranuliteGarnet Granulite and ending with: • disappearance of Plagioclase: Garnet Granulite Eclogite The Granulite - Eclogite Transition: increasing pressure The exact position of these reactions is sensitive to bulk composition. The official Eclogite field is defined for quartz-normative bulk compositions. More Fe-rich and alkaline basalts will convert to a garnet pyroxenite mineralogy at lower pressures in the garnet granulite field. Most petrologists refer to such rocks as garnet pyroxenite rather than eclogite.

  16. Meta-Plutonic Rocks mafic magma

  17. Plag Metamorphic Coronas Oliv Oliv + Plag Opx + Cpx + Spin or Garn Oliv Plag

  18. calcite calcite grossularite diopside Meta-carbonates / Skarns

  19. Skarns are rocks rich in calc-silicate minerals that are produced by the contact metamorphism of limestones and dolomites. The silica required for the prograde metamorphic reactions may come from detrital quartz and/or silica sponge spicules, etc. in the original carbonate sediment, but may also be introduced metasomatically by fluids emanating from the igneous intrusion responsible for the contact metamorphism. Metacarbonates Skarns are typically named on the basis of their most characteristic mineral assemblage, eg.: olivine-diopside skarn

  20. Prograde Metacarbonate Reactions Greenwood Classification Talc - in 3CaMg(CO3)2 + 4SiO2 + H2O Mg3Si4O10(OH)2 + 3CaCO3 + 3CO2 #6 Dolomite Qtz Talc Calcite Tremolite - in 5CaMg(CO3)2 + 8SiO2 + H2O Ca2Mg5Si8O22(OH)2 + 3CaCO3 +7CO2 #6 Dolomite Qtz Tremolite Calcite Diopside - in Ca2Mg5Si8O22(OH)2 + 3CaCO3 + 2SiO2 5CaMgSi2O6 + 3CO2 + H2O #4 Tremolite Calcite Diopside Olivine - in Ca2Mg5Si8O22(OH)2 + 11CaMg(CO3)2 8Mg2SiO4 + 13CaCO3 + 9CO2 + H2O #4 Tremolite Dolomite Olivine Calcite Tremolite-out Ca2Mg5Si8O22(OH)2 + CaCO3 Mg2SiO4 + 3CaMgSi2O6 + CO2 + H2O #4 Tremolite Calcite Olivine Diopside Wollastonite-in CaCO3 + SiO2 CaSiO3 + CO2 #3 Calcite Qtz Wollastonite
