  1. HIDTechnologies Nathan Cummings Director of Product Line Management HID Corporation 03/14/06 HID Proprietary & Confidential

  2. Legacy Technologies HID Proprietary & Confidential

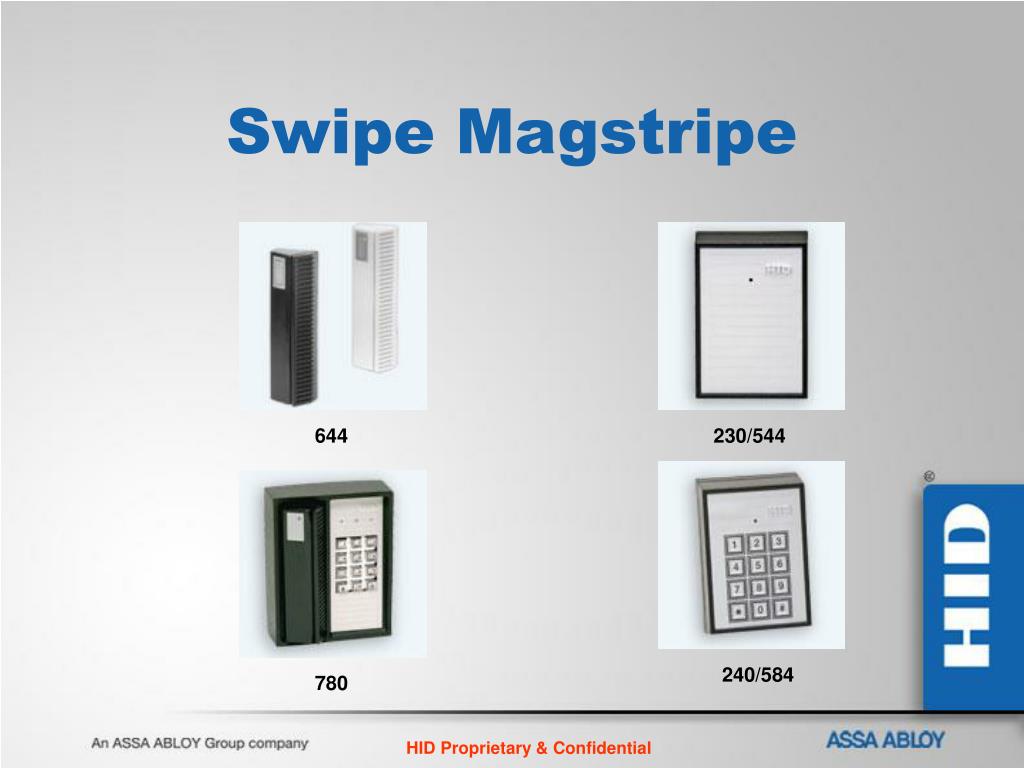

  3. Swipe Magstripe 644 230/544 240/584 780 HID Proprietary & Confidential

  4. Swipe Wiegand HID Proprietary & Confidential

  5. 125kHz Prox HID Proprietary & Confidential

  6. New 13.56MHz Technologies HID Proprietary & Confidential

  7. iCLASS HID Proprietary & Confidential

  8. Readers HID Proprietary & Confidential

  9. Multi-Technology Readers and Writers Reader/Writers Keypads and Biometrics OEM Modules Mifare Reader(/Writer) R10/RW100 RK40/RWK400 OEM100/OEM300 6055 R30/RW300 RWKL550 OEM50 6074 R40/RW400 RWKLB575 OEM150 Exp. Module HID Proprietary & Confidential

  10. iCLASS Evolution • Original iCLASS • 12-16VDC @ 225ma avg current • 15693 Only • Fixed Tuning • Tamper Magnet • Non-config 57.6kbps max serial • No expansion capabilities • Generation II iCLASS • 5-16VDC @ <100ma max current • 15693, 14443A and B compatibilities • Auto-tuning • Tamper Switch • Configurable 115kbps max serial • Expansion board upgrades HID Proprietary & Confidential

  11. Other readers HID Proprietary & Confidential

  12. Other readers ISO 15693 ONLY. HID Proprietary & Confidential

  13. Part Numbers • 6100AKN0000 • Model • Revision • Color • Hardware Options • LED and Beeper Configuration • Security • Mifare Output HID Proprietary & Confidential

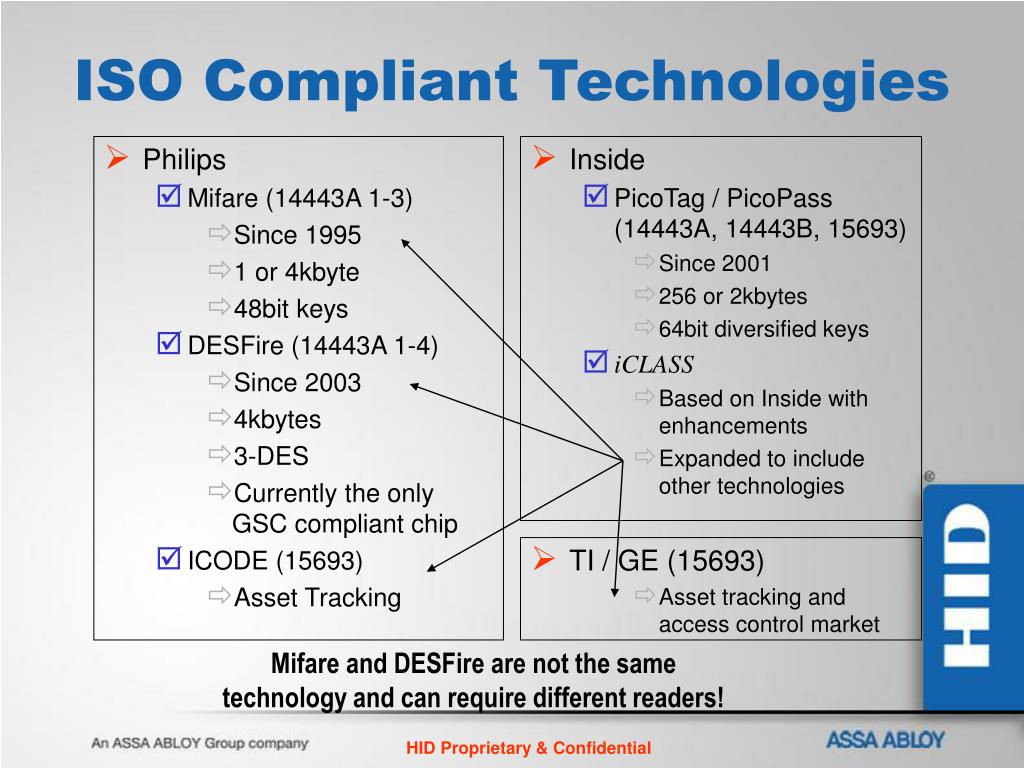

  14. ISO Compliant Technologies • Philips • Mifare (14443A 1-3) • Since 1995 • 1 or 4kbyte • 48bit keys • DESFire (14443A 1-4) • Since 2003 • 4kbytes • 3-DES • Currently the only GSC compliant chip • ICODE (15693) • Asset Tracking • Inside • PicoTag / PicoPass (14443A, 14443B, 15693) • Since 2001 • 256 or 2kbytes • 64bit diversified keys • iCLASS • Based on Inside with enhancements • Expanded to include other technologies • TI / GE (15693) • Asset tracking and access control market Mifare and DESFire are not the same technology and can require different readers! HID Proprietary & Confidential

  15. Non-ISO Compliant Technologies • Others • Sony (Felica) • Asian transit market (Octopus) • 4kbytes (only 1.5 available for other apps) • 3-DES • Legic • European multi-application market • Expensive licensing fees • Cubic (Go Card) • US transit market iCLASS The US Government will not consider using non-ISO compliant technologies! HID Proprietary & Confidential

  16. iCLASS VS Mifare • Mifare • Since 1994 • Designed for transit • Single ISO protocol • 48 bit static keys • Fixed memory • User defined key management • Proprietary serial protocol • Quality is manufacturer dependent • iCLASS • Since 2001 • Designed for access control • Multiple ISO protocols • 64 bit diversified keys • Dynamic memory • Key management options • ISO 7816 based serial protocol • HID has lifetime warranty on all cards and readers HID Proprietary & Confidential

  17. Other Standards Concerns Things not covered in ISO • Memory Allocation • Keys & Mutual Auth. (no ref. to ISO 9798) • Security Algorithms • Reader Serial Protocol Other Standards • NIST (National Institute of Standards and Technology) • FIPS (Federal Information Publications) • FIPS-46 Data Encryption Standard (DES) • FIPS-180 Secure Hash Algorithm (SHA) • PIV II/GSC-IS • FIPS-201 Interoperability Standard HID Proprietary & Confidential

  18. Cards HID Proprietary & Confidential

  19. Multi-Technology Credentials iCLASS embeddable iCLASS/Prox embeddable iCLASS/Wiegand iCLASS Key iCLASS Tag Mifare embeddable Mifare /Prox embeddable Mifare / Wiegand embeddable DESFire embeddable Other 13.56MHz technologies could be used in place of ISO standard technologies. HID Proprietary & Confidential

  20. Part Numbers • 2002PGGMN • Model • Programming • Front Packaging • Back Packaging • Inkjet • Slot Punch HID Proprietary & Confidential

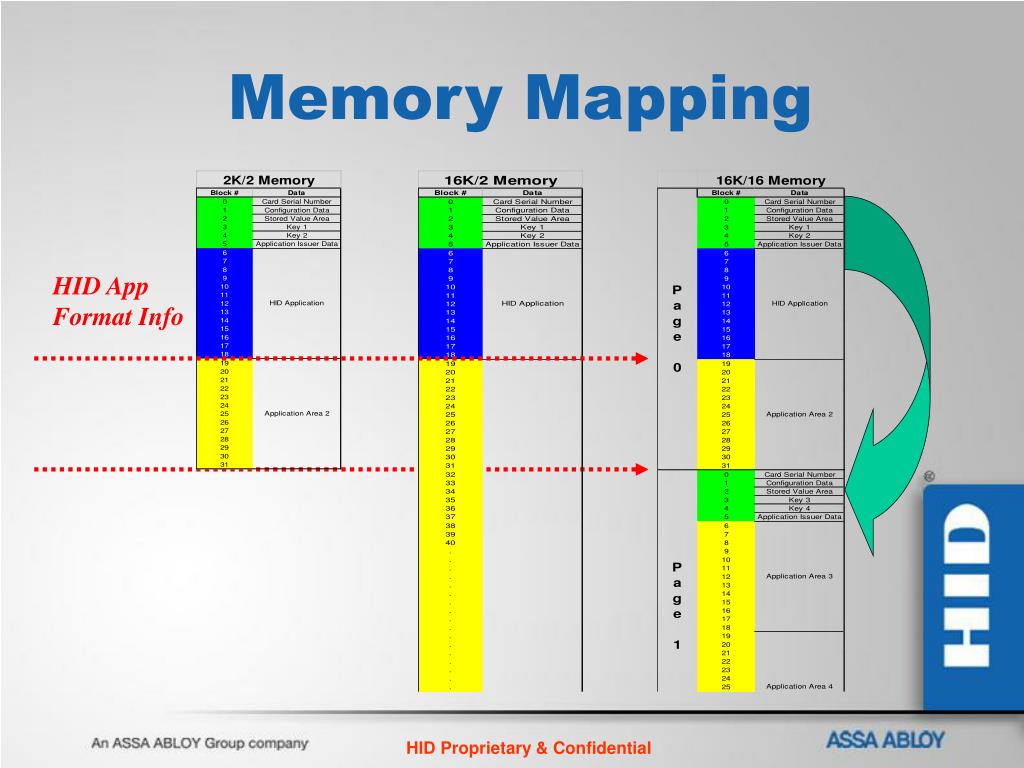

  21. Memory Mapping HID App Format Info HID Proprietary & Confidential

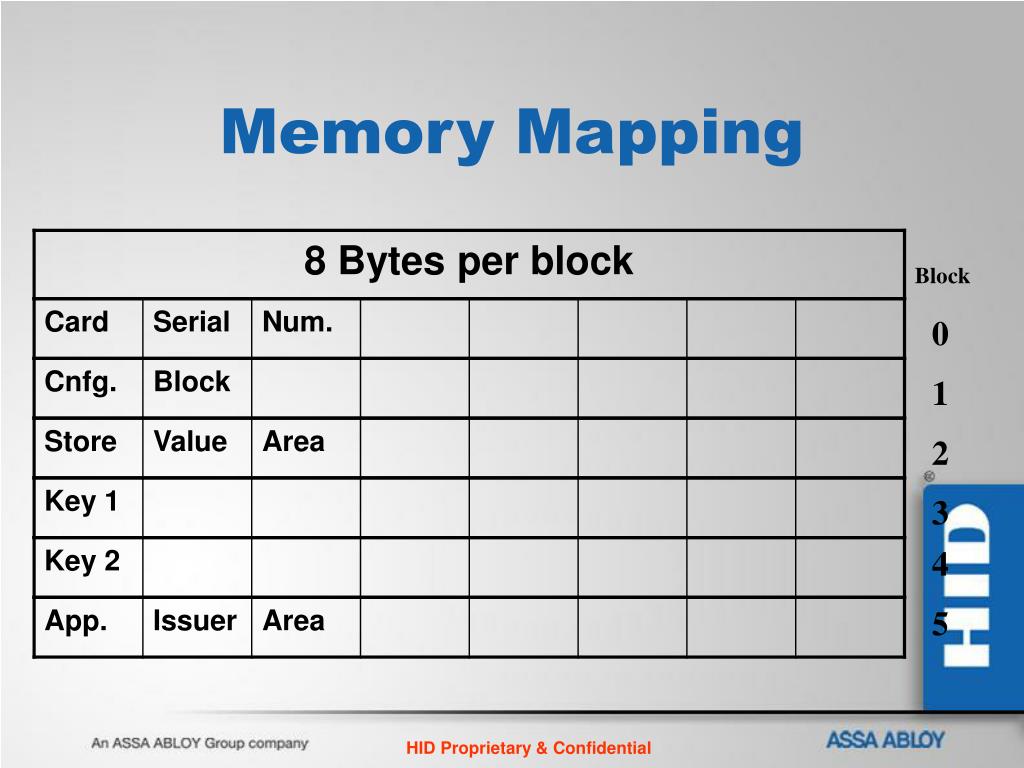

  22. Memory Mapping Block 0 1 2 3 4 5 HID Proprietary & Confidential

  23. Multi-Technology Credential Magnetic Stripe 13.56 MHz “Contactless Smart” Optional Polyester Layers 125 kHz “Proximity” Contact Smart Chip Module Photo ID Optional Wiegand Load (not shown) Anti-Counterfeiting: Hologram, UV Ink, Micro Printing HID Proprietary & Confidential

  24. Security HID Proprietary & Confidential

  25. Security - Format • Existing infrastructure can be utilized by encoding current wiegand format into contactless smartcards for access control. • Alternate formats, like Corporate 1000, can be encoded into credentials and still ensure compatibility with the existing access control panels. Certain formats are designated as proprietary to a specific OEM which may limit their distribution! HID Proprietary & Confidential

  26. Security – Mutual Authentication • Secure communications between the credential and reader using mutual authentication (iCLASS, Mifare and DESFire) • Random number generation during mutual authentication ensures no two transactions are alike. The transmission cannot be recorded and played back to the reader. TI, GE , and ICODE (15693) technologies do not use mutual authentication! HID Proprietary & Confidential

  27. Security - iCLASS Key Management • Standard Security • Programmed by HID with any format. • All Standard cards work with all standard readers. • iCLASS Elite • Programmed by HID with any format and a custom site-specific key. • Only your cards work with your readers. • Field Programmer • Cards and readers are programmed by you. • Either Standard or Custom key security can be used. Advanced key management systems to reduce the risk of compromised data or duplicated cards. Other key management schemes are possible depending on the selected technology. HID Proprietary & Confidential

  28. Development HID Proprietary & Confidential

  29. Application Development • Completely Open • Developer defined key management • Full access to all unused areas of the credential • Easy to Use Protocol • ISO compatible (7816-4) • Reduced development time • World class support How else can a contactless smartcard increase employee productivity or improve the workplace experience? HID Proprietary & Confidential

  30. Flexibility HID Proprietary & Confidential

  31. Proven Flexibility • United States Navy • Deployed since 7/03 • Pearl Harbor, Hawaii • SEIWG Container • GSC-IS 2.1 • US Government Standards • FIPS/PACS Level 1/2 Compliant • Level 3 under review • FASC-N Container • DESFire Compatibility Flash Upgradable Minimum 32bit (max 200bits) format output is not compatible with most access control panels available today! HID Proprietary & Confidential

  32. iCLASS The Open and Interoperable 13.56MHz Technology iCLASS GSC-IS TI / GE DESFire Sony Mifare HID Proprietary & Confidential

  33. ? Questions HID Proprietary & Confidential
