  1. HSWT#29, FlorenceFebruary 28, 2005 DWE: Initial Results Michael Bird (Radiostronomisches Institut, Universität Bonn) And the DWE Team

  2. DWE data: Huygens Mission Channel B f Channel A f df/dt df/dt 6 hours 3.67 hours HSWT#29, Florence

  3. No power! HSWT#29, Florence

  4. DWE from Earth: Geometry • Huygens antenna pointed only ~30° from Earth • Better SNR than for Galileo Probe detection at Jupiter • Probe velocity projection in direction to Earth nearly antiparallel to projection in direction to Orbiter HSWT#29, Florence

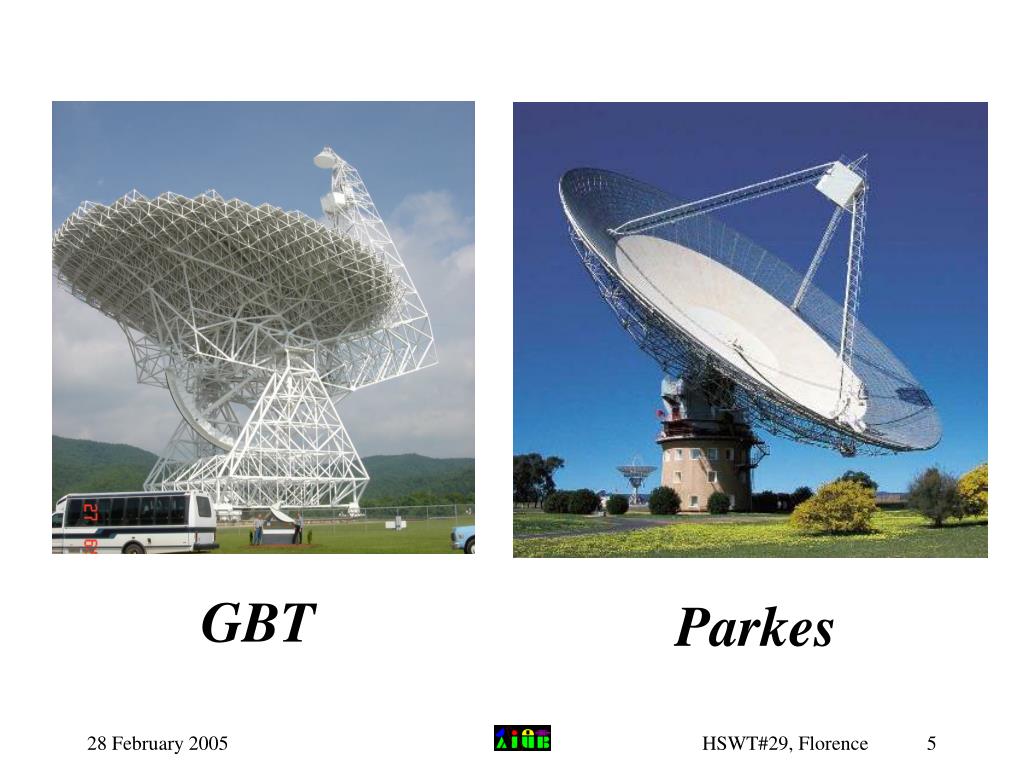

  5. GBT Parkes HSWT#29, Florence

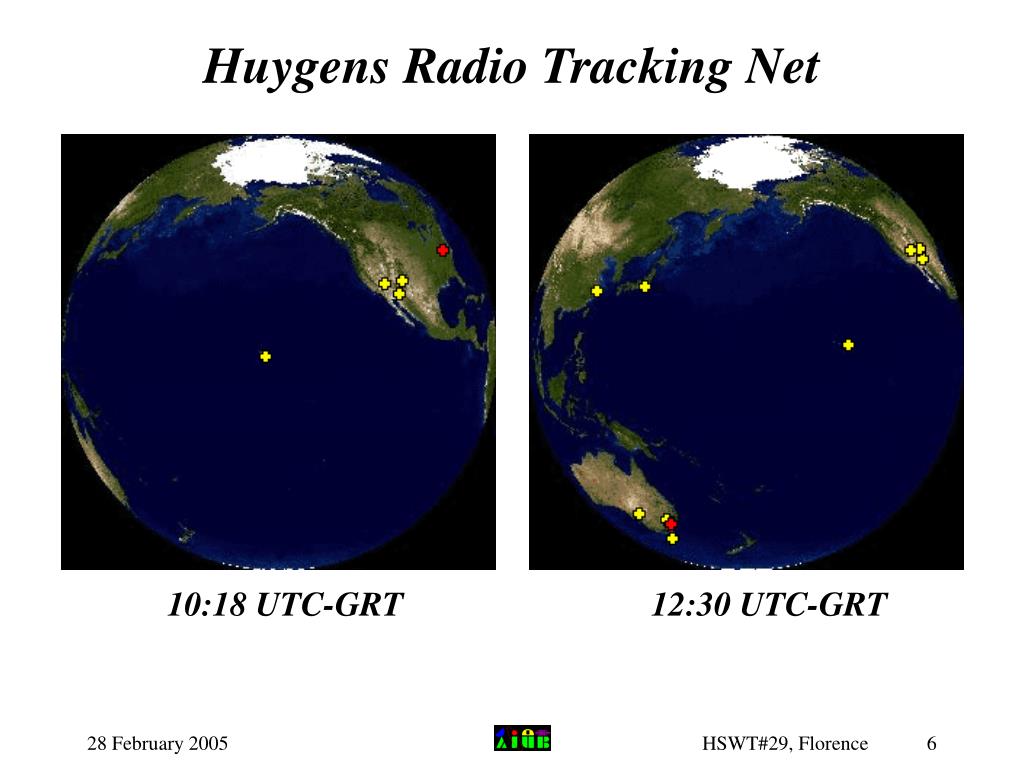

  6. Huygens Radio Tracking Net 10:18 UTC-GRT 12:30 UTC-GRT HSWT#29, Florence

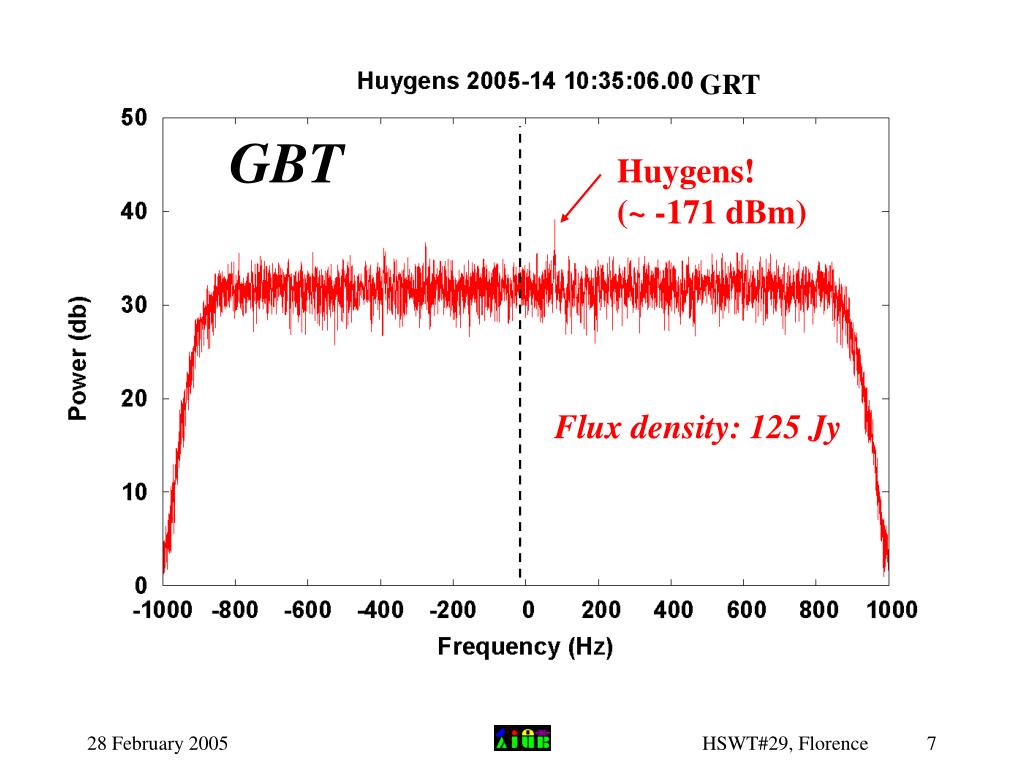

  7. GRT GBT Huygens! (~ -171 dBm) Flux density: 125 Jy HSWT#29, Florence

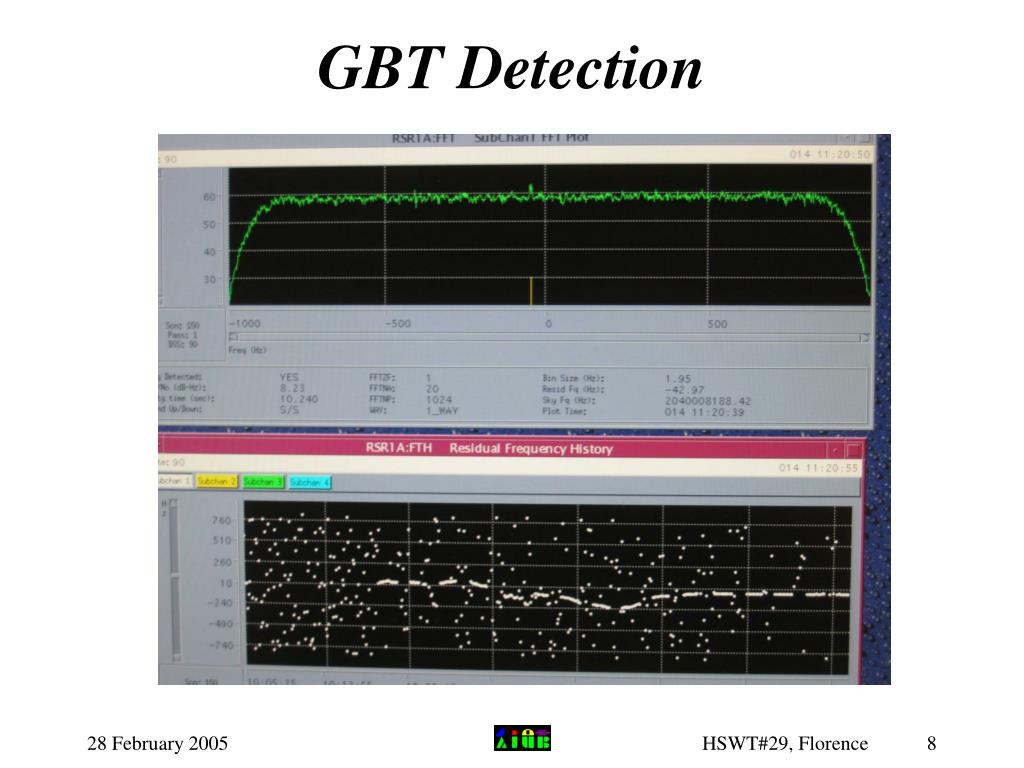

  8. GBT Detection HSWT#29, Florence

  9. Watching Huygens from JPL HSWT#29, Florence

  10. Huygens Frequency: GBT + Parkes HSWT#29, Florence

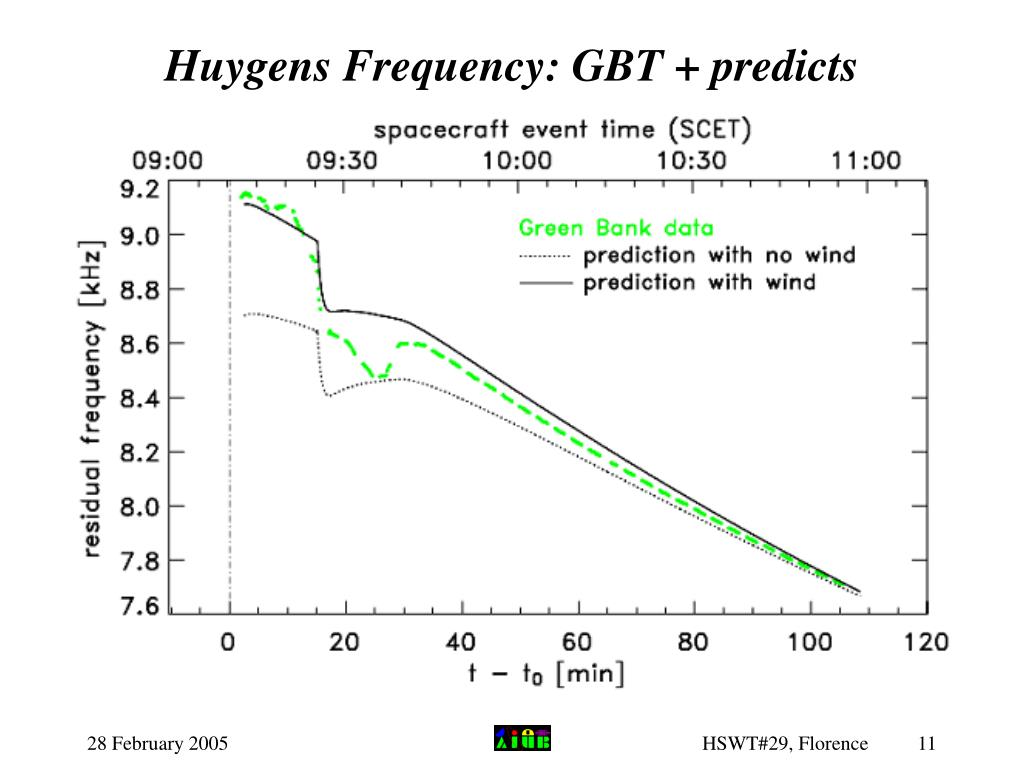

  11. Huygens Frequency: GBT + predicts HSWT#29, Florence

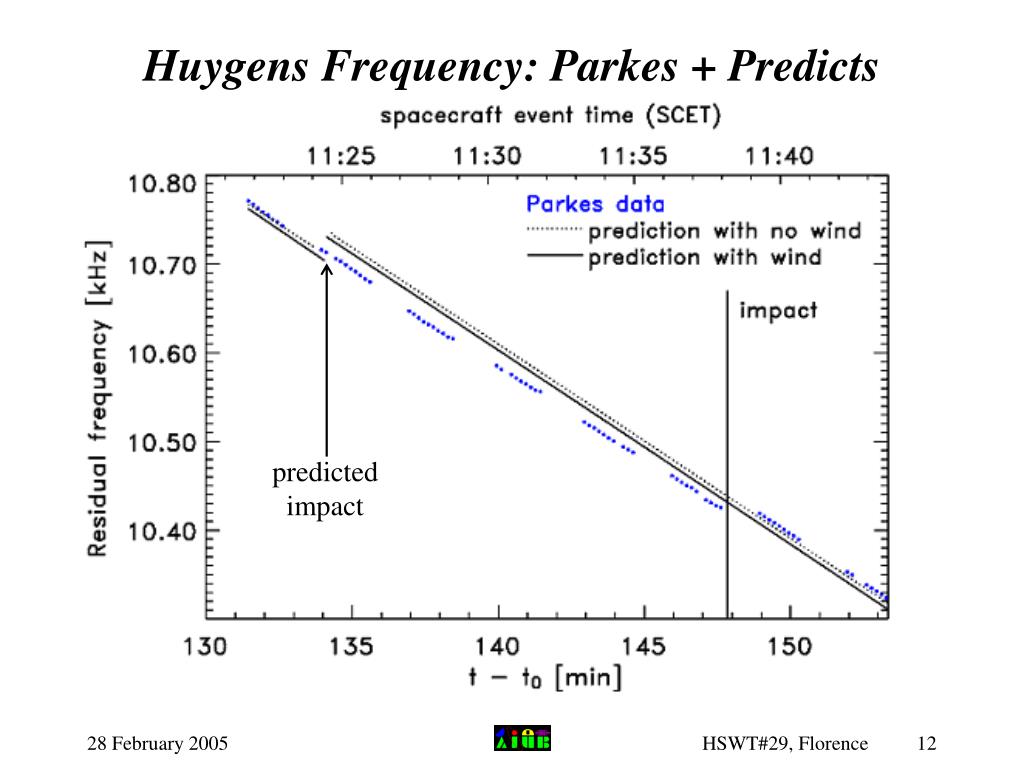

  12. Huygens Frequency: Parkes + Predicts predicted impact HSWT#29, Florence

  13. Parkes: Huygens Impact on Titan HSWT#29, Florence

  14. Doppler Components GBT (1) Raw Doppler (2) Only Huygens Motion (3) Huygens Descent Velocity (4) Huygens Horizontal Velocity HSWT#29, Florence

  15. HSWT#29, Florence

  16. Integrate wind velocity to obtain: DWE DISR Huygens Eastward Drift During Descent Difference HSWT#29, Florence

  17. HSWT#29, Florence

  18. DWE: Preliminary Results • Zonal winds above boundary layer are PROGRADE • Low-velocity layer between 60-80 km • Stong positive/negative wind shear • ‘Unexpected’, but evident in some GCMs • Considerable turbulence above 100 km • Near surface winds are weak (~ 1-2 m/s) HSWT#29, Florence

  19. HSWT#29, Florence

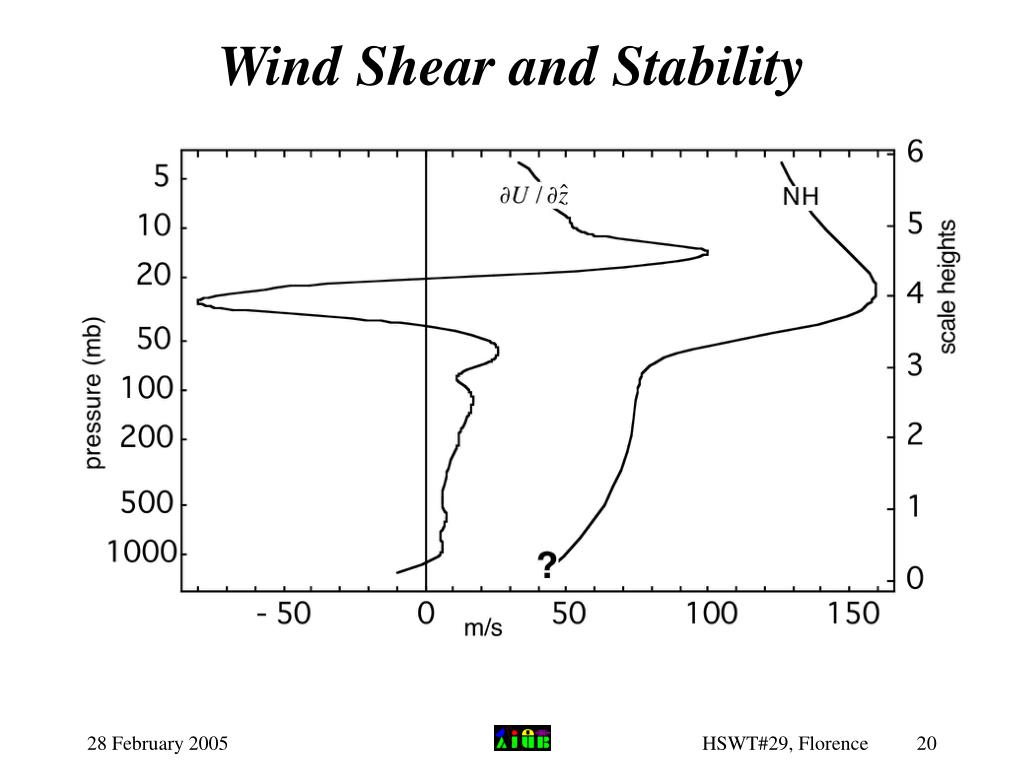

  20. Wind Shear and Stability HSWT#29, Florence

  21. Richardson Number HSWT#29, Florence

  22. Thermal Gradients HSWT#29, Florence
