  1. MLPA AutomationGemma DennisGT Training day – Newcastle23/11/11

  2. MLPA @ Bristol • CMT (Charcot-Marie Tooth) • Telomeres • FH (Familial Hypercholesterolaemia) • SMA (Spinal Muscular Atrophy) • ARS (Axenfeld-Rieger Syndrome) • TAR (Thrombocytopenia-Absent Radius syndrome)

  3. Why Automate? • Solid Tissue screening by MLPA was introduced in July 2010, resulting in a large increase in sample numbers • Set-ups became complex and time consuming • Result quality was reduced due to the large run size • Automation = increased samples per set up, less staff time = cost saving.

  4. MLPA Automation • Centralised booking system • All requests on one sheet – 96 well plate format • All information needed for set up

  5. 4. Denature DNA on Thermocycler DNA Rack 1 (4 x 6) 3. Transfer normalised DNA (5ul) 2. Transfer DNA (1ul >) 5. Transfer Probemix (1.5-3ul) 6. Overnight hybridisation on thermocycler 1. Transfer Water (1-29ul) DNA Dilution Plate Hybridisation Plate Thermocycler Water Reservoir Probe Mastermixes

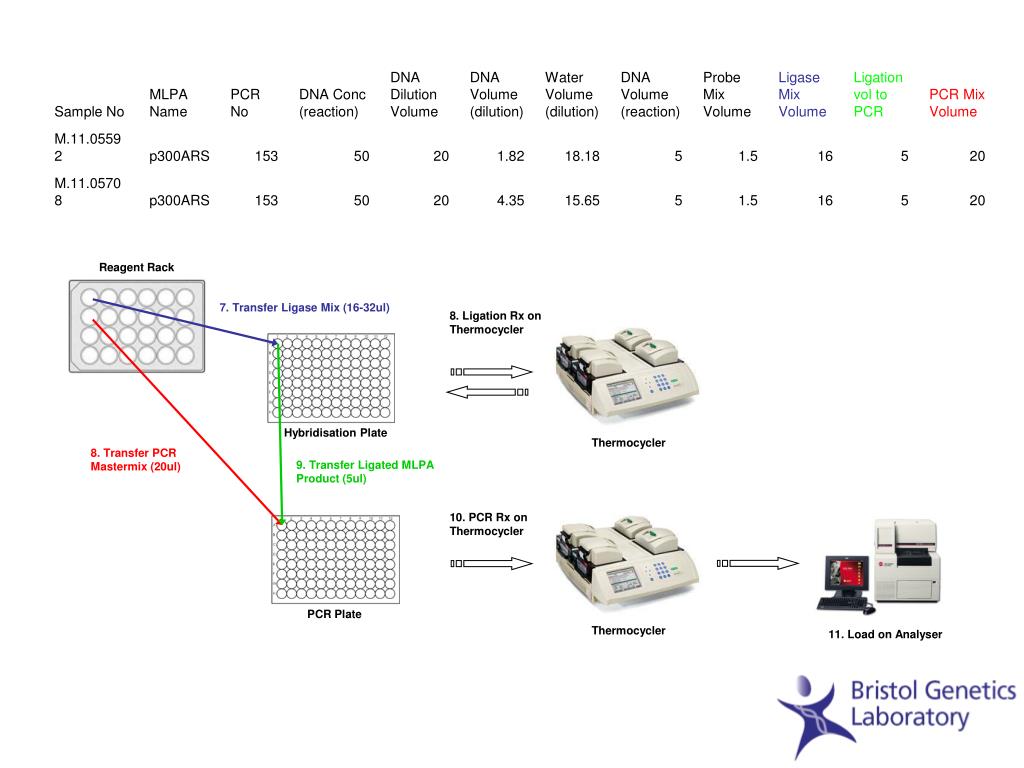

  6. 9. Transfer Ligated MLPA Product (5ul) 7. Transfer Ligase Mix (16-32ul) 8. Ligation Rx on Thermocycler Reagent Rack PCR Plate Hybridisation Plate 8. Transfer PCR Mastermix (20ul) 10. PCR Rx on Thermocycler Thermocycler Thermocycler 11. Load on Analyser

  7. MLPA Automation – Validation work • Initial development work based on existing Biomek workflows • Liquid handling was tested using coloured dyes (volume range 1.5-32µl) • Single kit was run to asses if adding probe mix, ligase mix and/or PCR mix at room temperature had any adverse affects • Large scale test was set up simultaneously with manual set up

  8. MLPA Automation – Observed results • Robot was able to pipette all volume sizes accurately • There were no adverse affects to all mixes being added at room temperature • All results from automated set up were comparable to those from manual set up

  9. MLPA Automation - Conclusions • Automation allows multiple MLPA tests to be set up simultaneously using a single plate • Technical work is simplified and can be set up in less time • System has ability for further tests to be added to the workflow without additional staff time being required

  10. Any Questions? Acknowledgments Kenneth Smith Mark Greenslade Laura Yarram
