Skeletal System

1. Skeletal System Explain the structure of the bones. Analyze the function of the skeletal system Discuss characteristics and treatment of common skeletal disorders.

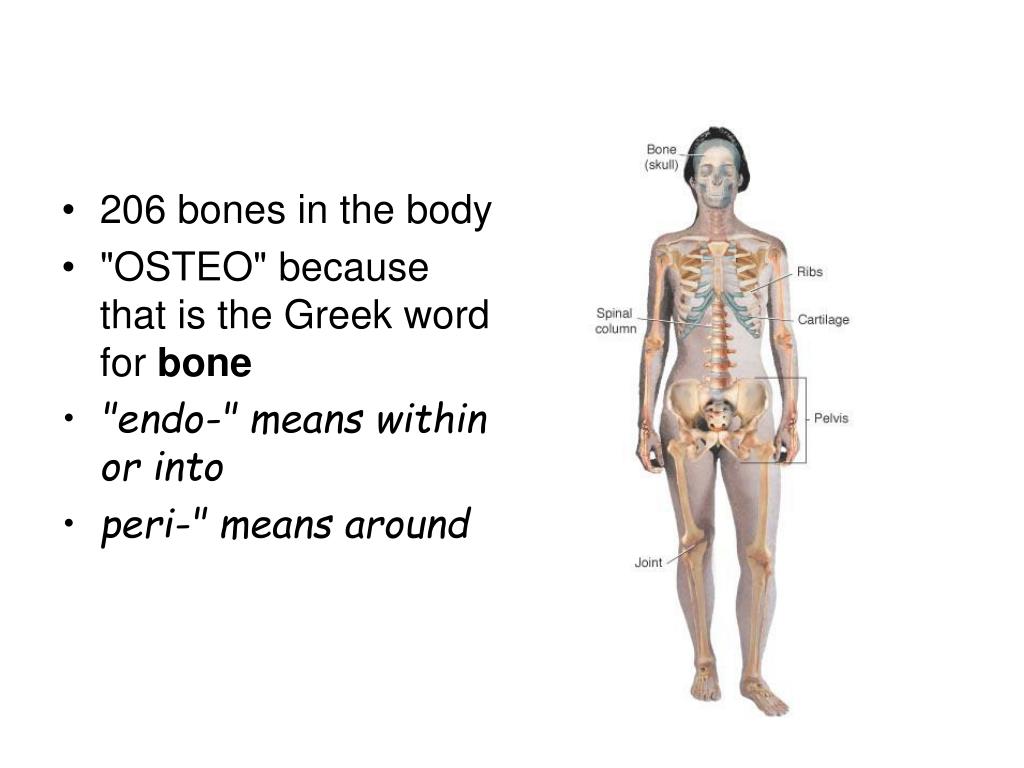

2. 206 bones in the body • "OSTEO" because that is the Greek word for bone • "endo-" means within or into • peri-" means around

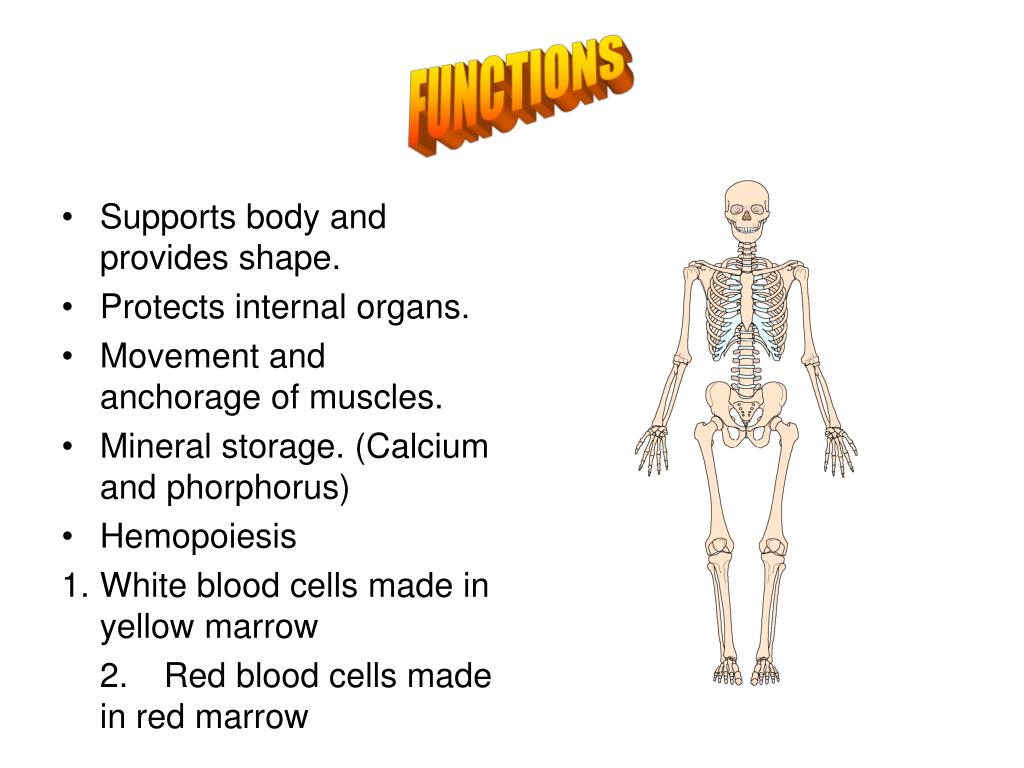

3. FUNCTIONS • Supports body and provides shape. • Protects internal organs. • Movement and anchorage of muscles. • Mineral storage. (Calcium and phorphorus) • Hemopoiesis 1. White blood cells made in yellow marrow 2. Red blood cells made in red marrow

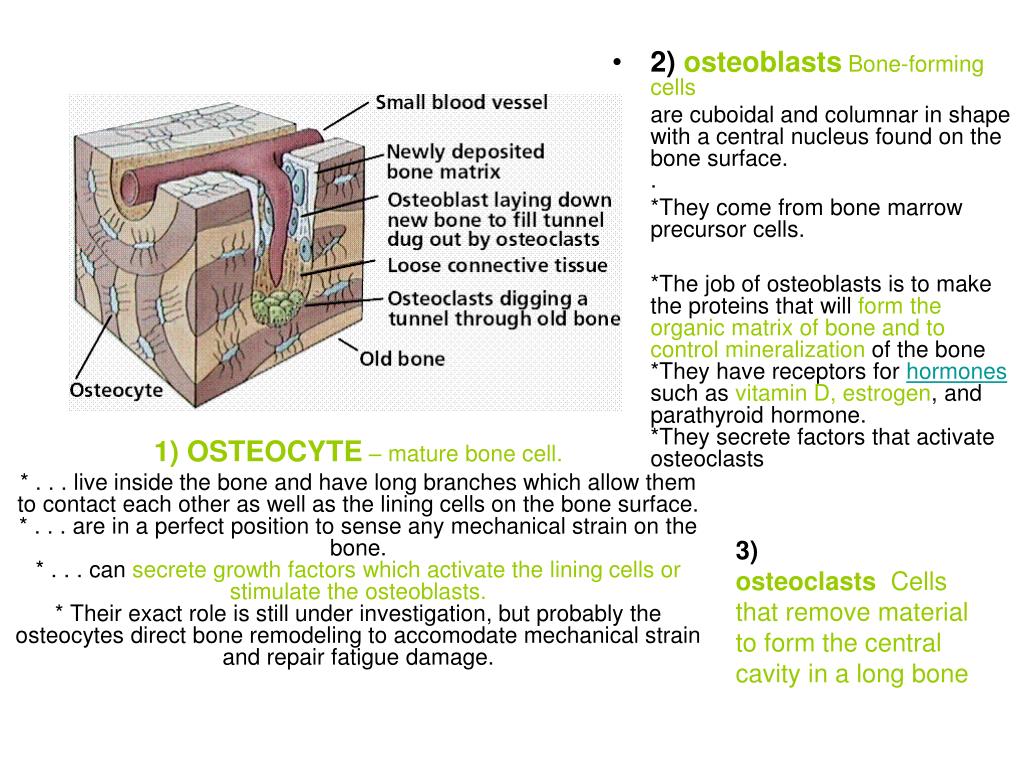

4. 1) OSTEOCYTE – mature bone cell. * . . . live inside the bone and have long branches which allow them to contact each other as well as the lining cells on the bone surface. * . . . are in a perfect position to sense any mechanical strain on the bone. * . . . can secrete growth factors which activate the lining cells or stimulate the osteoblasts. * Their exact role is still under investigation, but probably the osteocytes direct bone remodeling to accomodate mechanical strain and repair fatigue damage. 2) osteoblasts Bone-forming cells are cuboidal and columnar in shape with a central nucleus found on the bone surface. . *They come from bone marrow precursor cells. *The job of osteoblasts is to make the proteins that will form the organic matrix of bone and to control mineralization of the bone *They have receptors for hormones such as vitamin D, estrogen, and parathyroid hormone. *They secrete factors that activate osteoclasts 3) osteoclasts  Cells that remove material to form the central cavity in a long bone

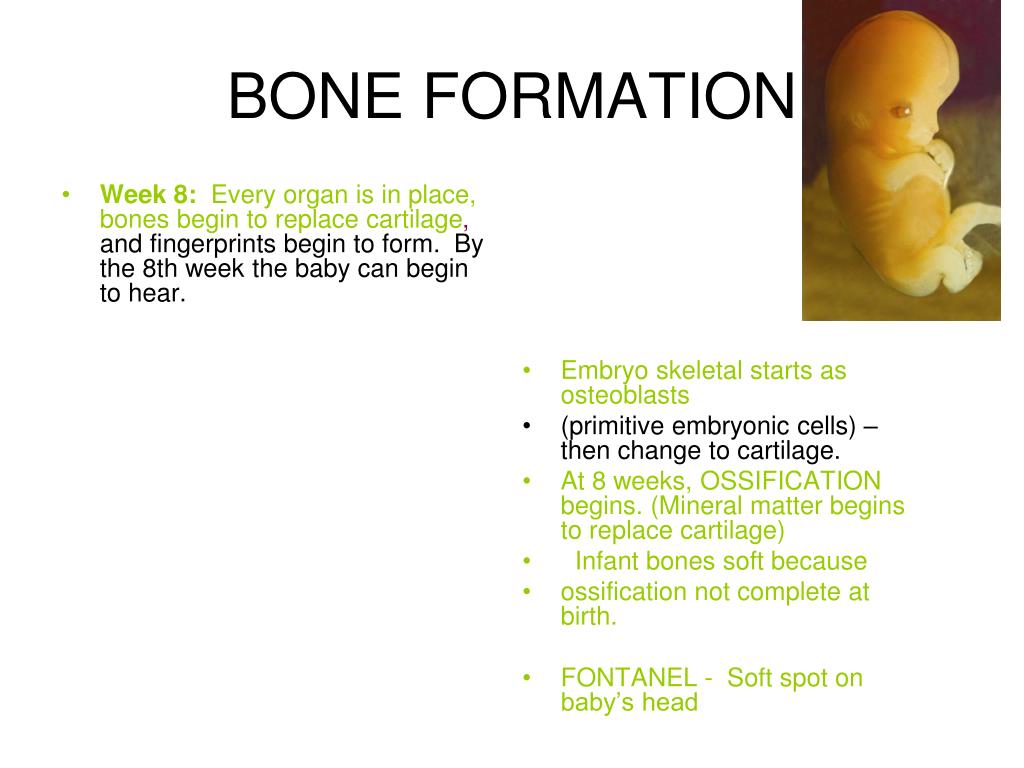

5. BONE FORMATION • Week 8:  Every organ is in place, bones begin to replace cartilage, and fingerprints begin to form.  By the 8th week the baby can begin to hear. • Embryo skeletal starts as osteoblasts • (primitive embryonic cells) – then change to cartilage. • At 8 weeks, OSSIFICATION begins. (Mineral matter begins to replace cartilage) • Infant bones soft because • ossification not complete at birth. • FONTANEL - Soft spot on baby’s head

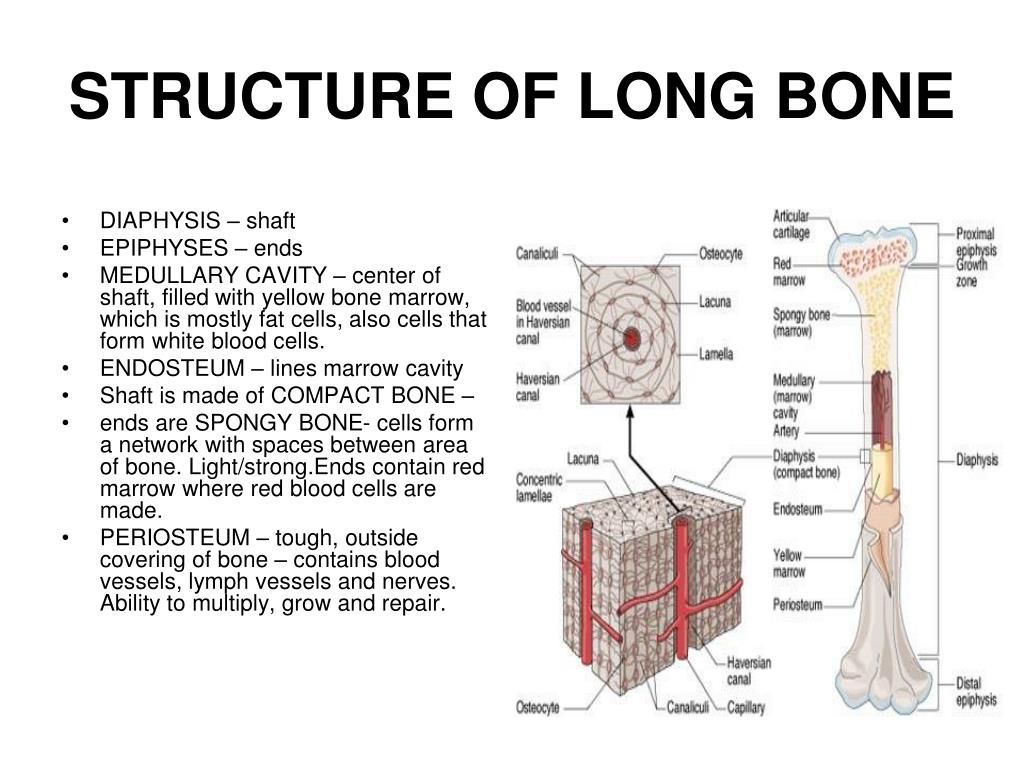

6. STRUCTURE OF LONG BONE • DIAPHYSIS – shaft • EPIPHYSES – ends • MEDULLARY CAVITY – center of shaft, filled with yellow bone marrow, which is mostly fat cells, also cells that form white blood cells. • ENDOSTEUM – lines marrow cavity • Shaft is made of COMPACT BONE – • ends are SPONGY BONE- cells form a network with spaces between area of bone. Light/strong.Ends contain red marrow where red blood cells are made. • PERIOSTEUM – tough, outside covering of bone – contains blood vessels, lymph vessels and nerves. Ability to multiply, grow and repair.

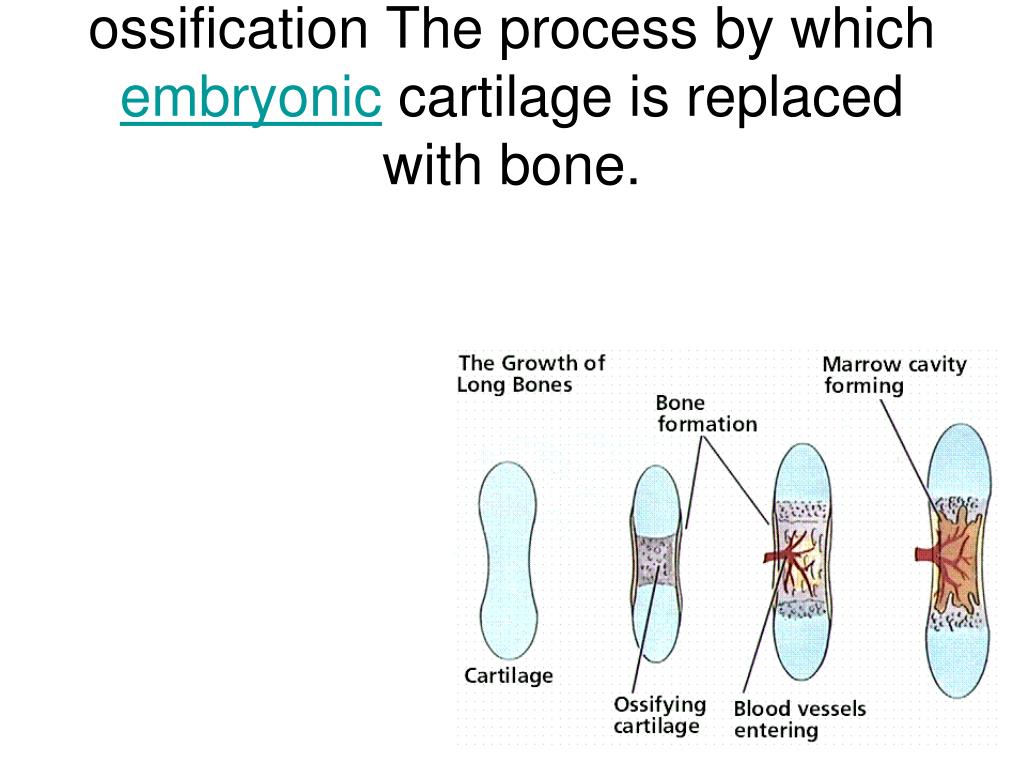

7. ossification The process by which embryonic cartilage is replaced with bone.

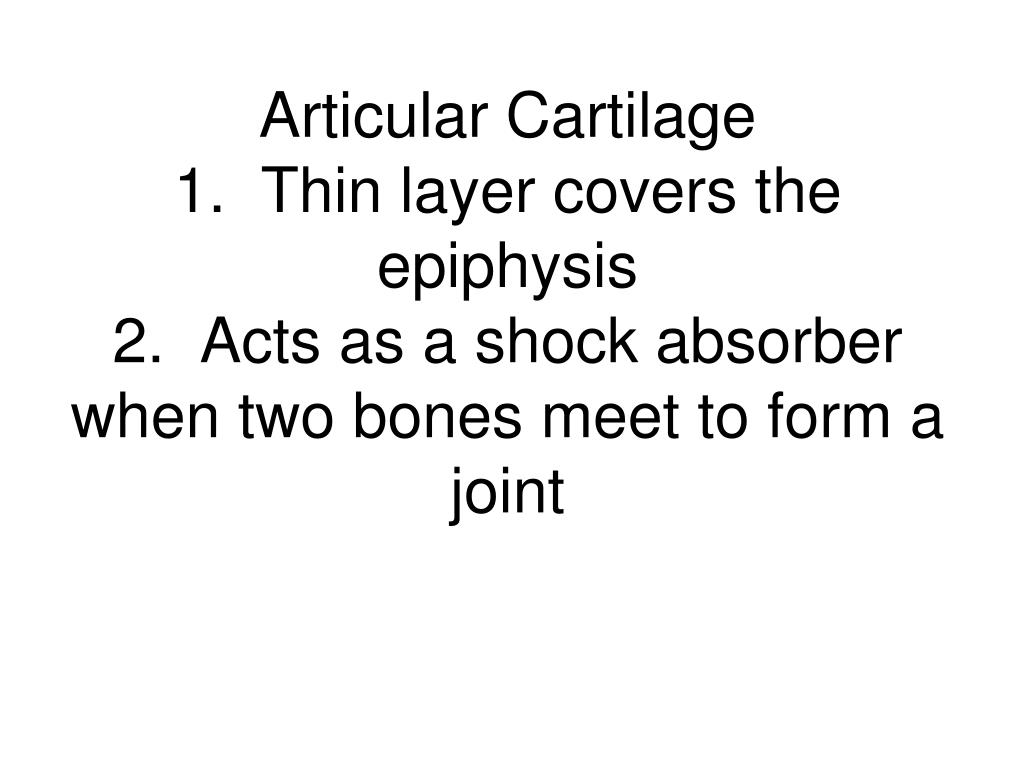

8. Articular Cartilage1. Thin layer covers the epiphysis2. Acts as a shock absorber when two bones meet to form a joint

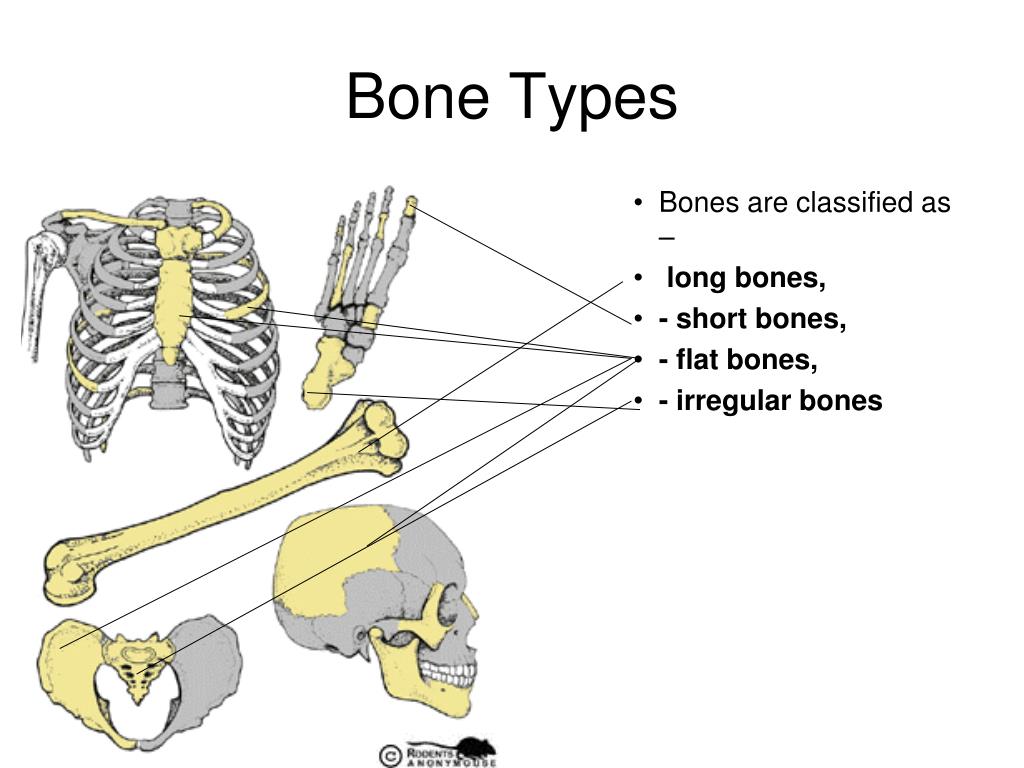

9. Bone Types • Bones are classified as – • long bones, • - short bones, • - flat bones, • - irregular bones

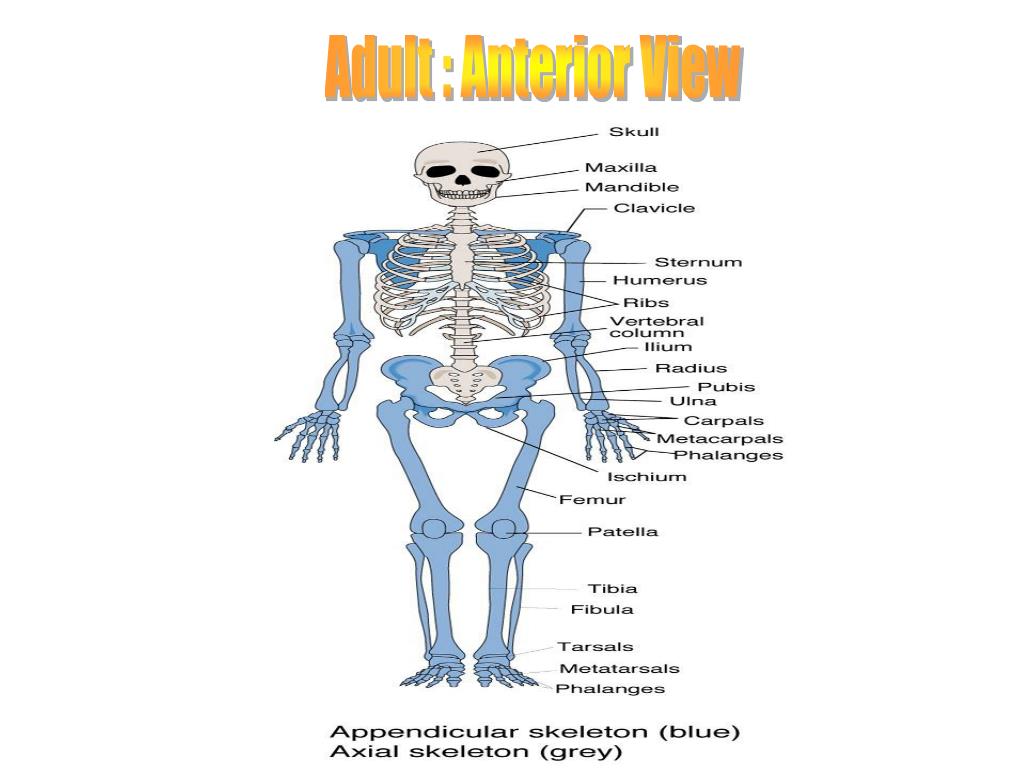

10. Adult : Anterior View

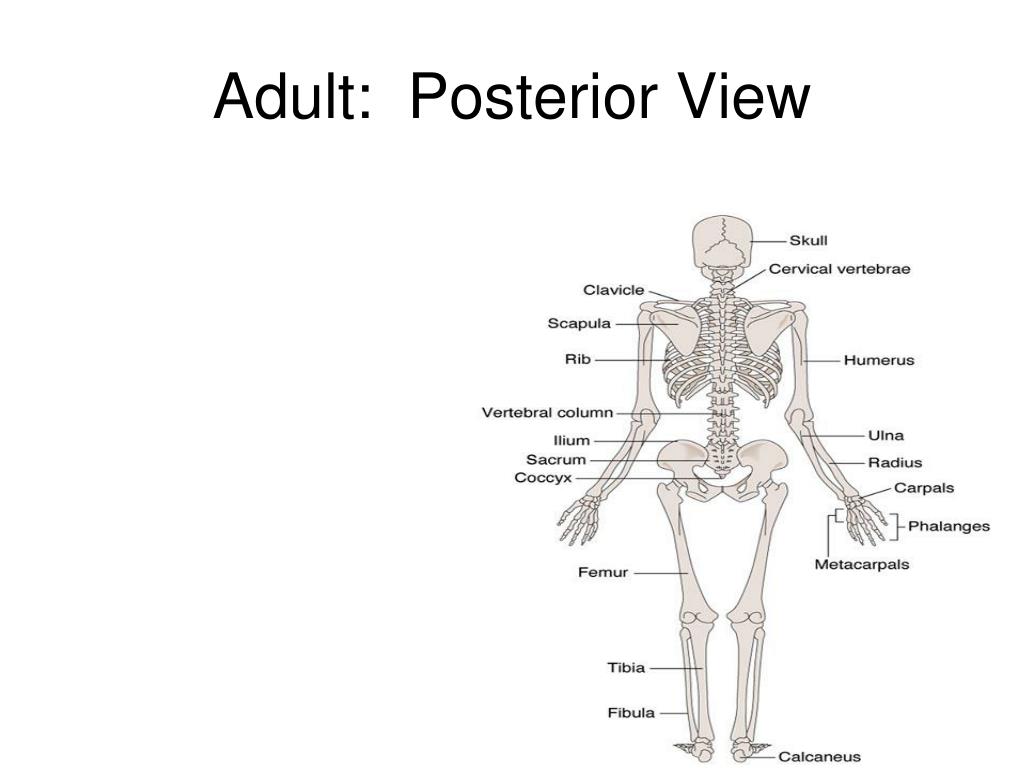

11. Adult: Posterior View

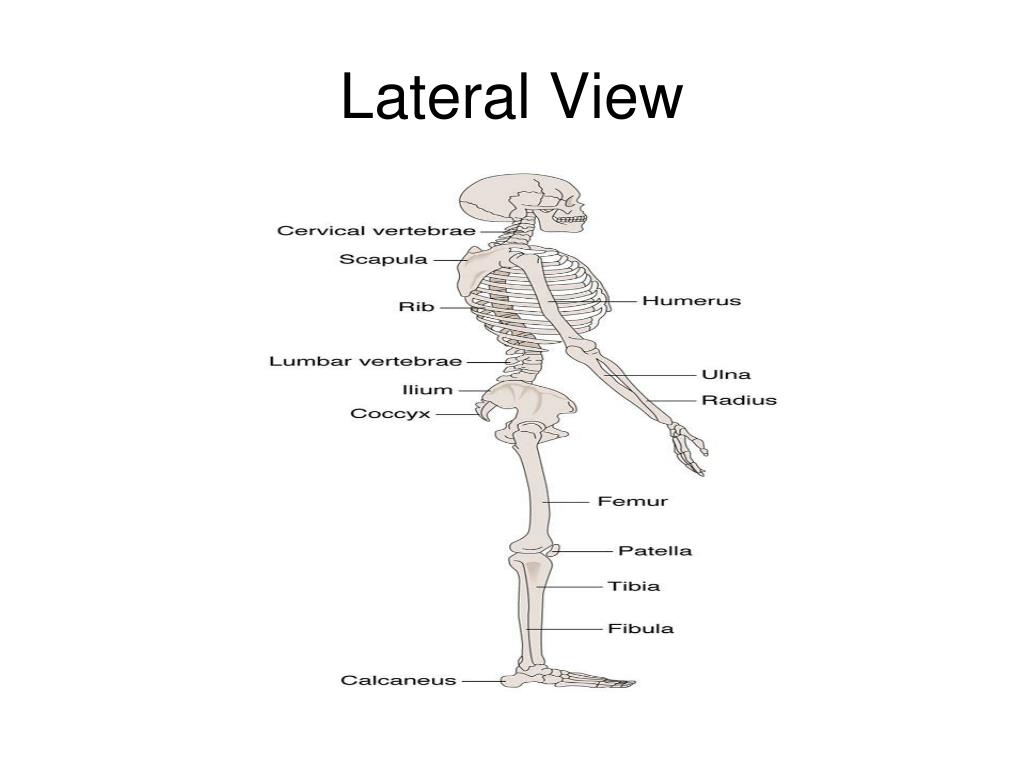

12. Lateral View

13. AXIAL & APPENDICULAR SKELETON • AXIAL – skull, spinal column, ribs, sternum, hyoid • APPENDICULAR – shoulder girdle, arms, pelvis, legs

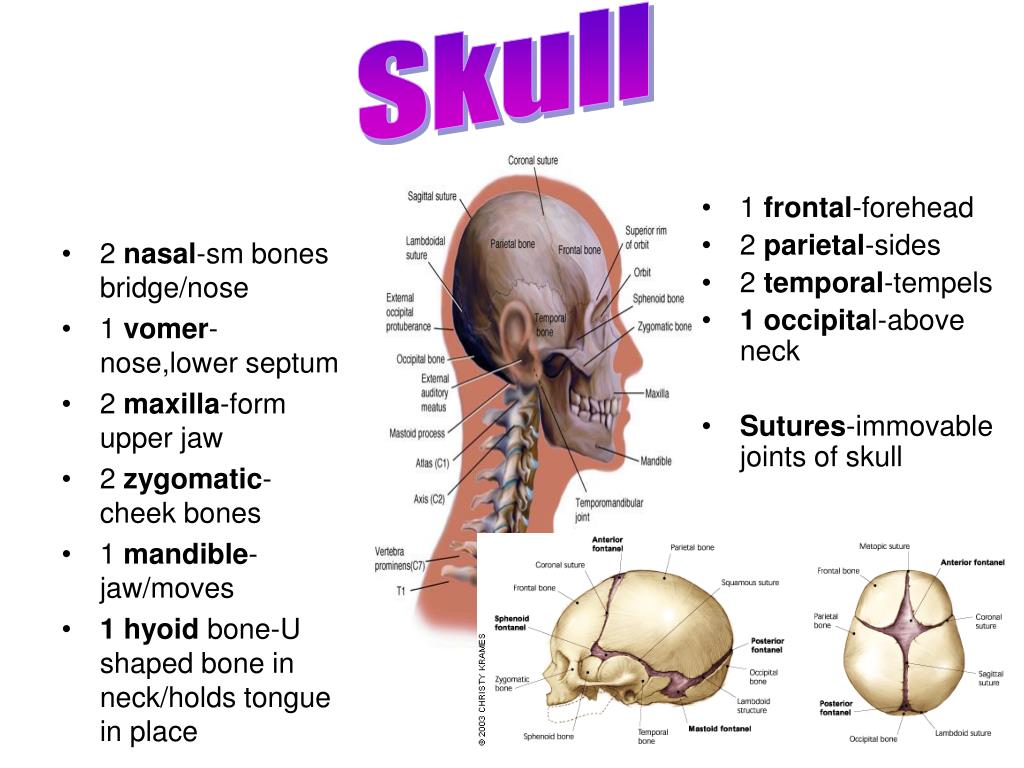

14. Skull • 2 nasal-sm bones bridge/nose • 1 vomer-nose,lower septum • 2 maxilla-form upper jaw • 2 zygomatic- cheek bones • 1 mandible-jaw/moves • 1 hyoid bone-U shaped bone in neck/holds tongue in place • 1 frontal-forehead • 2 parietal-sides • 2 temporal-tempels • 1 occipital-above neck • Sutures-immovable joints of skull

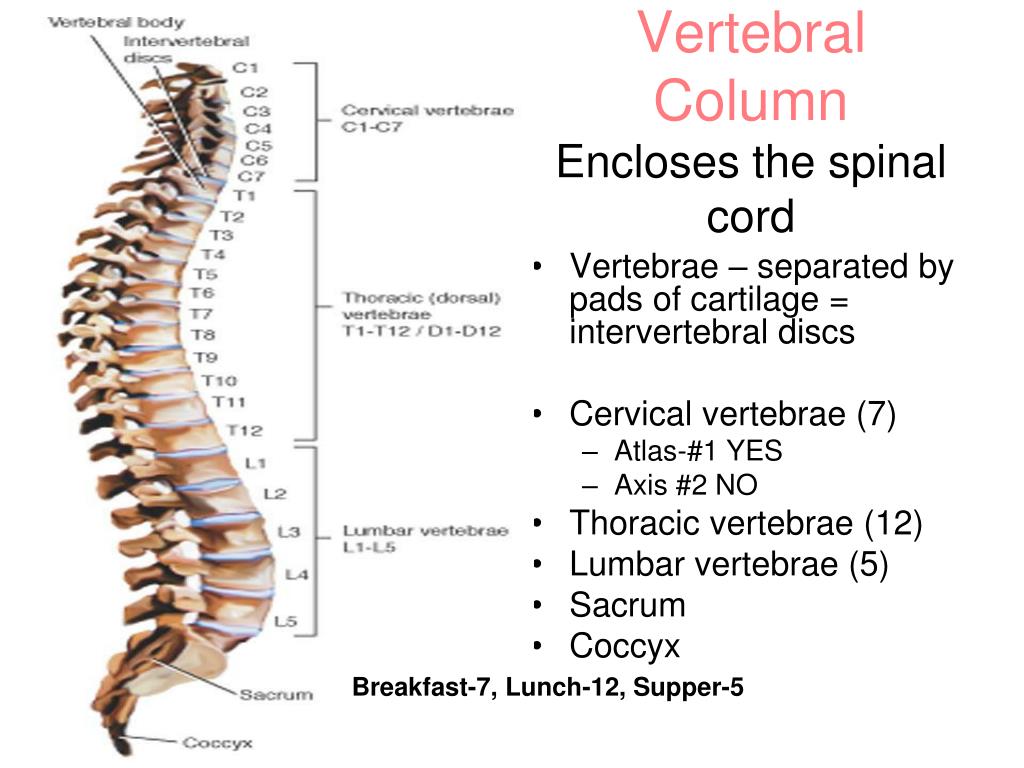

15. Spine – Vertebral ColumnEncloses the spinal cord • Vertebrae – separated by pads of cartilage = intervertebral discs • Cervical vertebrae (7) • Atlas-#1 YES • Axis #2 NO • Thoracic vertebrae (12) • Lumbar vertebrae (5) • Sacrum • Coccyx Breakfast-7, Lunch-12, Supper-5

16. Vertebral column 1. Encloses spinal cord • Separated by pads of cartilage • = intervertebral discs

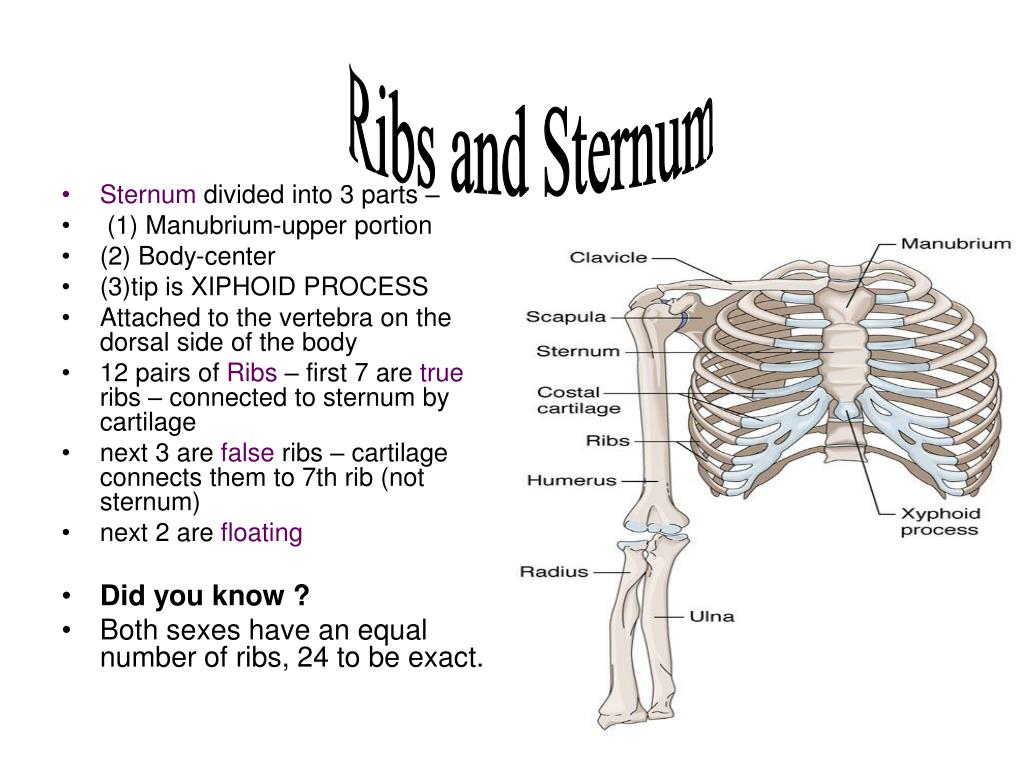

17. Ribs and Sternum • Sternum divided into 3 parts – • (1) Manubrium-upper portion • (2) Body-center • (3)tip is XIPHOID PROCESS • Attached to the vertebra on the dorsal side of the body • 12 pairs of Ribs – first 7 are true ribs – connected to sternum by cartilage • next 3 are false ribs – cartilage connects them to 7th rib (not sternum) • next 2 are floating • Did you know ? • Both sexes have an equal number of ribs, 24 to be exact.

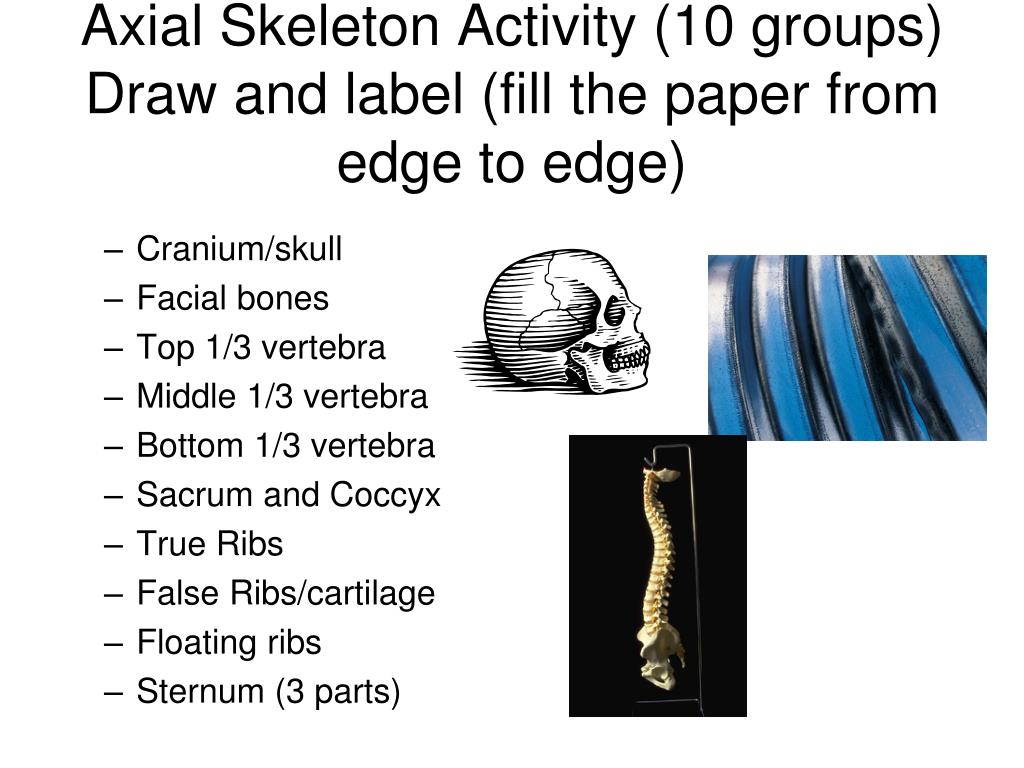

18. Axial Skeleton Activity (10 groups)Draw and label (fill the paper from edge to edge) • Cranium/skull • Facial bones • Top 1/3 vertebra • Middle 1/3 vertebra • Bottom 1/3 vertebra • Sacrum and Coccyx • True Ribs • False Ribs/cartilage • Floating ribs • Sternum (3 parts)

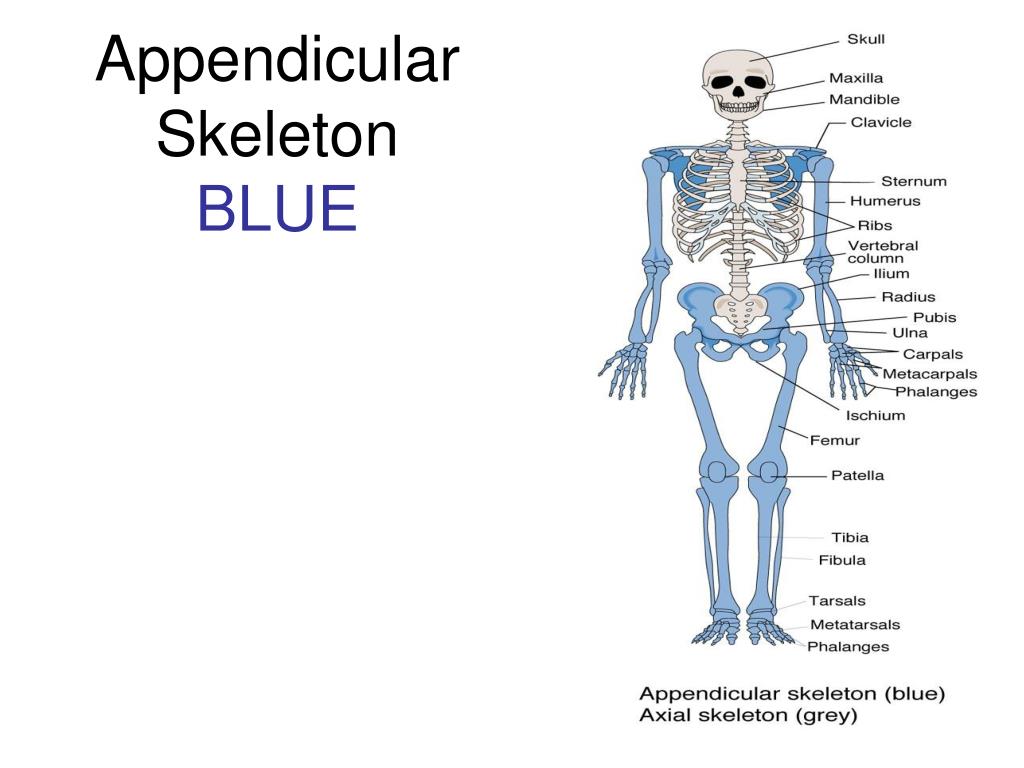

19. Appendicular SkeletonBLUE

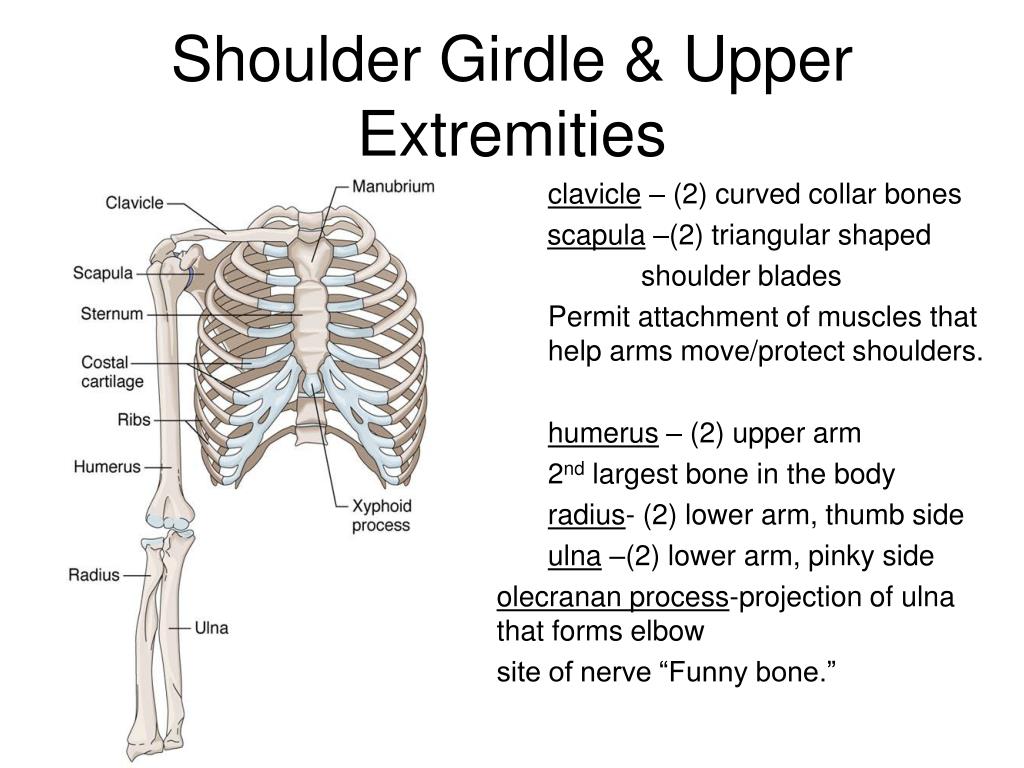

20. Shoulder Girdle & Upper Extremities clavicle – (2) curved collar bones scapula –(2) triangular shaped shoulder blades Permit attachment of muscles that help arms move/protect shoulders. humerus – (2) upper arm 2nd largest bone in the body radius- (2) lower arm, thumb side ulna –(2) lower arm, pinky side olecranan process-projection of ulna that forms elbow site of nerve “Funny bone.”

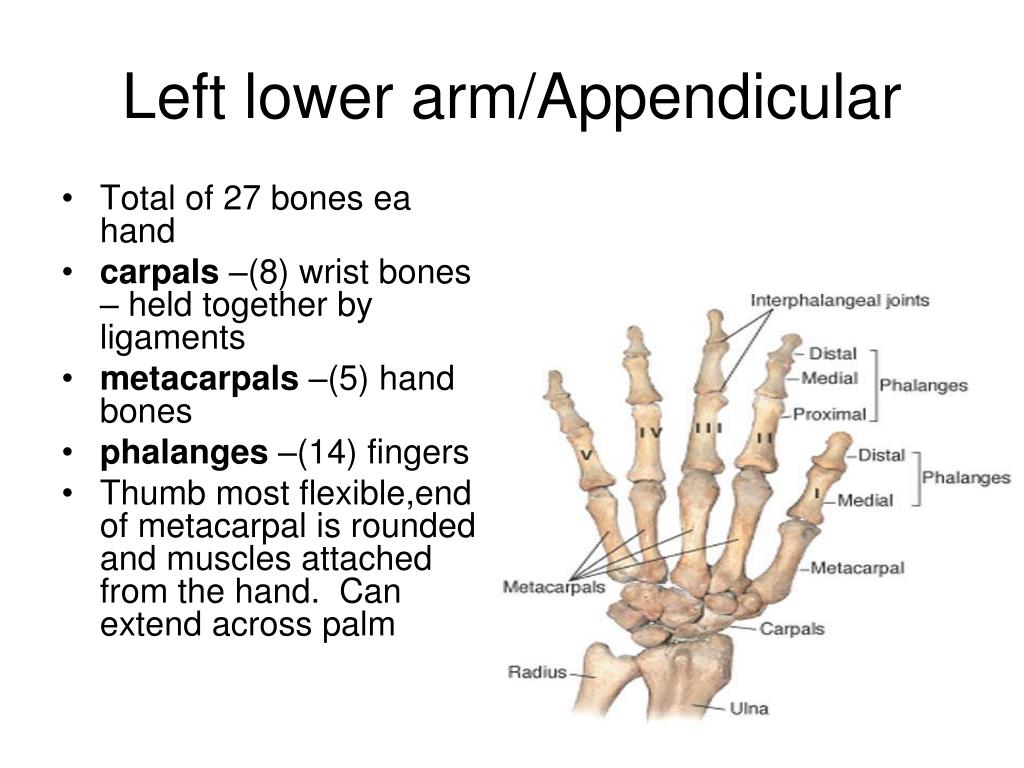

21. Left lower arm/Appendicular • Total of 27 bones ea hand • carpals –(8) wrist bones – held together by ligaments • metacarpals –(5) hand bones • phalanges –(14) fingers • Thumb most flexible,end of metacarpal is rounded and muscles attached from the hand. Can extend across palm

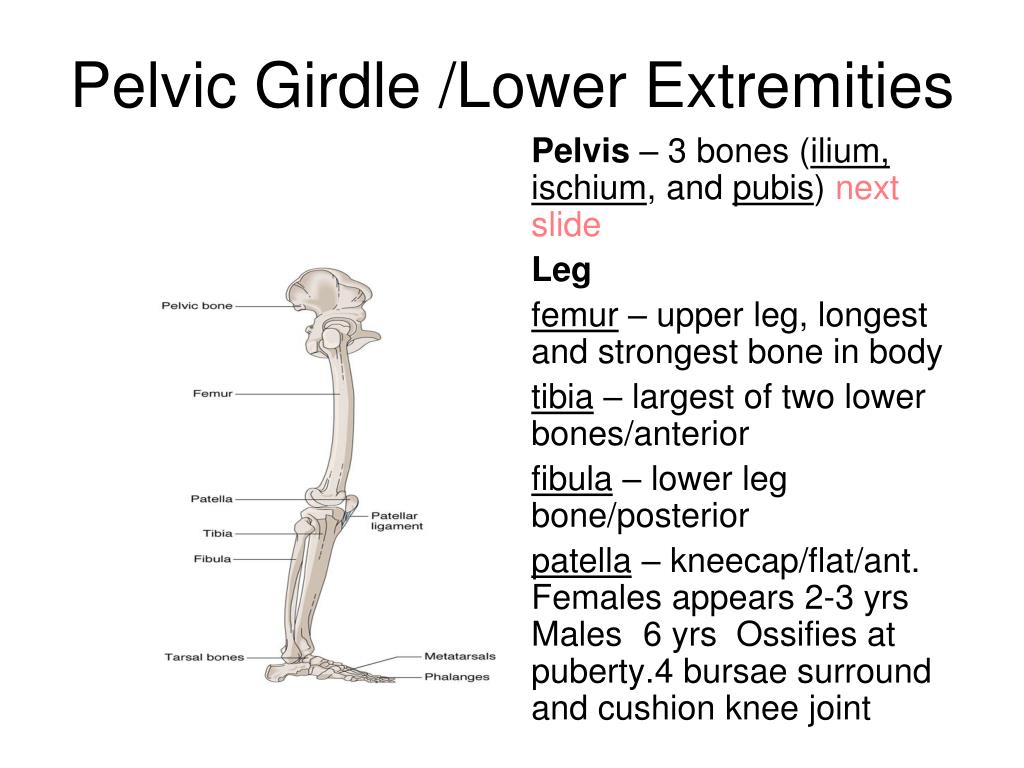

22. Pelvic Girdle /Lower Extremities Pelvis – 3 bones (ilium, ischium, and pubis) next slide Leg femur – upper leg, longest and strongest bone in body tibia – largest of two lower bones/anterior fibula – lower leg bone/posterior patella – kneecap/flat/ant. Females appears 2-3 yrs Males 6 yrs Ossifies at puberty.4 bursae surround and cushion knee joint

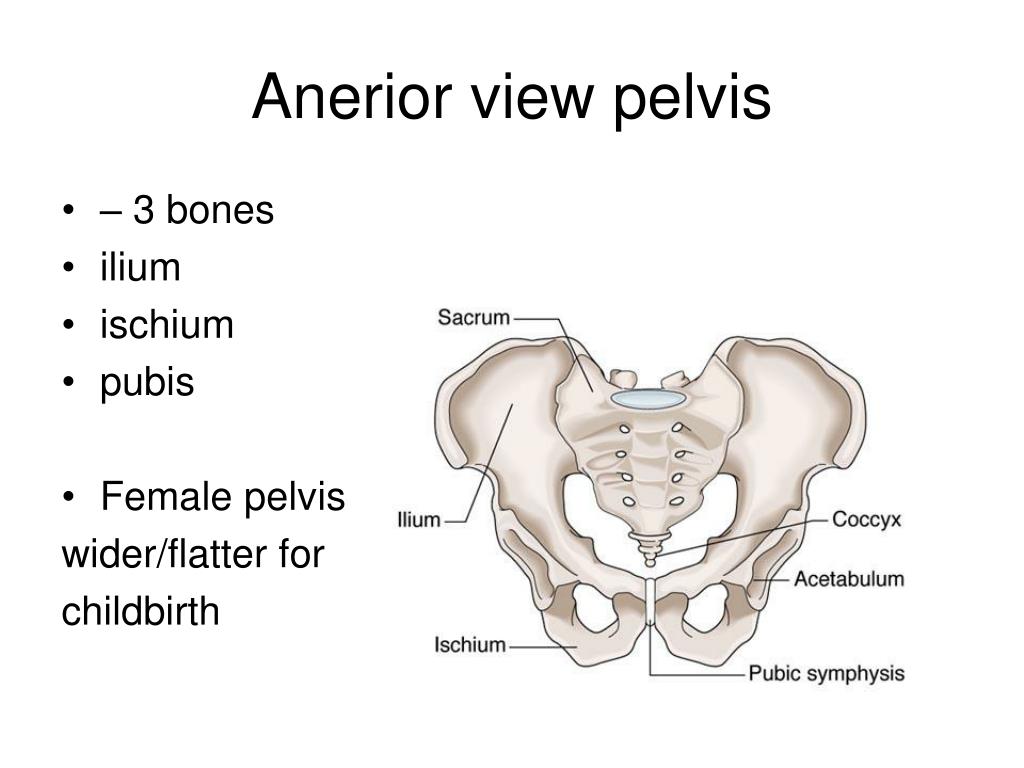

23. Anerior view pelvis • – 3 bones • ilium • ischium • pubis • Female pelvis wider/flatter for childbirth

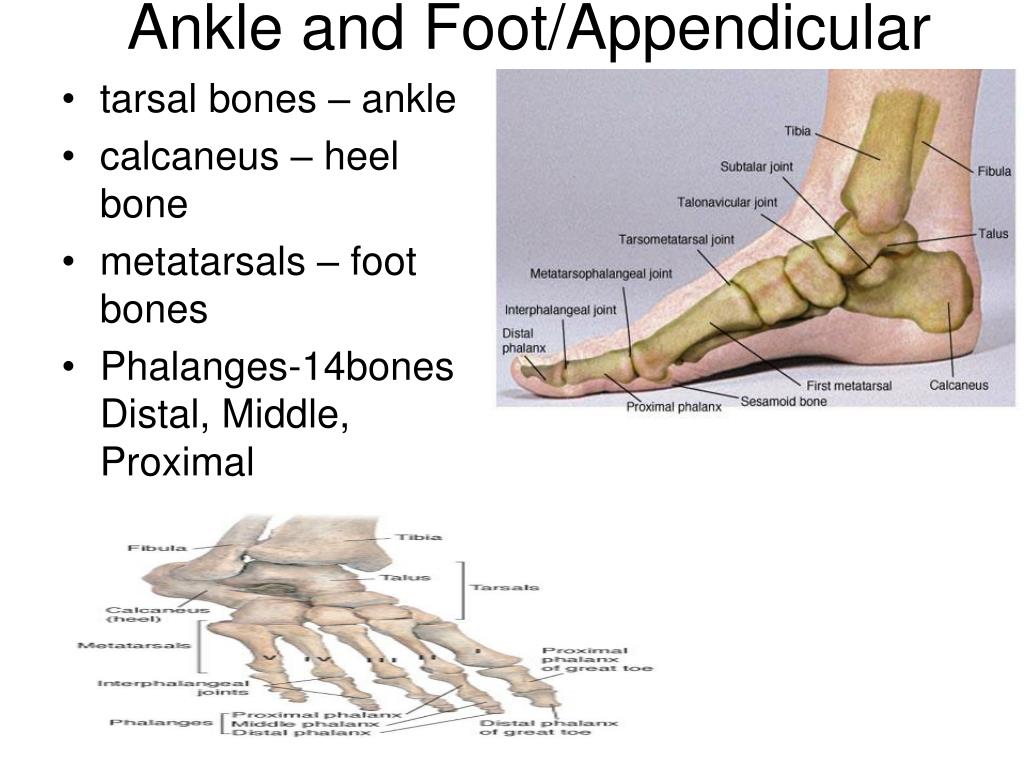

24. Ankle and Foot/Appendicular • tarsal bones – ankle • calcaneus – heel bone • metatarsals – foot bones • Phalanges-14bones Distal, Middle, Proximal

25. Appendicular Skeleton (groups)complete skeleton • Shoulder Girdle • Upper/Lower Arms • Wrists/Hands • Pelvis • Upper/Lower Leg/Patella • Ankles/Heel/Feet

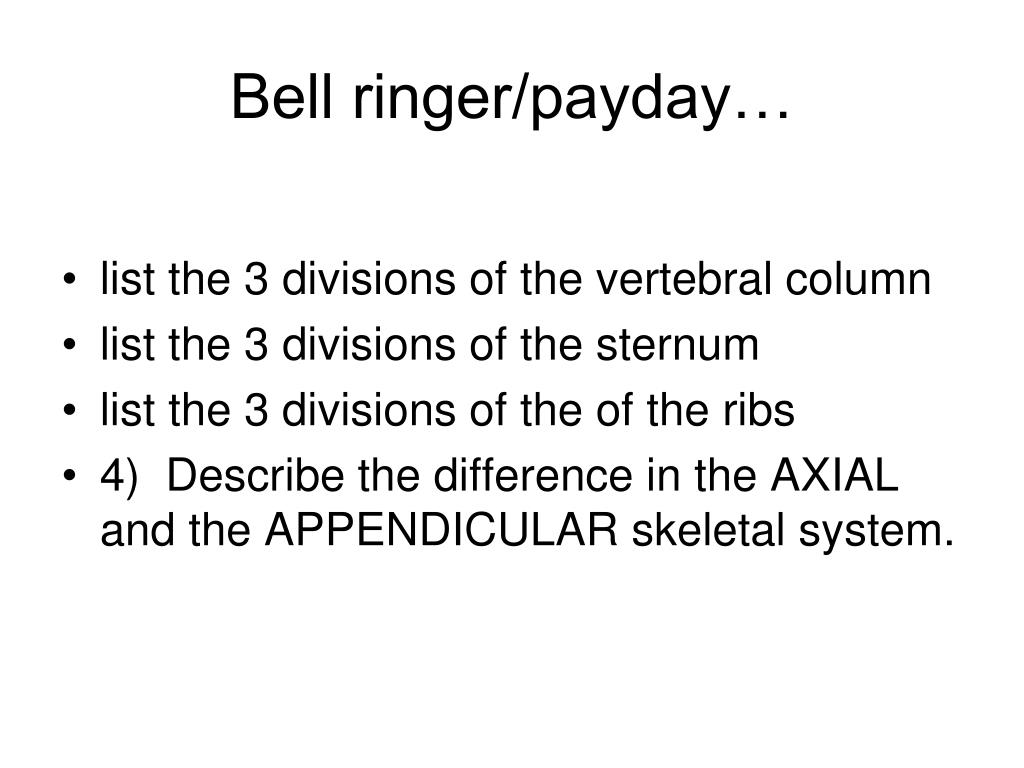

26. Bell ringer/payday… • list the 3 divisions of the vertebral column • list the 3 divisions of the sternum • list the 3 divisions of the of the ribs • 4) Describe the difference in the AXIAL and the APPENDICULAR skeletal system.

27. 3 Kinds of Joints • Synarthroses-no movement • Ampiarthrosis-slight movement • Diarthrosis-free movement-most of joints of the body are this type. • **Read Text pp103-104, Joints & Related Structures.

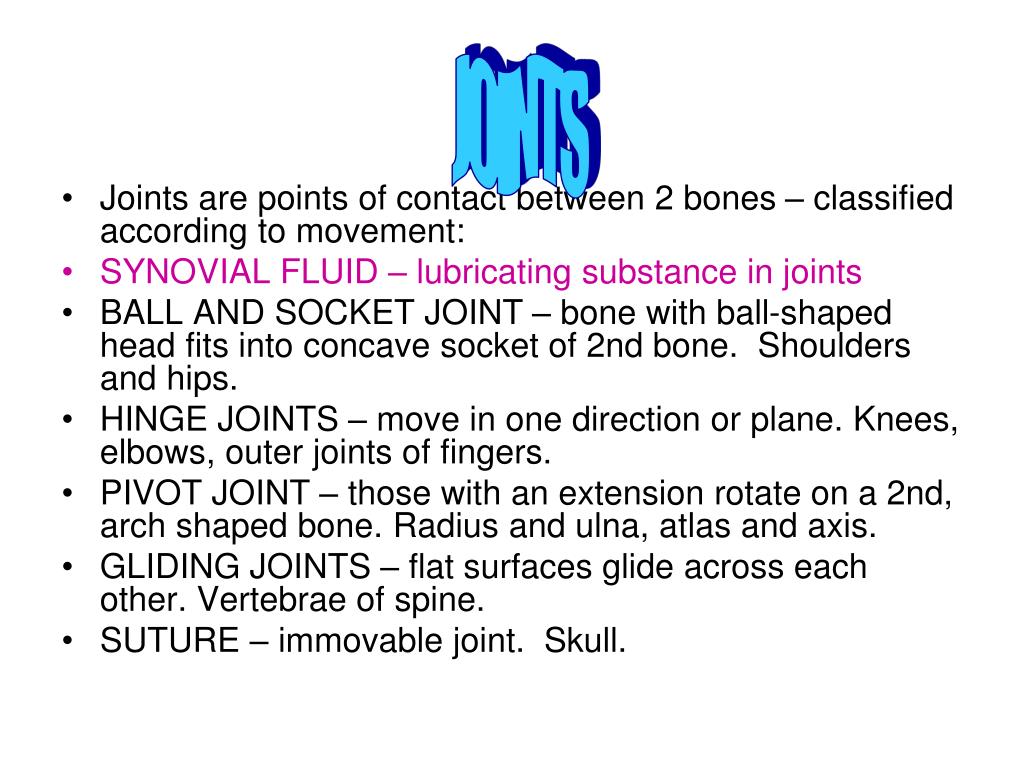

28. JOINTS • Joints are points of contact between 2 bones – classified according to movement: • SYNOVIAL FLUID – lubricating substance in joints • BALL AND SOCKET JOINT – bone with ball-shaped head fits into concave socket of 2nd bone. Shoulders and hips. • HINGE JOINTS – move in one direction or plane. Knees, elbows, outer joints of fingers. • PIVOT JOINT – those with an extension rotate on a 2nd, arch shaped bone. Radius and ulna, atlas and axis. • GLIDING JOINTS – flat surfaces glide across each other. Vertebrae of spine. • SUTURE – immovable joint. Skull.

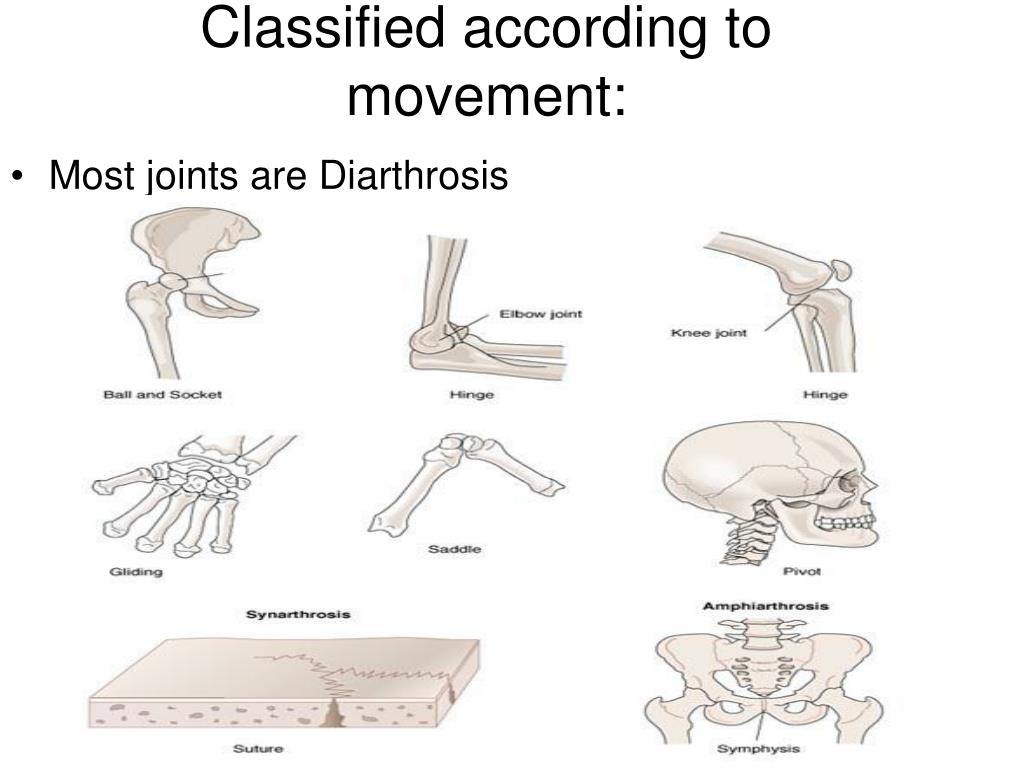

29. Classified according to movement: • Most joints are Diarthrosis

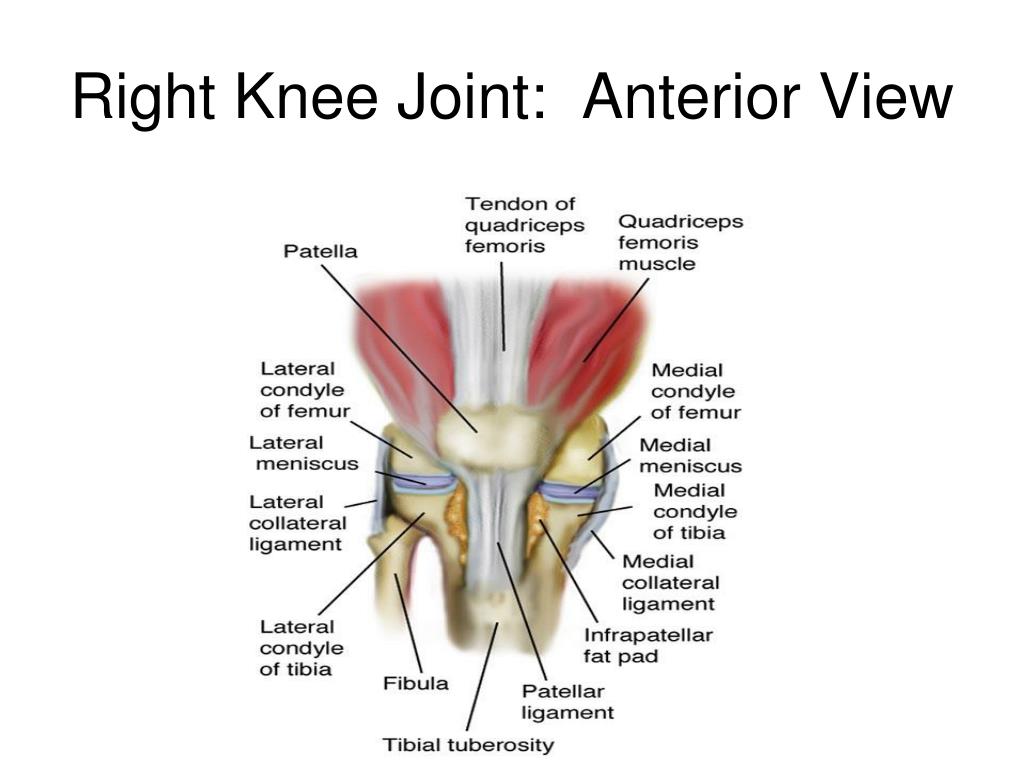

30. Right Knee Joint: Anterior View

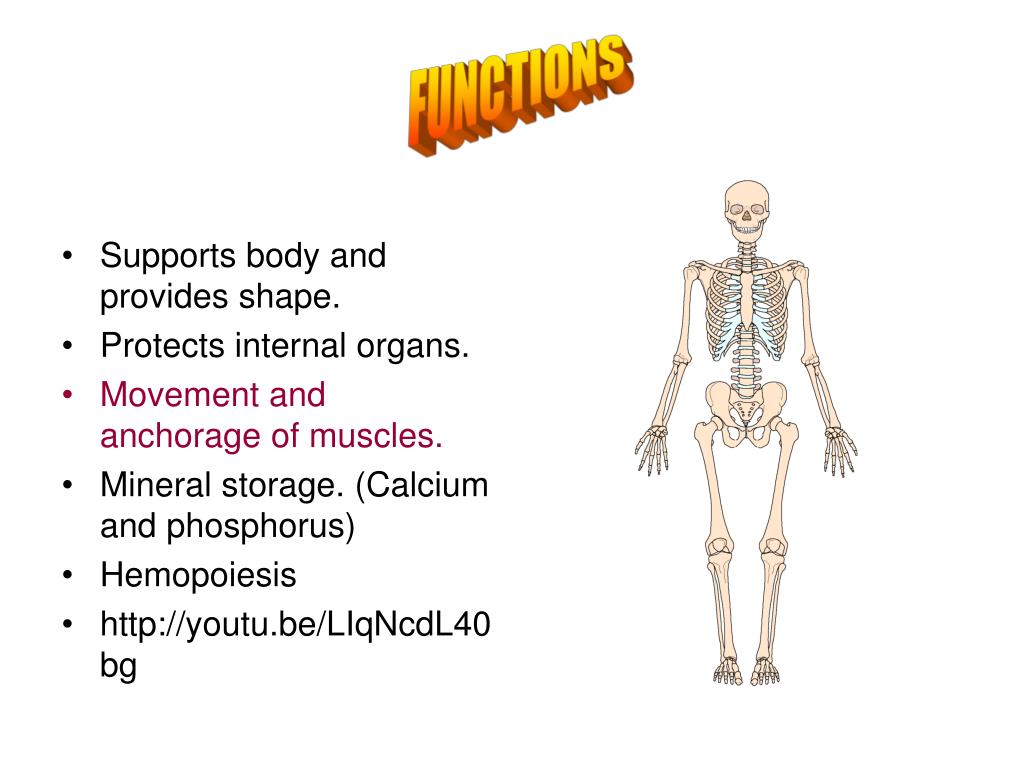

32. FUNCTIONS • Supports body and provides shape. • Protects internal organs. • Movement and anchorage of muscles. • Mineral storage. (Calcium and phosphorus) • Hemopoiesis • http://youtu.be/LIqNcdL40bg

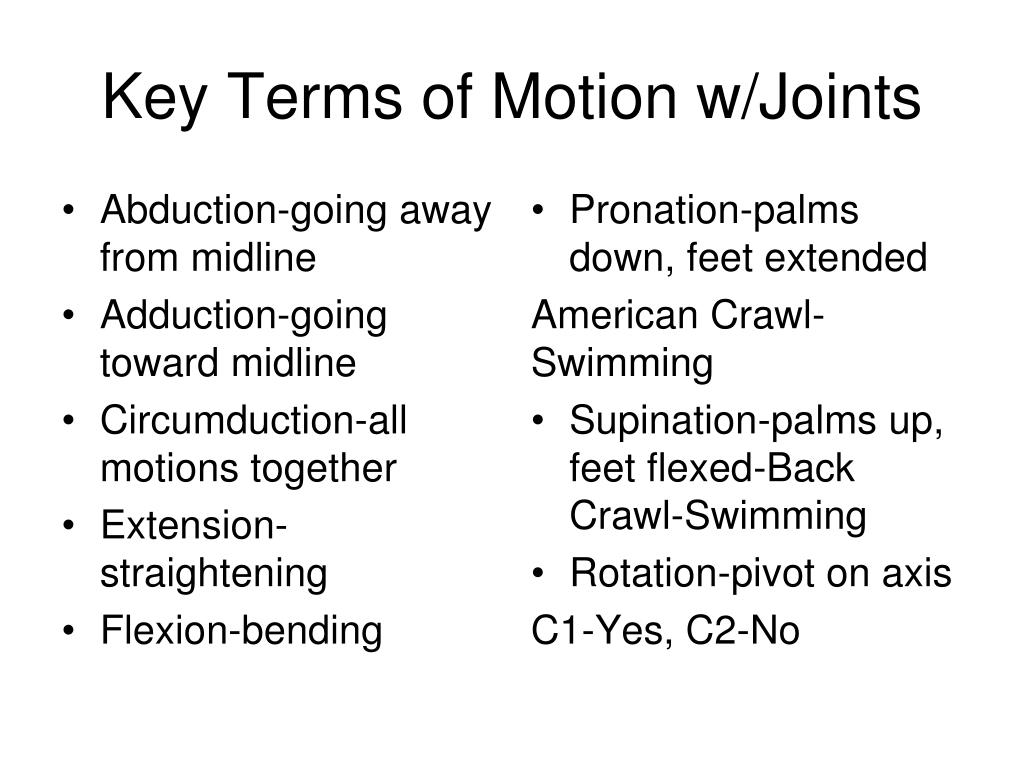

33. Key Terms of Motion w/Joints • Abduction-going away from midline • Adduction-going toward midline • Circumduction-all motions together • Extension-straightening • Flexion-bending • Pronation-palms down, feet extended American Crawl-Swimming • Supination-palms up, feet flexed-Back Crawl-Swimming • Rotation-pivot on axis C1-Yes, C2-No

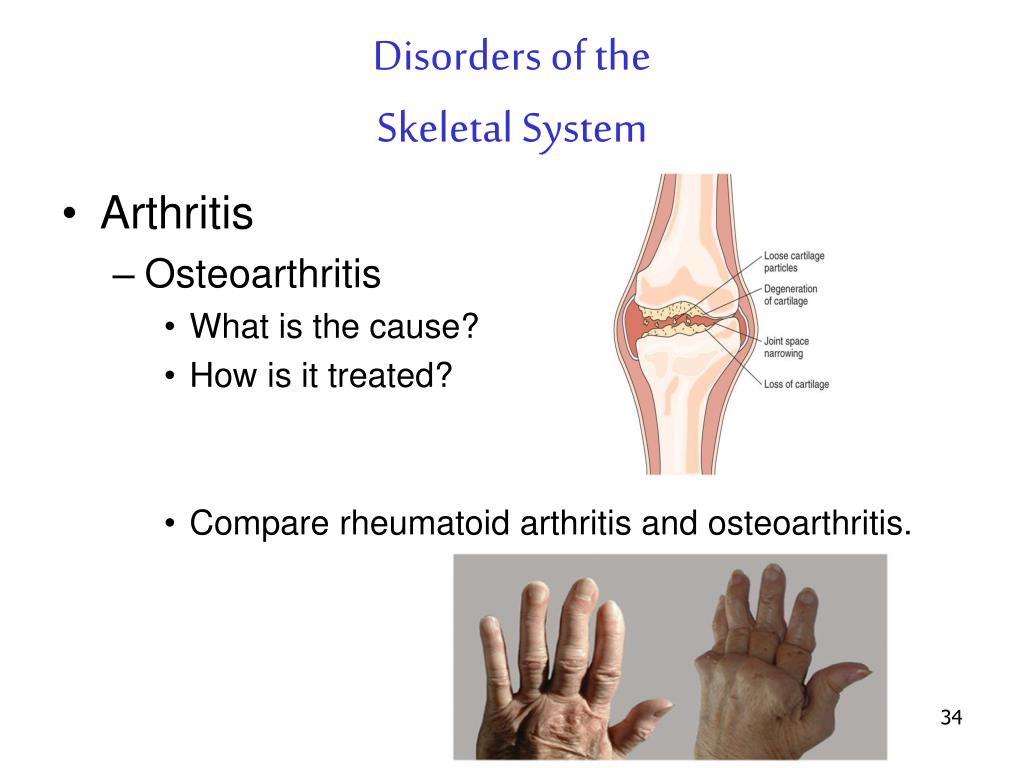

34. Disorders of the Skeletal System • Arthritis • Osteoarthritis • What is the cause? • How is it treated? • Compare rheumatoid arthritis and osteoarthritis.

35. Gout • What causes Gout? • Which joint is most often effected? • What other joints might be affected? • How is gout treated?

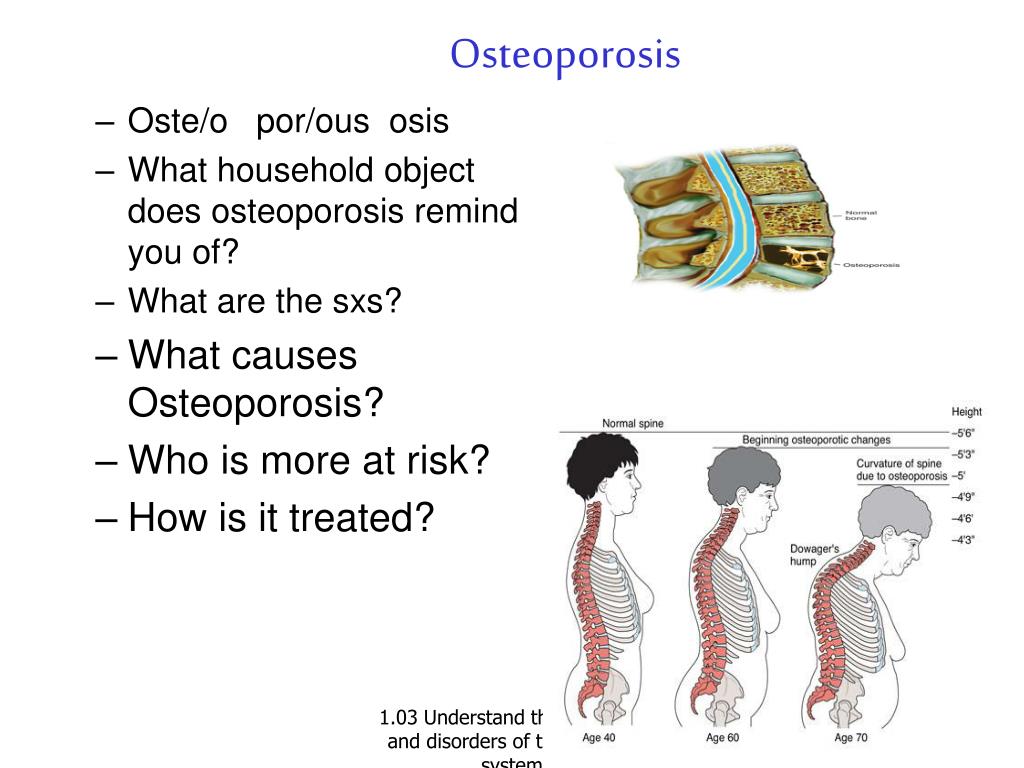

36. Osteoporosis • Oste/o por/ous osis • What household object does osteoporosis remind you of? • What are the sxs? • What causes Osteoporosis? • Who is more at risk? • How is it treated? 1.03 Understand the functions and disorders of the skeletal system

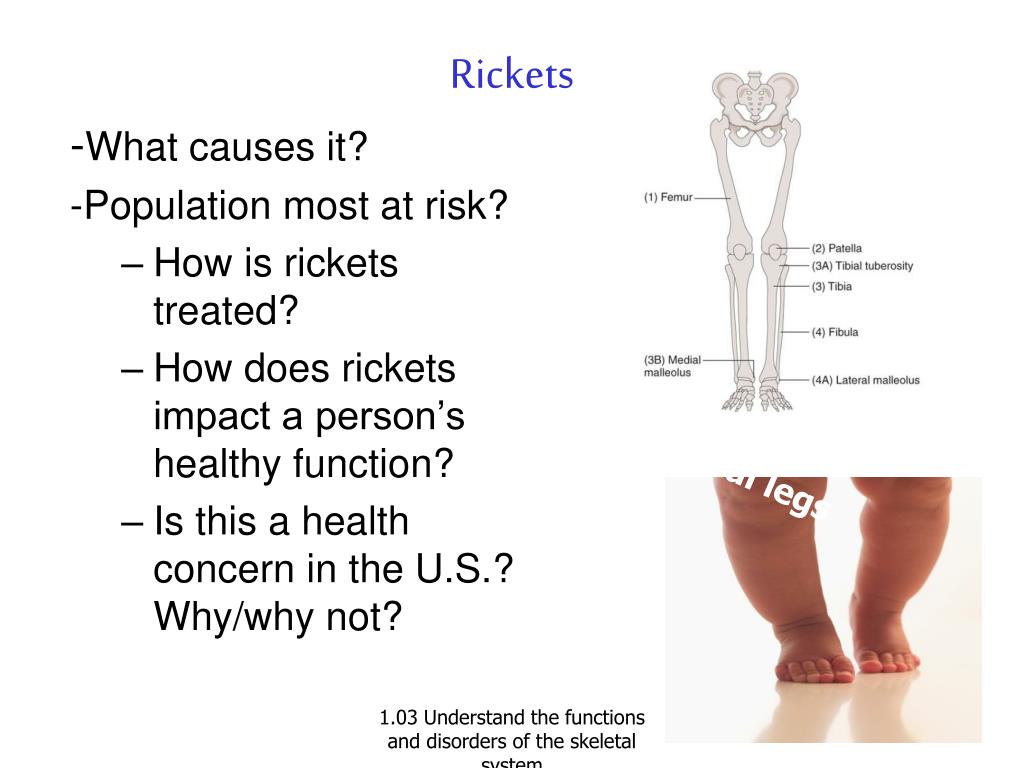

37. Rickets -What causes it? -Population most at risk? • How is rickets treated? • How does rickets impact a person’s healthy function? • Is this a health concern in the U.S.? Why/why not? Normal legs 1.03 Understand the functions and disorders of the skeletal system

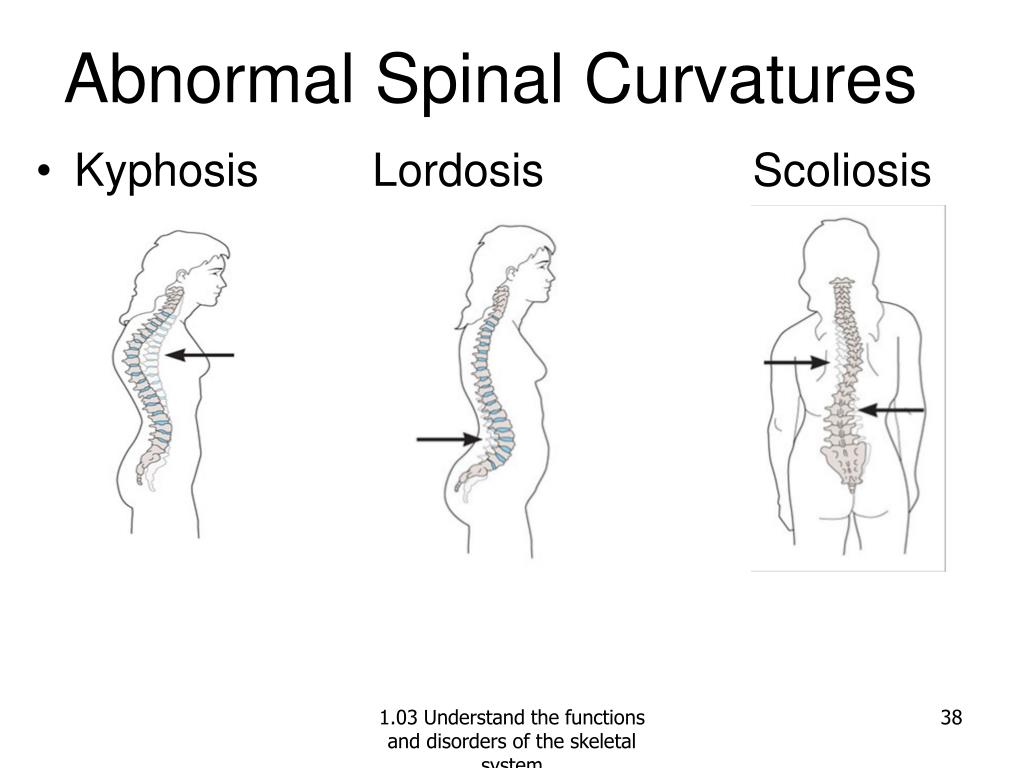

38. Abnormal Spinal Curvatures • Kyphosis Lordosis Scoliosis 1.03 Understand the functions and disorders of the skeletal system

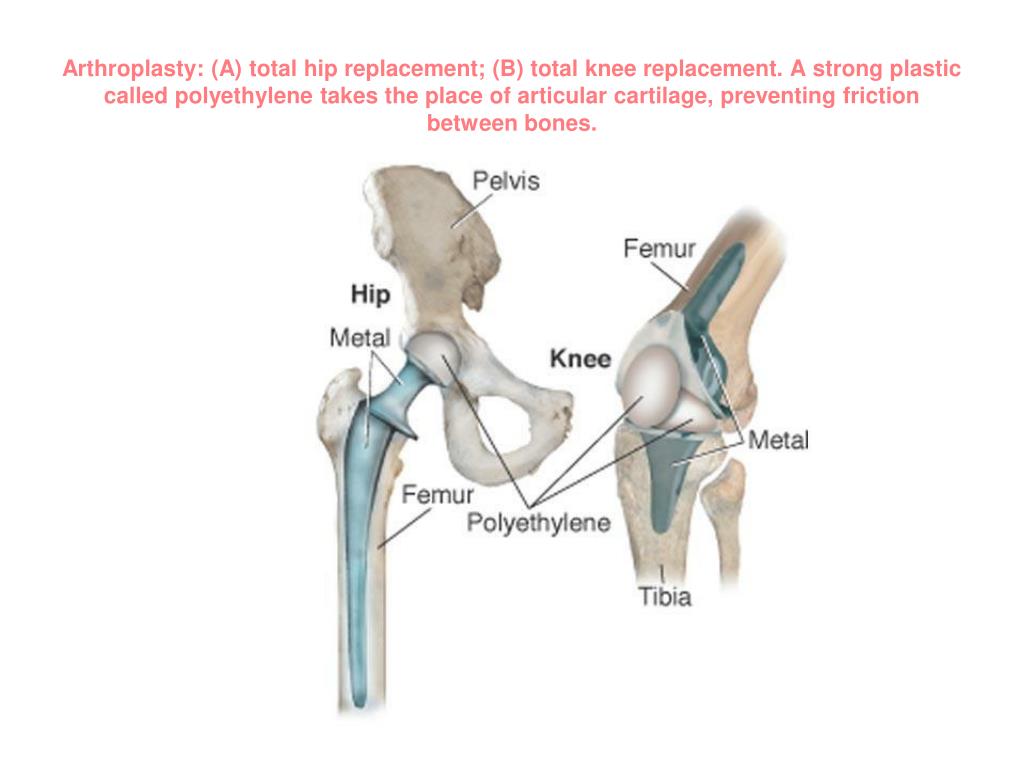

39. Arthroplasty: (A) total hip replacement; (B) total knee replacement. A strong plastic called polyethylene takes the place of articular cartilage, preventing friction between bones.

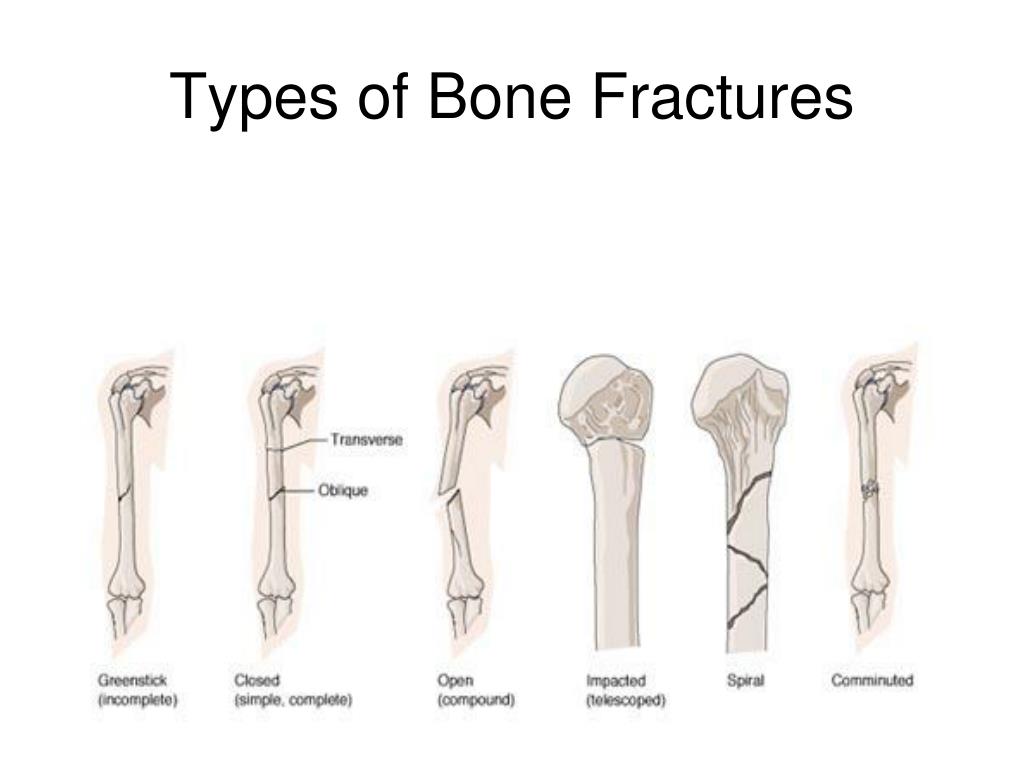

40. Types of Bone Fractures

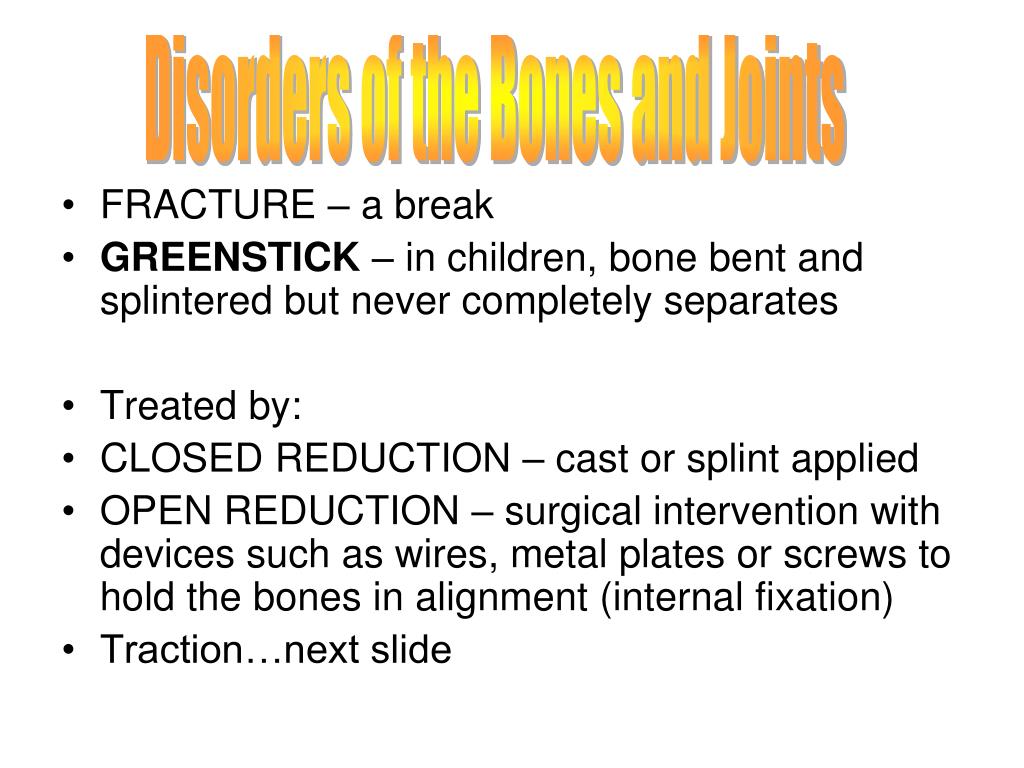

41. Disorders of the Bones and Joints • FRACTURE – a break • GREENSTICK – in children, bone bent and splintered but never completely separates • Treated by: • CLOSED REDUCTION – cast or splint applied • OPEN REDUCTION – surgical intervention with devices such as wires, metal plates or screws to hold the bones in alignment (internal fixation) • Traction…next slide

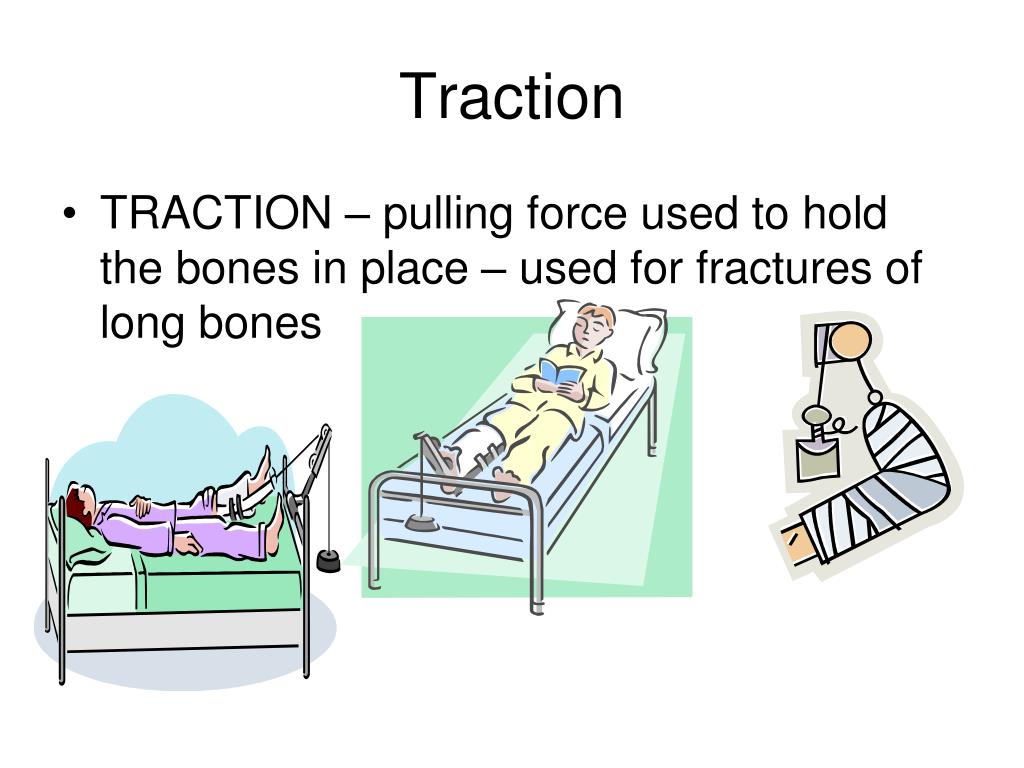

42. Traction • TRACTION – pulling force used to hold the bones in place – used for fractures of long bones

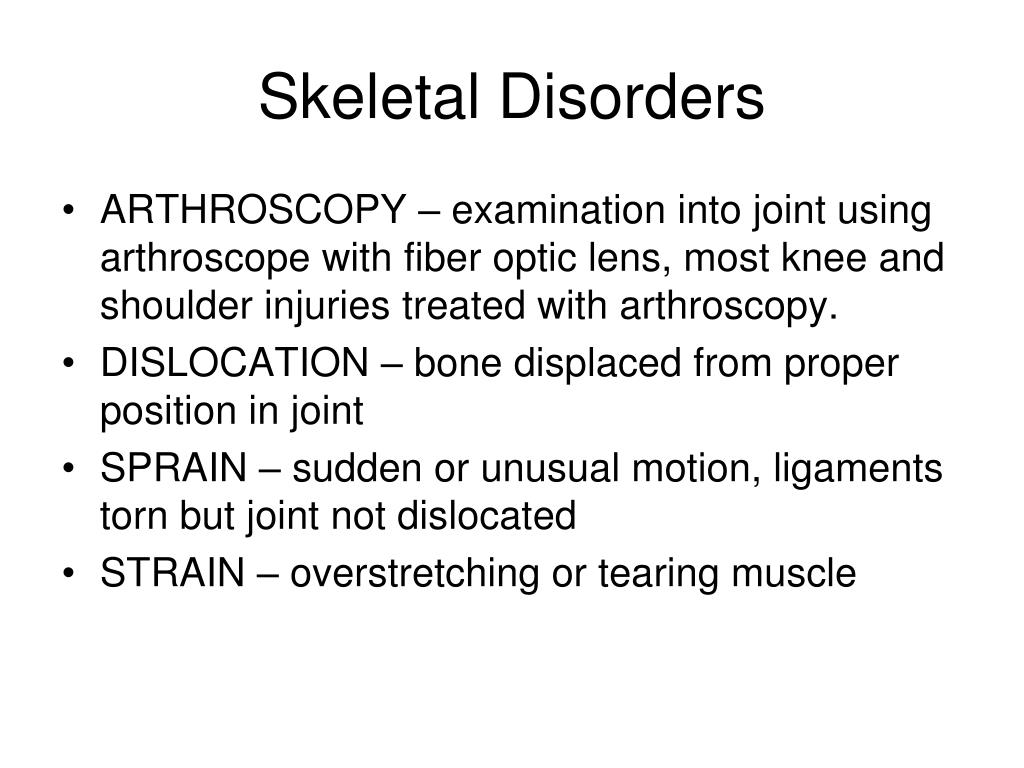

43. Skeletal Disorders • ARTHROSCOPY – examination into joint using arthroscope with fiber optic lens, most knee and shoulder injuries treated with arthroscopy. • DISLOCATION – bone displaced from proper position in joint • SPRAIN – sudden or unusual motion, ligaments torn but joint not dislocated • STRAIN – overstretching or tearing muscle
