HC 20 PRESENTATION. MENU. Main Menu. Menu. Next. HC 20 WITH HYDRAULIC VANE MOTOR HC 20 WITH HYDRAULIC PISTON MOTOR FEATURES DESCRIPTION DIMENSIONS ADAPTATION CHARACTERISTICS REFERENCES. Previous. HC 20 PRESENTATION. WITH HYDRAULIC VANE MOTOR. Patented.
E N D
HC 20 PRESENTATION MENU Main Menu Menu Next HC 20 WITH HYDRAULIC VANE MOTOR HC 20 WITH HYDRAULIC PISTON MOTOR FEATURES DESCRIPTION DIMENSIONS ADAPTATION CHARACTERISTICS REFERENCES Previous

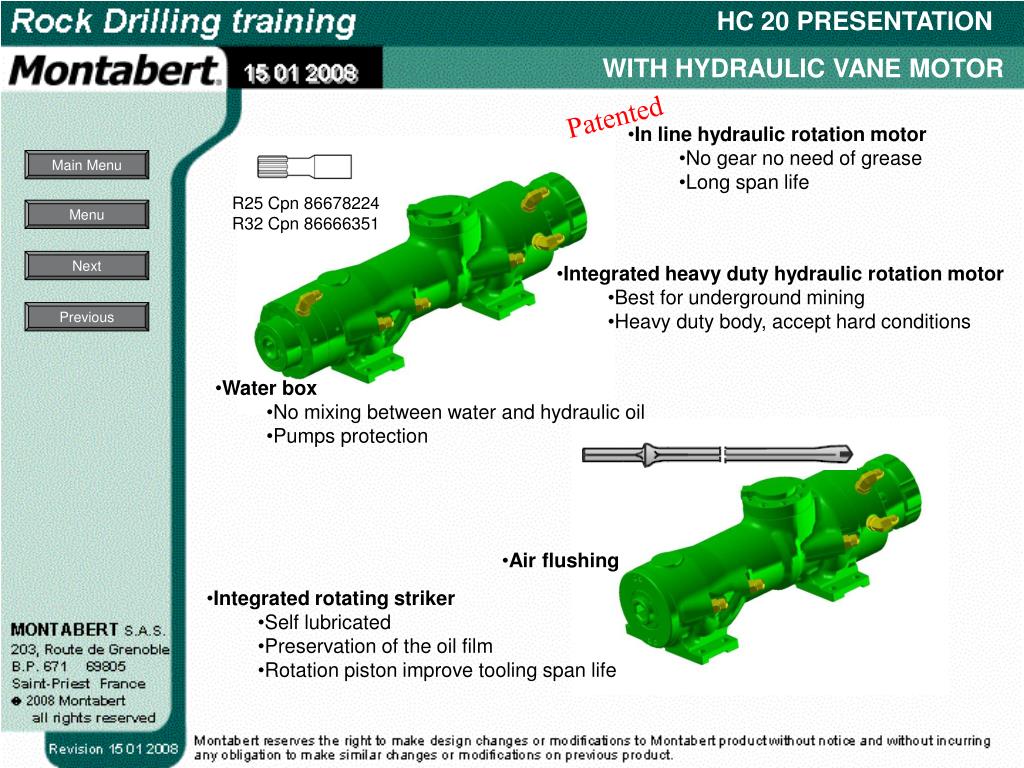

HC 20 PRESENTATION WITH HYDRAULIC VANE MOTOR Patented • In line hydraulic rotation motor • No gear no need of grease • Long span life Main Menu R25 Cpn 86678224 R32 Cpn 86666351 Menu Next • Integrated heavy duty hydraulic rotation motor • Best for underground mining • Heavy duty body, accept hard conditions Previous • Water box • No mixing between water and hydraulic oil • Pumps protection • Air flushing • Integrated rotating striker • Self lubricated • Preservation of the oil film • Rotation piston improve tooling span life
HC 20 PRESENTATION WITH HYDRAULIC PISTON MOTOR Patented • In line hydraulic rotation motor • No gear no need of grease • Long span life Main Menu Menu Next • External hydraulic rotation motor • Adaptation for surface mining Previous • Water box • No mixing between water and hydraulic oil • Pumps protection • Air flushing • Integrated rotating striker • Self lubricated • Preservation of the oil film • Rotation piston improve tooling span life
HC 20 PRESENTATION RETAINER FOR HEXAGONAL SHANKS Main Menu • Mechanical retainer Menu Next Previous • Hydraulic retainer • Mechanical centraliser

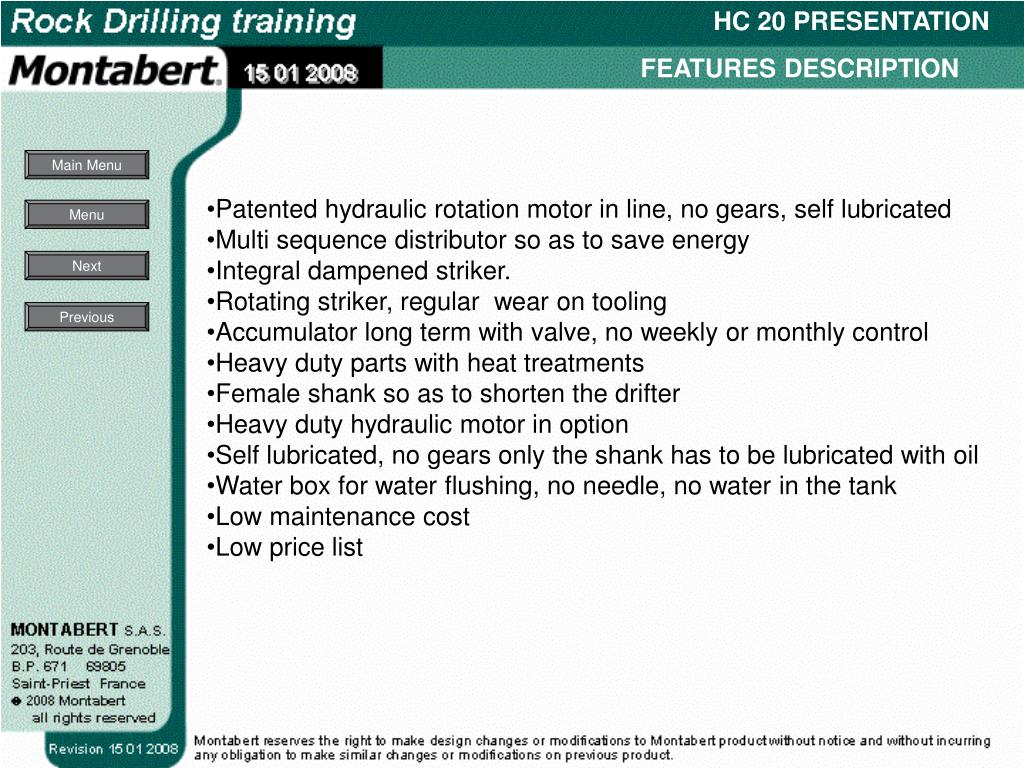

HC 20 PRESENTATION FEATURES DESCRIPTION Main Menu • Patented hydraulic rotation motor in line, no gears, self lubricated • Multi sequence distributor so as to save energy • Integral dampened striker. • Rotating striker, regular wear on tooling • Accumulator long term with valve, no weekly or monthly control • Heavy duty parts with heat treatments • Female shank so as to shorten the drifter • Heavy duty hydraulic motor in option • Self lubricated, no gears only the shank has to be lubricated with oil • Water box for water flushing, no needle, no water in the tank • Low maintenance cost • Low price list Menu Next Previous

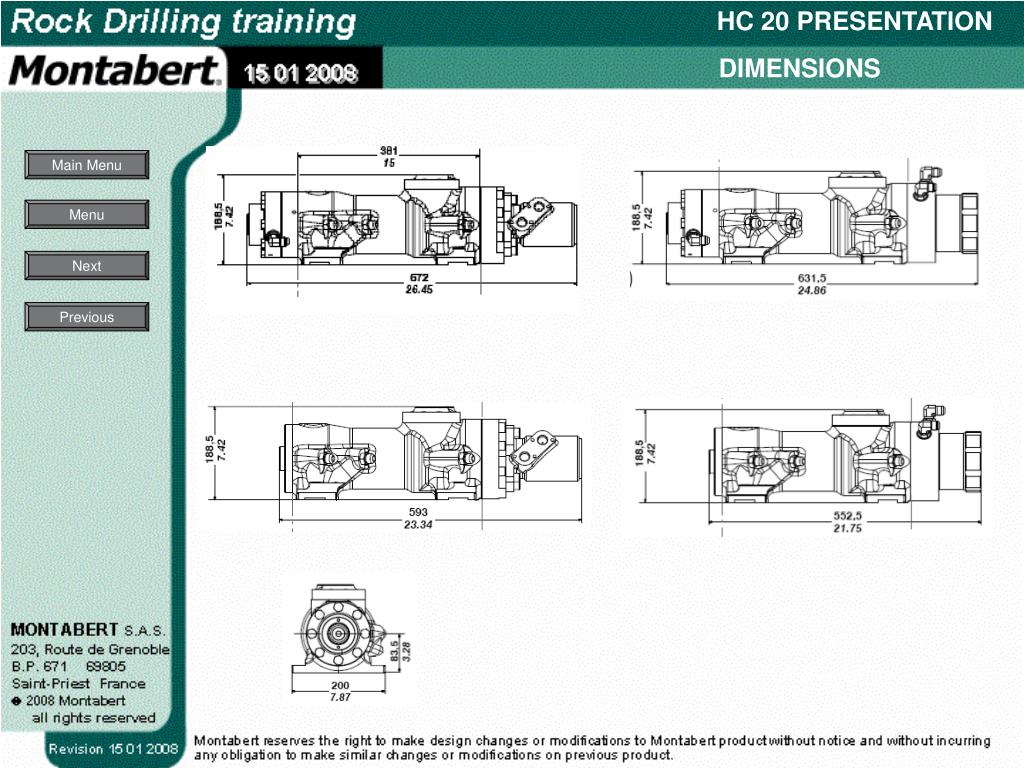

HC 20 PRESENTATION DIMENSIONS Main Menu Menu Next Previous

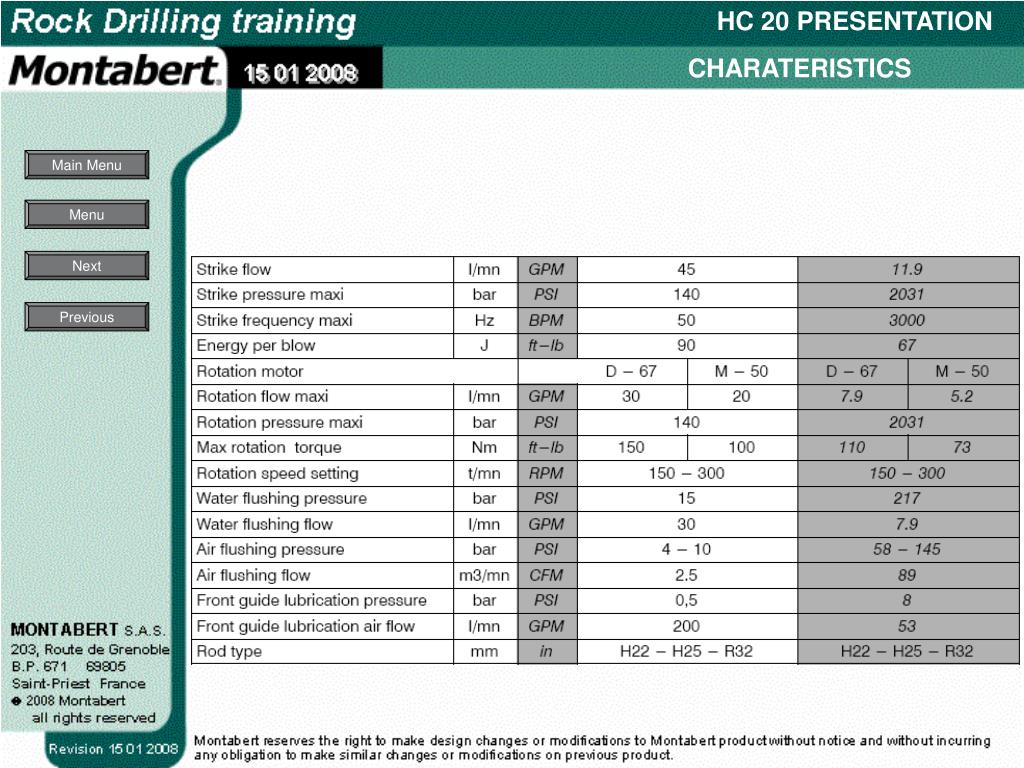

HC 20 PRESENTATION CHARATERISTICS Main Menu Menu Next Previous
HC 20 PRESENTATION REFERENCE Main Menu MT MINE AND TUNNEL QS QUARRIES AND SURFACE D HYDRAULIC VANE ROTATION MOTOR HEAVY DUTY M HYDRAULIC PISTON ROTATION MOTOR A AIR FLUSHING W WATER FLUSHING S FOR SPLINED SHANK R32 OR R25 H HEXAGONAL SHANK H22 OR H25 W WITHOUT BACK HAMMERING M WITH BACK HAMMERING Menu Previous
