  1. Cache Memory

  2. Outline • Cache mountain • Matrix multiplication • Suggested Reading: 6.6, 6.7

  3. 6.6 Putting it Together: The Impact of Caches on Program Performance 6.6.1 The Memory Mountain

  4. The Memory Mountain P512 • Read throughput (read bandwidth) • The rate that a program reads data from the memory system • Memory mountain • A two-dimensional function of read bandwidth versus temporal and spatial locality • Characterizes the capabilities of the memory system for each computer

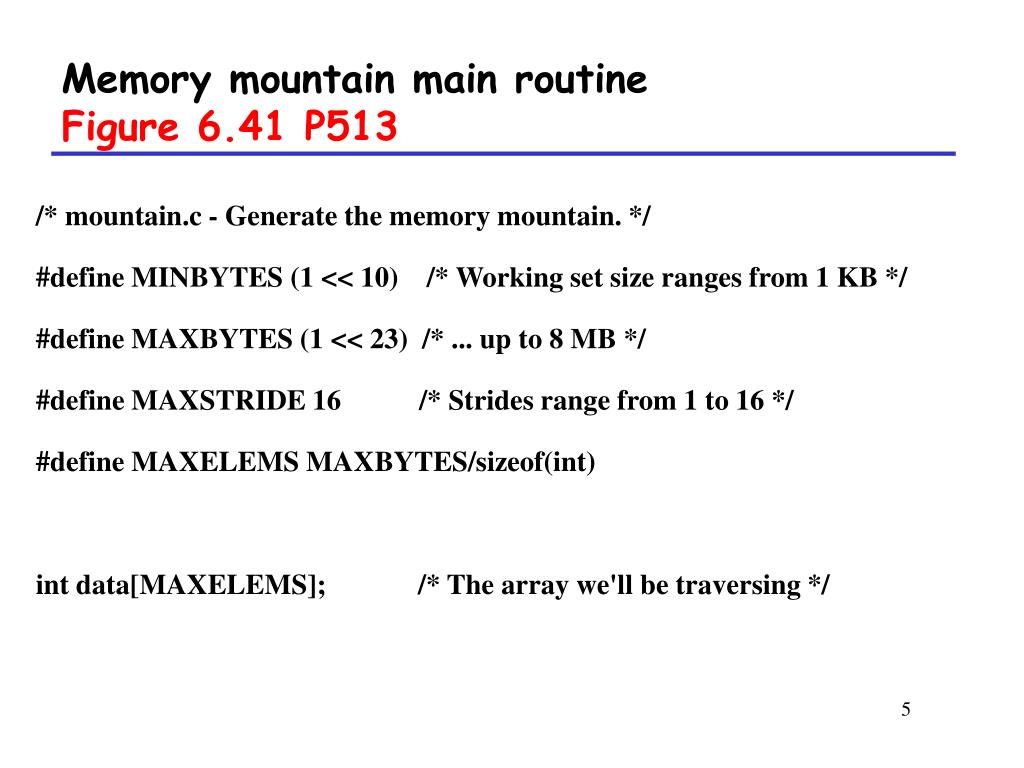

  5. Memory mountain main routineFigure 6.41 P513 /* mountain.c - Generate the memory mountain. */ #define MINBYTES (1 << 10) /* Working set size ranges from 1 KB */ #define MAXBYTES (1 << 23) /* ... up to 8 MB */ #define MAXSTRIDE 16 /* Strides range from 1 to 16 */ #define MAXELEMS MAXBYTES/sizeof(int) int data[MAXELEMS]; /* The array we'll be traversing */

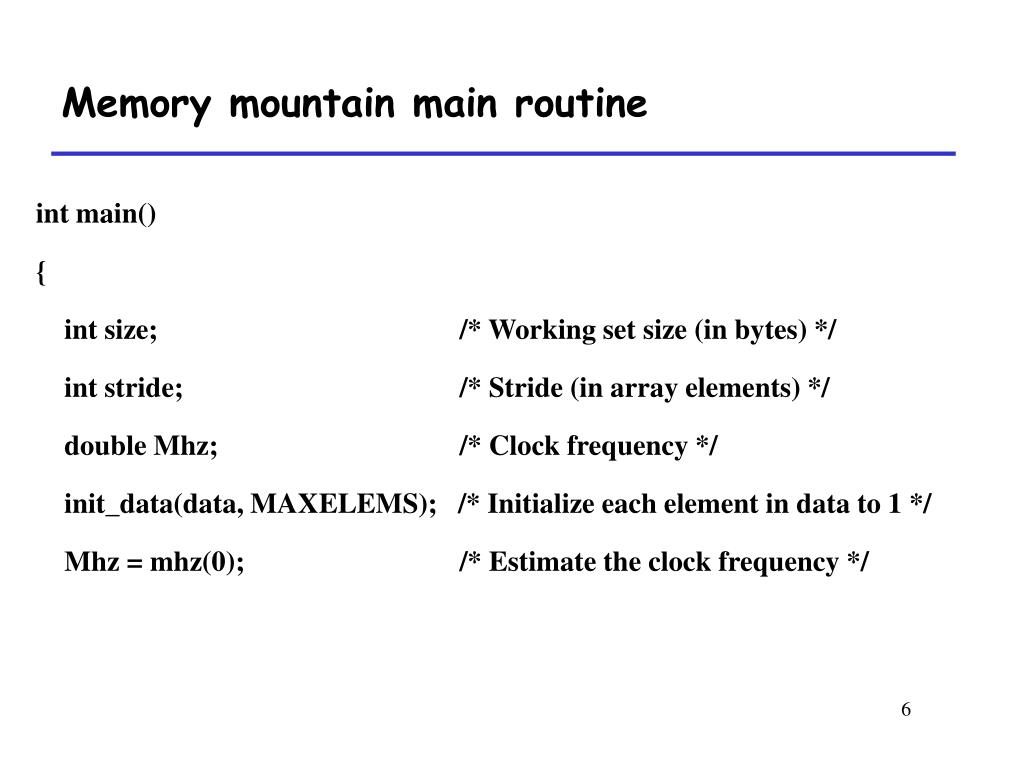

  6. Memory mountain main routine int main() { int size; /* Working set size (in bytes) */ int stride; /* Stride (in array elements) */ double Mhz; /* Clock frequency */ init_data(data, MAXELEMS); /* Initialize each element in data to 1 */ Mhz = mhz(0); /* Estimate the clock frequency */

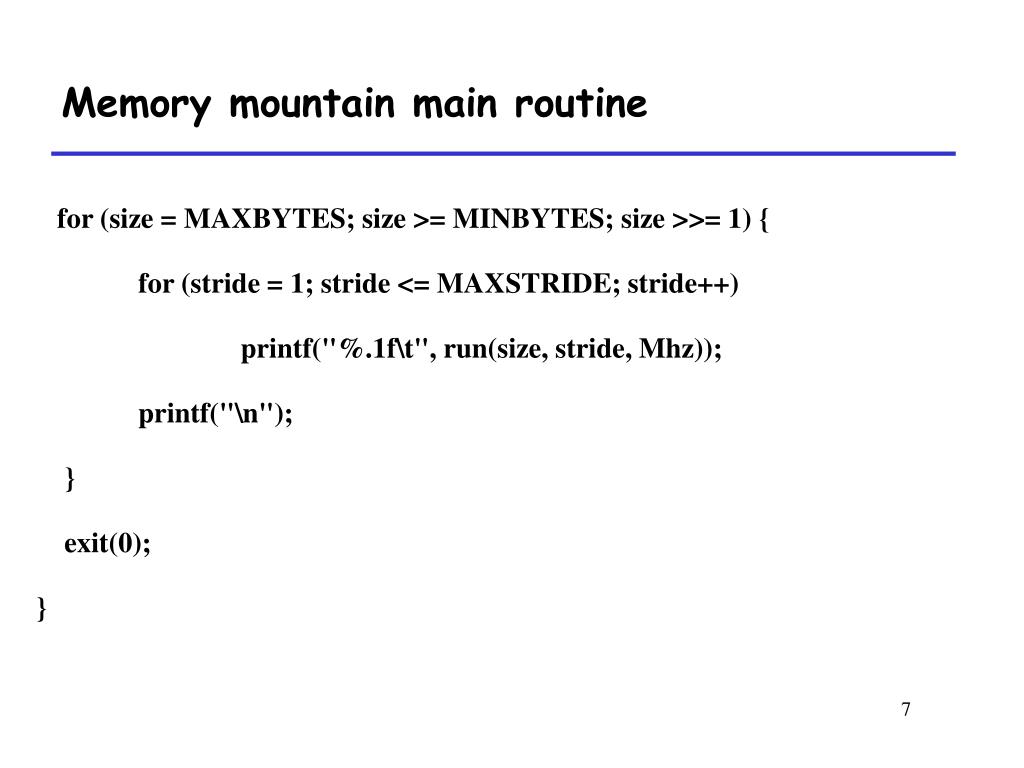

  7. Memory mountain main routine for (size = MAXBYTES; size >= MINBYTES; size >>= 1) { for (stride = 1; stride <= MAXSTRIDE; stride++) printf("%.1f\t", run(size, stride, Mhz)); printf("\n"); } exit(0); }

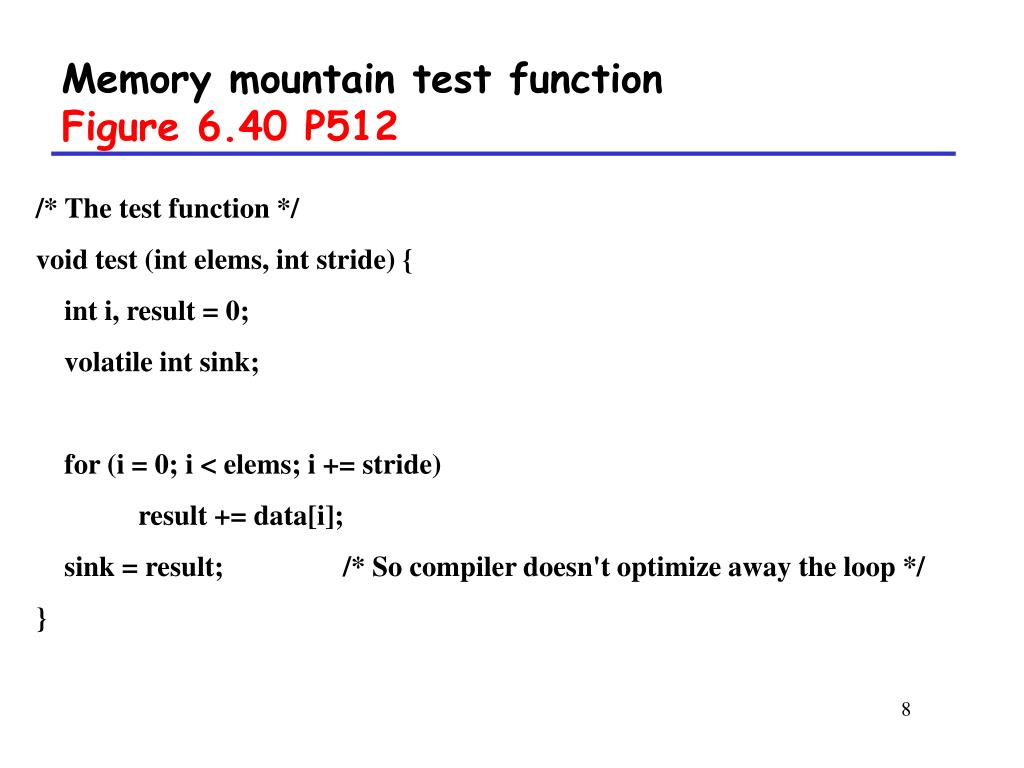

  8. Memory mountain test functionFigure 6.40 P512 /* The test function */ void test (int elems, int stride) { int i, result = 0; volatile int sink; for (i = 0; i < elems; i += stride) result += data[i]; sink = result; /* So compiler doesn't optimize away the loop */ }

  9. Memory mountain test function /* Run test (elems, stride) and return read throughput (MB/s) */ double run (int size, int stride, double Mhz) { double cycles; int elems = size / sizeof(int); test (elems, stride); /* warm up the cache */ cycles = fcyc2(test, elems, stride, 0); /* call test (elems,stride) */ return (size / stride) / (cycles / Mhz); /* convert cycles to MB/s */ }

  10. The Memory Mountain • Data • Size • MAXBYTES(8M) bytes or MAXELEMS(2M) words • Partially accessed • Working set: from 8MB to 1KB • Stride: from 1 to 16

  11. The Memory MountainFigure 6.42 P514

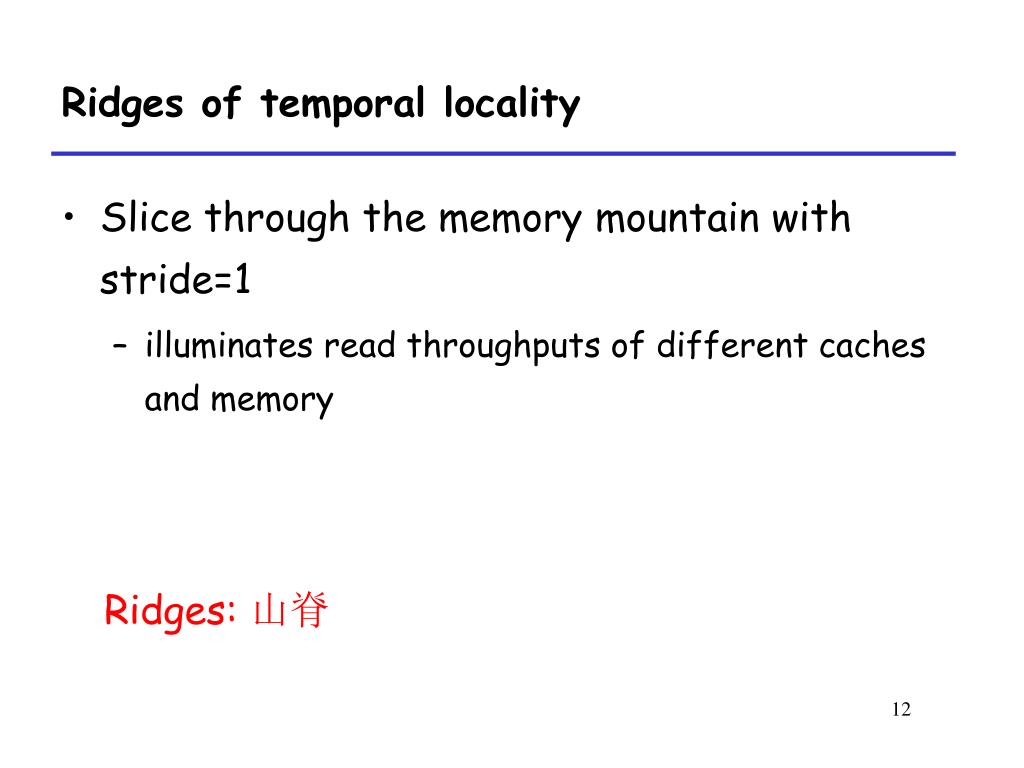

  12. Ridges of temporal locality • Slice through the memory mountain with stride=1 • illuminates read throughputs of different caches and memory Ridges: 山脊

  13. Ridges of temporal localityFigure 6.43 P515

  14. A slope of spatial locality • Slice through memory mountain with size=256KB • shows cache block size.

  15. A slope of spatial localityFigure 6.44 P516

  16. 6.6 Putting it Together: The Impact of Caches on Program Performance 6.6.2 Rearranging Loops to Increase Spatial Locality

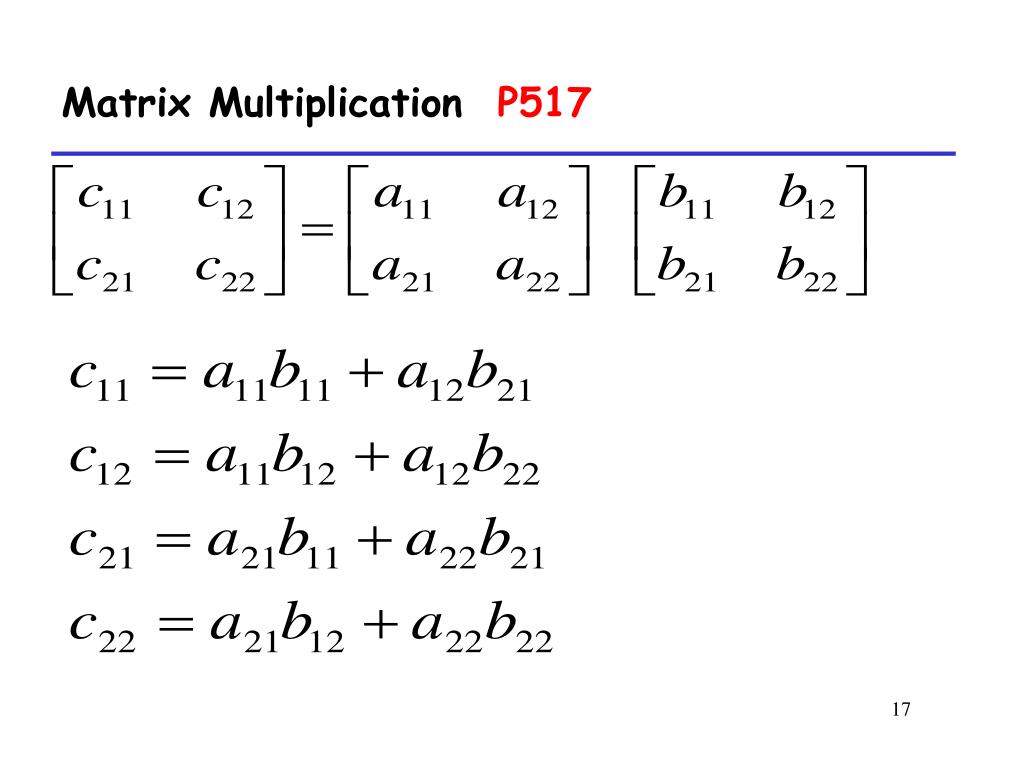

  17. Matrix Multiplication P517

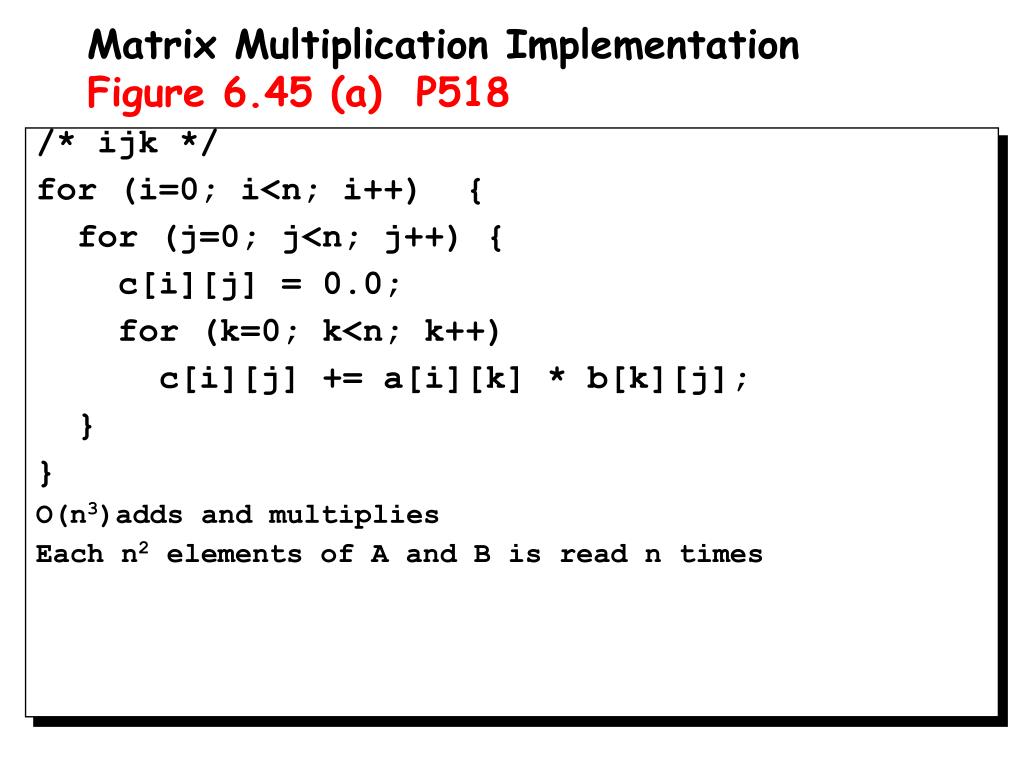

  18. Matrix Multiplication ImplementationFigure 6.45 (a) P518 /* ijk */ for (i=0; i<n; i++) { for (j=0; j<n; j++) { c[i][j] = 0.0; for (k=0; k<n; k++) c[i][j] += a[i][k] * b[k][j]; } } O(n3)adds and multiplies Each n2 elements of A and B is read n times

  19. Matrix Multiplication P517 • Assumptions: • Each array is an nn array of double, with size 8 • There is a single cache with a 32-byte block size ( B=32 ) • The array size n is so large that a single matrix row does not fit in the L1 cache • The compiler stores local variables in registers, and thus references to local variables inside loops do not require any load and store instructions.

  20. Matrix MultiplicationFigure 6.45 (a) P518 /* ijk */ for (i=0; i<n; i++) { for (j=0; j<n; j++) { sum = 0.0; for (k=0; k<n; k++) sum += a[i][k] * b[k][j]; c[i][j] = sum; } } Variable sum held in register

  21. Column- wise Fixed Matrix multiplication (ijk) • Misses per Inner Loop Iteration: ABC 0.25 1.0 0.0 /* ijk */ for (i=0; i<n; i++) { for (j=0; j<n; j++) { sum = 0.0; for (k=0; k<n; k++) sum += a[i][k] * b[k][j]; c[i][j] = sum; } } Inner loop: (*,j) (i,j) (i,*) A B C Row-wise 1) (AB) Figure 6.46 P519

  22. Row-wise Column- wise Fixed Matrix multiplication (jik)Figure 6.45 (b) P518 /* jik */ for (j=0; j<n; j++) { for (i=0; i<n; i++) { sum = 0.0; for (k=0; k<n; k++) sum += a[i][k] * b[k][j]; c[i][j] = sum } } Inner loop: (*,j) (i,j) (i,*) A B C • Misses per Inner Loop Iteration: ABC 0.25 1.0 0.0 1) (AB) Figure 6.46 P519

  23. Row-wise Row-wise Fixed Matrix multiplication (kij)Figure 6.45 (e) P518 /* kij */ for (k=0; k<n; k++) { for (i=0; i<n; i++) { r = a[i][k]; for (j=0; j<n; j++) c[i][j] += r * b[k][j]; } } Inner loop: (i,k) (k,*) (i,*) A B C 3) (BC) • Misses per Inner Loop Iteration: ABC 0.0 0.25 0.25 Figure 6.46 P519

  24. Row-wise Row-wise Fixed Matrix multiplication (ikj)Figure 6.45 (f) P518 /* ikj */ for (i=0; i<n; i++) { for (k=0; k<n; k++) { r = a[i][k]; for (j=0; j<n; j++) c[i][j] += r * b[k][j]; } } Inner loop: (i,k) (k,*) (i,*) A B C 3) (BC) • Misses per Inner Loop Iteration: ABC 0.0 0.25 0.25 Figure 6.46 P519

  25. Column - wise Column- wise Fixed Matrix multiplication (jki)Figure 6.45 (c) P518 /* jki */ for (j=0; j<n; j++) { for (k=0; k<n; k++) { r = b[k][j]; for (i=0; i<n; i++) c[i][j] += a[i][k] * r; } } Inner loop: (*,k) (*,j) (k,j) A B C 2) (AC) • Misses per Inner Loop Iteration: ABC 1.0 0.0 1.0 Figure 6.46 P519

  26. Column- wise Column- wise Fixed Matrix multiplication (kji)Figure 6.45 (d) P518 /* kji */ for (k=0; k<n; k++) { for (j=0; j<n; j++) { r = b[k][j]; for (i=0; i<n; i++) c[i][j] += a[i][k] * r; } } Inner loop: (*,k) (*,j) (k,j) A B C 2) (AC) • Misses per Inner Loop Iteration: ABC 1.0 0.0 1.0 Figure 6.46 P519

  27. Pentium matrix multiply performanceFigure 6.47 (d) P519 2) (AC) 3) (BC) 1) (AB)

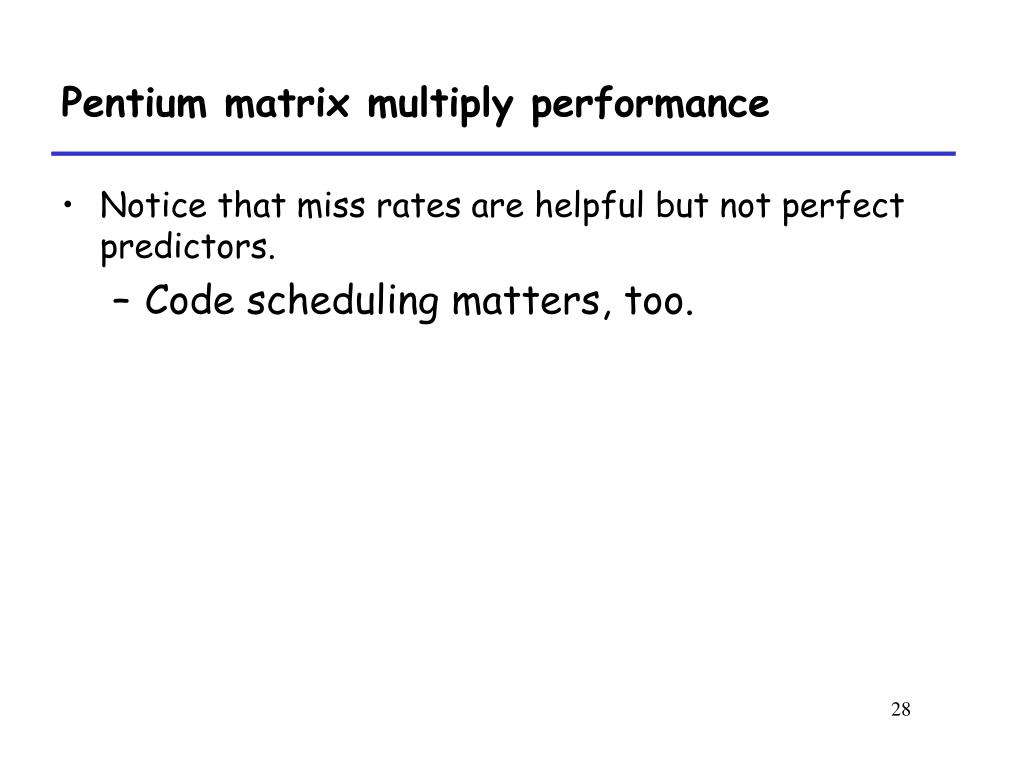

  28. Pentium matrix multiply performance • Notice that miss rates are helpful but not perfect predictors. • Code scheduling matters, too.

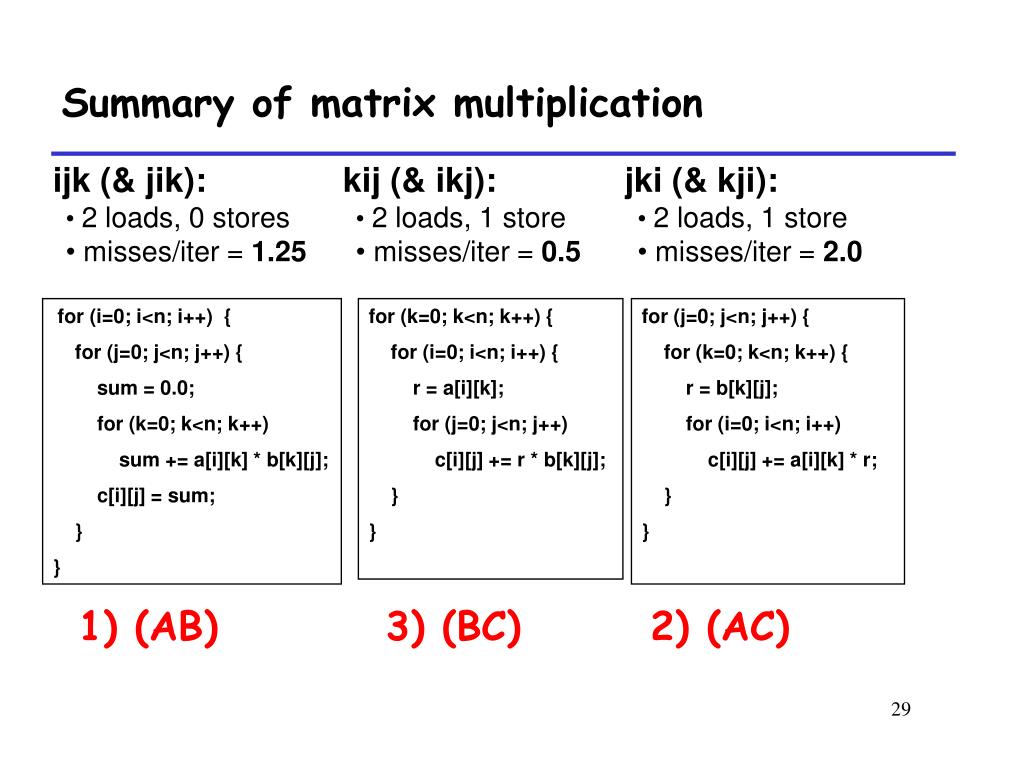

  29. Summary of matrix multiplication • ijk (& jik): • 2 loads, 0 stores • misses/iter = 1.25 • kij (& ikj): • 2 loads, 1 store • misses/iter = 0.5 • jki (& kji): • 2 loads, 1 store • misses/iter = 2.0 for (i=0; i<n; i++) { for (j=0; j<n; j++) { sum = 0.0; for (k=0; k<n; k++) sum += a[i][k] * b[k][j]; c[i][j] = sum; } } for (k=0; k<n; k++) { for (i=0; i<n; i++) { r = a[i][k]; for (j=0; j<n; j++) c[i][j] += r * b[k][j]; } } for (j=0; j<n; j++) { for (k=0; k<n; k++) { r = b[k][j]; for (i=0; i<n; i++) c[i][j] += a[i][k] * r; } } 1) (AB) 3) (BC) 2) (AC)

  30. 6.6 Putting it Together: The Impact of Caches on Program Performance 6.6.3 Using Blocking to Increase Temporal Locality

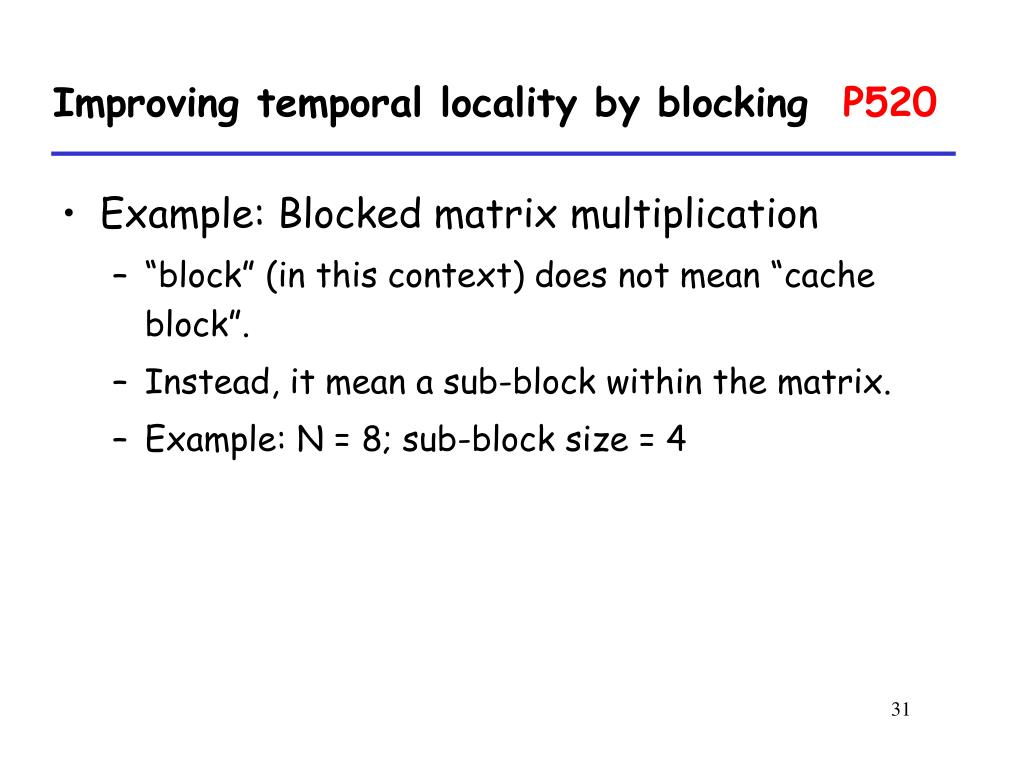

  31. Improving temporal locality by blocking P520 • Example: Blocked matrix multiplication • “block” (in this context) does not mean “cache block”. • Instead, it mean a sub-block within the matrix. • Example: N = 8; sub-block size = 4

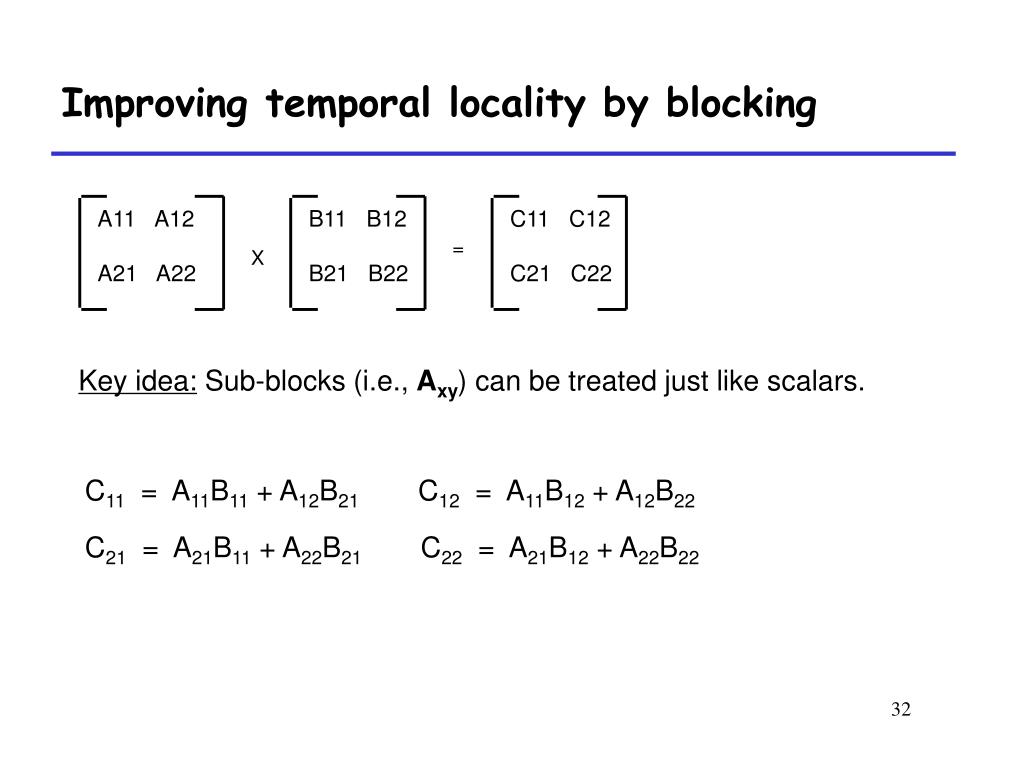

  32. A11 A12 A21 A22 B11 B12 B21 B22 C11 C12 C21 C22 = X Key idea: Sub-blocks (i.e., Axy) can be treated just like scalars. C11 = A11B11 + A12B21 C12 = A11B12 + A12B22 C21 = A21B11 + A22B21 C22 = A21B12 + A22B22 Improving temporal locality by blocking

  33. Blocked matrix multiply (bijk)Figure 6.48 P521 for (jj=0; jj<n; jj+=bsize) { for (i=0; i<n; i++) for (j=jj; j < min(jj+bsize,n); j++) c[i][j] = 0.0; for (kk=0; kk<n; kk+=bsize) { for (i=0; i<n; i++) { for (j=jj; j < min(jj+bsize,n); j++) { sum = 0.0 for (k=kk; k < min(kk+bsize,n); k++) { sum += a[i][k] * b[k][j]; } c[i][j] += sum; } } } }

  34. Blocked matrix multiply analysis • Innermost loop pair multiplies a 1 X bsize sliver of A by a bsize X bsize block of B and accumulates into 1 X bsize sliver of C • Loop over i steps through n row slivers of A & C, using same B Sliver: 长条

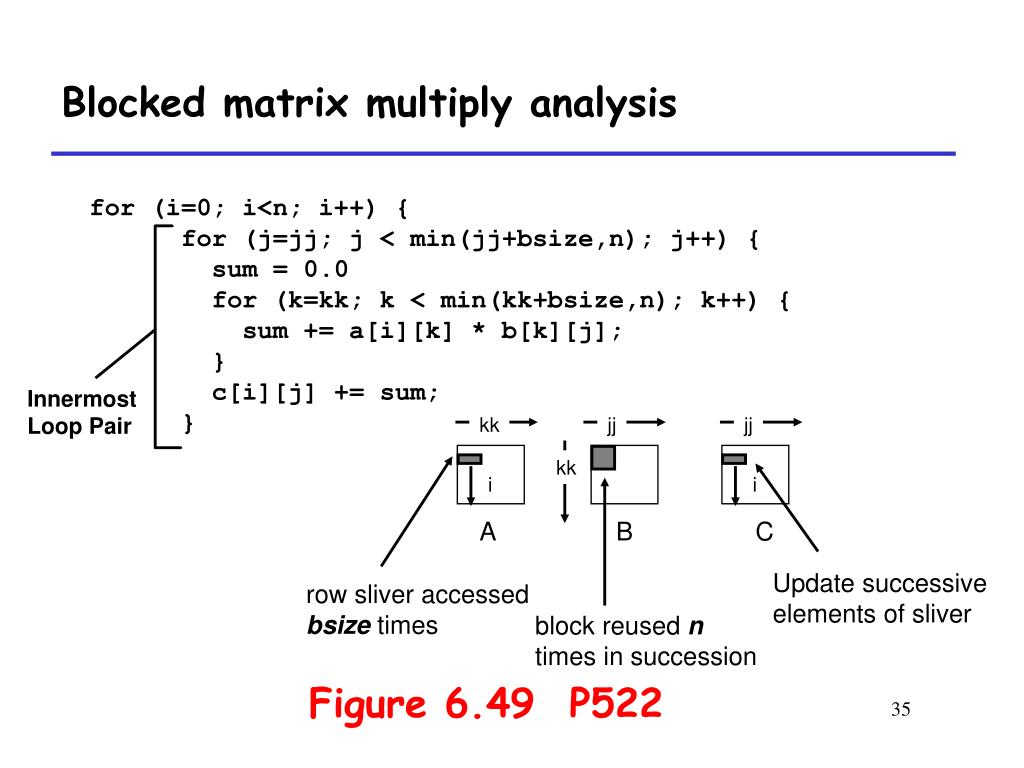

  35. for (i=0; i<n; i++) { for (j=jj; j < min(jj+bsize,n); j++) { sum = 0.0 for (k=kk; k < min(kk+bsize,n); k++) { sum += a[i][k] * b[k][j]; } c[i][j] += sum; } Innermost Loop Pair kk jj jj kk i i A B C Update successive elements of sliver row sliver accessed bsize times block reused n times in succession Blocked matrix multiply analysis Figure 6.49 P522

  36. Pentium blocked matrix multiply performanceFigure 6.50 P523 2) 3) 1)

  37. 6.7 Putting it Together: Exploring Locality in Your Programs

  38. Techniques P523 • Focus your attention on the inner loops • Try to maximize the spatial locality in your programs by reading data objects sequentially, in the order they are stored in memory • Try to maximize the temporal locality in your programs by using a data object as often as possible once it has been read from memory • Miss rates, the number of memory accesses
