  1. Similarity

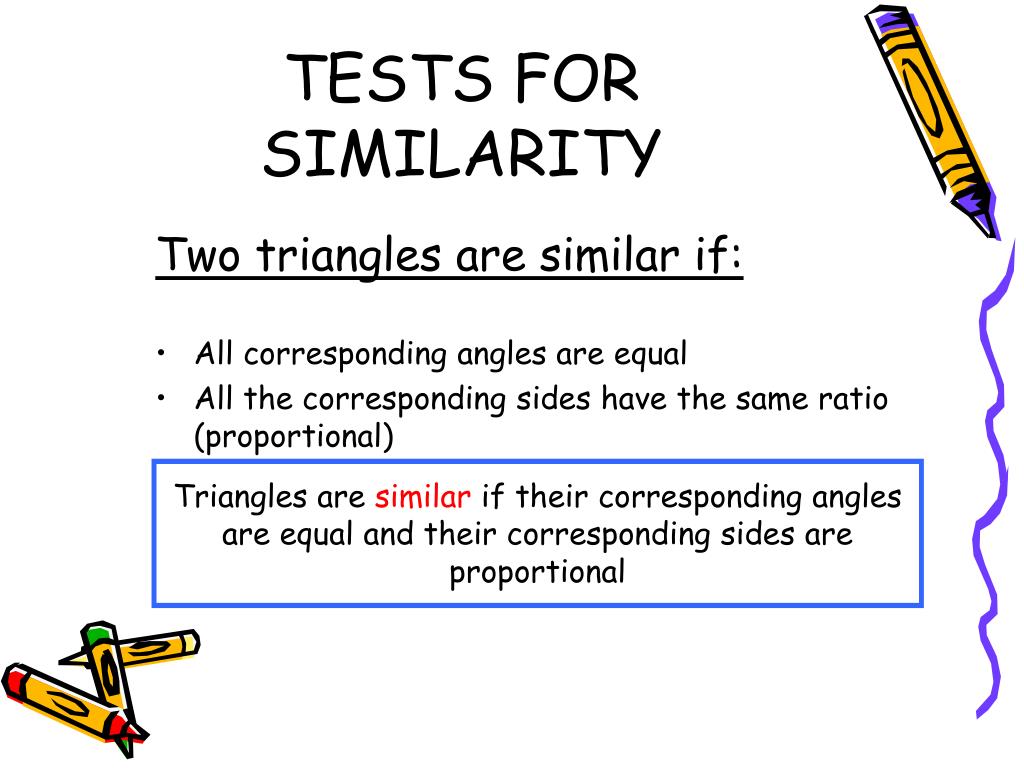

  2. Triangles are similar if their corresponding angles are equal and their corresponding sides are proportional TESTS FOR SIMILARITY Two triangles are similar if: • All corresponding angles are equal • All the corresponding sides have the same ratio (proportional)

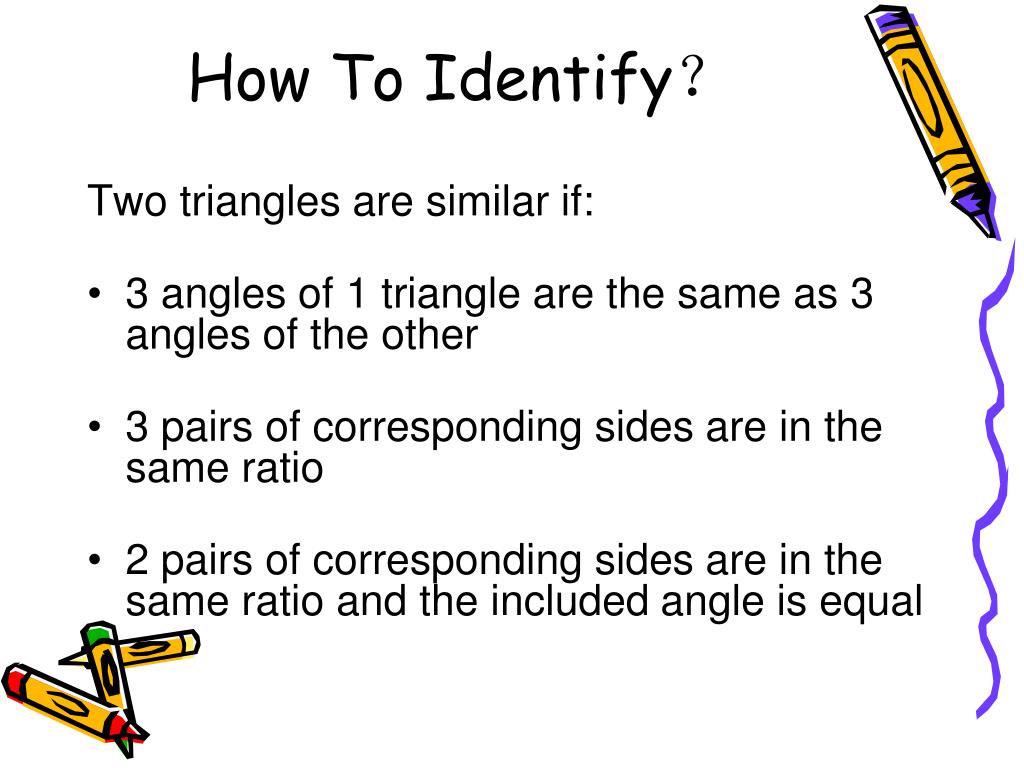

  3. How To Identify？ Two triangles are similar if: • 3 angles of 1 triangle are the same as 3 angles of the other • 3 pairs of corresponding sides are in the same ratio • 2 pairs of corresponding sides are in the same ratio and the included angle is equal

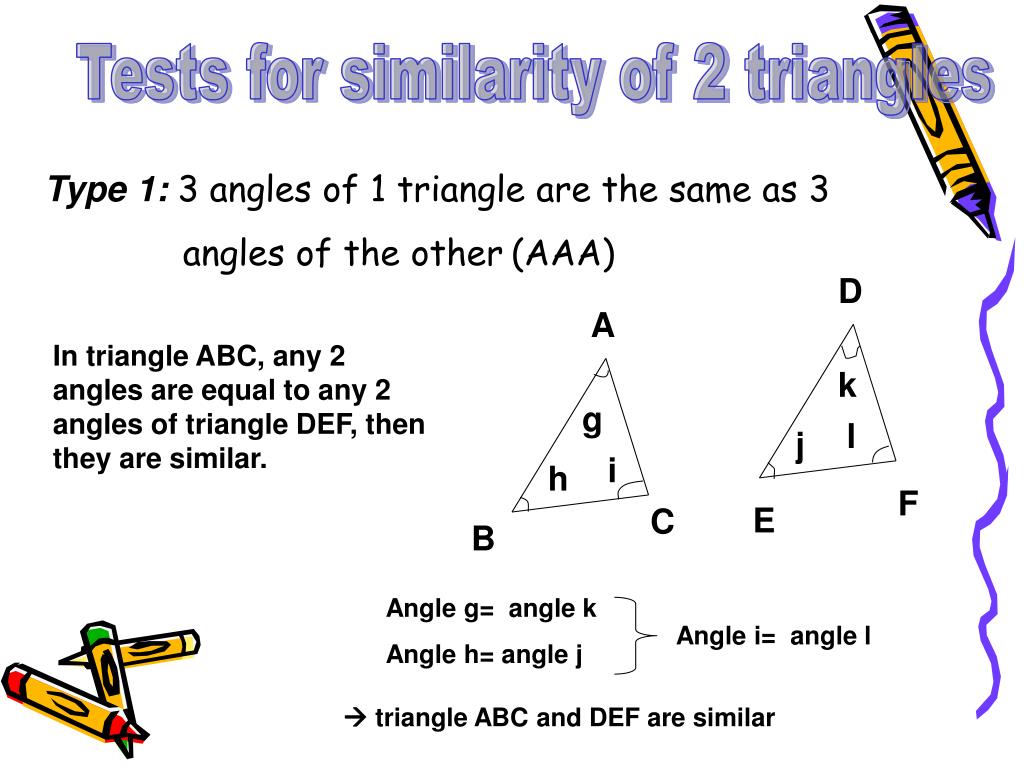

  4. Tests for similarity of 2 triangles Type 1: 3 angles of 1 triangle are the same as 3 angles of the other(AAA) D A In triangle ABC, any 2 angles are equal to any 2 angles of triangle DEF, then they are similar. k g l j i h F E C B Angle g= angle k Angle h= angle j Angle i= angle l  triangle ABC and DEF are similar

  5. Test for similarity between 2 triangles Type 2: 3 pairs of corresponding sides are in the same ratio D A In triangle ABC and DEF, if z i kz ki where k is a constant. B C h F E kh  triangle ABC and DEF are similar.

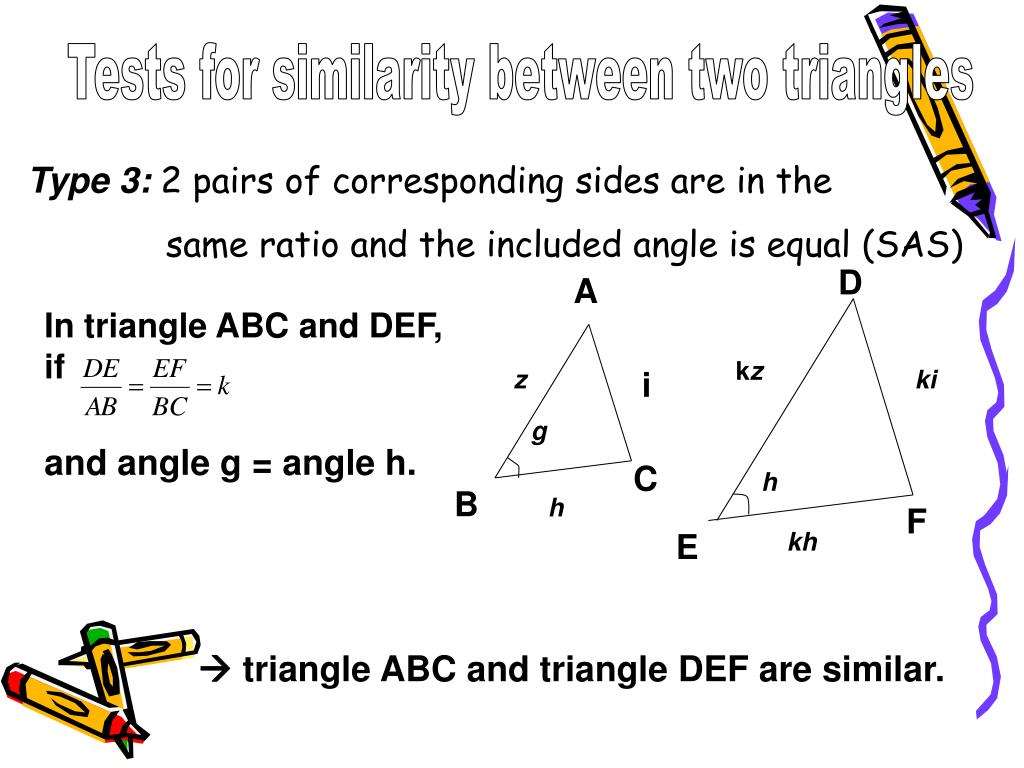

  6. Tests for similarity between two triangles Type 3:2 pairs of corresponding sides are in the same ratio and the included angle is equal (SAS) D A In triangle ABC and DEF, if kz z i ki g and angle g = angle h. C h B h F E kh  triangle ABC and triangle DEF are similar.

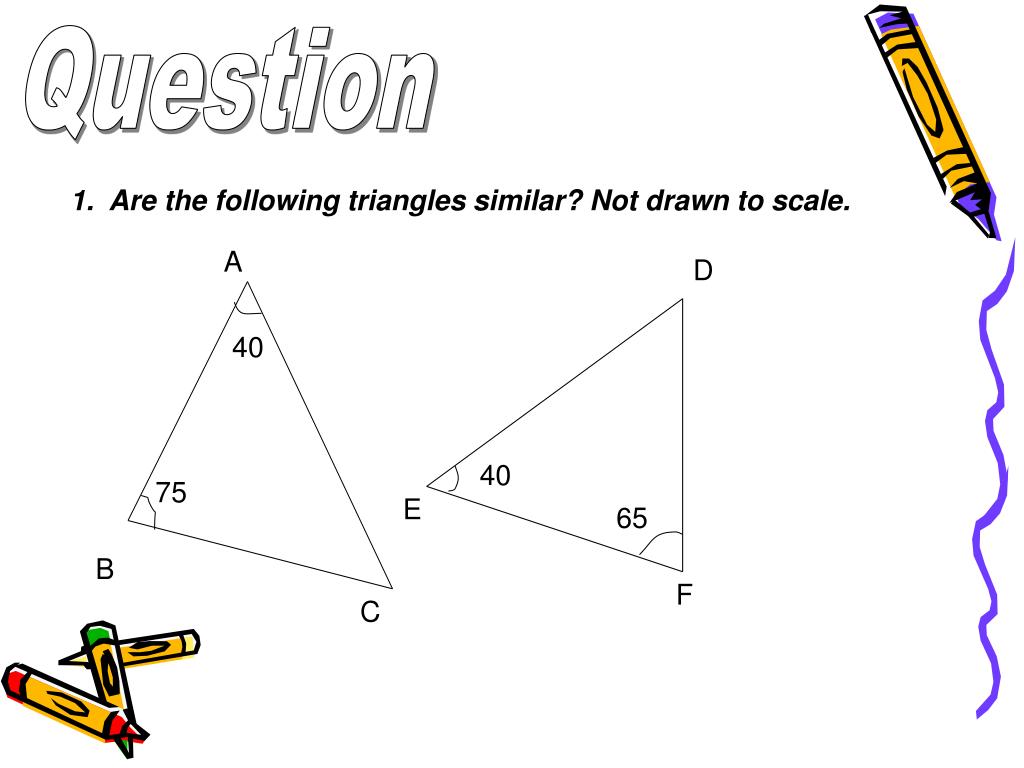

  7. Question • Are the following triangles similar? Not drawn to scale. A D 40 40 75 E 65 B F C

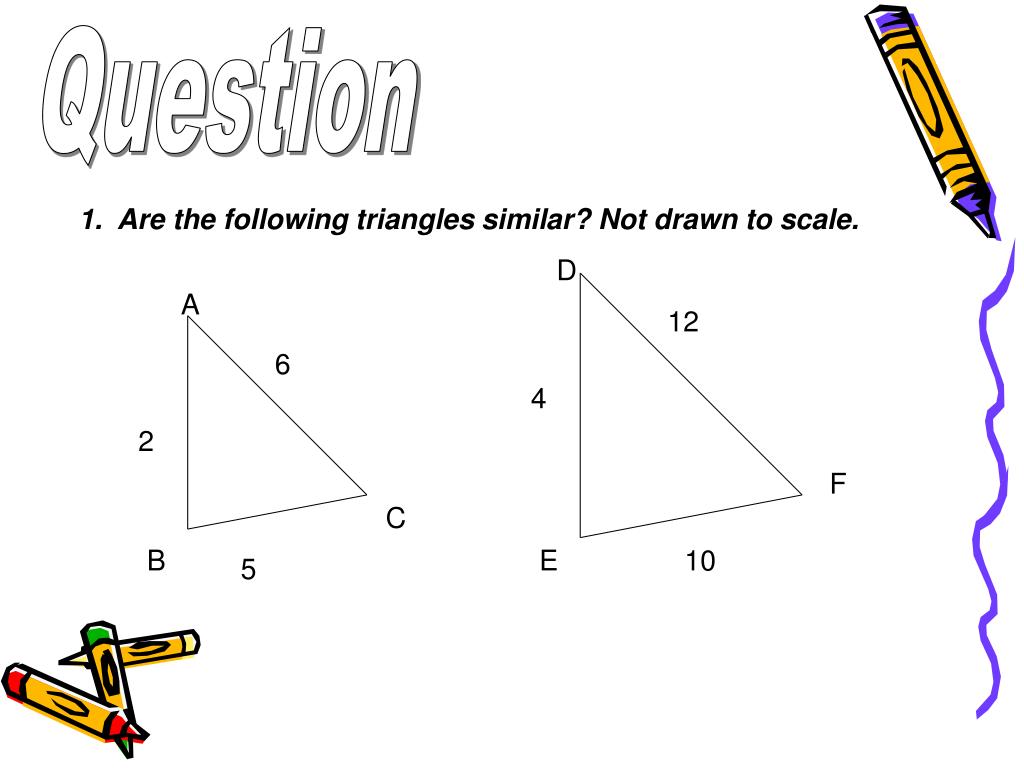

  8. Question • Are the following triangles similar? Not drawn to scale. D A 12 6 4 2 F C B E 10 5

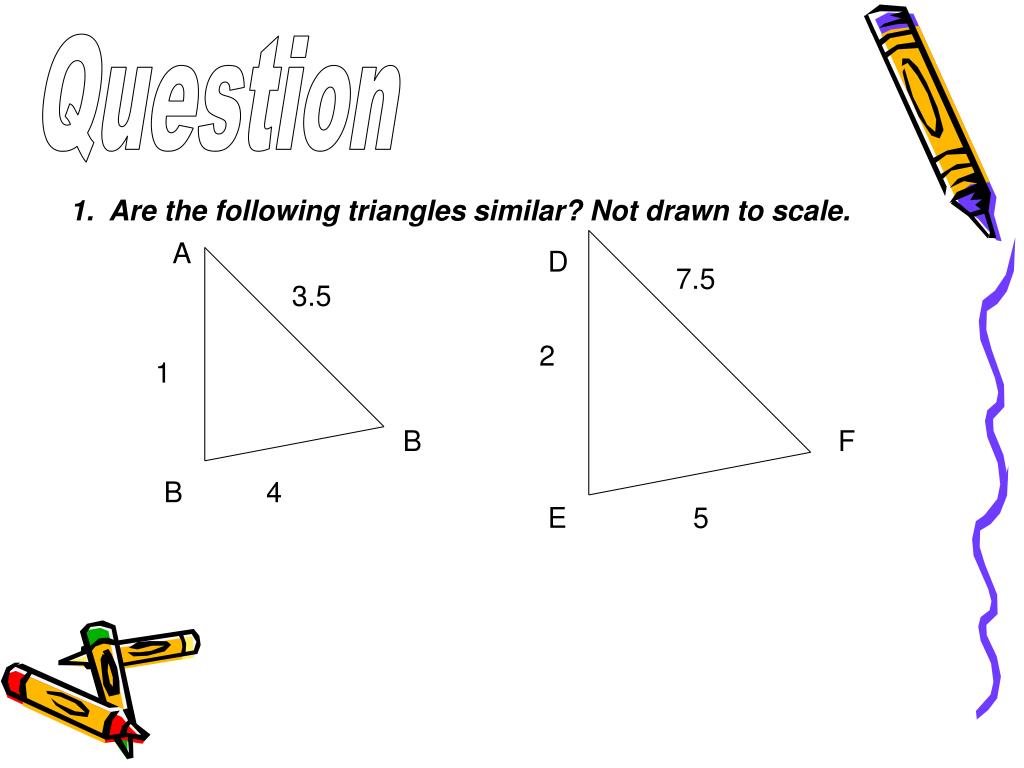

  9. Question • Are the following triangles similar? Not drawn to scale. A D 7.5 3.5 2 1 B F B 4 E 5

  10. Question • Are the following triangles similar? Not drawn to scale. D A 3.5 10 55 55 F C B 5 E 7

  11. Think! Which of the following triangles are always similar? a.  right triangles b.  isosceles triangles c.  equilateral triangles 1

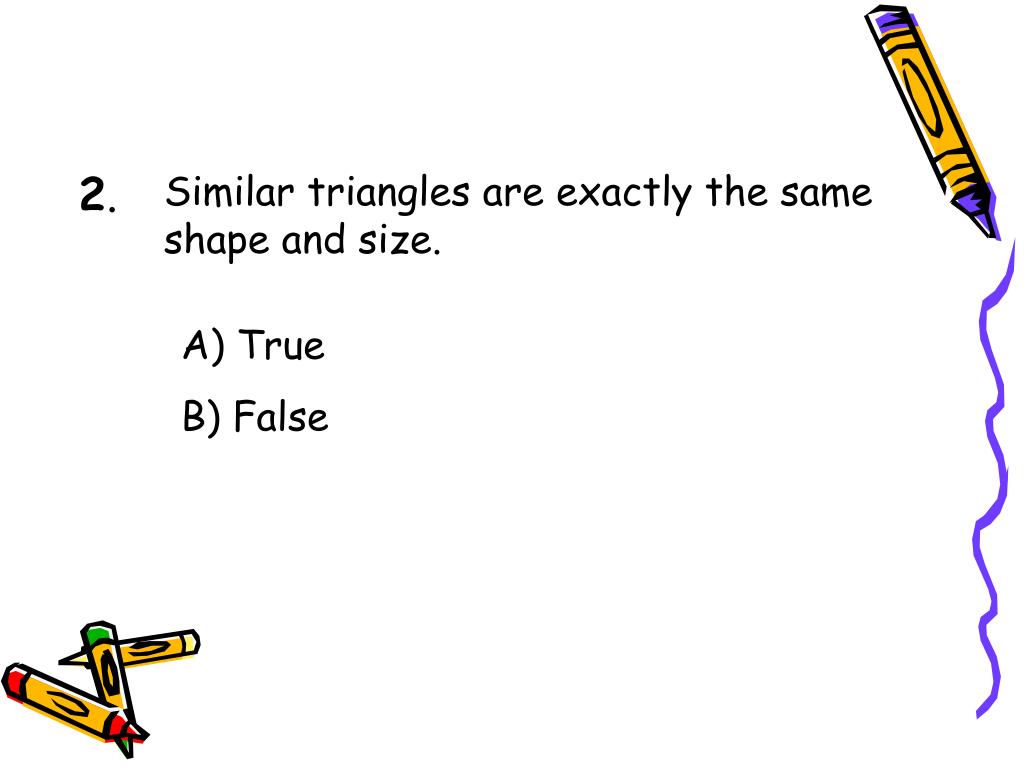

  12. 2. Similar triangles are exactly the same shape and size. A) True B) False

  13. 3. The sides of a triangle are 5, 6 and 10.  Find the length of the longest side of a similar triangle whose shortest side is 15. A)10 B)15 C)18 D)30

  14. In the diagram, DE is parallel to AC.  BD = 4, DA = 6 and EC = 8.  Find BC to the nearest tenth. 4. • 4.3 • 5.3 • 8.3 • 13.3

  15. Find BC. 5. • 4 • 4.5 • 13.5 • 17

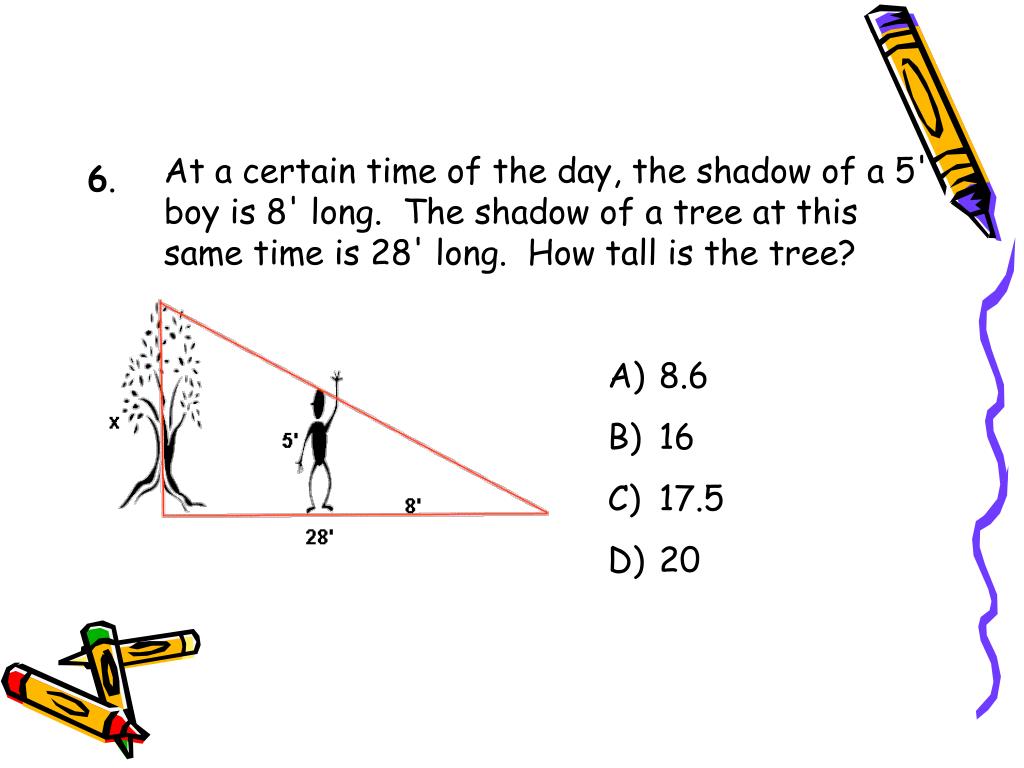

  16. At a certain time of the day, the shadow of a 5' boy is 8' long.  The shadow of a tree at this same time is 28' long.  How tall is the tree? 6. • 8.6 • 16 • 17.5 • 20
