  1. Network Intrusion Detection System NAIST Omar ISMAIL Internet Engineering Lab Graduate School of Information Science Nara Institute of Science and Technology Nara, Japan 1 20th June 2003

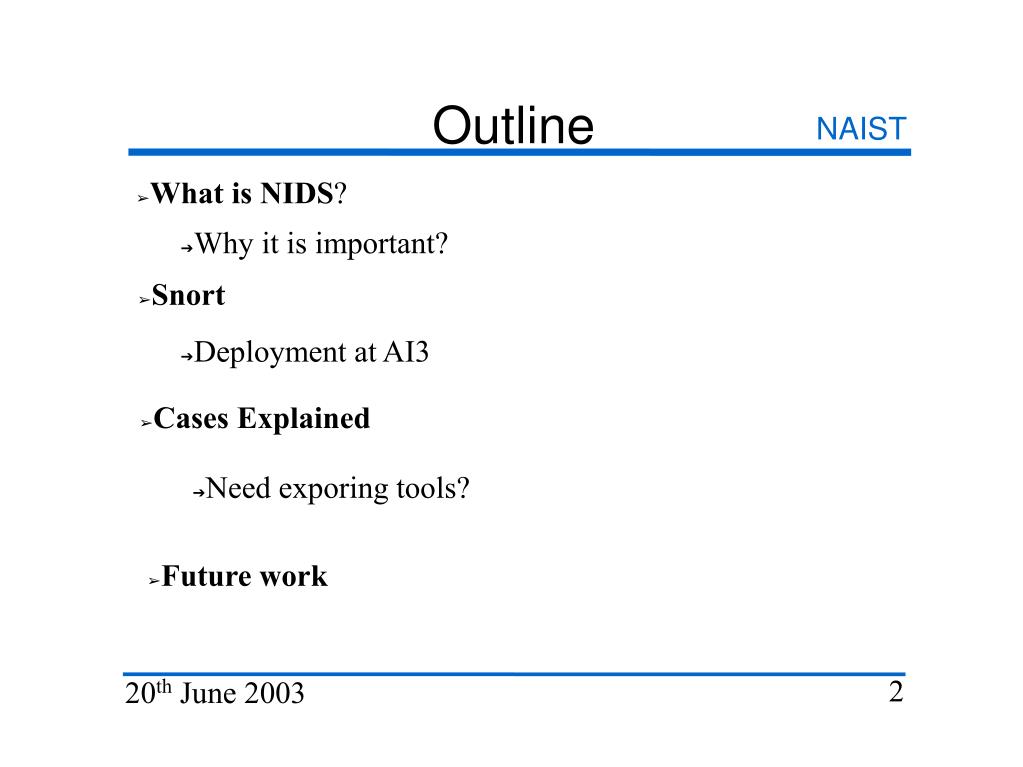

  2. Outline NAIST • What is NIDS? • Why it is important? • Snort • Deployment at AI3 • Cases Explained • Need exporing tools? • Future work 2 20th June 2003

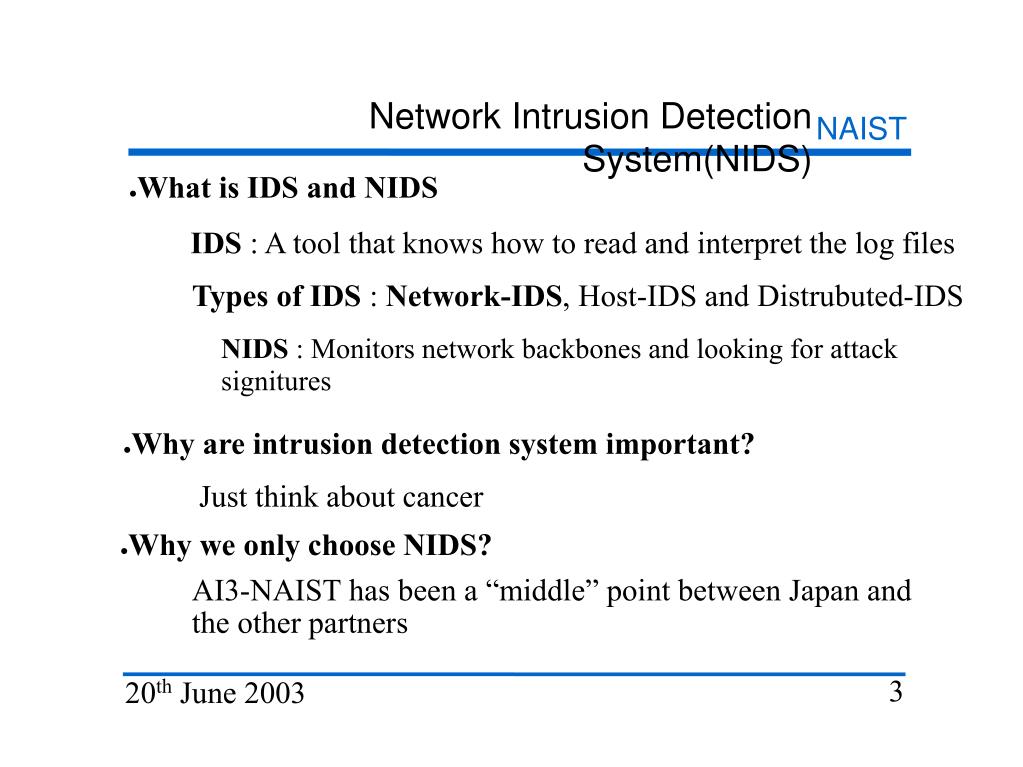

  3. Network Intrusion Detection System(NIDS) NAIST • What is IDS and NIDS IDS : A tool that knows how to read and interpret the log files Types of IDS : Network-IDS, Host-IDS and Distrubuted-IDS NIDS : Monitors network backbones and looking for attack signitures • Why are intrusion detection system important? Just think about cancer • Why we only choose NIDS? AI3-NAIST has been a “middle” point between Japan and the other partners 3 20th June 2003

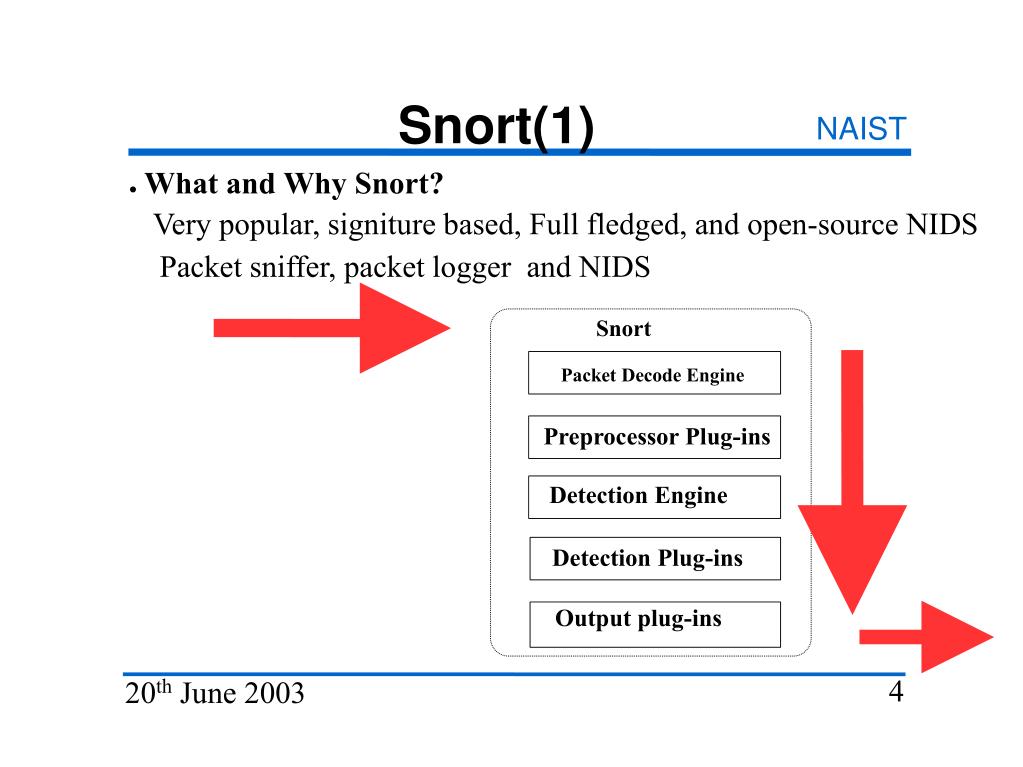

  4. Snort(1) NAIST • What and Why Snort? Very popular, signiture based, Full fledged, and open-source NIDS Packet sniffer, packet logger and NIDS Snort Packet Decode Engine Preprocessor Plug-ins Detection Engine Detection Plug-ins Output plug-ins 4 20th June 2003

  5. Snort(2) NAIST Performance Considerstion: • Snort is version 2 now. Preprocessing Ability and Plug-ins make Snort faster and more effective. Also, by using switches and tapping, Snort is also very effective in high-speed network. 5 20th June 2003

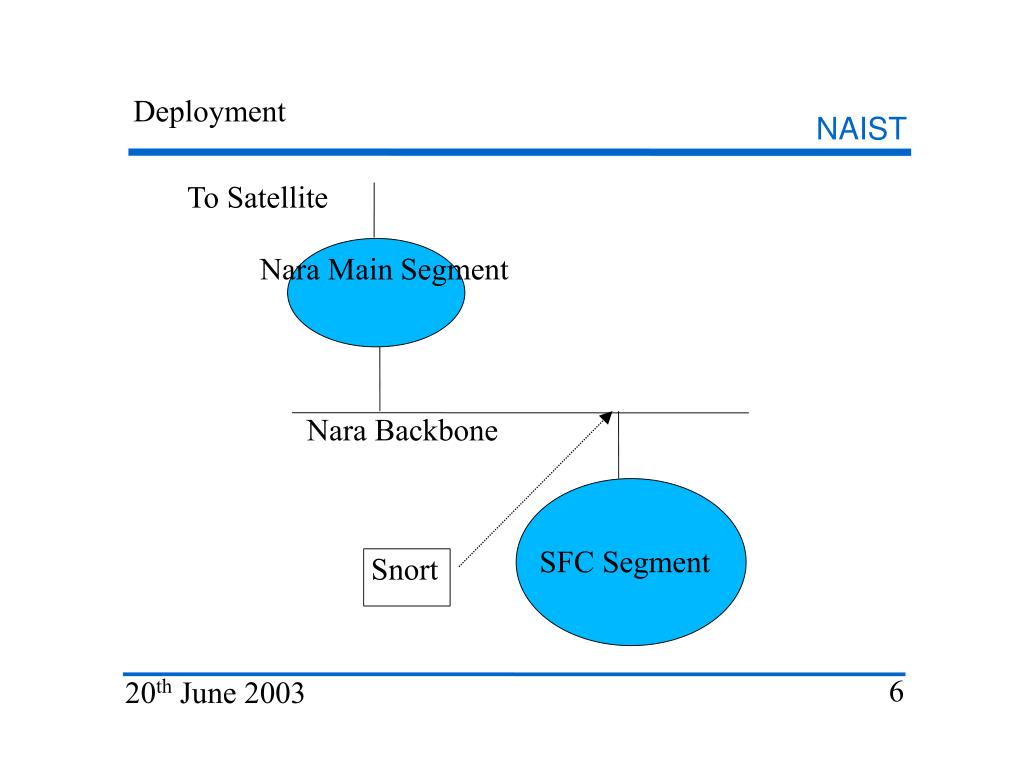

  6. Deployment NAIST To Satellite Nara Main Segment Nara Backbone SFC Segment Snort 6 20th June 2003

  7. Deployment NAIST To Satellite Nara Main Segment Nara Backbone Snort2 SFC Segment Snort1 7 20th June 2003

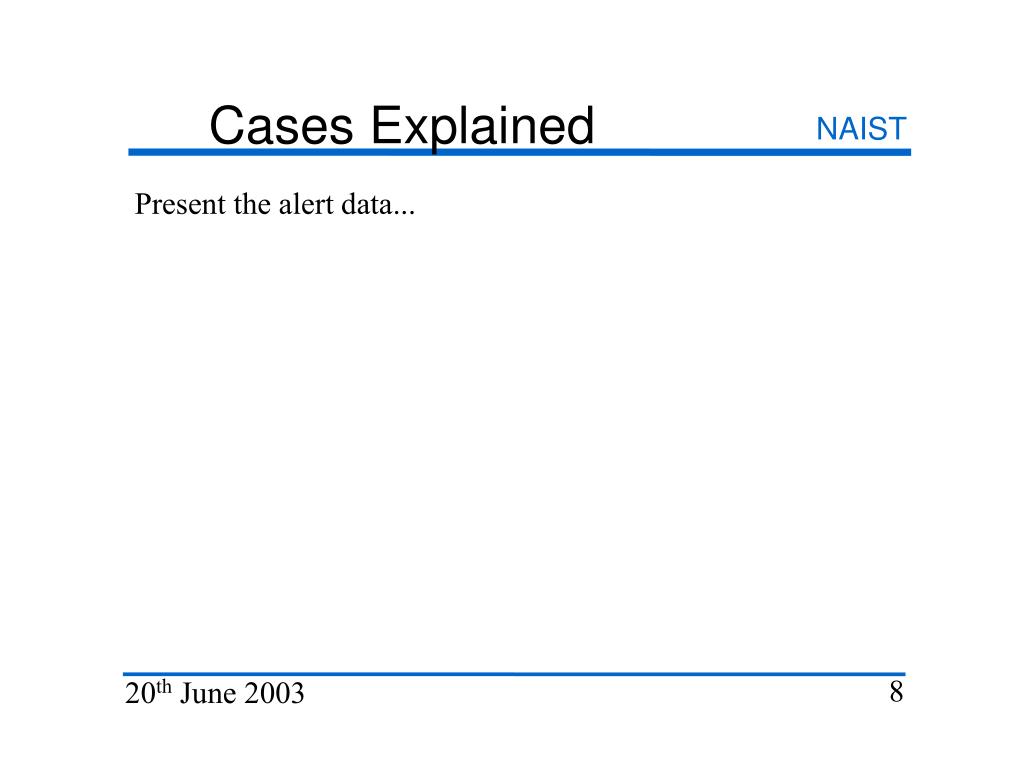

  8. Cases Explained NAIST Present the alert data... 8 20th June 2003

  9. Future Work NAIST Make the output human readable Set up Distributed-IDS at AI3 9 20th June 2003
