  1. EVN Digital Base Band Converter Status Report G. Tuccari Dwingeloo, EVN CBD Meeting

  2. Digital Base Band Converter Dwingeloo, EVN CBD Meeting

  3. Digital Base Band Converter Dwingeloo, EVN CBD Meeting

  4. DBBC v.1.1 General Features • 4 RF/IF Input from 16 in a range up to 2.200 GHz • Four polarizations or bands available for a single group of 64 output data channel selection (2 VSI output connectors with at present 1 or 2 Gb/s each) • 230,29 Hz or 512,1024 MHz sampling clock frequency each of the 4 sampler boards • Channel bandwidth ranging between 250KHz and 16 MHz (MK4 modes), U&L or I&Q • Channel bandwidth between 32 and 512 MHz (wide modes), I&Q • Tuning step 1 Hz with 230,29Hz sampling clock • Multiple architecture using fully re-configurable FPGA Core Modules (Down-Converter, Equally Spaced Multichannel [even schematically called ‘polyphase filters’], DRx, etc.) • Modular realization for cascaded stack processing Dwingeloo, EVN CBD Meeting

  5. DBBCConditioningModule • Pre-AD Conversion Signal Conditioning • Pre-AD Conversion Nyquist Band Definition • 4 RF Input Selection • Output Level Control • Total Power Mesurement • 2.2 GHz Bandwidth Dwingeloo, EVN CBD Meeting

  6. DBBCADBoard • Analog to Digital Converter • Analog input: 0 - 2.2 GHz • Max Sampling clock single board: • 1.5 GHz • Max eq. Sampling clock interleaving four boards: 6.0 GHz • Output Data: 2 x 8-bit @ ¼ SClkDDR Dwingeloo, EVN CBD Meeting

  7. DBBCCoreBoard - Front Side • Basic processing unit • Input Rate: • (4 IFs x 2 bus x 8 bit x SClk/2) b/s • Output Rate: • (64 ch x 32-64-128) Mb/s • Programmable architecture • Digital Down Converter: • 1 CoreModule = 1 BBC • Equally Spaced Multichannel: • 1 CoreModule = 64 real channels • 1 CoreModule = 32 complex channels Dwingeloo, EVN CBD Meeting

  8. DBBCFiLaBoard • First and Last board in the stack • First: • Communication Interface • JTAG programming channel • 1PPS synchronizer • Last: • 2 VSI Interfaces • DA Converter Dwingeloo, EVN CBD Meeting

  9. DBBC4 ADBoard + 8 CoreModule Stack Dwingeloo, EVN CBD Meeting

  10. Minimal Architecture With external RF control: • 1 ADBoard • 1 CoreBoard (down-converter, multichannel configuration, DRx) • 1+1 FiLa board (VSI interface, DA converter, JTAG,etc.) Dwingeloo, EVN CBD Meeting

  11. Maximum Architecture • 4 Conditioning Modules • 1 FiLa board • 4 ADBoard • 16 CoreModule • 1 FiLa board • 1 CaT board • PC Set • PowerDistributor Dwingeloo, EVN CBD Meeting

  12. DBBC System v.1.1 on Nov 28, 2006 • Down-converter system ready • CaT (Clock and Timing) board added • Configuration Firmware ready for most of the bandwidth • Equi-spaced Multi-channel Firmware in test • Testing in radiotelescopes is running • Since Dec06 part of geo observations recorded in parallel to the std system for testing purposes Dwingeloo, EVN CBD Meeting

  13. DBBC v.2.0 System on Nov 29, 2006 • Update program: • FPGA Virtex4 device for double processing clock (first prototype tested in August06, more boards under production) • FPGA Virtex5 engineer device waited for testing • Faster AD sampler with ADB2 for input bandwidth increasing (2.2GS/s, max bwd 3.5GHz), in collaboration with MPI (Michael Wunderlich) • FiLa10G under development in collaboration with with MPI (Michael Wunderlich) • - RFI Mitigation Board: the first CoreBoard in the chain acts as RFI processor. Some test performed: a channel can be recovered if the RFI is not wide band and if the FFT bin span is small with respect to the channel span (about < 1/10). Astron interested in a joint development. Dwingeloo, EVN CBD Meeting

  14. ADB2 Dwingeloo, EVN CBD Meeting

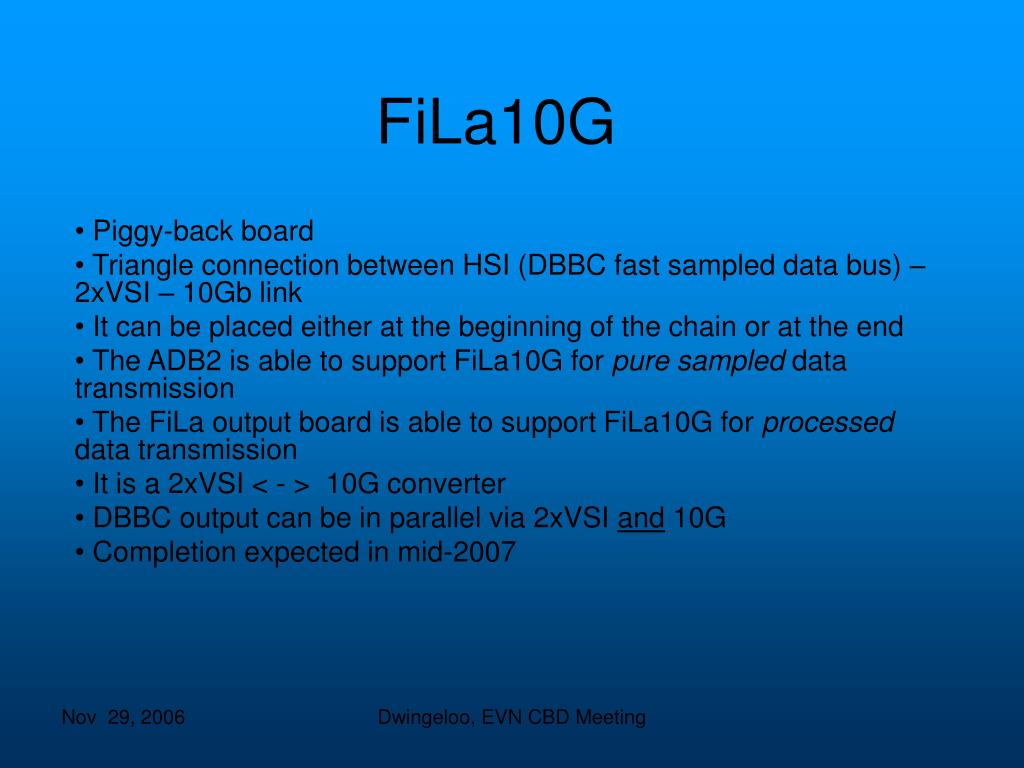

  15. FiLa10G Piggy-back board Triangle connection between HSI (DBBC fast sampled data bus) – 2xVSI – 10Gb link It can be placed either at the beginning of the chain or at the end The ADB2 is able to support FiLa10G for puresampled data transmission The FiLa output board is able to support FiLa10G for processed data transmission It is a 2xVSI < - > 10G converter DBBC output can be in parallel via 2xVSI and 10G Completion expected in mid-2007 Dwingeloo, EVN CBD Meeting

  16. FiLa10G Connectivity 2 Optical Multimode Fibers (XPak Transceiver) 10G FiLa10G 1ch HSI Max10bit Max 2.048GHz 2xVSI 64ch@128MHz Dwingeloo, EVN CBD Meeting

  17. DBBC Technology application to Digital Receiver • L Band digital receiver under development in Effelsberg and Noto (in collaboration with Reinhard Keller et al.) • DBBC parts are used with appropriate firmware for recording/transfering the sky frequency • Recording on PCEVN (included in the receiver) • Network data transfer with FiLa10G • Software development for data processing, including entire band correlation • A graduate thesis on this subject in IRA Noto is active • A further thesis on this subject or 10G network development in spring 2007 in MPI Bonn • A faster acquisition board development it’s necessary, with a data rate ≥ 2Gbps Dwingeloo, EVN CBD Meeting

  18. DBBC System on Nov 29, 2006 • Observation of Aspiring stations in Evpatoria (Ukraine) and Irbene (Latvia), respectively in August and November a) A reduced version of DBBC run experiments in both stations b) PCEVN used to record such experiments in both 'pcevn format' and 'mk5 format‘ c) data saved on PCEVN disks and transferred in 'pcevn format' from the station to JIVE for software correlation d) data saved in 'mk5 format' and then later copied on the MK5A terminal for hardware correlation e) In Evpatoria fringes detected with Wb and Mc, problems with magnitude bit for encoding reasons f) Irbene test still under evaluation, no fringes at present with Tr and Nt, even in theNt-Tr baseline with not-standard receivers (12 GHz). Magnitude bit encoding fixed. Dwingeloo, EVN CBD Meeting

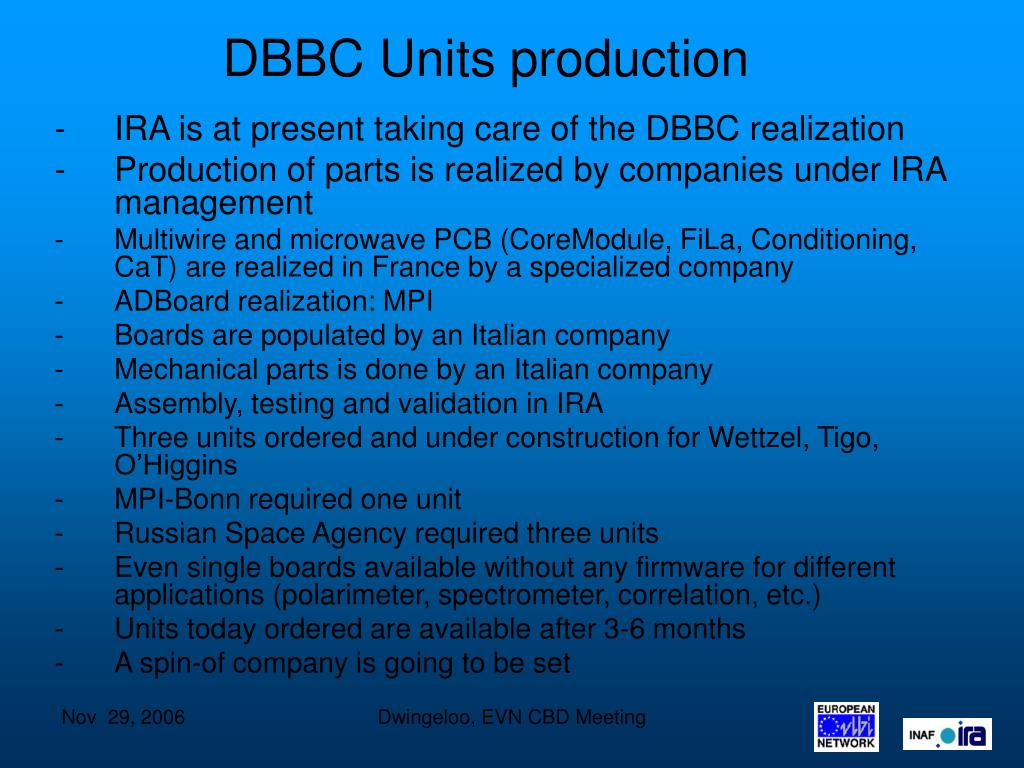

  19. DBBC Units production - IRA is at present taking care of the DBBC realization - Production of parts is realized by companies under IRA management • Multiwire and microwave PCB (CoreModule, FiLa, Conditioning, CaT) are realized in France by a specialized company • ADBoard realization: MPI • Boards are populated by an Italian company • Mechanical parts is done by an Italian company • Assembly, testing and validation in IRA • Three units ordered and under construction for Wettzel, Tigo, O’Higgins • MPI-Bonn required one unit • Russian Space Agency required three units • Even single boards available without any firmware for different applications (polarimeter, spectrometer, correlation, etc.) • Units today ordered are available after 3-6 months • A spin-of company is going to be set Dwingeloo, EVN CBD Meeting

  20. Dwingeloo, EVN CBD Meeting

  21. DBBC Cost Depends on the configuration • Minimal architecture (1 ADB1 +1 CoreBoard + 2 FiLa+PowerDistributor): 6 K€ • Complete system with 4 IF + 4 CoreBoard (1VSI 0.5-1 Gbps): 30 K€ • Complete system with 4 IF + 8 CoreBoard (1VSI 1-2 Gbps): 45 K€ • Complete system with 4 IF + 16 CoreBoard (2 VSI 1-4 Gbps each): 65 K€ Complete includes: PowerDistributor, PCSet, ConditioningModules, 19” Case & Power Supply Dwingeloo, EVN CBD Meeting
