  1. http://ww3.ticaret.edu.tr/salsan/ Medical Instrumentation Application and Design, 4th Edition John Wiley and Sons Ltd, Feb 2009, Pages: 713 Basic Concepts of Medical Instrumentation Basic Sensors and Principles Amplifiers and Signal Processing The Origin of Biopotentials Biopotential Electrodes Biopotential Amplifiers Blood Pressure and Sound Measurement of Flow and Volume of Blood Measurements of the Respiratory System Chemical Biosensors Clinical Laboratory Instrumentation Medical Imaging Systems Therapeutic and Prosthetic Devices Electrical Safety http://www.unc.edu/~finley/BME422/Webster/FM.pdf

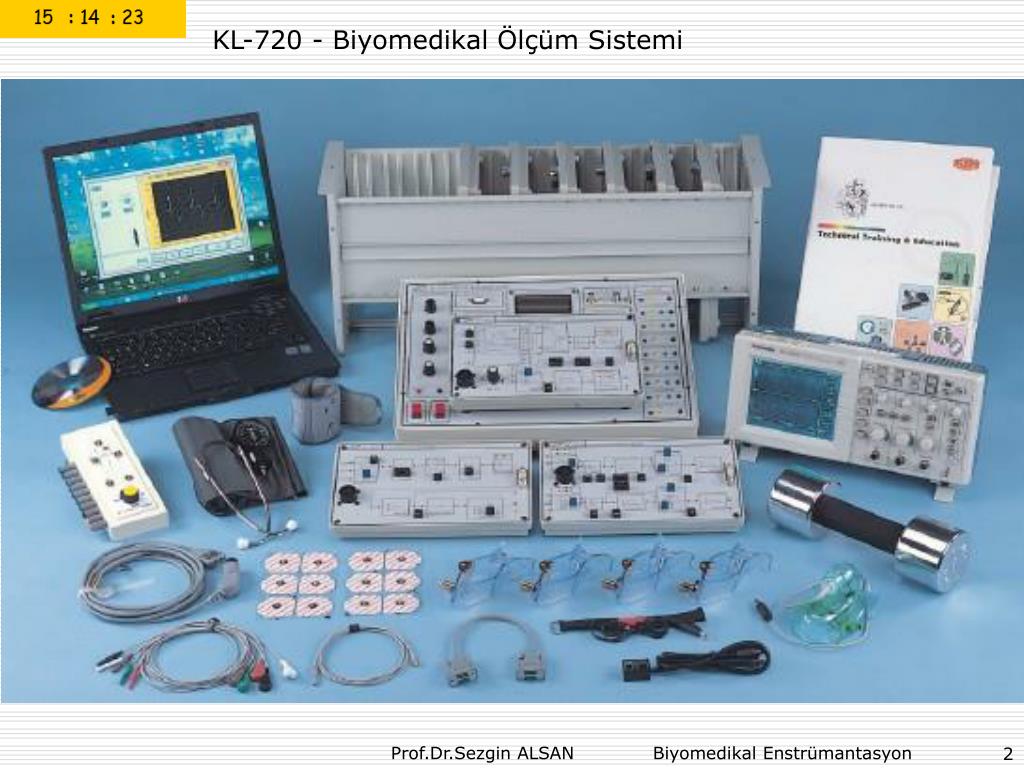

  2. KL-720 - Biyomedikal Ölçüm Sistemi

  3. 100mA Log scale

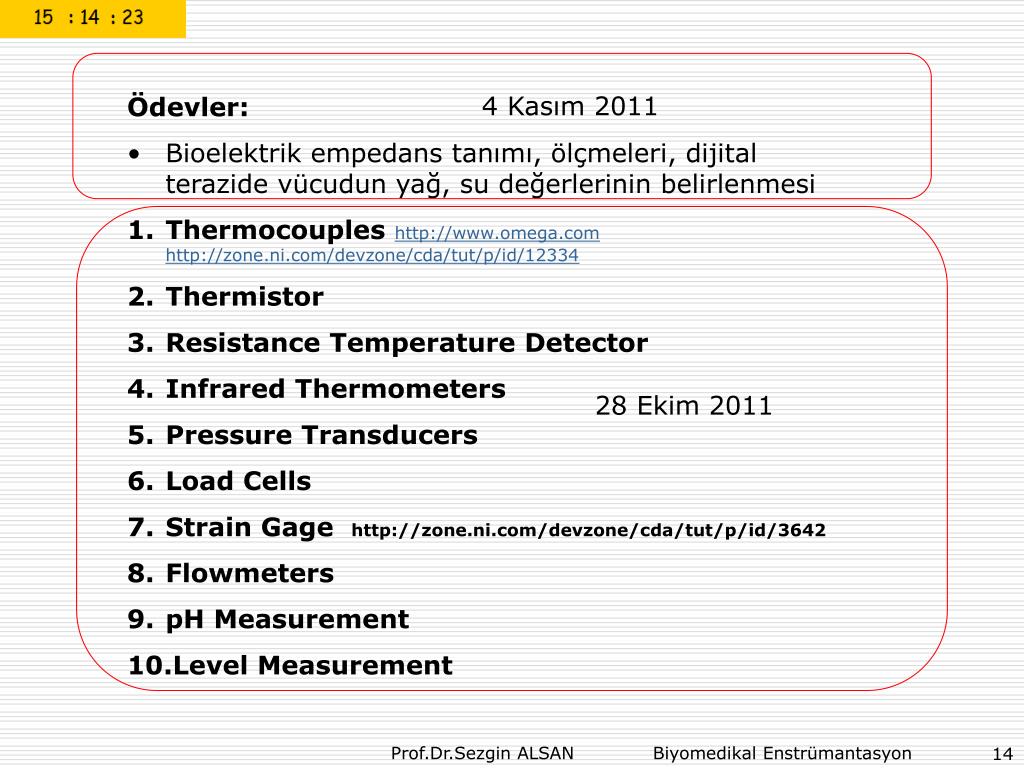

  4. 4 Kasım 2011 Ödevler: • Bioelektrik empedans tanımı, ölçmeleri, dijital terazide vücudun yağ, su değerlerinin belirlenmesi • Thermocoupleshttp://www.omega.comhttp://zone.ni.com/devzone/cda/tut/p/id/12334 • Thermistor • Resistance Temperature Detector • Infrared Thermometers • Pressure Transducers • Load Cells • Strain Gage http://zone.ni.com/devzone/cda/tut/p/id/3642 • Flowmeters • pHMeasurement • Level Measurement 28 Ekim 2011

  5. http://www.skillstat.com/ECG_Sim_demo.html

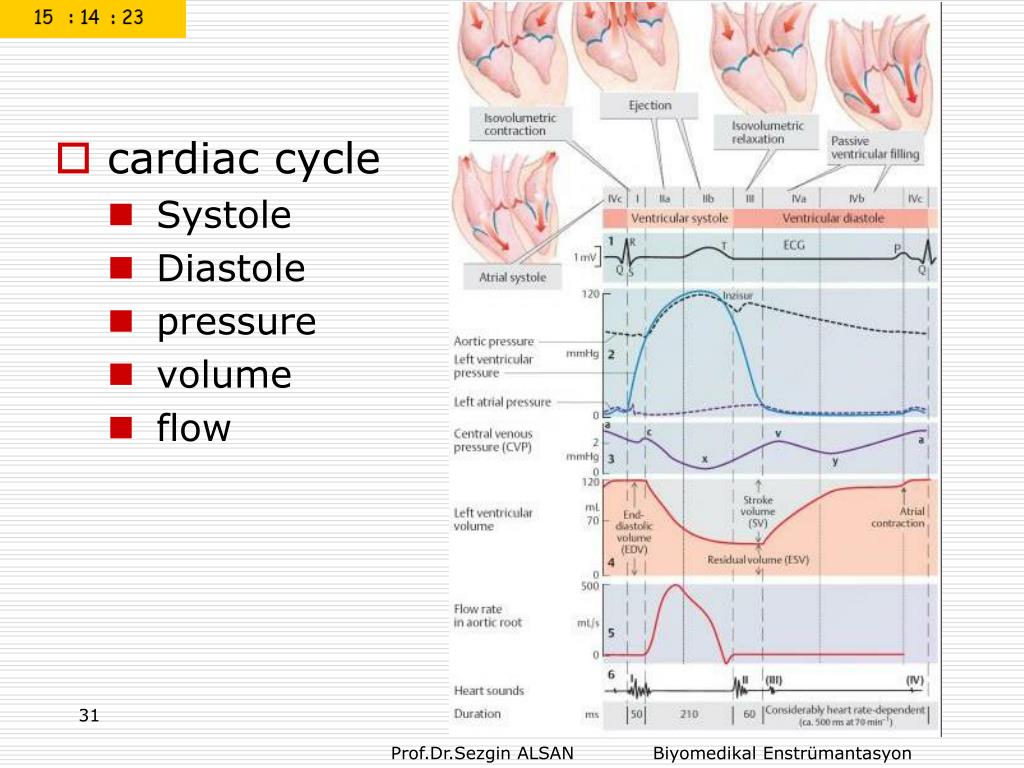

  6. cardiac cycle • Systole • Diastole • pressure • volume • flow

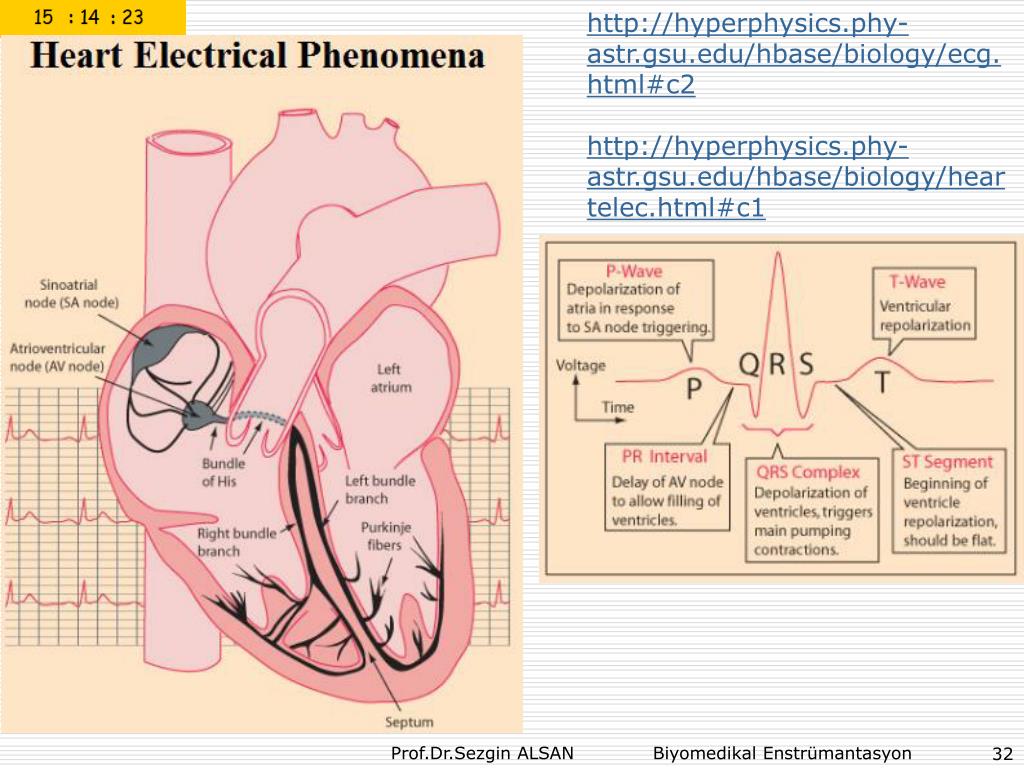

  7. http://hyperphysics.phy-astr.gsu.edu/hbase/biology/ecg.html#c2http://hyperphysics.phy-astr.gsu.edu/hbase/biology/ecg.html#c2 http://hyperphysics.phy-astr.gsu.edu/hbase/biology/heartelec.html#c1

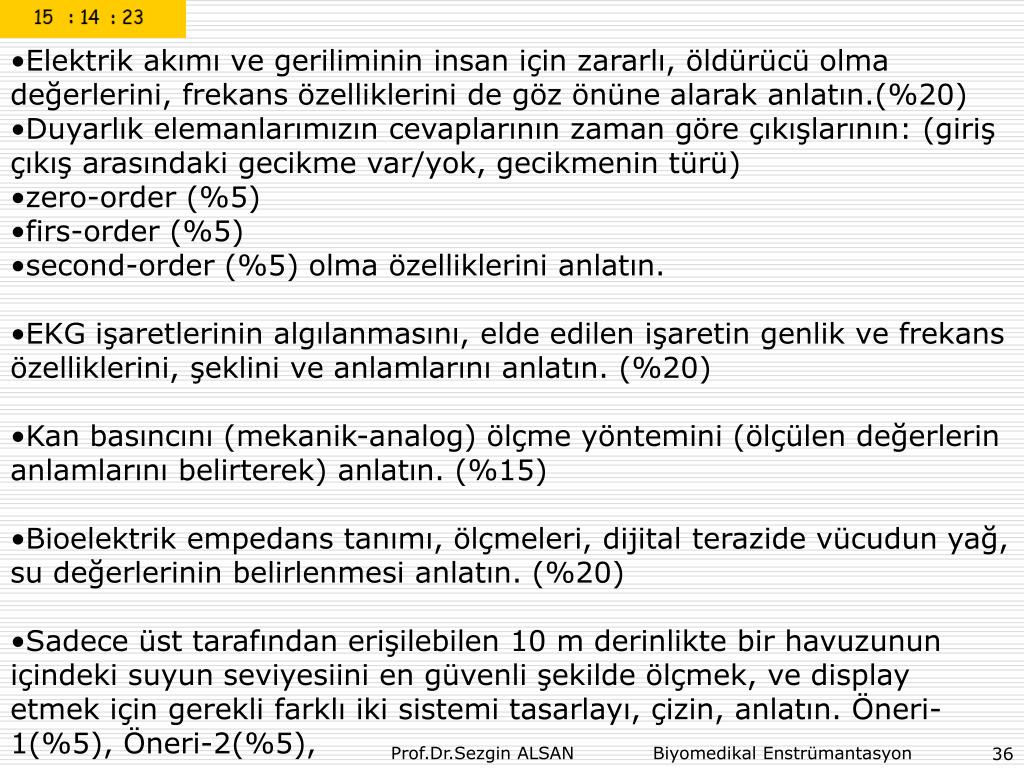

  8. Elektrik akımı ve geriliminin insan için zararlı, öldürücü olma değerlerini, frekans özelliklerini de göz önüne alarak anlatın.(%20) • Duyarlık elemanlarımızın cevaplarının zaman göre çıkışlarının: (giriş çıkış arasındaki gecikme var/yok, gecikmenin türü) • zero-order (%5) • firs-order (%5) • second-order (%5)olma özelliklerini anlatın. • EKG işaretlerinin algılanmasını, elde edilen işaretin genlik ve frekans özelliklerini, şeklini ve anlamlarını anlatın. (%20) • Kan basıncını (mekanik-analog) ölçme yöntemini (ölçülen değerlerin anlamlarını belirterek) anlatın. (%15) • Bioelektrik empedans tanımı, ölçmeleri, dijital terazide vücudun yağ, su değerlerinin belirlenmesi anlatın. (%20) • Sadece üst tarafından erişilebilen 10 m derinlikte bir havuzunun içindeki suyun seviyesiini en güvenli şekilde ölçmek, ve display etmek için gerekli farklı iki sistemi tasarlayı, çizin, anlatın. Öneri-1(%5), Öneri-2(%5),

  9. Miniature Wireless Pulse Oximeter http://www.judylab.org/doku.php?id=research:wireless_biosignal_telemetry http://contecmedical.en.made-in-china.com/offer/abHEQvnYztpJ/Sell-CMS-P-PC-Based-Pulse-Oximeter-with-Free-SW.html CMS-P PC Based Pulse Oximeter

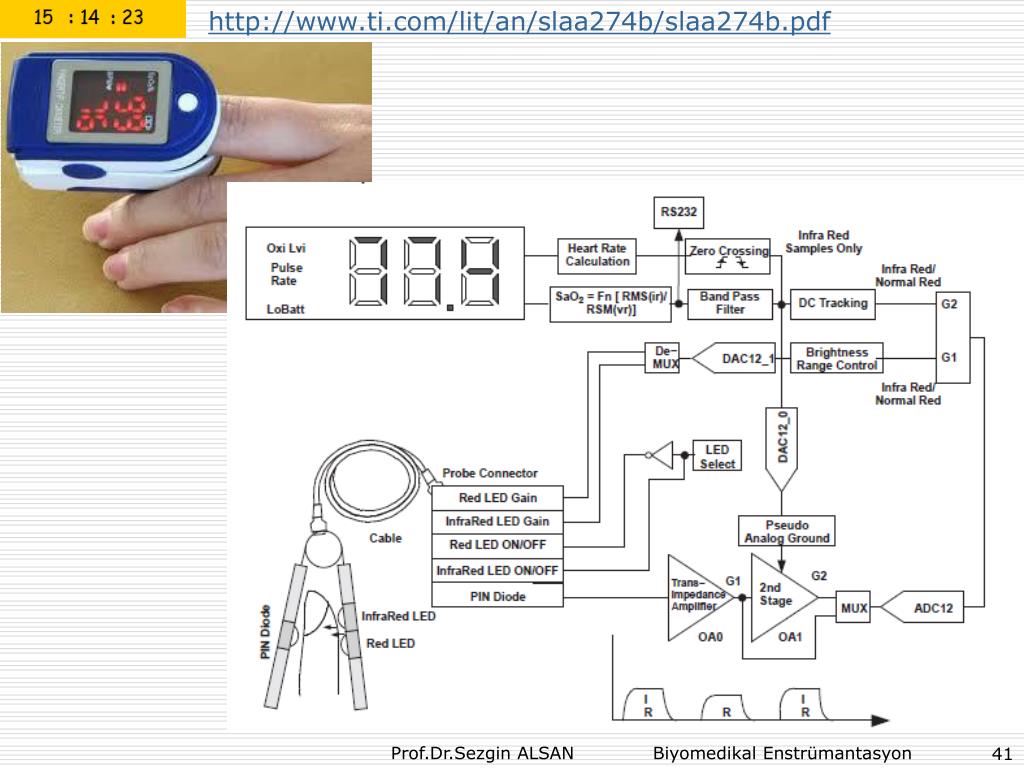

  10. http://www.ti.com/lit/an/slaa274b/slaa274b.pdf

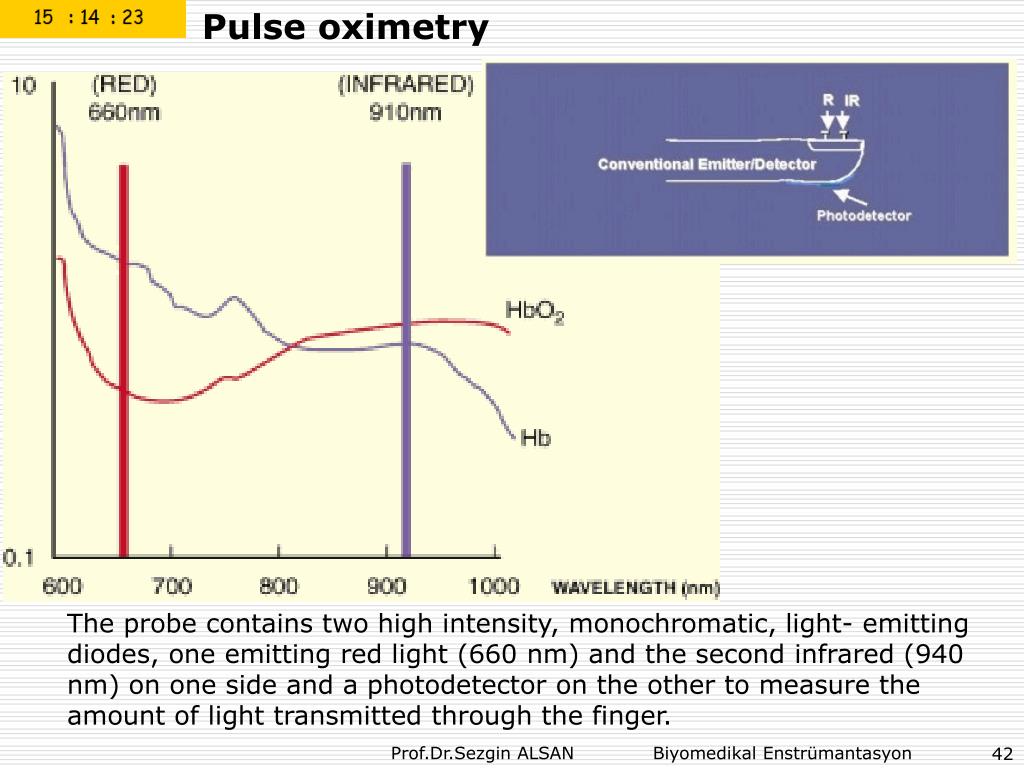

  11. Pulse oximetry The probe contains two high intensity, monochromatic, light- emitting diodes, one emitting red light (660 nm) and the second infrared (940 nm) on one side and a photodetector on the other to measure the amount of light transmitted through the finger.

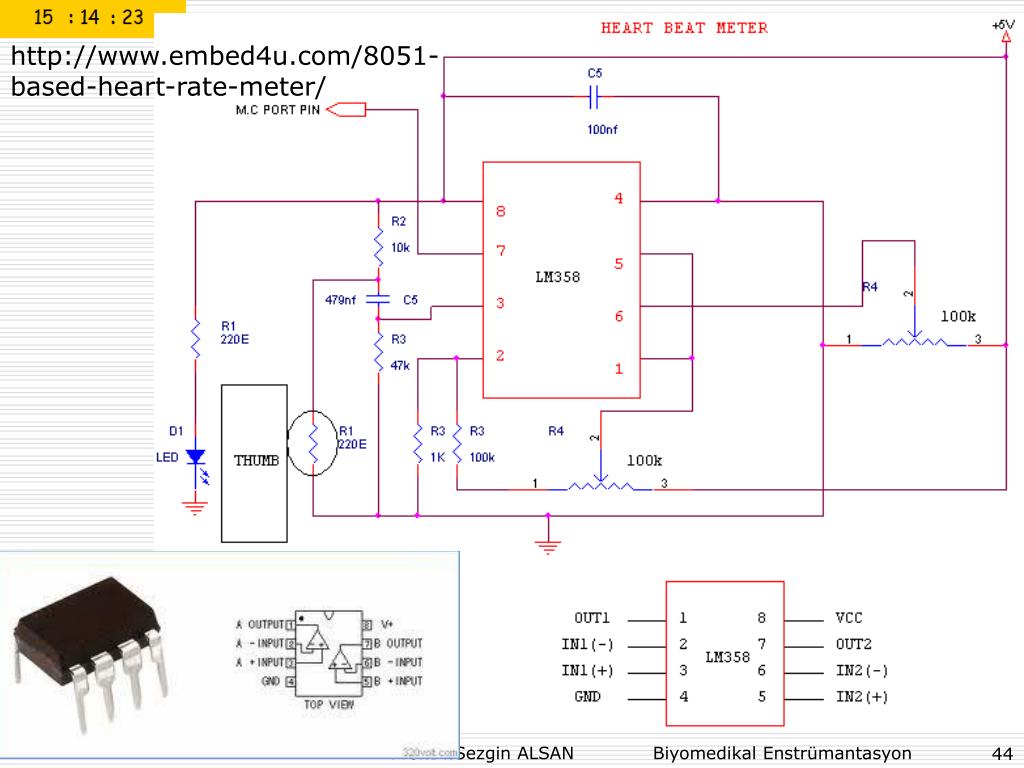

  12. http://www.embed4u.com/8051-based-heart-rate-meter/
