  1. Casement • A side hinged window that swings in or out

  2. Single door • A hinged, single entrance into a building or room

  3. Chair backs: ladder

  4. Sliding • A door that opens by sliding instead of swinging on a hinge

  5. Corner Quoins

  6. Early American • Style with turned legs, square, blocky with plank seat or cane seat

  7. Pocket • A door that slides into a compartment in the adjoining wall

  8. Arcade • A series of adjoining arches with their supporting columns

  9. Doric Column Capitals -

  10. Roof Types • Gable - Low Pitch

  11. Dentil trim • An architectural decoration composed of small square projecting blocks used in a cornice (think teeth!)

  12. Fan/half-round • A half circle shaped window usually placed above a door or in a pediment

  13. Shingles • materials that are relatively thin, enough to be overlapped as they are put in place.

  14. Roof Types • Saltbox

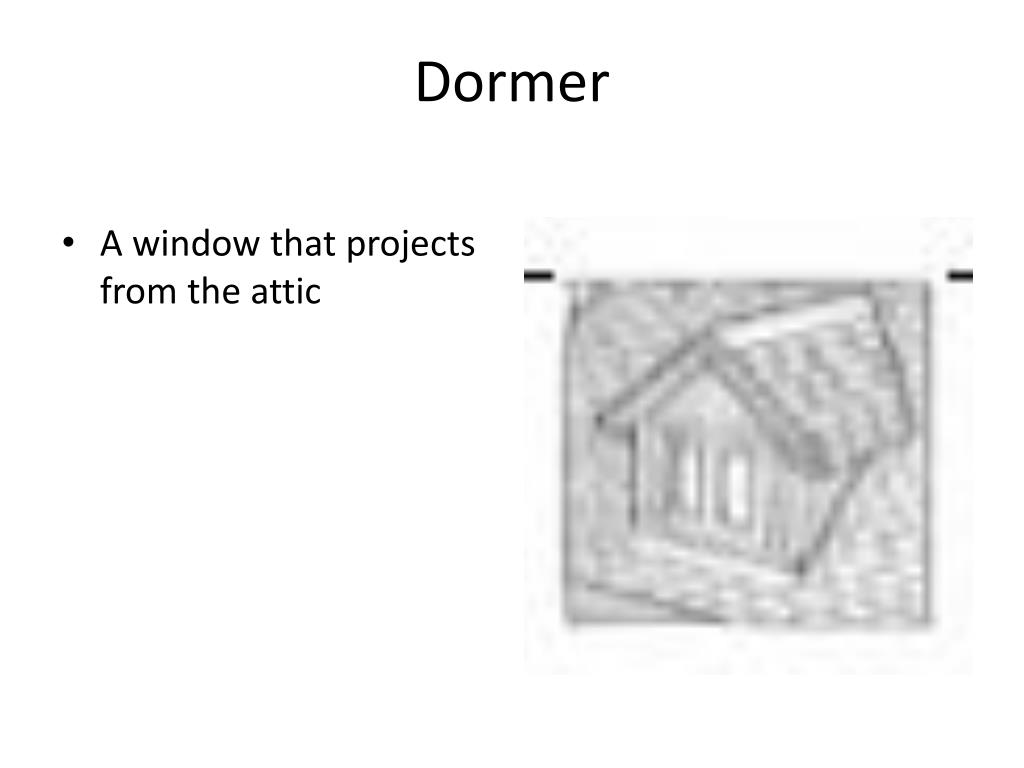

  15. Dormer • A window that projects from the attic

  16. Pediment Triangular

  17. Pitch • A slope or the degree of slope – usually refers to a roof

  18. Corner Quoins • Stone surfaces that cover corners of buildings • Alternate in length

  19. Roof Types • Gambrel

  20. Queen Anne • Style with cambriole leg, pad food, shell motif, wing chair

  21. Pediment Segmental (round)

  22. Dentil trim

  23. Shingles

  24. Arcade

  25. Panels mounted on beside windows Originally hinged so they could swing shut over a window to protect the glass during bad weather Shutters

  26. Half Timber • Construction of timber frame having the spaces filed with masonry or plaster • Most of current construction is decorative

  27. Roof Types • Flat

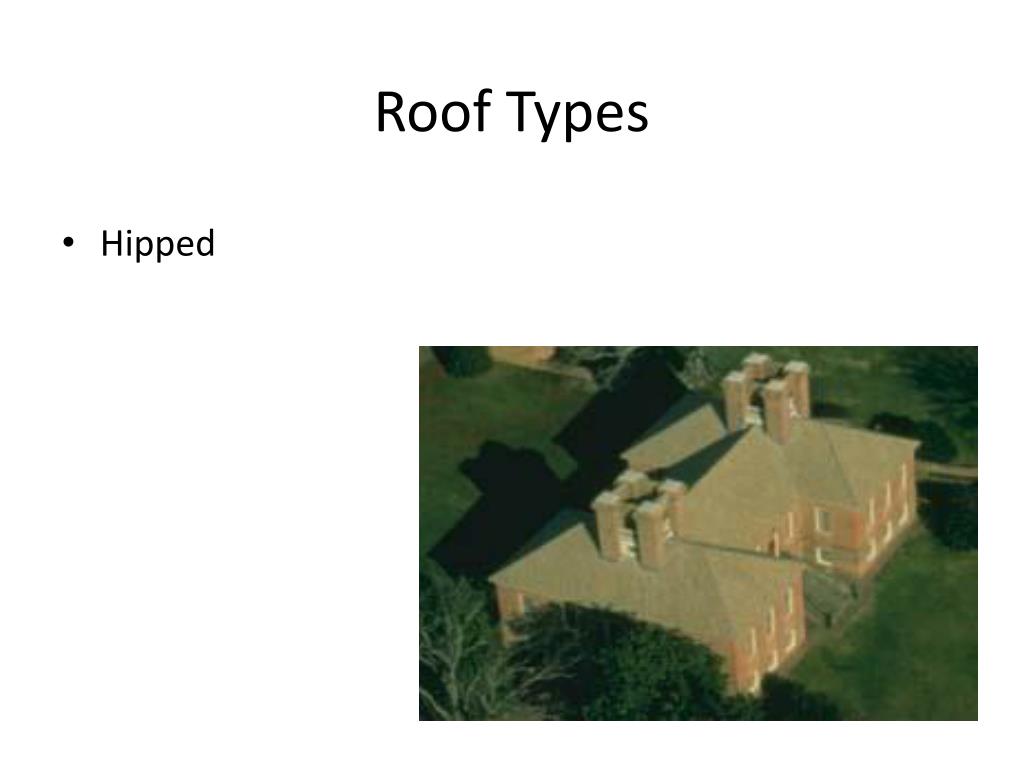

  28. Roof Types • Hipped

  29. Pediment Scroll

  30. Sliding • A set of windows that slide horizontally

  31. Roof Types • Shed

  32. Portico

  33. Log Cabin • Overlapping logs at corners, came from Sweden

  34. Chippendale • Ball and claw foot, ears, Chinese influence-black lacquer Japaning, camel back couch

  35. Tudor • A home with half-timbering

  36. Spanish • Arcade, bartile roof, stucco, black wrought iron

  37. Pilasters • A column that is part of a wall - can be semicircular or flat

  38. Saltbox • 2 stories in front, 1 story in back – long rear roofline

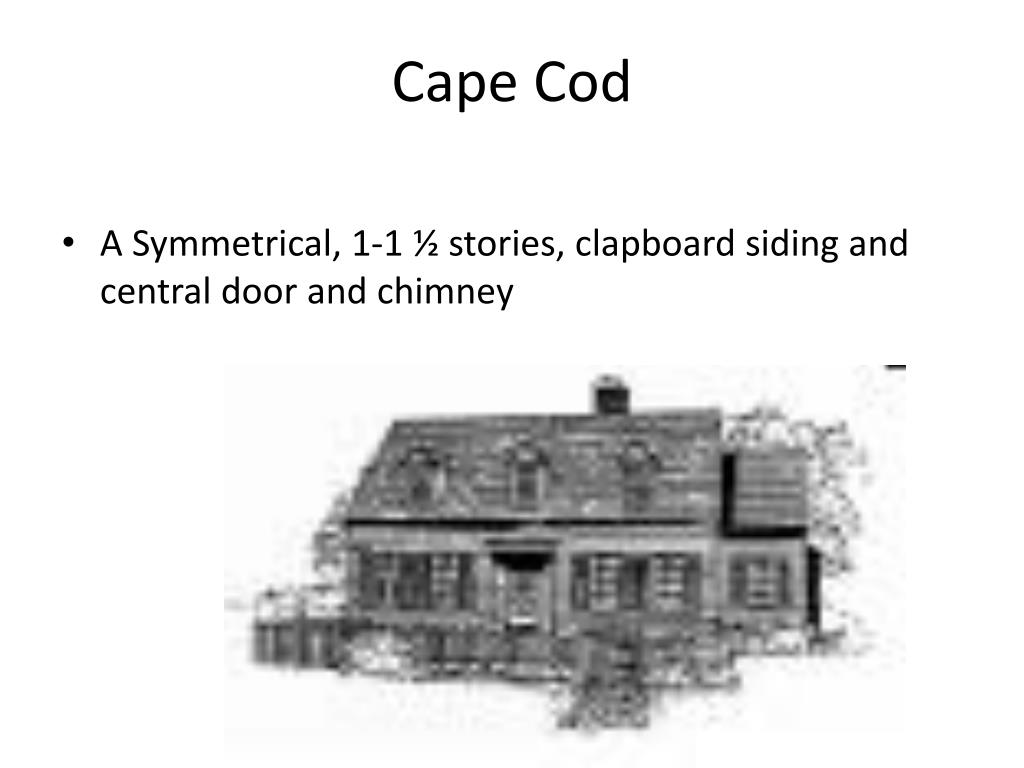

  39. Cape Cod • A Symmetrical, 1-1 ½ stories, clapboard siding and central door and chimney

  40. Georgian • A symmetrical, 2 ½ stories, dentil trim, double hung windows with 9-10 panes, quoins, pilasters around paneled door

  41. Federal • Symmetrical front, 3-4 stories, graduated windows where the windows get shorter with each floor or story, rectangular, beltcourse between stories, front door with fanlights and sidelights, balustrade

  42. Pediment Broken

  43. Greek Revival • 2 story, columns, large pediment towards street

  44. Victorian Queen Anne • Tower, wraparound porch, gingerbread, fish scale shingles

  45. Prairie • Horizontal lines, low-pitched roofs with overhanging eaves

  46. Craftsman/Bungalow • Deep front porch, exposed rafters, wide columns, shed dormers

  47. Contemporary • Clean simple lines, large windows, flat roof

  48. Chairs: ladderback A chair with a back consisting of two upright posts connected by horizontal slats

  49. Hepplewhite • Style with shield back and tapered legs
