Radiation: Overview

Radiation: Overview. Radiation - Emission thermal radiation is the emission of electromagnetic waves when matter is at an absolute temperature greater than 0 K emission is due to the oscillations and transitions of the many electrons that comprise the matter

veata
Download Presentation

Radiation: Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

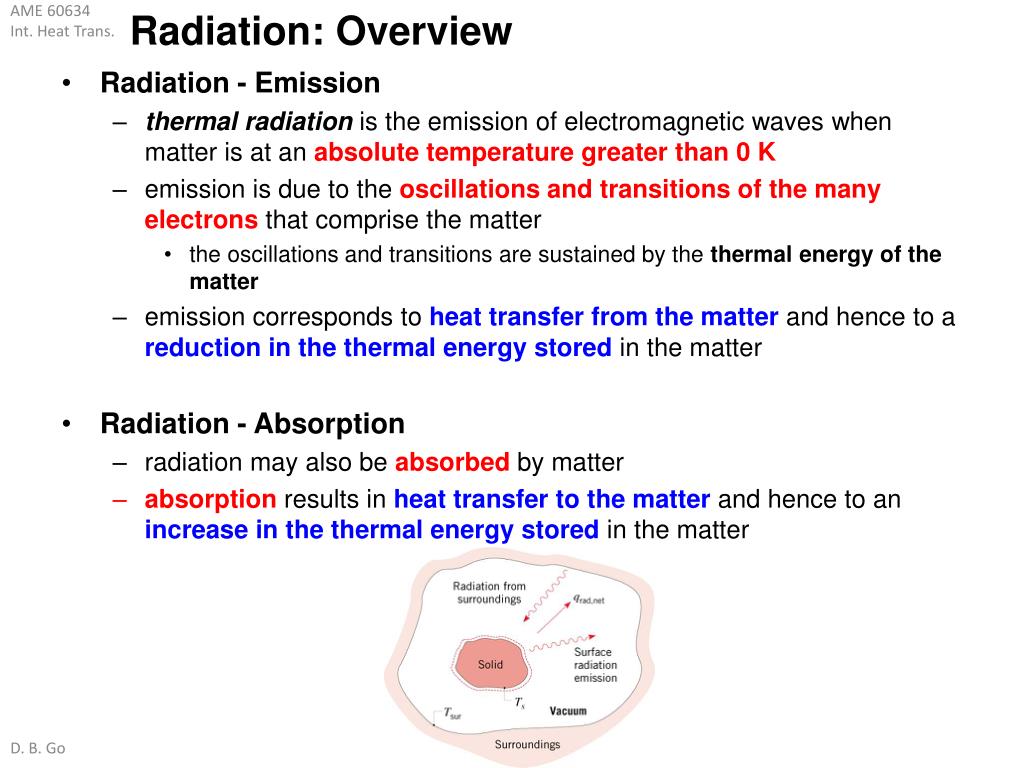

  1. Radiation: Overview • Radiation - Emission • thermal radiation is the emission of electromagnetic waves when matter is at an absolute temperature greater than 0 K • emission is due to the oscillations and transitions of the many electrons that comprise the matter • the oscillations and transitions are sustained by the thermal energy of the matter • emission corresponds to heat transfer from the matter and hence to a reduction in the thermal energy storedin the matter • Radiation - Absorption • radiation may also be absorbedby matter • absorption results in heat transfer to the matterand hence to an increase in the thermal energy stored in the matter

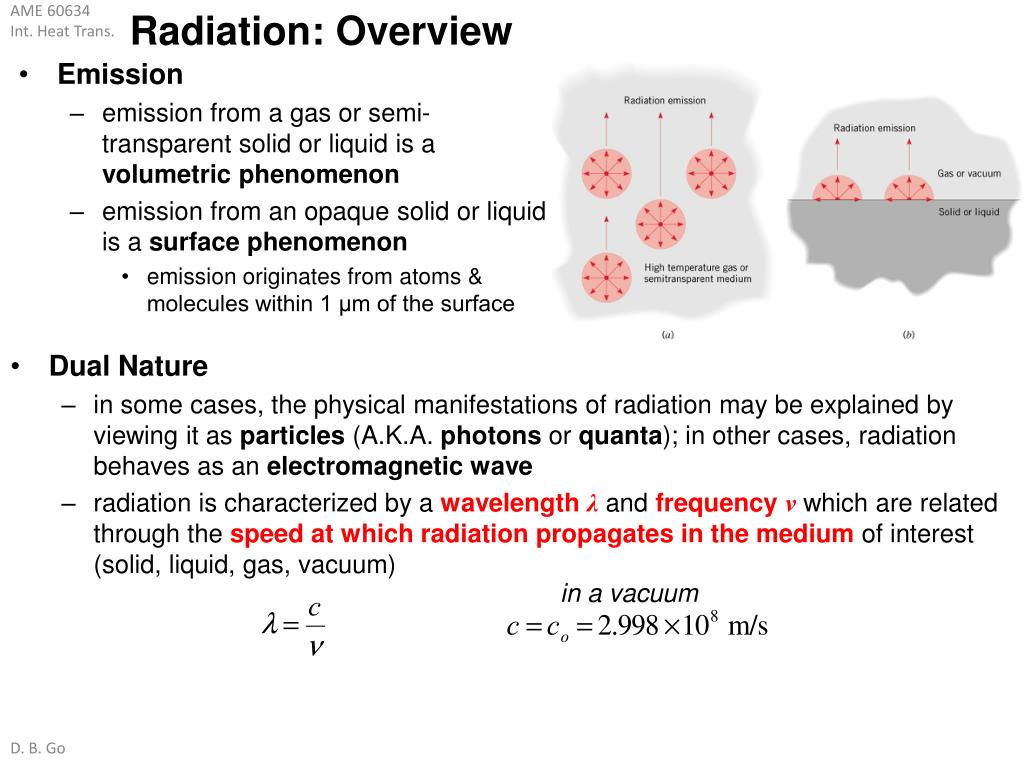

  2. Radiation: Overview • Dual Nature • in some cases, the physical manifestations of radiation may be explained by viewing it as particles (A.K.A. photons or quanta); in other cases, radiation behaves as an electromagnetic wave • radiation is characterized by a wavelength λ and frequency ν which are related through the speed at which radiation propagates in the medium of interest (solid, liquid, gas, vacuum) in a vacuum • Emission • emission from a gas or semi-transparent solid or liquid is a volumetric phenomenon • emission from an opaque solid or liquid is a surface phenomenon • emission originates from atoms & molecules within 1 μm of the surface

  3. Radiation: Spectral Considerations • Spectral Distribution • radiation emitted by an opaque surface varies with wavelength • spectral distribution describes the radiation over all wavelengths • monochromatic/spectral components are associated with particular wavelengths • Electromagnetic Spectrum • the range of all possible radiation frequencies • thermal radiation is confined to the infrared, visible, and ultraviolet regions of the spectrum

  4. Radiation: Directional Considerations - The amount of radiation emitted from a surface, dAn, and propagating in a particular direction (θ,ϕ) is quantified in terms of a differential solid angle associated with the direction, dω. dAn unit element of surface on a hypothetical sphere and normal to the (θ,ϕ) direction • Emission • Radiation emitted by a surface will be in all directions associated with a hypothetical hemisphere about the surface and is characterized by a directional distribution • Direction may be represented in a spherical coordinate system characterized by the zenith or polar angle θ and the azimuthal angle ϕ.

  5. Radiation: Directional Considerations • the solid angle ω has units of steradians (sr) • the solid angle ωhemi associated with a complete hemisphere • Solid Angle

  6. Radiation: Spectral Intensity [W/m2-sr-μm] • Spectral Intensity, Iλ,e • a quantity used to specify the radiant heat flux (W/m2) within a unit solid angle about a prescribed direction (W/m2-sr) and within a unit wavelength interval about a prescribed wavelength (W/m2-sr-μm) • associated with emission from a surface element dA1 in the solid angle dωabout θ, ϕand the wavelength interval dλ about λ and is defined as: • the rational for defining the radiation flux in terms of the projected area (dA1cosθ) stems from the existence of surfaces for which, to a good approximation, Iλ,eis independent of direction. Such surfaces are termed diffuse, and the radiation is said to be isotropic. • the projected area is how dA1appears alongθ, ϕ

  7. Radiation: Heat Flux • The spectral heat rate (heat rate per unit wavelength of radiation) associated with emission • The spectral heat flux (heat flux per unit wavelength of radiation) associated with emission • The integration of the spectral heat flux is called the spectral emissive power • spectralemission (heat flux) over all possible directions

  8. Radiation: Heat Flux The total heat flux from the surface due to radiation is emission over all wavelengths and directions  total emissive power If the emission is the same in all directions, then the surface is diffuse and the emission is isotropic

  9. Radiation: Irradiation • Irradiation • electromagnetic waves incident on a surface is called irradiation • irradiation can be either absorbed or reflected • Spectral Intensity, Iλ,i • a quantity used to specify the incident radiant heat flux (W/m2) within a unit solid angle about the direction of incidence (W/m2-sr) and within a unit wavelength interval about a prescribed wavelength (W/m2-sr-μm) and the projected area of the receiving surface (dA1cosθ)

  10. Radiation: Irradiation Heat Flux • The integration of the spectral heat flux is called the spectral irradiation • spectralirradiation (heat flux) over all possible directions • The total heat fluxto the surface due to irradiation over all wavelengths and directions  total irradiative power

  11. Radiation: Radiosity • Radiosity • for opaque surfaces • accounts for all radiation leaving a surface • emission • reflection • Spectral Intensity, Iλ,e+r • a quantity used to specify emitted and reflected radiation intensity • The integration of the spectral heat flux is called the spectral radiosity • spectralemission+reflection (heat flux) over all possible directions • The total heat fluxfrom the surface due to irradiation over all wavelengths and directions  total radiosity

  12. Radiation: Black Body • Isothermal Cavity – Approximation of Black Body • after multiple reflections, virtually all radiation entering the cavity is absorbed • emission from the aperture is the maximum possible emission for the temperature of cavity and the emission is diffuse • cumulative effect of emission and reflection off the cavity wall is to provide diffuse irradiation corresponding to emission from a black body • Black Body • an idealization providing limits on radiation emission and absorption by matter • for a prescribed temperature and wavelength, no surface can emit more than a black body  ideal emitter • a black body absorbs all incident radiation (no reflection)  ideal absorber • a black body is defined as a diffuse emitter

  13. Radiation: Black Body • Planck Distribution • the spectral emission intensity of a black body • determined theoretically and confirmed experimentally • spectral emissive power

  14. Radiation: Black Body sun approximated by 5800 K black body The maximum emission power,Eλ,b, occurs at λmaxwhich is determined by Wien’s displacement law • Planck Distribution • emitted radiation varies continuously with wavelength • at any wavelength, the magnitude of the emitted power increases with temperature • the spectral region where the emission is concentrated depends on temperature • comparatively more radiation at shorter wave lengths

  15. Radiation: Black Body Stefan-Boltzmann Law this can be rewritten as the following function is tabulated • Stefan-Boltzmann Law • the total emissive power of a black body is found by integrating the Planck distribution • the fraction of the total emissive power within a wavelength band (λ1 < λ < λ2) is

  16. Radiation: Black Body

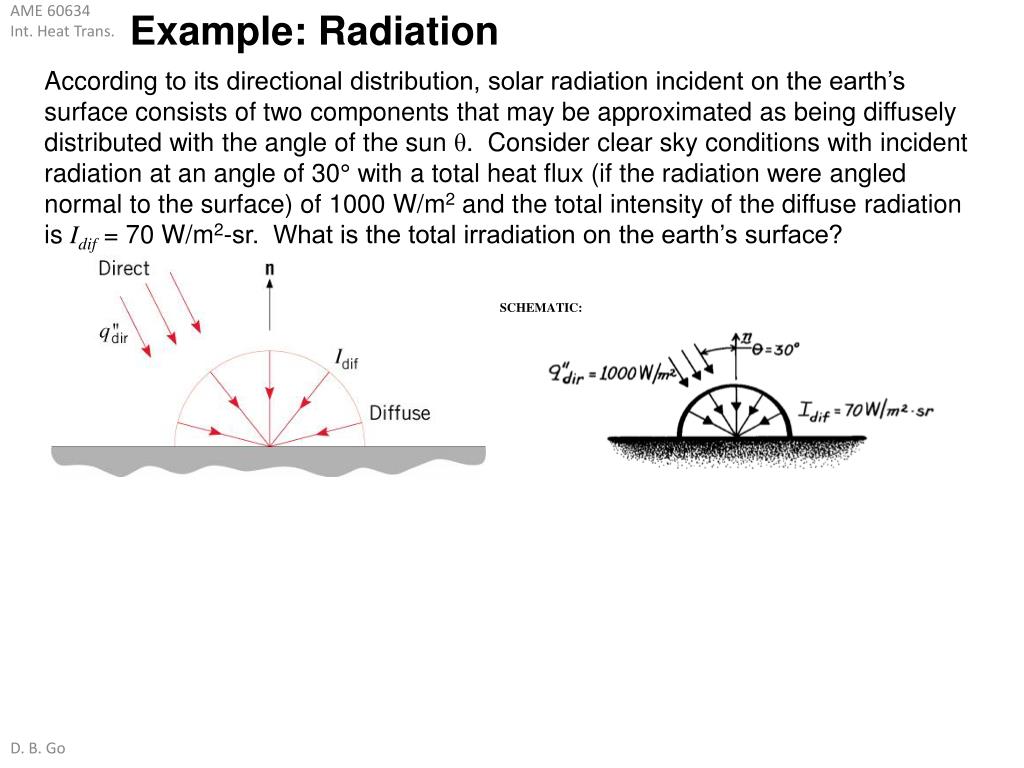

  17. Example: Radiation According to its directional distribution, solar radiation incident on the earth’s surface consists of two components that may be approximated as being diffusely distributed with the angle of the sun θ. Consider clear sky conditions with incident radiation at an angle of 30° with a total heat flux (if the radiation were angled normal to the surface) of 1000 W/m2 and the total intensity of the diffuse radiation is Idif = 70 W/m2-sr. What is the total irradiation on the earth’s surface?

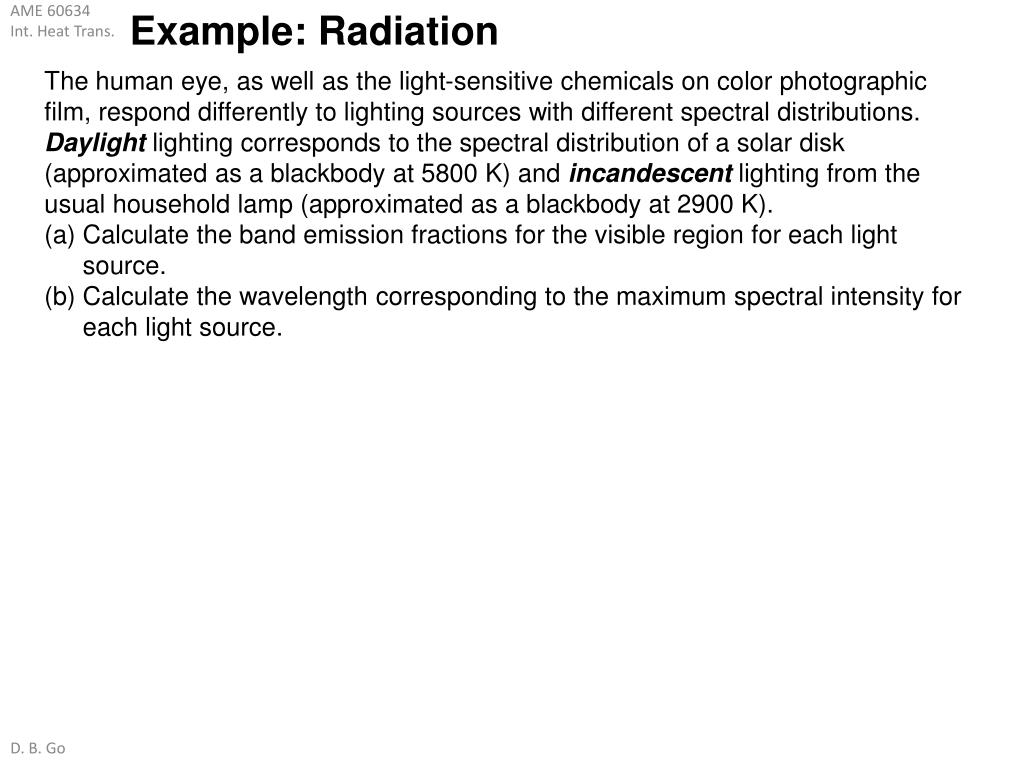

  18. Example: Radiation The human eye, as well as the light-sensitive chemicals on color photographic film, respond differently to lighting sources with different spectral distributions. Daylight lighting corresponds to the spectral distribution of a solar disk (approximated as a blackbody at 5800 K) and incandescent lighting from the usual household lamp (approximated as a blackbody at 2900 K). Calculate the band emission fractions for the visible region for each light source. Calculate the wavelength corresponding to the maximum spectral intensity for each light source.

  19. Radiation: Surface Properties • Real surfaces do not behave like ideal black bodies • non-ideal surfaces are characterized by factors (< 1) which are the ratio of the non-ideal performance to the ideal black body performance • these factors can be a function of wavelength (spectral dependence) and direction (angular dependence) • Non-Ideal Radiation Factor • emissivity, ε • Non-Ideal Irradiation • absorptivity, α • reflectivity, ρ • transmissivity, τ

  20. Radiation: Emissivity • Emissivity • characterizes the emission of a real body to the ideal emission of a black bodyand can be defined in three manners • a function of wavelength (spectral dependence) and direction (angular dependence) • a function of wavelength (spectral dependence) averaged over all directions • a function of direction (angular dependence) averaged over all wavelengths • Spectral, Directional Emissivity • Spectral, Hemispherical Emissivity (directional average) • Total, Directional Emissivity (spectral average)

  21. Radiation: Emissivity which can be simplified to • Emissivity • Total, Hemispherical Emissivity (directional average) • to a reasonable approximation, the total, hemispherical emissivityis equal to the total, normal emissivity

  22. Radiation: Emissivity Representative spectral variations Representative temperature variations

  23. Radiation: Absorption/Reflection/Transmission • Three responses of semi-transparent medium to irradiation, Gλ • absorption within medium, Gλ,abs • reflection from the medium, Gλ,ref • transmission through the medium, Gλ,tr • Total irradiation balance • An opaque material only has a surface response – there is no transmission (volumetric effect) • The semi-transparency or opaqueness of a medium is governed by both the nature of the material and the wavelength of the incident radiation • the color of an opaque material is based on the spectral dependence of reflection in the visible spectrum

  24. Radiation: Absorptivity • Spectral, Directional Absorptivity • assuming negligible temperature dependence • Spectral, Hemispherical Absorptivity (directional average) • Total, Hemispherical Absorptivity

  25. Radiation: Reflectivity specular – polished surfaces diffuse – rough surfaces • Spectral, Directional Reflectivity • assuming negligible temperature dependence • Spectral, Hemispherical Reflectivity (spectral average) • Total, Hemispherical Reflectivity

  26. Radiation: Reflectivity Representative spectral variations

  27. Radiation: Transmissivity • Spectral, Hemispherical Reflectivity • assuming negligible temperature dependence • Total, Hemispherical Transmissivity • Representative spectral variations

  28. Radiation: Irradiation Balance and and Semi-Transparent Materials Opaque Materials

  29. Radiation: Kirchhoff’s Law • Kirchhoff’s Law • spectral, directional surface properties are equal • Kirchhoff’s Law (spectral) • spectral, hemispherical surface properties are equal • for diffusesurfaces or diffuse irradiation • Kirchhoff’s Law (blackbodies) • total, hemispherical properties are equal • when the irradiation is from a blackbody at the same temperature as the emitting surface

  30. Radiation: Kirchhoff’s Law ? ? • Kirchhoff’s Law (spectral) • true if irradiation is diffuse • true if surface is diffuse • Kirchhoff’s Law (blackbody) • true if irradiation is from a blackbody at the same temperature as the emitting surface • true if the surface is gray

  31. Radiation: Gray Surfaces Gray approximation only valid for: • Gray Surface • a surface where αλ and ελ are independent of λ over the spectral regions of the irradiation and emission

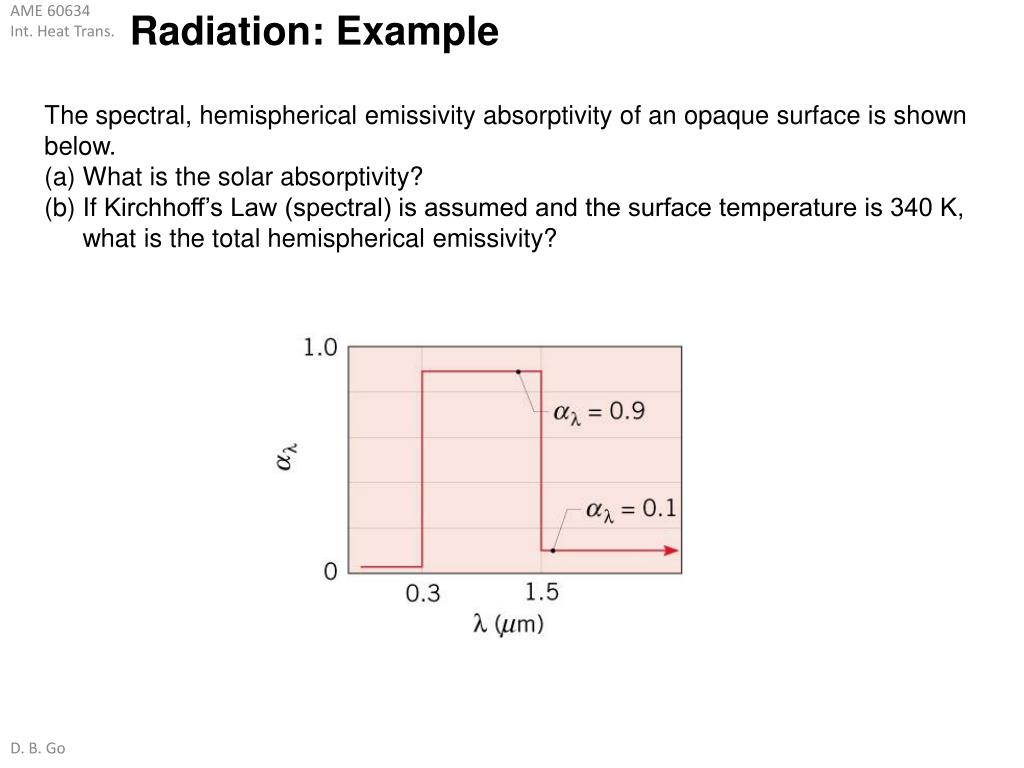

  32. Radiation: Example The spectral, hemispherical emissivity absorptivity of an opaque surface is shown below. What is the solar absorptivity? If Kirchhoff’s Law (spectral) is assumed and the surface temperature is 340 K, what is the total hemispherical emissivity?

  33. Radiation: Example A vertical flat plate, 2 m in height, is insulated on its edges and backside is suspended in atmospheric air at 300 K. The exposed surface is painted with a special diffuse coating having the prescribed absorptivity distribution and is irradiated by solar-simulation lamps that provide spectral irradiation characteristic of the solar spectrum. Under steady conditions the plate is at 400 K. (a) Find the plate absorptivity, emissivity, free convection coefficient, and irradiation. (b) Estimate the plate temperature if if the irradiation was doubled.

  34. Radiation: Exchange Between Surfaces • Overview • Enclosures consist of two or more surfaces that envelop a region of space (typically gas-filled) and between which there is radiation transfer. • Virtual, as well as real, surfaces may be introduced to form an enclosure. • A nonparticipating medium within the enclosure neither emits, absorbs, nor scatters radiation and hence has no effect on radiation exchange between the surfaces. • Each surface of the enclosure is assumed to be isothermal, opaque, diffuse and gray, and to be characterized by uniform radiosityand irradiation.

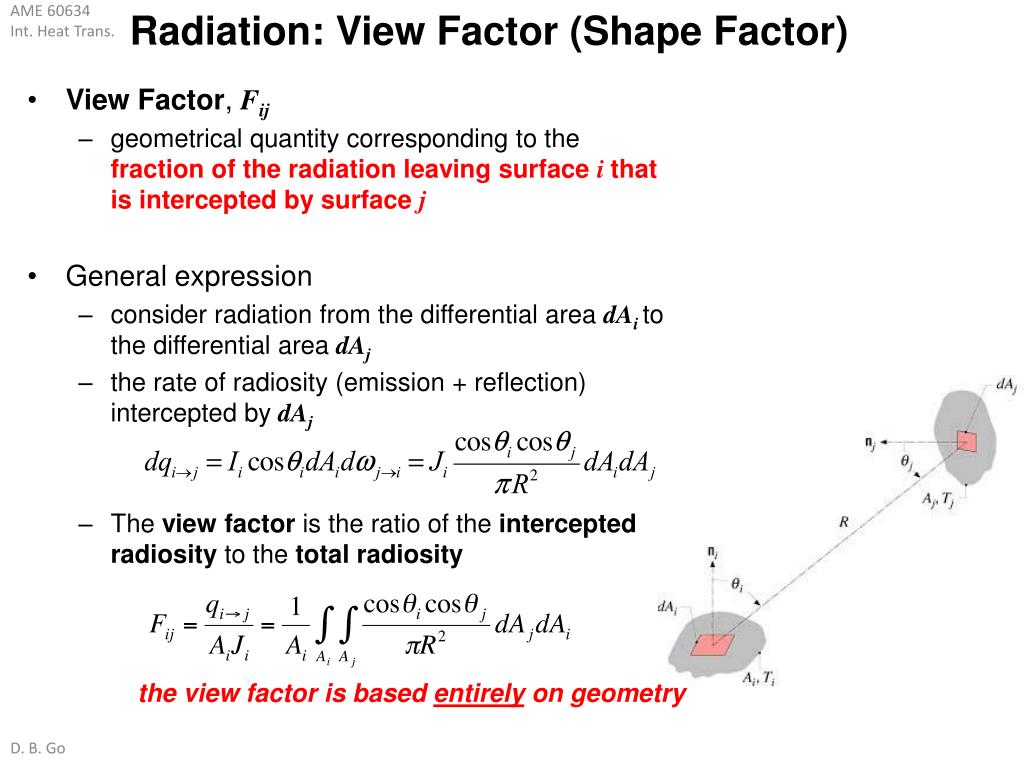

  35. Radiation: View Factor (Shape Factor) the view factor is based entirely on geometry • View Factor, Fij • geometrical quantity corresponding to the fraction of the radiation leaving surface ithat is intercepted by surface j • General expression • consider radiation from the differential area dAito the differential area dAj • the rate of radiosity (emission + reflection) intercepted by dAj • The view factor is the ratio of the intercepted radiosityto the total radiosity

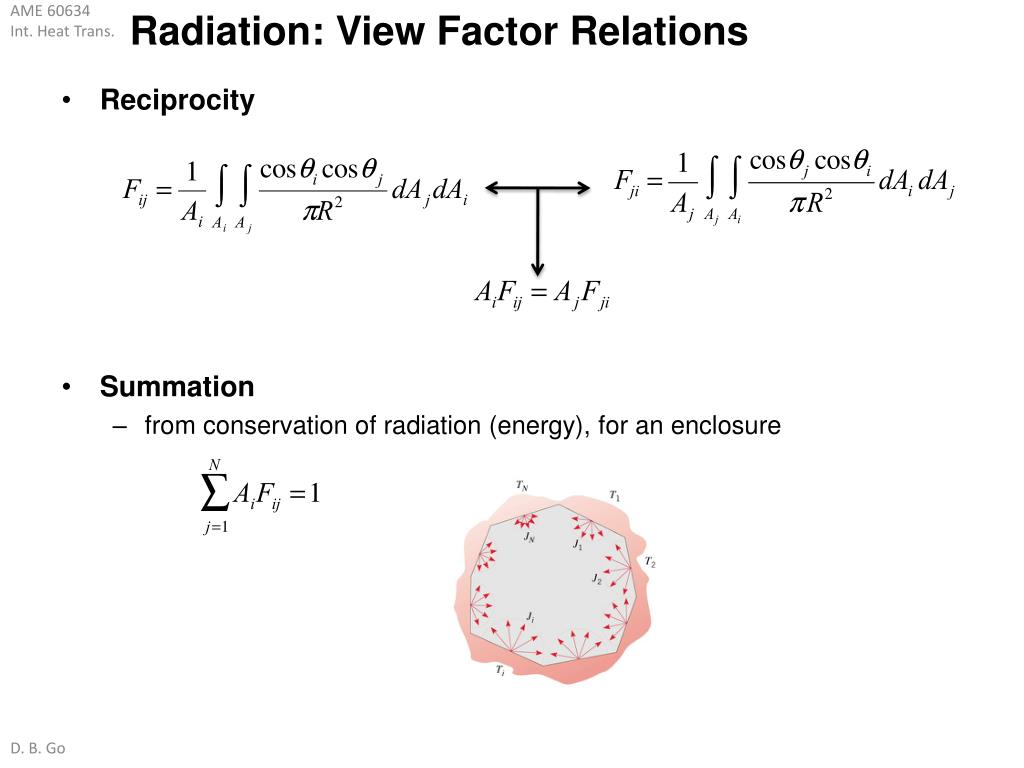

  36. Radiation: View Factor Relations • Reciprocity • Summation • from conservation of radiation (energy), for an enclosure

  37. Radiation: View Factors 2-D Geometries

  38. Radiation: View Factors 3-D Geometries

  39. Radiation: Blackbody Radiation Exchange (heat loss from Ai) • For a blackbody there is no reflection (perfect absorber) • Net radiation exchange (heat rate) between two “blackbodies” • netrate at which radiation leaves surface i due to its interaction with jOR • net rate at which surface j gains radiation due to its interaction with i • Net radiation (heat) transfer from surface i due to exchange with all (N) surfaces of an enclosure

  40. Radiation: Gray Radiation Exchange thus for gray bodies the resistance at the surface is and the driving potential is General assumption for opaque, diffuse, gray surfaces Equivalent expressions for the net radiation (heat) transfer from surface i

  41. Radiation: Gray Radiation Exchange thus for gray bodies the resistance between two bodies (space or geometrical resistance) and the driving potential is Radiation energy balance on surface i: net energy leaving= energy exchangewith other surfaces Net radiation (heat) transfer from surface idue to exchange with all (N) surfaces of an enclosure

  42. Radiation: Gray Radiation Exchange • The equivalent circuit for a radiation network consists of two resistances • resistance at the surface • resistances between all bodies

  43. Radiation: Gray Radiation Exchange • Methodology of an enclosure analysis • apply the following equation for each surface where the net radiation heat rate qi is known • apply the following equation for each remaining surface where the temperature Ti (and thus Ebi) is known • determine all the view factors • solve the system of N equations for the unknown radiositiesJ1, J2, …, JN • apply the following equation to determine the radiation heat rate qi for each surface of known Ti and Tifor each surface of known qi

  44. Radiation: Gray Radiation Exchange Tsur Treat the aperture as a virtual blackbody surface with area Ai, Ti = Tsurand Ai • Special Case • enclosure with an opening (aperture) of area Ai through which the interior surface exchange radiation with large surroundings at temperature Tsur

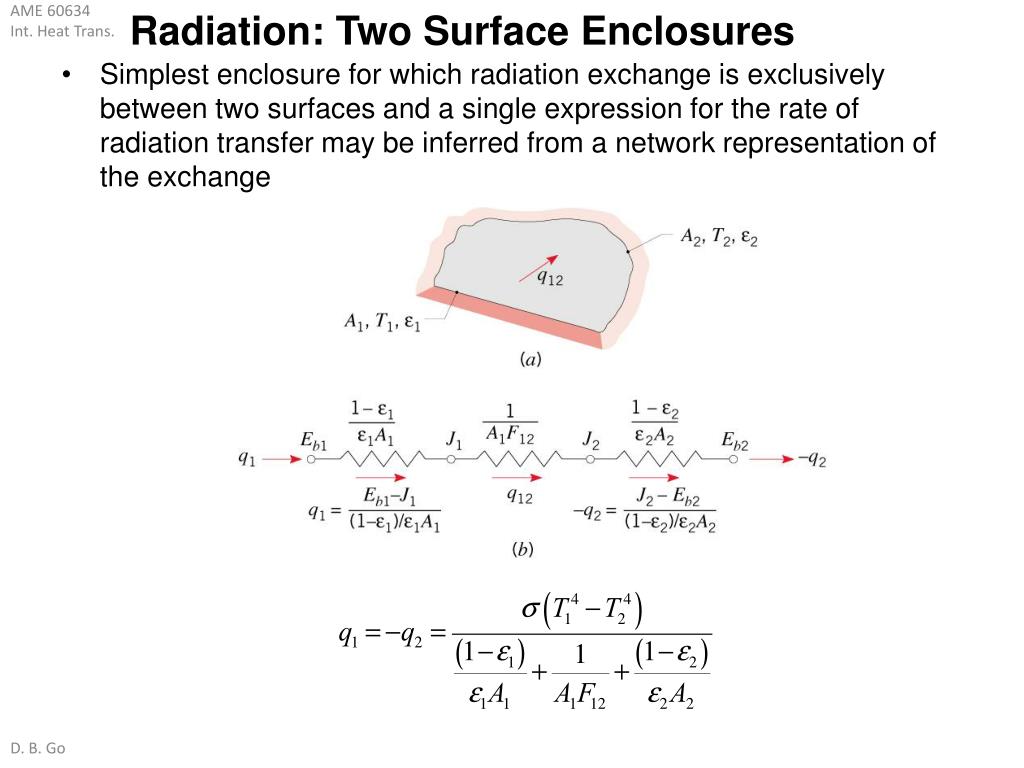

  45. Radiation: Two Surface Enclosures Simplest enclosure for which radiation exchange is exclusively between two surfaces and a single expression for the rate of radiation transfer may be inferred from a network representation of the exchange

  46. Radiation: Two Surface Enclosures Special Cases

  47. Radiation: Reradiating Surface • Reradiating Surface • idealization for which GR= JRhence qR = 0 and JR = Eb,R • approximated by surfaces that are well insulated on one side and for which convection is negligible on the opposite (radiating) side • Three-surface enclosure with a reradiating surface

  48. Radiation: Reradiating Surface The temperature of the reradiating surface TRmay be determined from knowledge of its radiosityJR. With qR = 0 a radiation balance on the surface yields

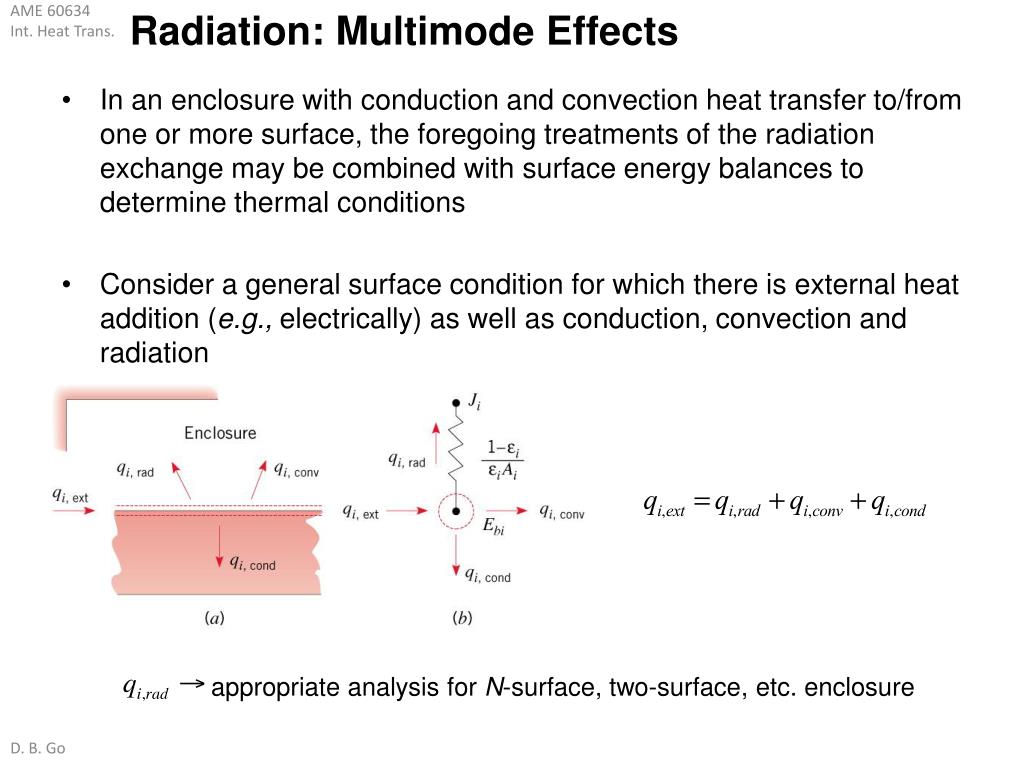

  49. Radiation: Multimode Effects appropriate analysis for N-surface, two-surface, etc. enclosure In an enclosure with conduction and convection heat transfer to/from one or more surface, the foregoing treatments of the radiation exchange may be combined with surface energy balances to determine thermal conditions Consider a general surface condition for which there is external heat addition (e.g., electrically) as well as conduction, convection and radiation

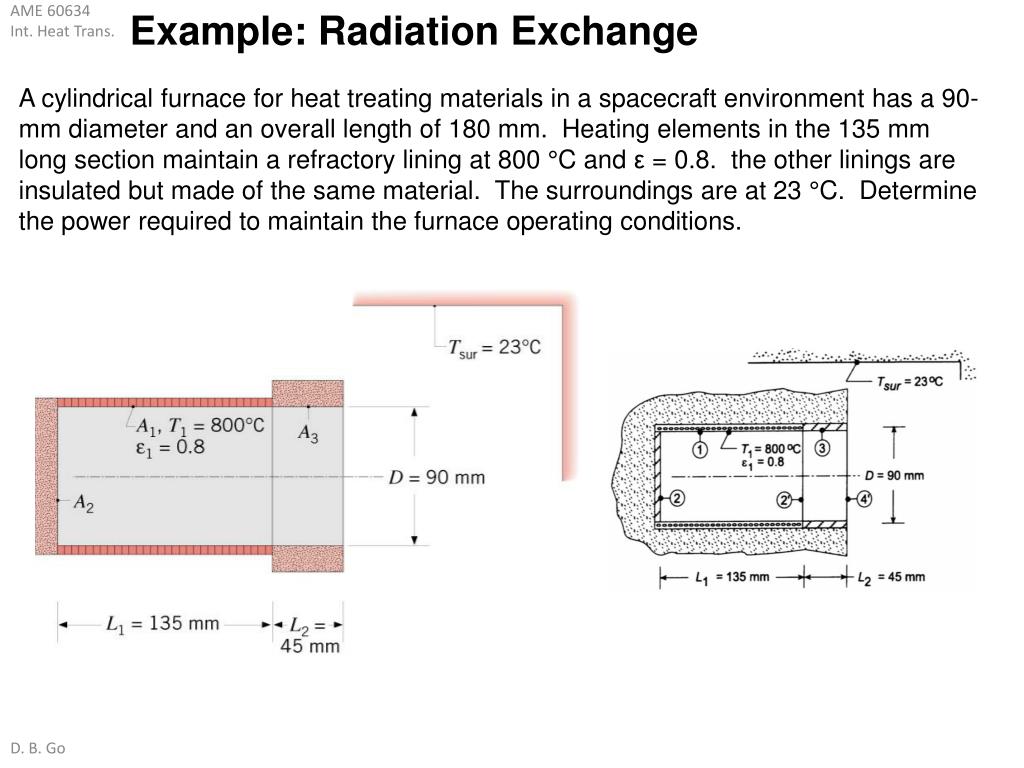

  50. Example: Radiation Exchange A cylindrical furnace for heat treating materials in a spacecraft environment has a 90-mm diameter and an overall length of 180 mm. Heating elements in the 135 mm long section maintain a refractory lining at 800 °C and ε = 0.8. the other linings are insulated but made of the same material. The surroundings are at 23 °C. Determine the power required to maintain the furnace operating conditions.
