  1. After 6.1

  2. What is 69 in binary? • 11001101 • 00011011 • 01010011 • 01000111 • 01000101 1 of 6

  3. What is 15 in binary? • 00010000 • 00001111 • 01010111 • 00000110 • 00000101 2 of 6

  4. What is 251 in binary? • 11111111 • 11111101 • 11111011 • 11110111 • 11101111 3 of 6

  5. What is 11001010 in decimal? • 128 • 192 • 200 • 202 • 204 4 of 6

  6. What is 11111111 in decimal? • 128 • 192 • 254 • 255 • 256 5 of 6

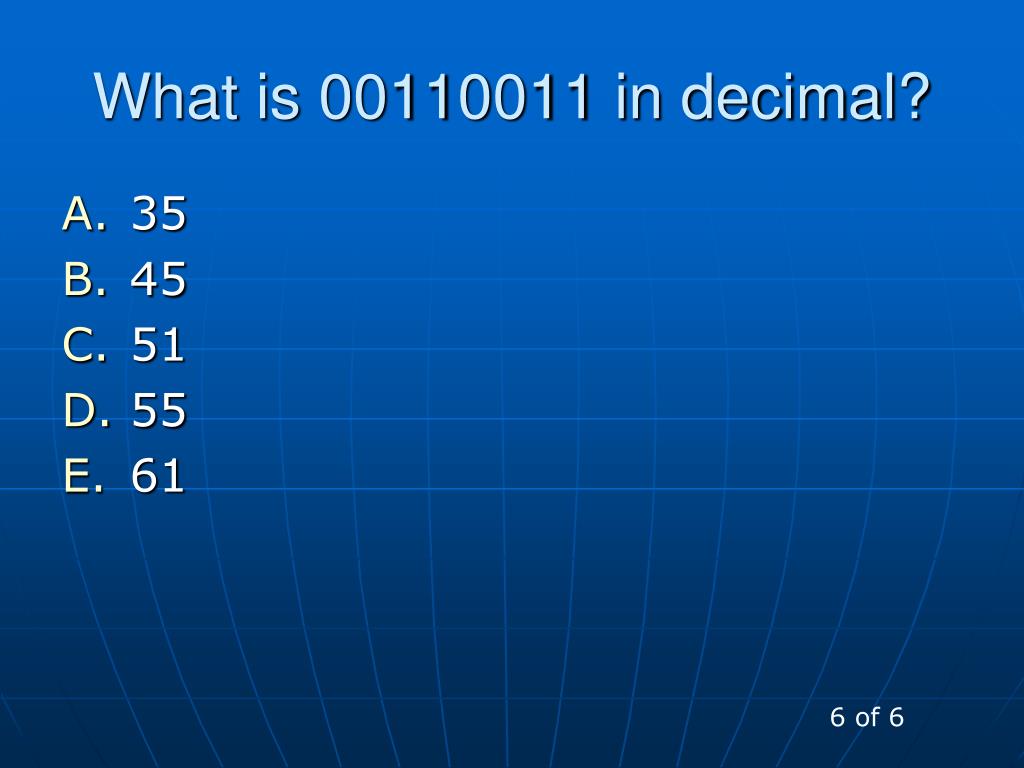

  7. What is 00110011 in decimal? • 35 • 45 • 51 • 55 • 61 6 of 6

  8. After 6.2

  9. What is the highest host address for the 192.168.0.0/24 subnet? • 192.168.0.0 • 192.168.0.1 • 192.168.255.254 • 192.168.0.254 • 192.168.0.255 1 of 6

  10. What is the highest host address for the 10.0.0.0/8 subnet? • 10.0.0.1 • 10.0.0.254 • 10.0.255.254 • 10.255.255.254 • 10.255.255.255 2 of 6

  11. What is the highest host address for the 10.0.0.0/25 subnet? • 10.0.0.1 • 10.0.0.30 • 10.0.0.62 • 10.0.0.126 • 10.0.0.254 3 of 6

  12. What is the broadcast address for the 172.16.10.0/25 subnet? • 172.16.255.255 • 172.16.10.255 • 172.16.10.0 • 172.16.10.127 • 172.16.10.63 4 of 6

  13. What is the broadcast address for the 10.0.0.0/27 subnet? • 10.255.255.255 • 10.0.0.15 • 10.0.0.31 • 10.0.0.127 • 10.0.0.255 5 of 6

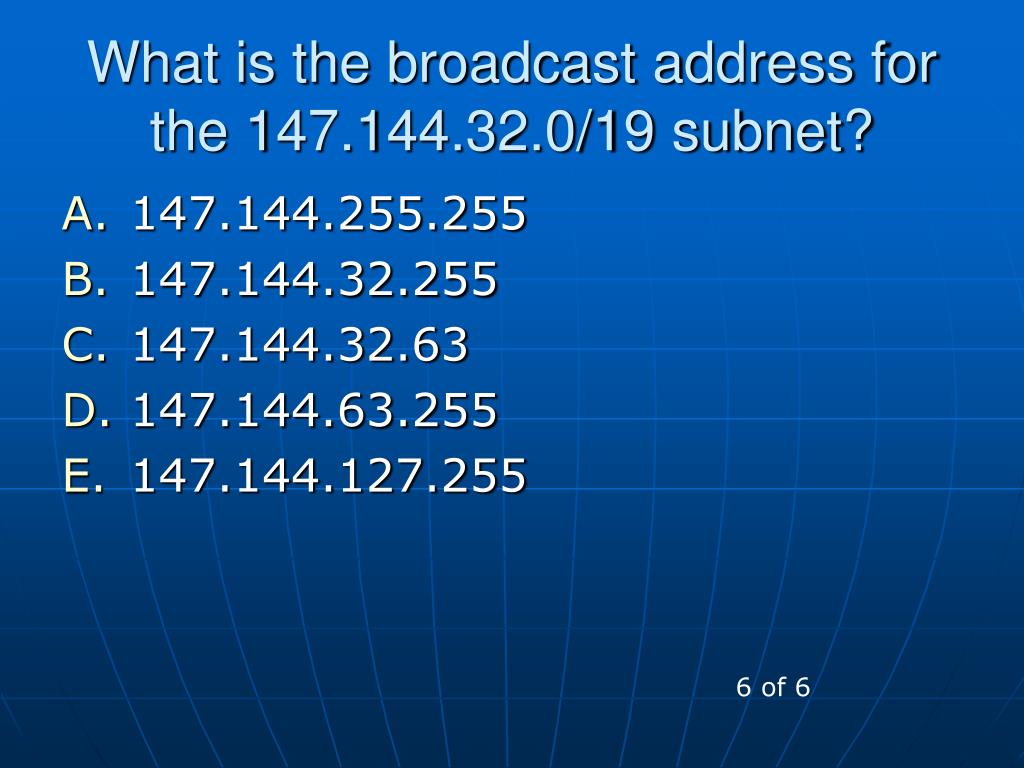

  14. What is the broadcast address for the 147.144.32.0/19 subnet? • 147.144.255.255 • 147.144.32.255 • 147.144.32.63 • 147.144.63.255 • 147.144.127.255 6 of 6

  15. Review

  16. What is the broadcast address for the 192.168.10.0/25 subnet? • 192.168.255.255 • 192.168.10.255 • 192.168.10.0 • 192.168.10.127 • 192.168.10.63 1 of 4

  17. What is the broadcast address for the 10.0.0.0/10 subnet? • 10.255.255.255 • 10.127.255.255 • 10.63.255.255 • 10.31.255.255 • Something else 2 of 4

  18. What is the largest host address for the 147.144.128.0/28 subnet? • 147.144.128.14 • 147.144.128.254 • 147.144.128.30 • 147.144.255.254 • Something else 3 of 4

  19. What is the largest host address for the 147.144.128.0/18 subnet? • 147.144.191.254 • 147.144.255.254 • 147.144.128.254 • 147.144.192.254 • Something else 4 of 4

  20. Visualizing Subnetting With a Square

  21. Subnetting Chart

  22. Learn to Make This Chart

  23. After 6.4

  24. How many bits are there in an IPv6 address? • 8 • 16 • 32 • 64 • 128 1 of 4

  25. A host has an address of 10.255.240.15 and a subnet mask of 255.255.128.0. What is the network address? • 10.0.0.0 • 10.128.0.0 • 10.255.0.0 • 10.255.128.0 • 10.255.240.0 2 of 4

  26. A host has an address of 172.17.128.150 and a subnet mask of 255.255.255.192. What is the network address? • 172.17.128.0 • 172.17.128.32 • 172.17.128.64 • 172.17.128.128 • 172.17.128.192 3 of 4

  27. A company has the IP address range 192.168.1.0/24 and needs to subnet it into four networks, each large enough for 40 hosts. What is the first subnet? • 192.168.1.0/24 • 192.168.1.0/25 • 192.168.1.0/26 • 192.168.1.0/27 • Something else 4 of 4

  28. Correction to Online Materials Many numbers are wrong in the chart on 6.3.3. Just ignore it.

  29. 192.168.11.0 /23 192.168.11.0 /24 192.168.11.0 /25 192.168.11.0 /26 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network HQ LAN1?

  30. 192.168.11.64 /26 192.168.11.128 /26 192.168.11.192 /26 192.168.12.0 /26 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network HQ LAN2?

  31. 192.168.11.192 /27 192.168.11.192 /28 192.168.11.192 /29 192.168.11.192 /30 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network BR1?

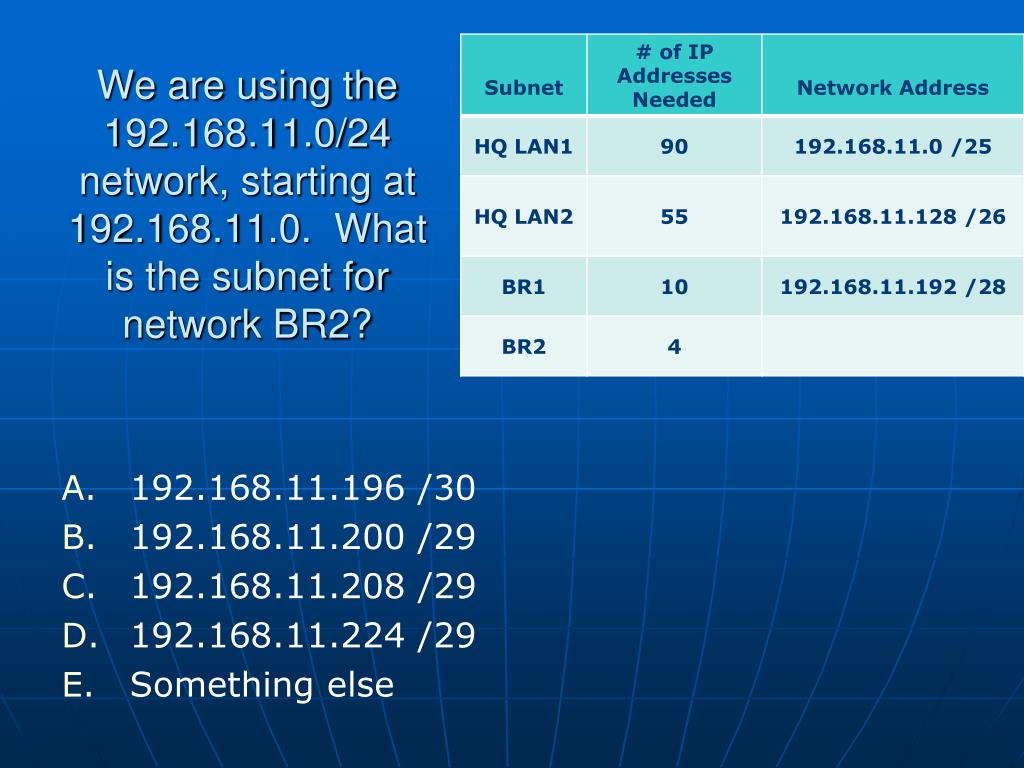

  32. 192.168.11.196 /30 192.168.11.200 /29 192.168.11.208 /29 192.168.11.224 /29 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network BR2?

  33. Which line contains an error in the network address?

  34. SubnettingiClicker Problem 2

  35. 112.47.253.0/23 112.47.253.0/24 112.47.253.0/25 112.47.253.0/26 Something else We are using the 112.47.253.0/24 network. What is the subnet for network HQ LAN1?

  36. 112.47.253.0/25 112.47.253.0/26 112.47.253.64/26 112.47.253.128/26 Something else We are using the 112.47.253.0/24 network. What is the subnet for network HQ LAN2?

  37. 112.47.253.160/27 112.47.253.192/28 112.47.253.192/29 112.47.253.208/30 Something else We are using the 112.47.253.0/24 network. What is the subnet for network BR1?

  38. 112.47.253.198/30 112.47.253.200/30 112.47.253.200/31 112.47.253.208/30 Something else We are using the 112.47.253.0/24 network. What is the subnet for network LINK?

  39. 192.168.11.64 /26 192.168.11.128 /26 192.168.11.192 /26 192.168.12.0 /26 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network HQ LAN2?

  40. 192.168.11.192 /27 192.168.11.192 /28 192.168.11.192 /29 192.168.11.192 /30 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network BR1?

  41. 192.168.11.196 /30 192.168.11.200 /29 192.168.11.208 /29 192.168.11.224 /29 Something else We are using the 192.168.11.0/24 network, starting at 192.168.11.0. What is the subnet for network BR2?

  42. Which line contains an error in the network address?
