  1. Cryptography: Algorithms on Numbers

  2. A Typical Setting Alice Bob e(x) x x = d(e(x)) Encoder Decoder Eve Encryption Function e: <messages>  <encoded messages> Decryption Function d: <encoded messages>  <messages> Goal: Design e() and d() so that without knowing d(), e(x) gives away very little information

  3. Codes in History • 405 BC: the Greek general LYSANDER OF SPARTA was sent a coded message about an impending Persian attack written on the inside of a servant's belt. To decipher it, it had to be wound on a staff (scytale). The spartans were forewarned, and defeated the persians • Caeser’s cipher: message sent by Caeser to Cicero during Gallic Wars

  4. Codes in History • 1586 AD: Mary, Queen of Scotts tried for plotting against Queen Elizabeth of England • As evidence, Francis Walsingham presented encrypted letters written by Mary, supporting the plot.

  5. Codes in History: World War I • Jan 1917: Telegram sent by Arthur Zimmerman, foreign secretary of Germany: asking Mexican govt. to attach United States • Feb 1917: Message was decoded by British Intelligence and delivered to president Woodrow Wilson • April 1917: US declares war on Germany

  6. Codes in History: World War II Blechtley park: center of British Intelligence Bombe: decryption machine Built by British Intelligence Enigma: German Encryption machine German submarine locations were communicated by encrypted messages using Enigma Made it easy for Allied forces to destroy German submarines Alan Turing: contributed significantly to Allied cryptography effort

  7. Secret Writing • Steganography: • steganos=covered, graphein=to write • (Chinese) hidden messages on silk, covered in wax • (Italy) write message on hard boiled egg that penetrates and stays on the albumen • Invisible ink that shows up on heating Cryptography: kryptos=hidden, graphein=to write

  8. Private Key Protocols

  9. Private-Key Protocol Alice and Bob meet beforehand and choose secret e() and d() functions Disadvantage: Need to meet beforehand Example: Choose secret string r, e.g. r=01110010 Encryption e(x) = x  r e.g. : e(11110000) = 11110000  01110010 = 10000010 Decryption d(y) = y  r e.g.: d(10000010) = 10000010  01110010 = 11110000 Problem: e(x)  e(x’) = (x  r)  (x  r) = (x  x’) Some information can come out by repeated use

  10. Private-Key Protocol: AES • Advanced Encryption Standard (AES) • Also known as Rijndael • Block Cipher • Developed by Belgian mathematicians Vincent Rijmen Joan Daemen • Approved by the US Govt. in 2001 • Repeated use possible • Security not rigorously established..

  11. Visual Cryptography Share 1 original Share 2 Share 3 Share 4

  12. Visual Cryptography Shares 1, 2 Shares 1,3 Shares 3,4

  13. Public Key Protocol Bob’s padlock (publicly available)

  14. Public Key Cryptosystems: RSA • Alice encrypts using Bob’s publicly available key e() • Bob decodes using his private function d() • Alice, Bob need not have met before • Computation easy if e() and d() known -----BEGIN PGP PUBLIC KEY BLOCK----- Version: 2.6.2 mQCNAzKEgQgAAAEEALoDOnC4PKs4+G5LBXm5aP4djv56wm9kOCzpk4eEcpm0jNtl IKyuAf1EXauFVCFSCri11hwUCXm5kv4x5bNYyE6NqxY29G9VU4Niwmt7L8dGIqHu kS4FXcufA6sSMfoM8+oIzOv8d18dYhyf4PvAyl43EPgne/pw1c4T3nOFCCzVAAUR tClEb25hbGQgQSBXYXRyb3VzIDx3YXRyb3VzQGNzLnJ1dGdlcnMuZWR1PokAlQMF EDLWfyakXBby1t0uxQEBRNYD/jbc7ujRpCSI6uVLdDprzaYiCMgAajLyK53zrMrE Oj+zURDIMRVtPT2ugVHPUQFoXRMaXKi0IacI2WjetgHgaCwzra2swVj1sp2sFbr1 9bhDzTlf6gosbcmXcRzhGC76jVowphSfw6KN3/VAYyBxI/RtkDN/dKLrRDnniGSO M6X7iQCVAwUQMoSKmM4T3nOFCCzVAQE7dAP/SjXFV5XdvRLdjh6NoT2NIsaTceMn mXGsTAk4OM6DQztlM822uru9d0PoeTBu4som50T3C4BS6S54h7QoThwo96s0lgz7 ljcQozW1fKMSGVD+BQ5DO81DNnsZeT48OEZueUEzrMiazPMrlpkZNf1meD1A2JvI ThxQ3V71HwUvu5Q= =i41f -----END PGP PUBLIC KEY BLOCK-----

  15. Rivest-Shamir-Adleman (RSA) Cryptosystem • Need the following tools • Modular arithmetic • Euclid’s algorithm • Primality testing • Generating random primes

  16. Two’s complement method for storing signed integers • n-bits used to represent numbers in the range [-2n-1,2n-1-1] • Storing positive numbers in the range 0 to 2n-1-1: in regular binary with leading bit 0 • Storing negative numbers -x with 1 ≤ x ≤ 2n-1: • Construct x in binary • Flip all bits of x • Add 1 • Equivalent description: • Store modulo 2n • Negative numbers get stored as 2n - x = 2n-1 - x + 1 • Example: n=4 • (5)10 = (0101)2 • -5 stored as 1010+1 = 1011 • Equivalently: 1111 - 0101 + 1 = 1010 + 1

  17. Integer Multiplication (13)2 1 1 0 1 X 1 0 1 1 1 3 X 1 1 (11)2 1 3 1 3 1 1 0 1 1 1 0 1 0 0 0 0 1 1 0 1 1 4 3 (143)2 1 0 0 0 1 1 1 1 • Time Complexity • Each row has n bits • n rows • O(n2) time

  18. Write #s next to each other Divide first # by 2, multiply second by 2, rounding the result Keep going till first # gets down to 1 Strike out all rows in which first # is even Add what remains in column 2 1 1 13 5 26 2 52 1 104 143 Al-Khwarizmi’s method Combination of Binary and Decimal!

  19. Multiply (x,y) Input: two n-bit #s x,y Output: their product If y=0, return 0 z = Multiply (x, y/2) If y is even return 2z Else return x+2z Running Time Each recursive call halves y  #bits reduces by 1  O(n) recursive calls Each recursive call: Division by 2: O(n) steps Test for odd/even: O(1) One addition: O(n) O(n) per recursive call Al-Khwarizmi’s method Recursive algorithm Still O(n2) time overall Can we muliply faster? Divide-and-Conquer approach gives a o(n2) time algorithm

  20. Divide(x,y) Input: n-bit integers x,y, with y≥ 1 Output: Quotient q and remainder r of x divided by y If x=0: return (q,r) = (0,0) (q,r) = divide(x/2,y) q = 2q, r = 2r If x is odd: r=r+1 If r ≥ y: r = r-y, q = q+1 return (q,r) Example: Divide(11,3): 11 = 3· 3 + 2 q = 3, r = 2 (1,2) = divide(5,3) q = 2, r = 4 11 is odd => r=5 r=5 > 3 => r = 2, q = 3 Integer Division

  21. Factorization • Factors and prime numbers • Simplest algorithms for finding factors

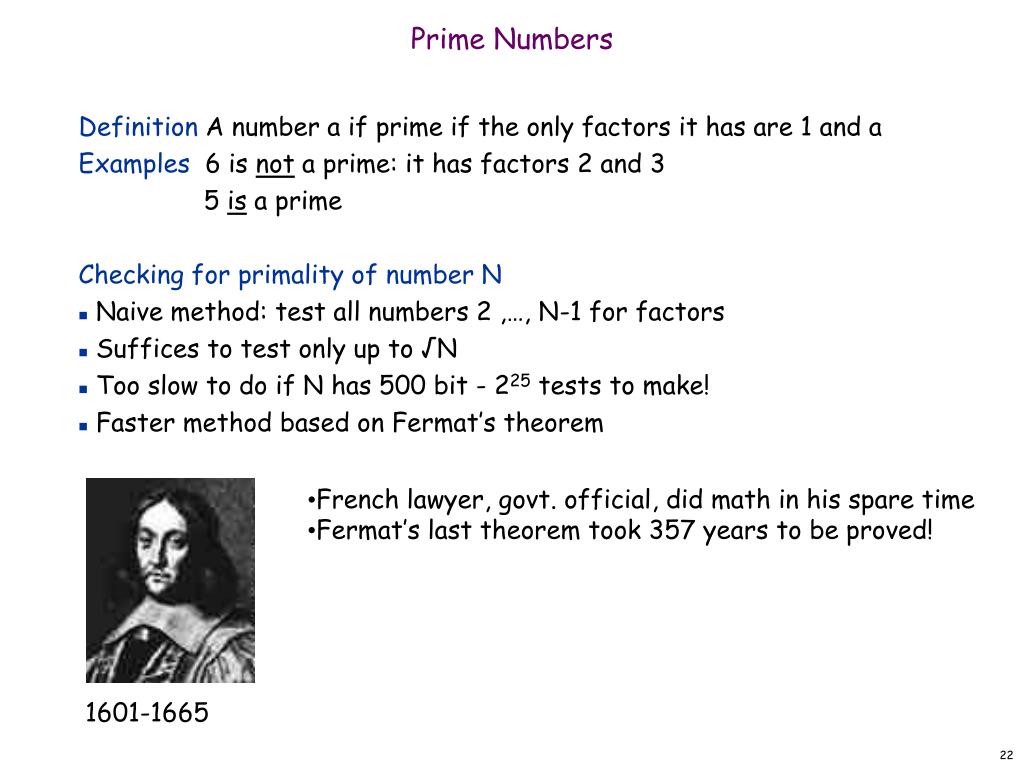

  22. Prime Numbers • Definition A number a if prime if the only factors it has are 1 and a • Examples 6 is not a prime: it has factors 2 and 3 • 5 is a prime • Checking for primality of number N • Naive method: test all numbers 2 ,…, N-1 for factors • Suffices to test only up to √N • Too slow to do if N has 500 bit - 225 tests to make! • Faster method based on Fermat’s theorem • French lawyer, govt. official, did math in his spare time • Fermat’s last theorem took 357 years to be proved! 1601-1665

  23. Modular Arithmetic Seconds: counted modulo 60 Minutes: counted modulo 60 Hours: counted modulo 12 Days of the week: counted modulo 7 Keeps numbers from getting too big Computer Arithmetic: modulo 232

  24. Modular Arithmetic x  y (mod N)  N divides (x-y) Complexity of computing x (mod N) Examples: 253  13 (mod 60) 59  -1 (mod 60) Equivalence classes: Modular arithmetic deals with all integers but divides them into N equivalence classes of the form {i+kN : k is an integer} Equivalence classes modulo 3: ….. -9 -6 -3 0 3 6 9 ……. ….. -8 -5 -2 1 4 7 10 ……. ….. -7 -4 -1 2 5 8 11 ……..

  25. Modular Arithmetic • Substitution Rule • If x  y (mod N) and x’  y’ (mod N), then: • x + x’  y + y’ (mod N), and xx’  yy’ (mod N) Proof? • Example: 14 + 10 (mod 3)  2 + 1 (mod 3)  0 (mod 3) • 14 · 10 (mod 3)  2 · 1  (mod 3)  2 (mod 3) • Associative rule: x + (y + z)  (x + y) + z (mod N) • x(yz)  (xy)z (mod N) • Commutative rule: x + y  y + x (mod N) • xy  yx (mod N) • Distributive rule: x(y+z)  xy + xz (mod N) • Example: (2)345 (25)69  (32)69  (1)69  1 (mod 31)

  26. Implementing modular addition and multiplication • Adding x and y mod N • Compute x+y  {0,..,2(N-1)} • If sum exceeds N-1, subtract N • Running time O(n), where n = log N • Multiplying x and y mod N • Compute x · y  {0,…,(N-1)2} • Number of bits needed to store x · y ≤ 2n • Divide x · y by N to find remainder • O(n2) running time

  27. Modular Division • Multiplicative inverse in real arithmetic • Every number a  0 has an inverse 1/a • Example: inverse of 5 is 1/5 = 0.2 • Division by number a  0 is equivalent to multiplying by 1/a • Example: 10/5 = 10·(1/5) = 10 · (0.2) = 2 • Multiplicative inverse modulo N • x is the multiplicative inverse of a modulo N if ax  1 (mod N) • Example: 2 · 3  1 (mod 5). So (2)-1 = 3 (mod 5) • Sometimes there may be no inverse: (2)-1 (mod 6)? • For any x, 2x (mod 6) is even - therefore there is no x such that • 2x  1 (mod 6)

  28. Modular Exponentiation • Common operation: compute xy (mod N) • Numbers can become huge: • x, y are 20-bit numbers => xy can be 10 million bits long • Can be computed by repeated multiplications • x mod N  x2 mod N  ….  xy mod N • Take y multiplications • Suppose y is 500 bits long? 2500 multiplications!

  29. Modexp(x, y, N) Input: n-bit integers x and N, and integer exponent y Output: xy mod N If y=0: return 1 z = modexp(x, y/2, N) If y is even: return z2 mod N Else: return x·z2 mod N Running Time Each recursive call halves the exponent O(n) multiplications O(n3) time overall (xy/2)2, if y is even xy = x· (xy/2)2, if y is odd Repeated Squaring Recursive rule

  30. Greatest Common Divisor • Given numbers a, b: • gcd(a,b) = largest number d that divides both a and b • Example • 1035 = 32 · 5· 23, 759 = 3 · 11 · 23 • gcd( 1035, 759) = 3 · 23 = 69 • gcd can be computed by complete factorization, but no efficient algorithm is known for factorization • Euclid’s algorithm: First known algorithm • in history BC 325-265

  31. Useful properties for computing gcd • Symmetry • gcd(x,y) = gcd(y,x) • Euclid’s Rule • If x, y are positive integers with x ≥ y, then • gcd(x,y) = gcd (x mod y, y) • Example • gcd(24, 15) = gcd(23· 3, 3·5) = 3 • gcd(24 mod 15, 15) = gcd(9, 15) = gcd(32, 3·5) = 3

  32. Proof of Euclid’s Rule • Sufficient to show that gcd(x,y) = gcd(x-y, y): • Suppose x = qy+r • gcd(x,y) = gcd(x-y,y) = gcd(x-2y, y) = … = gcd(x-qy, y) • Suppose d divides x, y • Then d divides x-y • Therefore, gcd(x,y) ≤ gcd (x-y, y) • Suppose d divides x-y, y • Then d divides x, y • Therefore, gcd(x-y, y) ≤ gcd(x,y) • Therefore, gcd(x,y) = gcd(x-y, y) Property: if d divides x,y, then d divides ax+by

  33. Euclid’s Algorithm • Euclid(a,b) • Input: Integers a,b with a ≥ b • Output: gcd(a,b) • If b=0: return a • return Euclid(b, a mod b) • Running Time: Need to know how fast the arguments are reducing

  34. Analysis of Euclid’s Algorithm • Lemma: If a ≥ b, then a mod b < a/2 • Proof: • Case I: b ≤ a/2 Case II: b > a/2 • a mod b < b ≤ a/2 Then, a mod b = a-b < a/2 • Running Time: • In two rounds, both arguments are halved • #bits reduces by 1 for both arguments • Base case reached in ≤ 2n recursive calls • Each recursive call: O(n2) time division • O(n3) time overall a a b a/2 a/2 b a mod b a mod b

  35. Another Useful Property • Lemma: If d divides a and b, and d = ax+by for some integers x and y, then necessarily d = gcd(a,b) • Proof Since d divides a and b, d ≤ gcd(a,b) • Since gcd(a,b) divides a and b, gcd(a,b) divides ax+by = d  gcd(a,b) ≤ d Therefore, gcd(a,b) = d Example 24·2 + 15·(-3) = 3, and 3 divides 24, 15 gcd(24, 15) = 3 When can gcd(a,b) be expressed as ax+by? Always!!

  36. Extended Euclid’s Algorithm • Extended-euclid(a,b) • Input: Positive integers a,b with a ≥ b ≥ 0 • Output: Integers x, y, d such that d = gcd(a,b) and ax+by=d • If b = 0: return (1,0,a) • (x’, y’, d) = Extended-euclid(b, a mod b) • return (y’, x’ - a/by’, d) • Example: a = 25, b = 11 • 25 = 2· 11 + 3 gcd(25, 11) = gcd(11,3) • 11 = 3· 3 + 2 = gcd(3, 2) • 3 = 1· 2 + 1 = gcd(2, 1) • 2 = 2· 1 + 0 = gcd(1, 0) • = 1

  37. Example (contd.) • 25 = 2· 11 + 3 • 11 = 3· 3 + 2 • 3 = 1· 2 + 1 • 2 = 2· 1 + 0 • Extended-euclid(1,0) gives: ( 1, 0, 1) • Extended-euclid(2,1) gives: ( 0, 1 - 2·0, 1) = ( 0, 1, 1) • Extended-euclid(3,2) gives: ( 1, 0 - 1·1, 1) = ( 1, -1, 1) • Extended-euclid(11,3) gives: ( -1, 1 - 3·(-1), 1) = ( -1, 4, 1) • Extended-euclid(25,11) gives: ( 4, -1 - 2·4, 1) = (4, -9, 1) • 25 · 4 + 11 · (-9) = 1

  38. Proof of Extended Euclid’s algorithm • Lemma: For any positive integers a and b, extended-euclid(a,b) returns integers a, y and d such that gcd(a,b) = d = ax + by • Proof: The computation of gcd is unchanged. So d = gcd(a,b) • Proof by induction on b: • Base case: b=0. Then gcd(a,0)=a = a·1 + b·0 • Induction: consider extended-euclid(a,b) • Since a mod b < b, by induction, we have integers x’, y’ such that • gcd(b, a mod b) = bx’ + (a mod b)y’ • = bx’ + (a - a/bb)y’ • = ay’ + b(x’ - a/by’) • Therefore, gcd(a,b) = gcd(b, a mod b) = ax + by, • where x = y’, y = x’ - a/by’

  39. Modular Division • Recall • x is the multiplicative inverse of a modulo N if ax  1 (mod N) • Some times there is no inverse, e.g. (2)-1 (mod 6) • Modular division theorem For any a mod N, a has a multiplicative inverse modulo N if and only if gcd(a,N)=1. When this inverse exists, it can be computed in O(n3) time by the Extended-euclid algorithm. • Proof • Suppose (a,N)=1 • Extended-euclid() algorithm gives us integers a, y s.t. ax + Ny = 1 • Therefore, ax  1 (mod N) • Suppose there is an x s.t. ax 1 (mod N). Suppose gcd(a,N) = d. • Then ax = Nq + 1 for some integer q • d divides ax and Nq. Therefore, d divides 1, i.e., d=1

  40. Prime Numbers • Definition A number a if prime if the only factors it has are 1 and a • Examples 6 is not a prime: it has factors 2 and 3 • 5 is a prime • Checking for primality of number N • Naive method: test all numbers 2 ,…, N-1 for factors • Suffices to test only up to √N • Too slow to do if N has 500 bit - 225 tests to make! • Faster method based on Fermat’s theorem • French lawyer, govt. official, did math in his spare time • Fermat’s last theorem took 357 years to be proved! 1601-1665

  41. Fermat’s Little Theorem • Theorem (year 1640) If p is a prime, then for every 1 ≤ a < p, • ap-1 1 (mod p). • Example p = 5 • 24 = 16  1 (mod 5) • 34 = 92  42 = 16  1 (mod 5) • 44 = 162  12 = 1 (mod 5) • p=7, a=3 • 36  (32)3  23  1 (mod 7)

  42. Effect of multiplying by a • p = 7, S = { 1, 2, 3, 4, 5, 6} • Multiplying by a=3 has the effect of permuting the elements of S 1 1 S = { 1, 2, 3, 4, 5, 6} = { 3 · 1 mod 7, 3 · 2 mod 7, 3 · 3 mod 7, 3 · 4 mod 7, 3 · 5 mod 7, 3 · 6 mod 7 } 2 2 3 3 4 4 5 5 Multiplying the elements of both sets gives 6!  36 · 6! mod 7 Dividing by 6! (why can we do this?): 36 1 (mod 7) 6 6 Can we do this for any p?

  43. Proof of Fermat’s Little Theorem • S = { 1, 2, …, p-1} • Claim The numbers a · i mod p are distinct for i  S • Proof Suppose a · i  a · j mod p. Dividing by a, we have i  j mod p • Therefore, S = { a · 1 mod p, a · 2 mod p, … , a · (p-1) mod p } • Multiplying the elements of both sets • (p-1)!  ap-1 (p-1)! mod p • Dividing by (p-1)!, we get ap-1  1 (mod p)

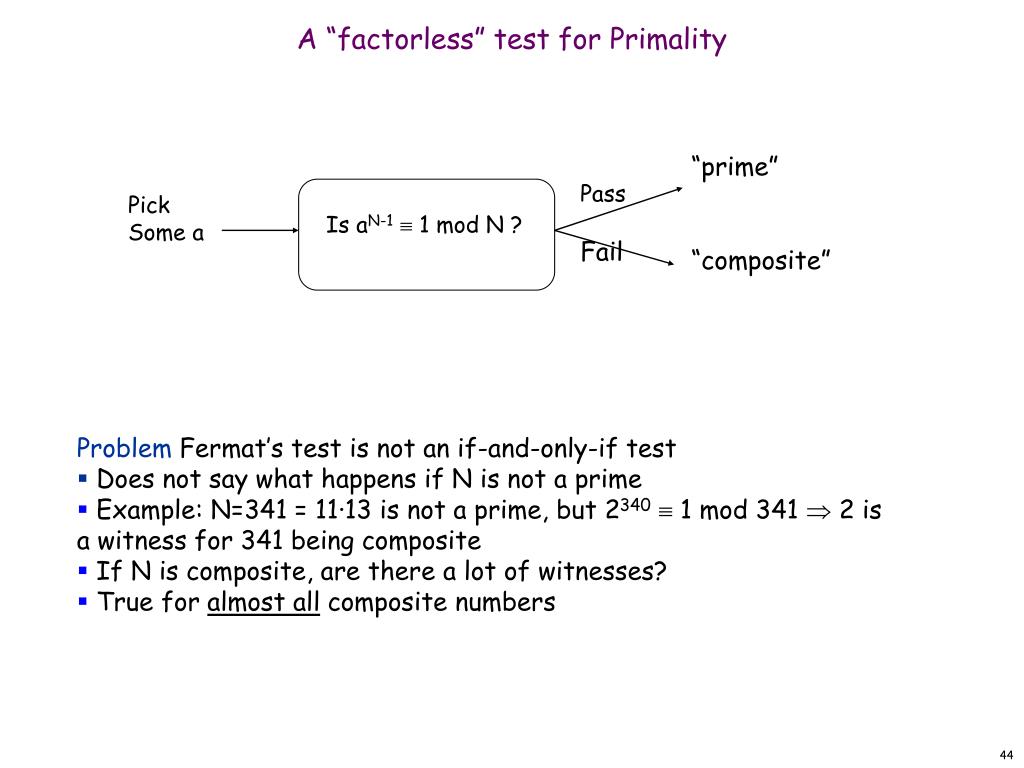

  44. A “factorless” test for Primality “prime” Pass Pick Some a Is aN-1 1 mod N ? Fail “composite” • Problem Fermat’s test is not an if-and-only-if test • Does not say what happens if N is not a prime • Example: N=341 = 11·13 is not a prime, but 2340 1 mod 341  2 is a witness for 341 being composite • If N is composite, are there a lot of witnesses? • True for almost all composite numbers

  45. Example • N=9 • 28  4 (mod 9) • 38  0 (mod 9) • 48  7 (mod 9) • 58  7 (mod 9) • 68  0 (mod 9) • 78  4 (mod 9) • 88  1 (mod 9) • Algorithm makes a mistake only if it chooses a=8 • let A = { a: aN-1 1 (mod N) } • If we pick a not in A, aN-1 1 (mod N) : such a number is a “witness” for the non-primality of N • How many witnesses can there be for a composite number?

  46. Carmichael Numbers • Definition N is a carmichael number if for every number a < N, we have aN-1 1 (mod N) • Smallest carmichael number: 561 = 3 · 11 · 17 • Such numbers are exceedingly rare…. • For almost all composite numbers, there are enough witnesses

  47. Using Fermat’s Little Theorem • Lemma If aN-1 1 mod N for some a relatively prime to N, then it must hold for at least half the choices of a < N • Proof Fix some value of a such that aN-1 1 mod N. Suppose b < N • Satisfies the test, i.e., bN-1  1 mod N. • Then, (a·b)N-1  aN-1·bN-1  aN-1  1 mod N • Let S be the set of all b < N that pass the test. Then, all the numbers a · b, where b  S, fail the test. These numbers are distinct (why?). • Therefore, ignoring Carmichael numbers, we can assert the following: • If N is prime, then aN-1  1 (mod N) for all a < N • If N is not prime, then aN-1  1 (mod N) for at most half the values of a < N

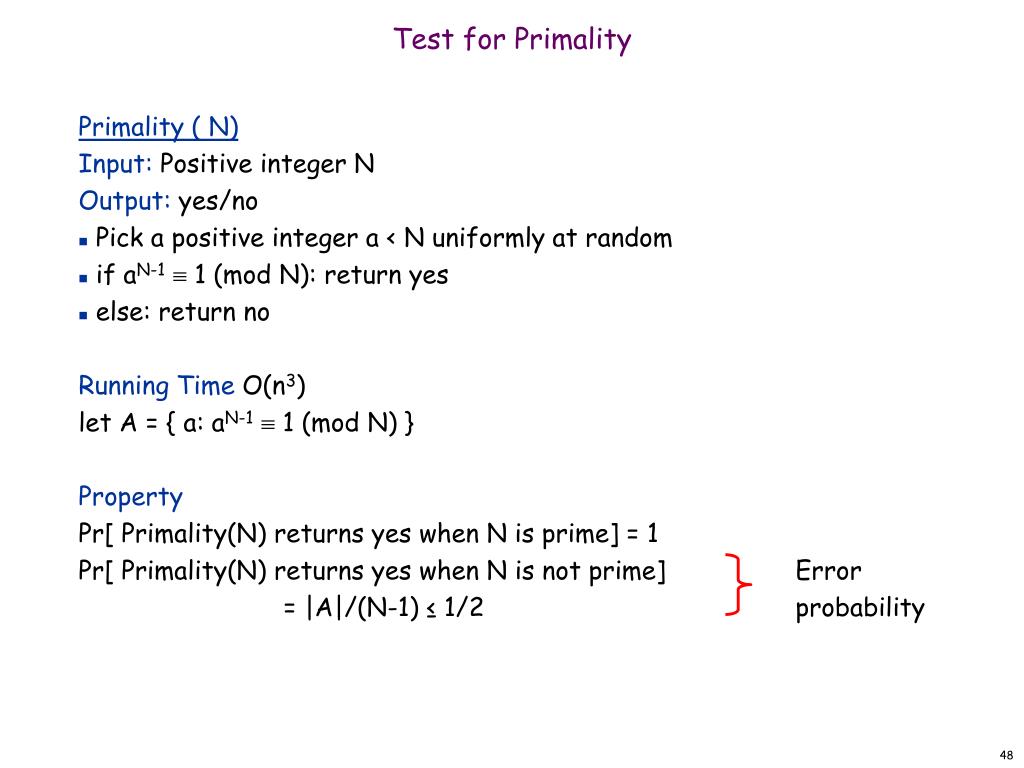

  48. Test for Primality • Primality ( N) • Input: Positive integer N • Output: yes/no • Pick a positive integer a < N uniformly at random • if aN-1 1 (mod N): return yes • else: return no • Running Time O(n3) • let A = { a: aN-1 1 (mod N) } • Property • Pr[ Primality(N) returns yes when N is prime] = 1 • Pr[ Primality(N) returns yes when N is not prime] Error • = |A|/(N-1) ≤ 1/2 probability

  49. Reducing the error probability • Primality2 (N) • Input: Positive integer N • Output: yes/no • Pick positive integers a1, a2, …, ak < N at random • If aiN-1 1 (mod N) for all i=1, …, k: • return yes • Else: return no • Running Time O(kn3) • Pr[ Primality2(N) returns yes when N is not prime] ≤ 1/2k • For k=10, error probability ≤ 0.001

  50. RSA Protocol • Bob chooses his public and secret keys • Pick two large n-bit random primes p and q • His public key is (N,e), where N = pq, and e is any 2n-bit number relatively prime to (p-1)(q-1) • His secret key is d = (e)-1 (mod (p-1)(q-1)), computed using Extended-euclid algorithm • Alice wishes to send message x to Bob • She looks up his public key (N,e) • She sends him y = xe mod N, computed using algorithm modexp • Bob decodes message y • He computes x = yd mod N
