  1. Let’s Play Property Inspector See how well you do at identifying problems, issues and safety concerns

  2. What’s Wrong Here?

  3. What’s Wrong Here? Deteriorated flashing will leak water into the home.

  4. Any Theme Here?

  5. Any Theme Here? Rotten trim around window and door.

  6. Any Electrical Concerns Here?

  7. Any Electrical Concerns Here? Sharp edges can damage insulation on wire.

  8. What About Here?

  9. What About Here? Open knockout is box is an electrocution hazard.

  10. Would Anything Here Be of Concern?

  11. Would Anything Here Be of Concern? Electrical panel behind bed is difficult to access in an emergency.

  12. Want to Play Property Inspector? See how well you do at identifying problems, issues and safety concerns.

  13. Why Are You Concerned About a Little Leak?

  14. Why Are You Concerned About a Little Leak? If it’s leaking on the outside, it could be leaking inside the wall.

  15. Can You Identify Three Concerns Here?

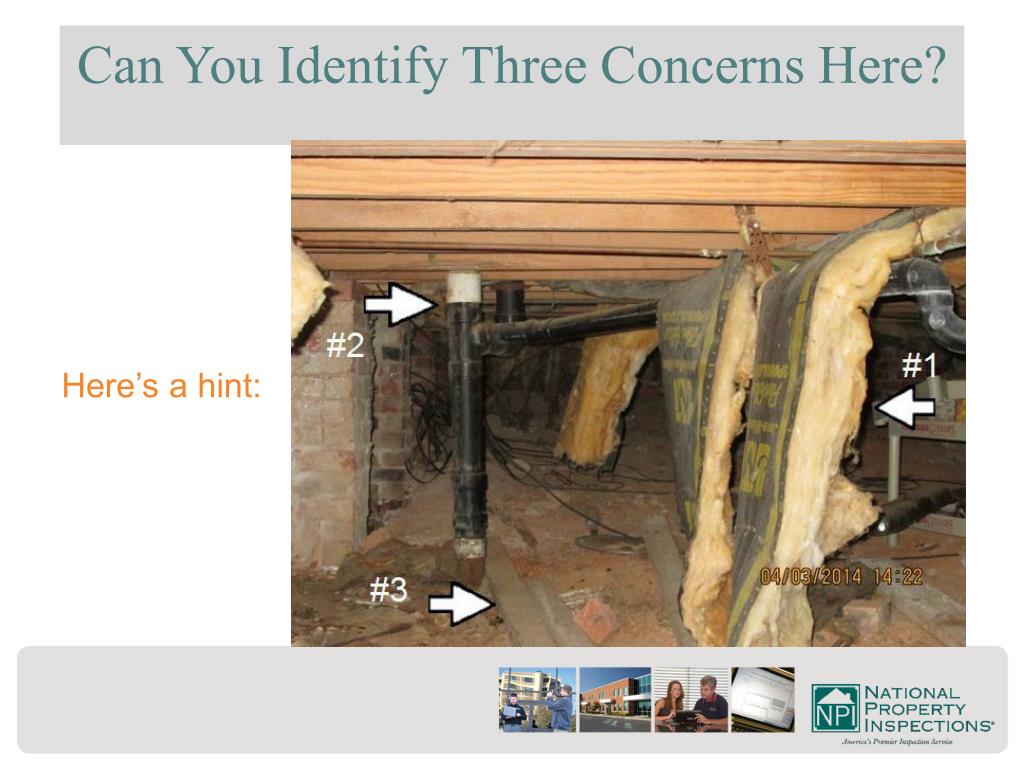

  16. Can You Identify Three Concerns Here? Here’s a hint:

  17. Can You Identify Three Concerns Here? No. 1: Insulation fallen down

  18. Can You Identify Three Concerns Here? No. 2: Glue joint between PVC and ABS plumbing pipe not allowed

  19. Can You Identify Three Concerns Here? No. 3: Wood debris on ground can attract termites.

  20. Evidence of a Leaking Toilet Flange(as viewed from below the floor) Pipe is wet Water evidence on subfloor and joists

  21. What Issue Is Pictured Here?

  22. What Issue Is Pictured Here? Moisture intrusion into crawl space.

  23. Any Concerns Here?

  24. Any Concerns Here? Little ground clearance between siding and ground can be an invitation to wood-destroying insects.

  25. Want to Play Property Inspector? See how well you do at identifying problems, issues and safety concerns.

  26. This One Should Be Easy

  27. This One Should Be Easy Broken vinyl siding.

  28. What Hazard Do These Photos Have in Common?

  29. What Hazard Do These Photos Have in Common? Tripping hazards

  30. Is There Any Inefficiency Here?

  31. Is There Any Inefficiency Here? Air leakage around pull-down stairs.

  32. Is This Coiled-up Pipe Supposed to Be Here?

  33. Is This Coiled-up Pipe Supposed to Be Here? Bathroom vent pipe should direct discharge out of the attic.

  34. Shouldn’t the ENTIRE Ceiling Be Insulated?

  35. Any Safety Concern With This Electrical Panel?

  36. Any Safety Concern With This Electrical Panel? Open breaker space is an electrocution hazard.

  37. Can You Read the Label on the Range?

  38. Can You Read the Label on the Range? Evidently a lot of installers can’t. Anti-tip brackets are often not installed, allowing for possible burn accidents.

  39. Any Problem?(Hint: Look hard behind the plant and curtain.)

  40. Any Problem?(Hint: Look hard behind the plant and curtain.) Drapes against an electric baseboard heater are a fire hazard.

  41. Want to Play Property Inspector? See how well you do at identifying problems, issues and safety concerns.

  42. Isn’t That Diverter Spout Supposed to Seal a Little Better Than This?

  43. This One Should Be Easy

  44. This One Should Be Easy Broken sink stopper.

  45. And This One Might Not Be So Easy …

  46. … Without a Closer Look

  47. … Without a Closer Look Cover on meter base is not sealed properly.

  48. Dryer Vent OK?

  49. Same Vent, Different View

  50. Same Vent, Different View Lots of lint buildup equals fire hazard.
