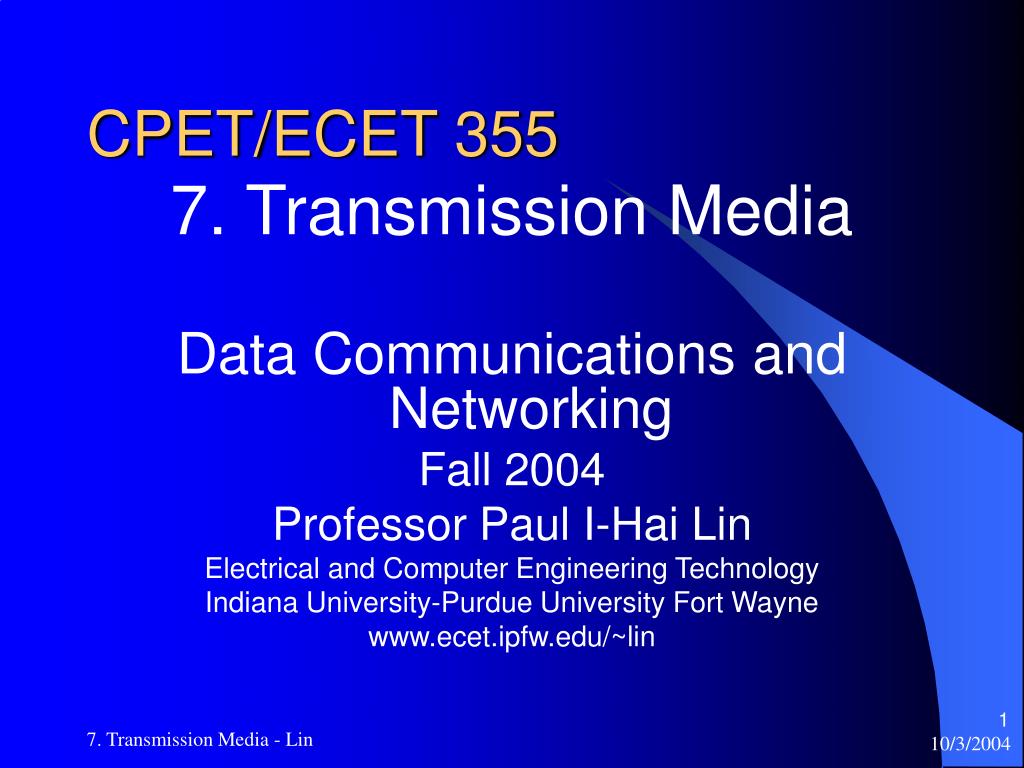

  1. CPET/ECET 355 7. Transmission Media Data Communications and Networking Fall 2004 Professor Paul I-Hai Lin Electrical and Computer Engineering Technology Indiana University-Purdue University Fort Wayne www.ecet.ipfw.edu/~lin 7. Transmission Media - Lin

  2. Transmission Media • Guided Media • Twisted-Pair Cable: Shielded, unshielded • Coaxial Cable • Fiber-Optic • Unguided Media: Wireless • Radio Waves • Omnidirectional Antenna • Microwaves • Infrared 7. Transmission Media - Lin

  3. Transmission Media From p. 173, Figure 7.1 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  4. Transmission Media • Classes of transmission Media From p. 174, Figure 7.2 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  5. Guided Media – UTP, STP • Twisted-Pair Cable From p. 174, Figure 7.3 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  6. Guided Media – UTP, STP • UTP and STP From p. 175, Figure 7.4 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  7. Guided Media – UTP, STP • Categories of unshielded twisted-pair cables From p. 176, Table 7.1 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  8. Guided Media – UTP, STP • UTP Connector From p. 176, Figure 7.5 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  9. Guided Media – UTP, STP • Example 6-1: Solution From p. 177, Figure 7.6 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

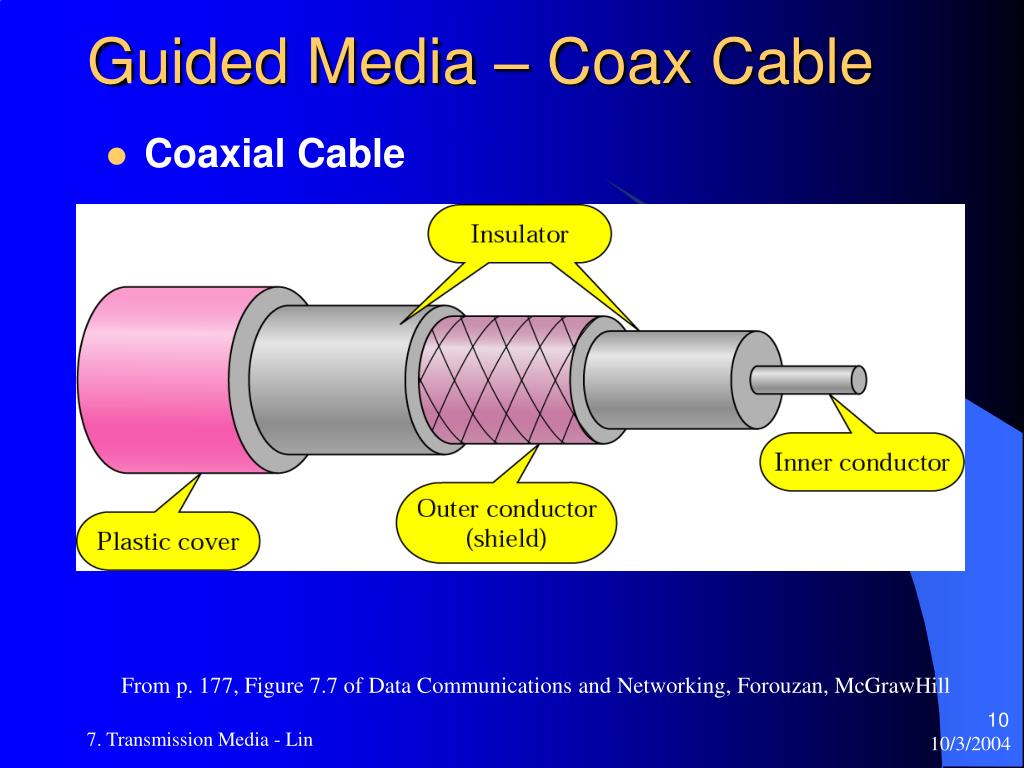

  10. Guided Media – Coax Cable • Coaxial Cable From p. 177, Figure 7.7 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  11. Guided Media – Coax Cable From p. 178, Table 7.2 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  12. Guided Media – Coax Cable • Coaxial Cable Connector From p. 178, Figure 7.8 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  13. Guided Media – Coax Cable • Coaxial Cable Performance From p. 179, Figure 7.9 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  14. Guided Media – Fiber-Optic • Bending of light rays From p. 180, Figure 7.10 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

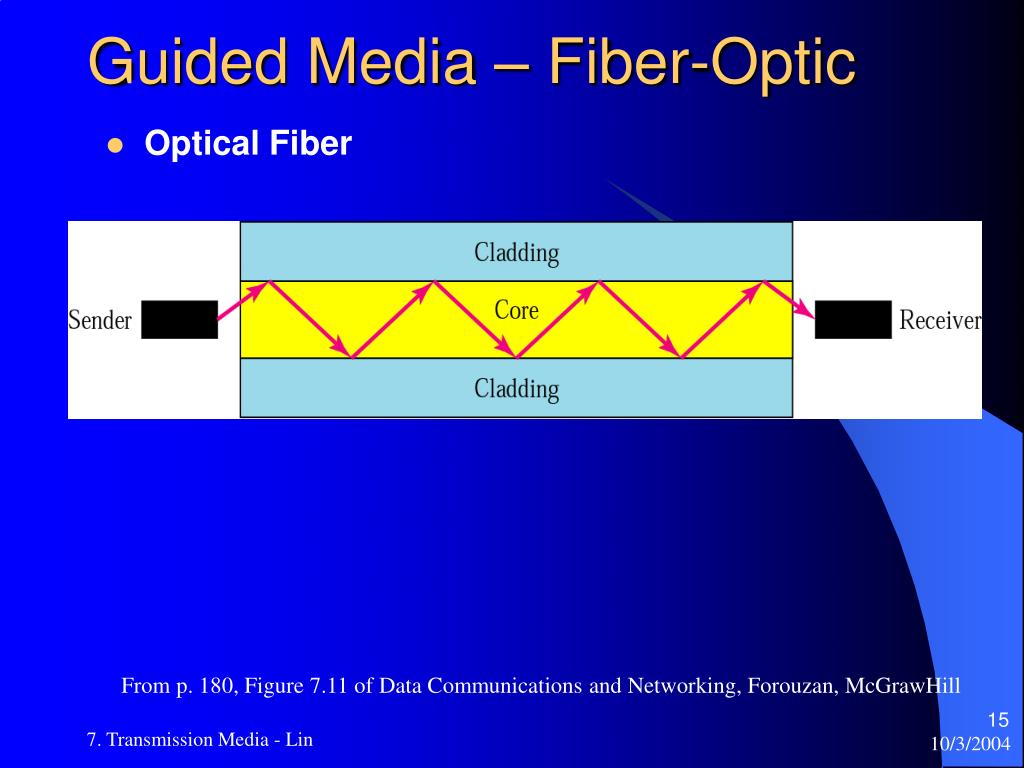

  15. Guided Media – Fiber-Optic • Optical Fiber From p. 180, Figure 7.11 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  16. Guided Media – Fiber-Optic • Propagation modes From p. 181, Figure 7.12 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  17. Guided Media – Fiber-Optic • Modes From p. 181, Figure 7.13 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  18. Guided Media – Fiber-Optic • Fiber Types From p. 182, Table 7.3 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  19. Guided Media – Fiber-Optic • Fiber Construction From p. 182, Figure 7.14 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  20. Guided Media – Fiber-Optic • Fiber-optic cable connectors From p. 183, Figure 7.15 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  21. Guided Media – Fiber-Optic • Optical fiber performance From p. 183, Figure 7.16 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  22. Unguided Media: Wireless • Electromagnetic spectrum for wireless communication From p. 185, Figure 7.17 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  23. Unguided Media: Wireless • Propagation methods From p. 185, Figure 7.18 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  24. Unguided Media: Bands From p. 186, Table 7.4 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  25. Unguided Media: Wireless • Wireless transmission waves From p. 186, Figure 7.19 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  26. Unguided Media: Wireless • Omnidirectional antennas From p. 187, Figure 7.20 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  27. Unguided Media: Wireless • Unidirectional antennas From p. 189, Figure 7.21 of Data Communications and Networking, Forouzan, McGrawHill 7. Transmission Media - Lin

  28. Unguided Media: Wireless • Infrared • RE814S • PIR 325 http://www.interq.or.jp/japan/se-inoue/e_pyro1_4.htm http://www.glolab.com/pirparts/infrared.html 7. Transmission Media - Lin

  29. Unguided Media: Wireless • Infrared • Rockwell • PIR 325 7. Transmission Media - Lin

  30. Summary Questions? 7. Transmission Media - Lin
