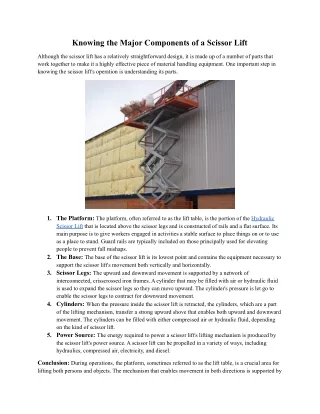

Knowing the Major Components of a Scissor Lift

1. Knowing the Major Components of a Scissor Lift Although the scissor lift has a relatively straightforward design, it is made up of a number of parts that work together to make it a highly effective piece of material handling equipment. One important step in knowing the scissor lift's operation is understanding its parts. 1. The Platform: The platform, often referred to as the lift table, is the portion of the Hydraulic Scissor Lift that is located above the scissor legs and is constructed of rails and a flat surface. Its main purpose is to give workers engaged in activities a stable surface to place things on or to use as a place to stand. Guard rails are typically included on those principally used for elevating people to prevent fall mishaps. 2. The Base: The base of the scissor lift is its lowest point and contains the equipment necessary to support the scissor lift's movement both vertically and horizontally. 3. Scissor Legs: The upward and downward movement is supported by a network of interconnected, crisscrossed iron frames. A cylinder that may be filled with air or hydraulic fluid is used to expand the scissor legs so they can move upward. The cylinder's pressure is let go to enable the scissor legs to contract for downward movement. 4. Cylinders: When the pressure inside the scissor lift is retracted, the cylinders, which are a part of the lifting mechanism, transfer a strong upward shove that enables both upward and downward movement. The cylinders can be filled with either compressed air or hydraulic fluid, depending on the kind of scissor lift. 5. Power Source: The energy required to power a scissor lift's lifting mechanism is produced by the scissor lift's power source. A scissor lift can be propelled in a variety of ways, including hydraulics, compressed air, electricity, and diesel. Conclusion: During operations, the platform, sometimes referred to as the lift table, is a crucial area for lifting both persons and objects. The mechanism that enables movement in both directions is supported by

2. the Base. The scissor legs, allow the lift to move both uphill and downward. The cylinders used to raise or lower the scissor lift, are either filled with hydraulic fluid or air. The energy source starts the process of making it feasible to have the energy needed to extend the scissor legs.
