  1. Wave Interactions

  2. Can you see me now? • Transparent materials allow waves to pass through them with little or no distortion • Translucent materials allow waves to pass through them with varying degrees of distortion • Opaque materials do not allow waves to pass through them • Waves must be reflected or absorbed

  3. Categories • Reflection • Refraction • Diffraction • Absorption • Interference • Constructive Interference • Destructive Interference

  4. Reflection • Reflection is when a wave bounces off of a surface • Some of the energy may be absorbed, but most is reflected • LAW OF REFLECTION • The angle of incidence MUST EQUAL the angle of reflection

  5. Mirror, mirror • Explains why a mirror must be smooth • So that all the angles line up to make a clear picture in the reflection • Water surfaces may not be smooth, produce a distorted reflection

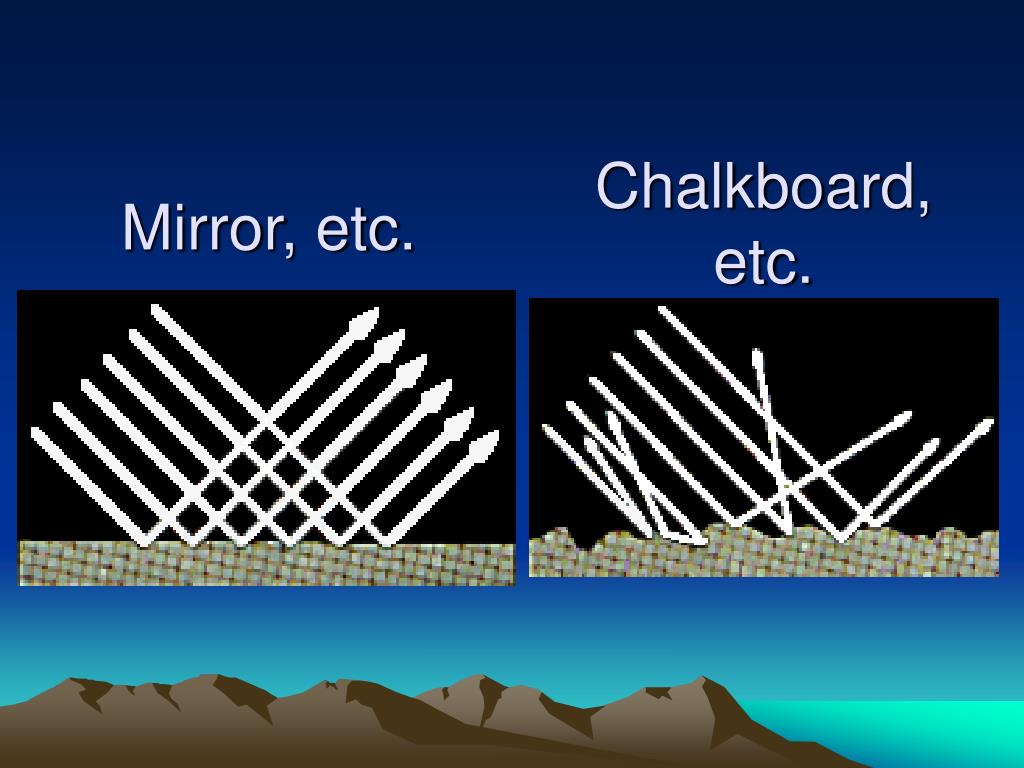

  6. Mirror, etc. Chalkboard, etc.

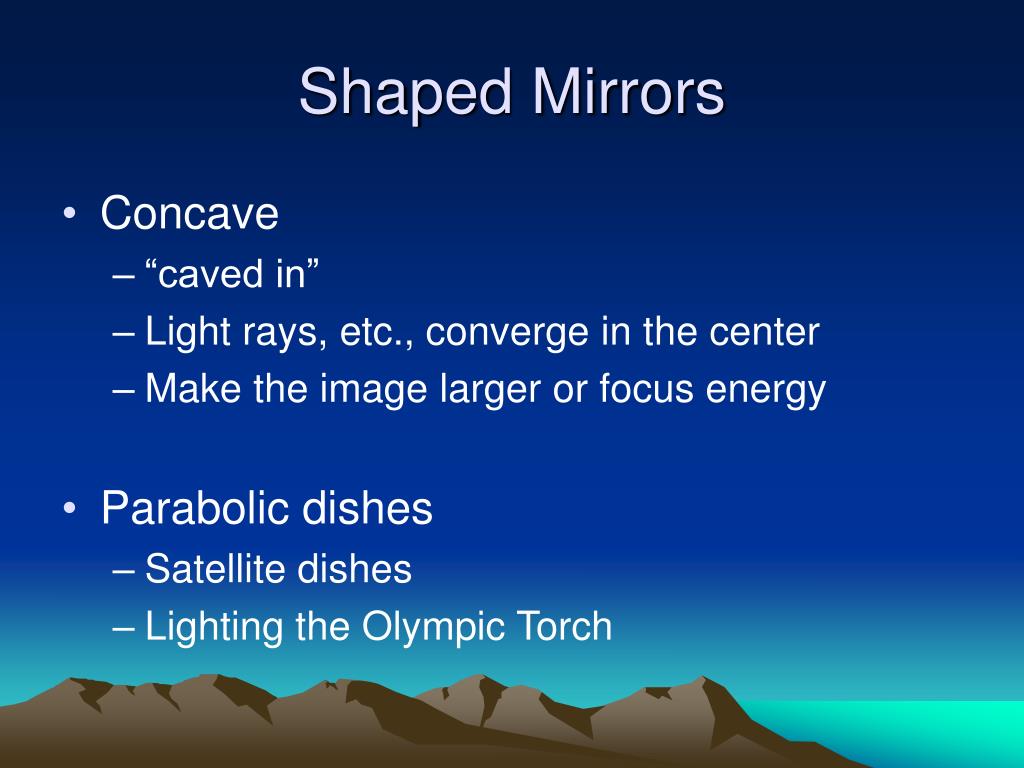

  7. Shaped Mirrors • Concave • “caved in” • Light rays, etc., converge in the center • Make the image larger or focus energy • Parabolic dishes • Satellite dishes • Lighting the Olympic Torch

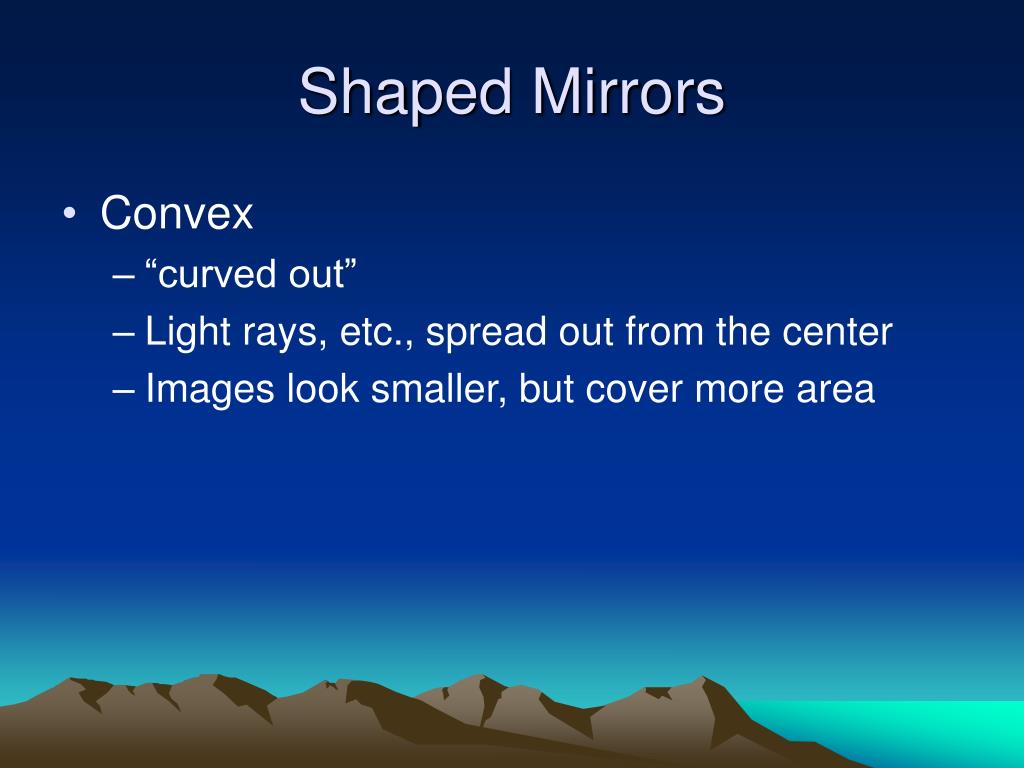

  8. Shaped Mirrors • Convex • “curved out” • Light rays, etc., spread out from the center • Images look smaller, but cover more area

  9. Refraction • Refraction is when a wave bends as it moves from one medium to another • “Edges” of the wave “slow down” in a more dense medium and “speed up” in a less dense medium • The wave front bends towards the normal in a more dense medium, and • away from the normal in a less dense medium

  10. Refraction can depend on the angle the wave hits the medium

  11. Oil-slick Rainbows • Because of the different densities of oil, gasoline, water, and air, a rainbow-like refraction can form in puddles near well-traveled parking lots

  12. Lenses • Controlling the “bend” of the light allows us to make lenses

  13. Diffraction • Bending of waves around a barrier

  14. With two barriers, BOTH edges bend the waves

  15. Jetties are false walls to bend the ocean waves towards the shore

  16. Interference • Whenever two waves of the same kind pass through each other, they interfere • Constructive Interference • If their crests and troughs line up, they are said to be “in phase” • Destructive Interference • If these points don’t, they are “out of phase” • Should they be exactly “out of phase”, the waves will cancel each other out
