  1. ENGINEERING RESOURCES Revision 21 - February 2008 Email: sales@newburgh.co.uk Web: www.newburgh.co.uk NEWBURGH ENGINEERING BESSEMER WAY ROTHERHAM S60 1FB U.K. TEL: +44 (0)1709 724260 FAX: +44 (0)1709 839312 NEWBURGH ENGINEERING BRADWELL HOPE VALLEY DERBYSHIRE S33 9NT U.K.

  2. MILLING • CNC ASQUITH BUTLER MILL (3+1 Axis) • Travel: 22,000mm x 1,500mm x 1,250mm • Comments: CNC Dividing head or rotary table • CNC ASQUITH BUTLER GANTRY MILL (3+1 Axis) • Travel: 10,000mm x 3,000mm x 1,250mm • Comments: Ø1,000mm contouring dividing head or rotary table • CNC SORALUCE SP1000 MILL (3+1 Axis) • Travel: 8,500mm x 1,600mm x 1,200mm • Comments: Ø2,000mm rotary table 25 tonne max load • CNC SORALUCE SP8000 MILL (3+1 Axis) • Travel: 6,000mm x 1,600mm x 1,200mm • Comments: Ø2,000mm rotary table 25 tonne max load • CNC SORALUCE FP8000 MILL (3 Axis) • Travel: 8,000mm x 2,000mm x 1,200mm • Comments: Fully Orthogonal head + Twin indexing tables • CNC SORALUCE FP8000 MILL (3 Axis) • Travel: 8,000mm x 2,000mm x 1,200mm • Comments: Fully Orthogonal head + Twin indexing tables • CNC UNISIGN UNIVERS 6 (4 Axis) • Travel: 8,000mm x 800mm x 600mm • Comments: Twin pallets, 9,000 RPM Spindle speed • CNC UNISIGN UNIVERS 5 (4 Axis) • Travel: 3,000mm x 550mm x 400mm • Comments: Twin pallets, 25,000 RPM spindle speed • CNC UNISIGN UNIVERS 4 (3 Axis) Travel: 1,600mm x 600mm x 400mm • Comments: 12,000 RPM spindle speed PAGE 2 OF 12

  3. MILLING • CNC MARUFUKU (3 Axis) • Travel: 4,400mm x 3,600mm x 900mm • Comments: Large right angled head • BOKO F63.100 (6 Axis) • Travel: 2,400mm x 1,200mm x 1,350mm • Comments: Capable of contour milling using 5 axis • CNC BOKO WF3/12 (6 Axis) • Travel: 1,800mm x 1,200mm x 1,350mm • Comments: Capable of contour milling using 5 axis • ZAYER BED MILL • Travel: 3,500mm x 1,000mm sq • Comments: 4,500mm Bed length • CINCINATTI MILACRON • Travel: 2,020mm x 600mm x 400mm • Comments: Table size 2020mm x 60mm • KRV 3000 • Travel: 1,040mm x 310mm x 400mm • Comments: Table size 2,200mm x 400mm • XYZ SM 3500 • Travel: 134mm x 280mm x 510mm • XYZ CNC/MANUAL BED MILL (TURRET MILL) • Travel: 787mm x 508mm x 584mm • Comments: Proto TRAK EDGE SM 3 AXIS PAGE 3 OF 12

  4. HORIZONTAL BORING • CNC TOYODA FH100S (3 + 1 Axis) Travel: 1,600mm x 1,400mm x 1,150mm • Comments: Twin auto-change pallets, Spindle output 45kW • CNC MORI-SEIKI MH63 (4 Axis) • Travel: 1,000mm x 1,050mm x 920mm • Comments: Twin auto-change pallets, 13000rpm spindle speed • CNC HELLER MCH 280 (4 Axis) • Travel: 1,000mm x 800mm x 800mm • Comments: Twin auto-change pallets, 70 bar coolant pressure • CNC HELLER MCH 280 (4 Axis) • Travel: 1,000mm x 800mm x 800mm • Comments: Twin auto-change pallets, 70 bar coolant pressure • CNC GIDDINGS + LEWIS G50RT • Travel: 2,500mm x 2,390mm x 915mm spindle x 2180mm table • Comments: Ø130mm spindle, CNC indexing table 1,600mm x 1,250mm - max load 11.36t, Cogsdill Contouring Head • CNC GIDDINGS + LEWIS PC40T • Travel: 1,830mm x 1,524mm x 762mm spindle x 1,676mm table • Comments: Ø110mm spindle, table 2,440mm x 1,220mm - max table load 10t, CH8 and CH16 Davis Contouring Heads • CNC GIDDINGS + LEWIS PC40T • Travel: 1,830mm x 1,524mm x 762mm spindle x 1,676mm table • Comments: Ø110mm spindle, table 2,440mm x 1,220mm - max table load 10t, CH8 and CH16 Davis Contouring Heads • CNC DEVLIEG 54K72 (4 Axis) • Travel: 1,828mm x 1,816mm x 600mm x 508mm table • Comments: Ø5” spindle, table 1,828mm x 1,016mm - max load 6t PAGE 4 OF 12

  5. HORIZONTAL BORING • CNC DEVLIEG 54K96 (4 Axis) • Travel: 2,438mm x 1,816mm x 600mm x 508mm table • Comments: Ø5” spindle, table 2,438mm x 1,016mm - max load 8t • CNC DEVLIEG 54R80 (4 Axis) • Travel: 2,032mm x 2,032mm x 600mm x 508mm table • Comments: Ø5” spindle, table 2,032mm x 1,016mm - max load 8t • CNC KEARNS & RICHARDS SF125L • Travel: 1,600mm x 1,500mm x 750mm spindle • Table: 1,800mm • Comments: Ø125mm spindle, 1,200mm Facing Slide • Max load 8t, Heavy Duty Facing, Right Angled Milling attachement • DEVLIEG 43H-72 • Travel: 1830mm x 1370mm x 400mm • Ø100mm spindle, Table:1830mm x 890mm PAGE 5 OF 12

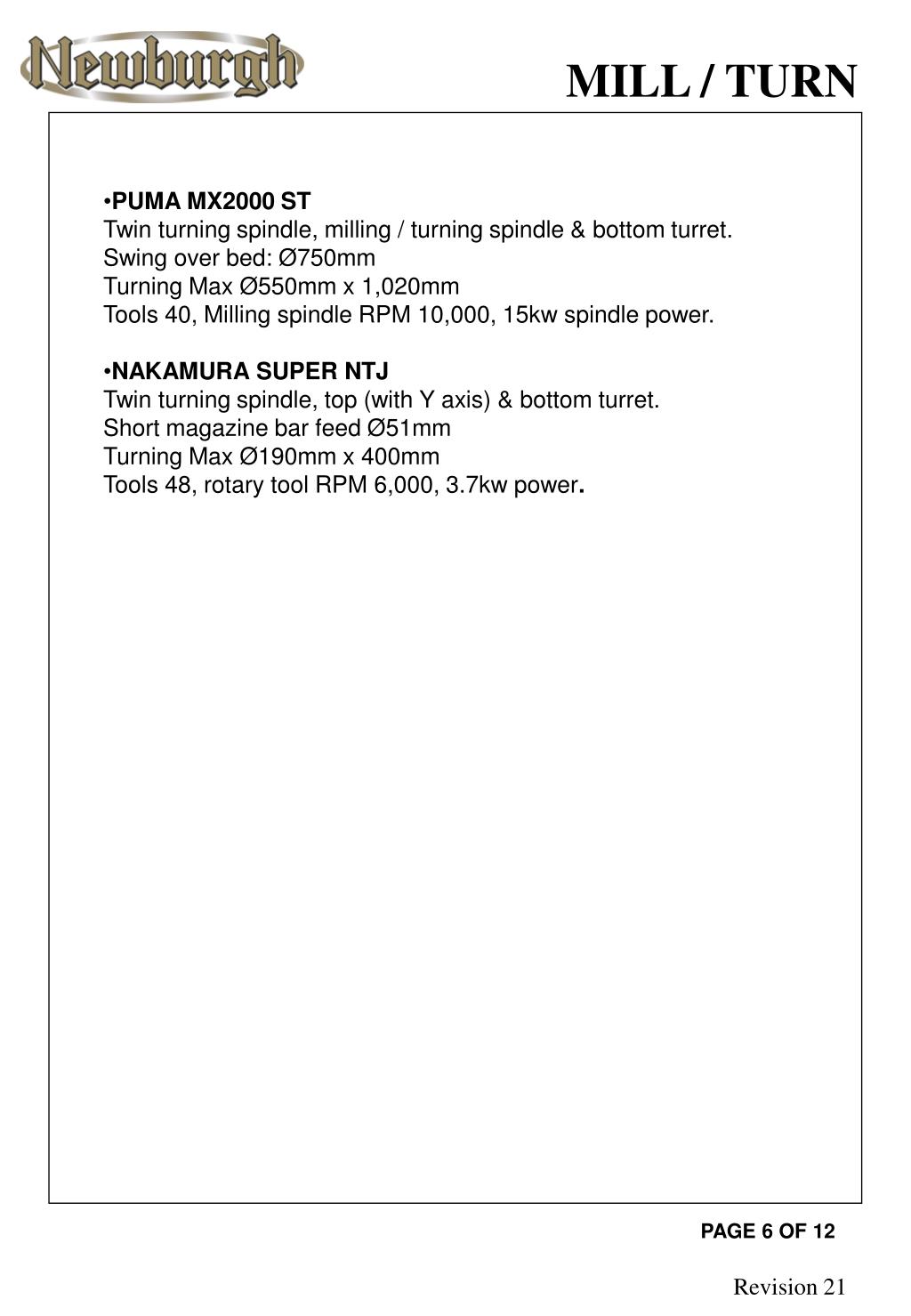

  6. MILL / TURN • PUMA MX2000 ST • Twin turning spindle, milling / turning spindle & bottom turret. • Swing over bed: Ø750mm • Turning Max Ø550mm x 1,020mm • Tools 40, Milling spindle RPM 10,000, 15kw spindle power. • NAKAMURA SUPER NTJ • Twin turning spindle, top (with Y axis) & bottom turret. • Short magazine bar feed Ø51mm • Turning Max Ø190mm x 400mm • Tools 48, rotary tool RPM 6,000, 3.7kw power. PAGE 6 OF 12

  7. VERTICAL BORING • CNC WEBSTER BENNET Max turned size: Ø3,710mm • Table size: Ø3,050mm • Max component height: 2,090mm (under elevating rail) • CNC TOSHULIN • Max turned size: Ø1,000mm • Table size: Ø1,000mm • Max component height: 750mm • Comments: C-axis with driven tooling • 96” WEBSTER BENNET • Max turned size: Ø2,743mm • Table size: Ø2,438mm • Max component height: 1,830mm • Comments: Taper turning on diameters • 1800mm BERTHIEZ • Max turned size: Ø3,050mm • Table size: Ø1,800mm • Max component height: 1,650mm • Comments: Taper turning on diameters • 48” WEBSTER BENNET • Max turned size: Ø1,630mm • Table size: Ø1,220mm • Max component height: 635mm • Comments: Taper turning on diameters • Webster Bennett • 1370mm table diameter x 600mm under the turret PAGE 7 OF 12

  8. TURNING • CNC COLCHESTER COMBI 6000 • Swing over bed: Ø930mm • Max Ø400mm x 3,000mm • Boring bars to Ø800mm deep, Spindle bore Ø170mm • CNC DAEWOO PUMA 480L • Swing over bed: Ø900mm • Max Ø610mm x 2,155mm • Spindle bore: 166mm • CNC DAEWOO PUMA 400LB • Swing over bed: Ø700mm • Max Ø550mm x 2,129mm • CNC DAEWOO PUMA 400 • Swing over bed: Ø700mm • Max Ø550mm x 1,050mm • CNC DAEWOO PUMA 300 • Swing over bed: Ø550mm • Max Ø450mm x 680mm • CNC DAEWOO PUMA 350L • Swing over bed: Ø700mm • Max Ø550mm x 2,129mm • CNC DAEWOO PUMA 15 • Swing over bed: Ø795mm • Max Ø660mm x 1,575mm • XYZ PROTURN 555 – 2 off • Swing over bed: Ø560mm • Max Ø350mm x 3,000mm • PUMA MX2000 ST • **For specification see Mill / Turn section** PAGE 8 OF 12

  9. TURNING • DSG CENTRE LATHE • Swing over bed: Ø838mm • Max Ø578mm x 5,791mm • Comments: Taper turning attachment • CNC TUR 630 • Swing over bed: 600mm • Max Ø300mm x 2,000mm • WICKMAN LANG 36 D • Swing over bed: 965mm • Max Ø600mm x 9,000mm • MOSTANA 163B • Swing over bed: 840mm • Max Ø530mm x 3,000mm • Spindle bore: Ø75mm • MOSTANA • Swing over bed: 700mm • Max Ø350mm x 1,500mm • TUR 630 • Swing over bed: 630mm • Max Ø380mm x 3,000mm • Spindle bore: Ø140mm PAGE 9 OF 12

  10. GEARCUTTING & DRILLING • GEAR CUTTING • SPUR GEARS • 13mm OD - 1370mm OD x 230mm face width • INTERNAL GEARS • 610mm ID (max) x 127mm face width • SINGLE HELICAL GEARS • 1370 OD (max) x 230mm face width • DOUBLE HELICAL GEARS • 1370 OD (max) x 230mm face width • SPLINED SHAFTS • 760mm length x • SILENT GEARS • Manufactured in Tufnol, Rawhide or Nylatron • CHAIN SPROCKETS • British Standard & ASA • DRILLING • KITCHEN & WADE RADIAL ARM DRILL • No. 4 Morse taper, 610mm vertical traverse x 910mm horizontal traverse • KITCHEN & WALKER RADIAL ARM DRILL • No 4 Morse taper, 580mm vertical traverse x 660mm horizontal traverse PAGE 10 OF 12

  11. INSPECTION • CNC POLIGLOBO (CANTILEVER TYPE) CMM • Travel: 4,000mm x 1,500mm x 2,000mm • Comments: Complete with fully programmable Renishaw PH10 probe • CNC MITUTOYO EURO-C 122010 (BRIDGE TYPE) CMM • Travel: 2,000mm x 1,200mm x1,000mm • Comments: Complete with fully programmable Renishaw PH9A probe • POLIGLOBO/Q.C.T. (CANTILEVER TYPE) CMM • Travel: 3,000mm x 1,400mm x 1,500mm • BROWN & SHARPE DEA MISTRAL CNC CMM • Travel: 1,000mm x 1,500mm x 860mm • CIMCORE 3000i PORTABLE MEASURING ARM • Maximum reach 2,800mm • KING BRINELL AND BRINTRONIC • Hardness test equipment • VARIOUS GRANITE SURFACE TABLES • To a maximum size of 3,600mm x 1,800mm • BOWERS MICTRAK AND MRP TAPER and API GAUGES • TEMPERATURE CONTROLLED ENVIRONMENT • FULL RANGE OF STANDARD METROLOGY EQUIPMENT • ULTRASONIC THICKNESS EQUIPMENT • TRIMOS & TRIMOS 3 VERTICAL MEASURING SYSTEM • HARDNESS TESTING FOR VICKERS, BRINELL, & ROCKWELL PAGE 11 OF 12

  12. CERTIFICATION MANUFACTURING APPROVALS INCLUDE: • ROLLS ROYCE • WESTINGHOUSE • DONCASTERS • MBDA • AIRCELLE • PERKINS • CUMMINS • VETCO • SCHLUMBERGER PAGE 12 OF 12
