Genomics

Genomics. study of molecular organization of genomes, their information content, and gene products they encode divided into three areas structural genomics physical nature of genomes functional genomics how genome functions comparative genomics compares genomes of different organisms.

Download Presentation

Genomics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

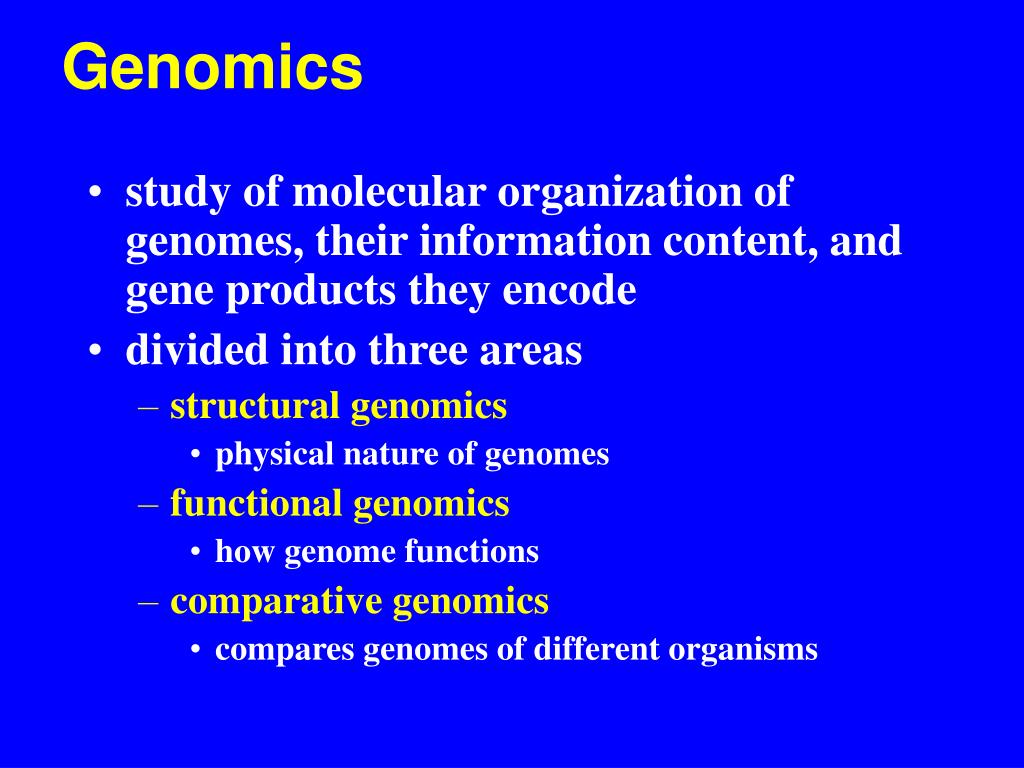

  1. Genomics • study of molecular organization of genomes, their information content, and gene products they encode • divided into three areas • structural genomics • physical nature of genomes • functional genomics • how genome functions • comparative genomics • compares genomes of different organisms

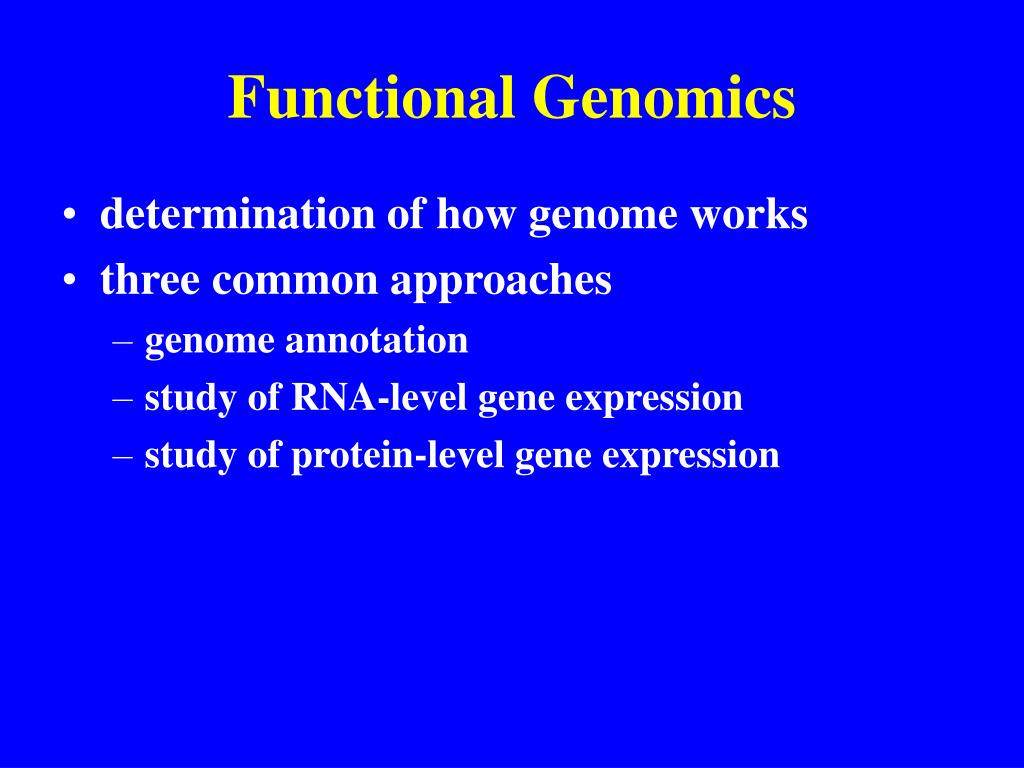

  2. Functional Genomics • determination of how genome works • three common approaches • genome annotation • study of RNA-level gene expression • study of protein-level gene expression

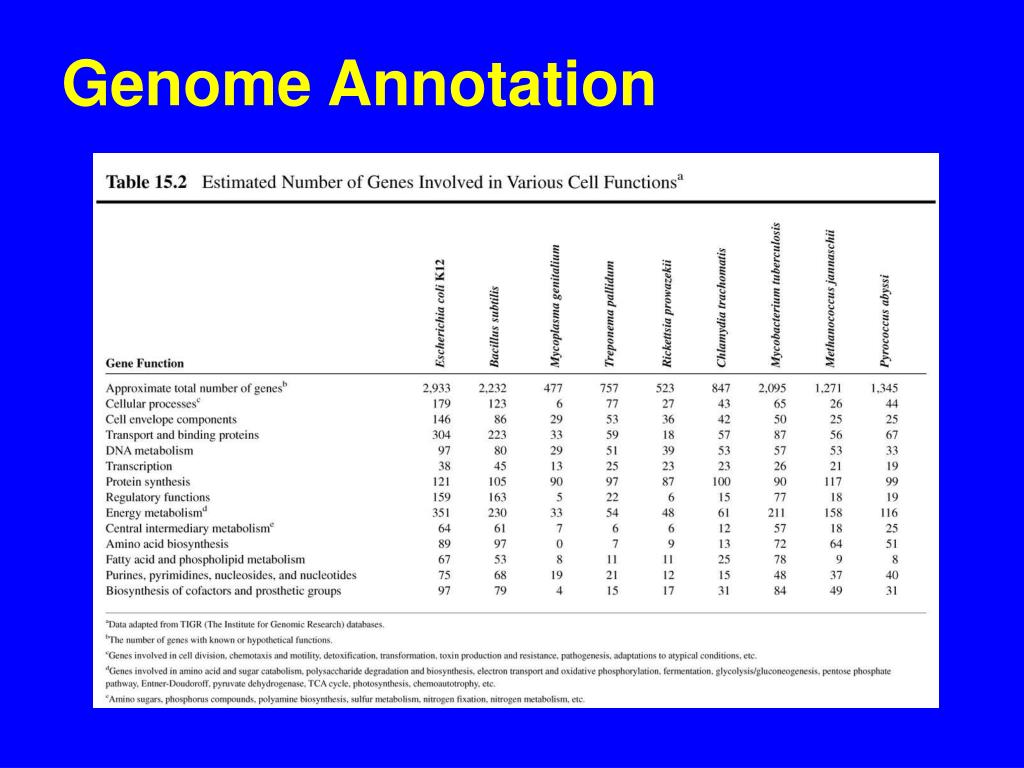

  3. Genome Annotation

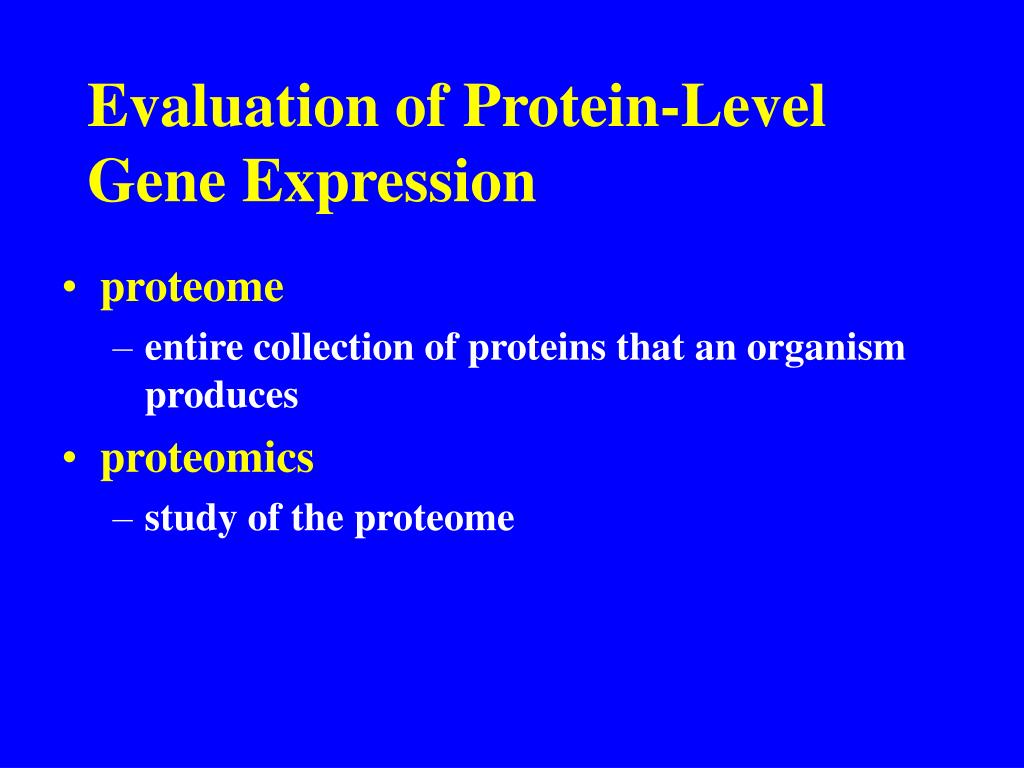

  4. Evaluation of Protein-Level Gene Expression • proteome • entire collection of proteins that an organism produces • proteomics • study of the proteome

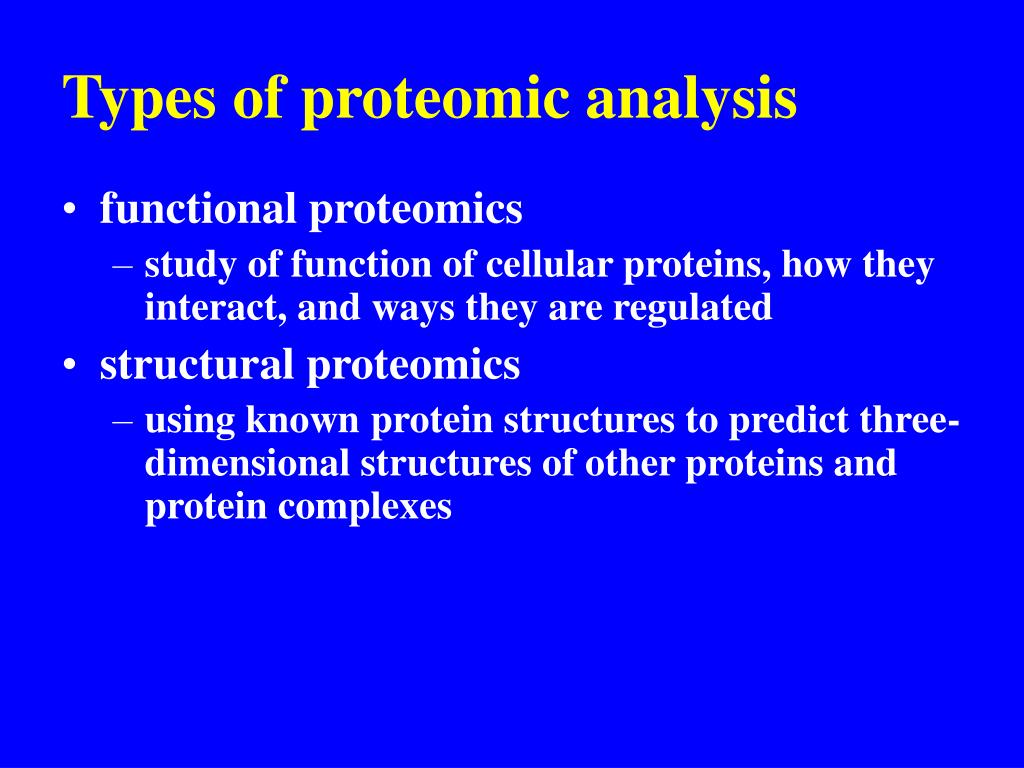

  5. Types of proteomic analysis • functional proteomics • study of function of cellular proteins, how they interact, and ways they are regulated • structural proteomics • using known protein structures to predict three-dimensional structures of other proteins and protein complexes

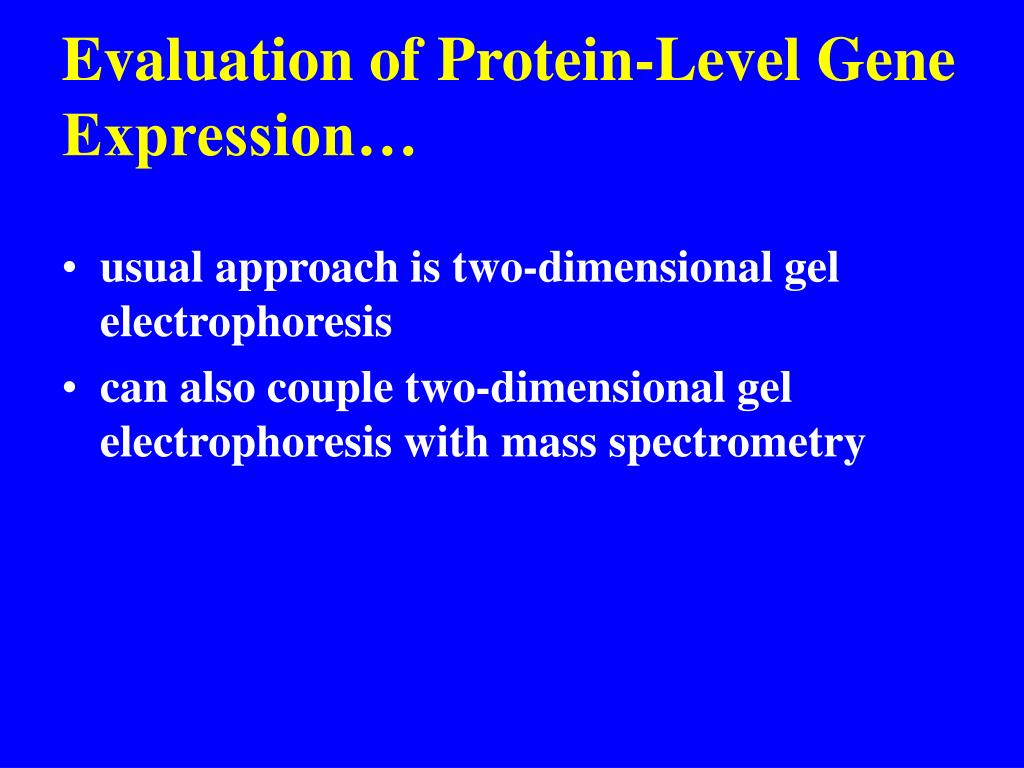

  6. Evaluation of Protein-Level Gene Expression… • usual approach is two-dimensional gel electrophoresis • can also couple two-dimensional gel electrophoresis with mass spectrometry

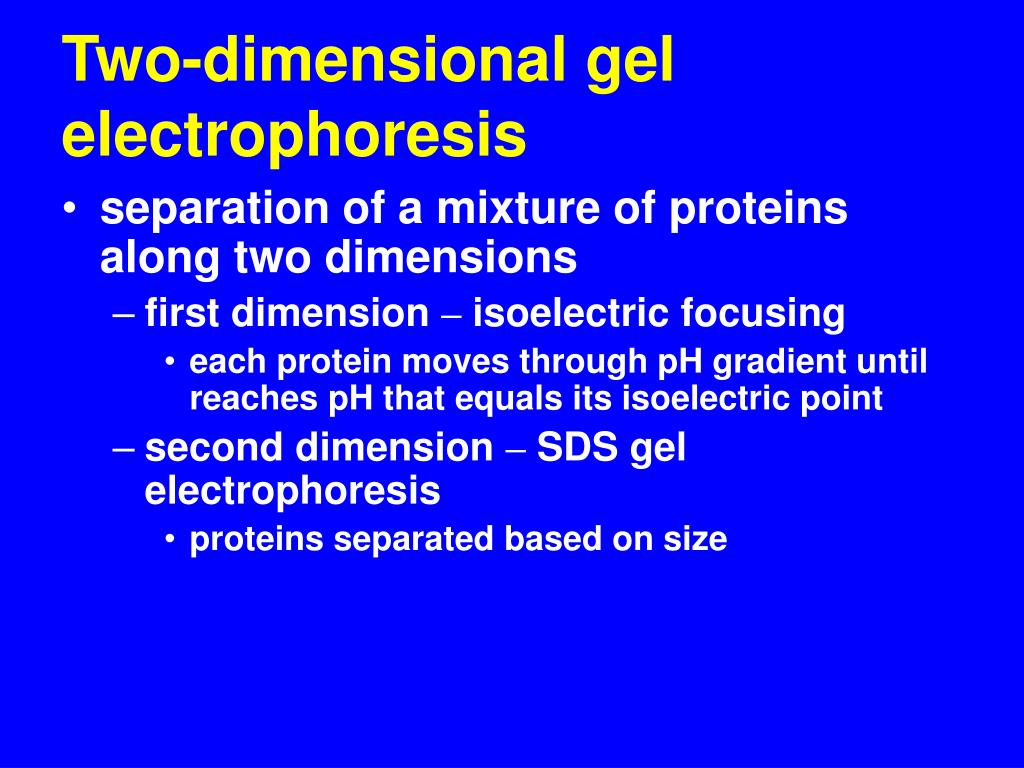

  7. Two-dimensional gel electrophoresis • separation of a mixture of proteins along two dimensions • first dimension – isoelectric focusing • each protein moves through pH gradient until reaches pH that equals its isoelectric point • second dimension – SDS gel electrophoresis • proteins separated based on size

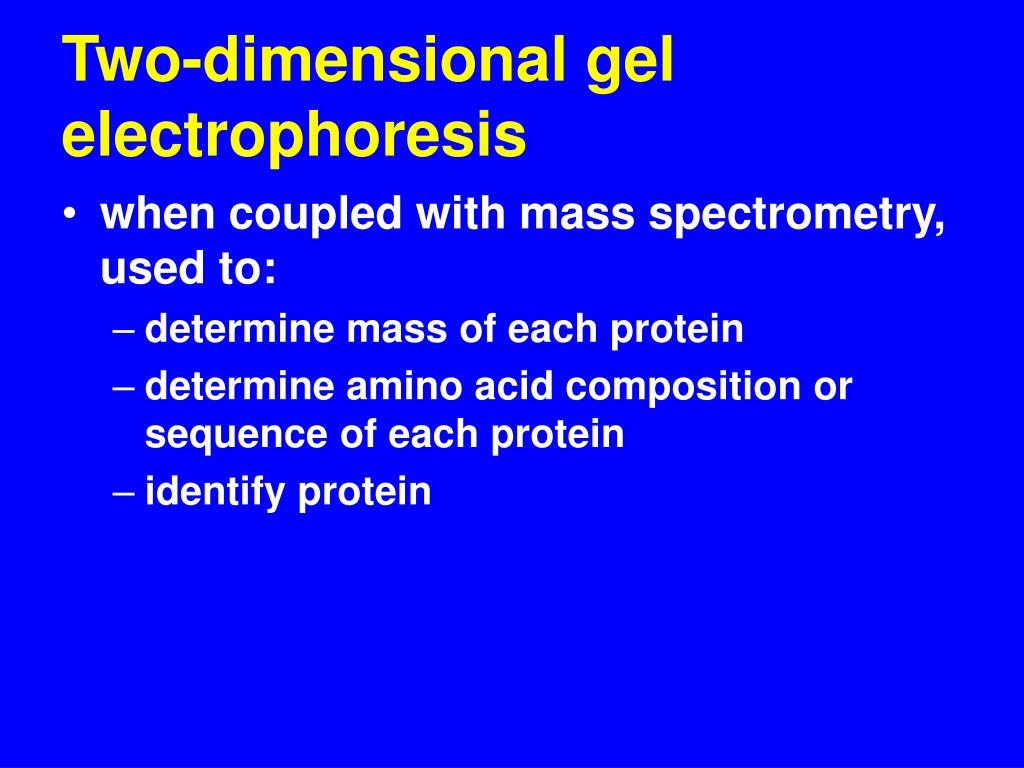

  8. Two-dimensional gel electrophoresis • when coupled with mass spectrometry, used to: • determine mass of each protein • determine amino acid composition or sequence of each protein • identify protein

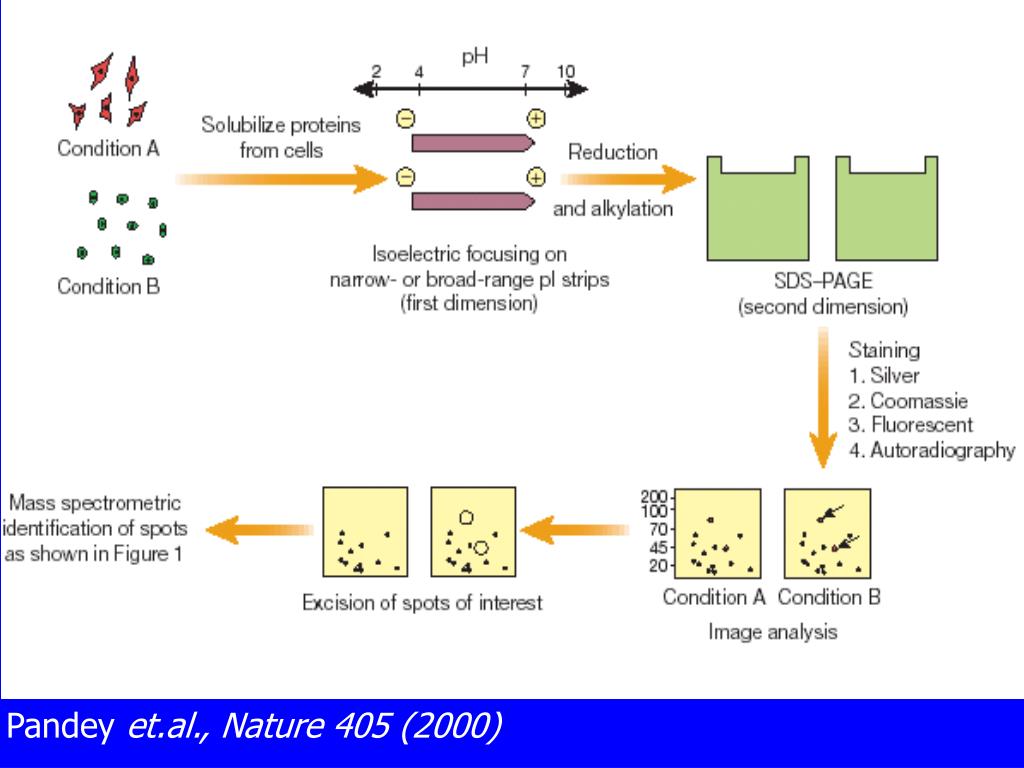

  9. Pandey et.al.,Nature 405 (2000)

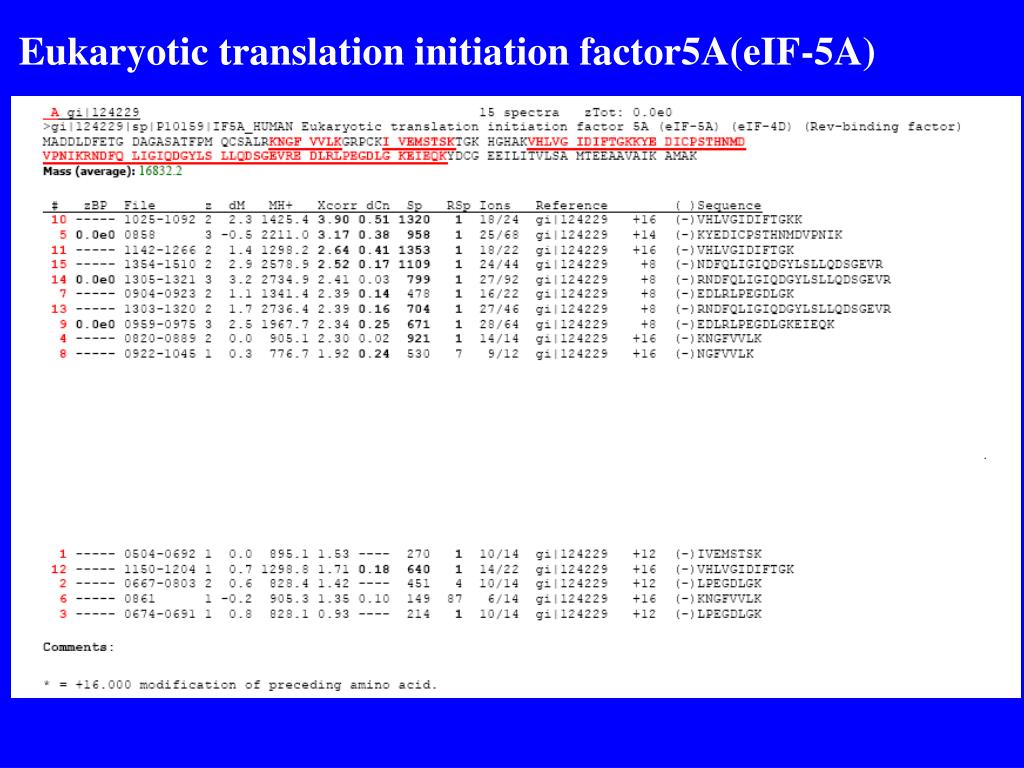

  10. Eukaryotic translation initiation factor5A(eIF-5A)

  11. Stanley Fields, Science 291

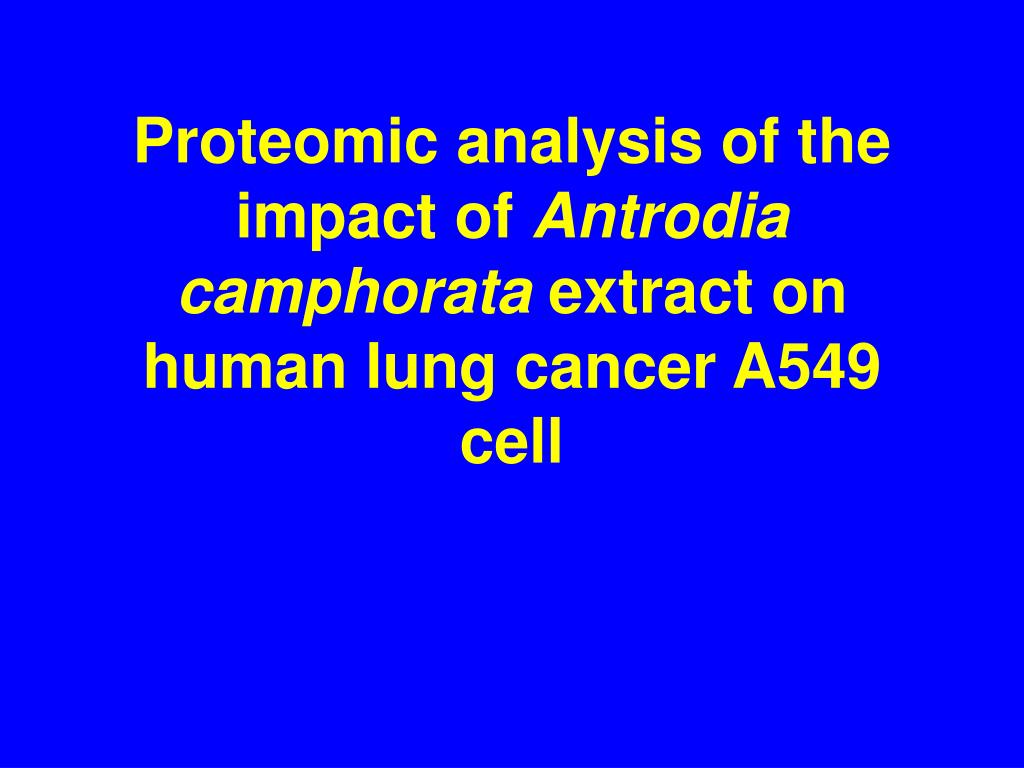

  12. Proteomic analysis of the impact of Antrodia camphorata extract on human lung cancer A549 cell

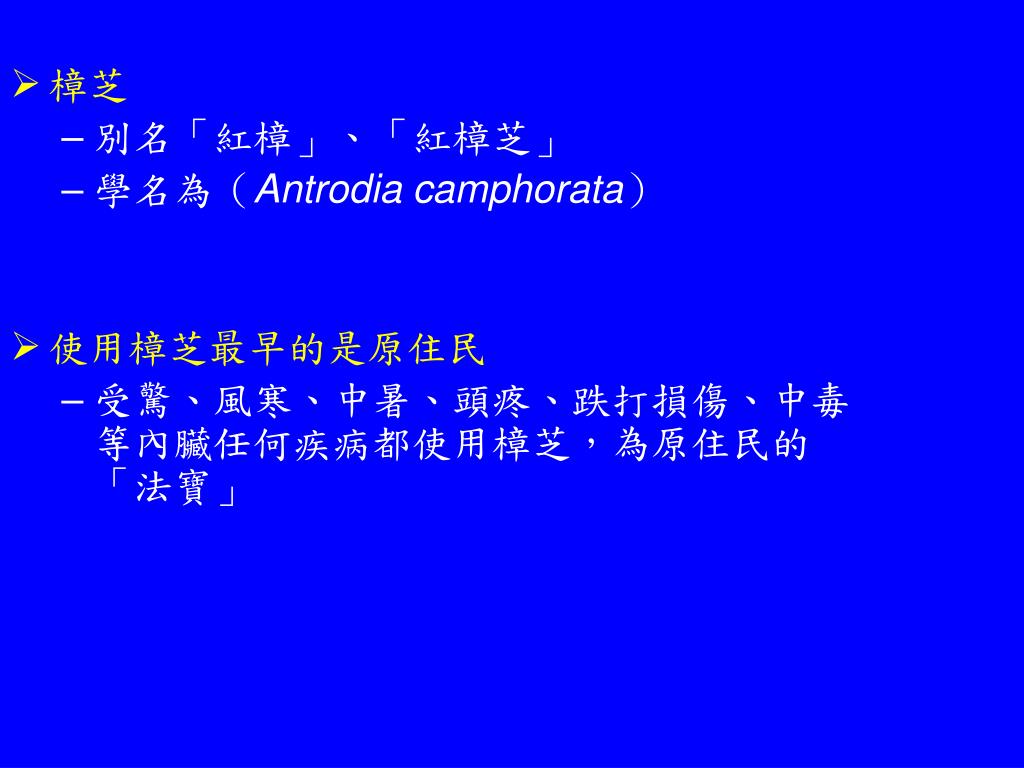

  13. 樟芝 別名「紅樟」、「紅樟芝」 學名為(Antrodia camphorata) 使用樟芝最早的是原住民 受驚、風寒、中暑、頭疼、跌打損傷、中毒等內臟任何疾病都使用樟芝,為原住民的「法寶」

  14. 樟芝子實體具有強烈沖鼻的樟樹香氣,它的外型呈板狀或鐘狀,面為橘紅(黃)色,整面全有菌孔樟芝子實體具有強烈沖鼻的樟樹香氣,它的外型呈板狀或鐘狀,面為橘紅(黃)色,整面全有菌孔

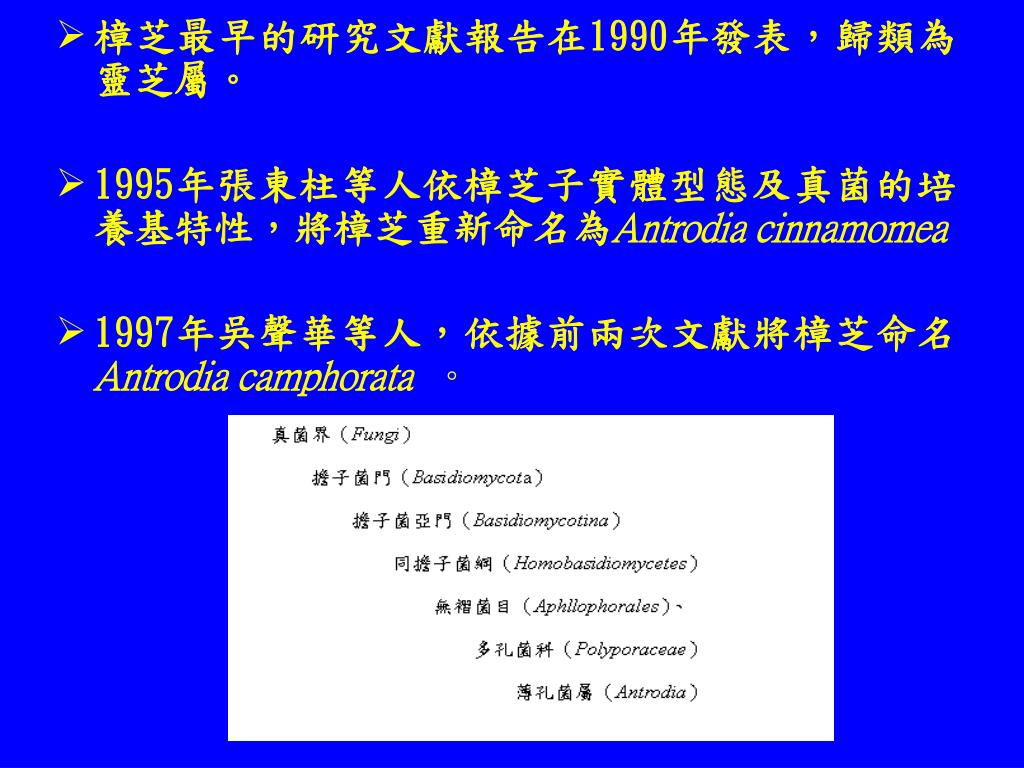

  15. 樟芝最早的研究文獻報告在1990年發表,歸類為靈芝屬。樟芝最早的研究文獻報告在1990年發表,歸類為靈芝屬。 1995年張東柱等人依樟芝子實體型態及真菌的培養基特性,將樟芝重新命名為Antrodia cinnamomea 1997年吳聲華等人,依據前兩次文獻將樟芝命名Antrodia camphorata。

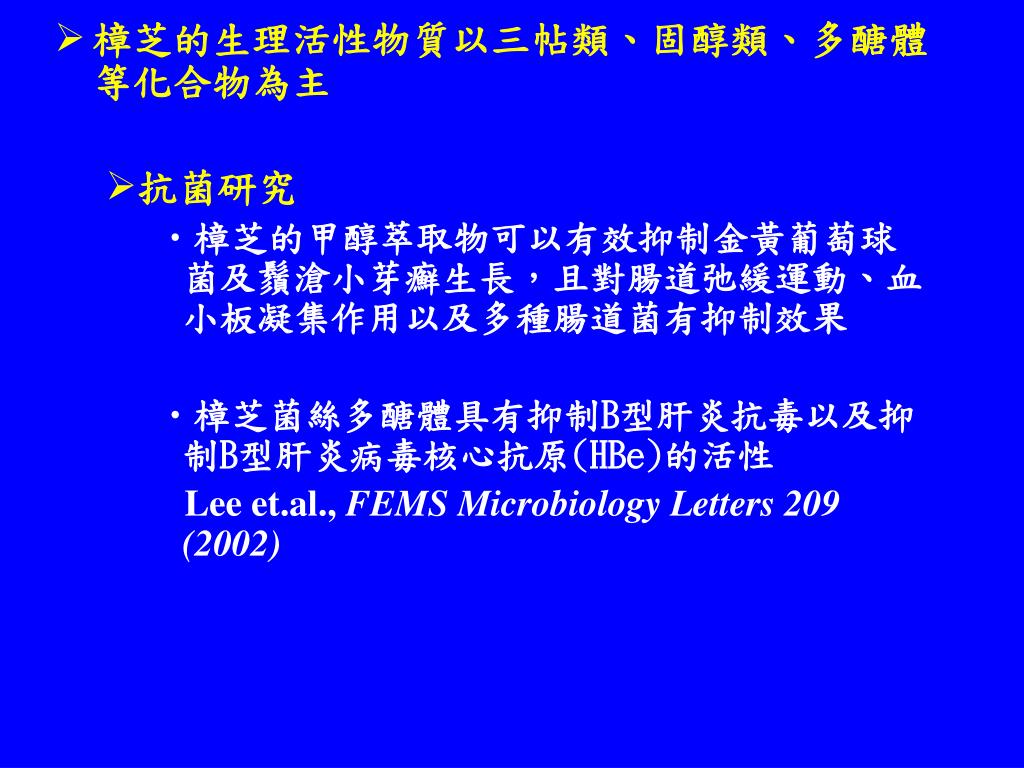

  16. 樟芝的生理活性物質以三帖類、固醇類、多醣體等化合物為主樟芝的生理活性物質以三帖類、固醇類、多醣體等化合物為主 抗菌研究 樟芝的甲醇萃取物可以有效抑制金黃葡萄球菌及鬚滄小芽癬生長,且對腸道弛緩運動、血小板凝集作用以及多種腸道菌有抑制效果 樟芝菌絲多醣體具有抑制B型肝炎抗毒以及抑制B型肝炎病毒核心抗原(HBe)的活性 Lee et.al., FEMS Microbiology Letters 209 (2002)

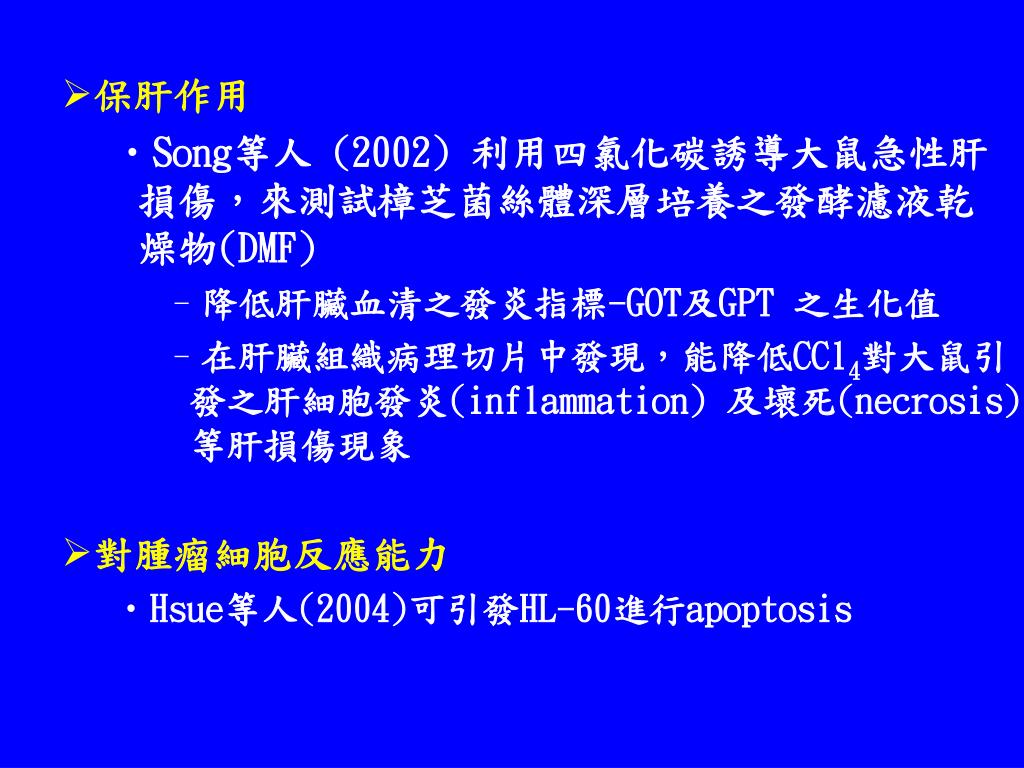

  17. 保肝作用 Song等人 (2002) 利用四氯化碳誘導大鼠急性肝損傷,來測試樟芝菌絲體深層培養之發酵濾液乾燥物(DMF) 降低肝臟血清之發炎指標-GOT及GPT 之生化值 在肝臟組織病理切片中發現,能降低CCl4對大鼠引發之肝細胞發炎(inflammation) 及壞死(necrosis)等肝損傷現象 對腫瘤細胞反應能力 Hsue等人(2004)可引發HL-60進行apoptosis

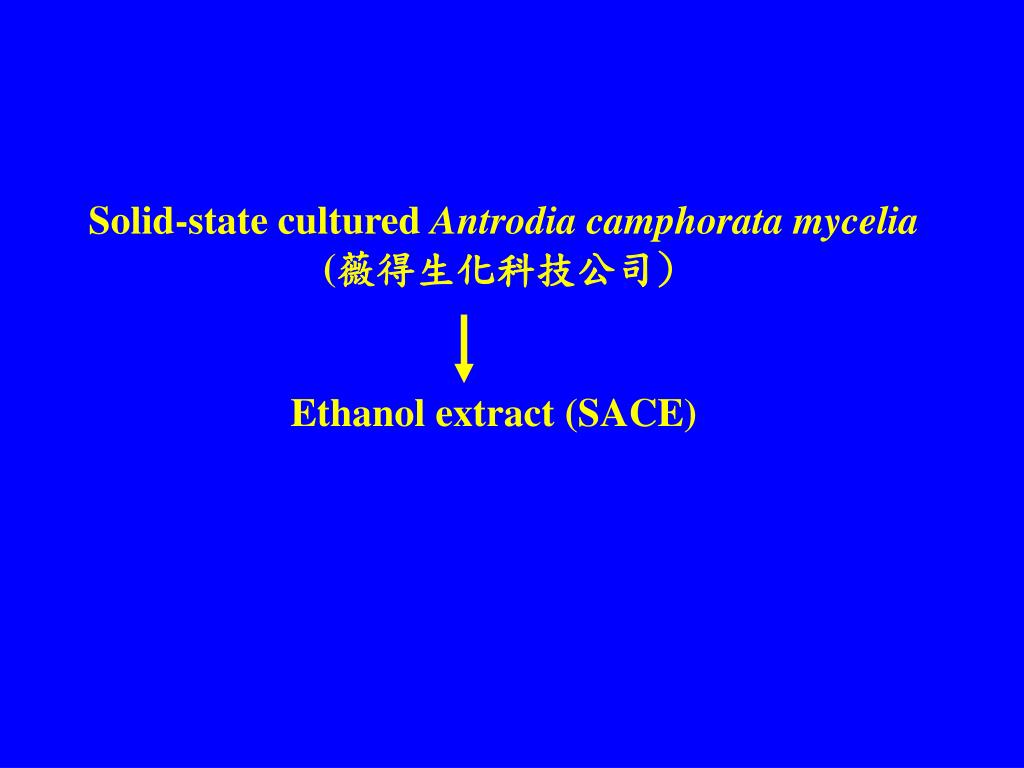

  18. Solid-state cultured Antrodia camphorata mycelia (薇得生化科技公司) Ethanol extract (SACE)

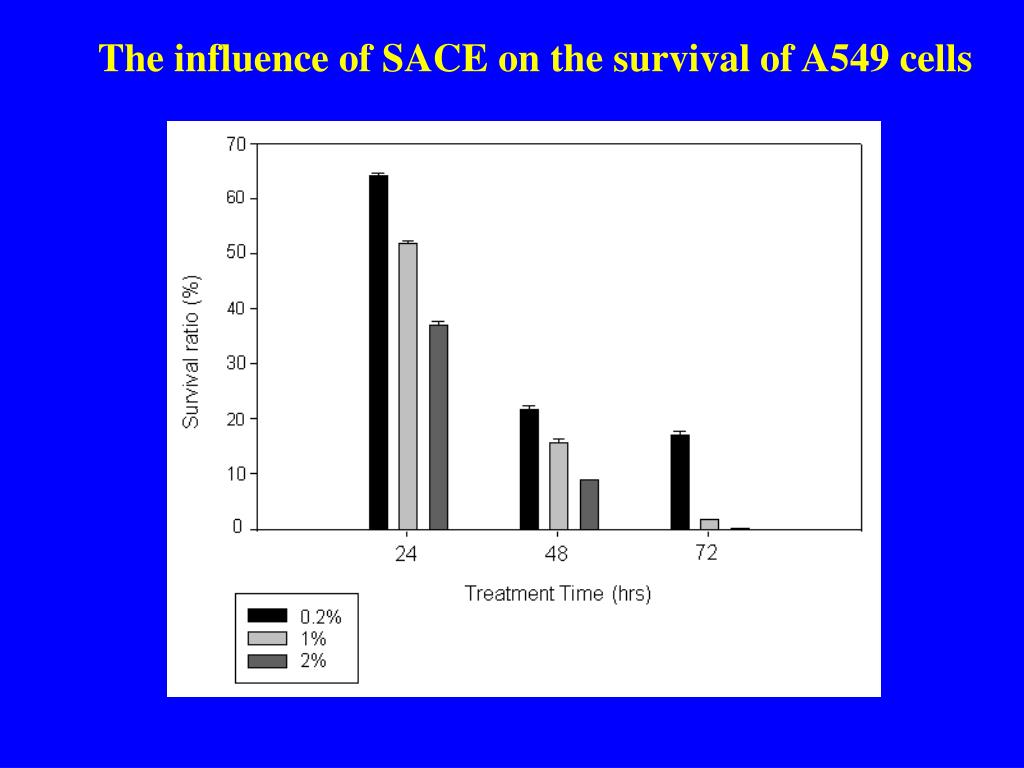

  19. The influence of SACE on the survival of A549 cells

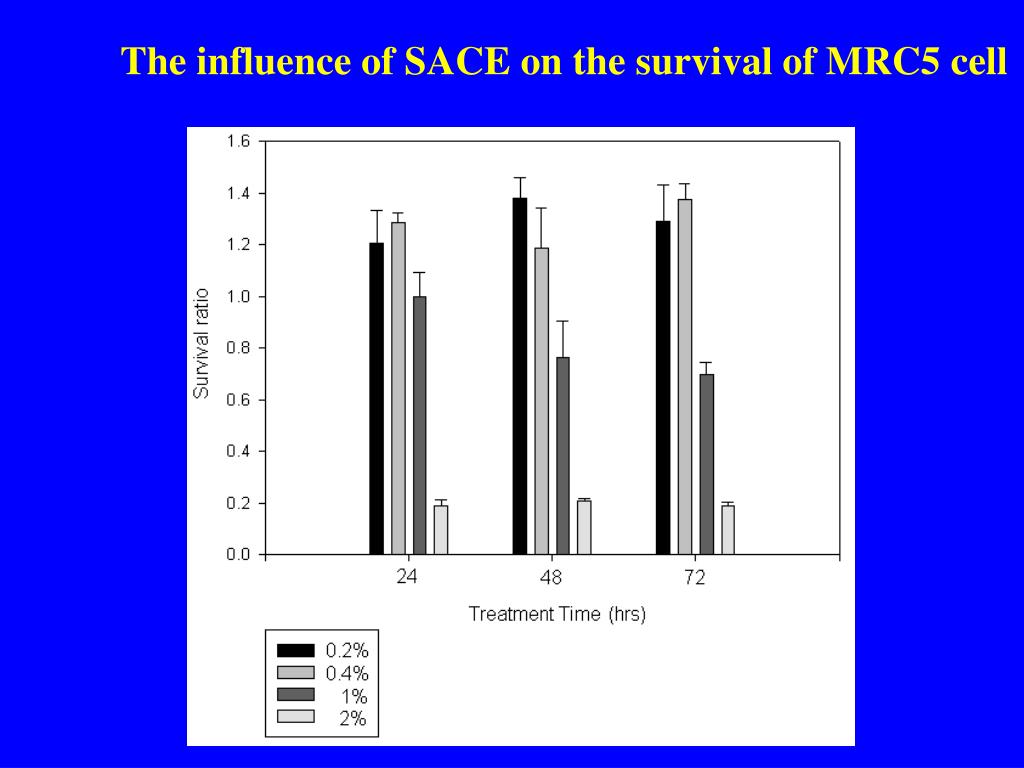

  20. The influence of SACE on the survival of MRC5 cell

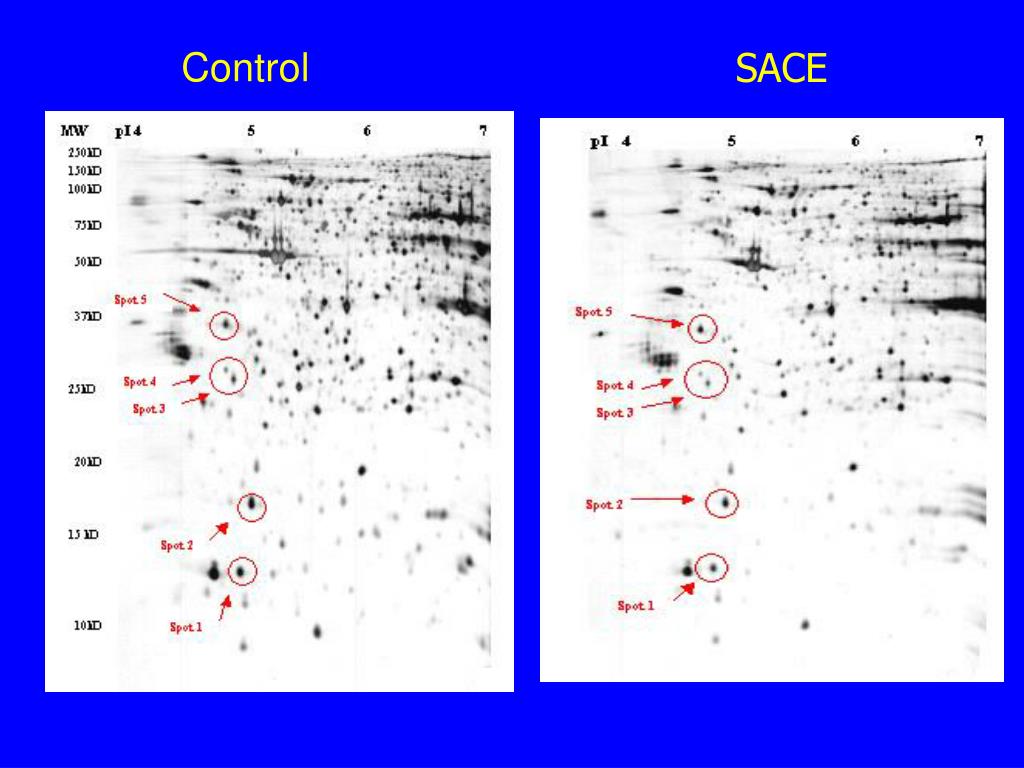

  21. Control SACE

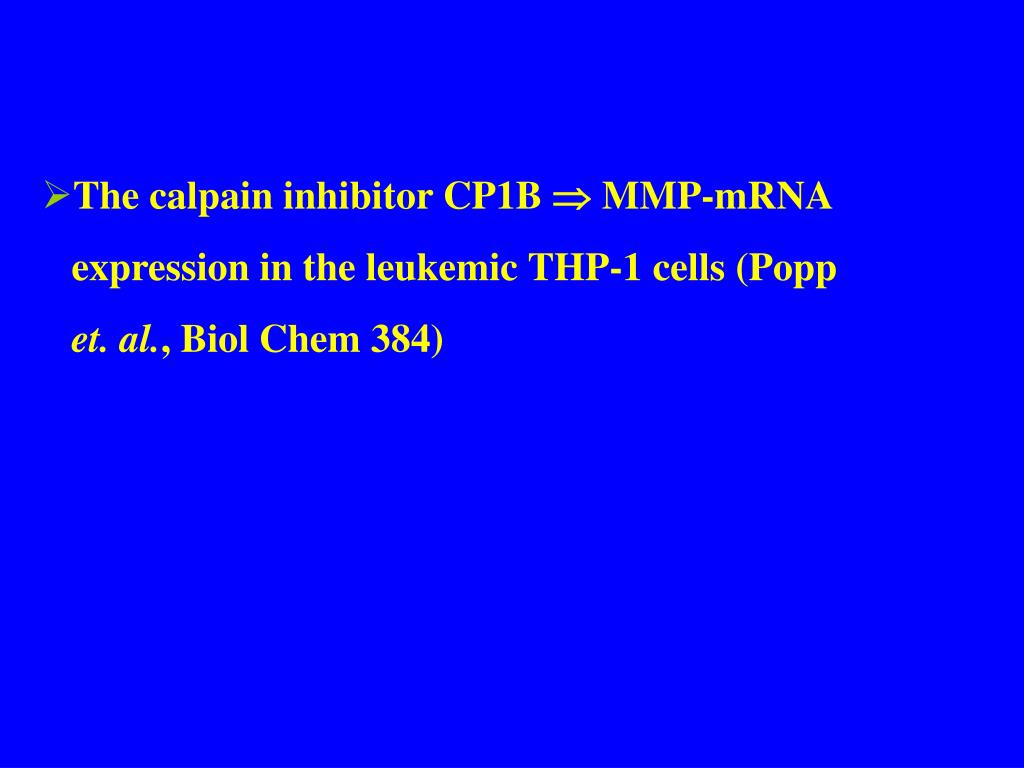

  22. The calpain inhibitor CP1B  MMP-mRNA expression in the leukemic THP-1 cells (Popp et. al., Biol Chem 384)

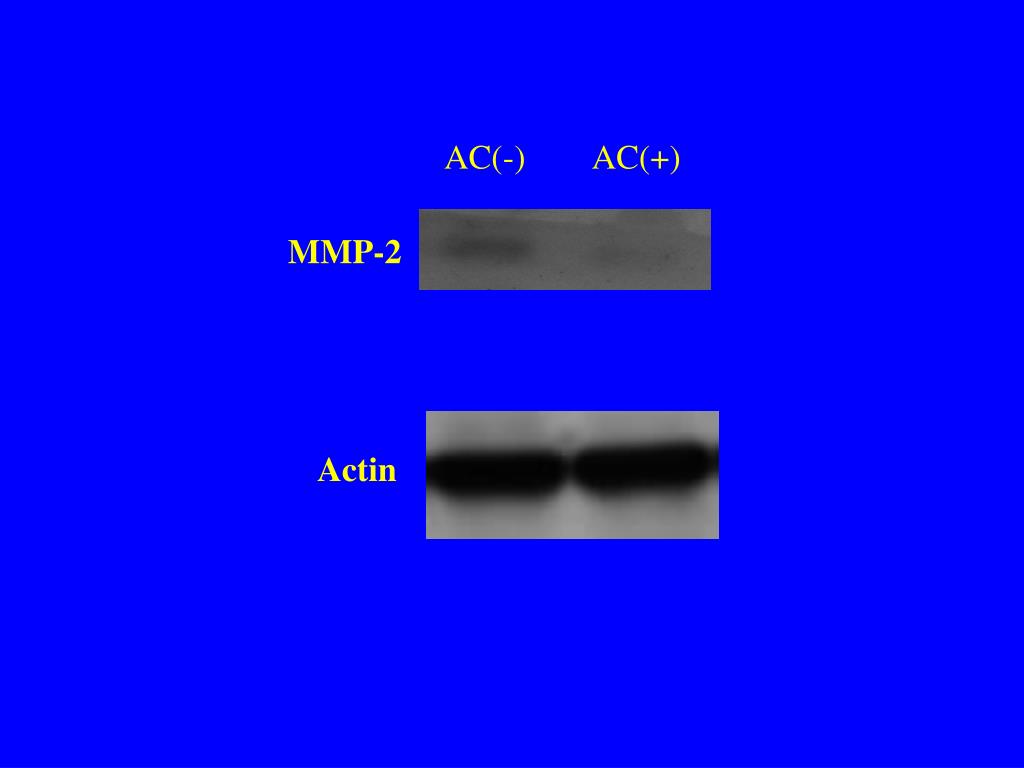

  23. AC(-) AC(+) MMP-2 Actin

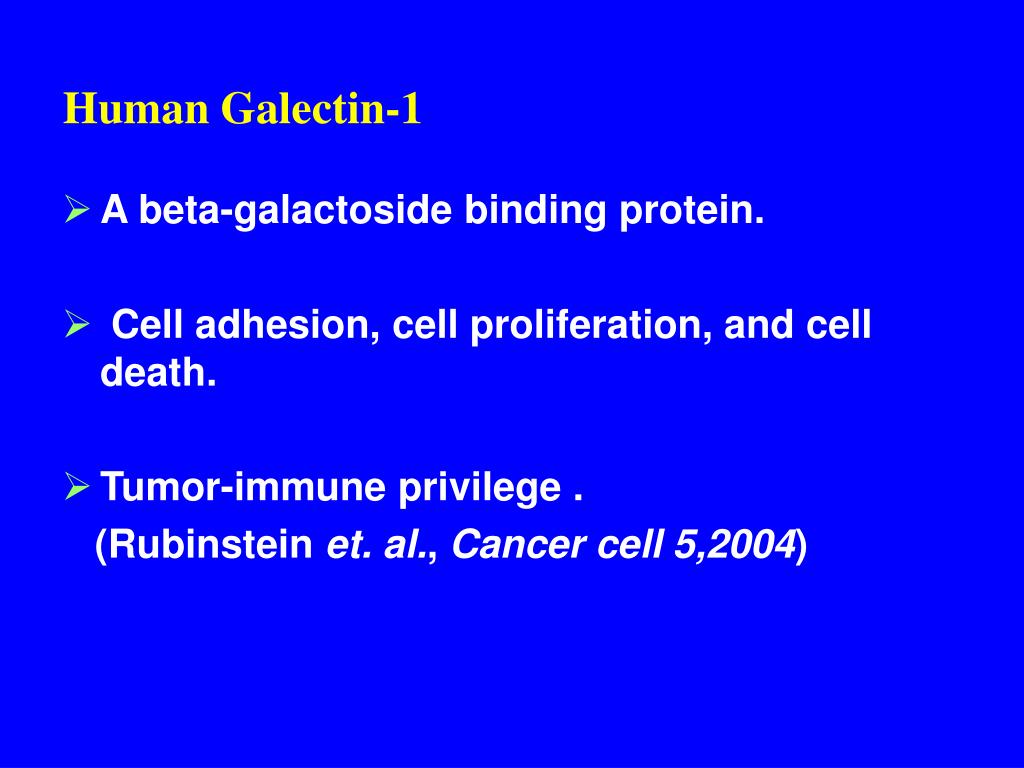

  24. Human Galectin-1 • A beta-galactoside binding protein. • Cell adhesion, cell proliferation, and cell death. • Tumor-immune privilege . (Rubinstein et. al., Cancer cell 5,2004)

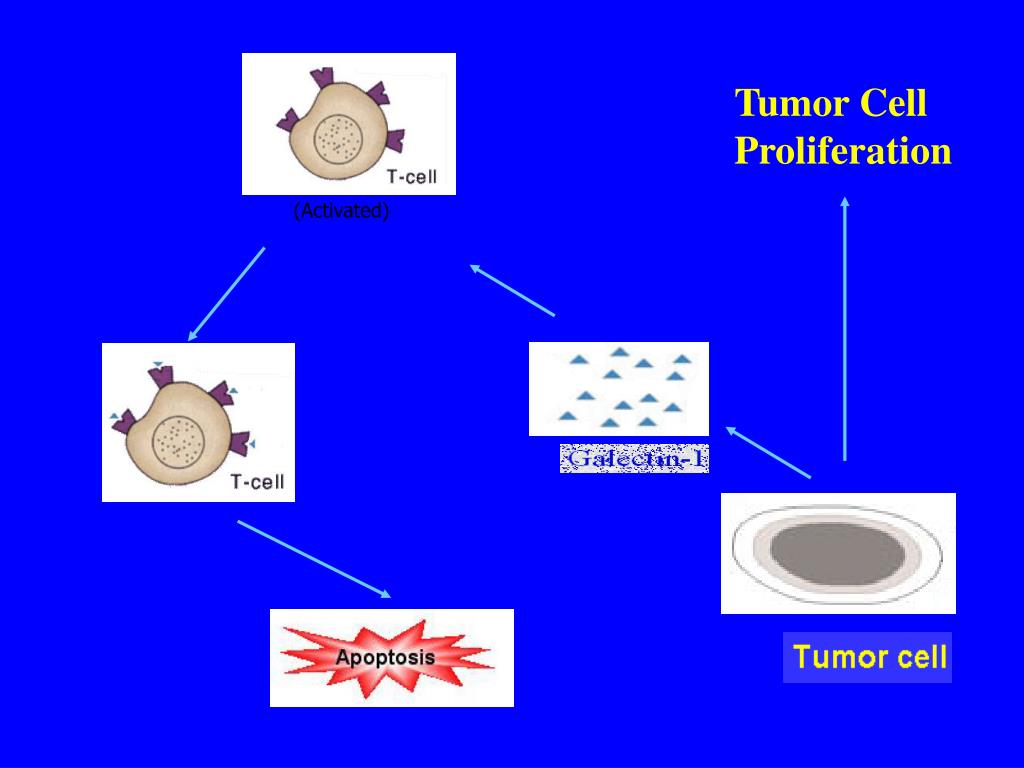

  25. (Activated) Tumor Cell Proliferation

  26. AC(-) AC(+) Galectin-1

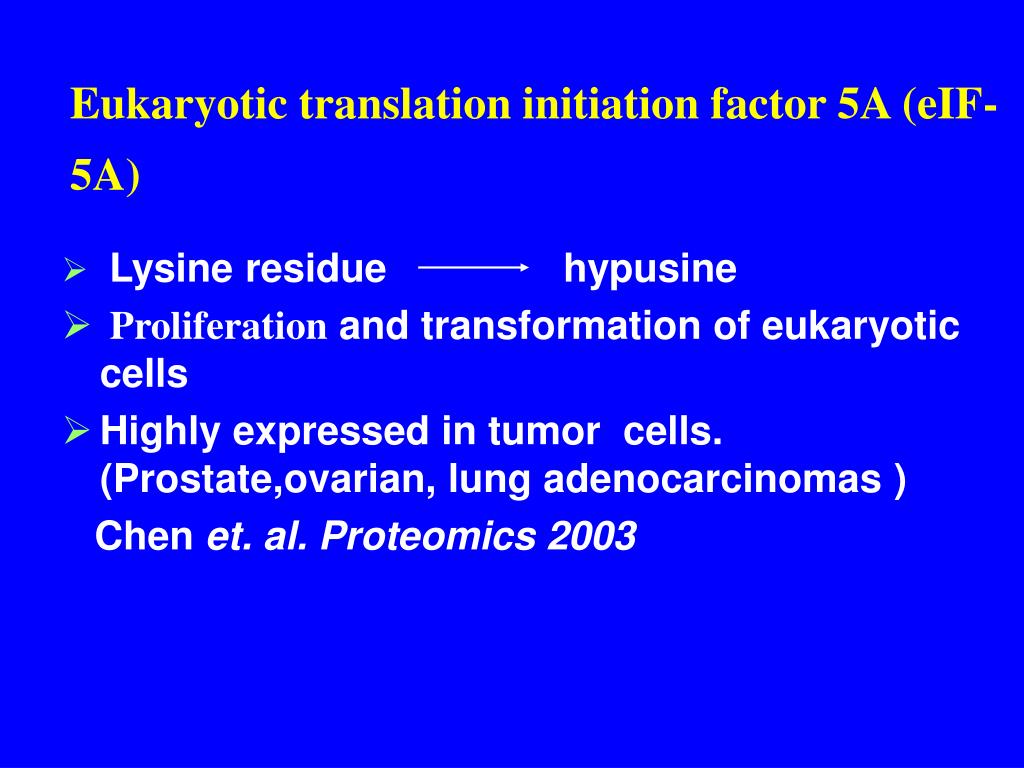

  27. Eukaryotic translation initiation factor 5A (eIF-5A) • Lysine residue hypusine • Proliferation and transformation of eukaryotic cells • Highly expressed in tumor cells. (Prostate,ovarian, lung adenocarcinomas ) Chen et. al. Proteomics 2003

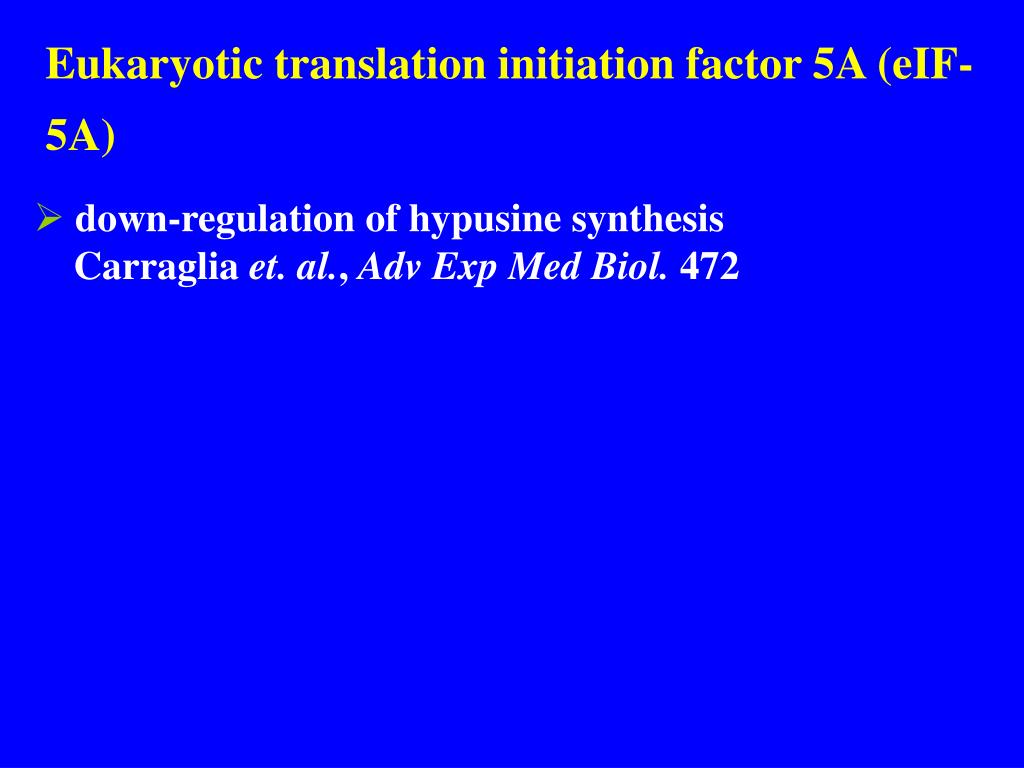

  28. Eukaryotic translation initiation factor 5A (eIF-5A) • down-regulation of hypusine synthesis Carraglia et. al., Adv Exp Med Biol. 472

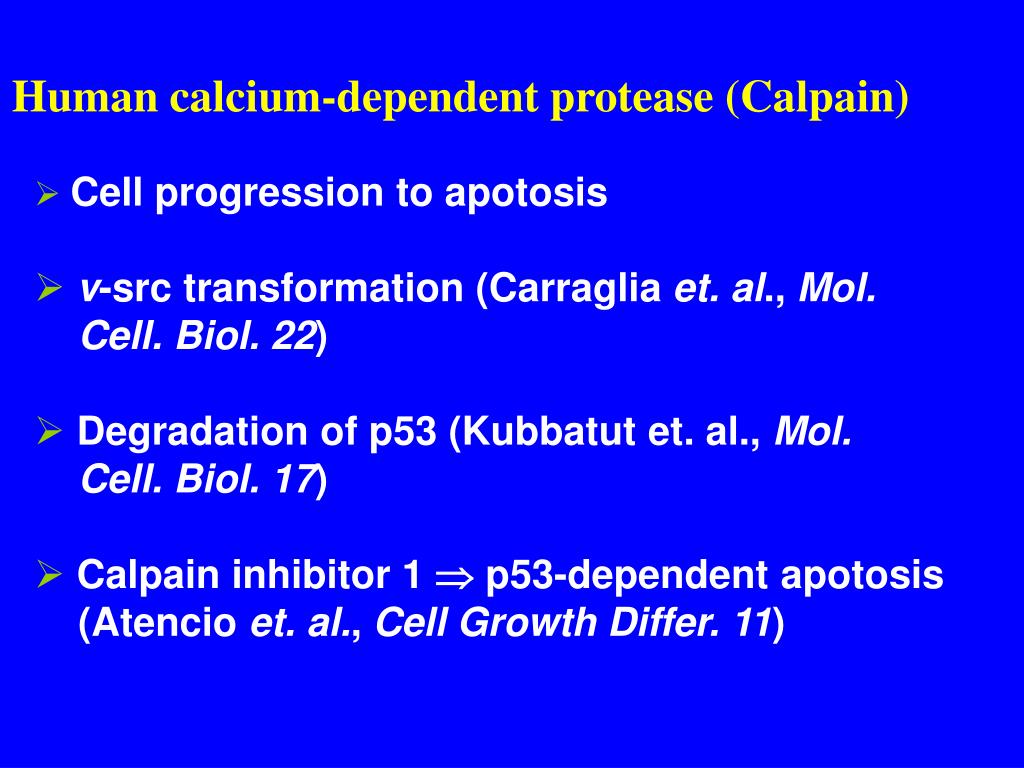

  29. Human calcium-dependent protease (Calpain) • Cell progression to apotosis • v-src transformation (Carraglia et. al., Mol. Cell. Biol. 22) • Degradation of p53 (Kubbatut et. al., Mol. Cell. Biol. 17) • Calpain inhibitor 1  p53-dependent apotosis (Atencio et. al., Cell Growth Differ. 11)

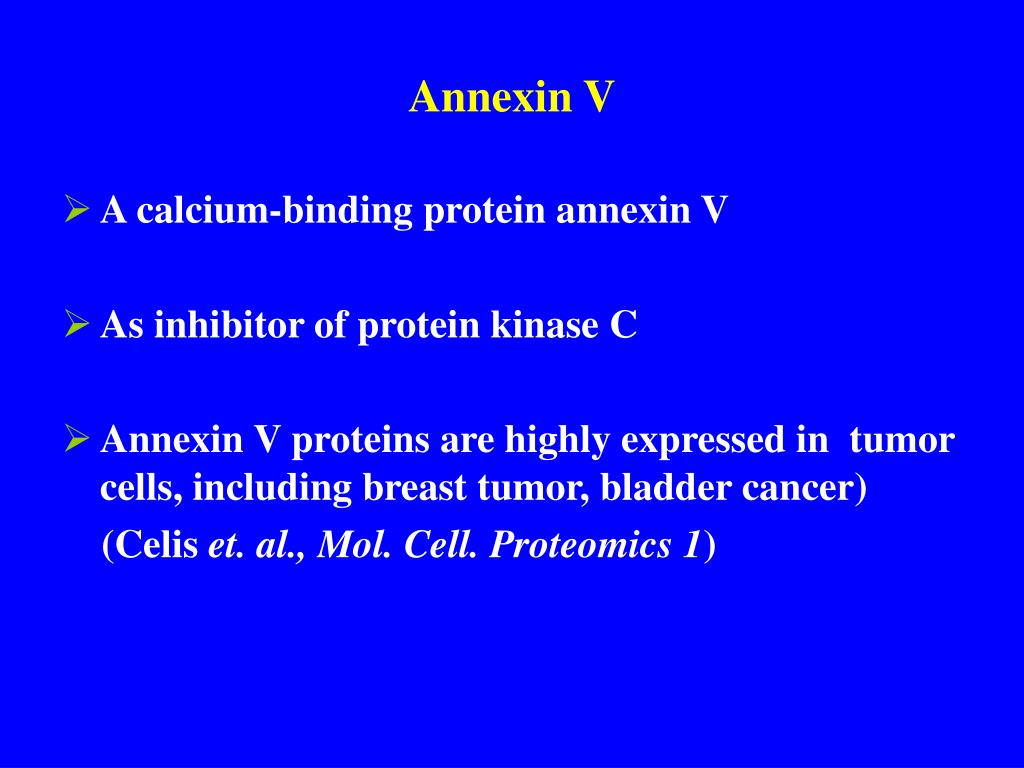

  30. Annexin V • A calcium-binding protein annexin V • As inhibitor of protein kinase C • Annexin V proteins are highly expressed in tumor cells, including breast tumor, bladder cancer) (Celis et. al., Mol. Cell. Proteomics 1)

  31. Rho-GDP dissociation inhibitor  • Regulate the Rho family proteins • Down-regulation of Rho-GDP dissociation inhibitor   induce the apotosis of lung cancer H157 cell (MacKeigan et. al., Cancer Res. 63 )
