  1. Relational Clustering for Entity Resolution Queries Indrajit Bhattacharya, Louis Licamele and Lise Getoor University of Maryland, College Park

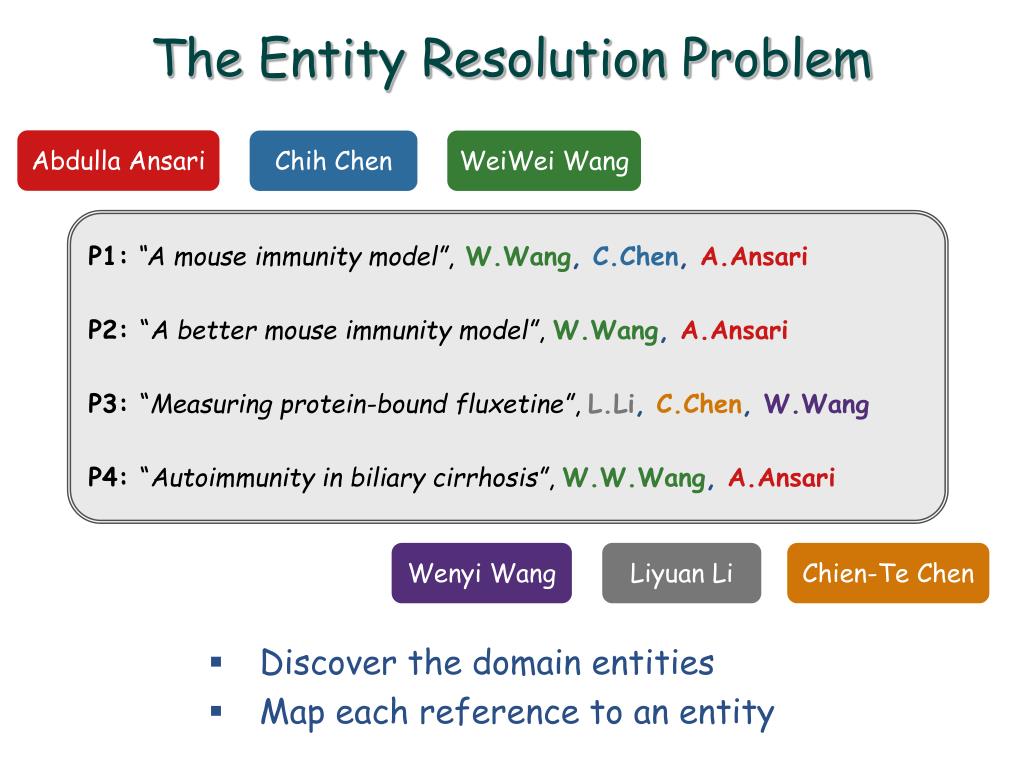

  2. The Entity Resolution Problem Abdulla Ansari Chih Chen WeiWei Wang P1:“A mouse immunity model”,W.Wang, C.Chen, A.Ansari P2: “A better mouse immunity model”,W.Wang, A.Ansari P3: “Measuring protein-boundfluxetine”,L.Li, C.Chen, W.Wang P4: “Autoimmunity in biliary cirrhosis”,W.W.Wang, A.Ansari Wenyi Wang Liyuan Li Chien-Te Chen • Discover the domain entities • Map each reference to an entity

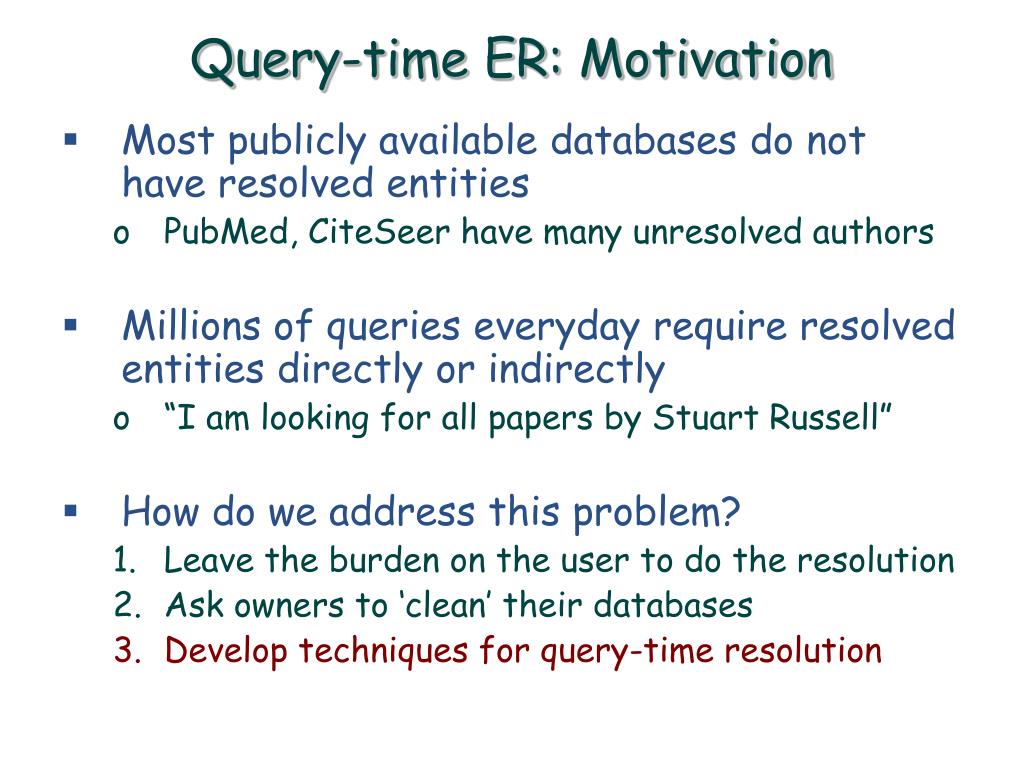

  3. Query-time ER: Motivation • Most publicly available databases do not have resolved entities • PubMed, CiteSeer have many unresolved authors • Millions of queries everyday require resolved entities directly or indirectly • “I am looking for all papers by Stuart Russell” • How do we address this problem? • Leave the burden on the user to do the resolution • Ask owners to ‘clean’ their databases • Develop techniques for query-time resolution

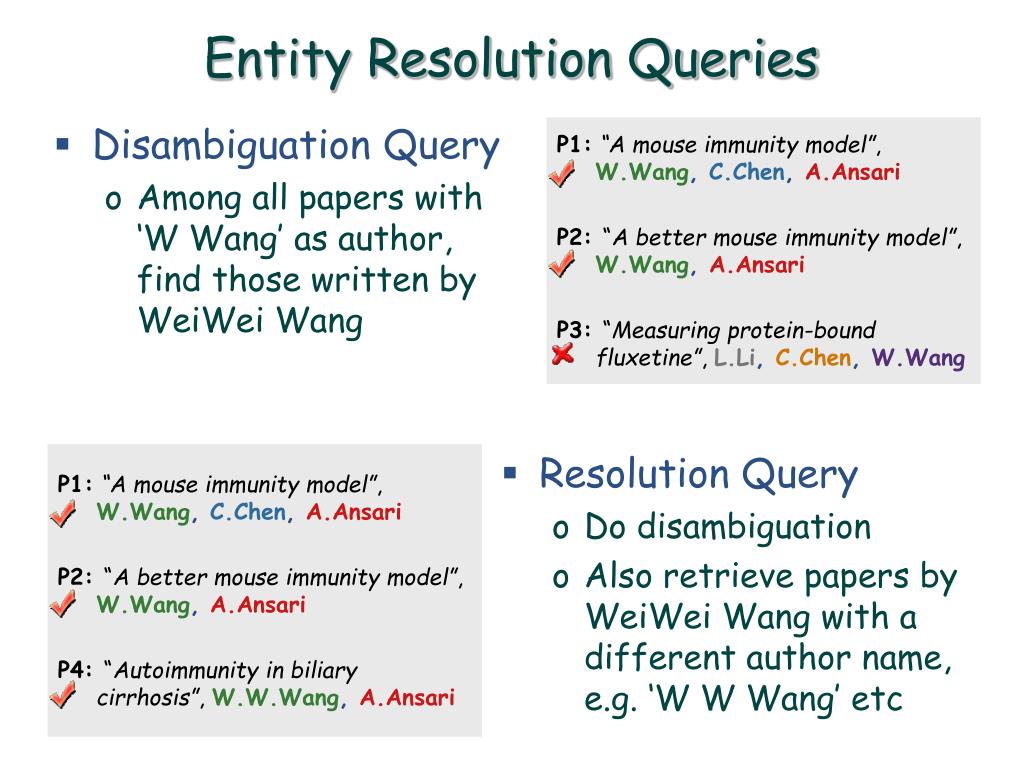

  4. Entity Resolution Queries • Disambiguation Query • Among all papers with ‘W Wang’ as author, find those written by WeiWei Wang P1:“A mouse immunity model”,W.Wang, C.Chen, A.Ansari P2: “A better mouse immunity model”,W.Wang, A.Ansari P3: “Measuring protein-boundfluxetine”,L.Li, C.Chen, W.Wang P1:“A mouse immunity model”,W.Wang, C.Chen, A.Ansari P2: “A better mouse immunity model”,W.Wang, A.Ansari P4: “Autoimmunity in biliary cirrhosis”,W.W.Wang, A.Ansari • Resolution Query • Do disambiguation • Also retrieve papers by WeiWei Wang with a different author name, e.g. ‘W W Wang’ etc

  5. Query-time ER using Relations • Simple approach for resolving queries • Use attributes • Quick but not accurate • Use best techniques available • Collective resolution using relationships • How can localize collective resolution? • Two-phase collective resolution for query • Extract minimal set of relevant records • Collective resolution on extracted records

  6. Cut-based Evaluation of Relational Clustering • Vertices embedded in attribute space • Additional (hyper)edges represent relationships C3 C3 C1 C1 C2 C2 C4 C4 • Good separation of attributes • Many cluster-cluster relationships • C1-C3, C1-C4, C2-C4 • Worse in terms of attributes • Fewer cluster-cluster relationships • C1-C3, C2-C4

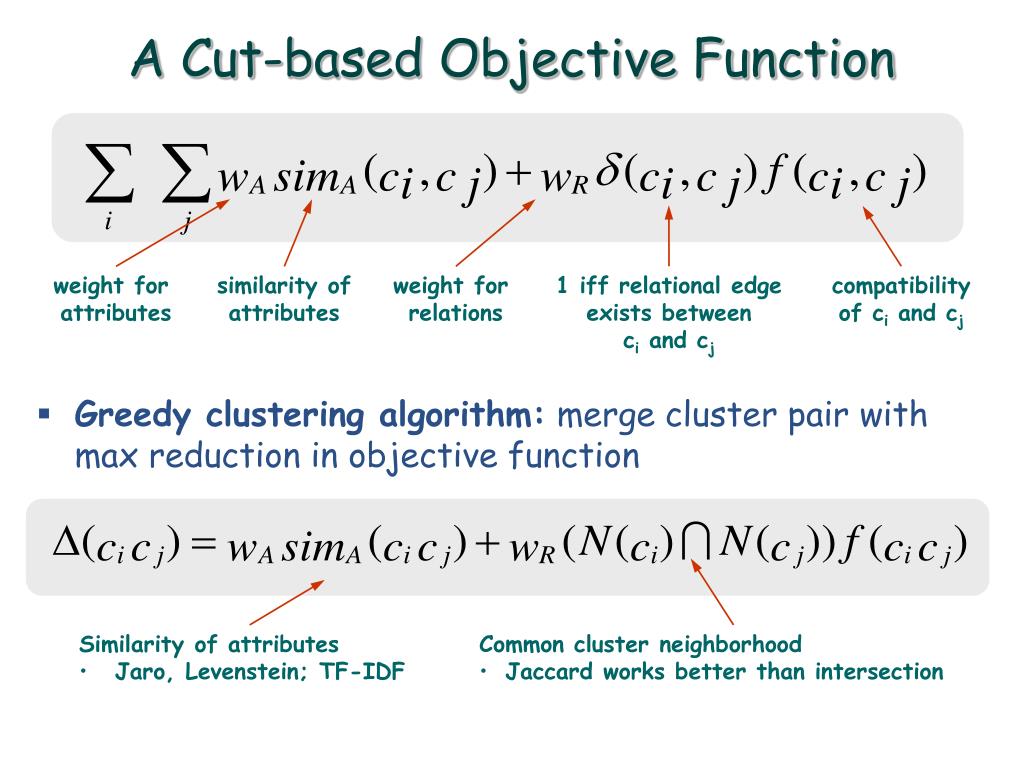

  7. A Cut-based Objective Function weight for attributes similarity of attributes weight for relations 1 iff relational edge exists between ci and cj compatibility of ci and cj • Greedy clustering algorithm: merge cluster pair with max reduction in objective function • Similarity of attributes • Jaro, Levenstein; TF-IDF • Common cluster neighborhood • Jaccard works better than intersection

  8. Extracting Relevant Records Name expansion Name expansion Hyper-edge expansion Query Level 0 Level 1 Level 2 P4: A Ansari P2: A Ansari P1: A Ansari P1: C Chen P3: C Chen P3: L Li P: A Ansari P: A Ansari P: C Chen P: C Chen P: L Li P: L Li W Wang P4: W W Wang P1: W Wang P2: W Wang P3: W Wang Start with query name or record Alternate between • Name expansion: For any relevant record, include other records with that name • Hyper-edge Expansion: For any relevant record, include other related records Terminate at some depth k

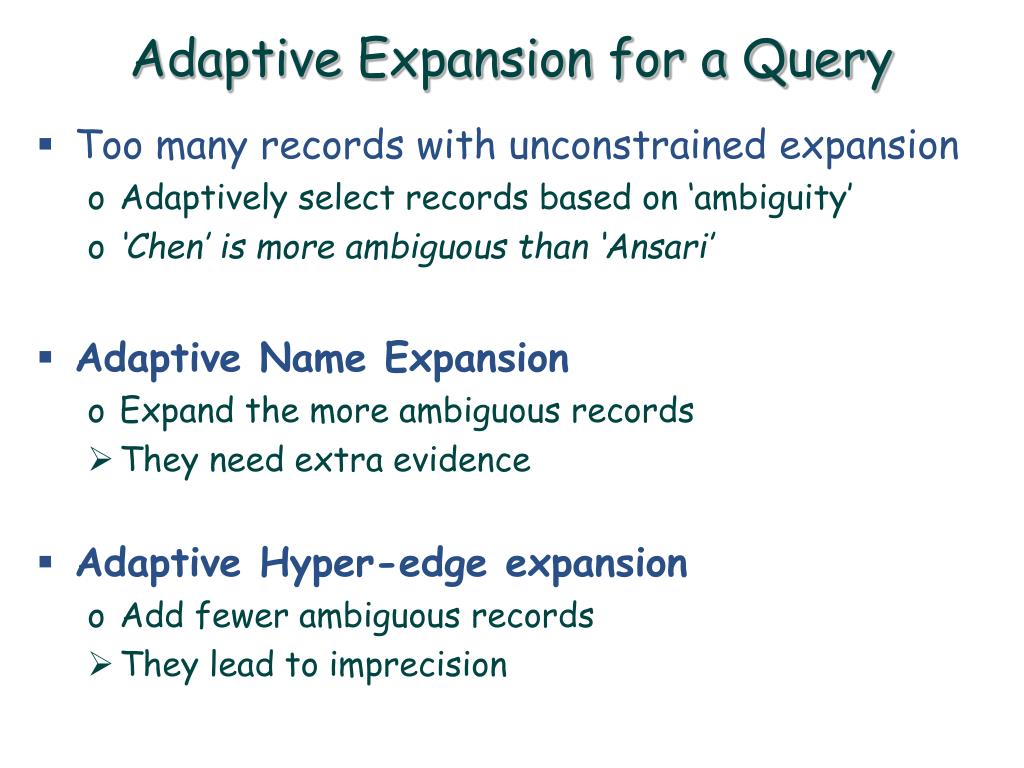

  9. Adaptive Expansion for a Query • Too many records with unconstrained expansion • Adaptively select records based on ‘ambiguity’ • ‘Chen’ is more ambiguous than ‘Ansari’ • Adaptive Name Expansion • Expand the more ambiguous records • They need extra evidence • Adaptive Hyper-edge expansion • Add fewer ambiguous records • They lead to imprecision

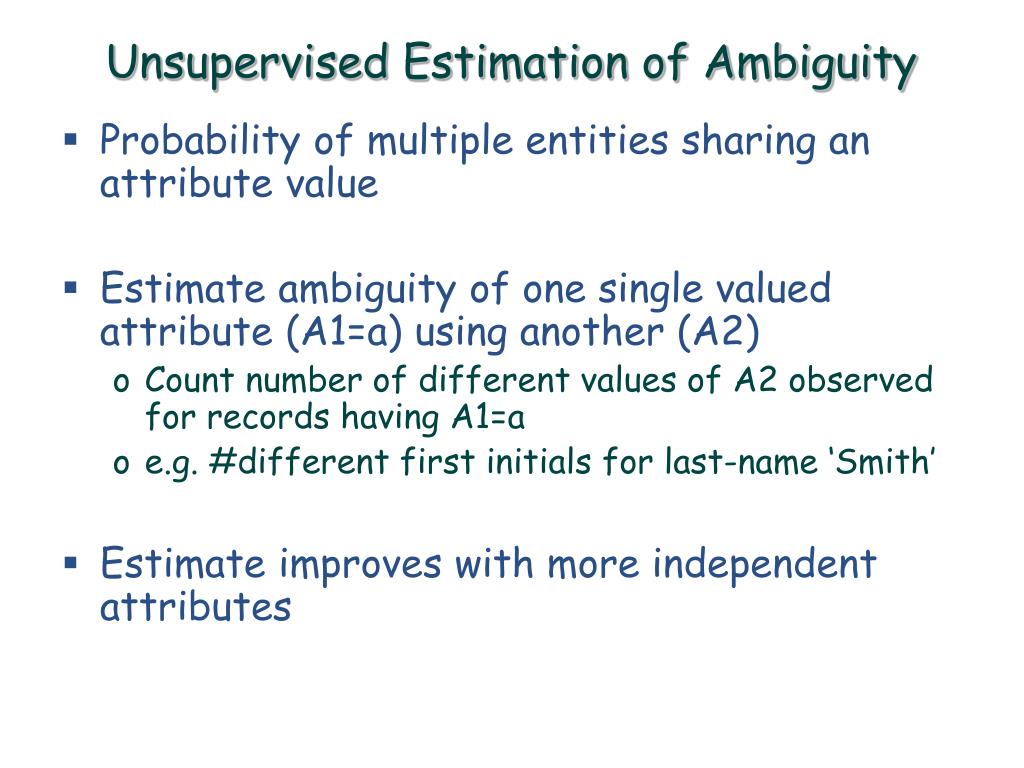

  10. Unsupervised Estimation of Ambiguity • Probability of multiple entities sharing an attribute value • Estimate ambiguity of one single valued attribute (A1=a) using another (A2) • Count number of different values of A2 observed for records having A1=a • e.g. #different first initials for last-name ‘Smith’ • Estimate improves with more independent attributes

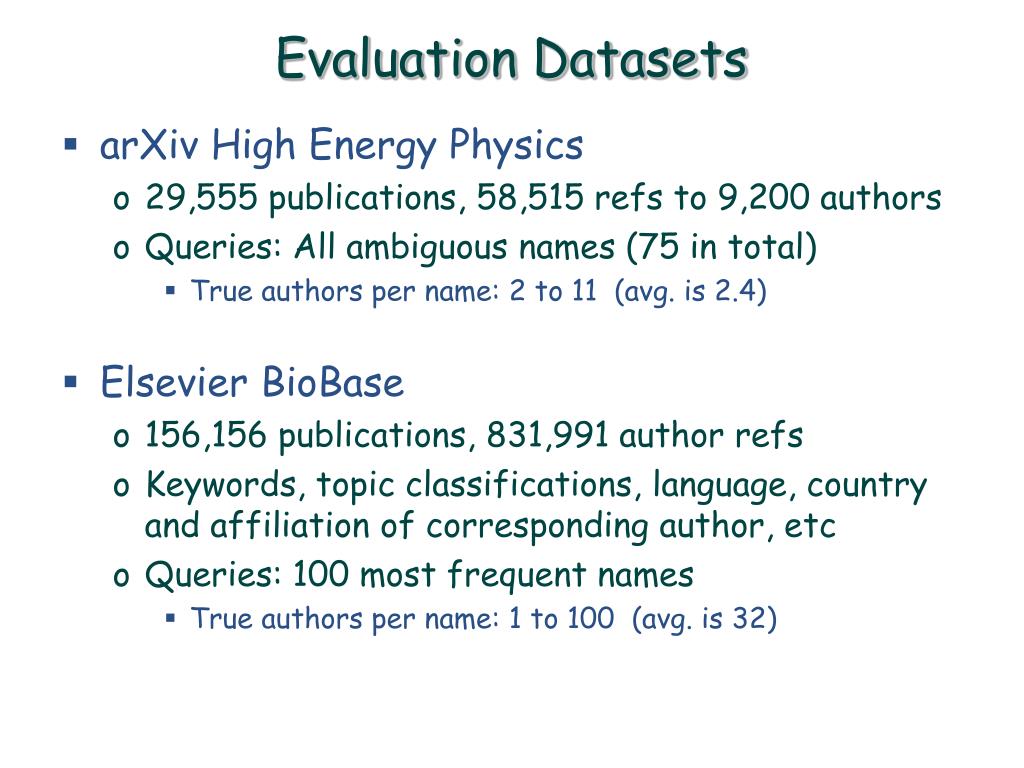

  11. Evaluation Datasets • arXiv High Energy Physics • 29,555 publications, 58,515 refs to 9,200 authors • Queries: All ambiguous names (75 in total) • True authors per name: 2 to 11 (avg. is 2.4) • Elsevier BioBase • 156,156 publications, 831,991 author refs • Keywords, topic classifications, language, country and affiliation of corresponding author, etc • Queries: 100 most frequent names • True authors per name: 1 to 100 (avg. is 32)

  12. Growth Rate of Relevant Records and Query Processing Time Number of relevant references grows rapidly with expansion depth RC-ER is fast but not good enough for query-time resolution

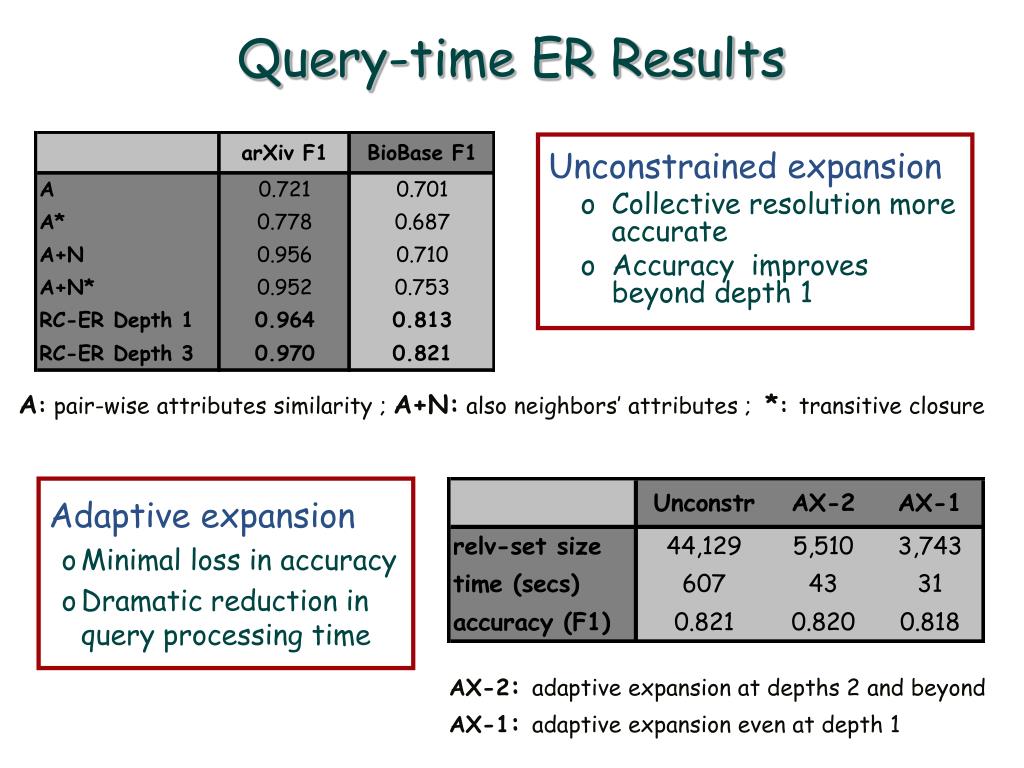

  13. Query-time ER Results Unconstrained expansion • Collective resolution more accurate • Accuracy improves beyond depth 1 A: pair-wise attributes similarity ; A+N: also neighbors’ attributes ; *: transitive closure Adaptive expansion • Minimal loss in accuracy • Dramatic reduction in query processing time AX-2: adaptive expansion at depths 2 and beyond AX-1: adaptive expansion even at depth 1

  14. Conclusions • Query-centric entity resolution • Cut-based evaluation of relational clustering • Adaptive selection of relevant references for a query • Resolution at query-time with minimal loss in accuracy Future Directions • Spectral algorithm for relational clustering • Stronger coupling between extraction and resolution • Localized resolution for incoming records

  15. References • "Query-Time Entity Resolution", Indrajit Bhattacharya, Louis Licamele and Lise Getoor, ACM SIGKDD, 2006 • "A Latent Dirichlet Model for Unsupervised Entity Resolution", Indrajit Bhattacharya and Lise Getoor, SIAM Data Mining, 2006 • "Entity Resolution in Graphs", Indrajit Bhattacharya and Lise Getoor, Chapter in Mining Graph Data, Lawrence B. Holder and Diane J. Cook, Editors, Wiley, 2006 (to appear). • "Relational Clustering for Multi-type Entity Resolution", Indrajit Bhattacharya and Lise Getoor, SIGKDD Workshop on Multi Relational Data Mining (MRDM), 2005
