  1. Project specifications • Division 1- general conditions • Division 2- sitework • Division 3- concrete • Division 4- masonry • Division 5- metals • Division 6- carpentry • Divisions 1-6 are frequently “self’perform”

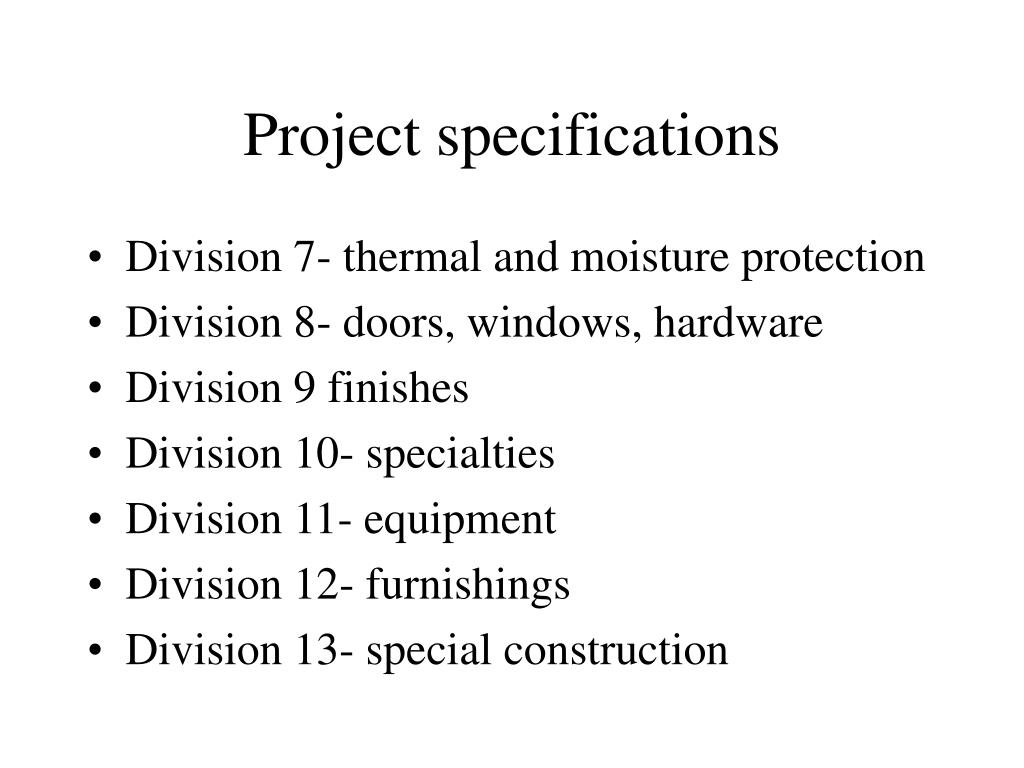

  2. Project specifications • Division 7- thermal and moisture protection • Division 8- doors, windows, hardware • Division 9 finishes • Division 10- specialties • Division 11- equipment • Division 12- furnishings • Division 13- special construction

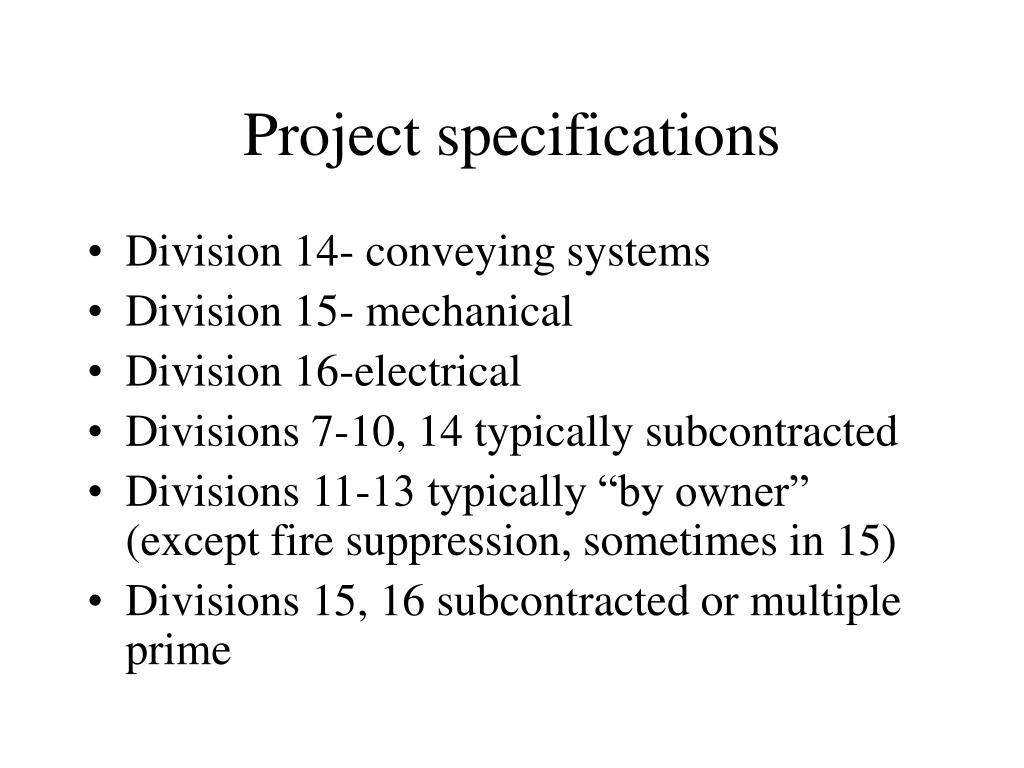

  3. Project specifications • Division 14- conveying systems • Division 15- mechanical • Division 16-electrical • Divisions 7-10, 14 typically subcontracted • Divisions 11-13 typically “by owner” (except fire suppression, sometimes in 15) • Divisions 15, 16 subcontracted or multiple prime

  4. Technical subsections • Section 0000 • 1.0 General- • 1.1 work included • 1.2 related work • 1.3 references (AISI, ASTM, AWS, UL, • 1.4 system description (tolerance) • 1.5 submittals (finish schedule, samples, O/M) • 1.6 quality assurance • 1.7 delivery storage protection • 1.8 warranties

  5. Technical subsections • 2.0 Products • 2.1 manufacturers • 2.2 materials (composition, thickness) • 2.3 accessories and associated materials • 2.4 fasteners • 2.5 fabrication (sizes, fit, process)

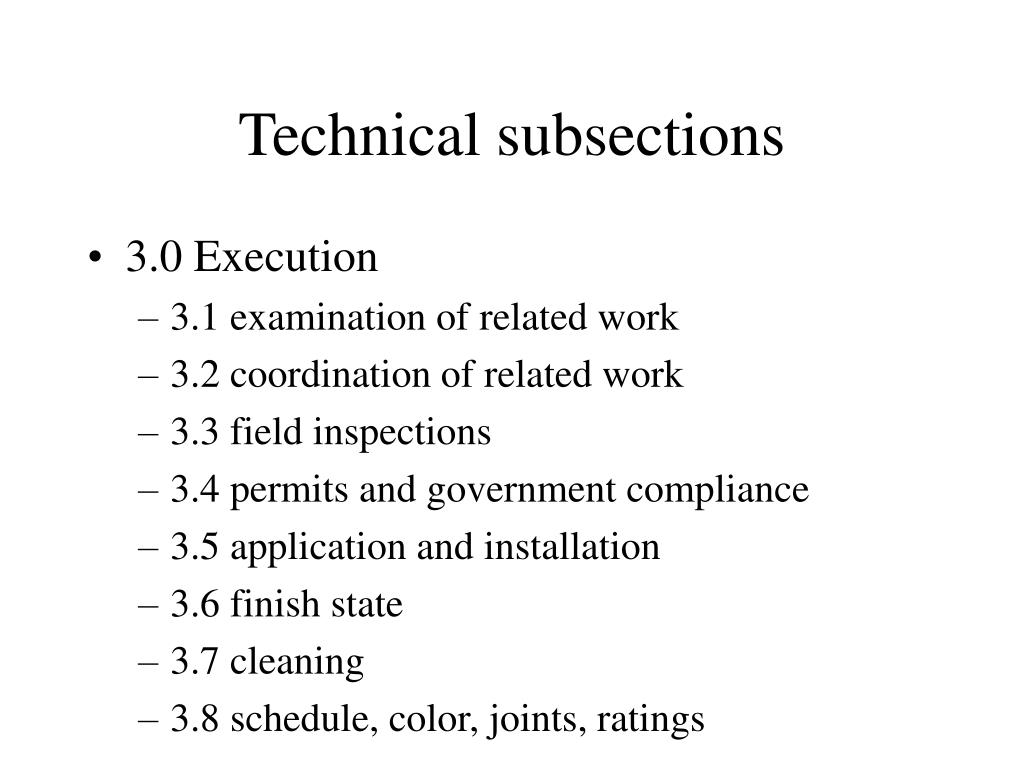

  6. Technical subsections • 3.0 Execution • 3.1 examination of related work • 3.2 coordination of related work • 3.3 field inspections • 3.4 permits and government compliance • 3.5 application and installation • 3.6 finish state • 3.7 cleaning • 3.8 schedule, color, joints, ratings

  7. Project specifications • Define the scope of work • Necessary for delineation of responsibility in subcontracts and purchase orders • Outlines related work and coordination • Need to review for overlap of responsibility • Need to review for failure to assign responsibility • Example at <constructionbidding.com>
