The EPA 7-Step DQO Process

DQO Training Course Day 3 Module 20. The EPA 7-Step DQO Process. Step 7 - Optimize Sample Design DQO Case Study. Presenter: Sebastian Tindall. 45 minutes. Step 7- Optimize Sample Design. Go back to Steps 1- 6 and revisit decisions. Optimal Sample Design. No. Yes.

Download Presentation

The EPA 7-Step DQO Process

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

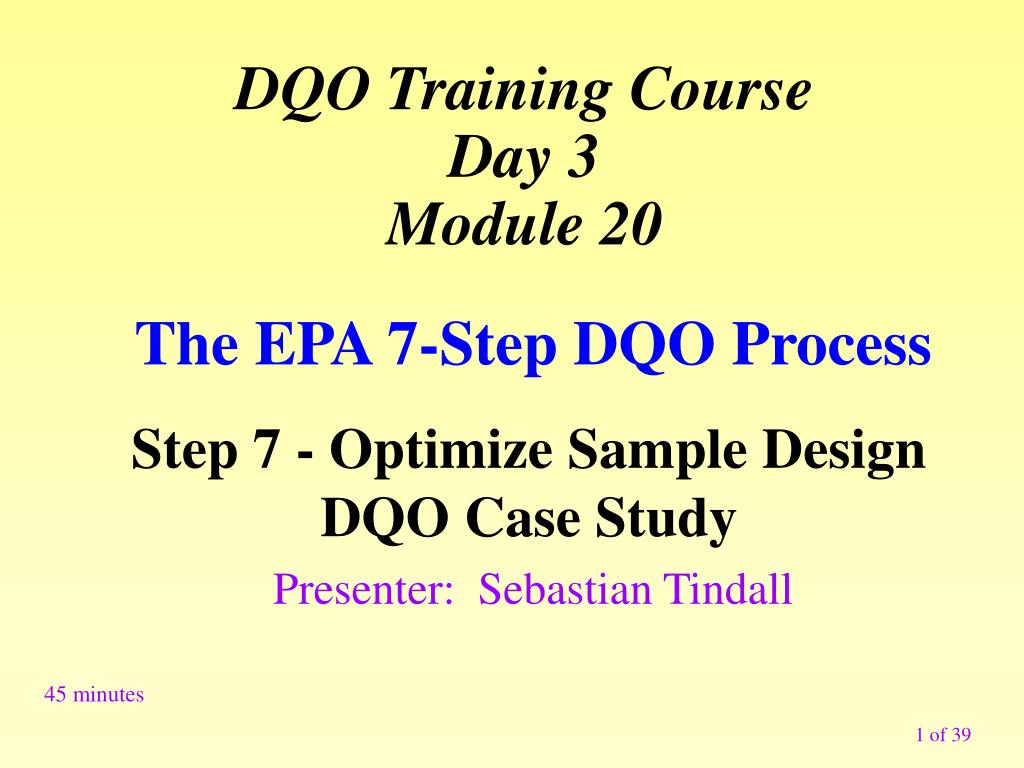

  1. DQO Training Course Day 3Module 20 The EPA 7-Step DQO Process Step 7 - Optimize Sample DesignDQO Case Study Presenter: Sebastian Tindall 45 minutes

  2. Step 7- Optimize Sample Design Go back to Steps 1- 6 and revisit decisions. Optimal Sample Design No Yes Information INActionsInformation OUT From Previous Step To Next Step Review DQO outputs from Steps 1-6 to be sure they are internally consistent Decision Error Tolerances Develop alternative sample designs For each design option, select needed mathematical expressions Gray Region Select the optimal sample size that satisfies the DQOs for each data collection design option Check if number of samples exceeds project resource constraints

  3. Terminal Objective To be able to use the output from the previous DQO Process steps to select sampling and analysis designs and understand design alternatives presented to you for a specific project

  4. Sampling Approaches • Sampling Approach 1 • Simple Random • Traditional fixed laboratory analyses • Sampling Approach 2 • Systematic Grid • Field analytical measurements • Computer simulations • Dynamic work plan

  5. Design Approaches Approach 1 Collect samples using Simple Random design. Use predominantly fixed traditional laboratory analyses and specify the method specific details at the beginning of DQO and do not change measurement objectives as more information is obtained

  6. Plan View Former Pad Location Buffer Zone 0 50 100 150 ft 0 15 30 46 m Runoff Zone Approach 1 Sample Design

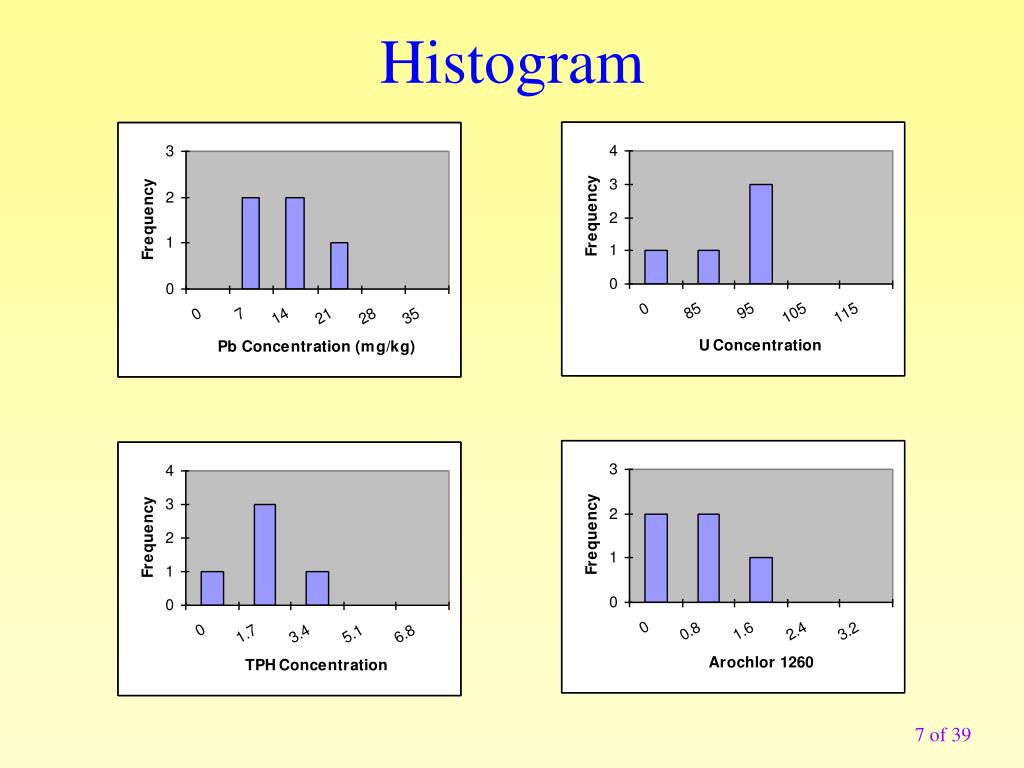

  7. Histogram

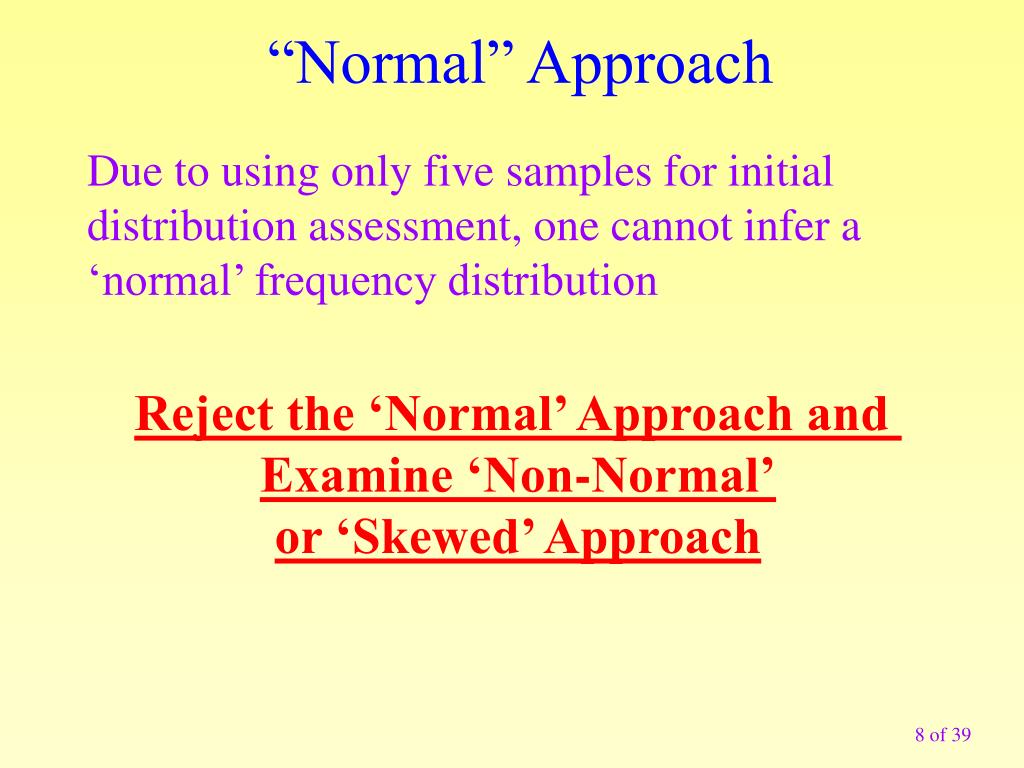

  8. “Normal” Approach Due to using only five samples for initial distribution assessment, one cannot infer a ‘normal’ frequency distribution Reject the ‘Normal’ Approach and Examine ‘Non-Normal’ or ‘Skewed’ Approach

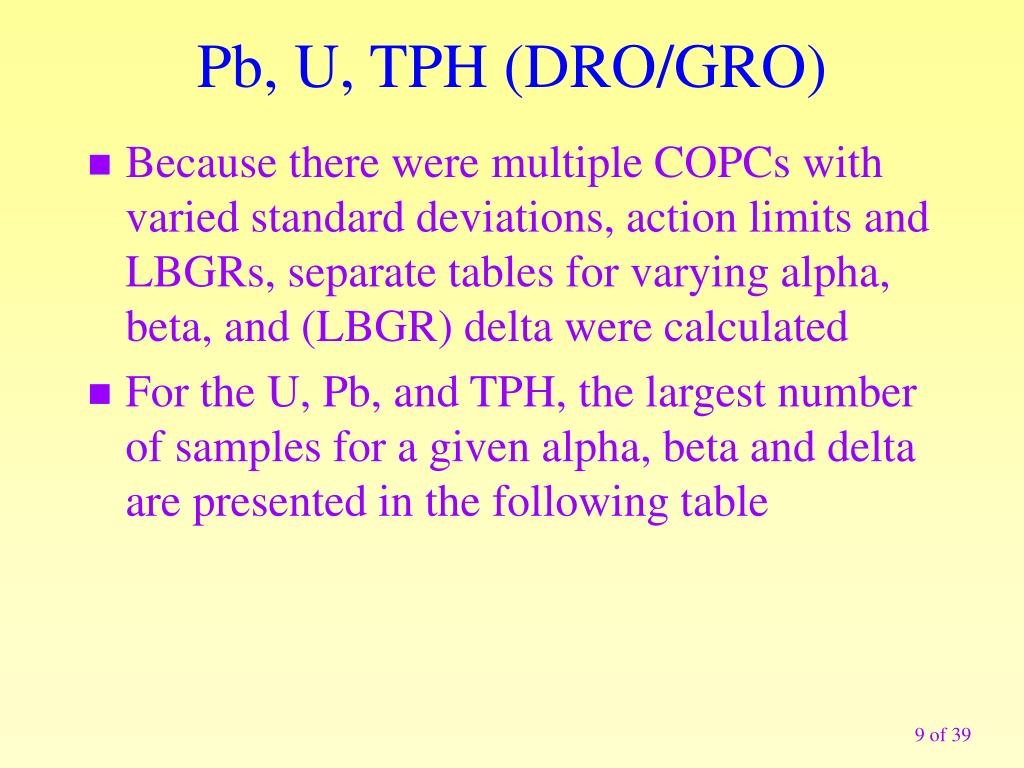

  9. Pb, U, TPH (DRO/GRO) • Because there were multiple COPCs with varied standard deviations, action limits and LBGRs, separate tables for varying alpha, beta, and (LBGR) delta were calculated • For the U, Pb, and TPH, the largest number of samples for a given alpha, beta and delta are presented in the following table

  10. Pb, U, TPH Based on Non-Parametric Test

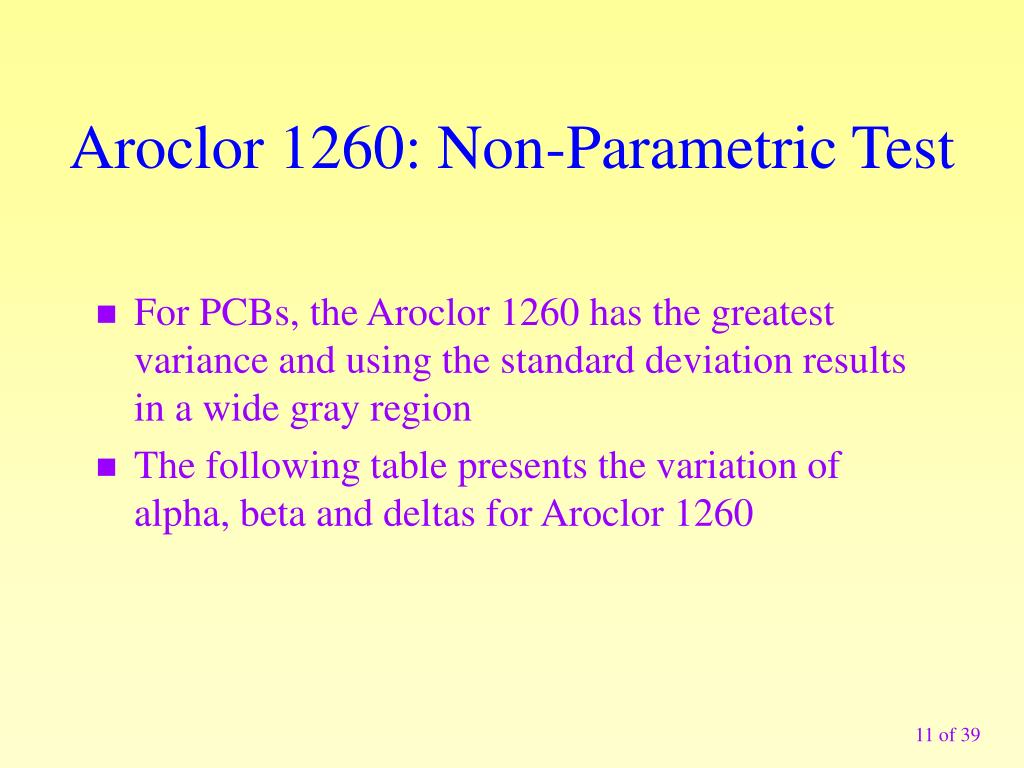

  11. Aroclor 1260: Non-Parametric Test • For PCBs, the Aroclor 1260 has the greatest variance and using the standard deviation results in a wide gray region • The following table presents the variation of alpha, beta and deltas for Aroclor 1260

  12. Aroclor 1260: Non-Parametric Test

  13. Approach 1 Sampling Design (cont.) Surface Soils S&A Costs

  14. Approach 1 Sampling Design (cont) Sub-surface Soils S&A Costs

  15. Approach 1 Sampling Design (cont.) Surface Soils

  16. Approach 1 Sampling Design (cont.) Sub-surface Soils

  17. Approach 1 Based Sampling Design • Design for Pb, U, TPH • Alpha = 0.05; Beta = 0.2; Delta = total error • The decision makers agreed on collection of 9 surface samples for Pb, U and TPH (GRO & DRO) from each of the two surface strata, for a total of 18 samples using a stratified random design • For the sub-surface, nine borings/probes will be collected from each of the two subsurface stratum at random locations, collected at a random depth down to 10 feet, to assess migration through the vadose zone, for a total of 18 samples • Design for PCBs • Alpha = 0.05; Beta = 0.20; Delta = 0.50 (50% of the AL) • The decision makers agreed on collection of 24 surface samples from each of the two surface strata; total of 48 samples using a stratified random design • For the sub-surface, 24 borings/probes will be collected from each of the two subsurface stratum at random locations, collected at a random depth down to 10 feet for a total of 48 samples (2 X 24)

  18. Plan View Former Pad Location Buffer Zone 0 50 100 150 ft 0 15 30 46 m Runoff Zone Approach 1 Sample Locations(Surface Strata)

  19. Approach 1 Sampling Design (cont.)

  20. Remediation Costs* *Does not include layback area

  21. Approach 1 Based Sampling Design • Compare Approach 1 costs versus remediation costs • Approach 1 S&A costs • $11,700 (Pb, U, TPH) + $21,600 (PCBs) = $33,300 • Remediation costs • Cost to remediate surface soil under footprint of pad and buffer area: $204,200 • Cost to remediate subsurface soil under footprint of pad and buffer area: $3,881,400

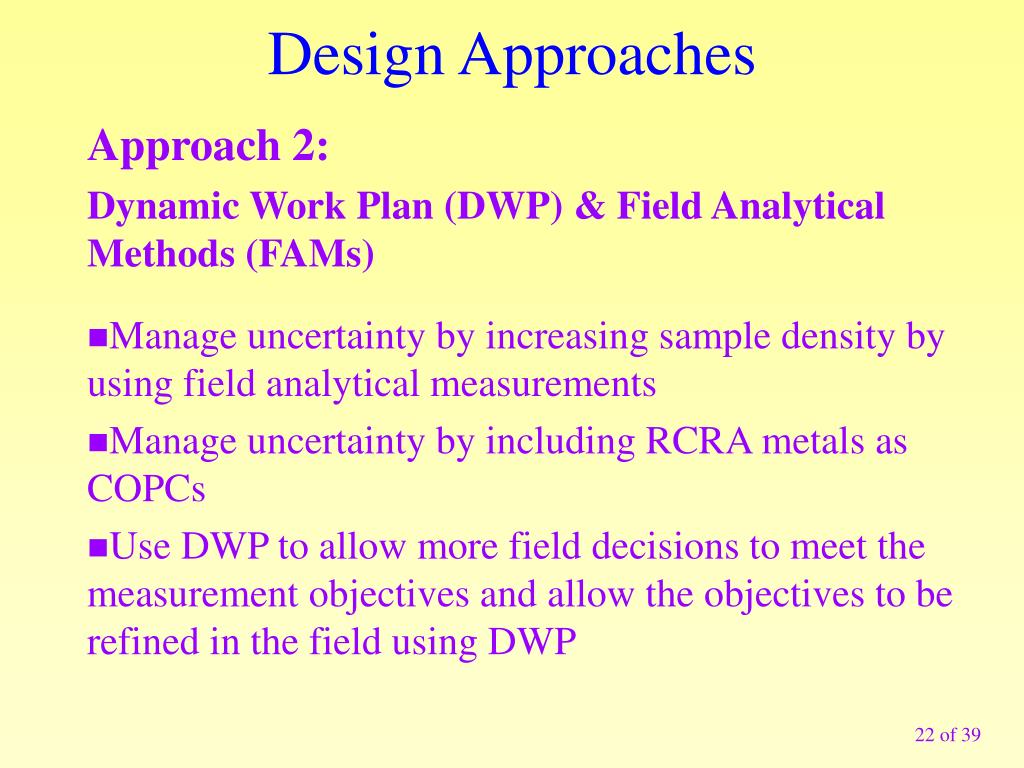

  22. Design Approaches Approach 2: Dynamic Work Plan (DWP) & Field Analytical Methods (FAMs) • Manage uncertainty by increasing sample density by using field analytical measurements • Manage uncertainty by including RCRA metals as COPCs • Use DWP to allow more field decisions to meet the measurement objectives and allow the objectives to be refined in the field using DWP

  23. Approach 2 Sampling Design • Phase 1: Pb, U, TPH, PCBs • Perform field analysis of the four strata on-site using XRF (RCRA metals & U), on-site GC (TPH), and Immunoassay (PCBs) methods. Take into account the chance of false positives at the low detection levels • This will produce a worse-case frequency distributions and variance for each COPC that will be used to select the proper statistical method and then calculate the number of confirmatory samples for laboratory analysis for the surface and below grade strata

  24. Approach 2 Sampling Design (cont.) • Phase 1: Metals, TPH, PCBs • Provide detailed SOPs for performance of FAMs: XRF, GC, & Immunoassay analysis • Divide both surface strata into triangular grids • Use systematic sampling, w/random start (RS), to locate sample points; sample in center of each grid • Pad & Run-off zone • CSM expects contamination more likely here • 10 ft equilateral triangle: 43.35 ft2 • Pad + Run-off zone = 12,272 ft2 • 283 sample points • Buffer area: • Also 283 sample points • CSM expects contamination less likely here • Thus, grid triangle has larger area

  25. Approach 2 Sampling Design (cont.) • Phase 1: Pb, U, TPH, PCBs • Sub-surface strata: Pad & Run-off zone • Use Direct Push Technology (DPT) to collect • Push at all surface sample points > ALs • Minimum sample locations: 40 (+ 10 >ALs) = ~50 • Collect sub-surface samples at 3-7-10 feet • 50 X 3 = 150 sub-surface samples in this strata • Use systematic sampling, w/random start (RS), to locate sample points • Buffer area • CSM expects contamination less likely here • Thus, fewer sample points • Same >ALs rationale as above • 50 X 3 = 150 sub-surface samples in Buffer area • Use systematic sampling, w/RS, to locate sample points

  26. N Stratified Systematic Grid with Random Start(Surface Strata) Runoff Zone (Stratum 1) Footprint of Concrete Pad (Stratum 1) Buffer Zone (Stratum 2) Not to scale Triangles will be adjusted according to Step 7 design

  27. Approach 2 Sampling Design (cont.) • Phase 2: Pb, U, TPH, PCBs • Evaluate the FAM results, calculate variance and construct FDs for each COPC • Using Monte Carlo method, sample the worst case distribution and evaluate the alpha, beta and delta values and resulting n based on the XRF, on-site GC, and Immunoassay data and select a value (worst case) for n to confirm the FAM data, using traditional laboratory analysis for each of the four strata • For this Case Study, we will assume that number came out to be 9 per strata or 36 confirmatory lab samples

  28. FAM ProcedureSW-846, Draft Update IVAMethod 6200 Field portable x-ray fluorescence spectrometry for the determination of elemental concentrations in soil and sediment

  29. FAM ProcedureSW-846, Draft Update IIIMethod 4020 Screening for polychlorinated biphenyls by immunoassay

  30. FAM Procedure for GROSW-846, Draft Update IIIPreparation Method 5030 or 5035(purge and trap methods)Followed by Analysis Method 8015 B Non-halogenated organics using GC/FID

  31. FAM Procedure for DROSW-846, Draft Update III One of Following Extraction Methods: • 3540 (soxhlet), • 3541(auto-soxhlet), • 3550 (ultrasonic), or • 3560 (super critical fluid) Followed by Analysis Method 8015 B: • Non-halogenated organics using GC/FID

  32. Approach 2 Sampling Design (cont.)Surface Soils SC&SA Costs

  33. Approach 2 Sampling Design (cont)Sub-surface Soils SC&SA Costs

  34. Approach 2 Sampling Design (cont.)

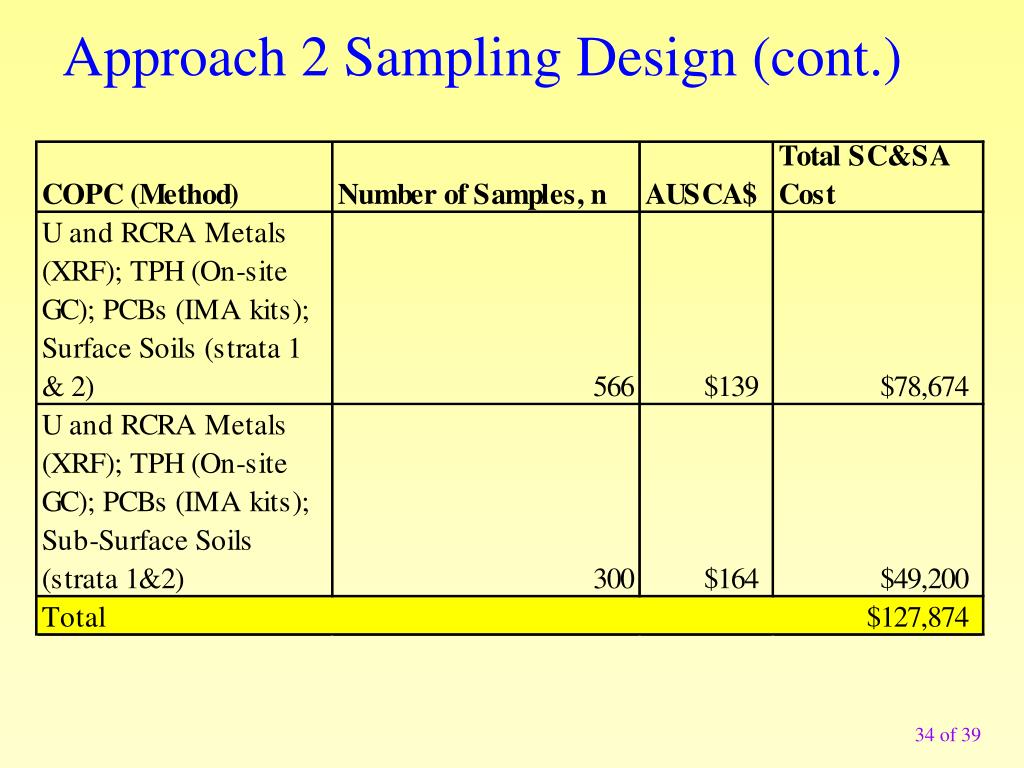

  35. Approach 2 Sampling Design (cont.)

  36. Approach 2 Sampling Design (cont.) • Evaluate costs of Approach 2 vs. remediation costs • Sampling and analysis (S&A) costs $143,624 • Original budget for S&A $45,000 • Remediation cost • Cost to remediate surface soil under footprint of pad and buffer area: $204,200 • Cost to remediate subsurface soil under footprint of pad and buffer area: $3,881,400

  37. Approach 2 Sampling Design (cont.) • Remediation Costs: • Surface - $204,200 • Sub-surface - $3,881,400

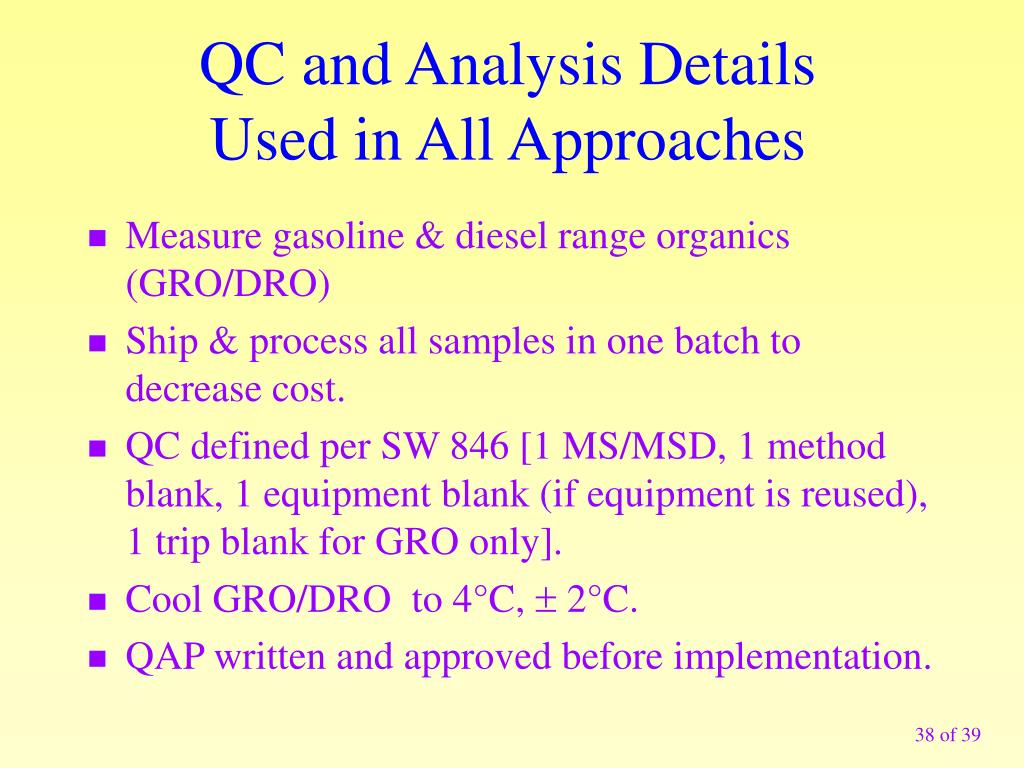

  38. QC and Analysis DetailsUsed in All Approaches • Measure gasoline & diesel range organics (GRO/DRO) • Ship & process all samples in one batch to decrease cost. • QC defined per SW 846 [1 MS/MSD, 1 method blank, 1 equipment blank (if equipment is reused), 1 trip blank for GRO only]. • Cool GRO/DRO to 4°C,  2°C. • QAP written and approved before implementation.

  39. End of Module 20 Thank you Questions?
