  1. 3-D virtual worlds for broadcast televisionIST project MADISON Thierry Keutgen Senior Application Engineer DELTATEC t.keutgen@deltatec.be www.deltatec.be

  2. Television ? Internet ?

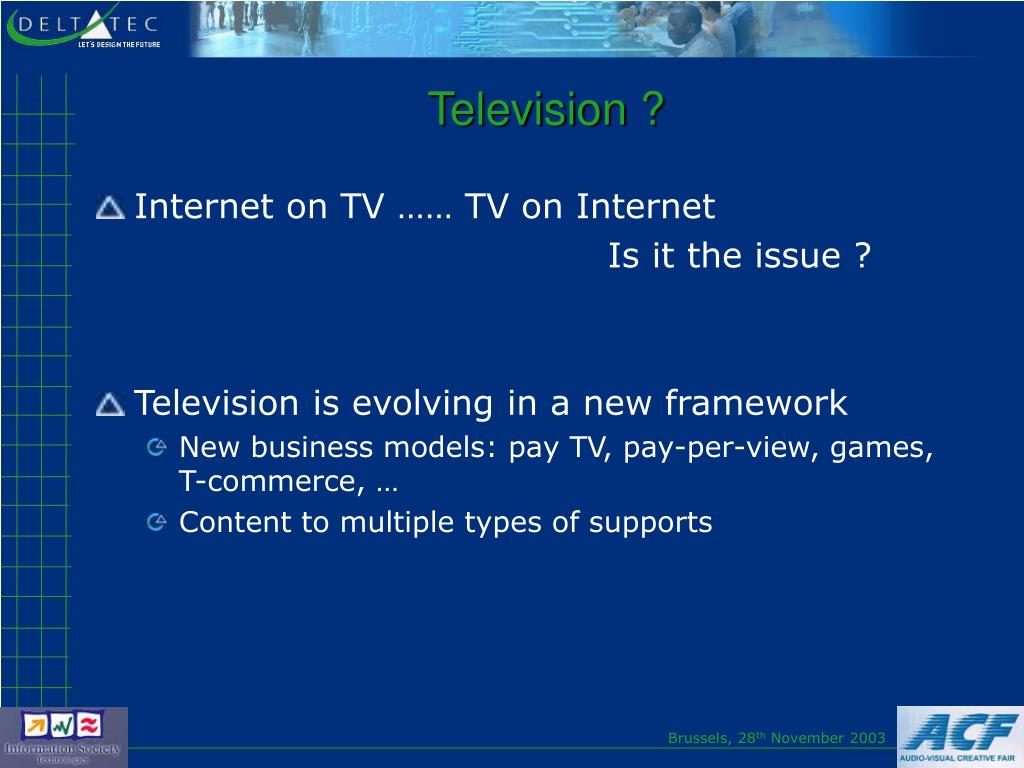

  3. Television ? • Internet on TV …… TV on Internet Is it the issue ? • Television is evolving in a new framework • New business models: pay TV, pay-per-view, games,T-commerce, … • Content to multiple types of supports

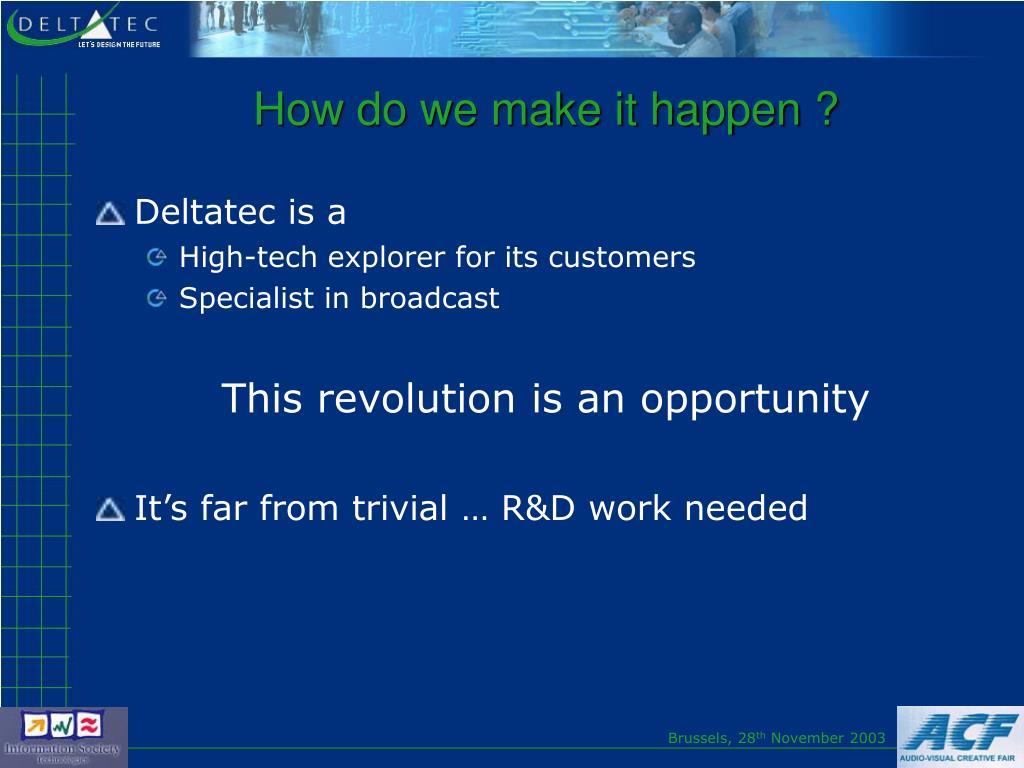

  4. How do we make it happen ? • Deltatec is a • High-tech explorer for its customers • Specialist in broadcast This revolution is an opportunity • It’s far from trivial … R&D work needed

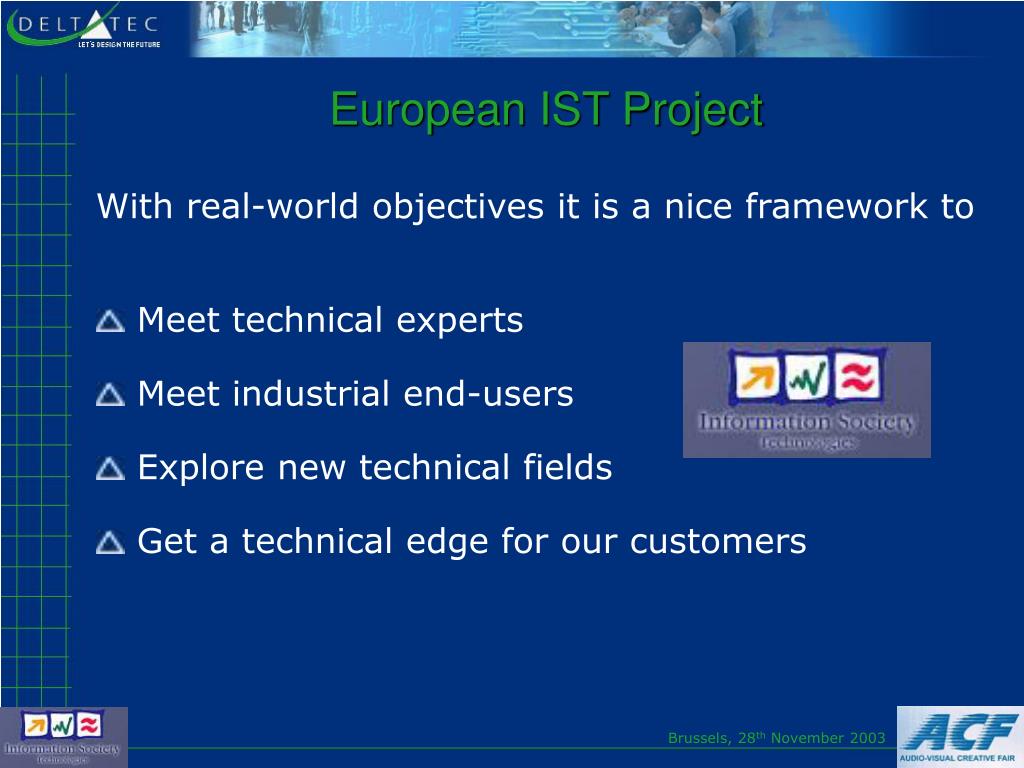

  5. European IST Project With real-world objectives it is a nice framework to • Meet technical experts • Meet industrial end-users • Explore new technical fields • Get a technical edge for our customers

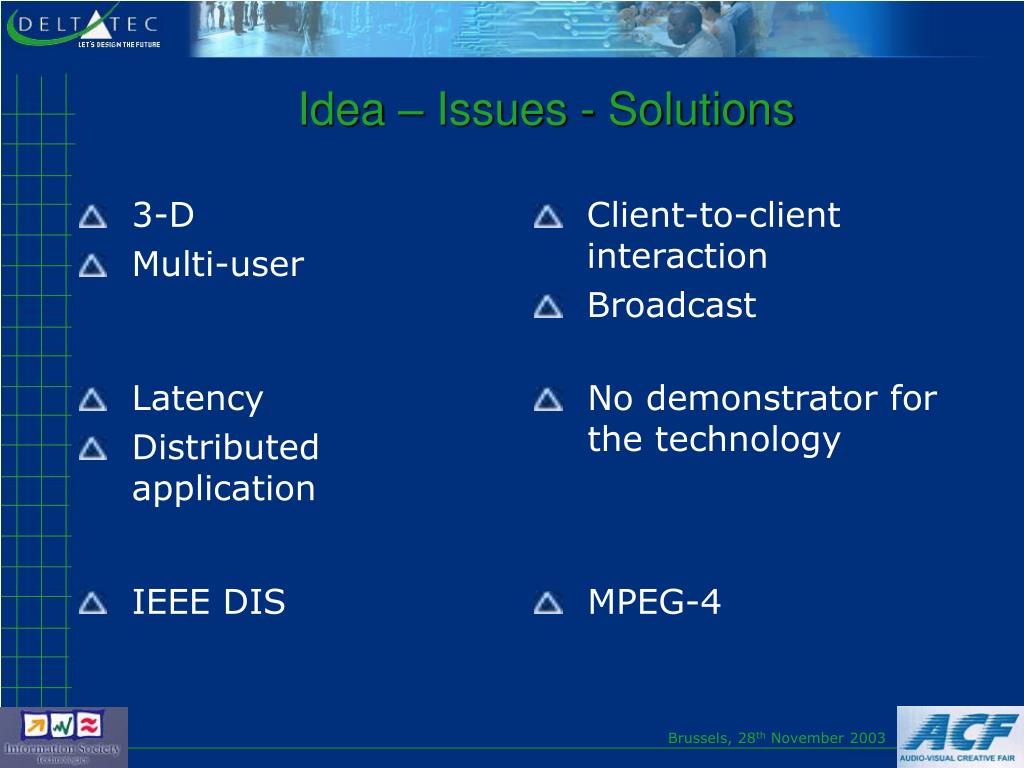

  6. Idea – Issues - Solutions

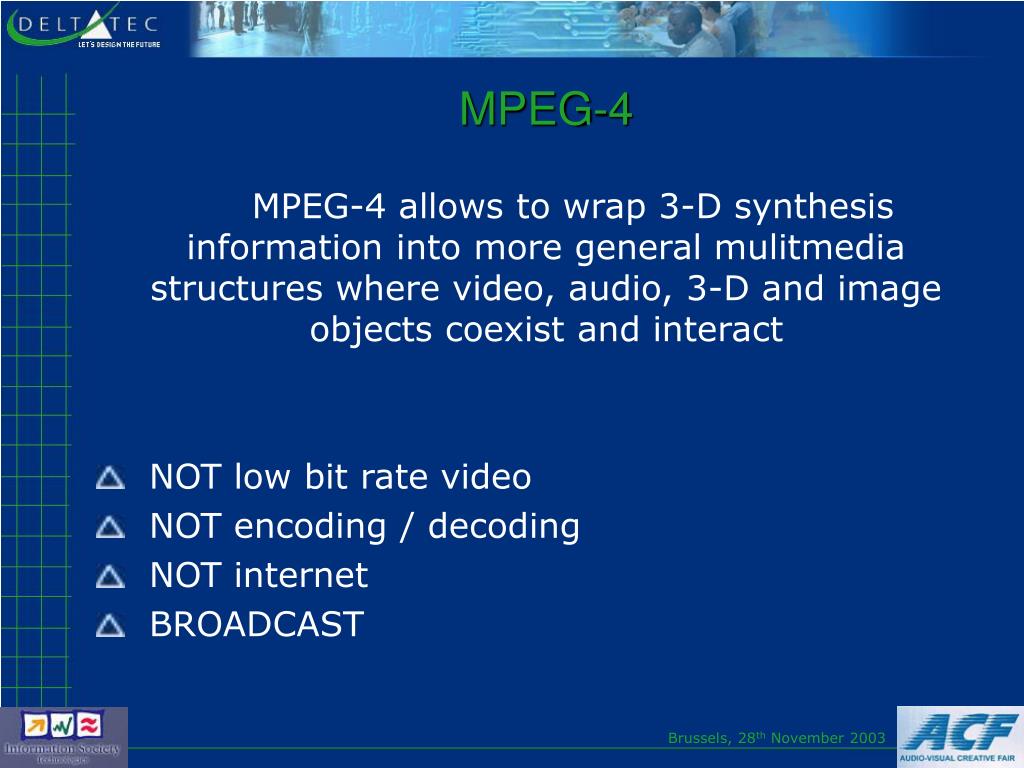

  7. MPEG-4 MPEG-4 allows to wrap 3-D synthesis information into more general mulitmedia structures where video, audio, 3-D and image objects coexist and interact • NOT low bit rate video • NOT encoding / decoding • NOT internet • BROADCAST

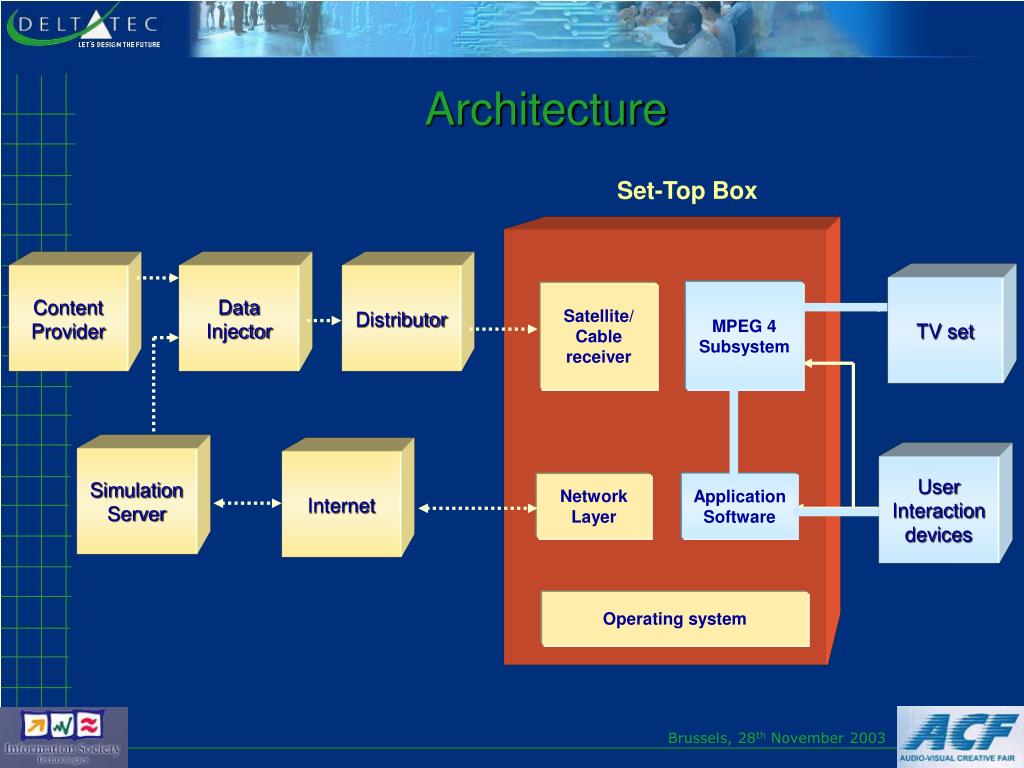

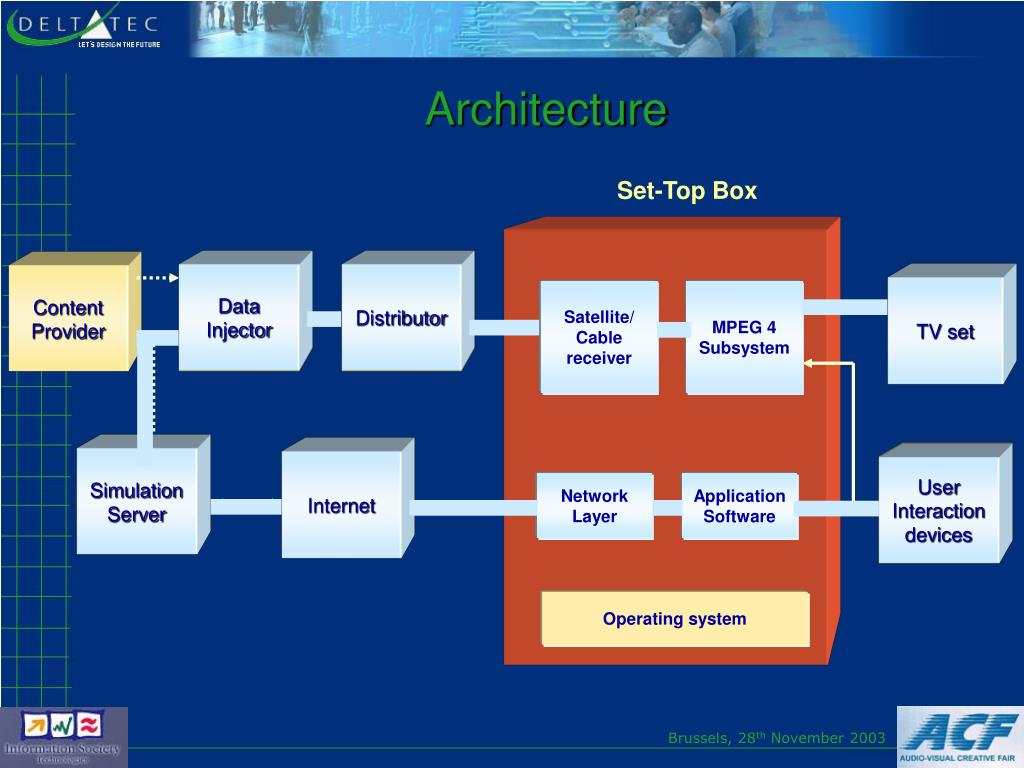

  8. Set-Top Box TV set Satellite/ Cable receiver MPEG 4 Subsystem User Interaction devices Network Layer Application Software Operating system Architecture Data Injector Content Provider Distributor Simulation Server Internet

  9. Architecture Set-Top Box Data Injector Content Provider Distributor TV set TV set Satellite/ Cable receiver MPEG 4 Subsystem MPEG 4 Subsystem Simulation Server Internet User Interaction devices User Interaction devices Network Layer Application Software Application Software Operating system

  10. Data Injector Distributor Satellite/ Cable receiver TV set TV set MPEG 4 Subsystem MPEG 4 Subsystem Simulation Server Internet User Interaction devices Network Layer Application Software Architecture Set-Top Box Data Injector Content Provider Distributor Satellite/ Cable receiver Simulation Server Internet User Interaction devices Network Layer Application Software Operating system

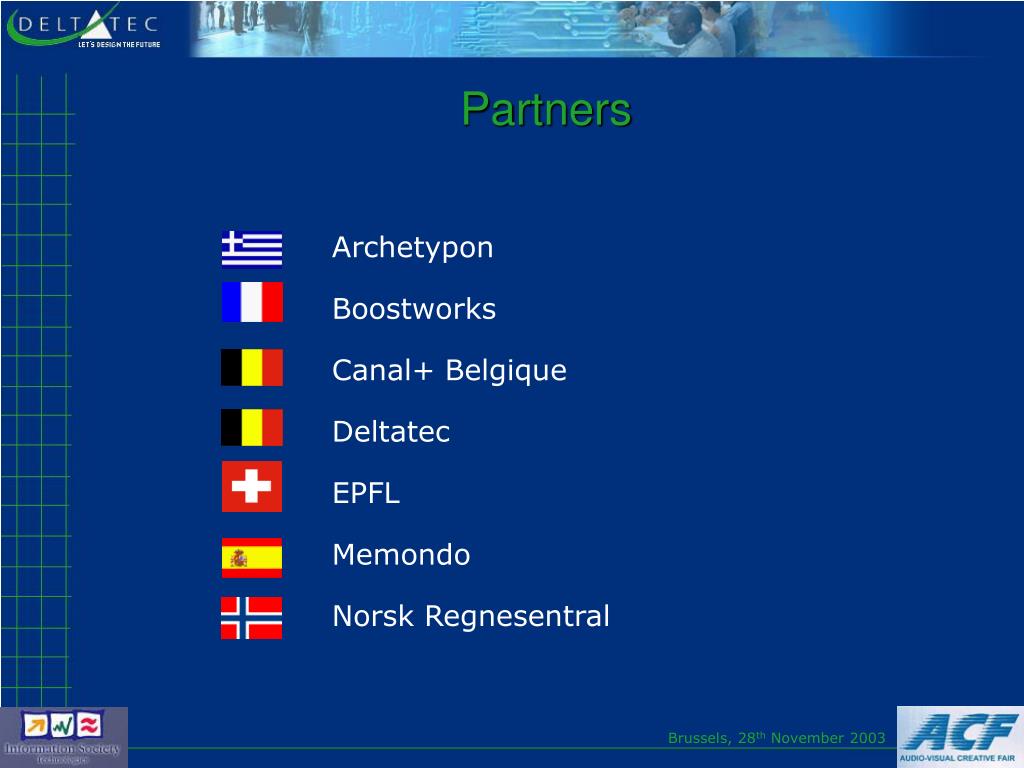

  11. Partners Archetypon Boostworks Canal+ Belgique Deltatec EPFL Memondo Norsk Regnesentral

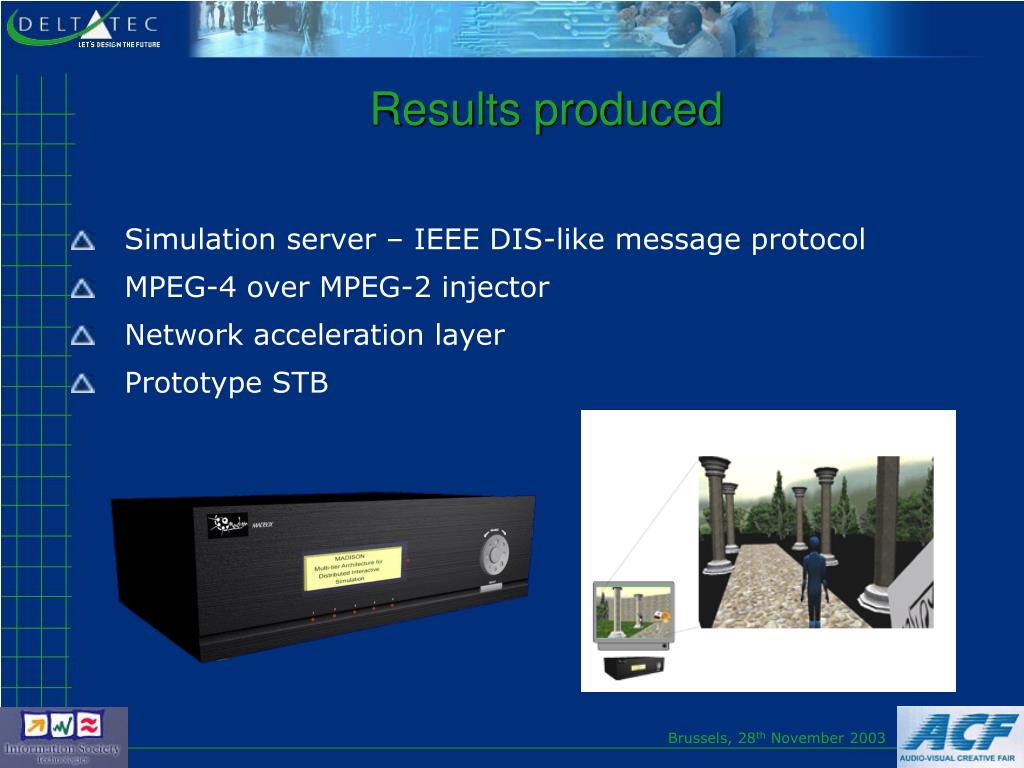

  12. Results produced • Simulation server – IEEE DIS-like message protocol • MPEG-4 over MPEG-2 injector • Network acceleration layer • Prototype STB

  13. Channel selection

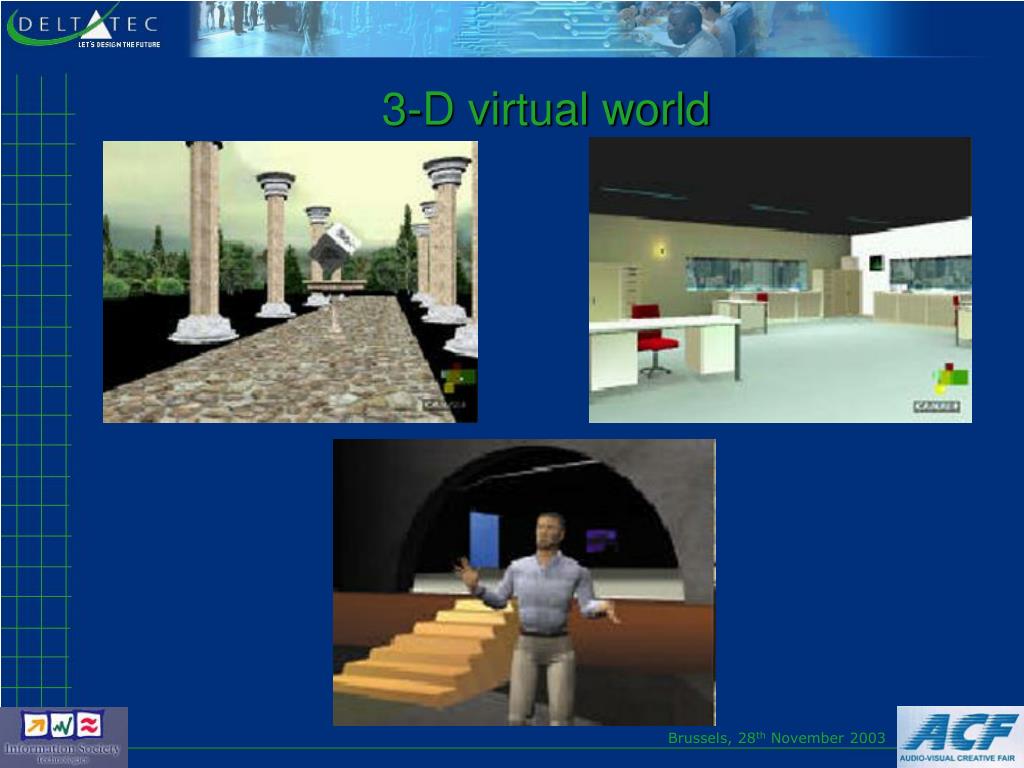

  14. 3-D virtual world

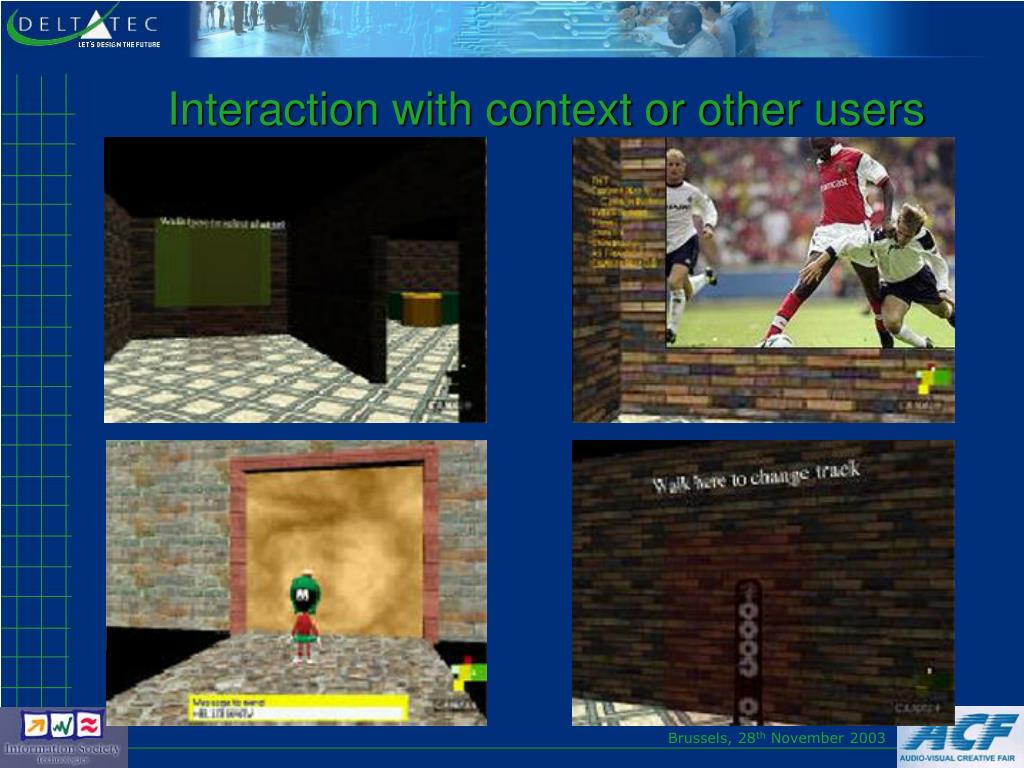

  15. Interaction with context or other users

  16. Set-Top Box TV set Satellite/ Cable receiver MPEG 4 Subsystem Data Injector Content Provider Distributor User Interaction devices Network Layer Application Software Simulation Server Internet Operating system Data Injector Data Injector

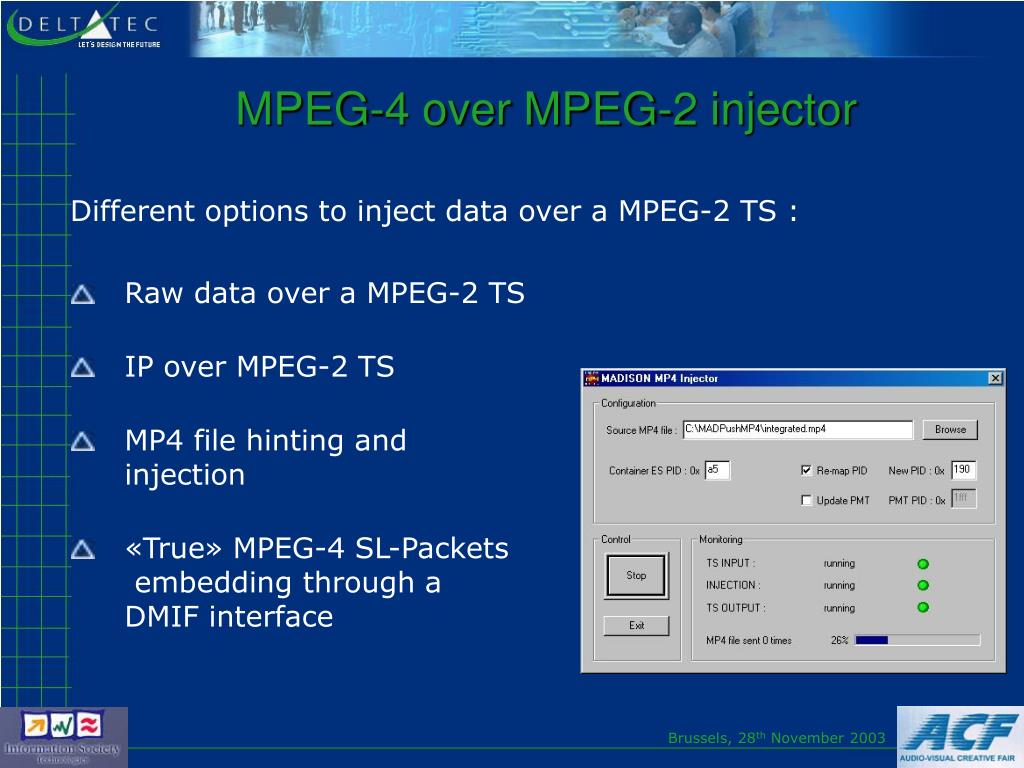

  17. MPEG-4 over MPEG-2 injector Different options to inject data over a MPEG-2 TS : • Raw data over a MPEG-2 TS • IP over MPEG-2 TS • MP4 file hinting and injection • «True» MPEG-4 SL-Packets embedding through a DMIF interface

  18. MPEG-4 over MPEG-2 injector • Based on a PCI board with: • 2 DVB ASI transmitters and 2 receivers • Reconfigurable I/O controller to process MPEG-2 TS • Applications: • PID filtering and TS processing • DVB MPEG-2 video servers • Interactive Television (iTV) • IP data insertion/Data broadcasting • Video over IP (VoIP) • Video-on-Demand (VoD)

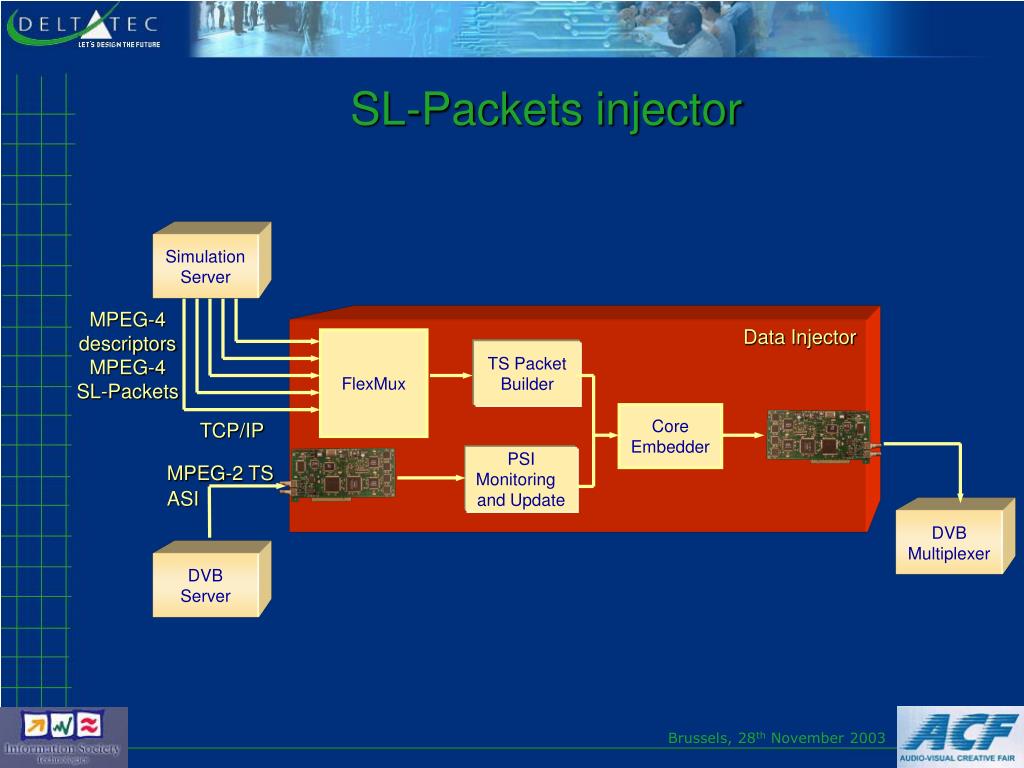

  19. Simulation Server MPEG-4descriptors MPEG-4 SL-Packets FlexMux Core Embedder TCP/IP MPEG-2 TS ASI DVB Server SL-Packets injector Data Injector TS Packet Builder PSI Monitoring and Update DVB Multiplexer

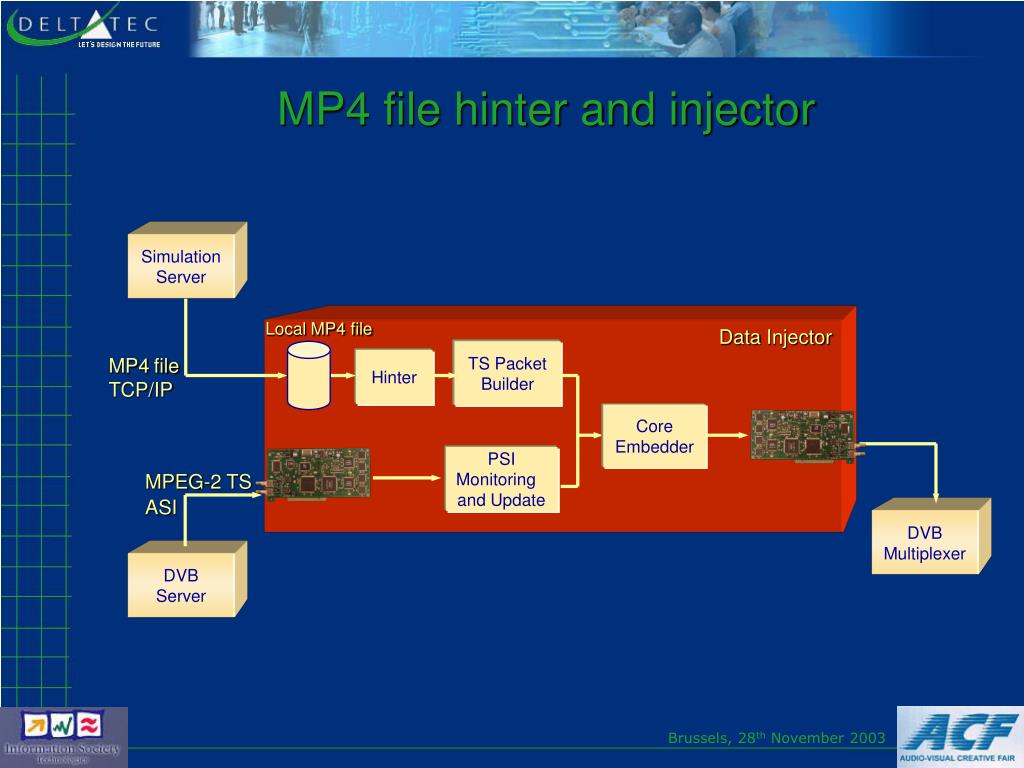

  20. Local MP4 file MP4file TCP/IP MPEG-2 TS ASI MP4 file hinter and injector Simulation Server DataInjector TS Packet Builder Hinter Core Embedder PSI Monitoring and Update DVB Multiplexer DVB Server

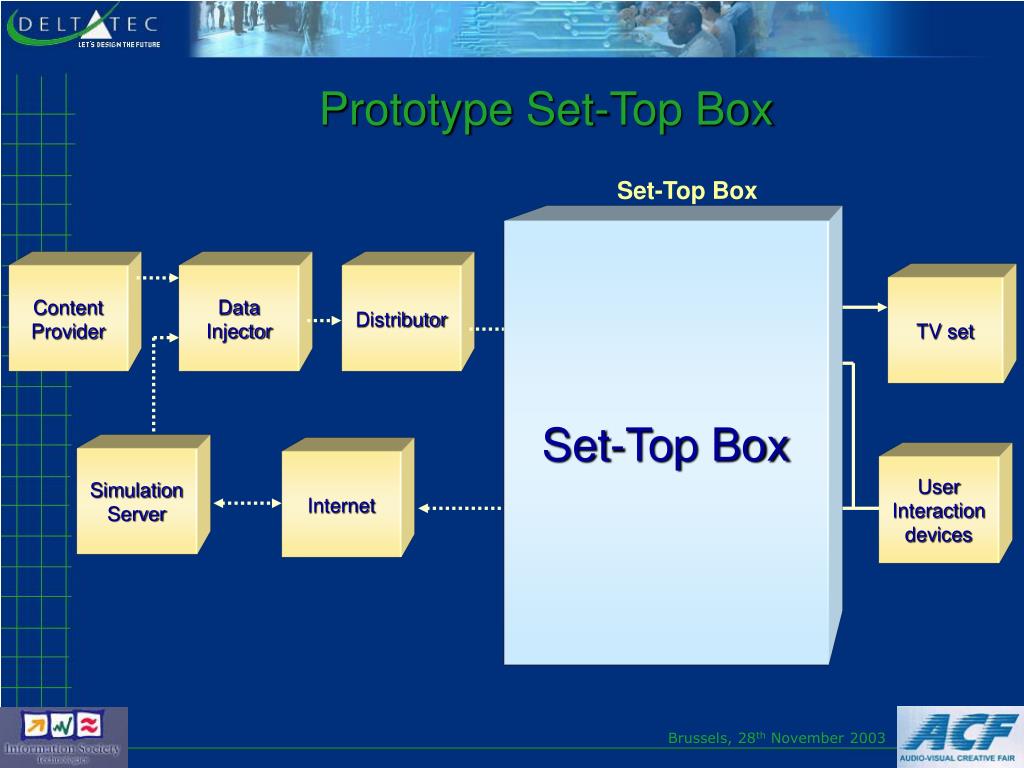

  21. Set-Top Box TV set Satellite/ Cable receiver MPEG 4 Subsystem Data Injector Content Provider Distributor User Interaction devices Network Layer Application Software Simulation Server Internet Operating system Prototype Set-Top Box Set-Top Box

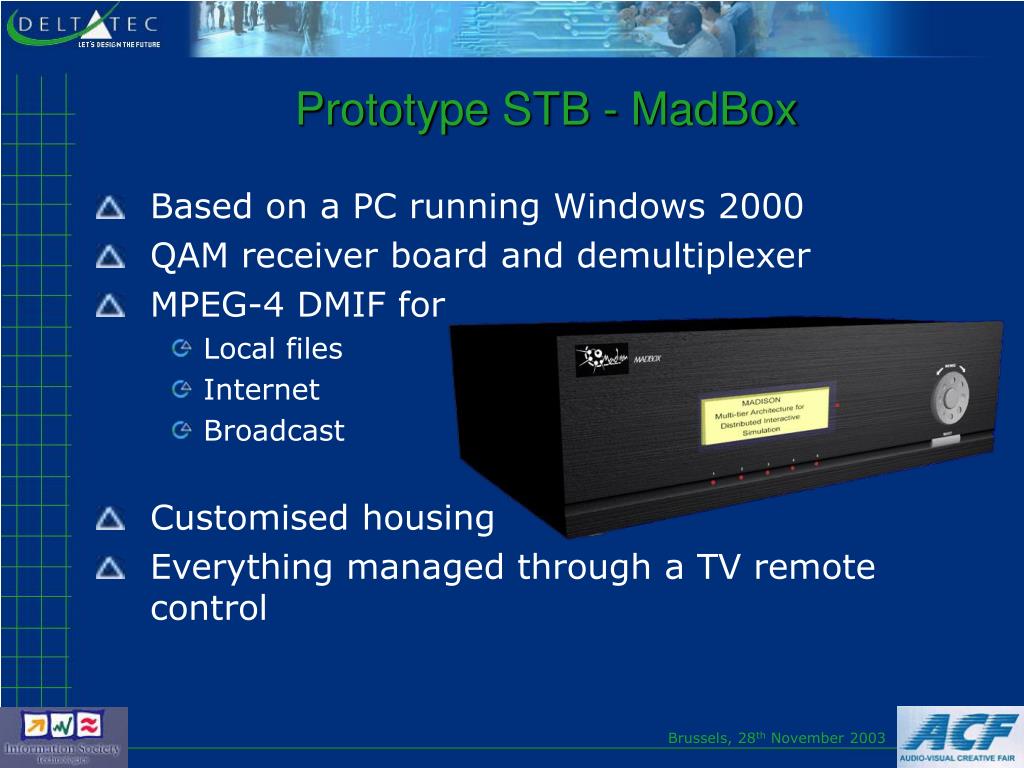

  22. Prototype STB - MadBox • Based on a PC running Windows 2000 • QAM receiver board and demultiplexer • MPEG-4 DMIF for • Local files • Internet • Broadcast • Customised housing • Everything managed through a TV remote control

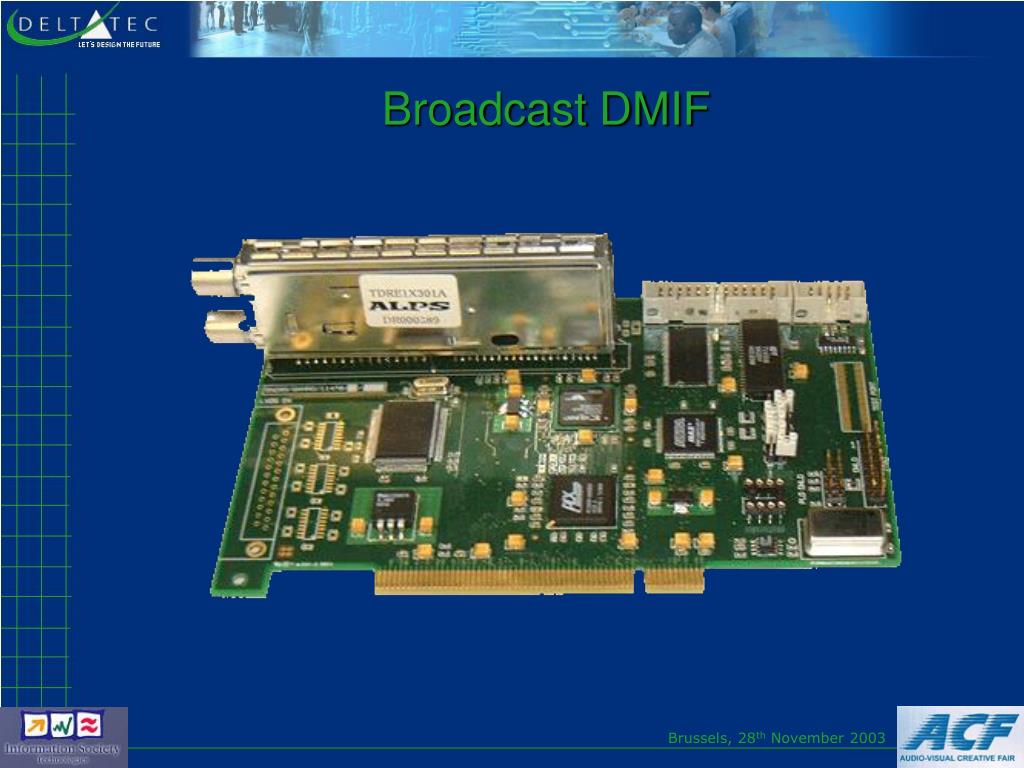

  23. Broadcast DMIF

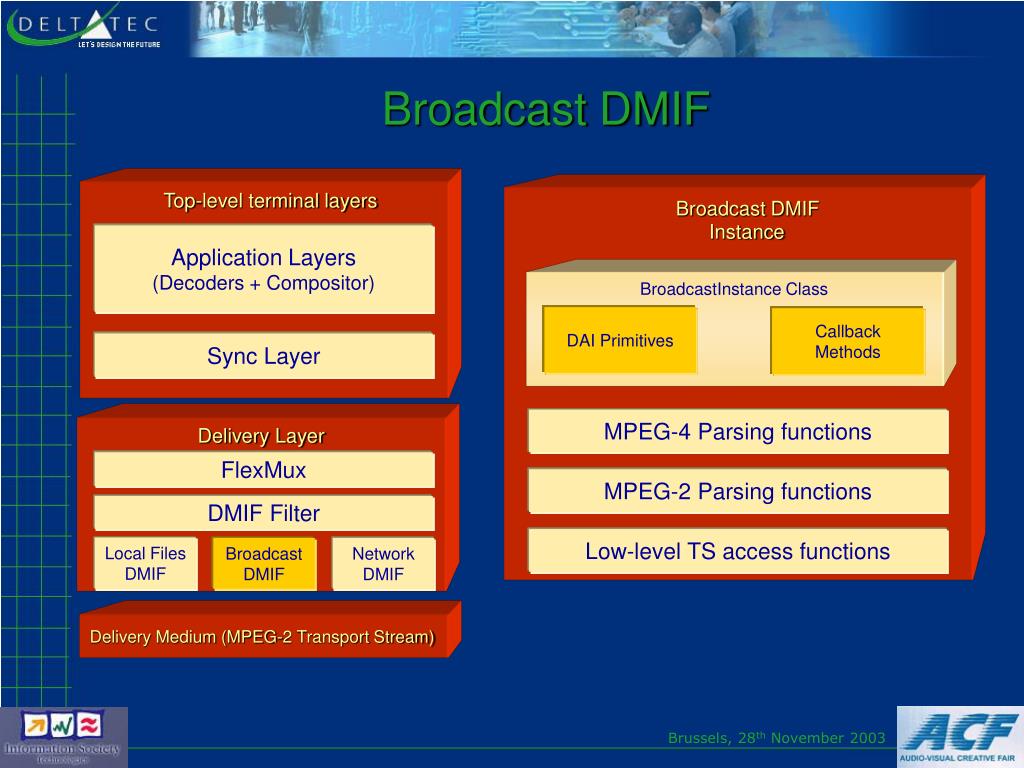

  24. Top-level terminal layers Broadcast DMIF Instance BroadcastInstance Class DAI Primitives Callback Methods FlexMux DMIF Filter Local Files DMIF Network DMIF Broadcast DMIF Application Layers (Decoders + Compositor) Sync Layer MPEG-4 Parsing functions Delivery Layer MPEG-2 Parsing functions Low-level TS access functions Broadcast DMIF Delivery Medium (MPEG-2 Transport Stream)

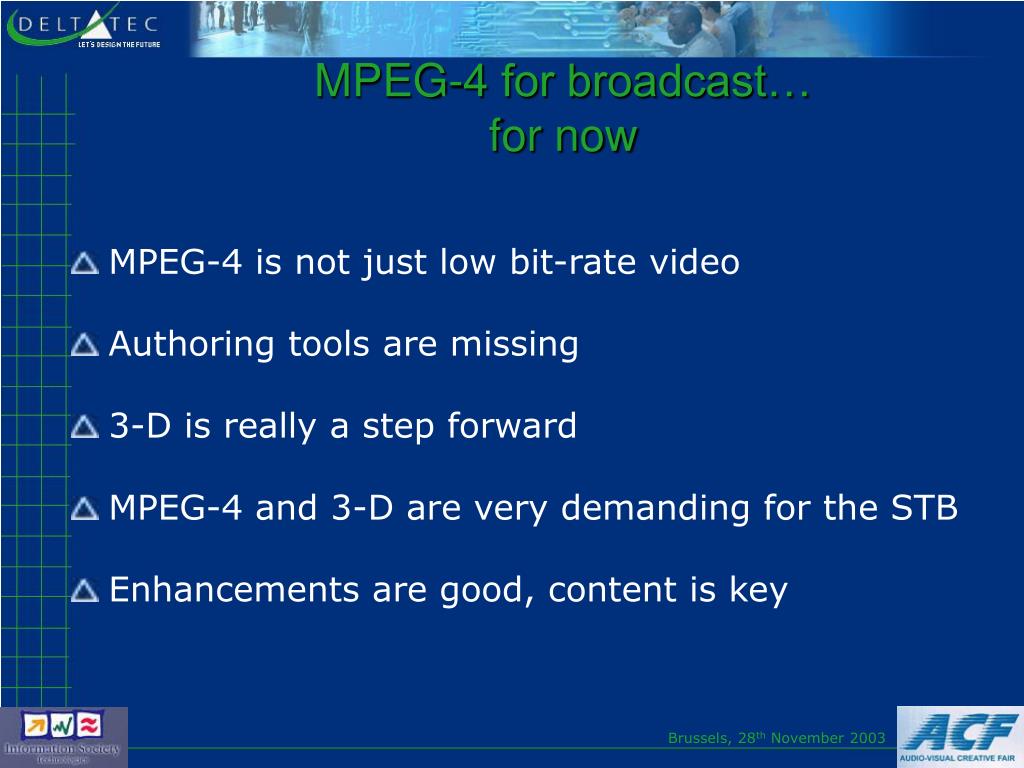

  25. MPEG-4 for broadcast…for now • MPEG-4 is not just low bit-rate video • Authoring tools are missing • 3-D is really a step forward • MPEG-4 and 3-D are very demanding for the STB • Enhancements are good, content is key

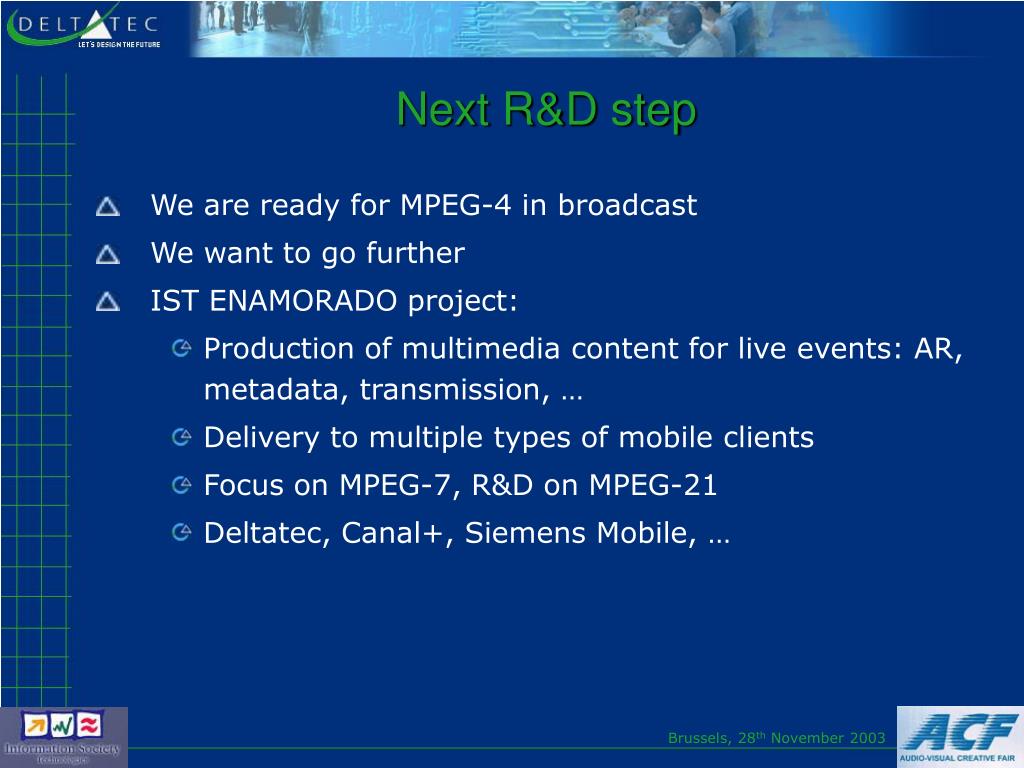

  26. Next R&D step • We are ready for MPEG-4 in broadcast • We want to go further • IST ENAMORADO project: • Production of multimedia content for live events: AR, metadata, transmission, … • Delivery to multiple types of mobile clients • Focus on MPEG-7, R&D on MPEG-21 • Deltatec, Canal+, Siemens Mobile, …

  27. Get concrete

  28. DELTA-asi DELTA-sdi From a MADISON prototype … to a range of products www.deltacast.tv

  29. Get concrete • STB processing power is market-driven … • Manufacturers still to endorse the technology • Let’s demonstrate the technology on programs that pay • In football: ad insertion, synthetic replay, new camera views, T-commerce, virtual after-match pub, …

  30. Thank you Thierry Keutgen t.keutgen@deltatec.be +32 4 239 78 80 www.deltatec.be
