Presentation Transcript

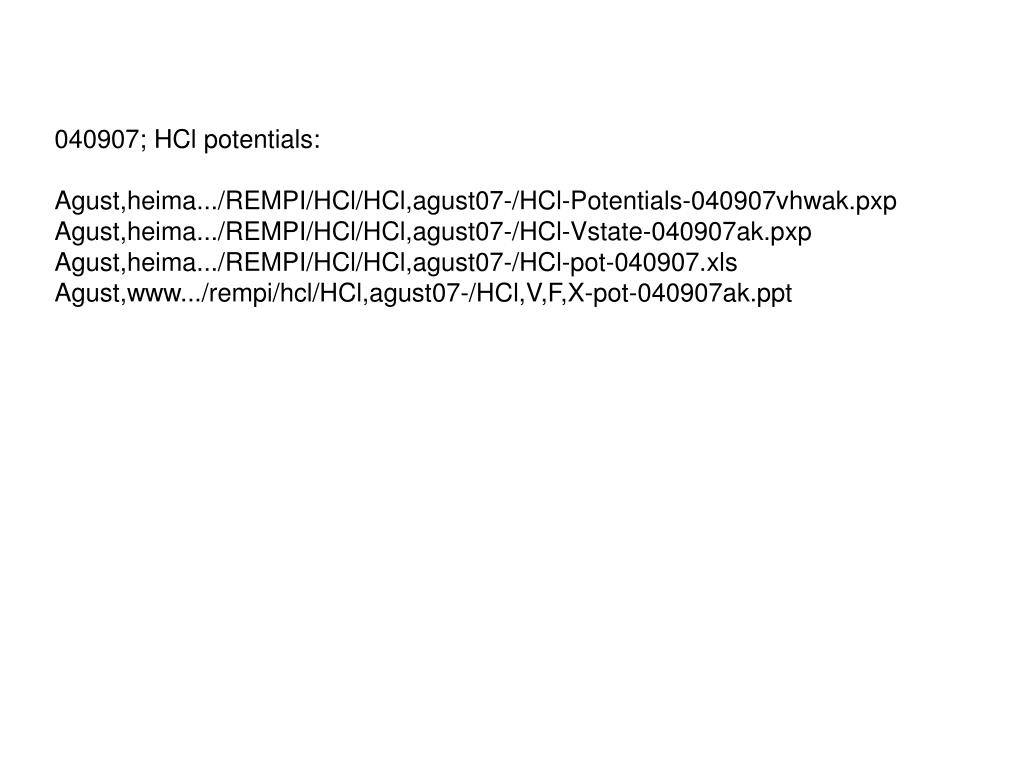

  1. 040907; HCl potentials: Agust,heima.../REMPI/HCl/HCl,agust07-/HCl-Potentials-040907vhwak.pxp Agust,heima.../REMPI/HCl/HCl,agust07-/HCl-Vstate-040907ak.pxp Agust,heima.../REMPI/HCl/HCl,agust07-/HCl-pot-040907.xls Agust,www.../rempi/hcl/HCl,agust07-/HCl,V,F,X-pot-040907ak.ppt

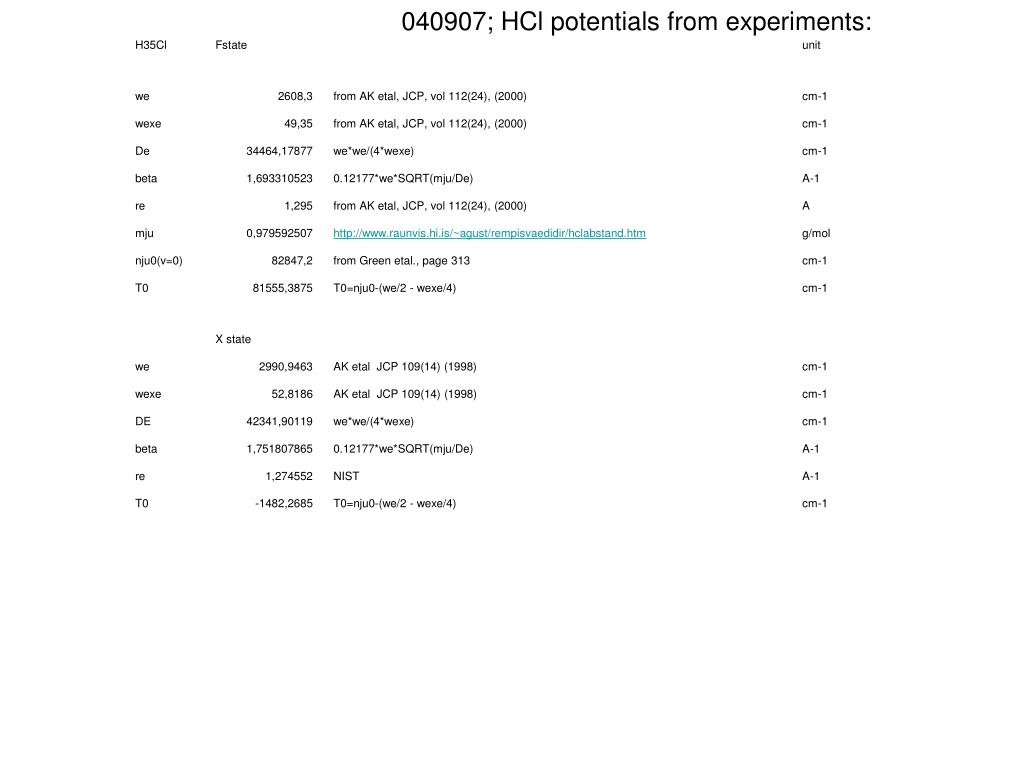

  2. 040907; HCl potentials from experiments:

  3. V state Coefficient values ± one standard deviation a = 867.74 ± 7.5 b = -27.307 ± 1.03 DG Coefficient values ± one standard deviation a = 745.12 ± 30.7 b = -10.714 ± 1.55 V´+1

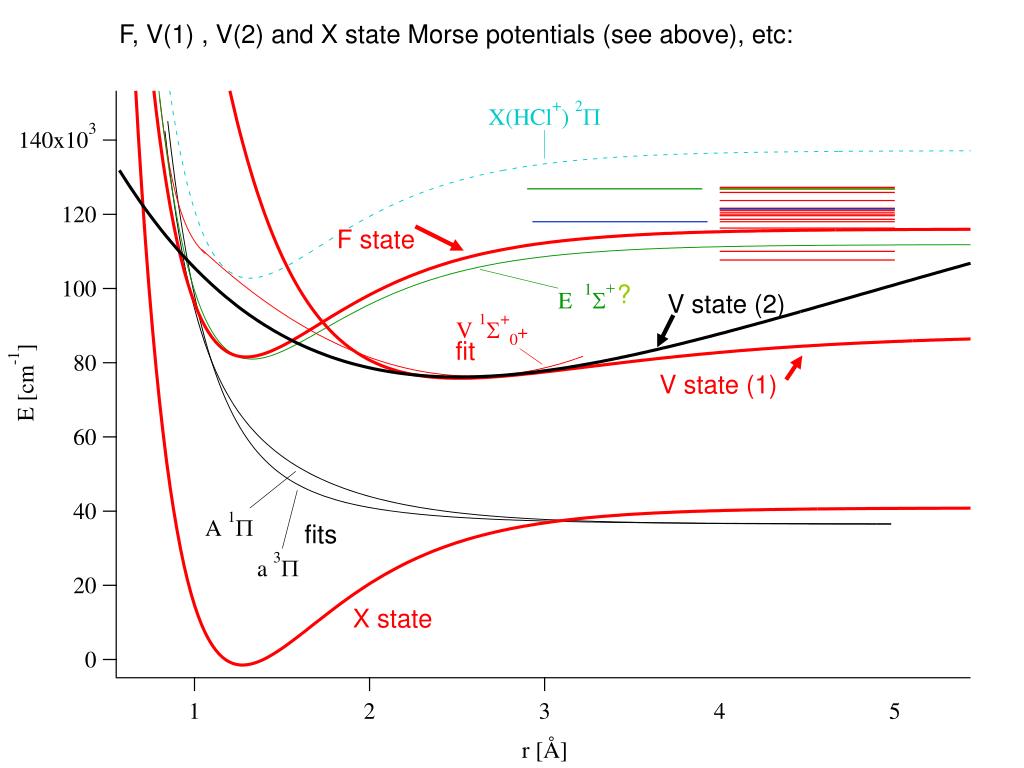

  4. F, V(1) , V(2) and X state Morse potentials (see above), etc: F state ? V state (2) fit V state (1) fits X state
