  1. Introduction to Spin and Promela Sagar Chaki CMU

  2. Roadmap • Historical perspective • Overview of Spin • Overview of Promela • Simulation with Spin • Overview of LTL • Verification with Spin

  3. Part III Overview of LTL

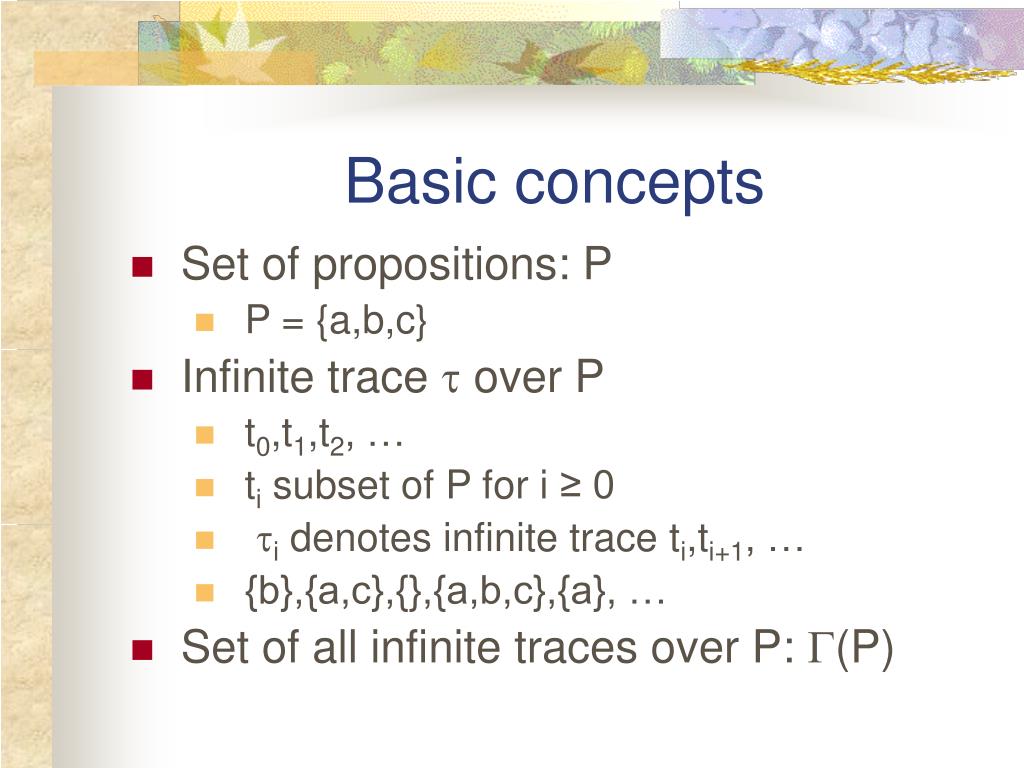

  4. Basic concepts • Set of propositions: P • P = {a,b,c} • Infinite trace t over P • t0,t1,t2, … • ti subset of P for i ≥ 0 • ti denotes infinite trace ti,ti+1, … • {b},{a,c},{},{a,b,c},{a}, … • Set of all infinite traces over P: G(P)

  5. LTL syntax • f := p proposition | true | false | (f) | f binop f | unop f

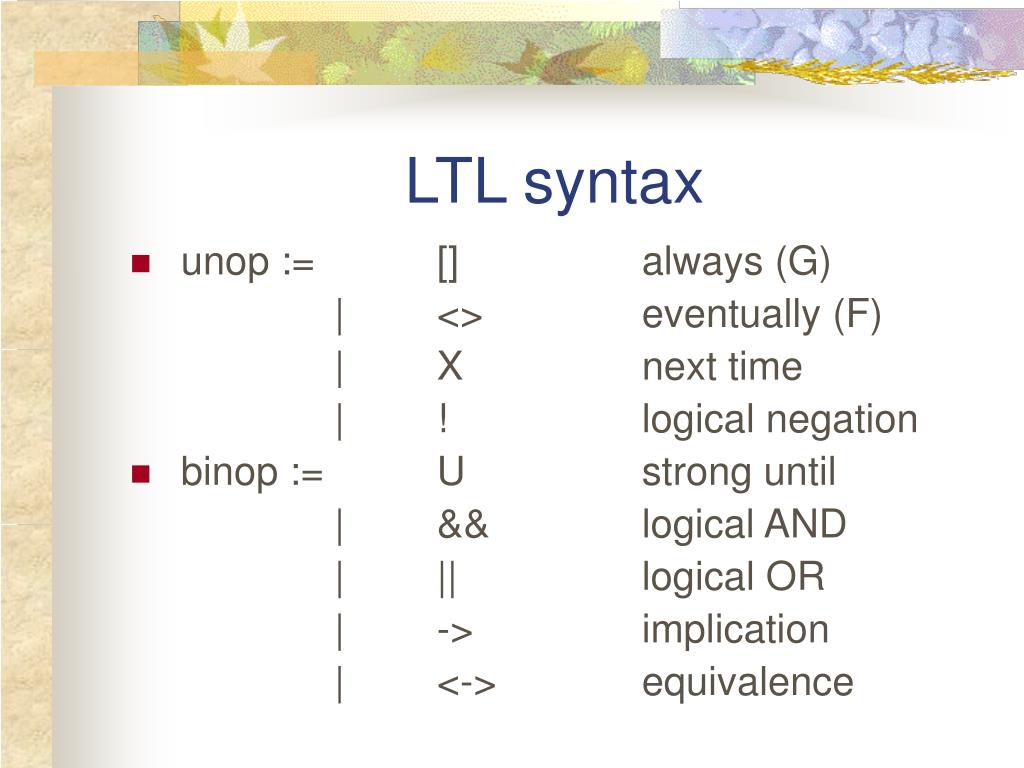

  6. LTL syntax • unop := [] always (G) | <> eventually (F) | X next time | ! logical negation • binop := U strong until | && logical AND | || logical OR | -> implication | <-> equivalence

  7. LTL semantics • An infinite trace t (over P) either satisfies or does not satisfy an LTL formula f (over P) • Satisfaction denoted by t²f

  8. LTL semantics • Given an infinite trace t = t0,t1,t2, … and a LTL formula f we can decide if t²f depending on the structure of f • t² p iff p belongs to t0 • Always t² true • Never t² false • t² (f) iff t²f

  9. LTL semantics • t² [] f iff ti²f forall i ≥ 0 • t² <> f iff exists i ≥ 0 s.t. ti²f • t² X f iff t1²f • t² !f iff NOT(t²f) • t²f1 U f2 iff exists i ≥ 0 s.t. tj²f1 for 0 ≤ j < i and ti²f2

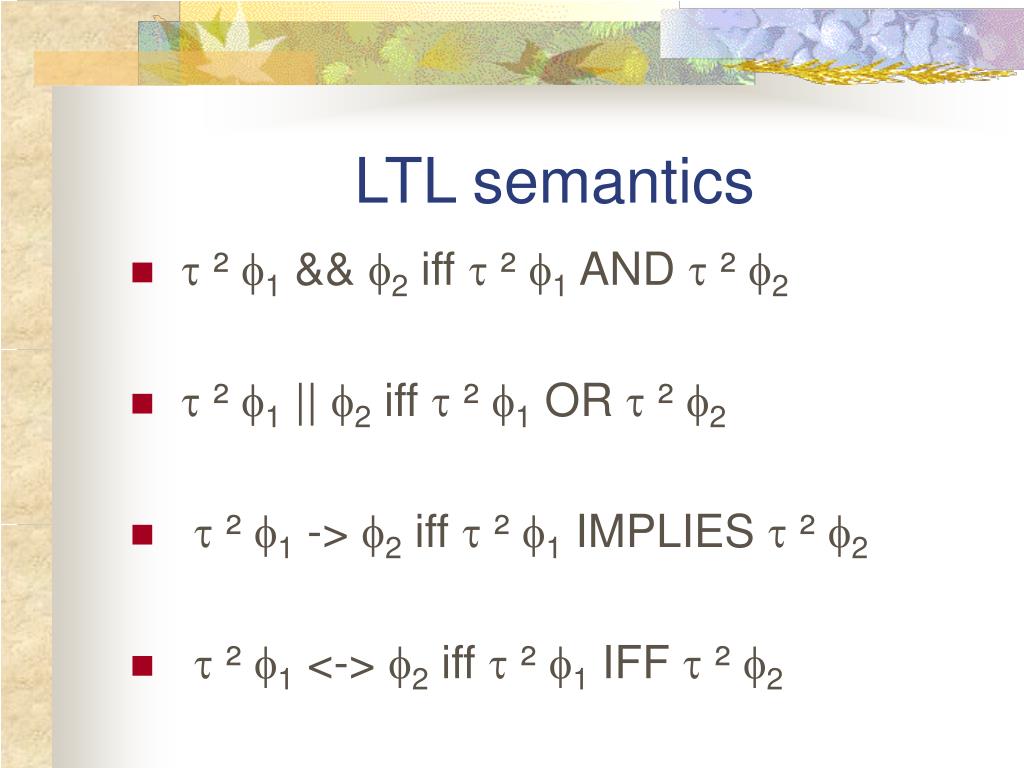

  10. LTL semantics • t²f1 && f2 iff t²f1 AND t²f2 • t²f1 || f2 iff t²f1 OR t²f2 • t²f1 -> f2 iff t²f1 IMPLIES t²f2 • t²f1 <-> f2 iff t²f1 IFF t²f2

  11. LTL semantics • An LTL formula can also be looked at as the set of infinite traces that satisfy it • Note the striking similarity with the case of regular expressions and finite strings over an alphabet S • If S is the set of traces that satisfy f then G(P)\S is the set of traces that satisfy !f

  12. Examples • {a},{b},{a},{b}, … • [](a -> Xb) [](a <-> Xb) • [](b -> Xa) [](b <-> Xa) • [](a -> (b U a)) • [](a -> (a U b))

  13. Things to remember • Every LTL formula represents the set of infinite traces which satisfy it

  14. Buchi automata • Recall the similarity of LTL with regular expressions • Regular languages are accepted by finite automata • Are there automata for LTL • Turns out there are • They are called Buchi automata

  15. Buchi automata • Fix an alphabet S • Buchi automaton is a 4-tuple : <Q,I,d,F> • Q : set of states • I : initial state • d : transition relation: subset of QX S XQ • F : set of accepting states • In our case S is 2P

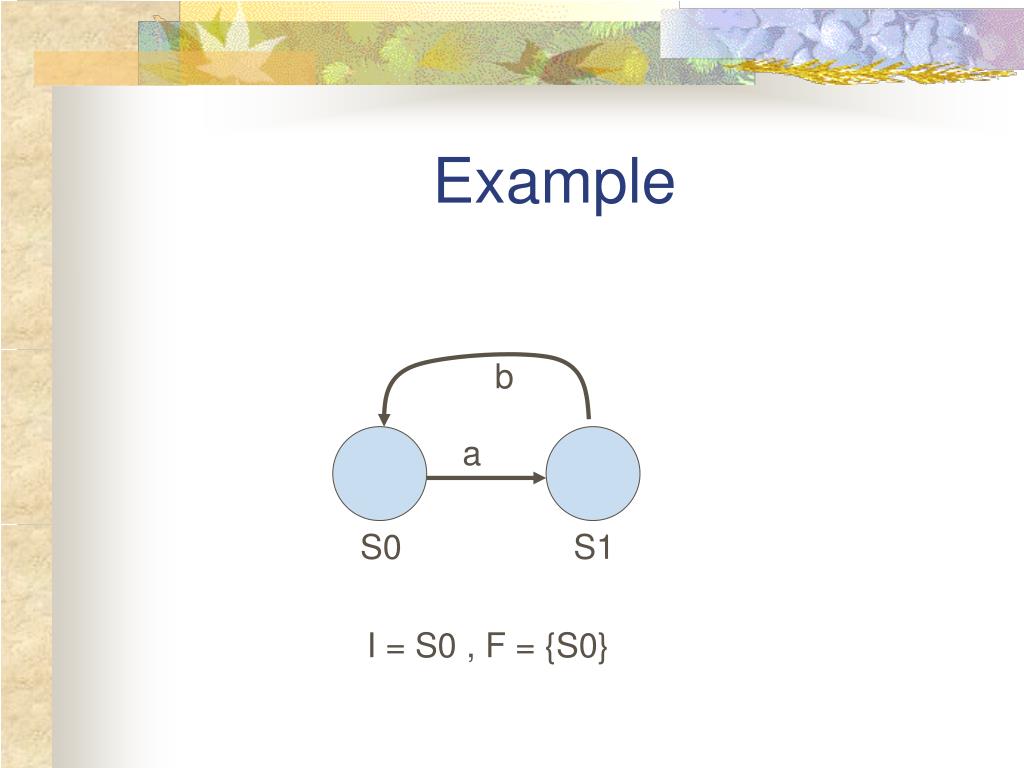

  16. b a S0 S1 I = S0 , F = {S0} Example

  17. Buchi automata • A run is an infinite sequence of state s0,s1,s2, … such that • s0 = I • Exists ai єS s.t. (si,ai,si+1) єd for i ≥ 0 • A run is an accepting run iff it visits some accepting state infinitely often

  18. Buchi automata • Given a run s = s0,s1,s2, …a trace t = t0,t1,t2, …is said to correspond to s iff (si,ti,si+1) єd for i ≥ 0 • The language of a Buchi automaton is the set of traces corresponding to its accepting runs • LTL also corresponds to a set of traces

  19. b a S0 S1 I = S0 , F = {S0} Example • Traces : {{a},{b},{a},{b},…}

  20. Cute results • BA are closed under complementation • For every Buchi automaton A there exists another Buchi automaton B such that the language of A is the complement of the language of B • Here complement means set difference from G(P)

  21. Cute results • BA are closed under intersection and union • Checking if the language of a Buchi automaton is empty is decidable • Can check if the langauges of two Buchi automata have a non-empty intersection

  22. Cute results • Buchi automata are not always determinisable • There exists a non-deterministic Buchi automaton A such that there is no deterministic Buchi automaton with the same language as A • Non-deterministic means some states have multiple outgoing transitions with same label

  23. Cute results • The set of languages accepted by Buchi automata is called the set of w-regular languages • This is a strict superset of LTL • Every LTL corresponds to some BA • There exists a BA whose language does not correspond to any LTL formula

  24. Things to remember • Every LTL formula represents the set of infinite traces which satisfy it • Every LTL formula has a corresponding Buchi automaton

  25. Kripke structure • Is a 4-tuple : <S,I,d,L> • S : set of states • I : initial state • d : transition relation: subset of S X S • L : labeling function : S -> 2P

  26. Computations and Traces • A computation is an infinite sequence of states s0,s1,s2, … • s0 = I • (si,si+1) єd for i ≥ 0 • Given a computation s0,s1,s2, … the corresponding trace is L(s0), L(s1), L(s2), …

  27. Kripke and Buchi • Kripke looks different from Buchi • Labels are on states not transitions • No accepting states • Nevertheless … • For every Kripke structure K there exists a Buchi automaton which accepts exactly the set of traces corresponding to computations of K

  28. Kripke to Buchi c a b S2 S0 S1 I = S0

  29. a c b S2 S0 S1 Kripke to Buchi

  30. a c b S2 S0 S1 Kripke to Buchi a S3 I = S3, F = {S0,S1,S2,S3}

  31. Things to remember • Every LTL formula represents the set of infinite traces which satisfy it • Every LTL formula has a corresponding Buchi automaton • Every Kripke structure has a corresponding Buchi automaton

  32. What do we really want? • Kripke (M) ² LTL (f) • Traces of M contained in traces of f • Language of Buchi of M contained in language of Buchi of f • Language of Buchi of M has empty intersection with language of Buchi of !f • This is decidable

  33. LTL model checking • Two ways to do it • Convert Kripke to Buchi • Convert claim (LTL) to Buchi • Check language inclusion OR • Convert ~Claim (LTL) to Buchi • Check empty intersection

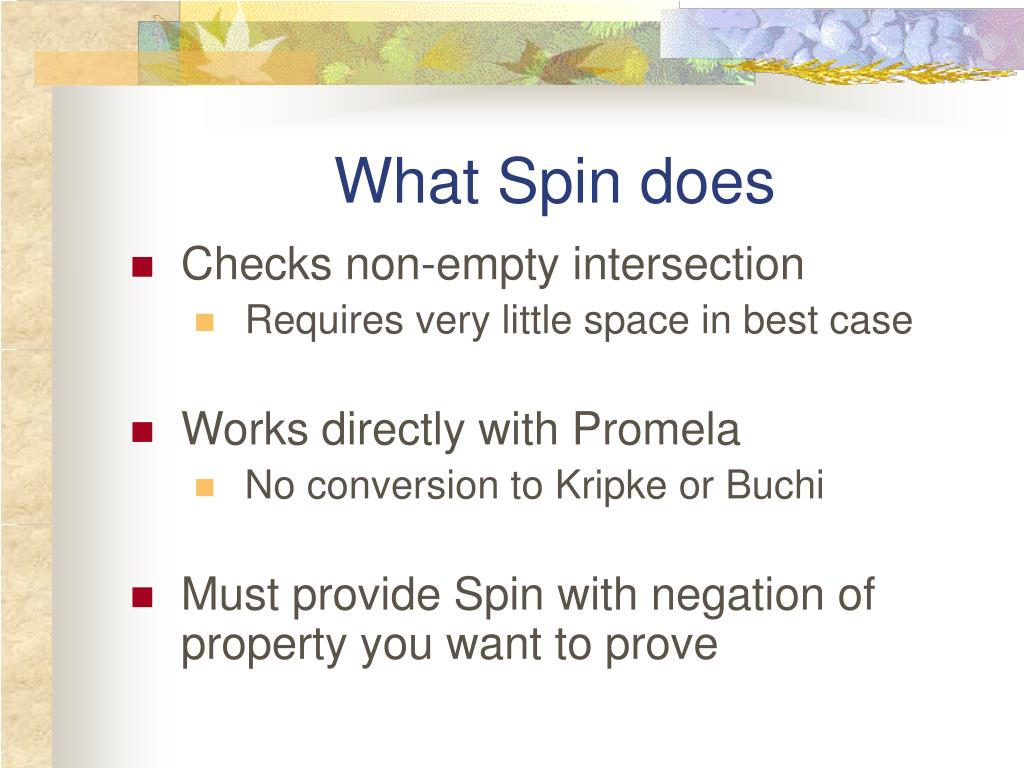

  34. What Spin does • Checks non-empty intersection • Requires very little space in best case • Works directly with Promela • No conversion to Kripke or Buchi • Must provide Spin with negation of property you want to prove

  35. Time for example 5

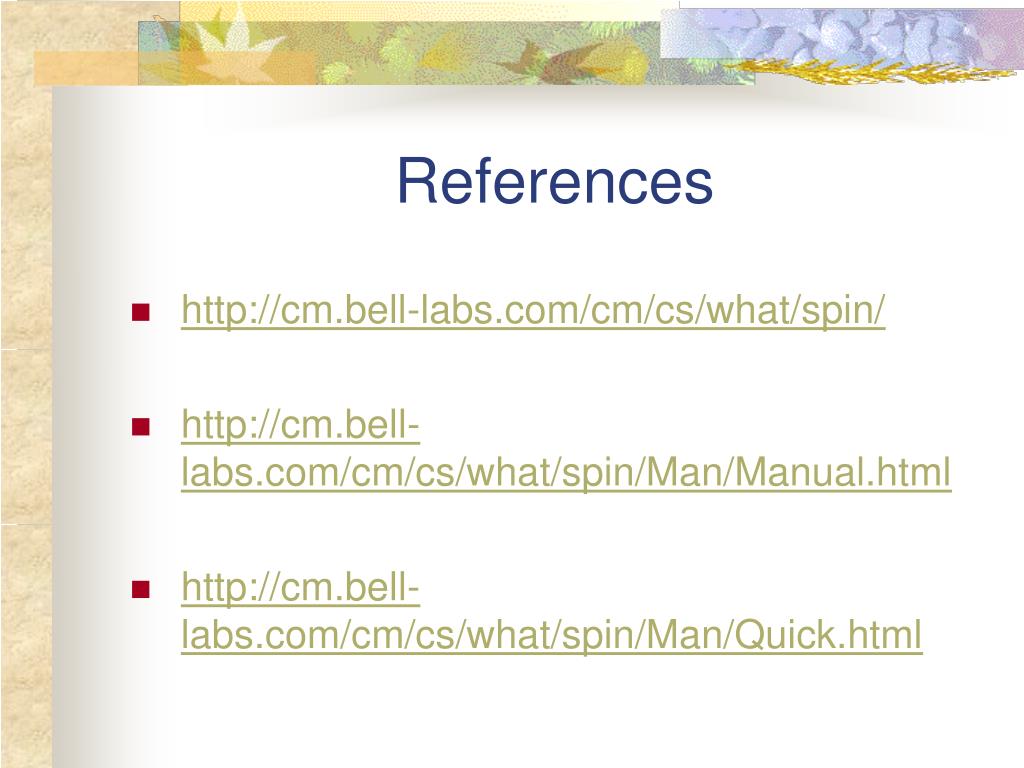

  36. References • http://cm.bell-labs.com/cm/cs/what/spin/ • http://cm.bell-labs.com/cm/cs/what/spin/Man/Manual.html • http://cm.bell-labs.com/cm/cs/what/spin/Man/Quick.html
