Table Saw

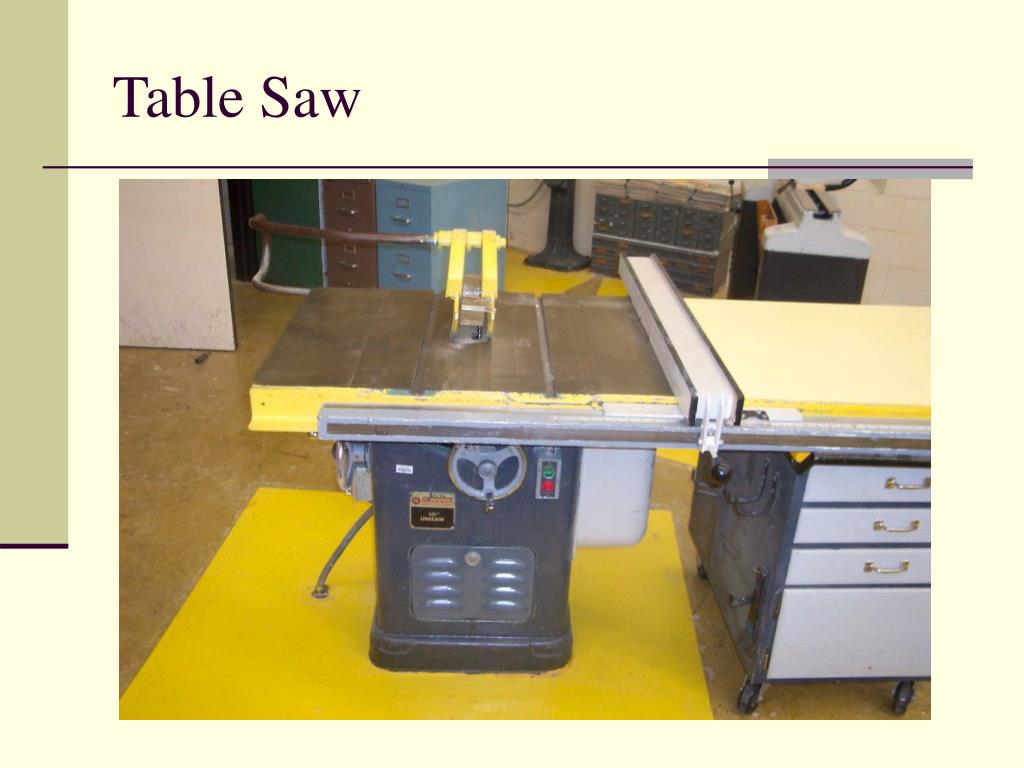

1. Table Saw

2. General Safety • Wear your safety glasses at all times • Take off all jewelry • Do not wear loose clothing • Make sure you are the only person in the safety zone when operating the table saw.

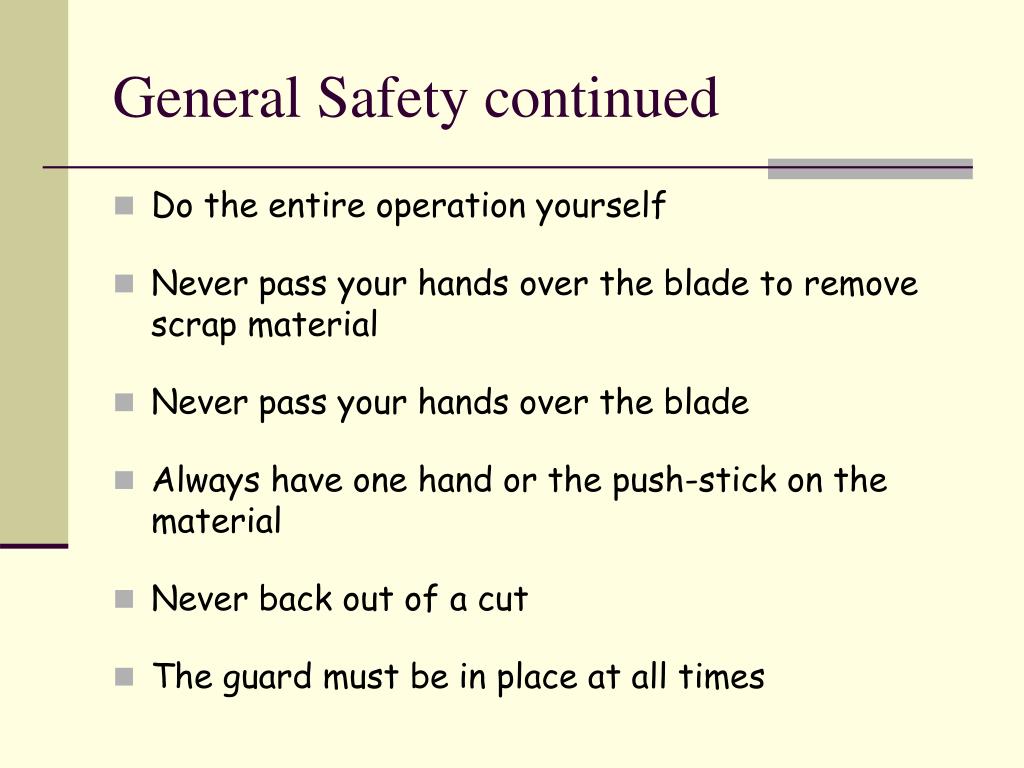

3. General Safety continued • Do the entire operation yourself • Never pass your hands over the blade to remove scrap material • Never pass your hands over the blade • Always have one hand or the push-stick on the material • Never back out of a cut • The guard must be in place at all times

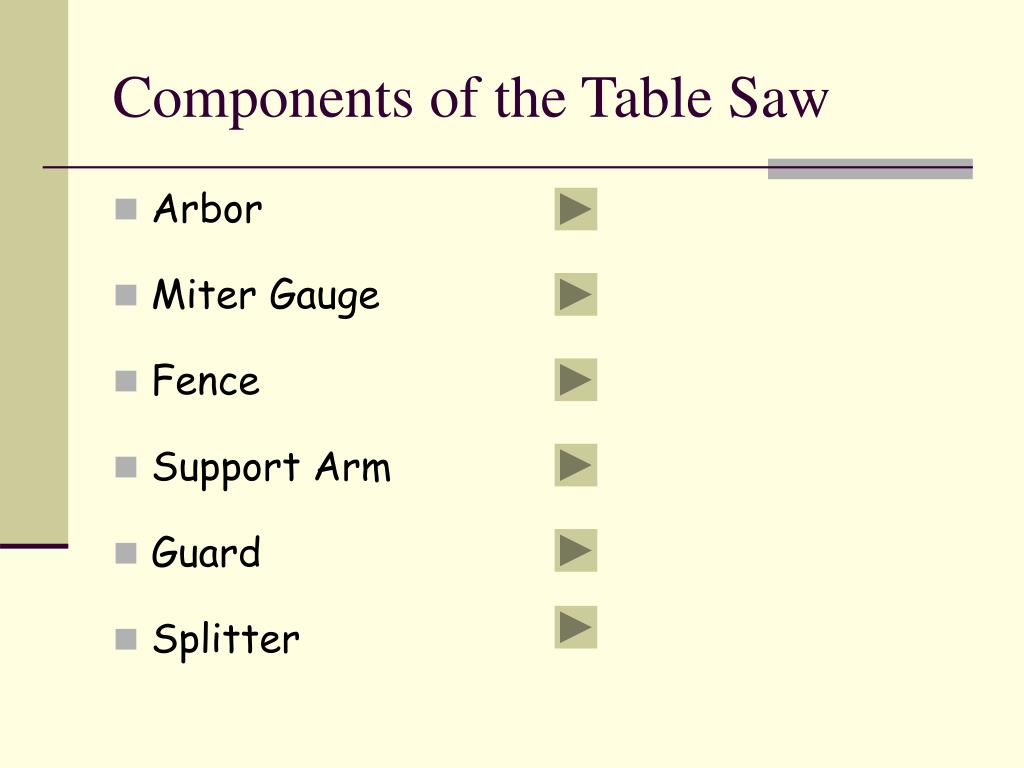

4. Components of the Table Saw • Arbor • Miter Gauge • Fence • Support Arm • Guard • Splitter

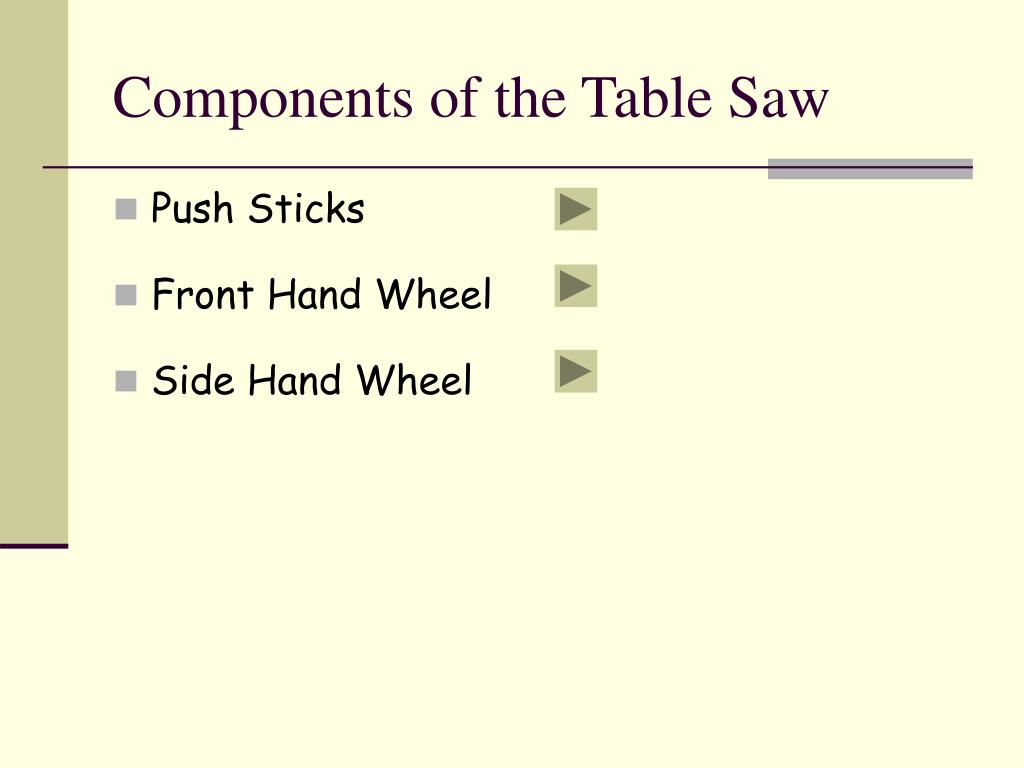

5. Components of the Table Saw • Push Sticks • Front Hand Wheel • Side Hand Wheel

6. Set-up of the Table Saw • One face and one edge must be flat to use the table saw. • The blade must be 1/8” to 1/4” above the material being cut. OR • One Tooth • Do not lower the support arm or raise the guard unless you have special permission from the teacher and are being monitored by the teacher.

7. Operations of the Table Saw • Ripping • Cross cutting • Bevel • Miter • Groove • Dado • Rabbet

8. Arbor

9. Miter Gauge

10. Fence

11. Support Arm

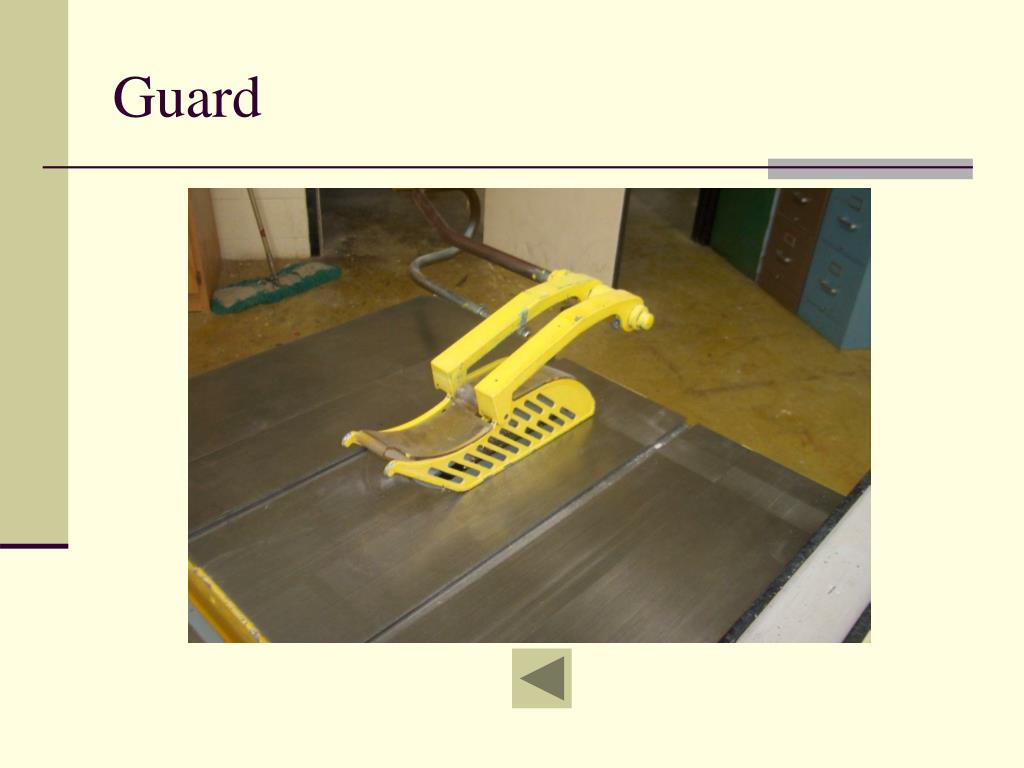

12. Guard

13. Splitter

14. Push Sticks

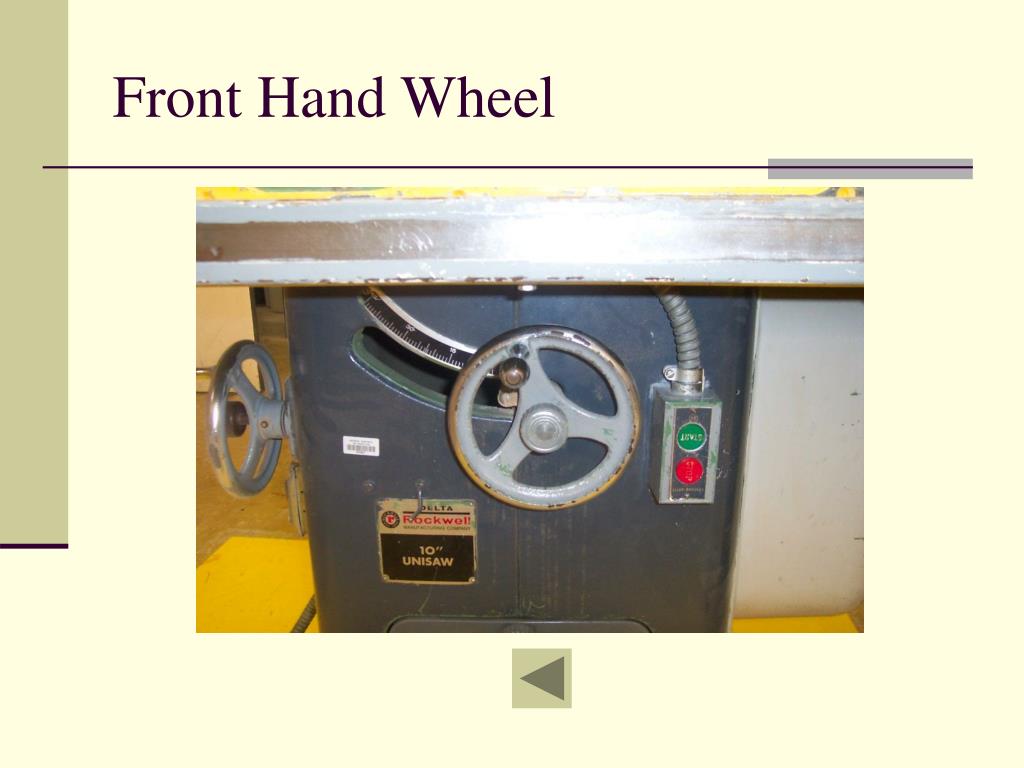

15. Front Hand Wheel

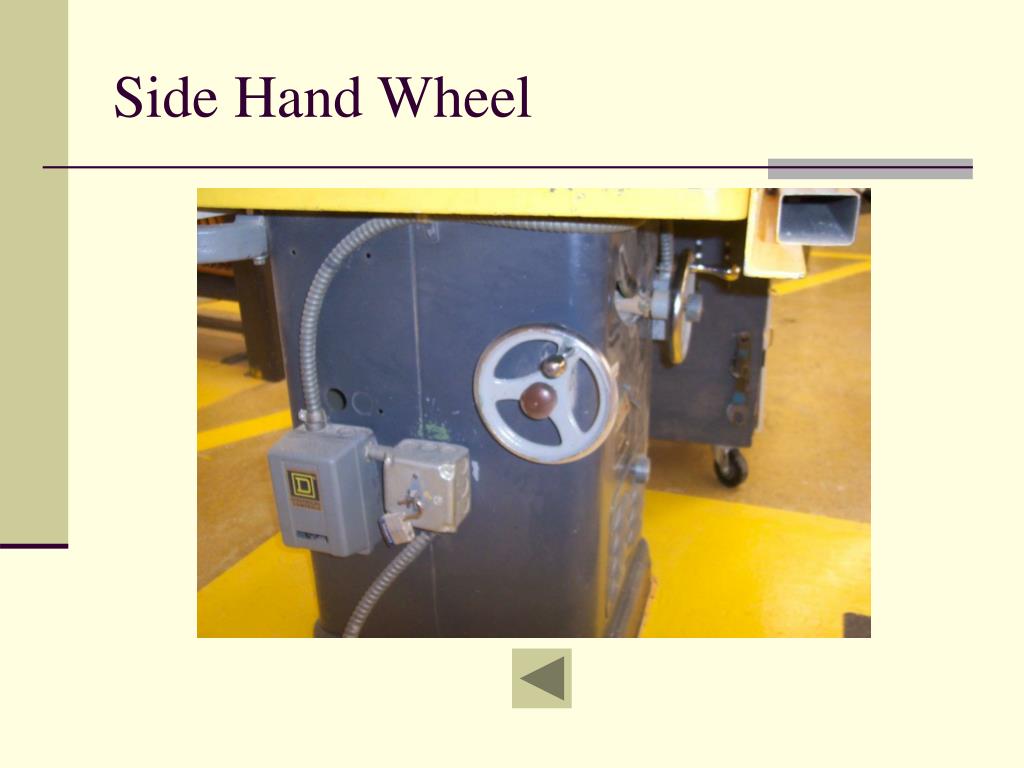

16. Side Hand Wheel

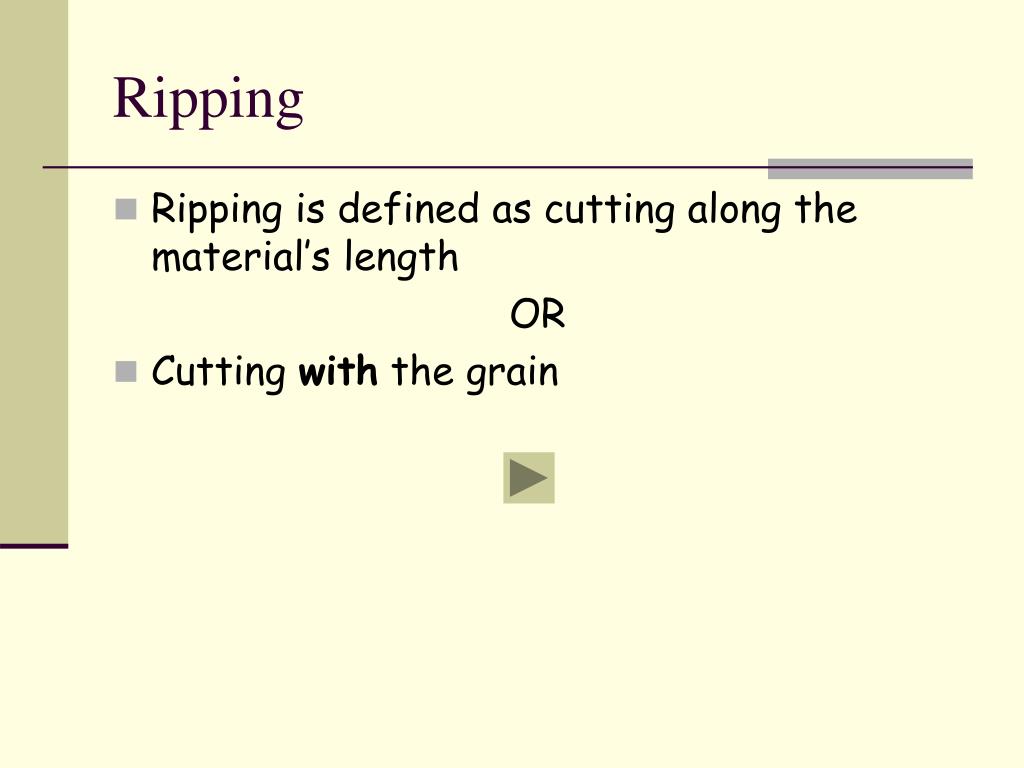

17. Ripping • Ripping is defined as cutting along the material’s length OR • Cutting with the grain

18. Cross cutting • Cross cutting is defined as cutting the material’s length OR • Cutting across the grain

19. Bevel • A Bevel is defined as cutting along the material’s length at an angle. OR • Cutting with the grain at an angle

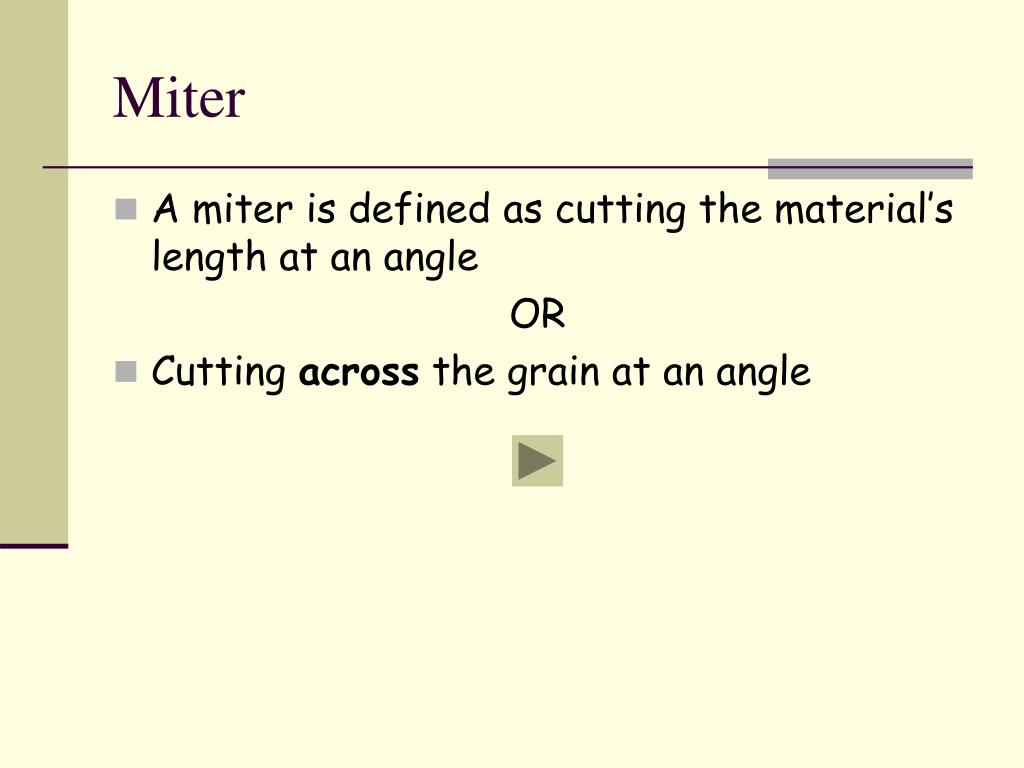

20. Miter • A miter is defined as cutting the material’s length at an angle OR • Cutting across the grain at an angle

21. Groove • A Groove is defined as cutting a “slot” along the material’s length but not through the full thickness of the material OR • Cutting a “slot” with the grain but not through the full thickness of the material

22. Dado • A Dado is defined as cutting a “slot” across the material’s width but not through the full thickness of the material OR • Cutting a “slot” across the grain but not through the full thickness of the material

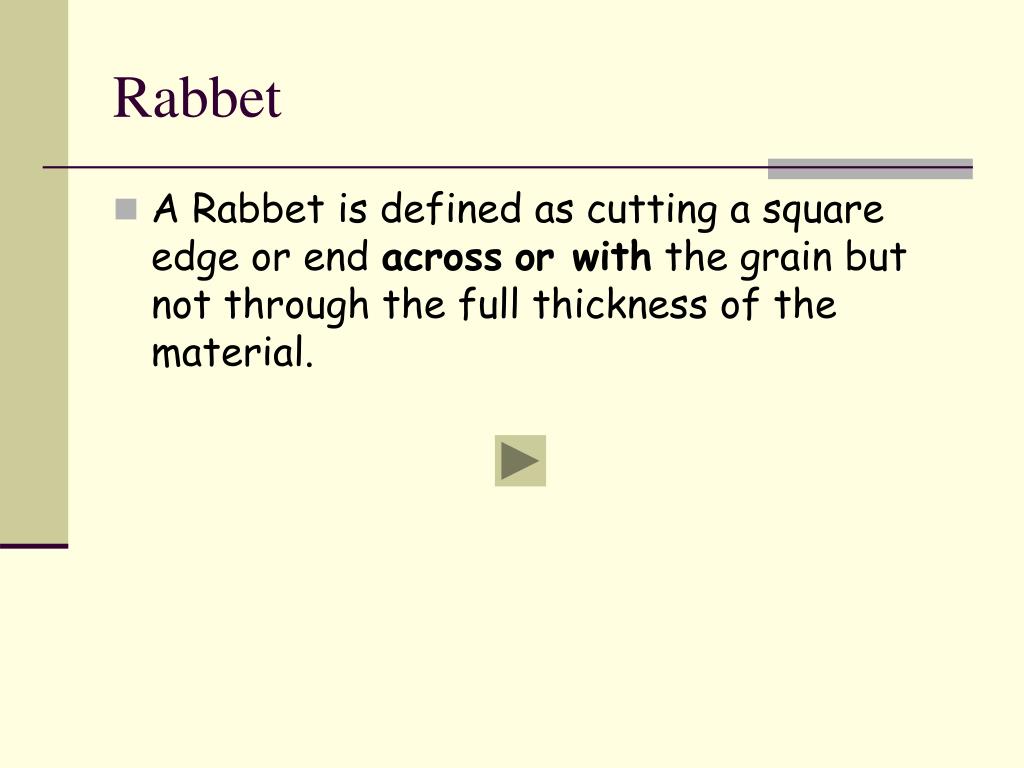

23. Rabbet • A Rabbet is defined as cutting a square edge or end acrossor with the grain but not through the full thickness of the material.

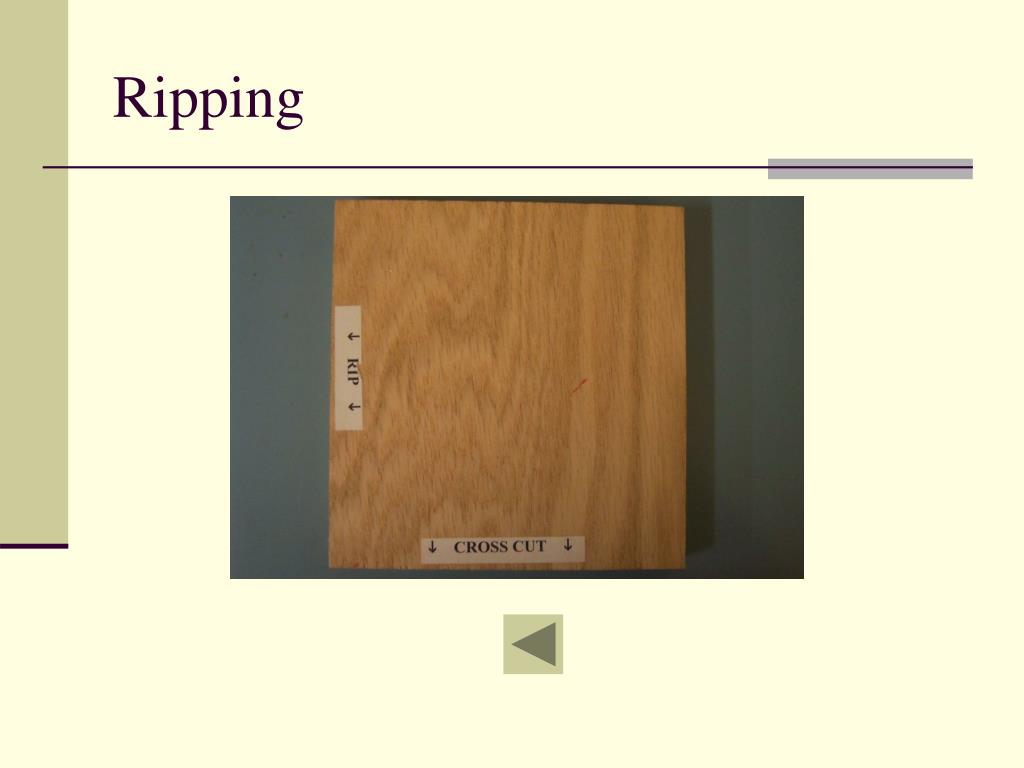

24. Ripping

25. Cross cutting

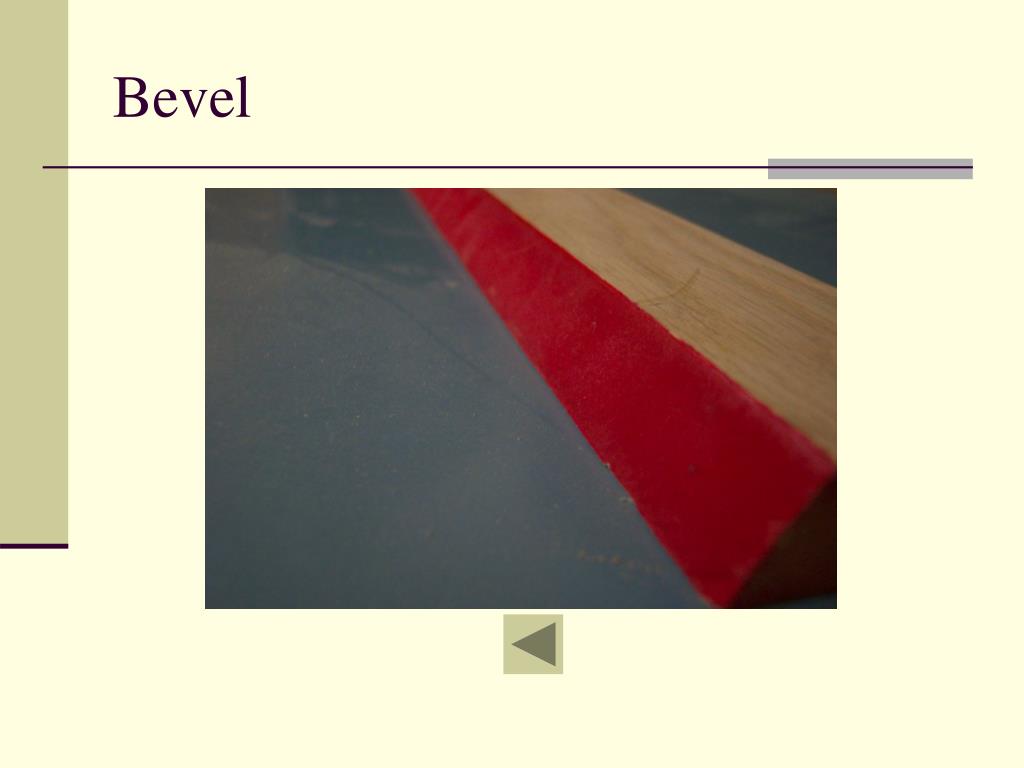

26. Bevel

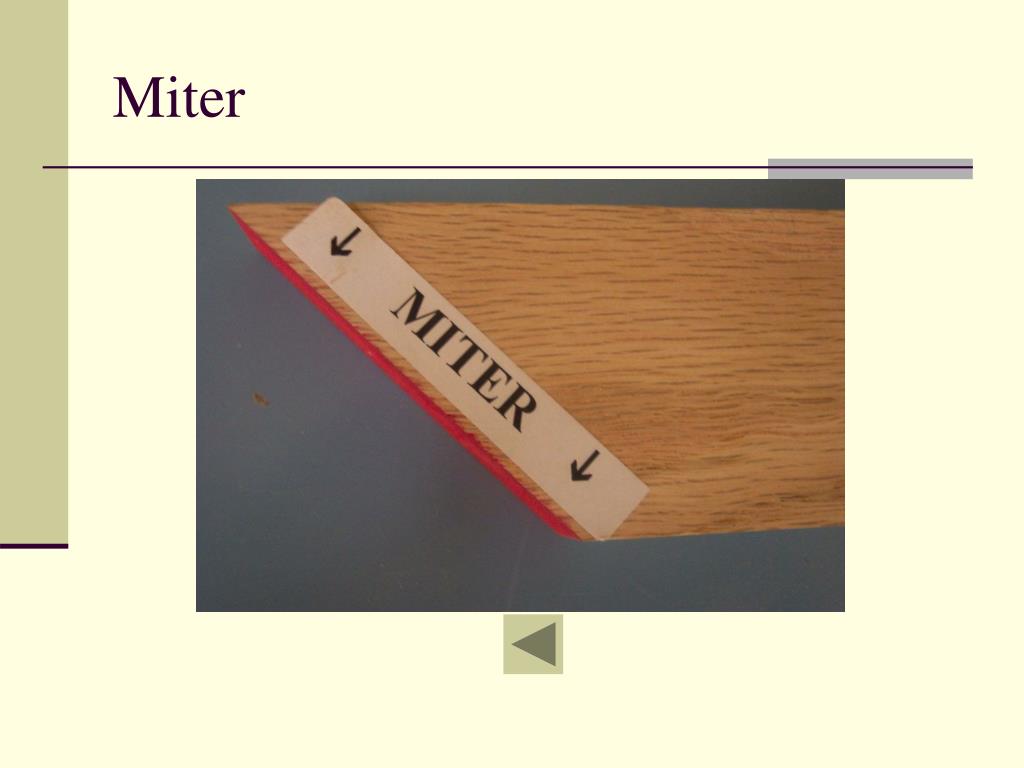

27. Miter

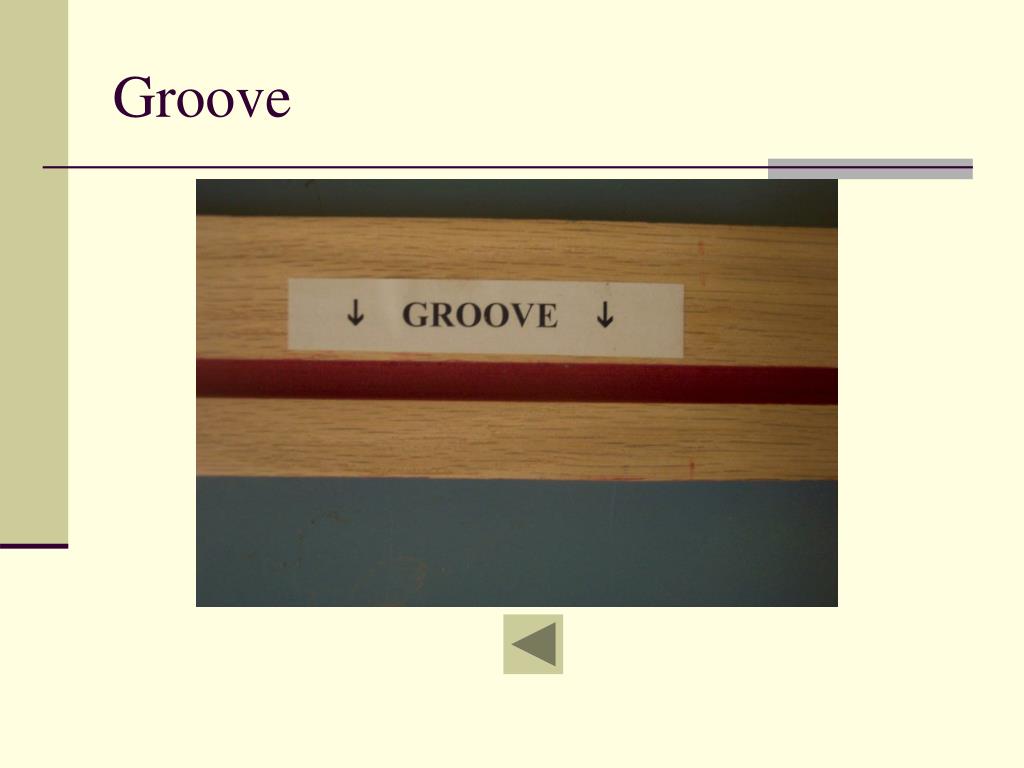

28. Groove

29. Dado

30. Rabbet

31. Operation Procedure 1 (Ripping) • 1. Raise the Splitter.

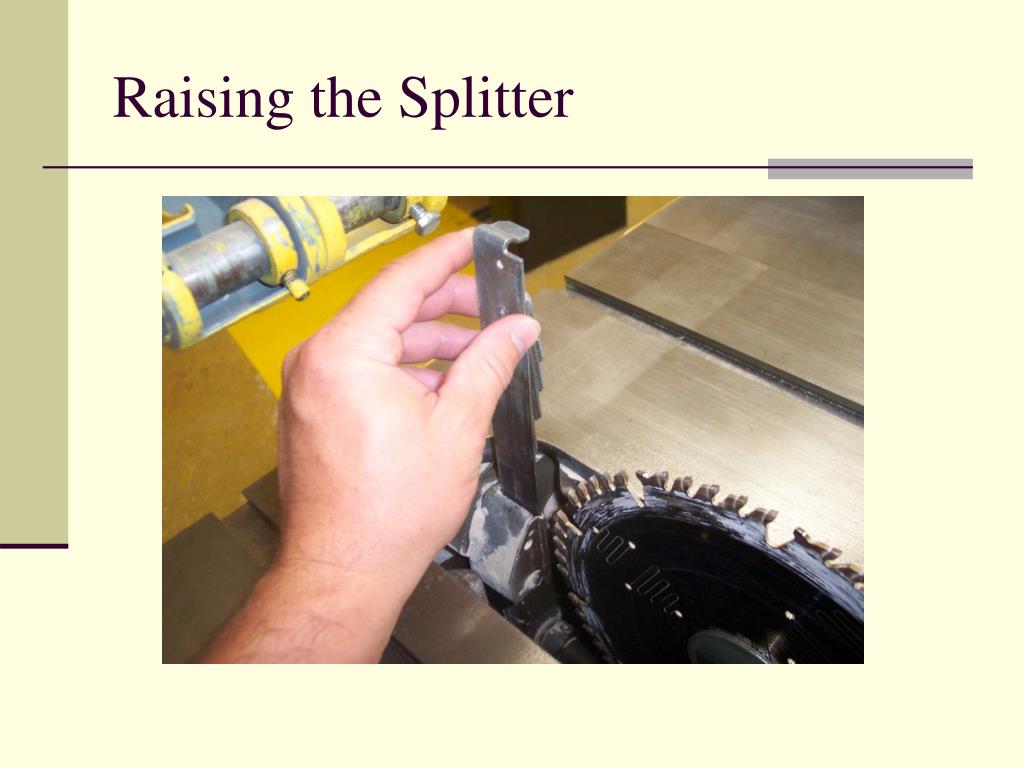

32. Raising the Splitter

33. Operation Procedure 2 (Ripping) • 2. Raise the blade to its maximum height. • Using a try-square, square the blade to the table.

34. Squaring the Blade

35. Operation Procedure 3 (Ripping) • 3. Adjust the blade height. One tooth above the material.

36. Adjust the blade height

37. Operation Procedure 4 (Ripping) • 4. Determine the width of your material that will be cut and set the fence. • If the material is 5” in width or less, push sticks are required. • The material you are going to be using always goes between the fence and the blade.

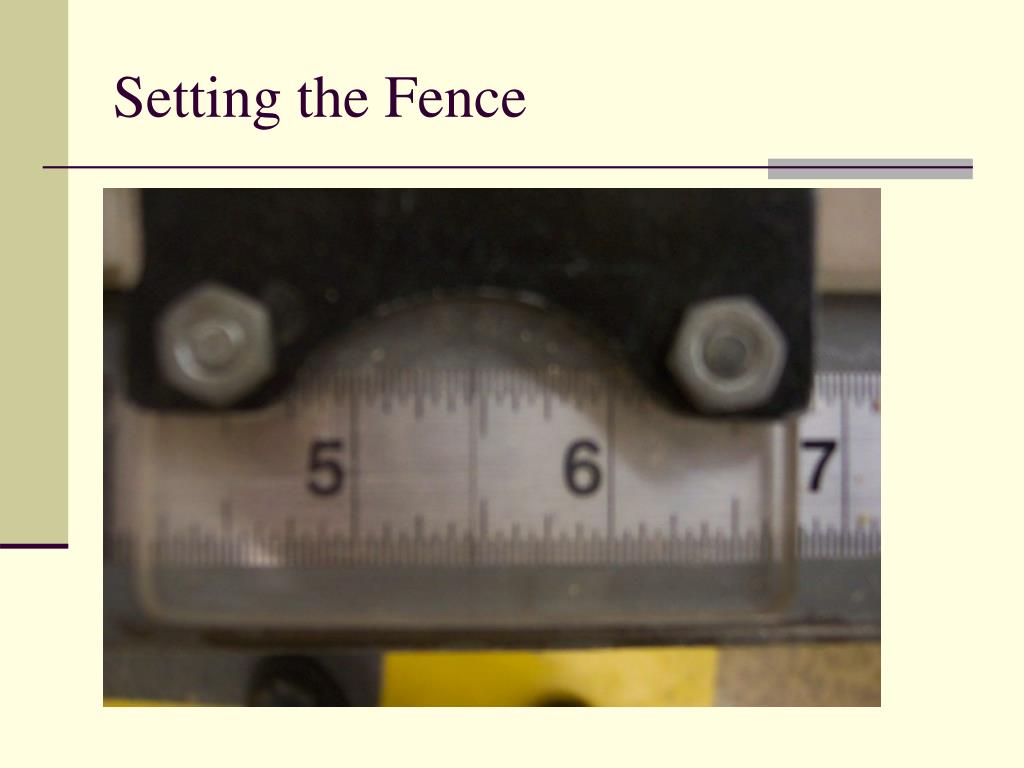

38. Setting the Fence

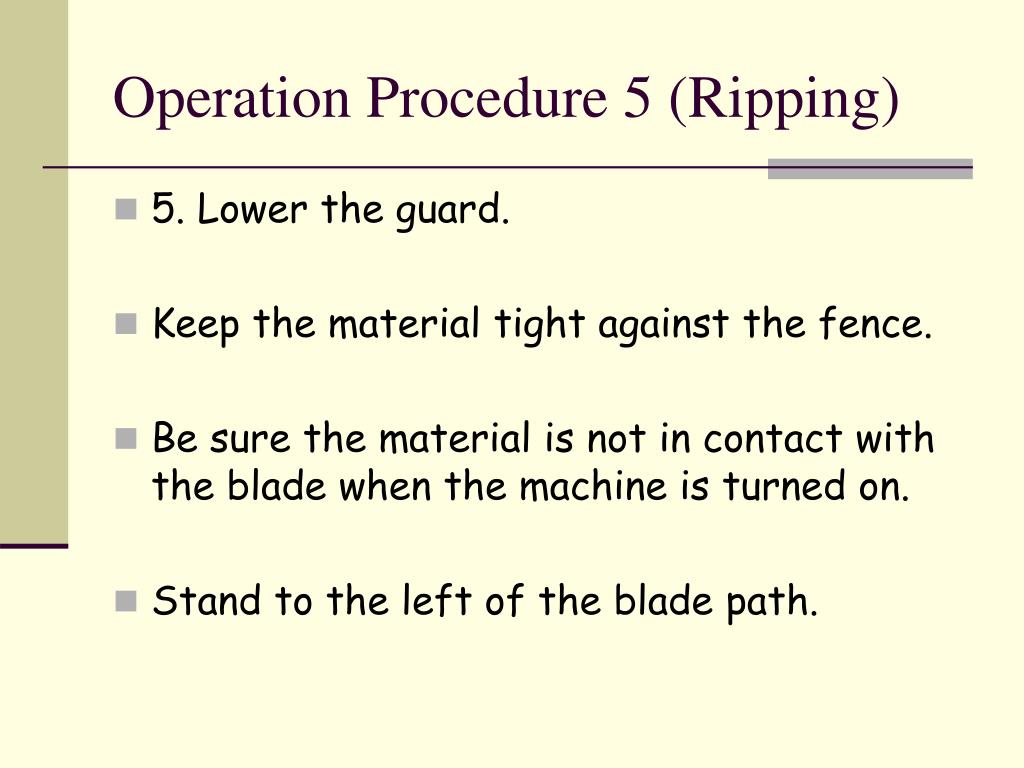

39. Operation Procedure 5 (Ripping) • 5. Lower the guard. • Keep the material tight against the fence. • Be sure the material is not in contact with the blade when the machine is turned on. • Stand to the left of the blade path.

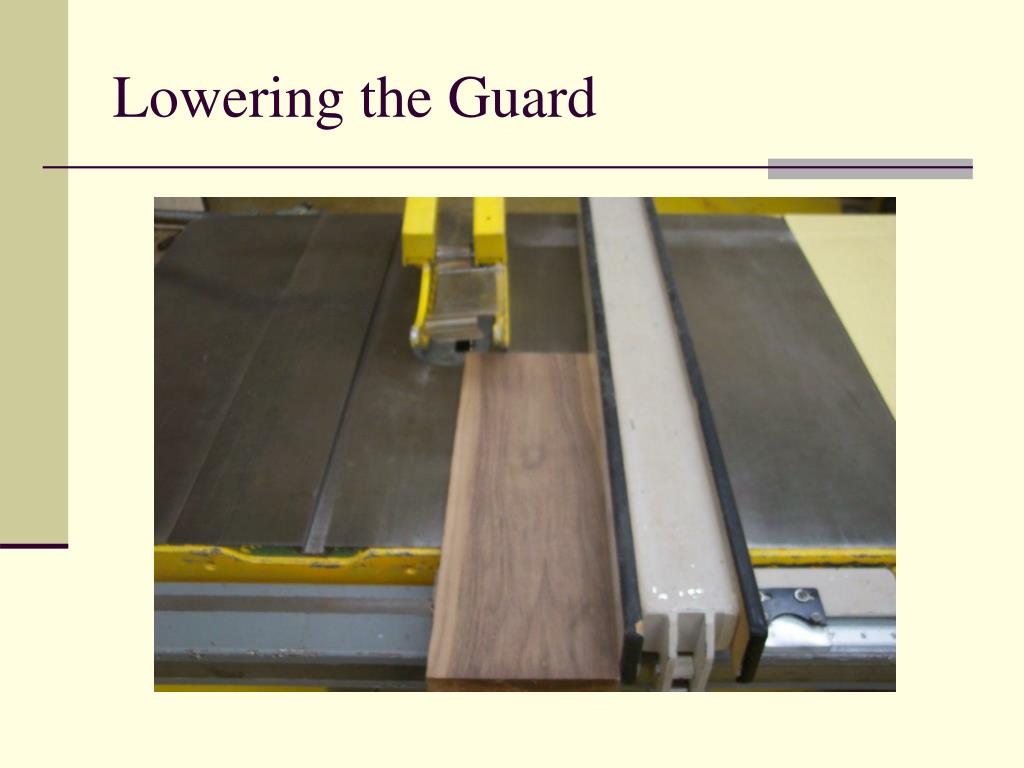

40. Lowering the Guard

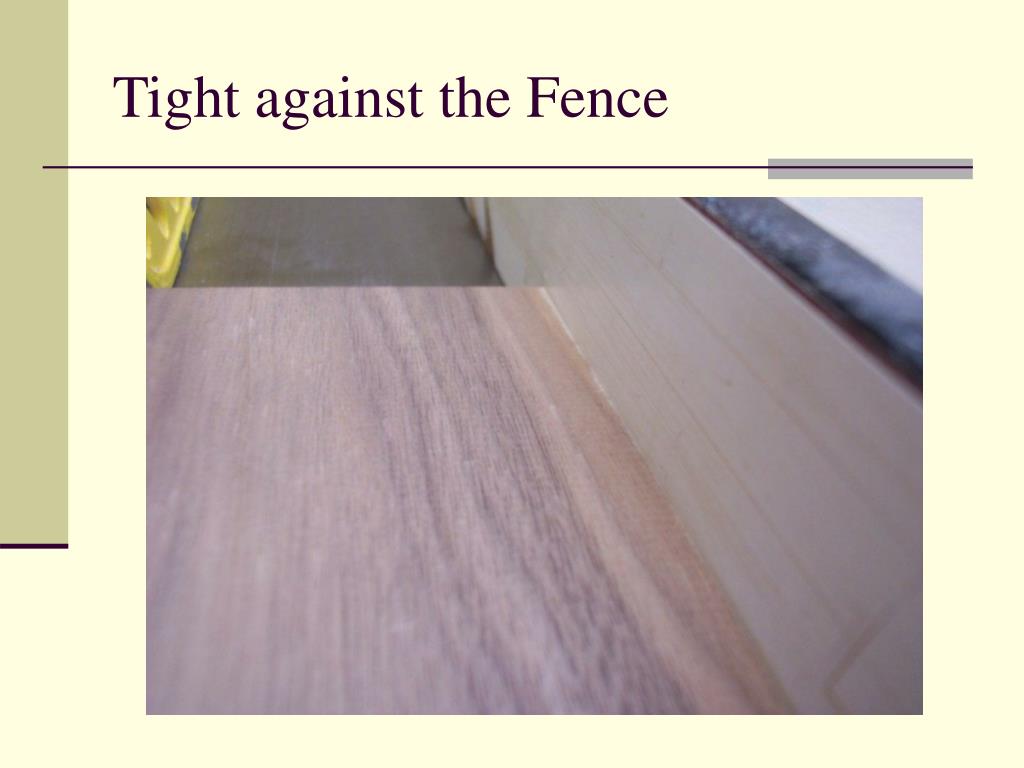

41. Tight against the Fence

42. Operation Procedure 6 (Ripping) • 6. Turn the machine on. • Slide the material against the fence and through the blade. • Push the material all the way off the table.

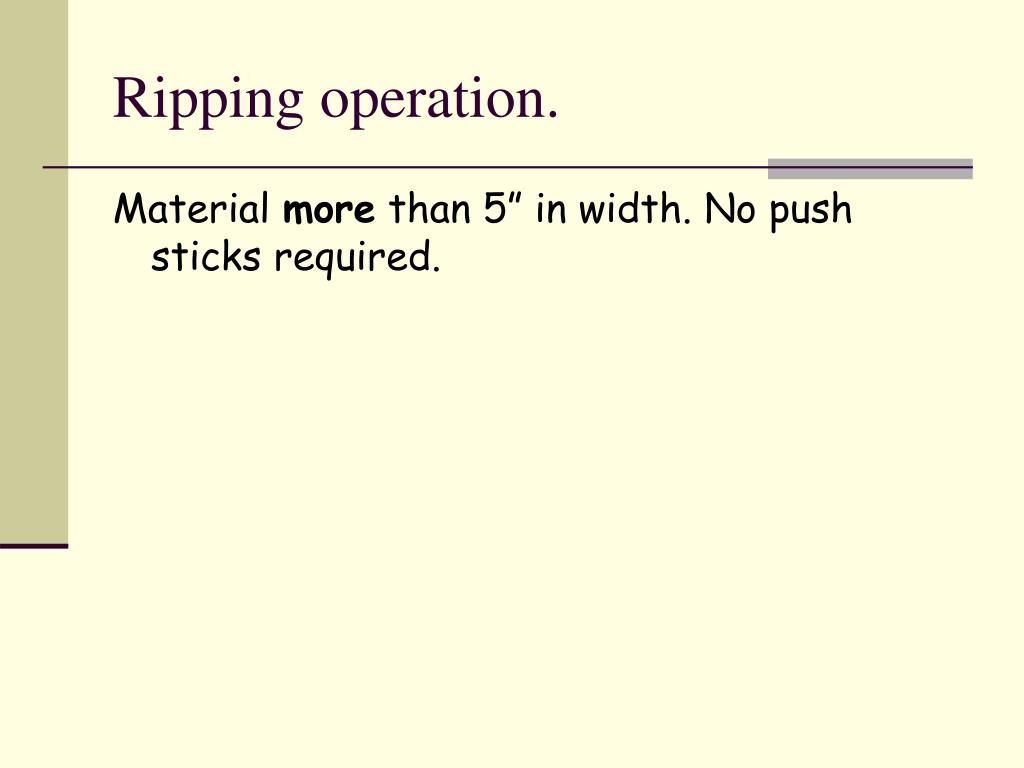

43. Ripping operation. Material more than 5” in width. No push sticks required.

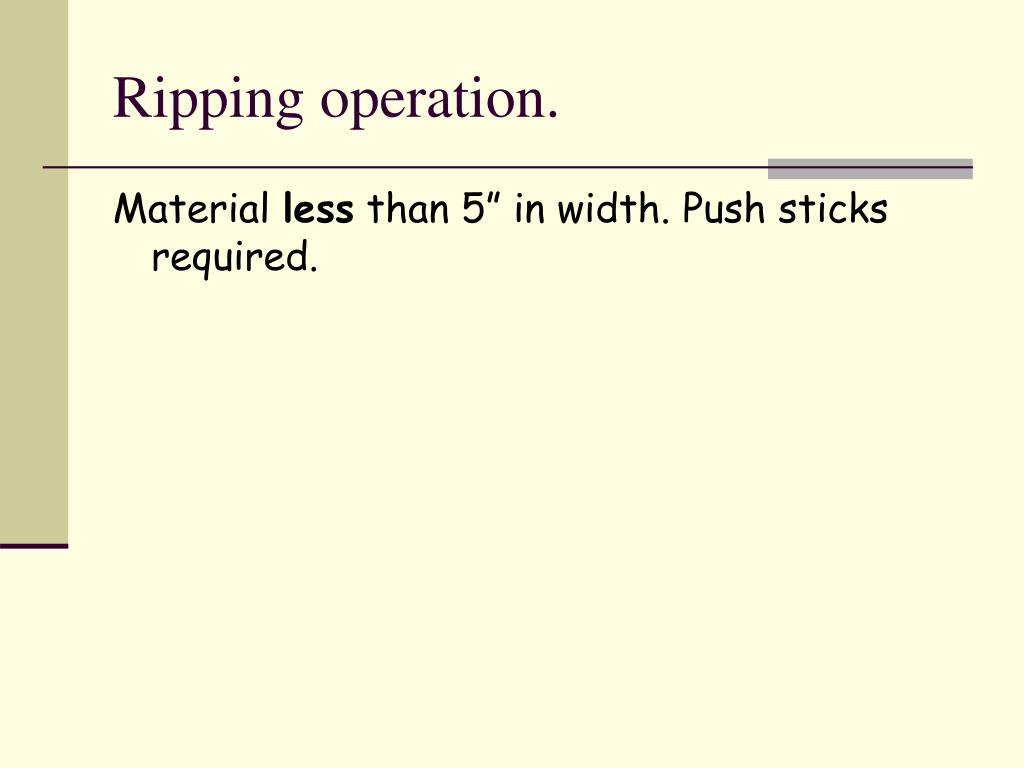

44. Ripping operation. Material less than 5” in width. Push sticks required.

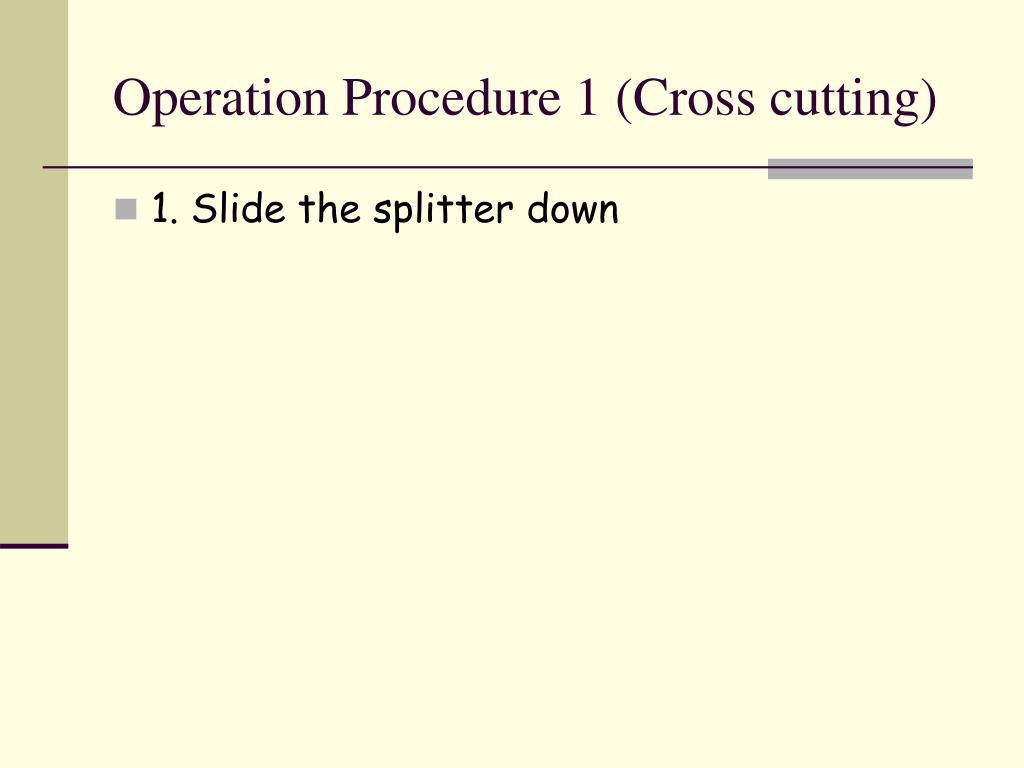

45. Operation Procedure 1 (Cross cutting) • 1. Slide the splitter down

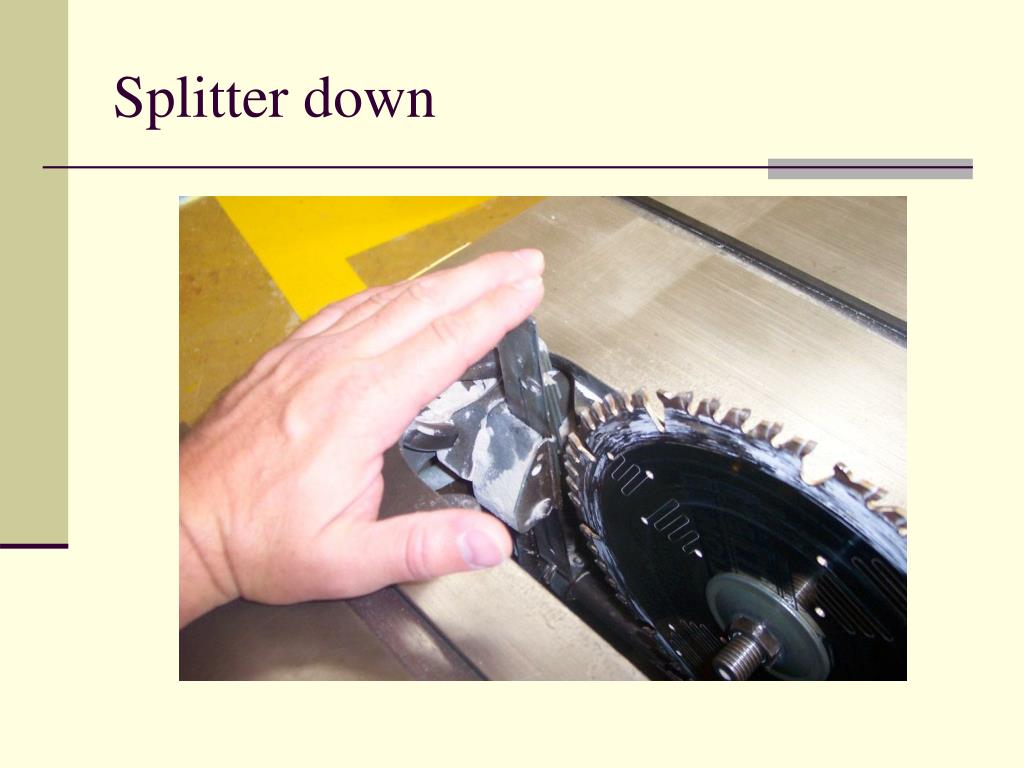

46. Splitter down

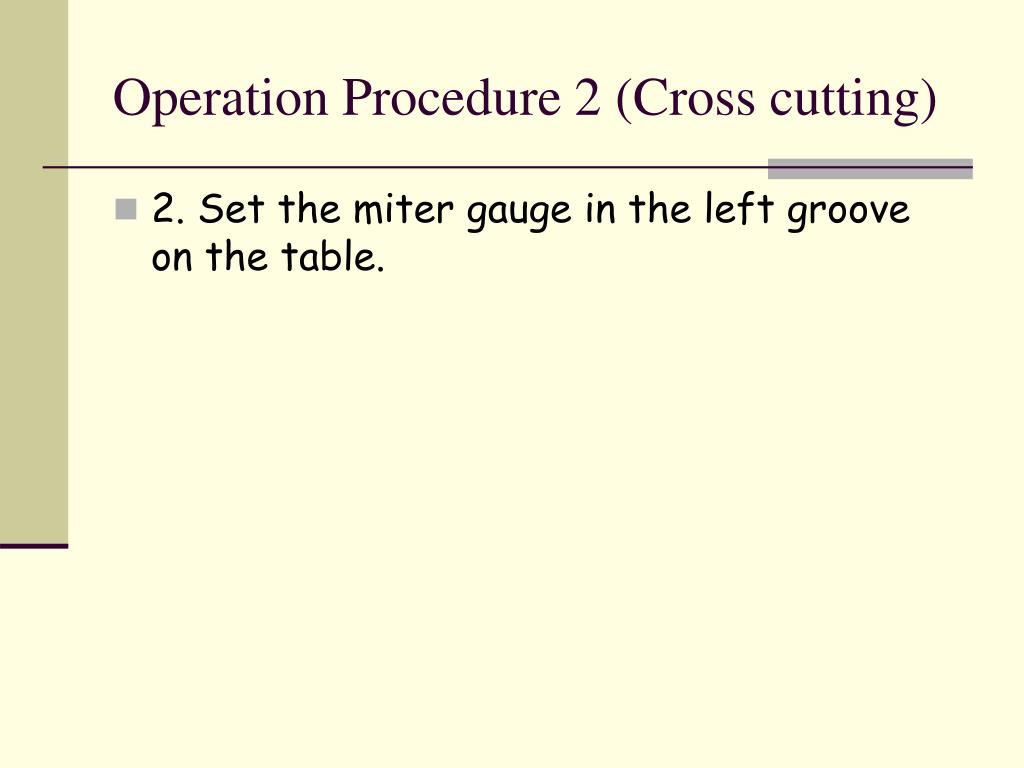

47. Operation Procedure 2 (Cross cutting) • 2. Set the miter gauge in the left groove on the table.

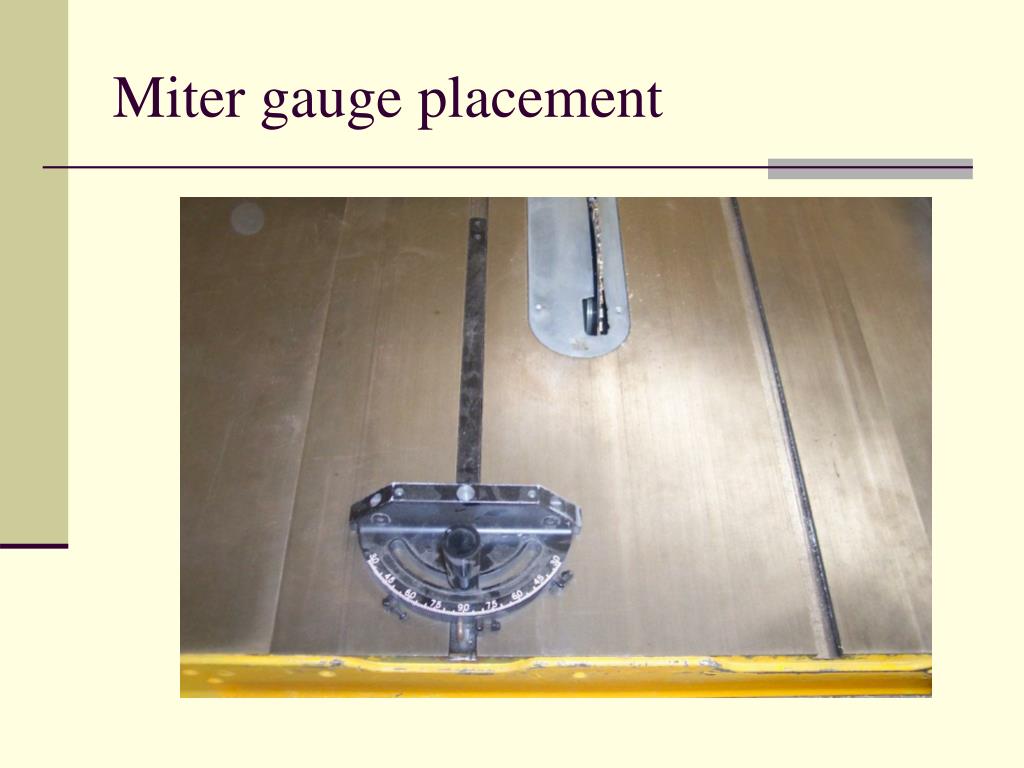

48. Miter gauge placement

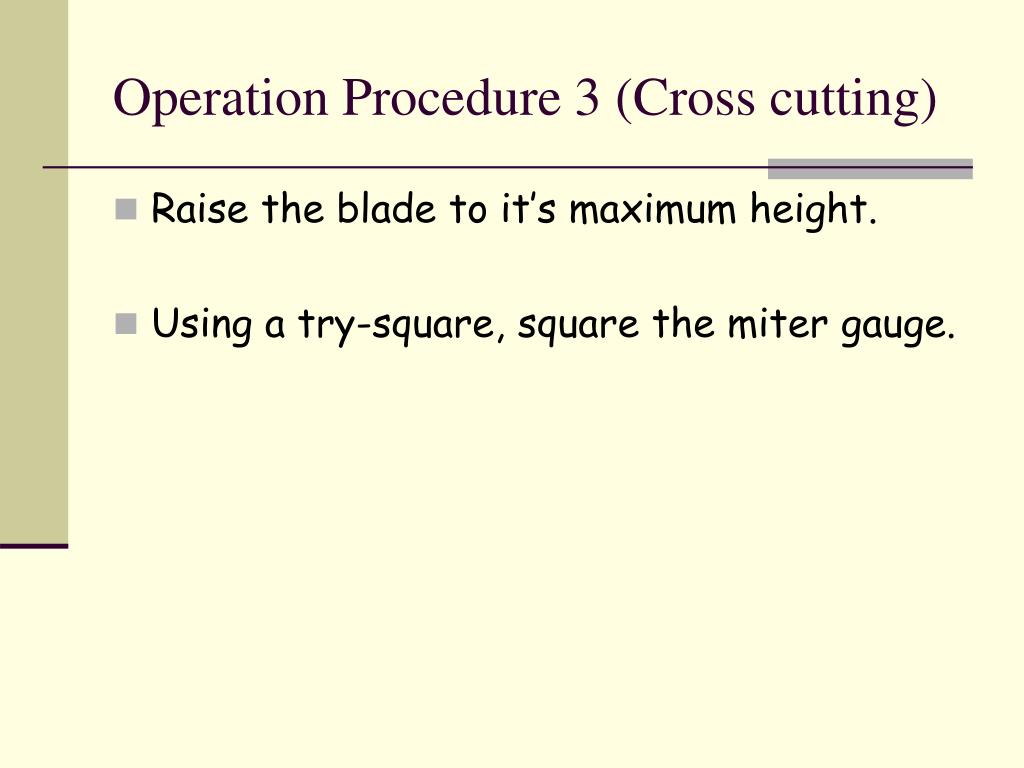

49. Operation Procedure 3 (Cross cutting) • Raise the blade to it’s maximum height. • Using a try-square, square the miter gauge.

50. Squaring the Miter Gauge
