1. Experimental Bit String Generation Serge Massar Université Libre de Bruxelles

2. Plan • Recall earlier work on quantum coin tossing • Theory of quantum bit string generation (joint work with Jonathan Barrett, PRA69(2004)022322 and quant-ph0408120) • Experimental implementation of bit string generation (L.-Ph. Lamoureux, E. Brainis, D. Amans, J. Barrett, S. M., quant-ph/0408121)

3. Coin Tossing (Blum) • Two parties dont trust each other.They need to choose a random bit: • « Alice (in the USA) and Bob (in the EU) are divorcing, they need to decide who keeps the children. They decide to toss a coin. » Bit String Generation: Tossing many coins

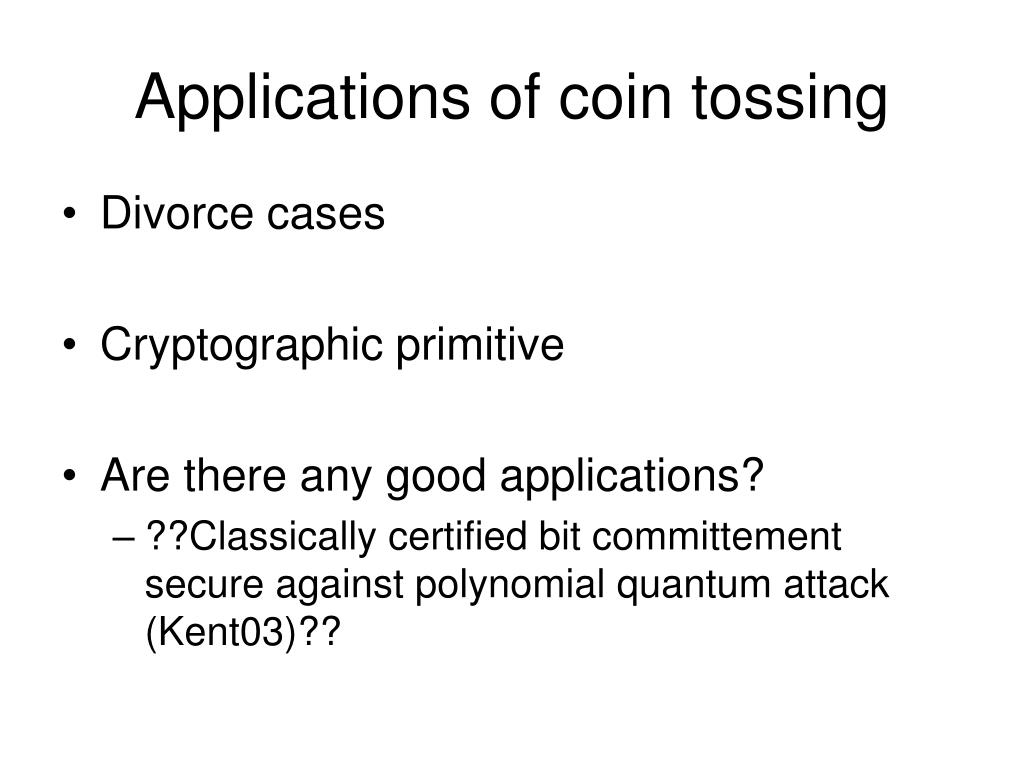

4. Applications of coin tossing • Divorce cases • Cryptographic primitive • Are there any good applications? • ??Classically certified bit committement secure against polynomial quantum attack (Kent03)??

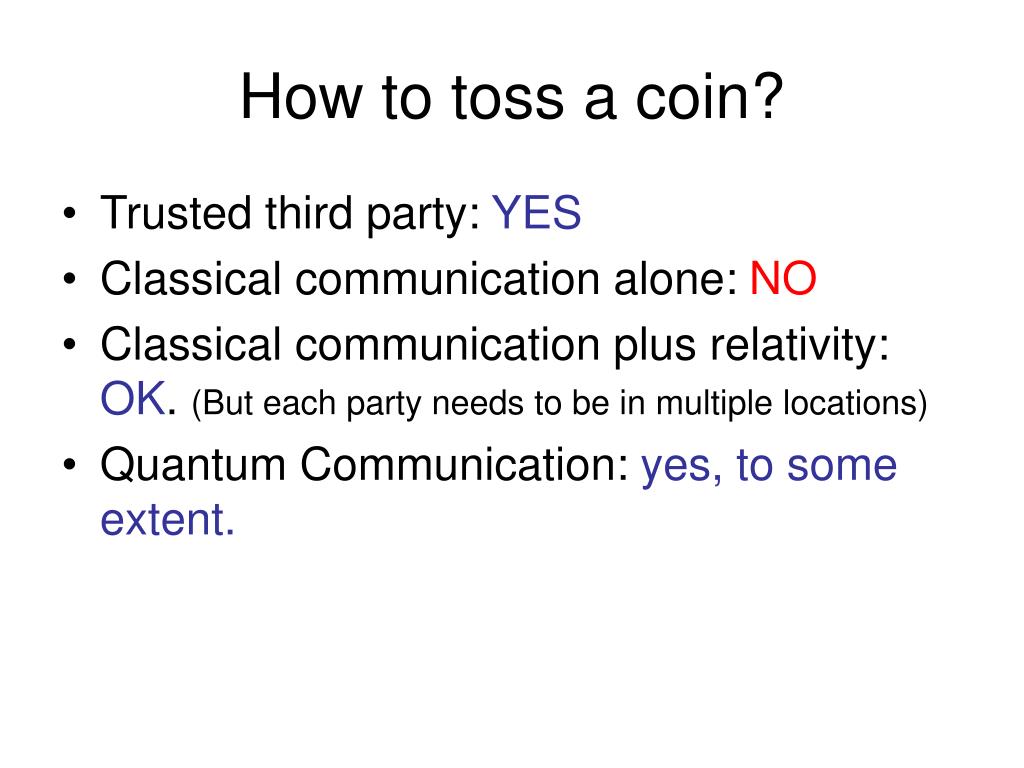

5. How to toss a coin? • Trusted third party: YES • Classical communication alone: NO • Classical communication plus relativity: OK. (But each party needs to be in multiple locations) • Quantum Communication: yes, to some extent.

6. Weak coin tossing: • Alice knows the outcome Bob wants • Bob knows the outcome Alice wants • Strong coin tossing: • Alice and Bob do not know the outcome the other party wants. • We will be concerned with Strong coin tossing

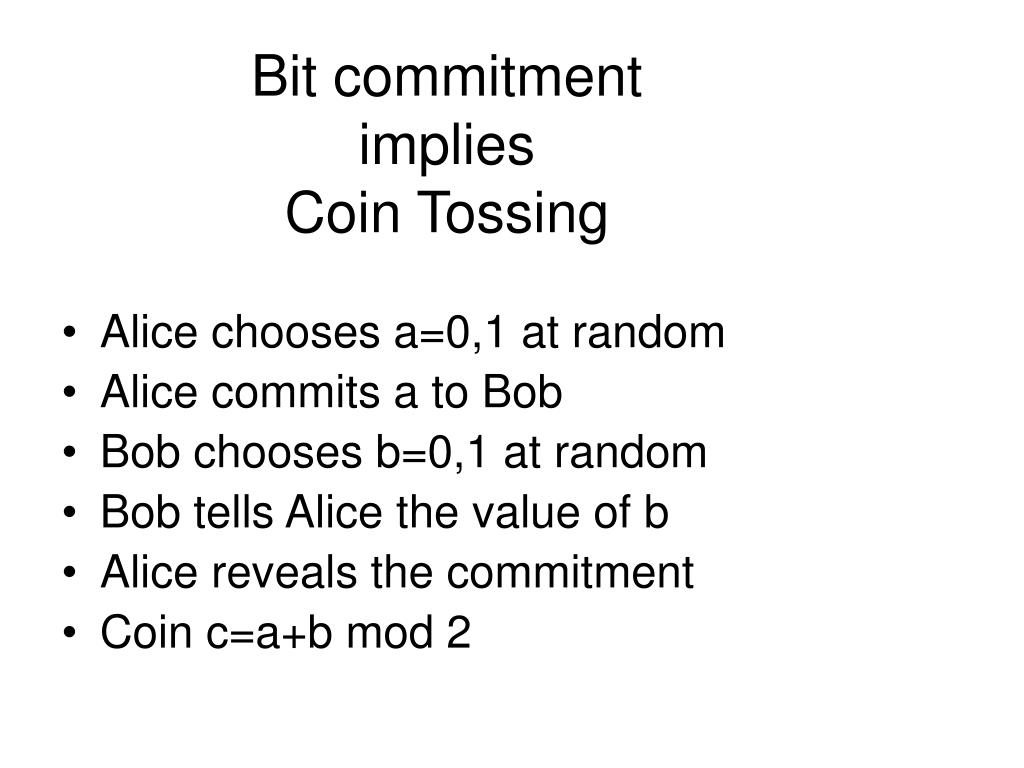

7. Bit commitment impliesCoin Tossing • Alice chooses a=0,1 at random • Alice commits a to Bob • Bob chooses b=0,1 at random • Bob tells Alice the value of b • Alice reveals the commitment • Coin c=a+b mod 2

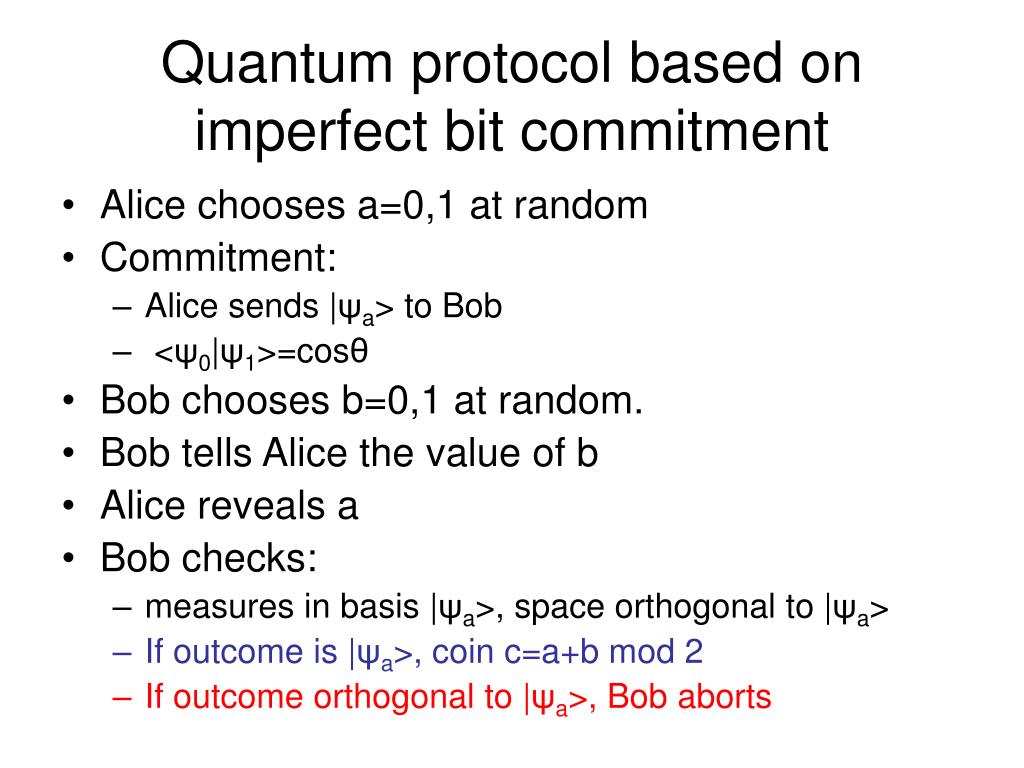

8. Quantum protocol based on imperfect bit commitment • Alice chooses a=0,1 at random • Commitment: • Alice sends |ψa> to Bob • <ψ0|ψ1>=cosθ • Bob chooses b=0,1 at random. • Bob tells Alice the value of b • Alice reveals a • Bob checks: • measures in basis |ψa>, space orthogonal to |ψa> • If outcome is |ψa>, coin c=a+b mod 2 • If outcome orthogonal to |ψa>, Bob aborts

9. Wining means getting the outcome you want. • The protocol may abort. If the protocol aborts, everybody looses • Classical communication: either ЄA or ЄB = ½ • There exists a quantum protocol with • ЄA = ЄB = ¼ (Ambainis) • For all quantum protocols, • Є> 1/√2 – ½ (Kitaev)

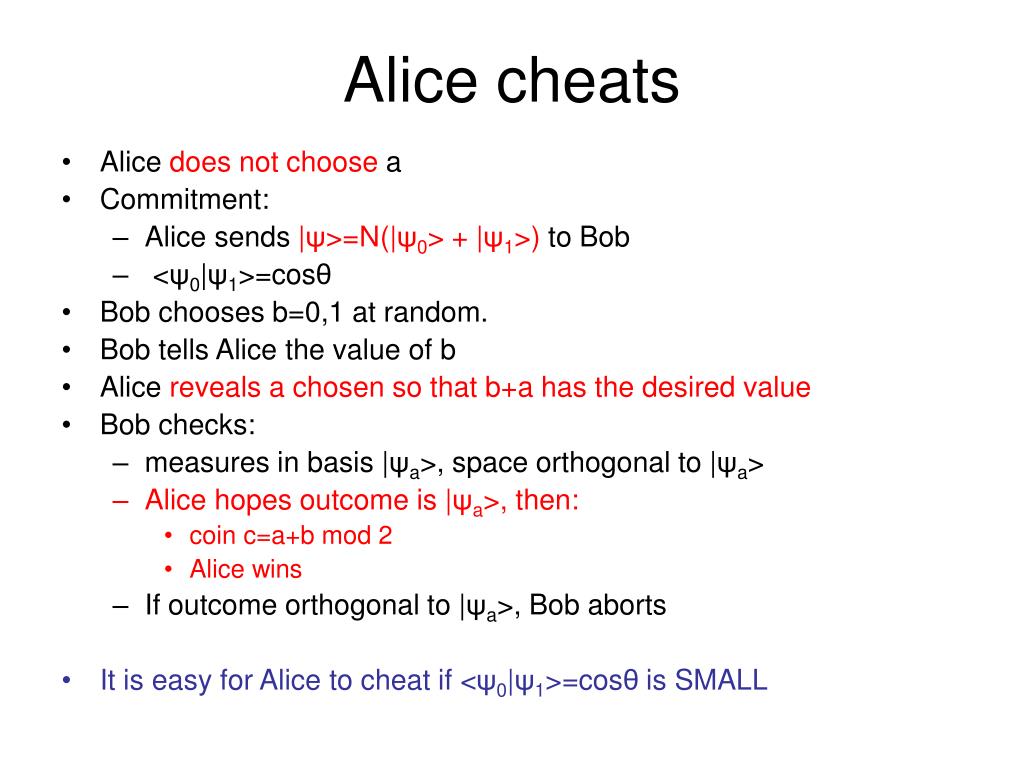

10. Alice cheats • Alice does not choose a • Commitment: • Alice sends |ψ>=N(|ψ0> + |ψ1>) to Bob • <ψ0|ψ1>=cosθ • Bob chooses b=0,1 at random. • Bob tells Alice the value of b • Alice reveals a chosen so that b+a has the desired value • Bob checks: • measures in basis |ψa>, space orthogonal to |ψa> • Alice hopes outcome is |ψa>, then: • coin c=a+b mod 2 • Alice wins • If outcome orthogonal to |ψa>, Bob aborts • It is easy for Alice to cheat if <ψ0|ψ1>=cosθ is SMALL

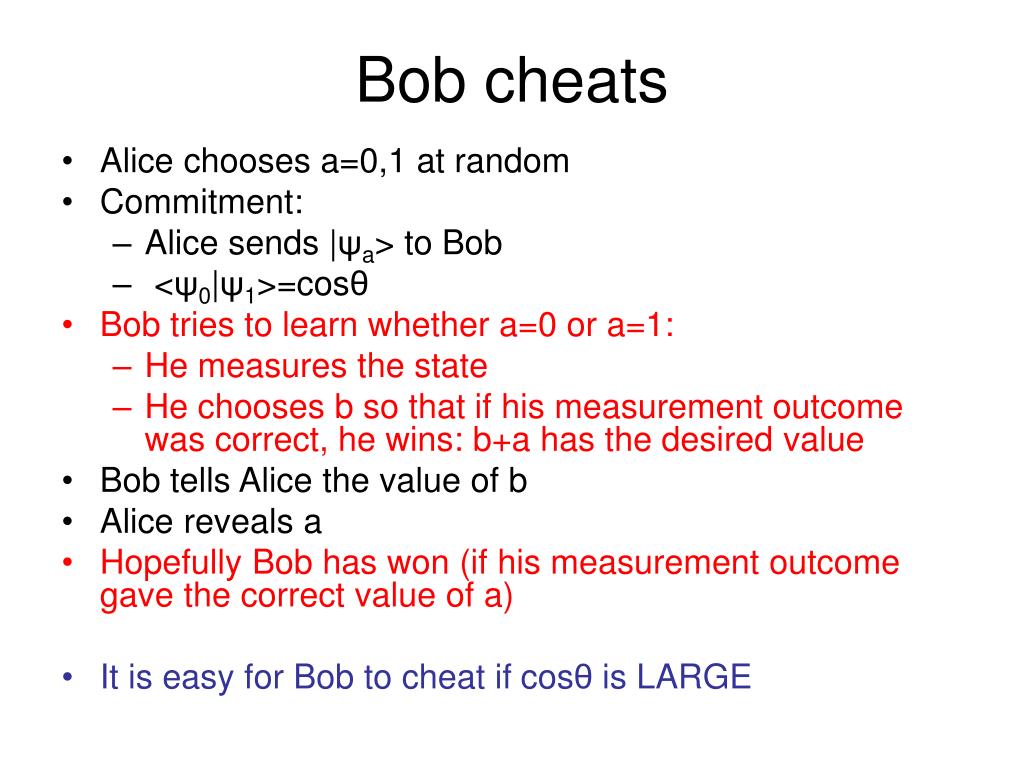

11. Bob cheats • Alice chooses a=0,1 at random • Commitment: • Alice sends |ψa> to Bob • <ψ0|ψ1>=cosθ • Bob tries to learn whether a=0 or a=1: • He measures the state • He chooses b so that if his measurement outcome was correct, he wins: b+a has the desired value • Bob tells Alice the value of b • Alice reveals a • Hopefully Bob has won (if his measurement outcome gave the correct value of a) • It is easy for Bob to cheat if cosθ is LARGE

12. One can choose an optimal value of <ψ0|ψ1>=cosθ=1/√2 so that neither Alice nor Bob can cheat too much. Then

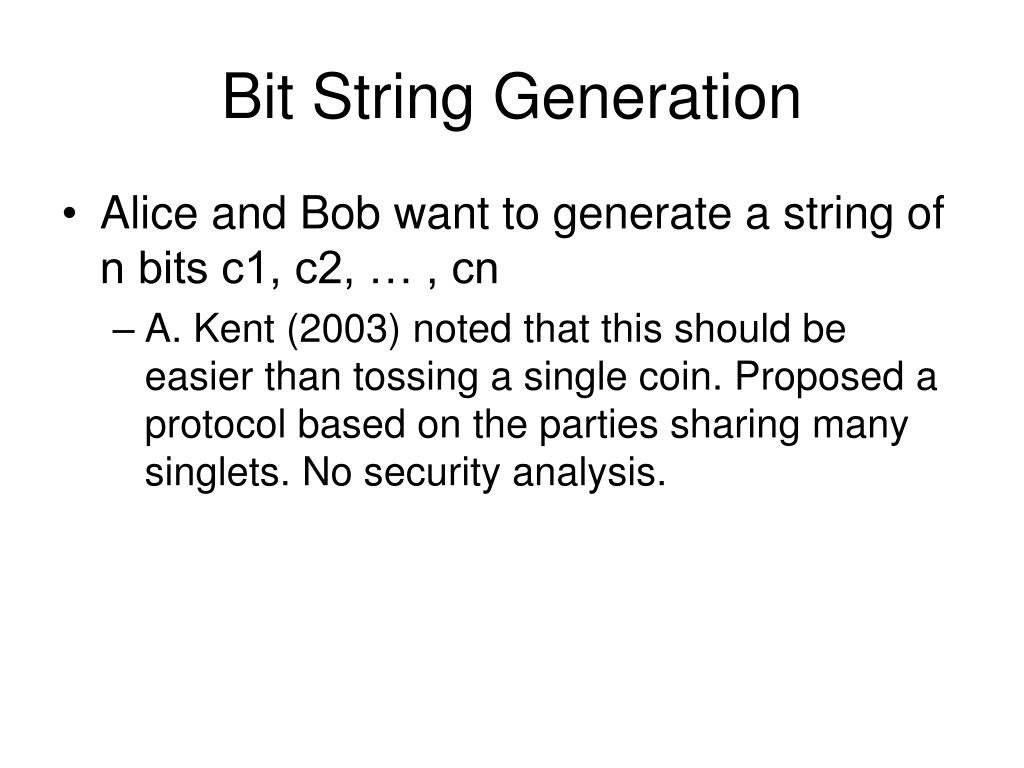

13. Bit String Generation • Alice and Bob want to generate a string of n bits c1, c2, … , cn • A. Kent (2003) noted that this should be easier than tossing a single coin. Proposed a protocol based on the parties sharing many singlets. No security analysis.

14. Present work • Bit string generation based on n repetitions of above protocol for coin tossing. • Detailed security analysis.

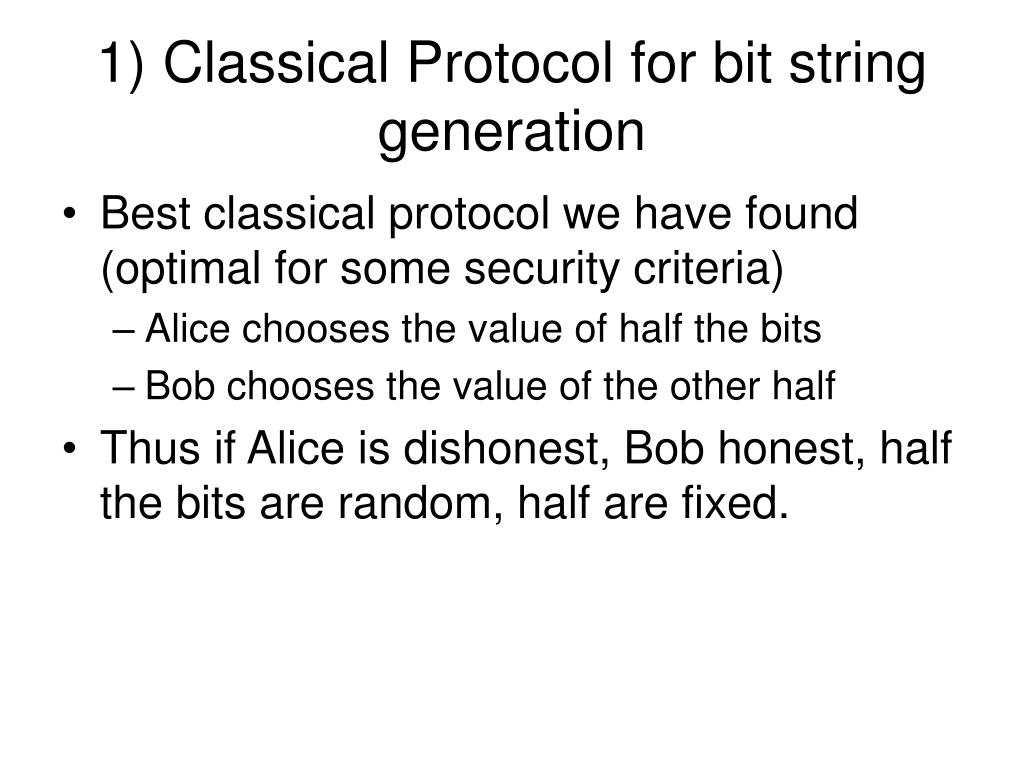

15. 1) Classical Protocol for bit string generation • Best classical protocol we have found (optimal for some security criteria) • Alice chooses the value of half the bits • Bob chooses the value of the other half • Thus if Alice is dishonest, Bob honest, half the bits are random, half are fixed.

16. 2) Quantum Protocol • For i=1 to n • Alice chooses ai=0,1 at random • Commitment: • Alice sends |ψai> to Bob • <ψ0|ψ1>=cosθ • Bob chooses bi=0,1 at random. • Bob tells Alice the value of bi . • Alice reveals the value of ai to Bob • Bob checks: • measures in basis |ψai>, space orthogonal to |ψai> • If outcome orthogonal to |ψa>, Bob aborts • Next i • If Bob has not aborted, ci=ai + bi mod 2

17. Cheating 1 • Cheating Bob: • He must measure the states received from Alice immediately → Same security analysis than when tossing a single coin. • Cheating Alice: • She can send an entangled state, measure her state, then decide on the value of ai depending on the measurement outcome. • She can correlate/entangle her strategy between rounds

18. Cheating 2 • For fixed <ψ0|ψ1>=cosθ it is more and more difficult for Alice to cheat when n increases (since Bob carries out n measurements) → One can decrease θ as n increases • This makes it more and more difficult for Bob to cheat • Optimal rate of decrease θ=n- αfor some α →Good security both with respect to Alice and Bob

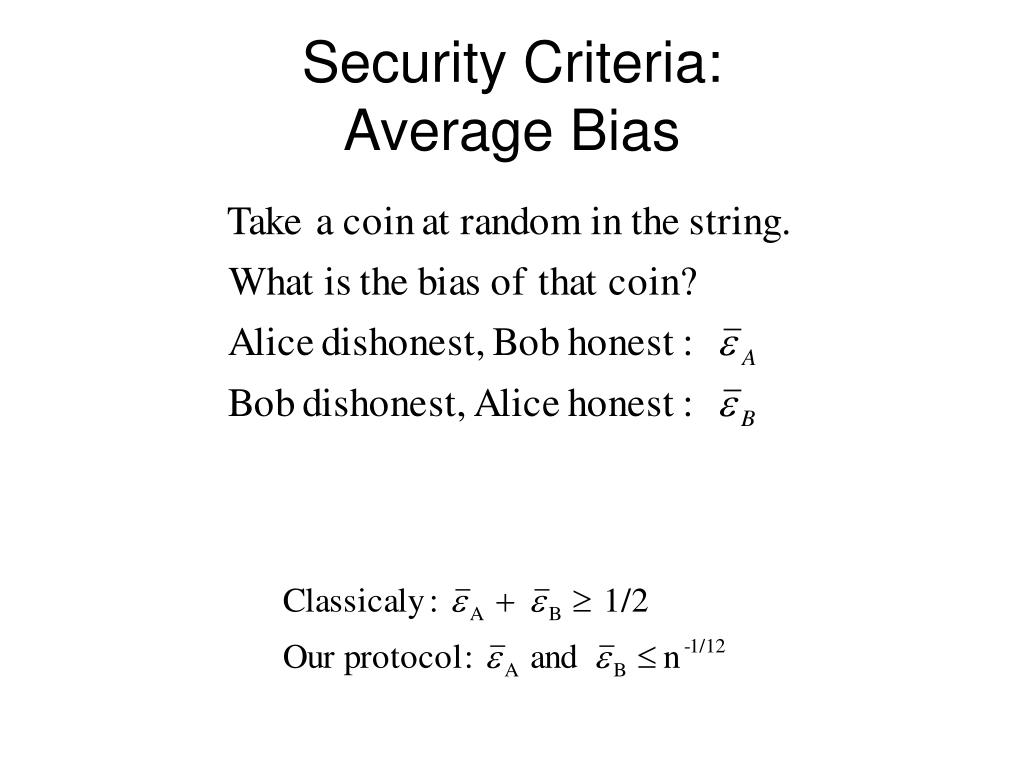

19. Security Criteria:Average Bias

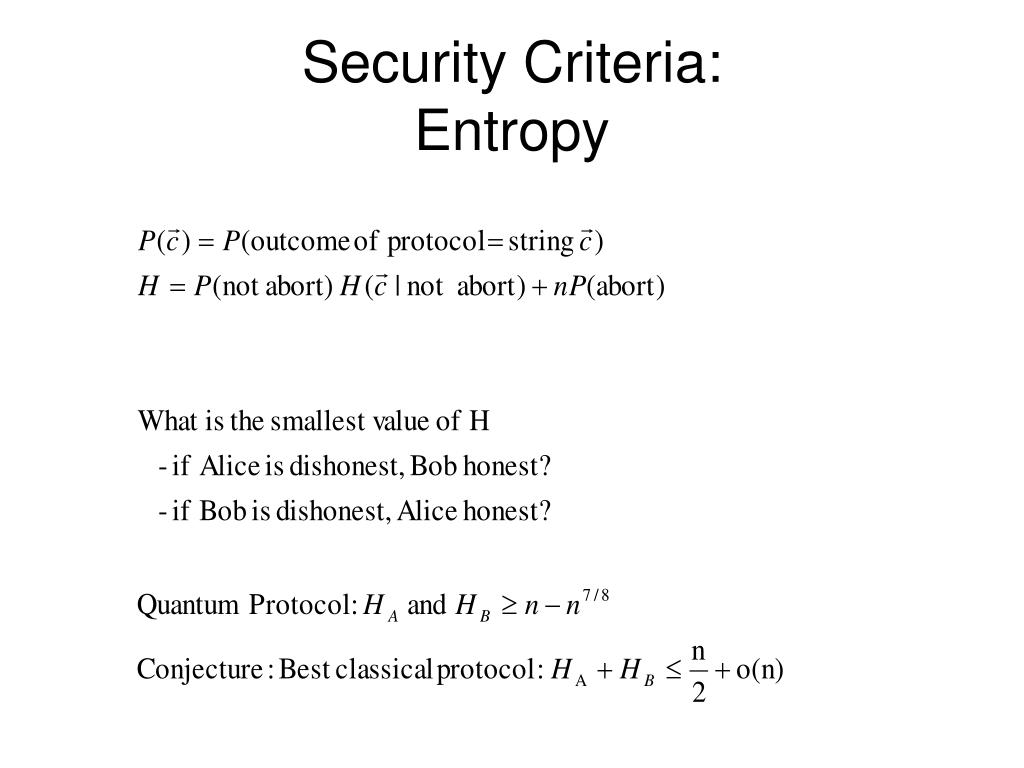

20. Security Criteria:Entropy

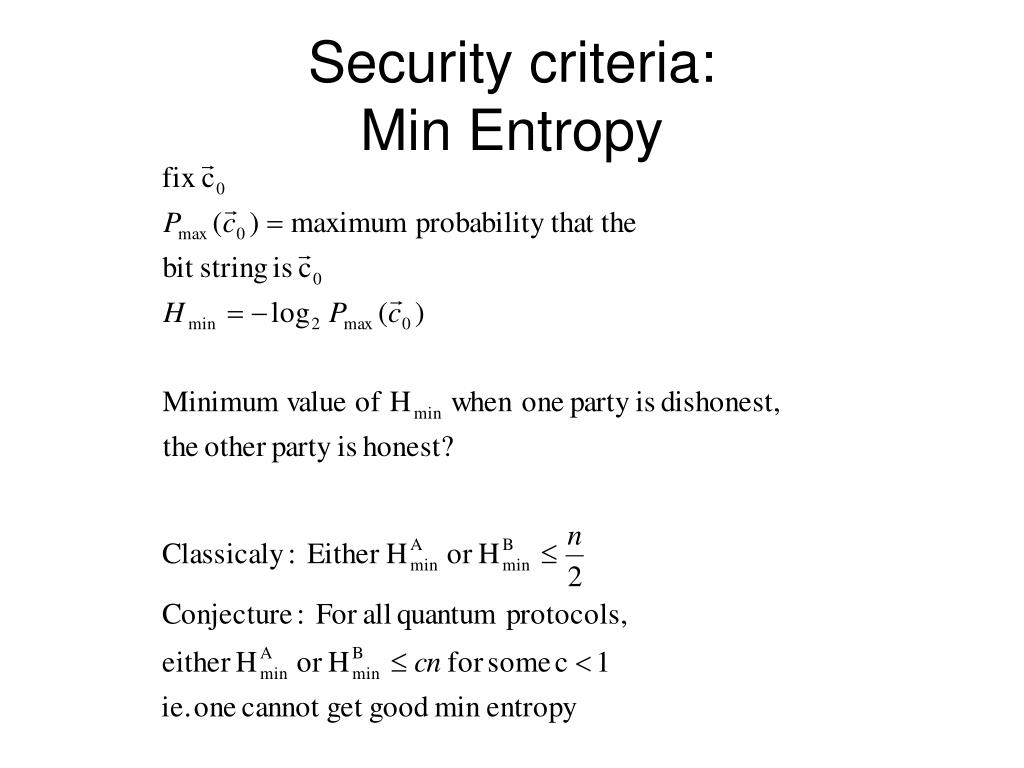

21. Security criteria:Min Entropy

22. Summary • Open Questions: • Improve quantum results. (Can entanglement help?) • Obtain Kitaev type bounds for the different security criteria. • Prove classical conjecture.

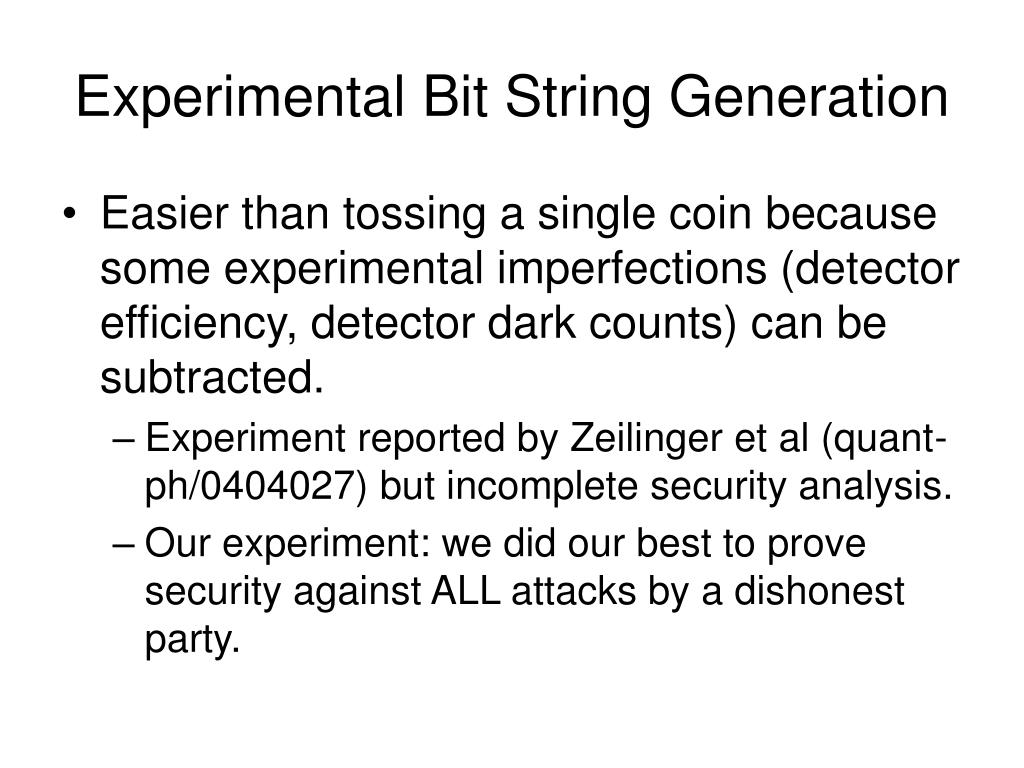

23. Experimental Bit String Generation • Easier than tossing a single coin because some experimental imperfections (detector efficiency, detector dark counts) can be subtracted. • Experiment reported by Zeilinger et al (quant-ph/0404027) but incomplete security analysis. • Our experiment: we did our best to prove security against ALL attacks by a dishonest party.

24. Bob’s Lab Alice’s Lab • Experimental imperfections: • Alice’s state preparation may be noisy • The communication line may be noisy • Bob’s measurement apparatus may be imperfect • A dishonest party can controle everything outside the other party’s lab. • Thus in the presence of imperfections, the guaranteed bounds on randomness will be worse Communication line

25. Quantum Protocol with imperfections • For i=1 to n • Alice chooses ai=0,1 at random • Commitment: • Alice sends |ψai> to Bob • <ψ0|ψ1>=cosθ • Bob chooses bi=0,1 at random. • Bob tells Alice the value of bi . • Alice reveals the value of ai to Bob • Bob checks: • estimates fidelity of states sent by Alice: measures in basis |ψai>, space orthogonal to |ψai> • Next i • If fidelity too small, Bob aborts • If fidelity sufficiently large, Bob does not abort and ci=ai + bi mod 2

26. Security Analysis • Important parameters: • Scalar product <ψ0|ψ1>=cosθ between states prepared by Alice • Fidelity f of states as estimated by Bob. • Bounds on εB , HB depend on θ only. • Bounds on εA , HA depend on f and θ, for instance: • Thus choose good compromise between <ψ0|ψ1>=cosθ and fidelity f

27. p |-α> |α> x p |0>=D-α|α> |α> x Implementation • |ψ0>=|+α> , |ψ1>=|-α> are two coherent states (by changing the intensity |α|2, one changes the overlap <ψ0|ψ1>=exp[-2|α|2]) • Bob’s measurement: • displaces the states by D±α • Uses a single photon detector to check that the state is the vacuum. • If the detector clicks, then Alice could be cheating Notes: • Displacement is simply realised by an interferometer • No need to restrict Hilbert space to single photon subspace

28. Experimental setup • All fiber optics • Telecommunication wavelenghts • Based on « plug an play » system for quantum key distribution (N. Gisin) →suitable for long distance communication (our realisation: table top)

29. Arbitrary state Mixture of coherent states (positive P function) Attenuation A Gaussian Noise 1/A • Security Complication: • Light pulses produced by Bob, then go to Alice, then reflected back to Bob • Remark: upon attenuation, any state tends towards a mixture of coherent states Typically A=104

30. Security Solution: first measure intensity, then attenuate: this produces a mixture of coherent states of known intensity Mixture of coherent states of known intensity A Classical Detector Intensity known

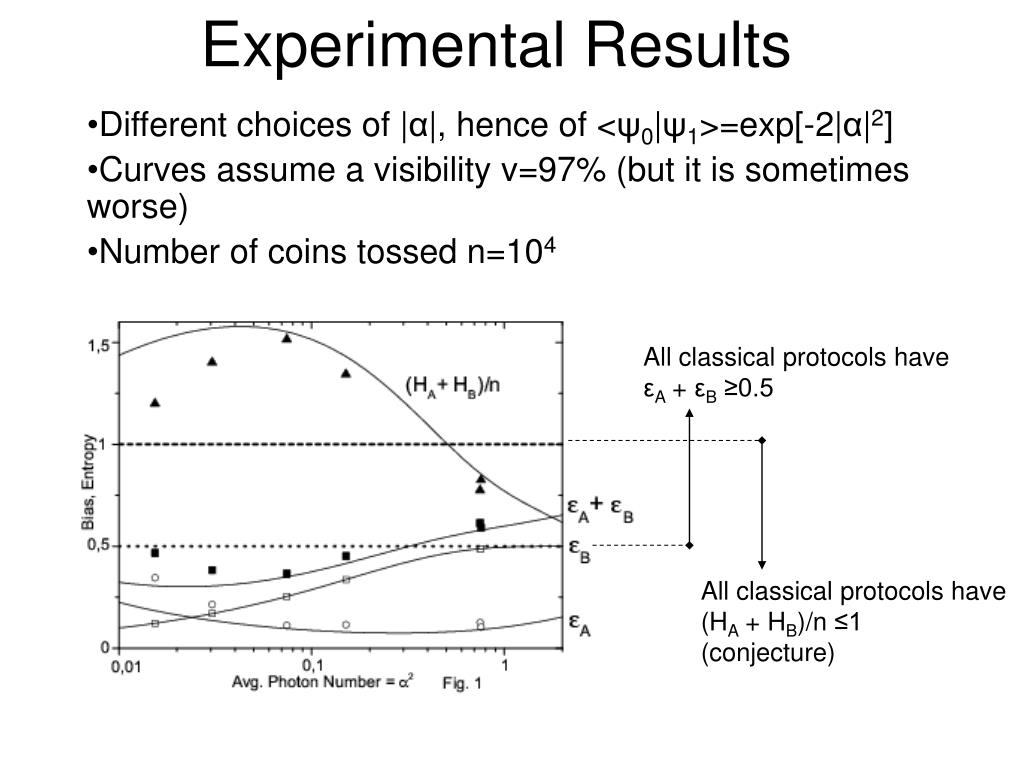

31. All classical protocols have εA + εB ≥0.5 All classical protocols have (HA + HB)/n ≤1 (conjecture) Experimental Results • Different choices of |α|, hence of <ψ0|ψ1>=exp[-2|α|2] • Curves assume a visibility v=97% (but it is sometimes worse) • Number of coins tossed n=104

32. Summary • Using quantum communication it is possible to generate very random strings of bits in the absence of noise. • In the presence of imperfections the randomness goes down. Nevertheless experimental demonstration of bit strings generation using quantum communication (bits are more random than can be achieved using classical communication, at least according to the average bias criterion).

33. Outlook • improve theoretical bounds, • Improve experiment: • toss a single coin more random than possible using classical communication; • long distance bit string generation

34. Collaborators: • Jonathan Barrett • Louis-Philippe Lamoureux • Edouard Brainis • David Amans • Funding and Support: • Université Libre de Bruxelles (ULB) • Fonds National de la Recherche Scientifique (FNRS) • Communauté Française de Belgique (ARC) • Gouvernement Fédéral Belge (PAI) • European Community (project RESQ)
