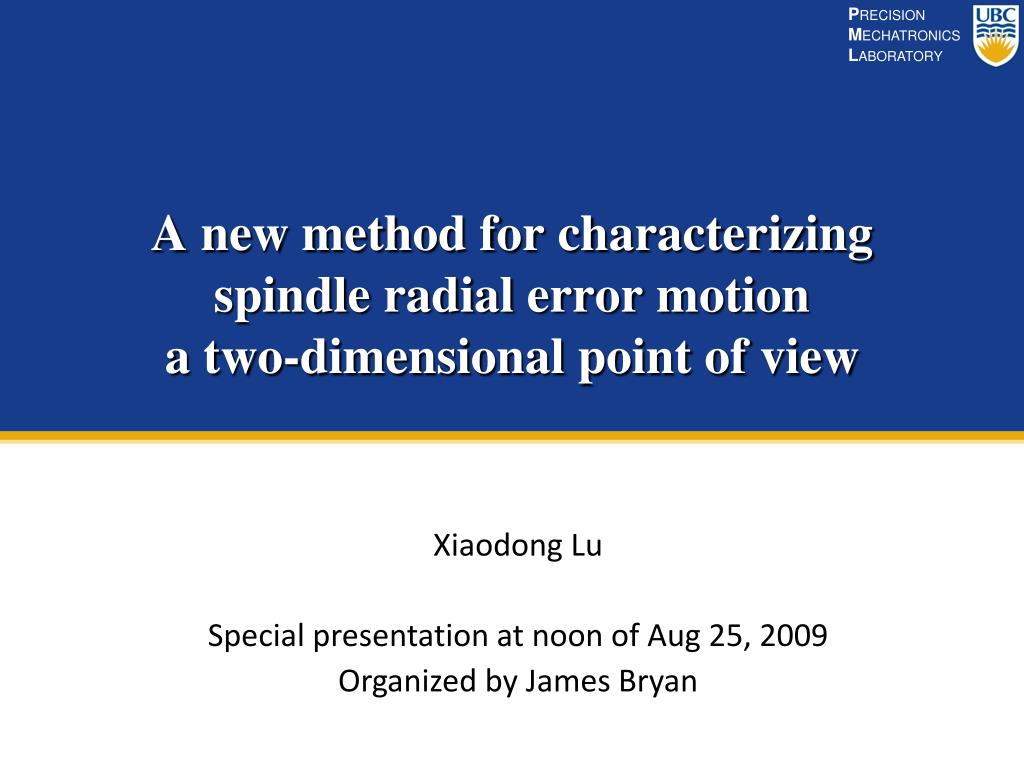

A new method for characterizing spindle radial error motion a two-dimensional point of view

A new method for characterizing spindle radial error motion a two-dimensional point of view. Xiaodong Lu Special presentation at noon of Aug 25, 2009 Organized by James Bryan. Background. J. Tlusty , “System and Methods of Testing Machine Tools”, Microtecnic , 13(4):162-178, 1959.

Download Presentation

A new method for characterizing spindle radial error motion a two-dimensional point of view

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. A new method for characterizing spindle radial errormotiona two-dimensional point of view Xiaodong Lu Special presentation at noon of Aug 25, 2009 Organized by James Bryan

  2. Background • J. Tlusty, “System and Methods of Testing Machine Tools”, Microtecnic, 13(4):162-178, 1959. • J. Bryan, R. Clouser, and E. Holland. “Spindle Accuracy”, American Machinist, 111(25):149-164, 1967 • R. Donaldson, A Simple Method for Separating Spindle Error from Test Ball Roundness Error, CIRP Annals, Vol. 21/1, 1972 • J. Peters, P. Vanherck, An Axis of Rotation Analyser, Proc. Of 14th International MTDR Conference, 1973. • ANSI/ASME B89.3.4M – 1985, Axes of Rotation: Methods for specifying and testing, 1985. • ISO 230-7:2006, Test code for machine tools—Part 7: Geometric accuracy of axes of rotation, 2006 • J. B. Bryan, The History of Axes of Rotation and my Recollections, Proceedings of ASPE Summer Topical Meeting on Precision Bearings and Spindles, 2007. • E. R. Marsh, Precision Spindle Metrology, DEStech Publications, 2008.

  3. Something is wrong! • Darcy Montgomery of Kodak Graphics (Vancouver) sent Email to Prof. Yusuf Altintas (UBC), questioning about ASNI B89.3.4, what if the amplitudes of once-per-revolution components in X and Y are not equal to each other? The removal of once-per-revolution component is questionable. • Darcy’s question motivated me and my students (UBC) to develop a new method for a more rigorous treatment of the spindle radial error motion.

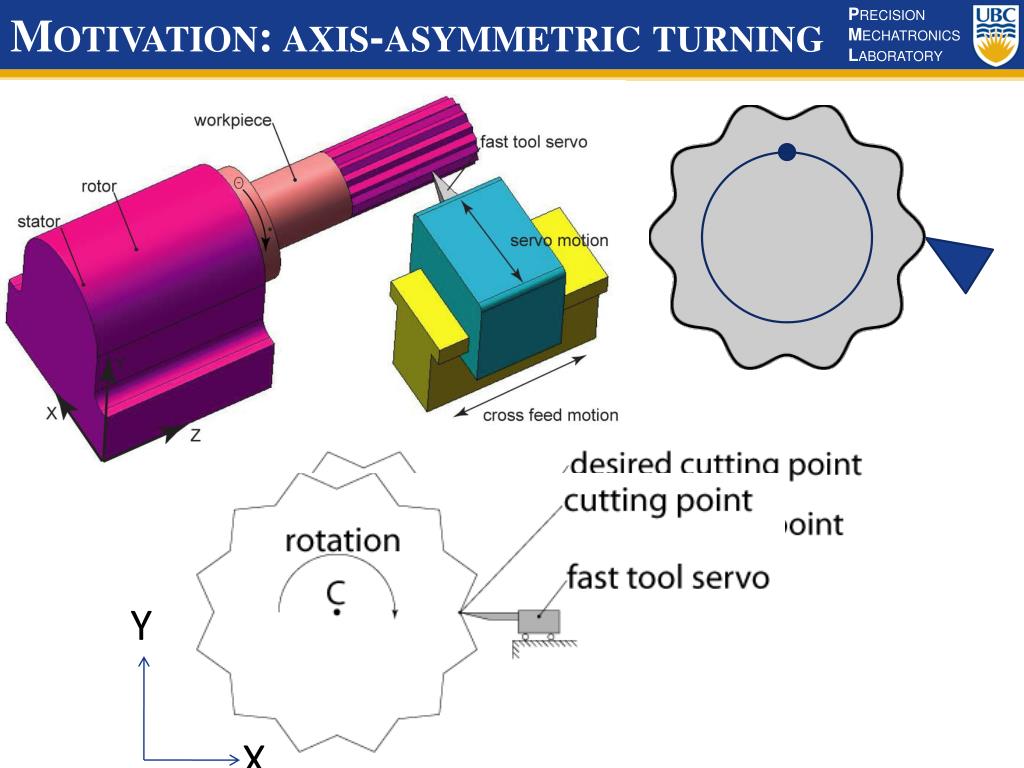

  4. Motivation: axis-asymmetric turning Y X

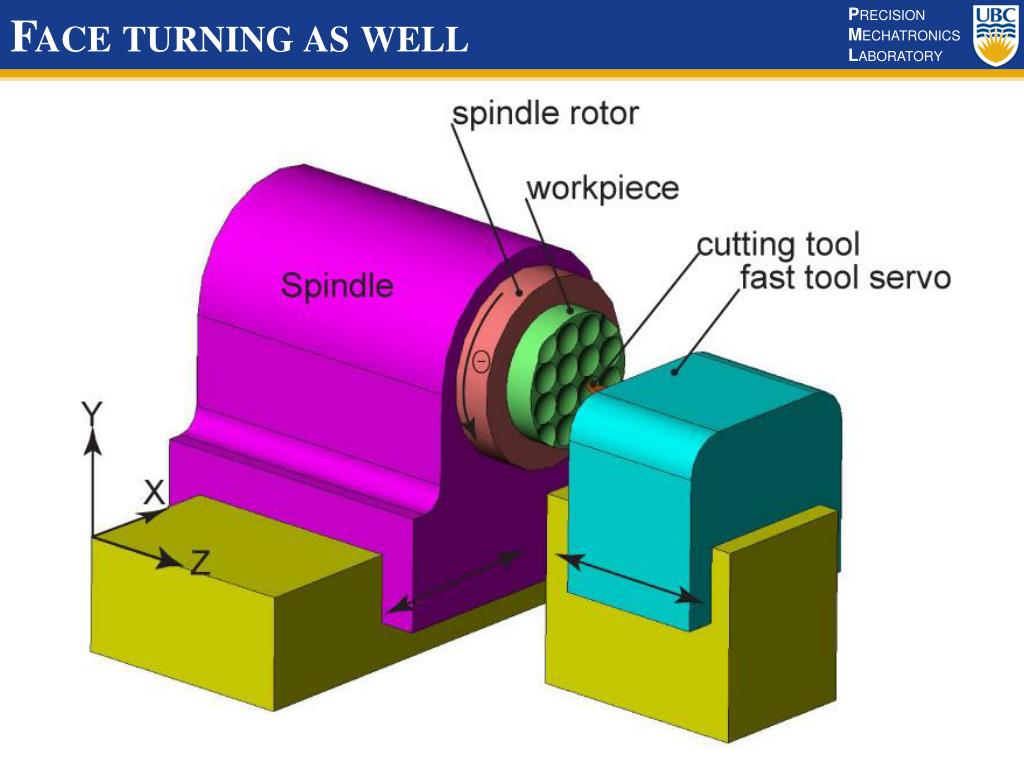

  5. Face turning as well

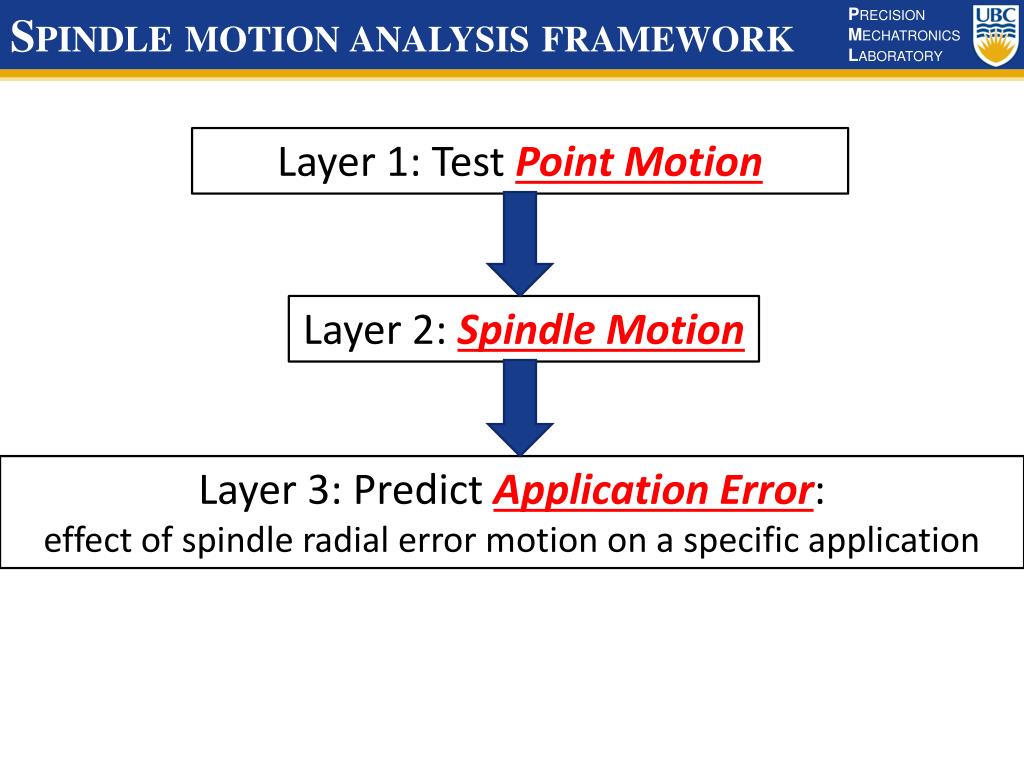

  6. Spindle motion analysis framework Layer 1: Test Point Motion Layer 2: Spindle Motion Layer 3: Predict Application Error: effect of spindle radial error motion on a specific application

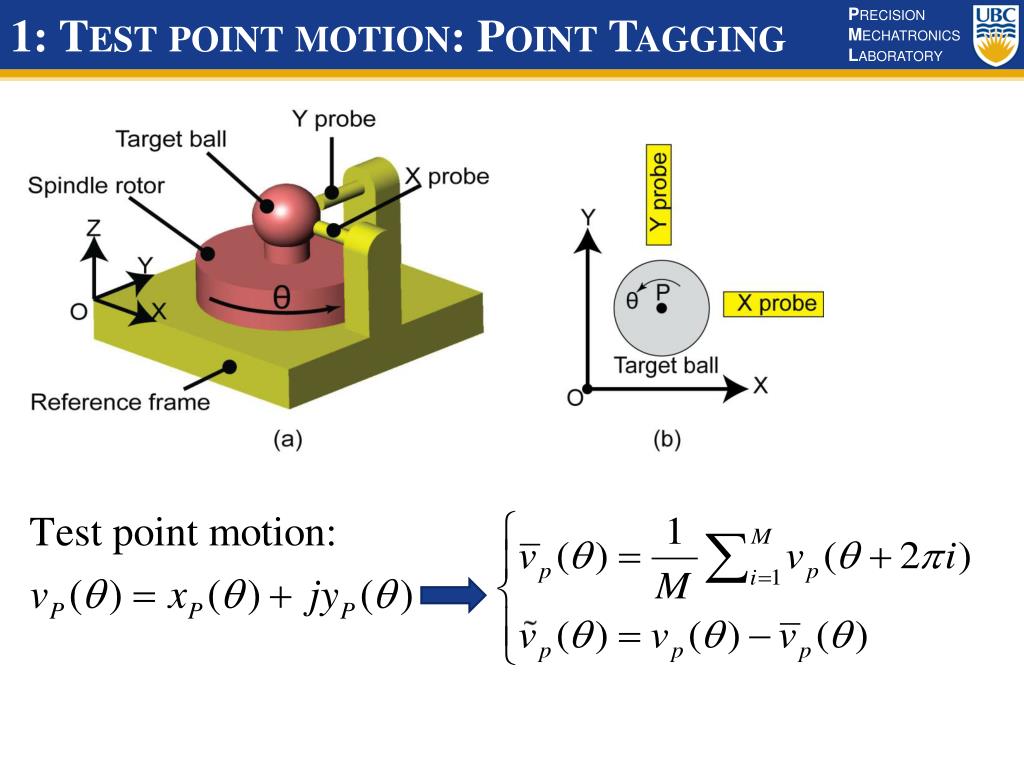

  7. 1: Test point motion: Point Tagging

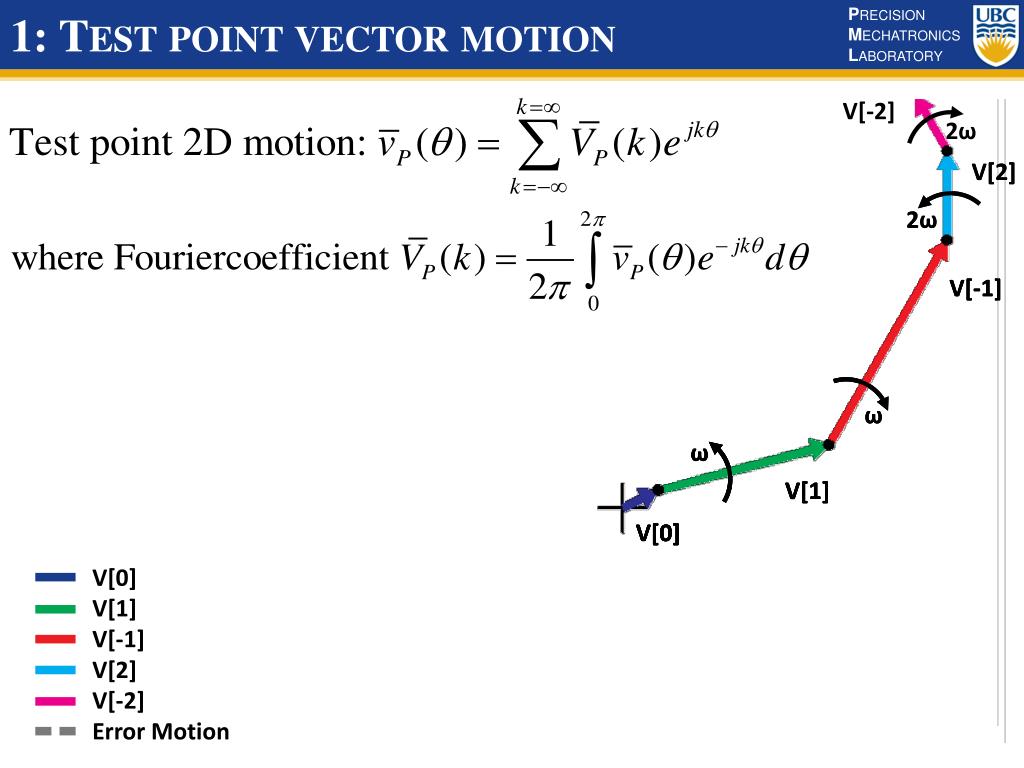

  8. 1: Test point vector motion V[-2] V[0] V[1] V[-1] V[2] V[-2] Error Motion 2ω V[2] V[2] 2ω 2ω V[-1] V[-1] V[-1] ω ω ω ω ω ω ω V[1] V[1] V[1] V[1] V[0] V[0] V[0] V[0] V[0]

  9. 1: Test point vector motion 2ω 2ω ω ω

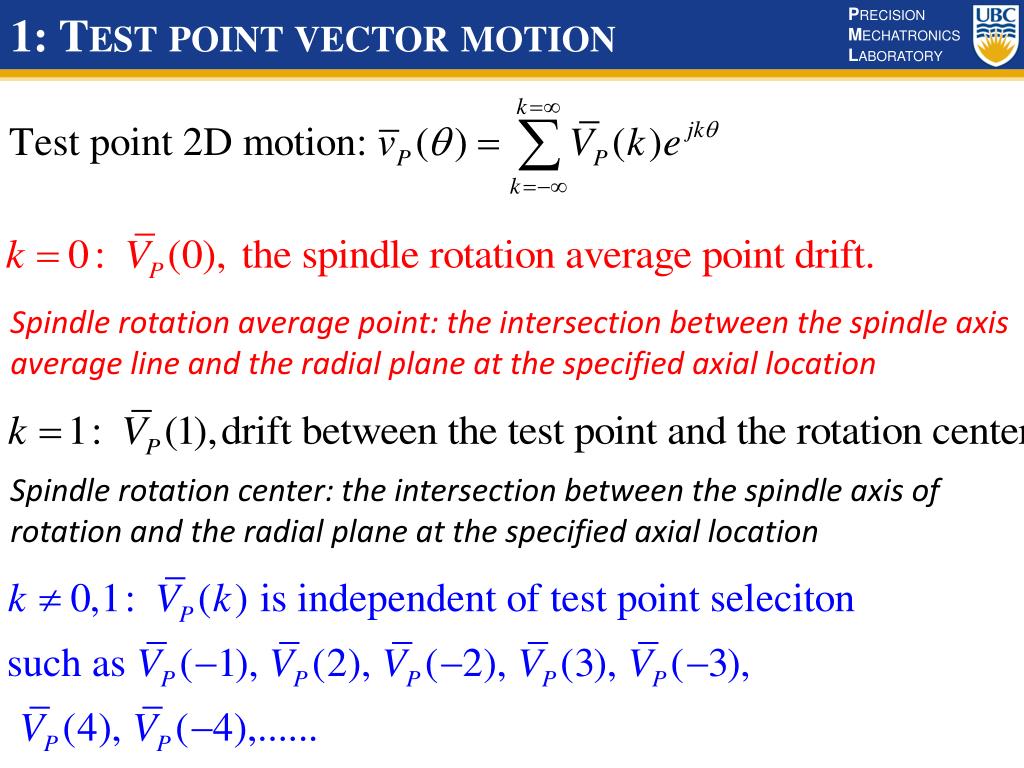

  10. 1: Test point vector motion Spindle rotation average point: the intersection between the spindle axis average line and the radial plane at the specified axial location Spindle rotation center: the intersection between the spindle axis of rotation and the radial plane at the specified axial location

  11. 2: Spindle Error Motion

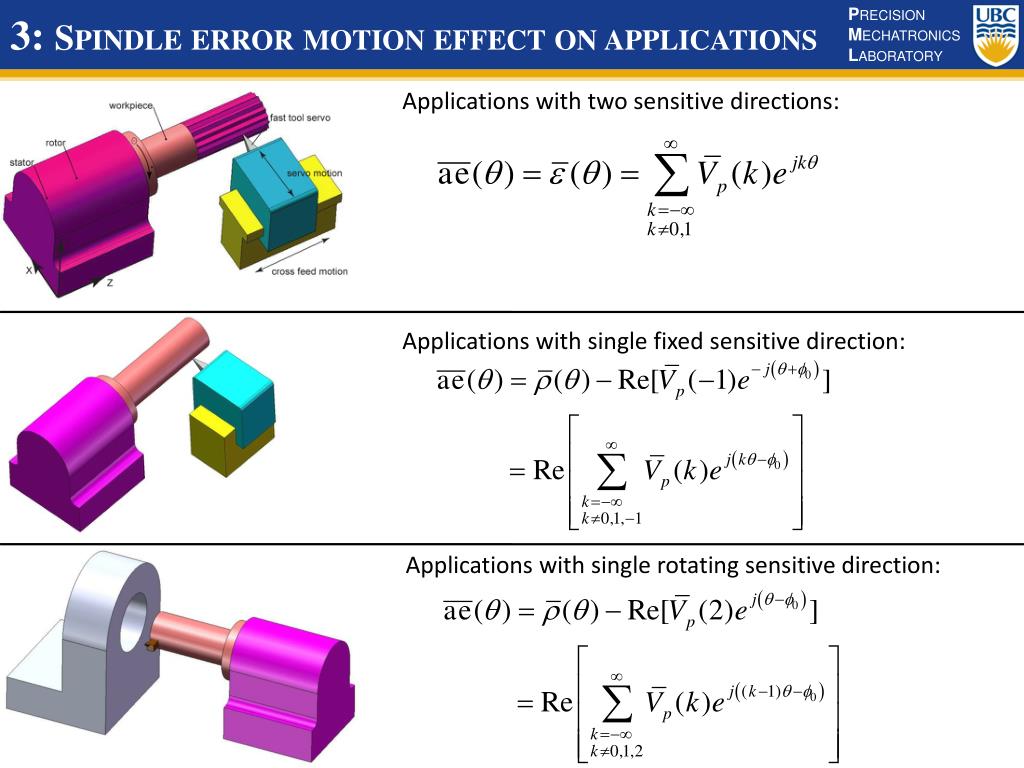

  12. 3: Spindle error motion effect on applications Applications with two sensitive directions: Applications with single fixed sensitive direction: Applications with single rotating sensitive direction:

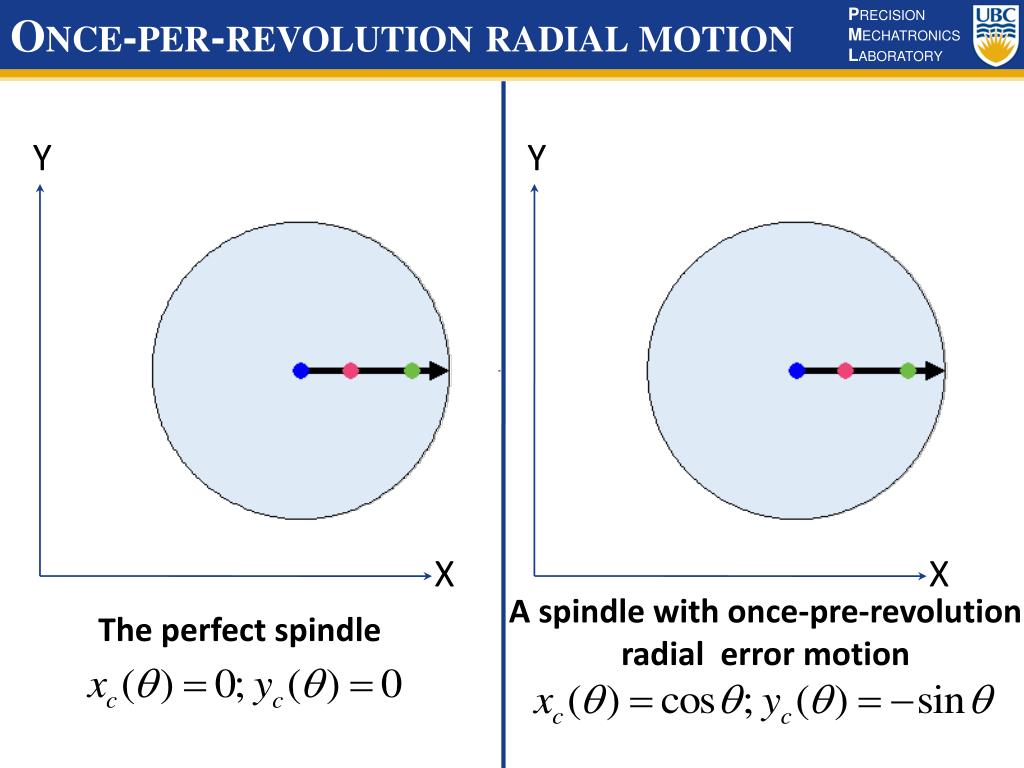

  13. Once-per-revolution radial motion Y Y X X A spindle with once-pre-revolution radial error motion The perfect spindle

  14. Once-per-revolution radial motion Y Y X X A spindle with once-pre-revolution radial error motion The perfect spindle

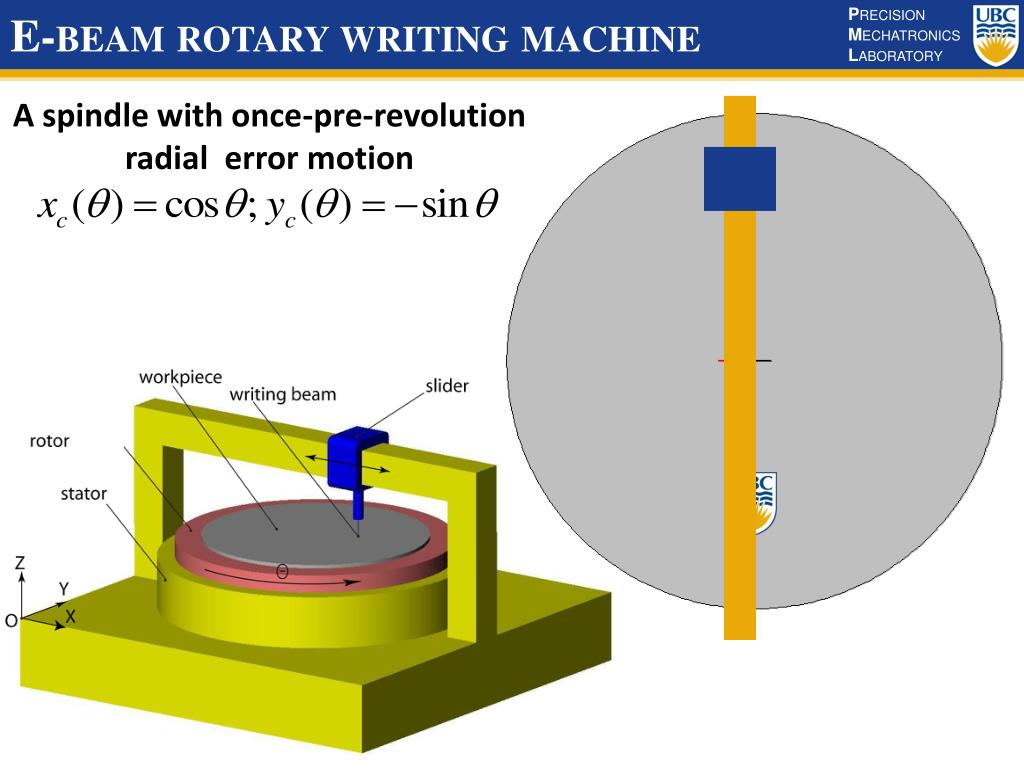

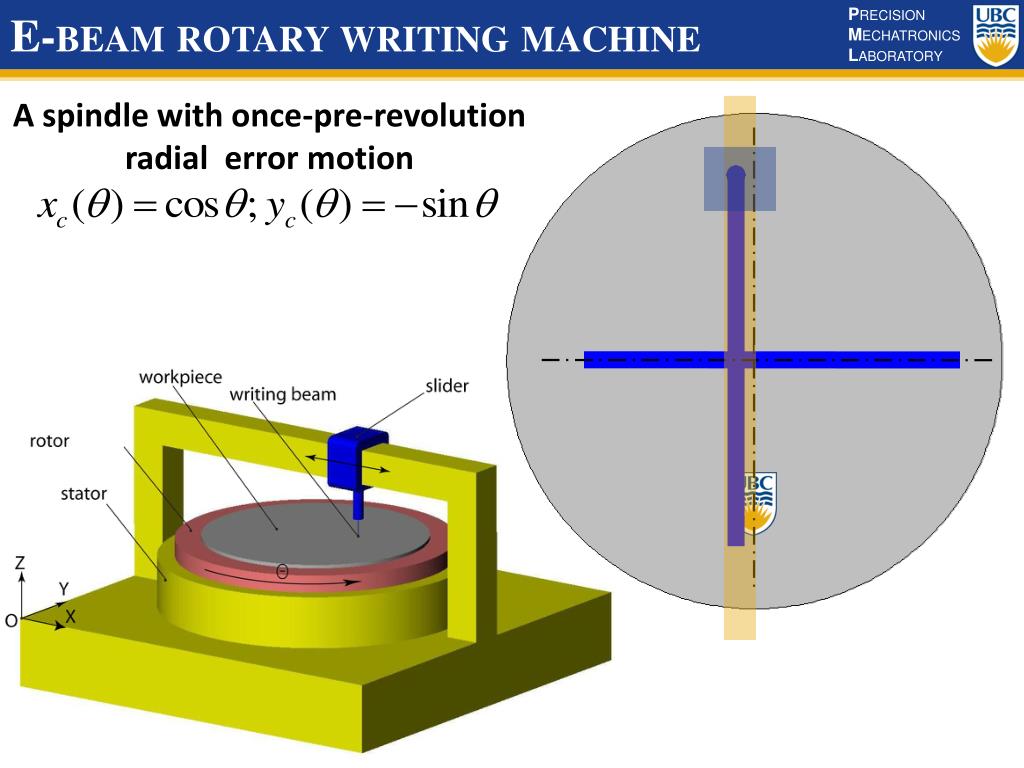

  15. E-beam rotary writing machine A spindle with once-pre-revolution radial error motion

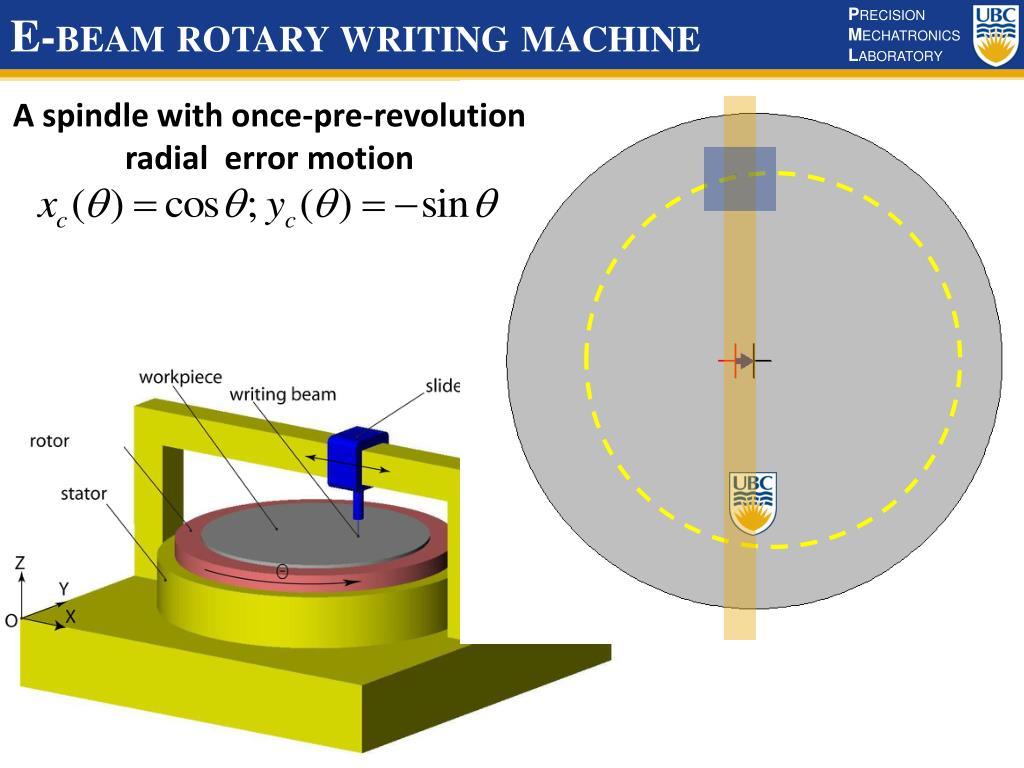

  16. E-beam rotary writing machine A spindle with once-pre-revolution radial error motion

  17. E-beam rotary writing machine A spindle with once-pre-revolution radial error motion

  18. E-beam rotary writing machine A spindle with once-pre-revolution radial error motion

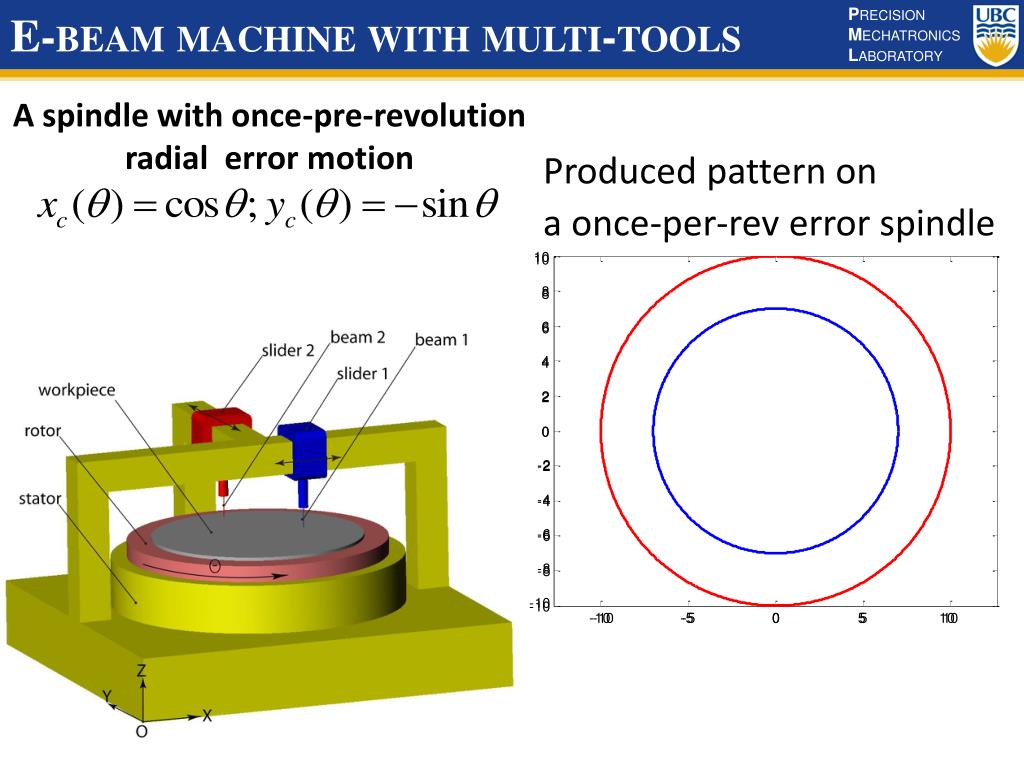

  19. E-beam machine with multi-tools A spindle with once-pre-revolution radial error motion Produced pattern on a once-per-rev error spindle

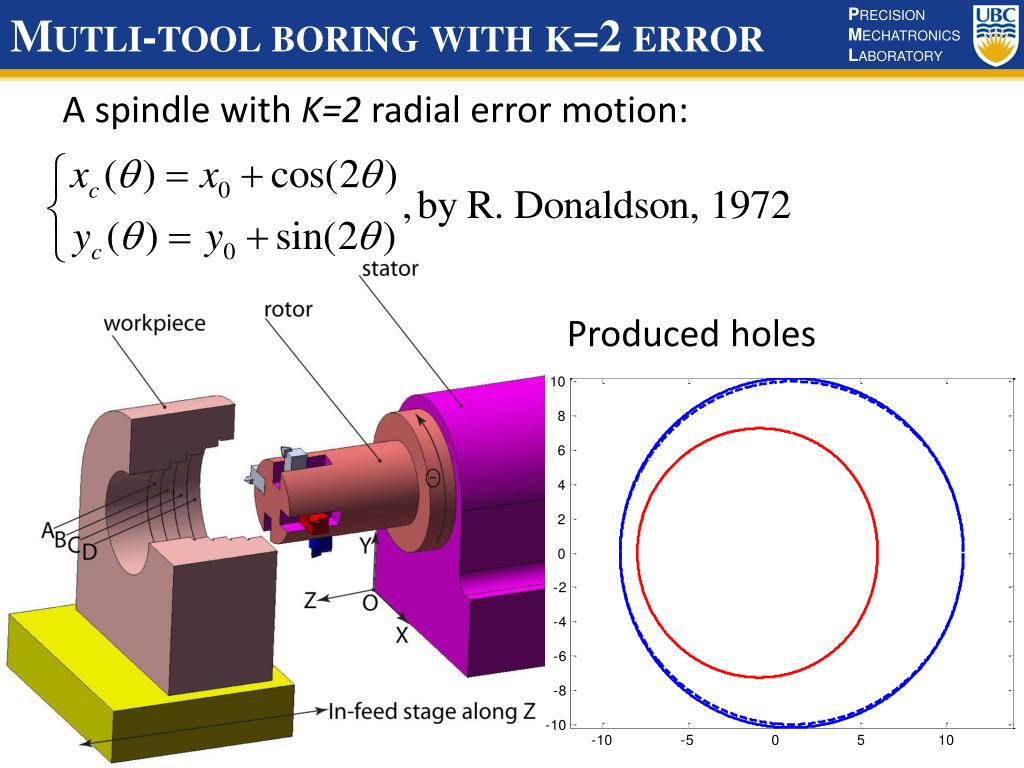

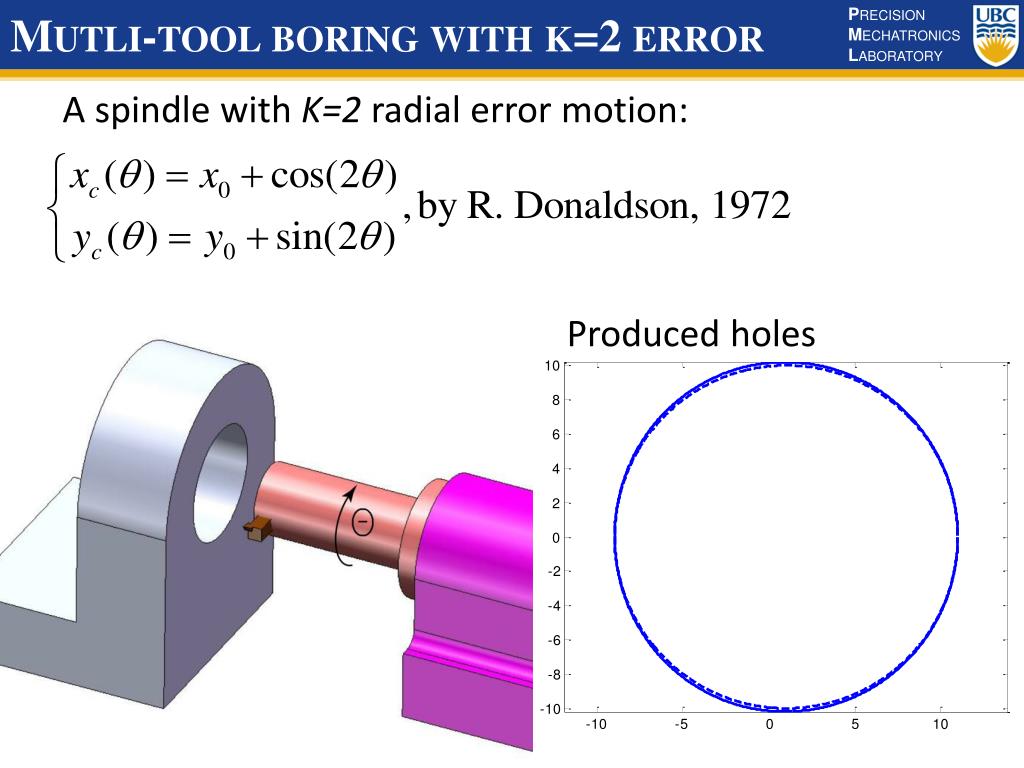

  20. Mutli-tool boring with k=2 error A spindle with K=2 radial error motion: Produced holes

  21. Mutli-tool boring with k=2 error A spindle with K=2 radial error motion: Produced holes

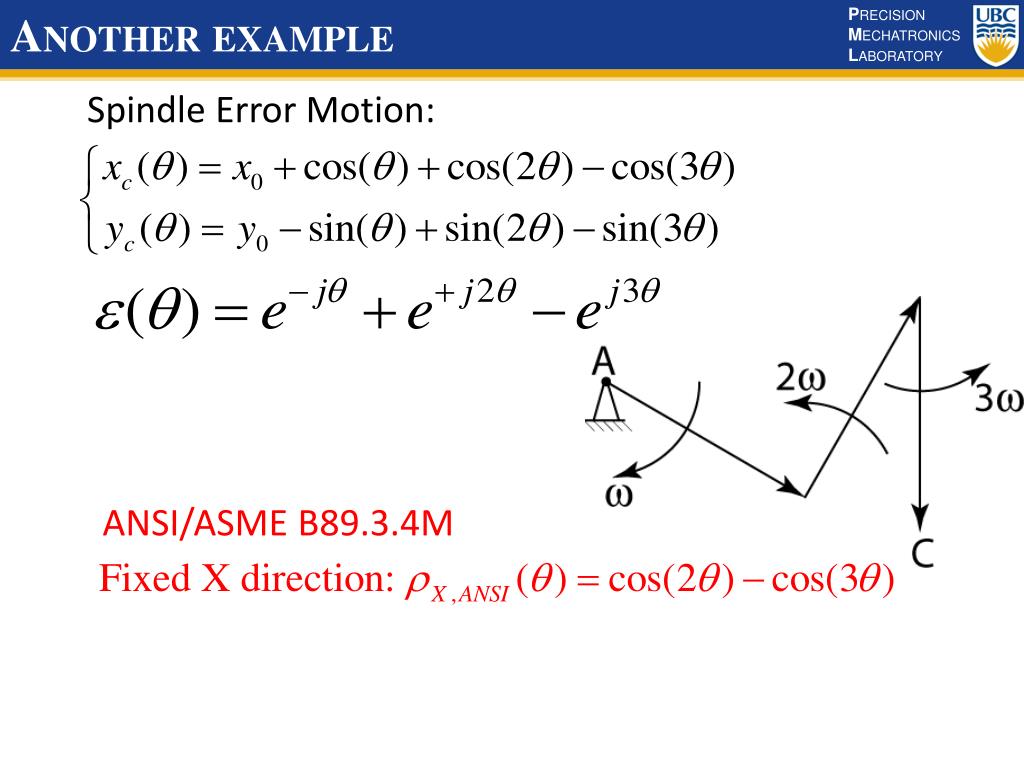

  22. Another example Spindle Error Motion: ANSI/ASME B89.3.4M

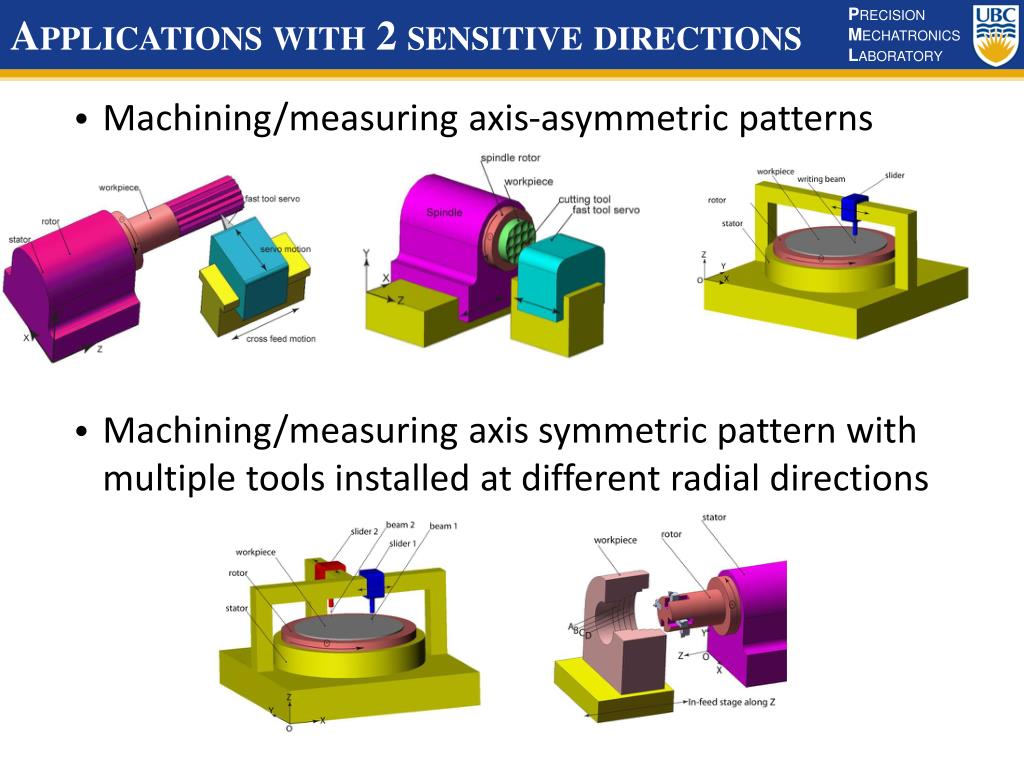

  23. Applications with 2 sensitive directions • Machining/measuring axis-asymmetric patterns • Machining/measuring axis symmetric pattern with multiple tools installed at different radial directions

  24. Experiment 1

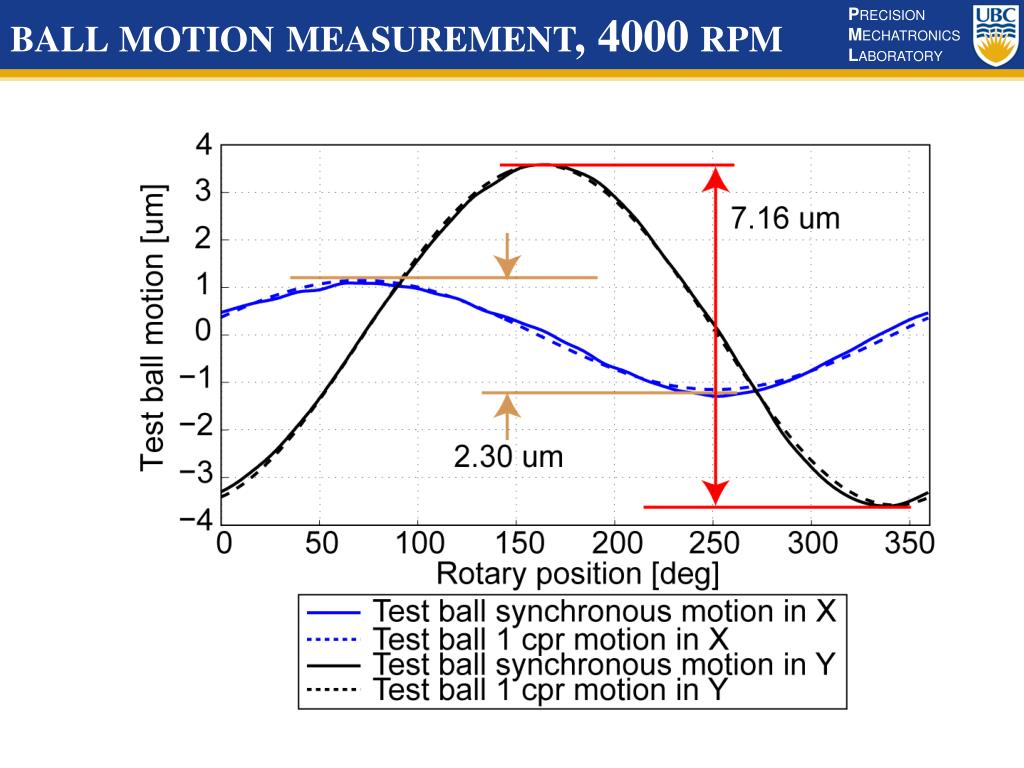

  25. ball motion measurement, 4000 rpm

  26. Error motion across speeds

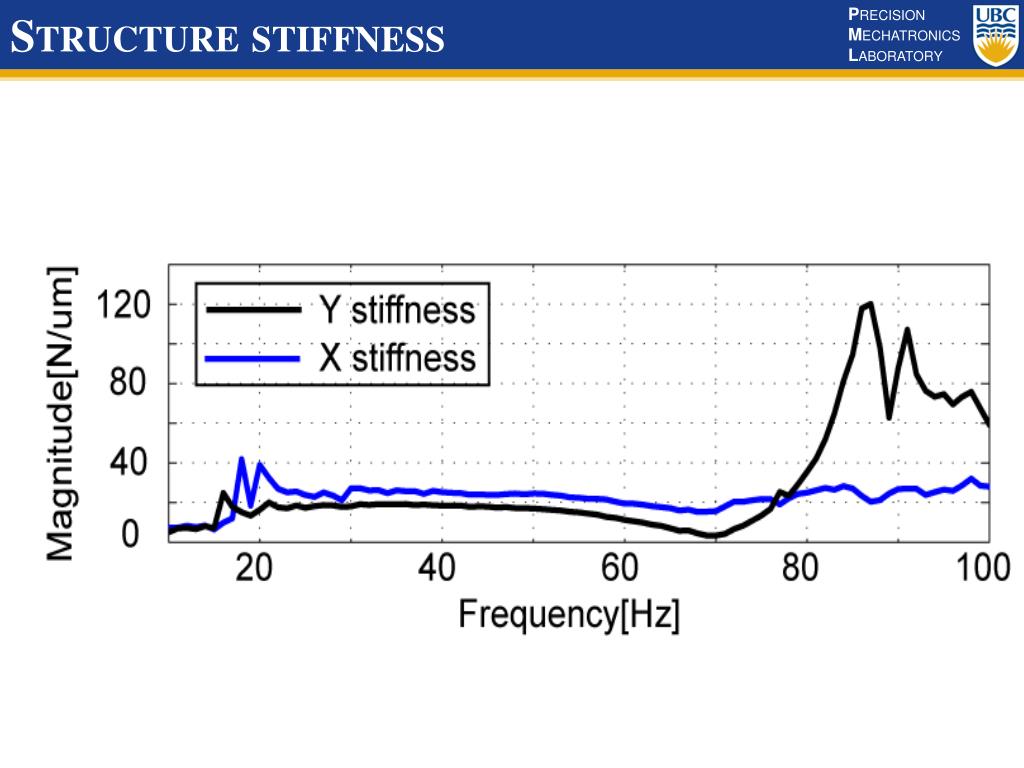

  27. Structure stiffness

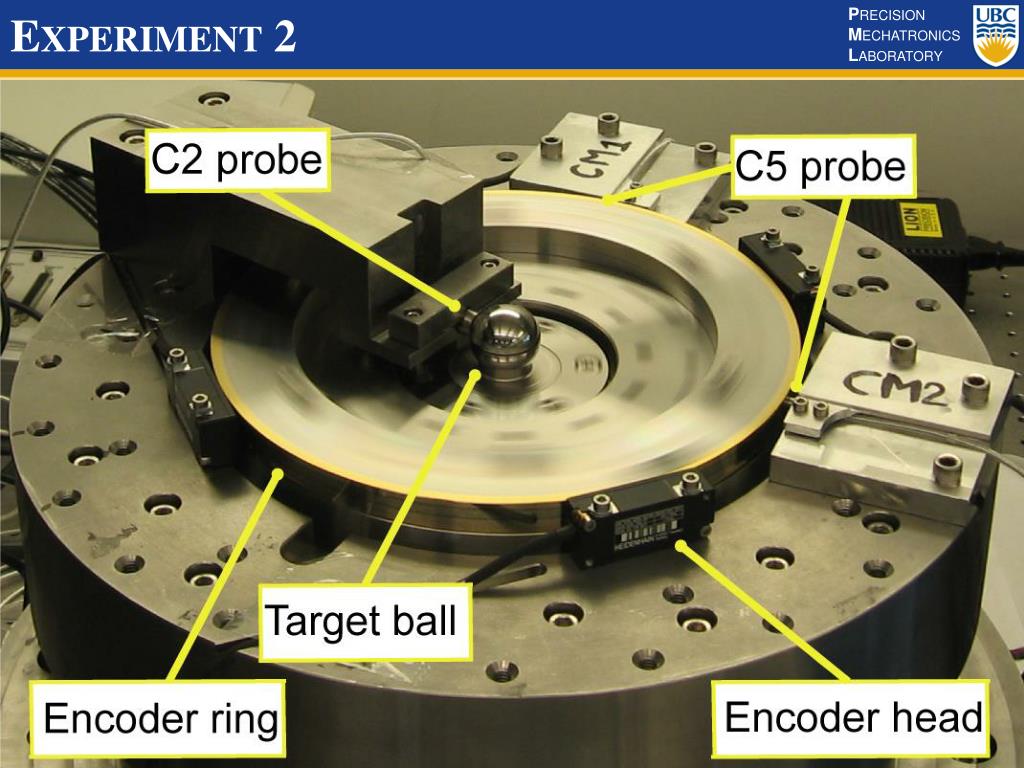

  28. Experiment 2

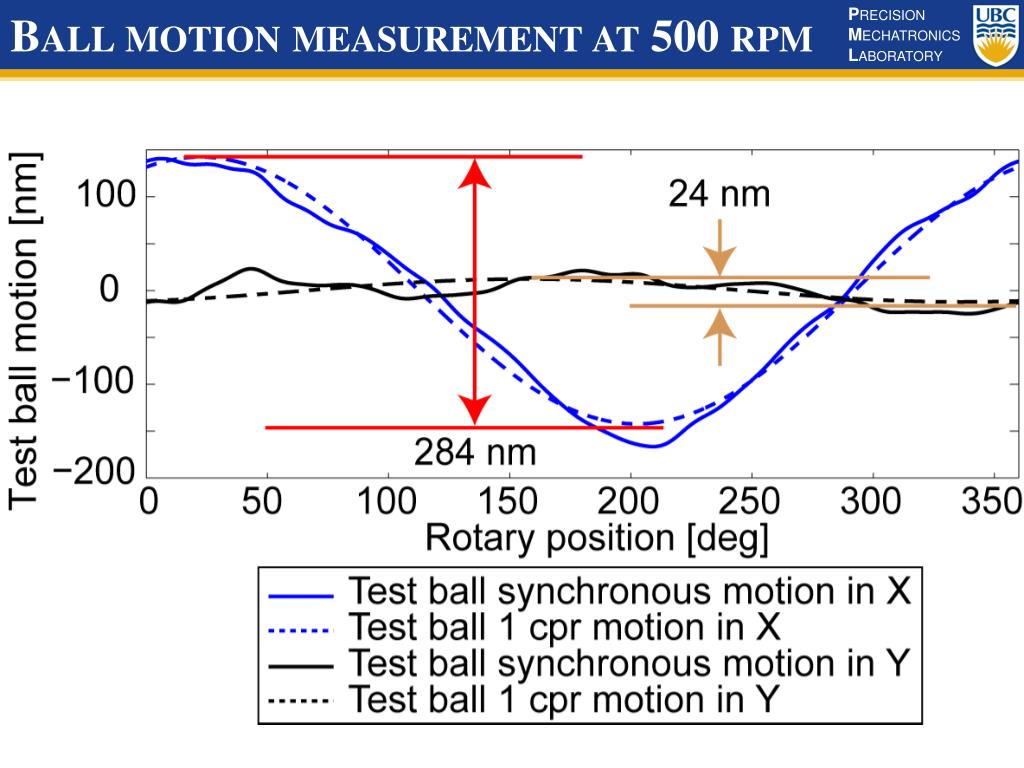

  29. Ball motion measurement at 500 rpm

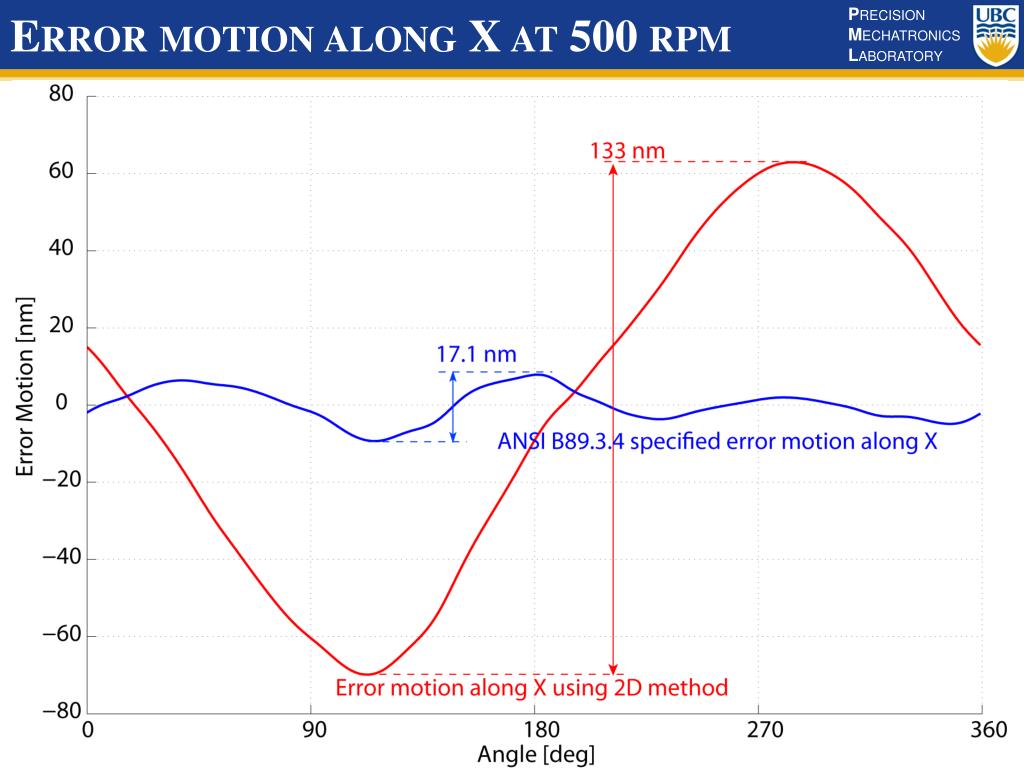

  30. Error motion along X at 500 rpm

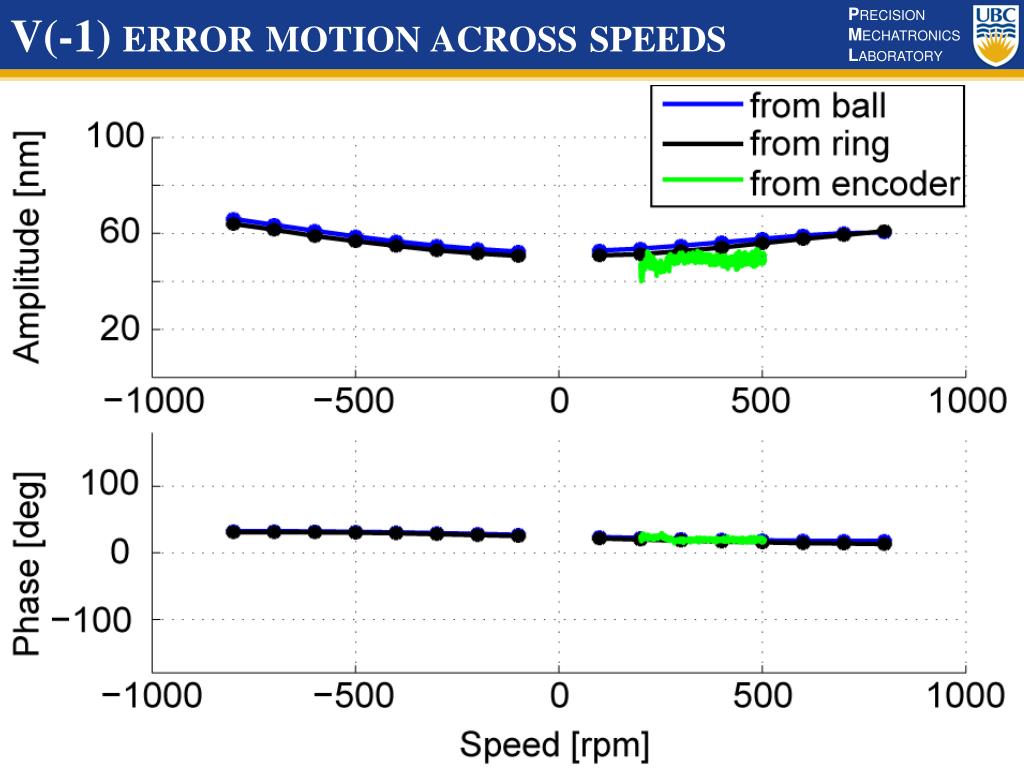

  31. V(-1) error motion across speeds

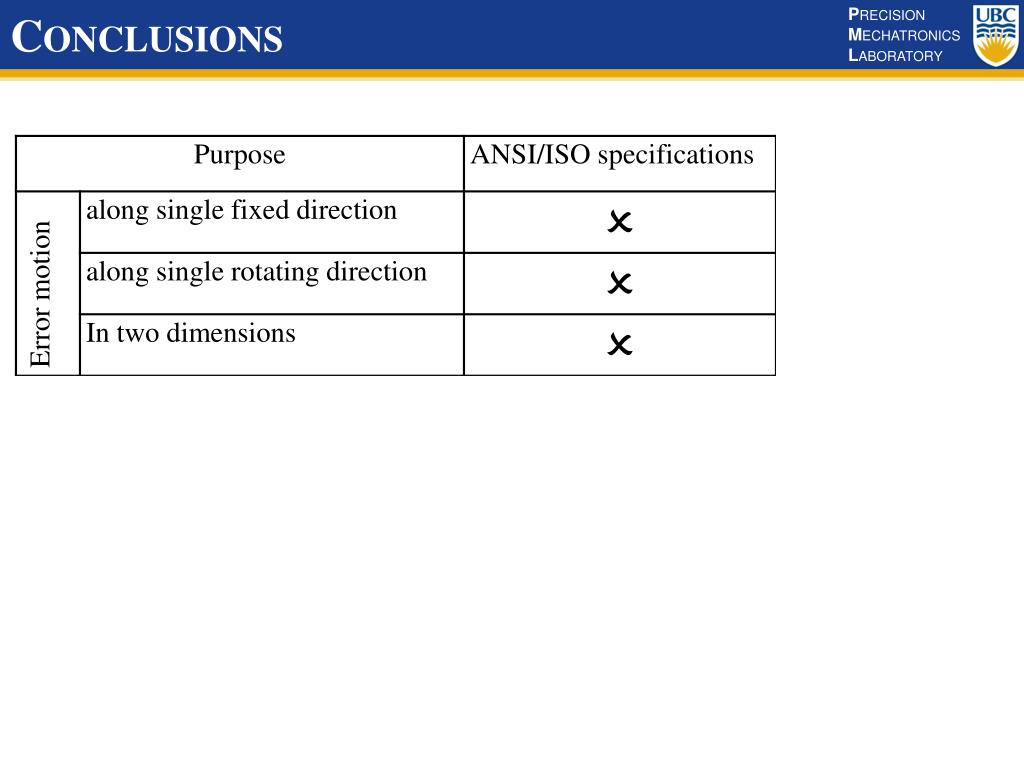

  32. Conclusions
