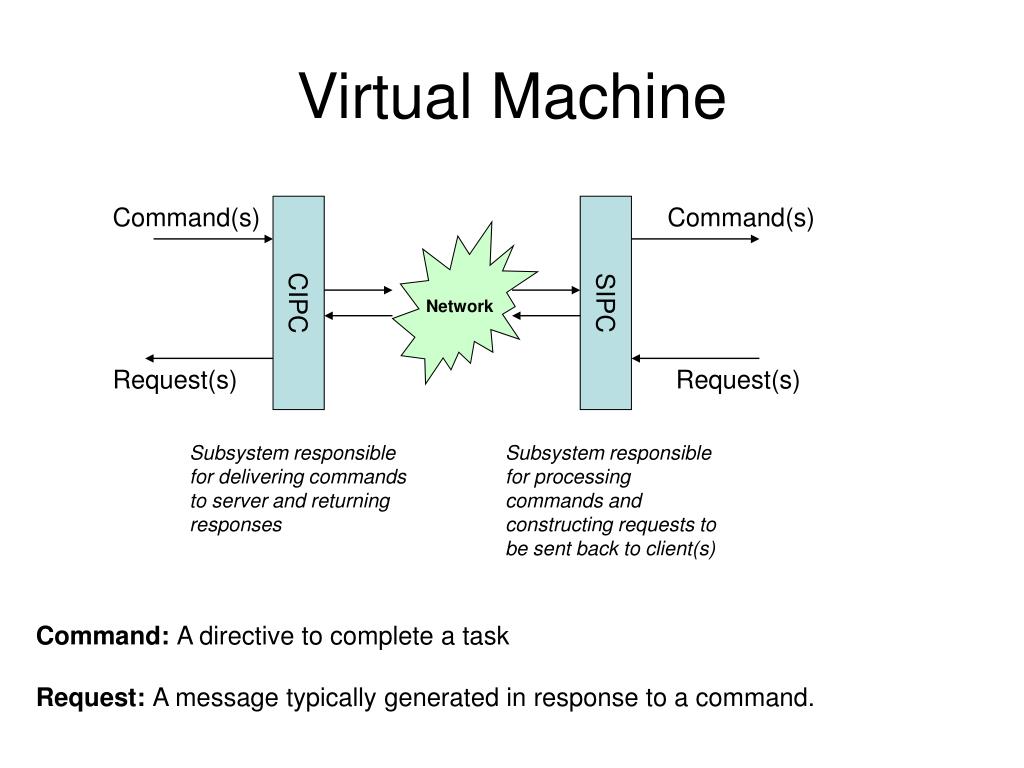

  1. Virtual Machine Command(s) CIPC SIPC Command(s) Network Request(s) Request(s) Subsystem responsible for delivering commands to server and returning responses Subsystem responsible for processing commands and constructing requests to be sent back to client(s) Command: A directive to complete a task Request: A message typically generated in response to a command.

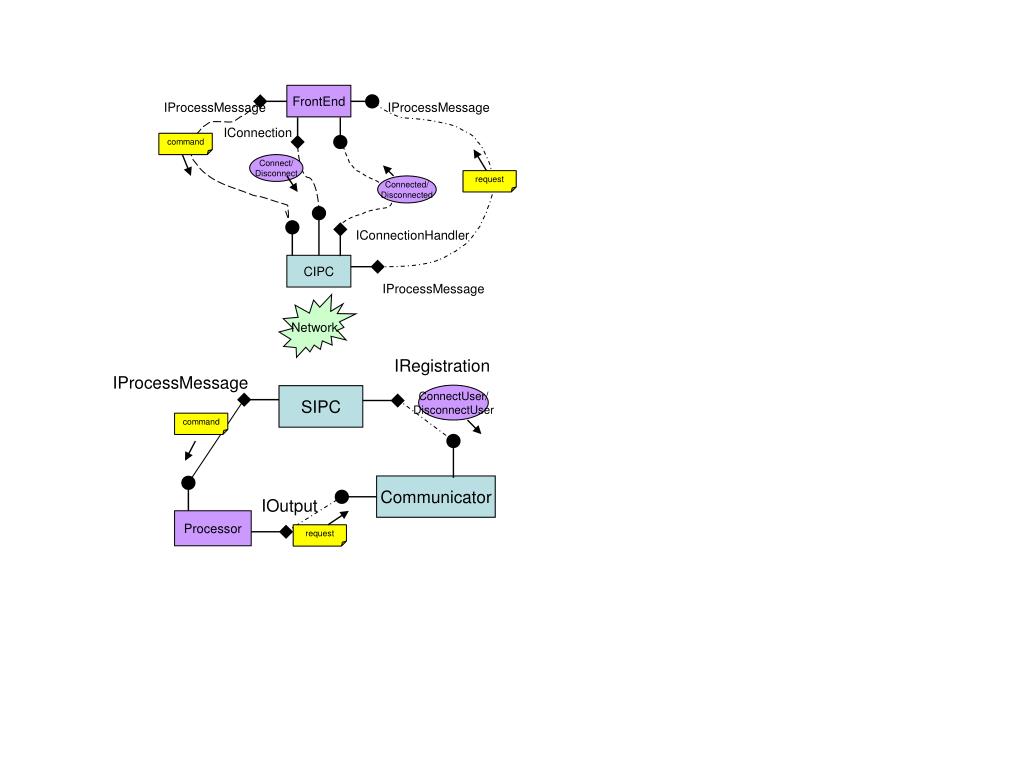

  2. FrontEnd IProcessMessage IProcessMessage IConnection command Connect/ Disconnect request Connected/ Disconnected IConnectionHandler CIPC IProcessMessage Network IRegistration IProcessMessage ConnectUser/ DisconnectUser SIPC command Communicator IOutput Processor request
