Forensic Science Presents

1. Forensic SciencePresents DNA

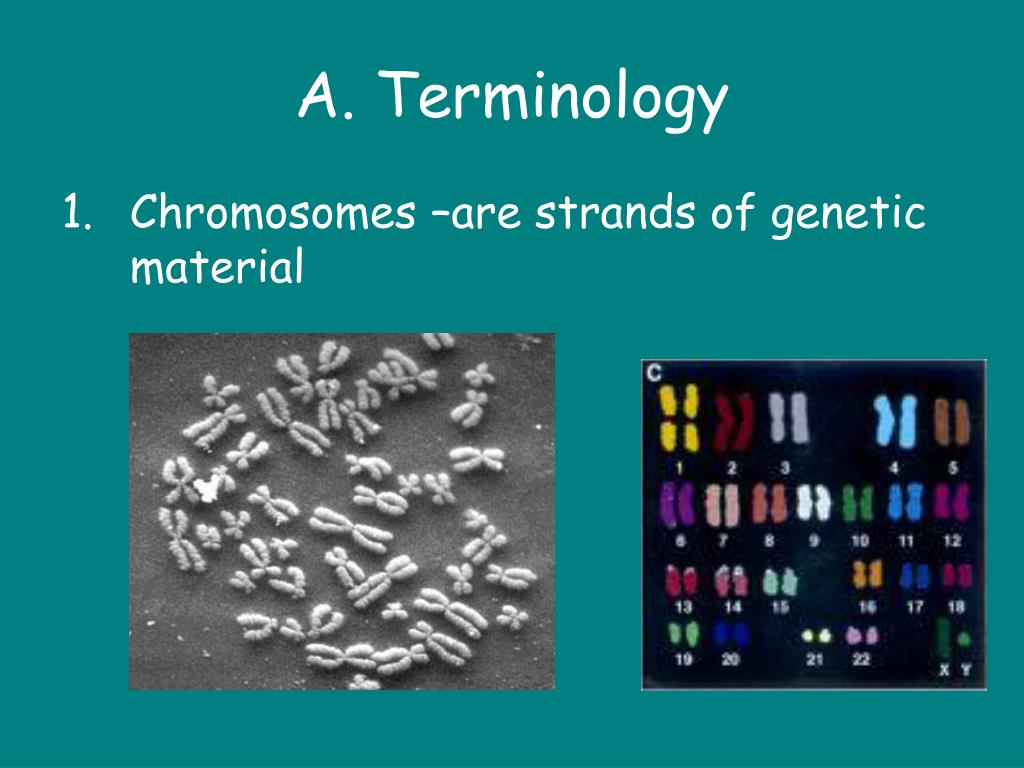

2. A. Terminology • Chromosomes –are strands of genetic material

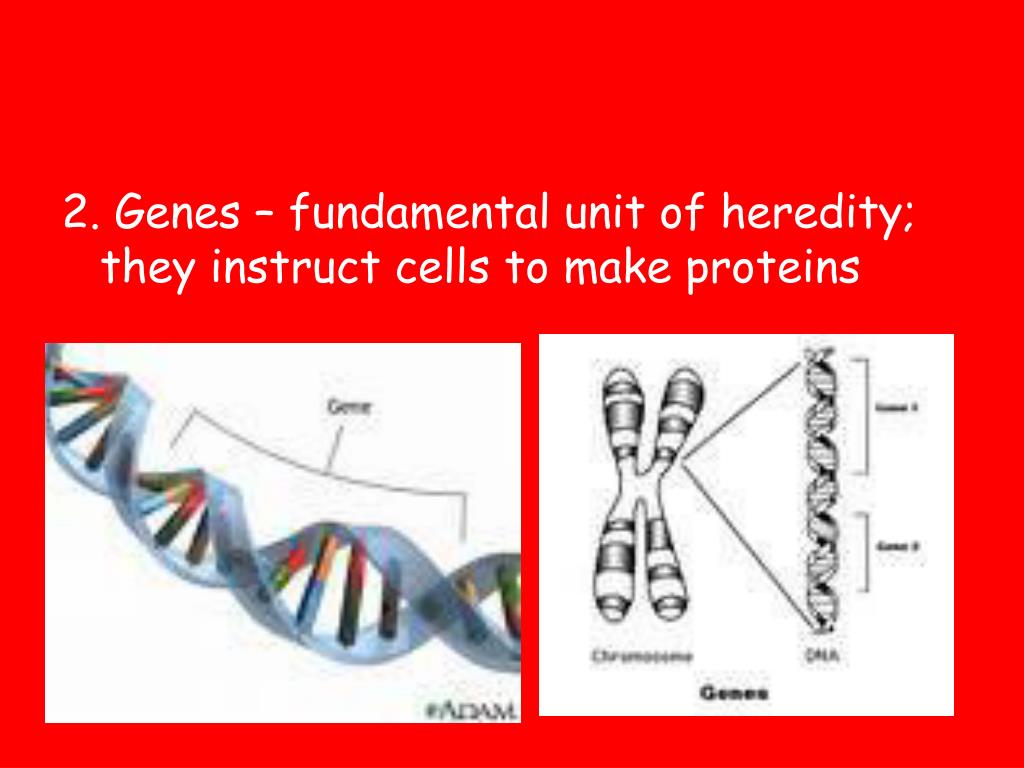

3. 2. Genes – fundamental unit of heredity; they instruct cells to make proteins

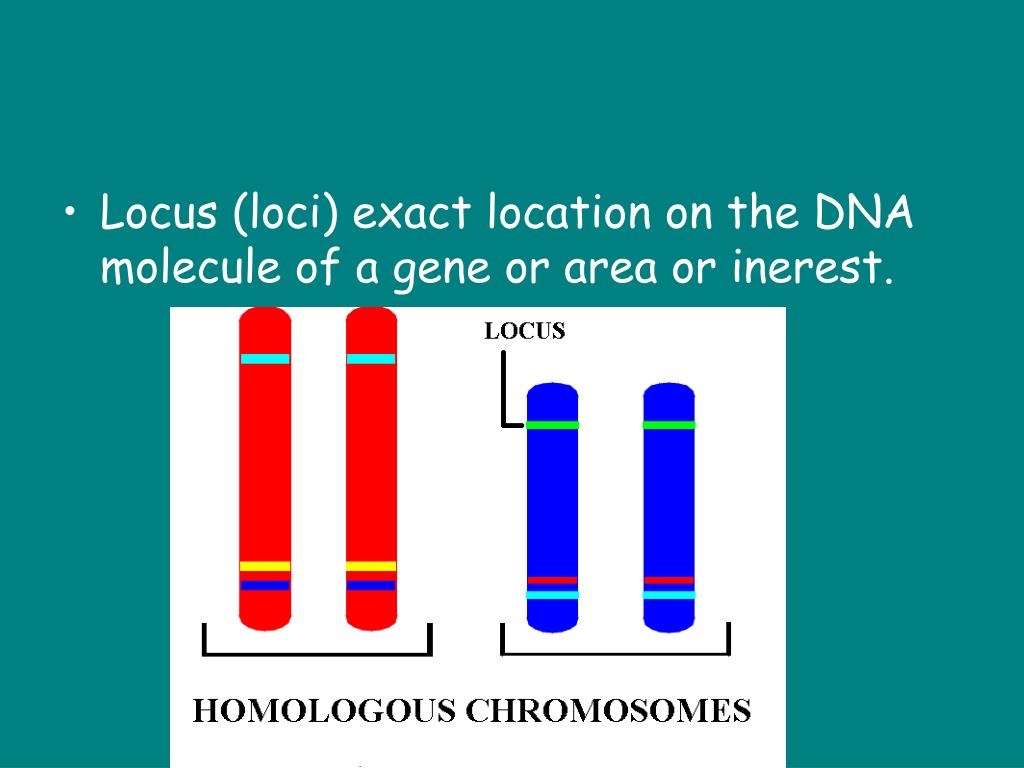

4. Locus (loci) exact location on the DNA molecule of a gene or area or inerest.

5. 4. Homozygous – two identical gene pairs

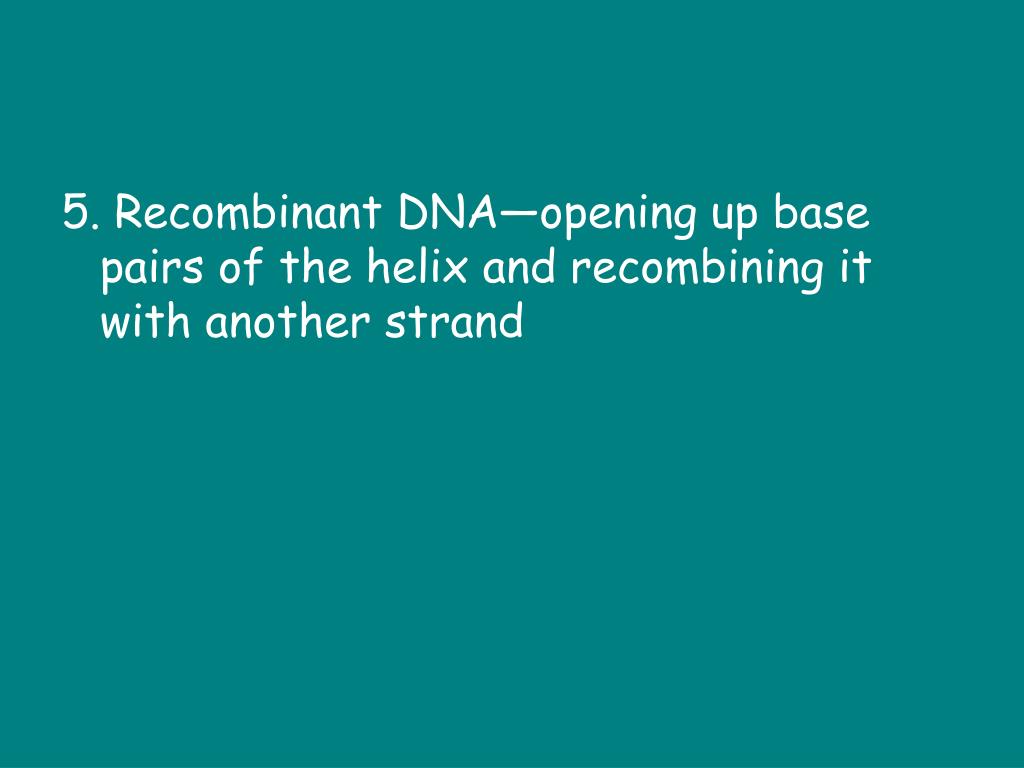

6. 5. Recombinant DNA—opening up base pairs of the helix and recombining it with another strand

8. 7. Genetic code– sequence of letters on a DNA strand

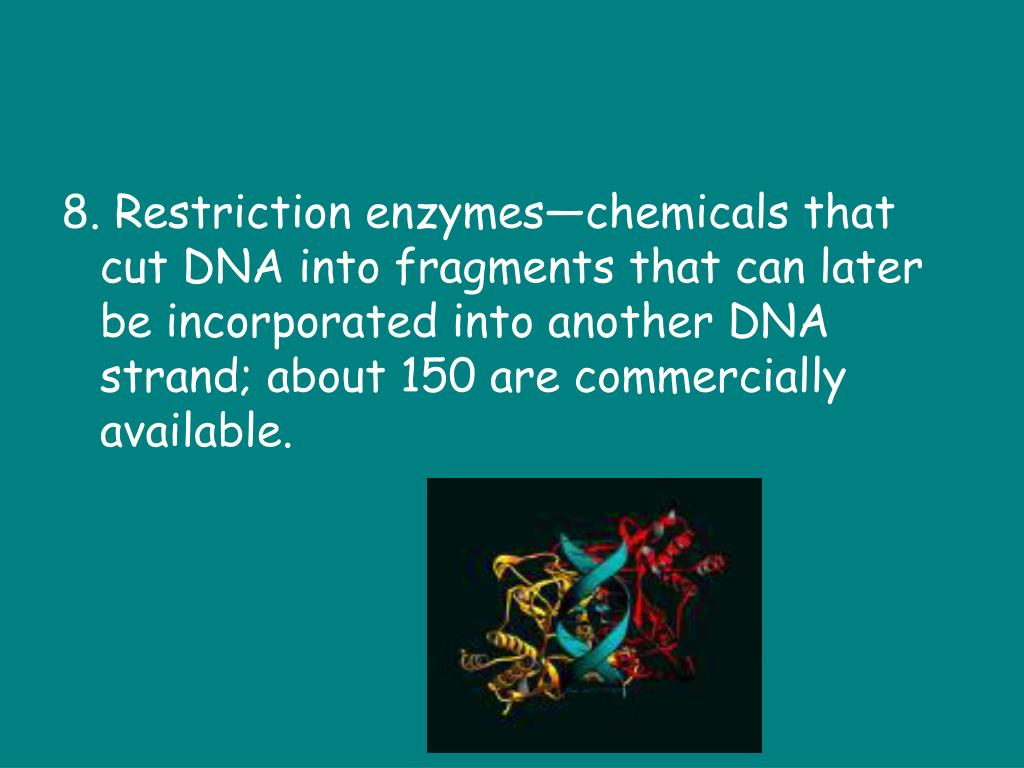

9. 8. Restriction enzymes—chemicals that cut DNA into fragments that can later be incorporated into another DNA strand; about 150 are commercially available.

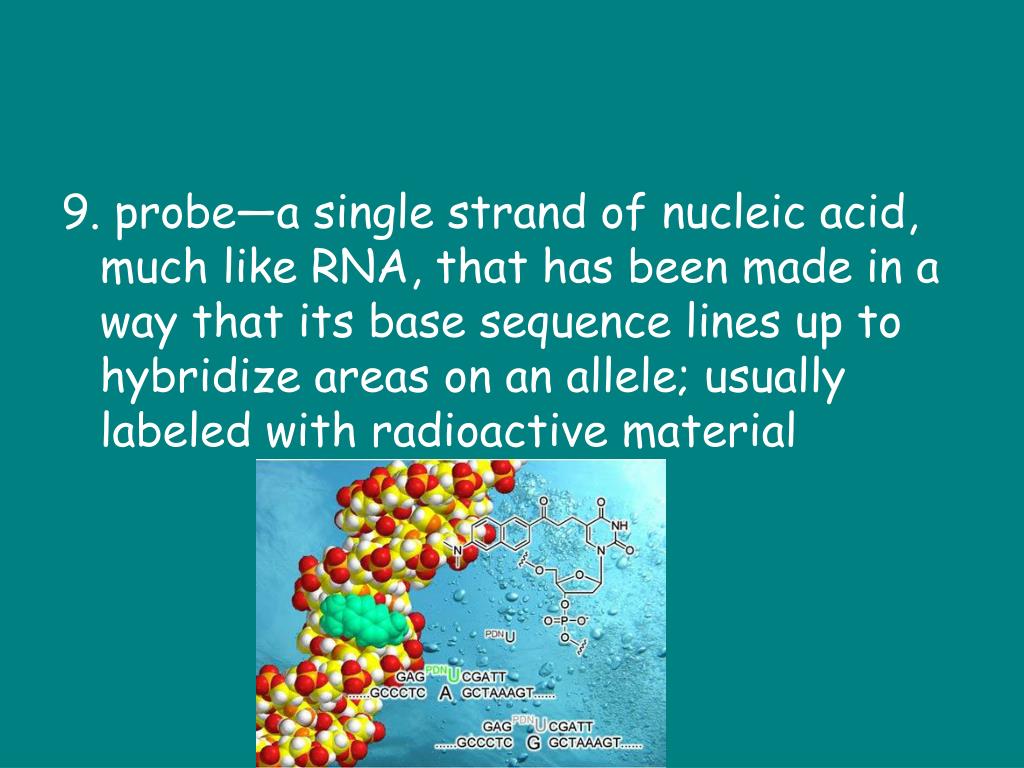

10. 9. probe—a single strand of nucleic acid, much like RNA, that has been made in a way that its base sequence lines up to hybridize areas on an allele; usually labeled with radioactive material

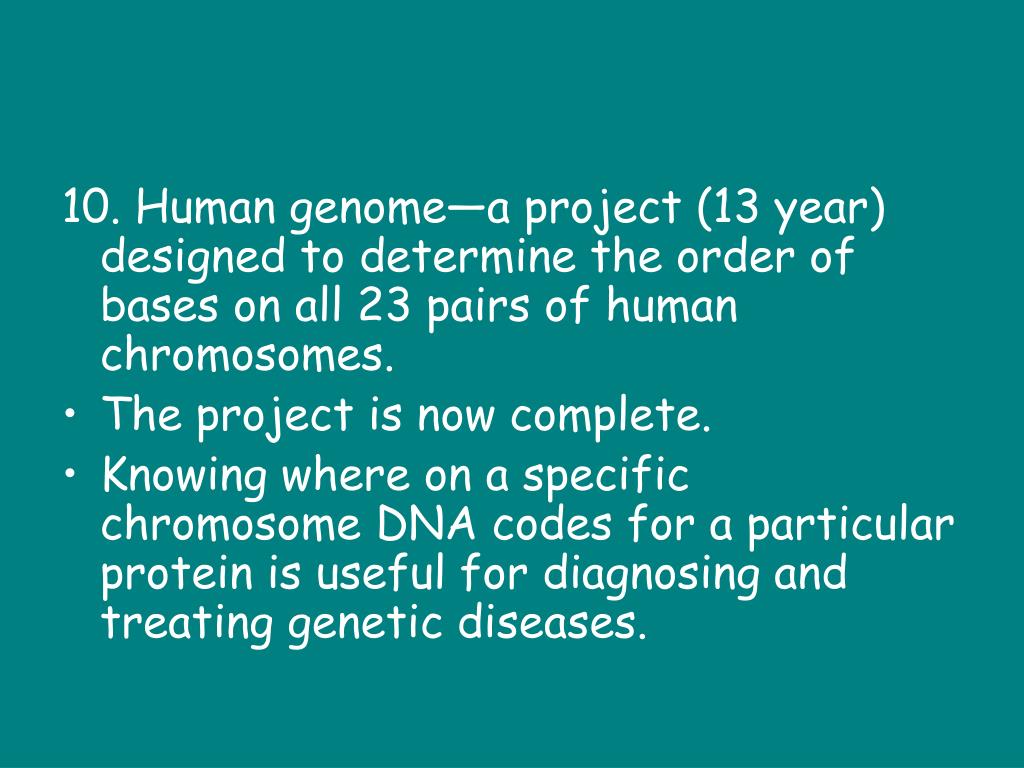

11. 10. Human genome—a project (13 year) designed to determine the order of bases on all 23 pairs of human chromosomes. • The project is now complete. • Knowing where on a specific chromosome DNA codes for a particular protein is useful for diagnosing and treating genetic diseases.

13. B. History 1. James Watson and Francis Crick—in 1953 discovered the configuration of the DNA molecule.

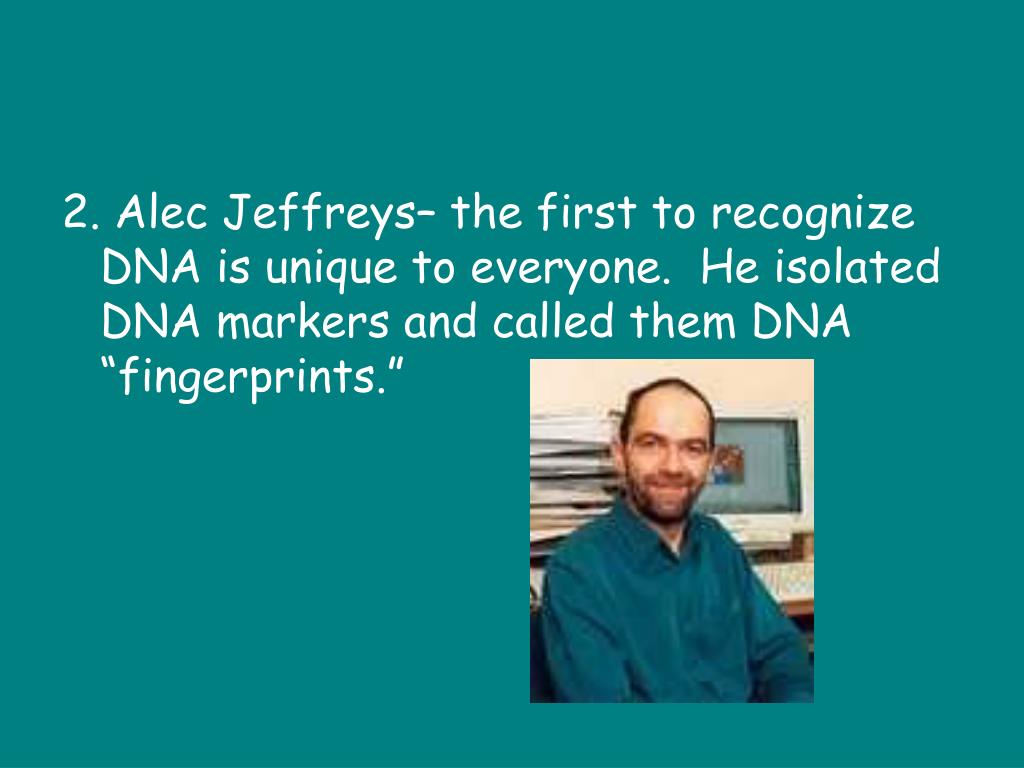

15. 2. Alec Jeffreys– the first to recognize DNA is unique to everyone. He isolated DNA markers and called them DNA “fingerprints.”

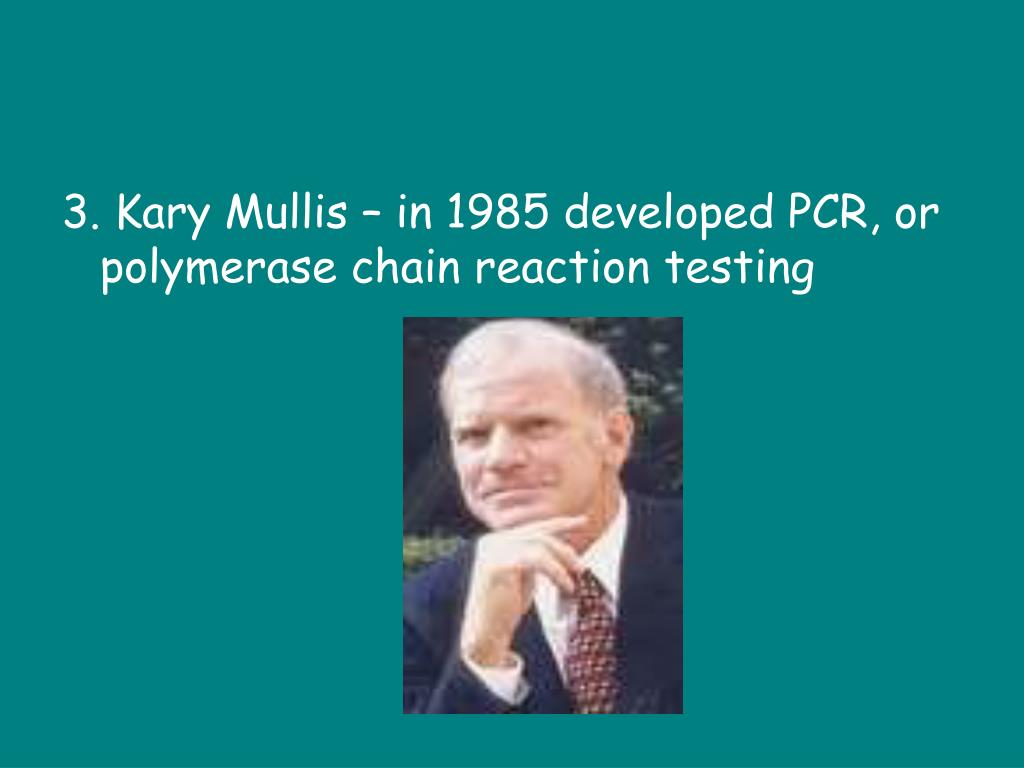

16. 3. Kary Mullis – in 1985 developed PCR, or polymerase chain reaction testing

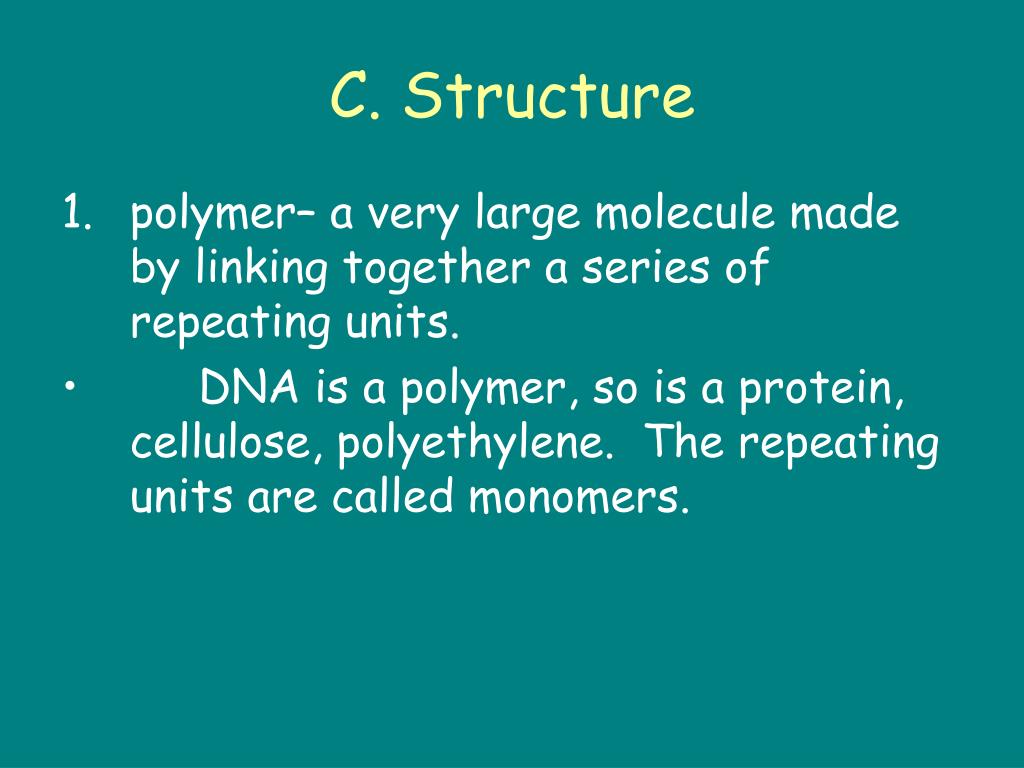

17. C. Structure • polymer– a very large molecule made by linking together a series of repeating units. • DNA is a polymer, so is a protein, cellulose, polyethylene. The repeating units are called monomers.

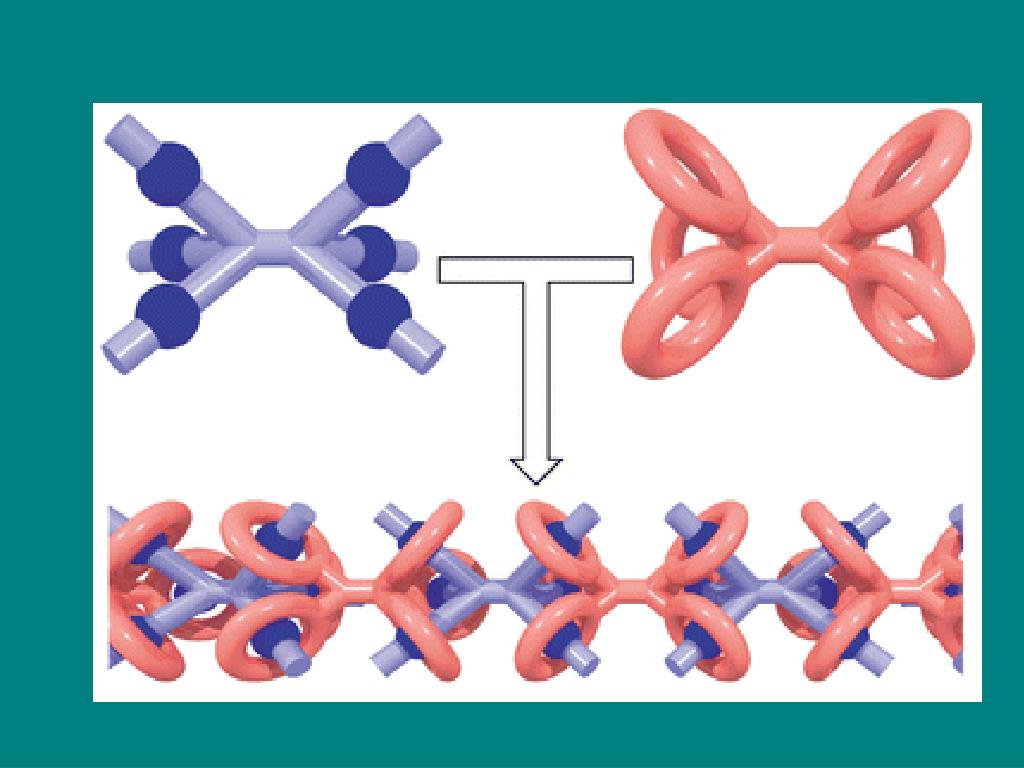

18. http://http://www.rsc.org/ej/DT/2000/b003769i/b003769i-f44.gifhttp://http://www.rsc.org/ej/DT/2000/b003769i/b003769i-f44.gif

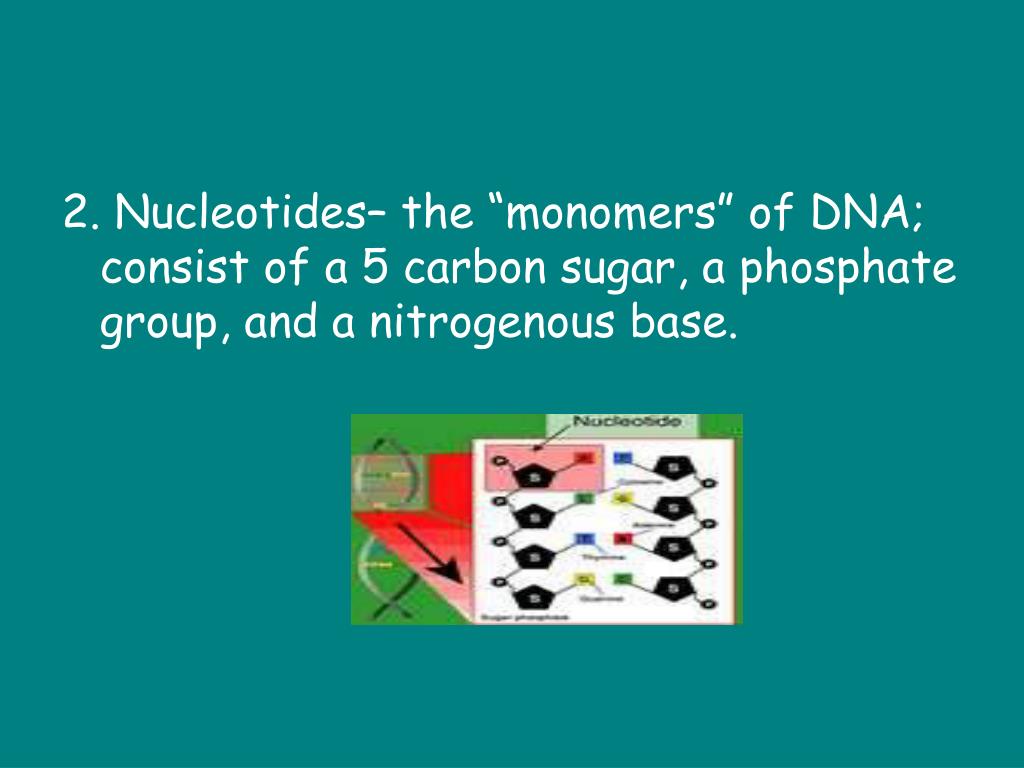

19. 2. Nucleotides– the “monomers” of DNA; consist of a 5 carbon sugar, a phosphate group, and a nitrogenous base.

20. 3. The bases of DNA are:

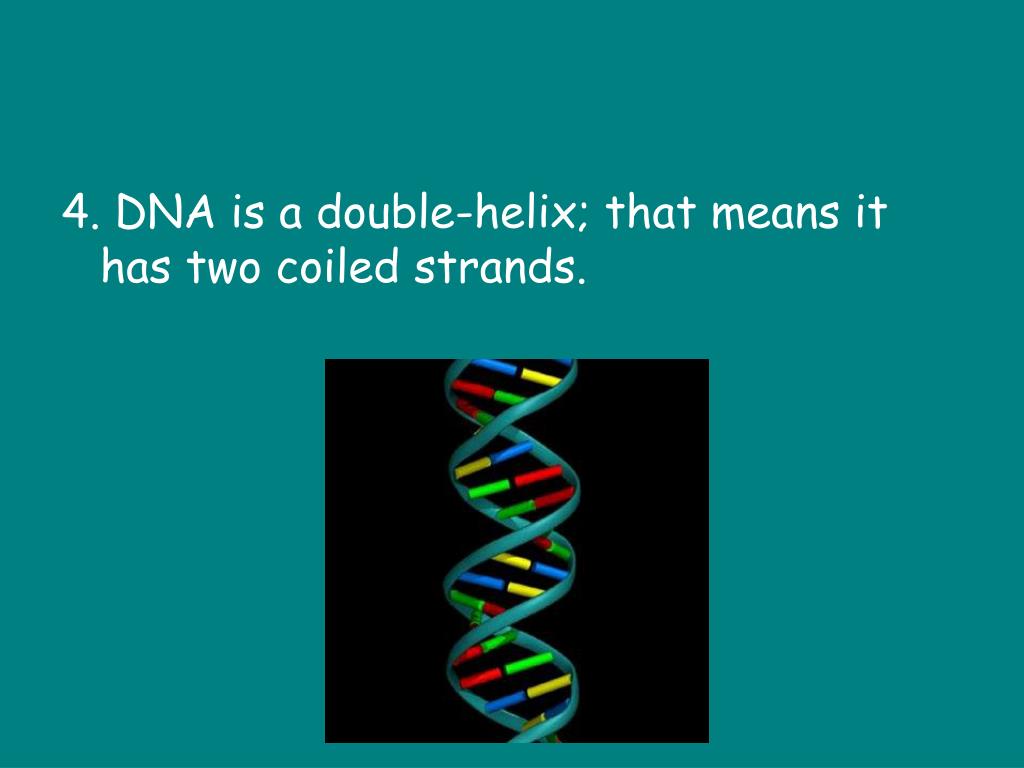

21. 4. DNA is a double-helix; that means it has two coiled strands.

22. 5. Base pairing– a purine must pair with a pyrimidine, therefore: Adenine pairs to thymine and Guanine pairs to cytosine

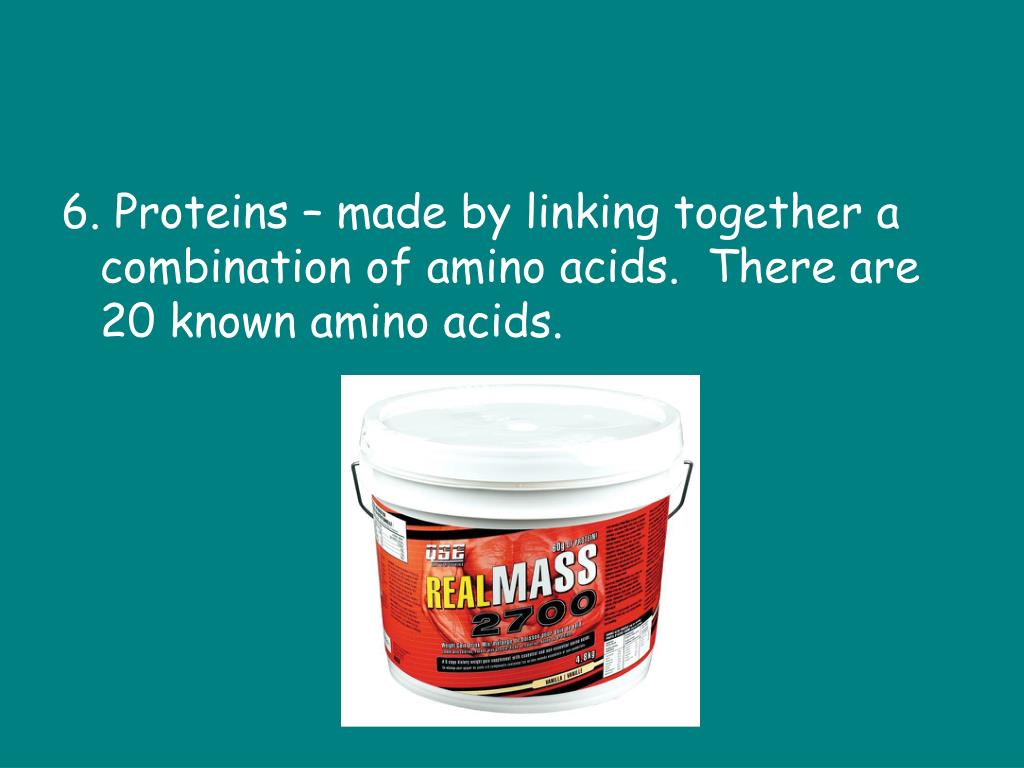

24. 6. Proteins – made by linking together a combination of amino acids. There are 20 known amino acids.

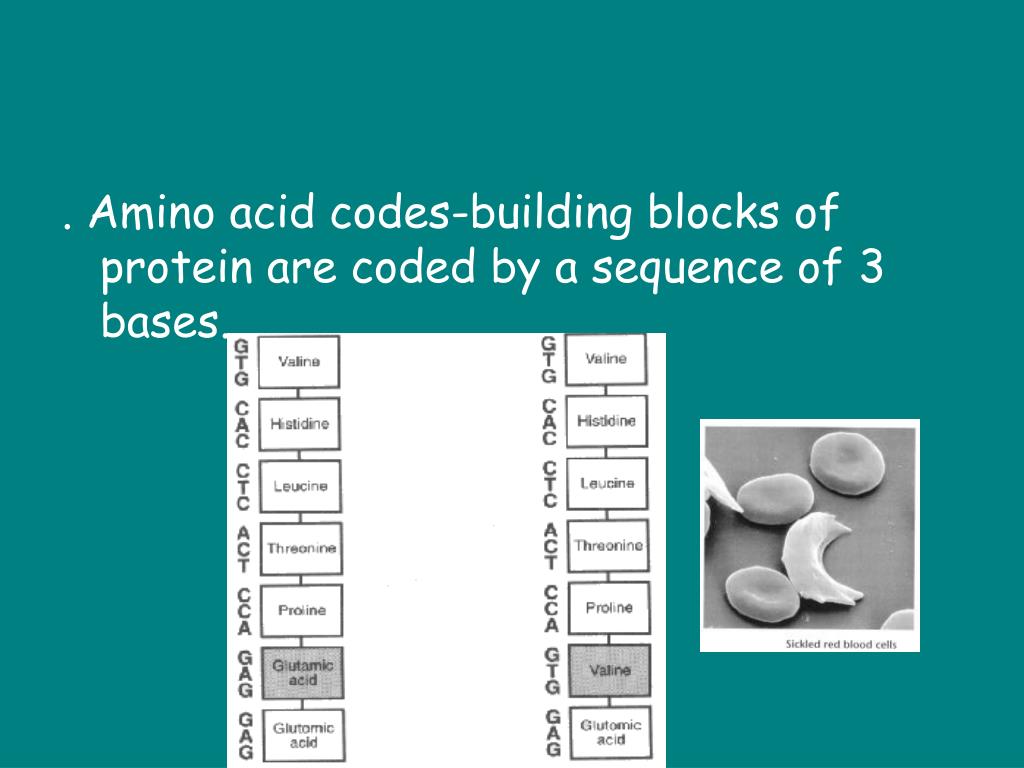

26. . Amino acid codes-building blocks of protein are coded by a sequence of 3 bases.

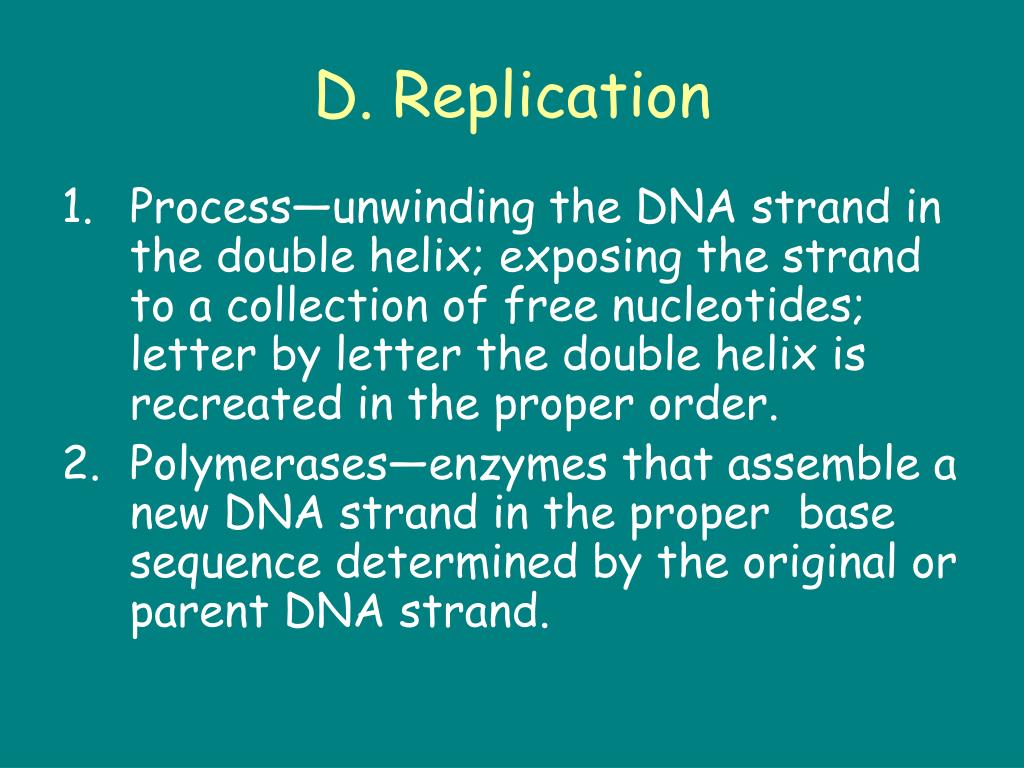

27. D. Replication • Process—unwinding the DNA strand in the double helix; exposing the strand to a collection of free nucleotides; letter by letter the double helix is recreated in the proper order. • Polymerases—enzymes that assemble a new DNA strand in the proper base sequence determined by the original or parent DNA strand.

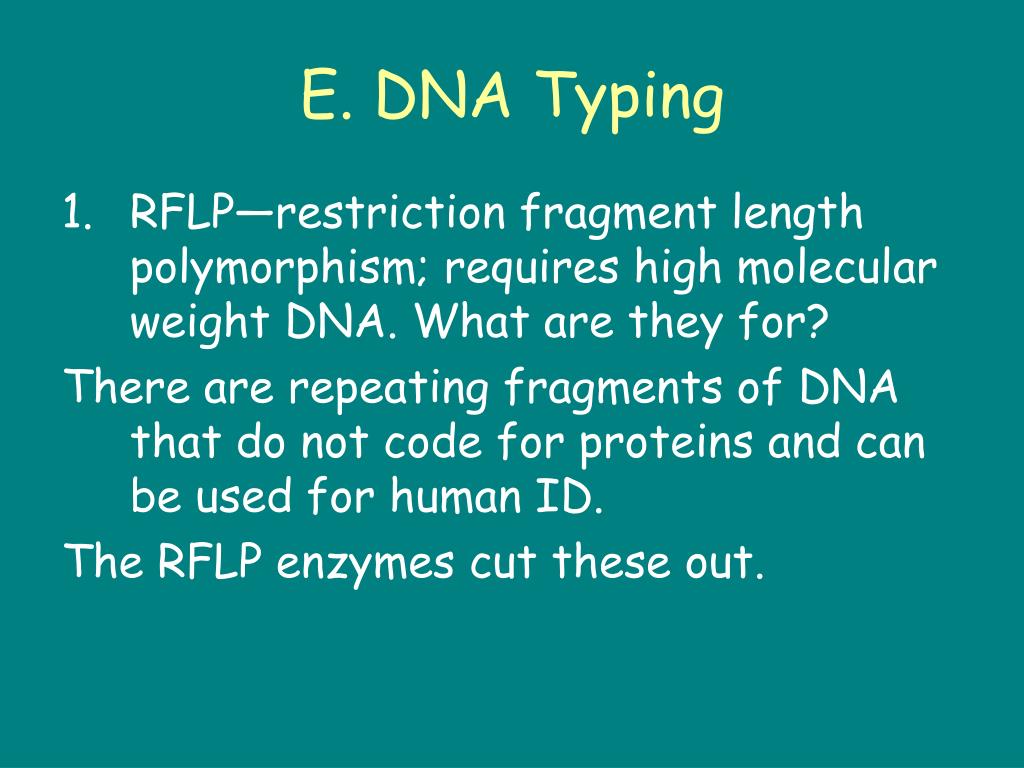

29. E. DNA Typing • RFLP—restriction fragment length polymorphism; requires high molecular weight DNA. What are they for? There are repeating fragments of DNA that do not code for proteins and can be used for human ID. The RFLP enzymes cut these out.

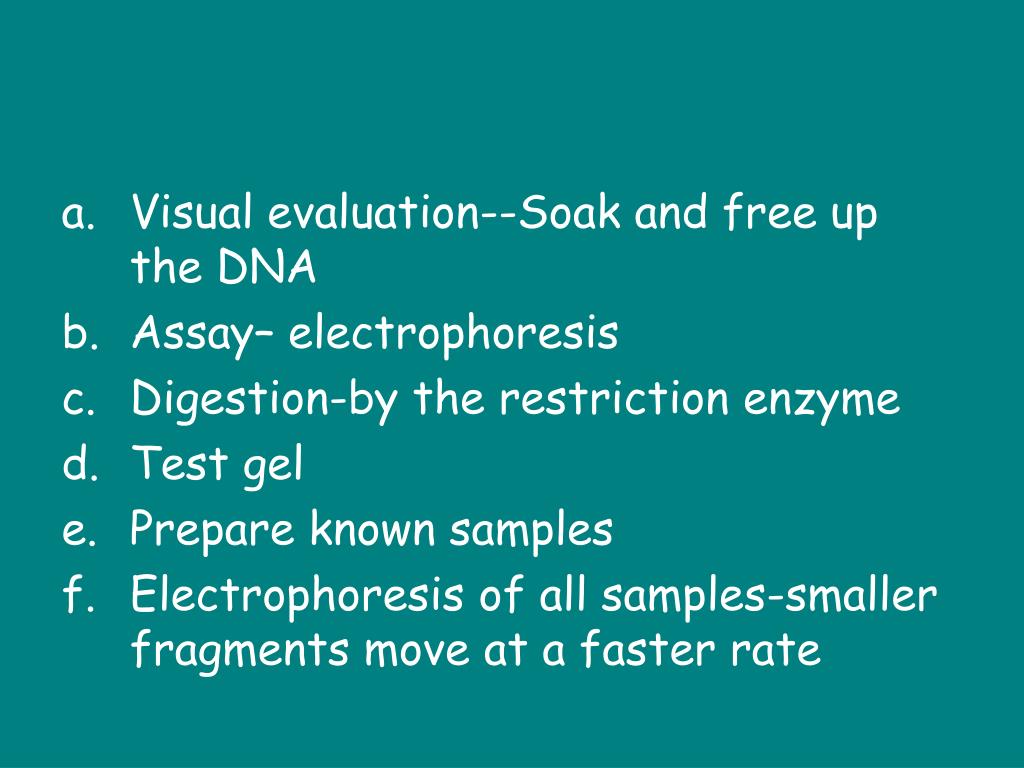

30. Visual evaluation--Soak and free up the DNA • Assay– electrophoresis • Digestion-by the restriction enzyme • Test gel • Prepare known samples • Electrophoresis of all samples-smaller fragments move at a faster rate

31. g. Southern blotting-transfer the fragments to a nylon membrane. (Named after its developer, Edward Southern.)

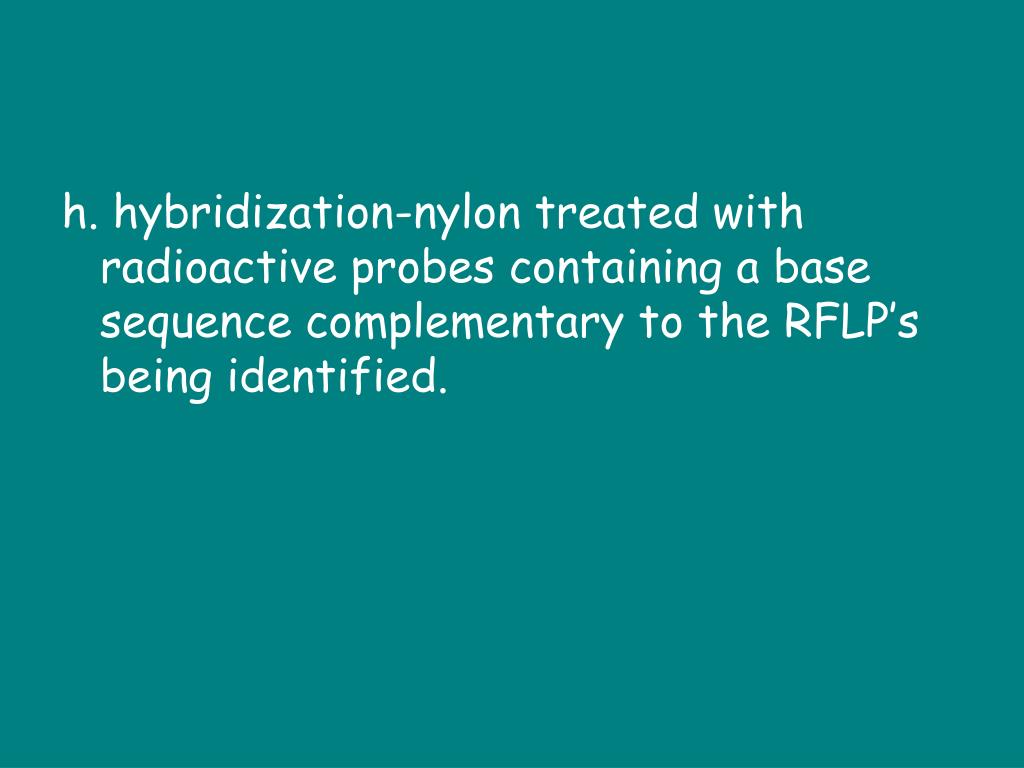

33. h. hybridization-nylon treated with radioactive probes containing a base sequence complementary to the RFLP’s being identified.

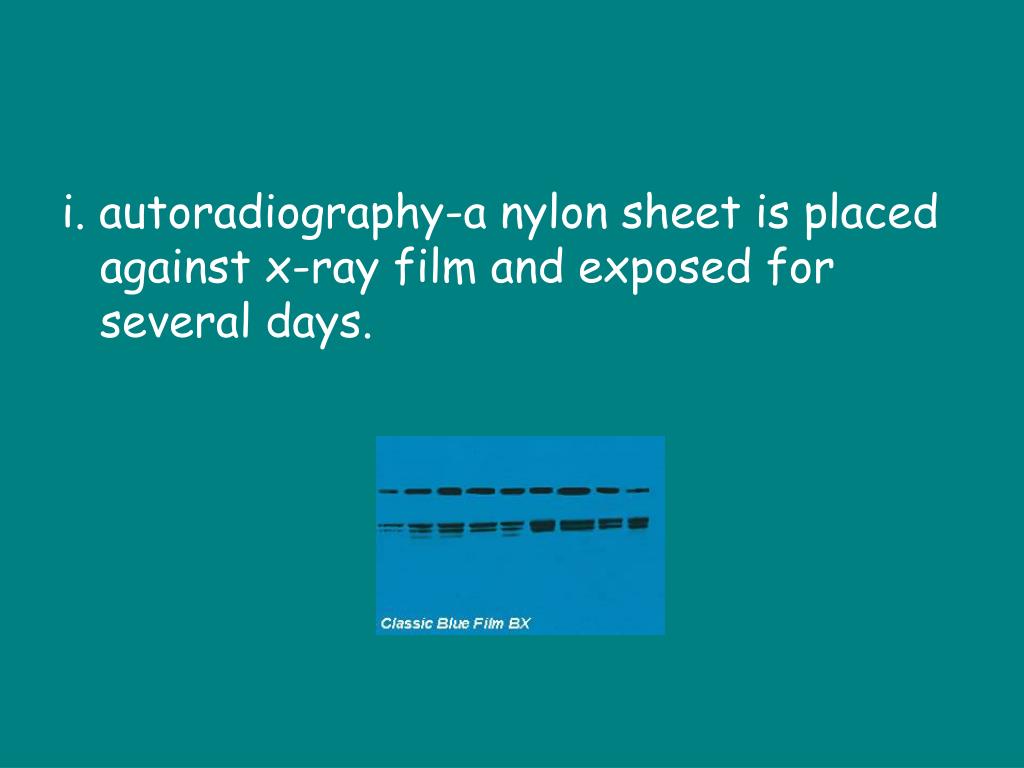

35. i. autoradiography-a nylon sheet is placed against x-ray film and exposed for several days.

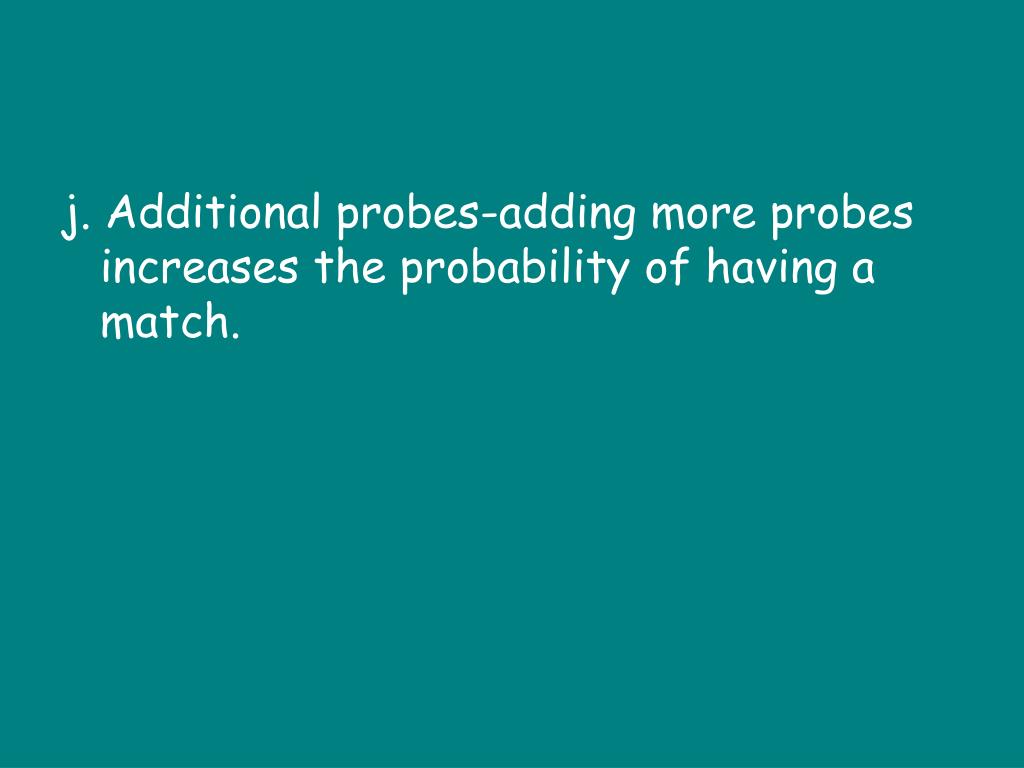

36. j. Additional probes-adding more probes increases the probability of having a match.

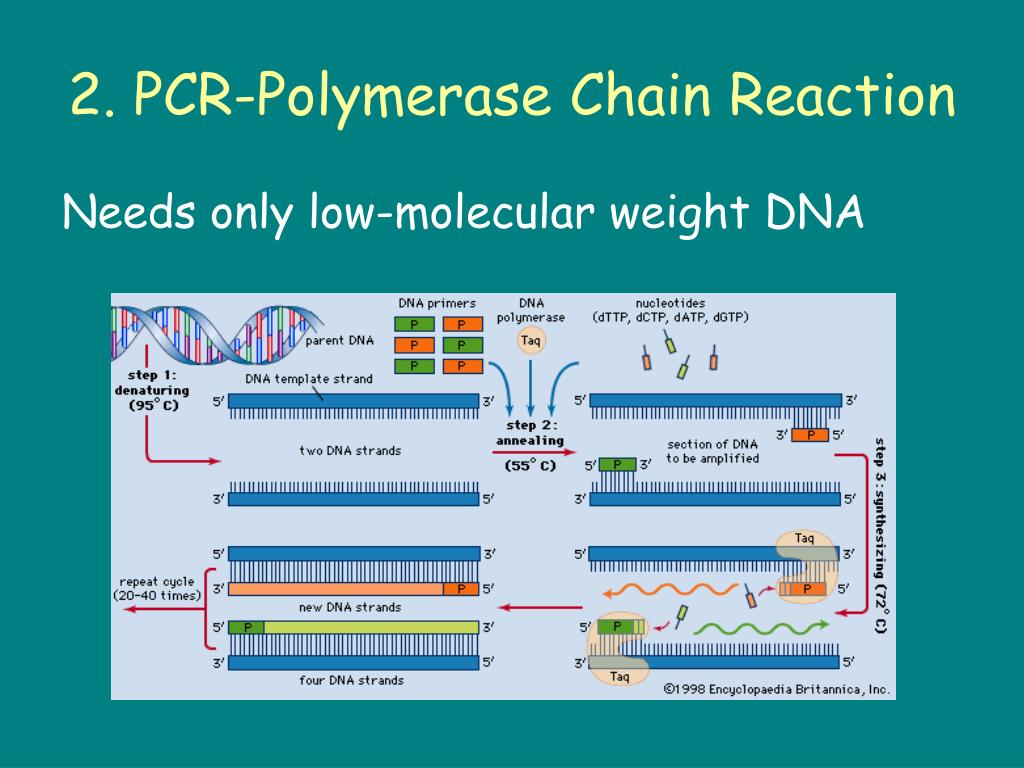

37. 2. PCR-Polymerase Chain Reaction Needs only low-molecular weight DNA

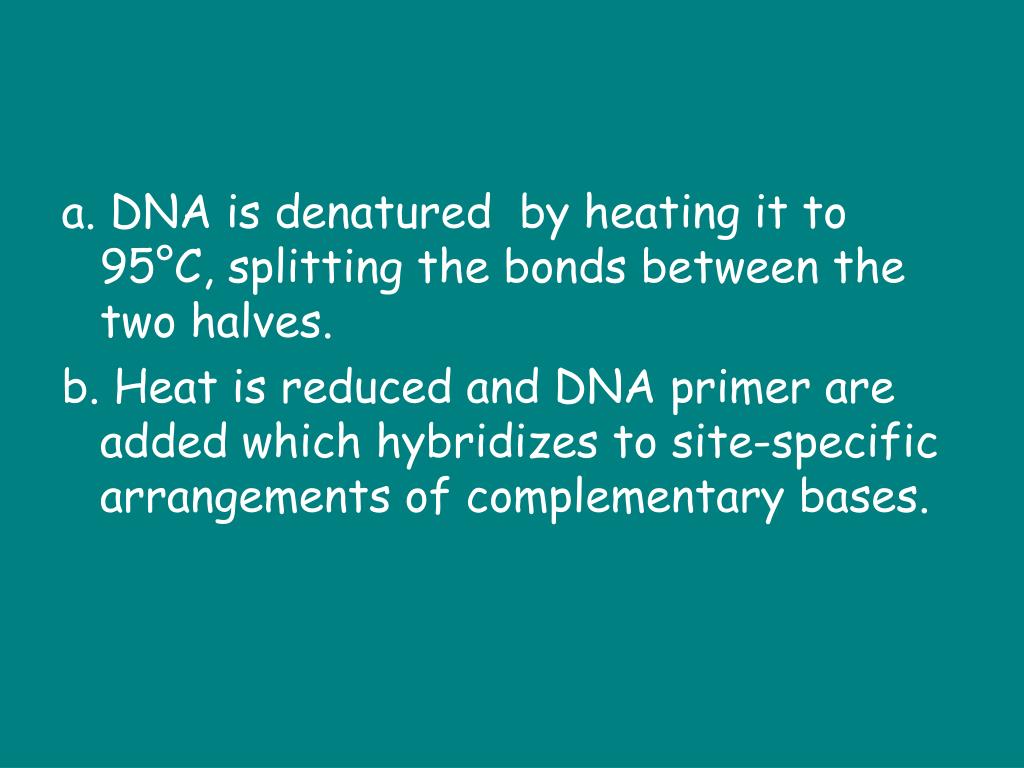

38. a. DNA is denatured by heating it to 95°C, splitting the bonds between the two halves. b. Heat is reduced and DNA primer are added which hybridizes to site-specific arrangements of complementary bases.

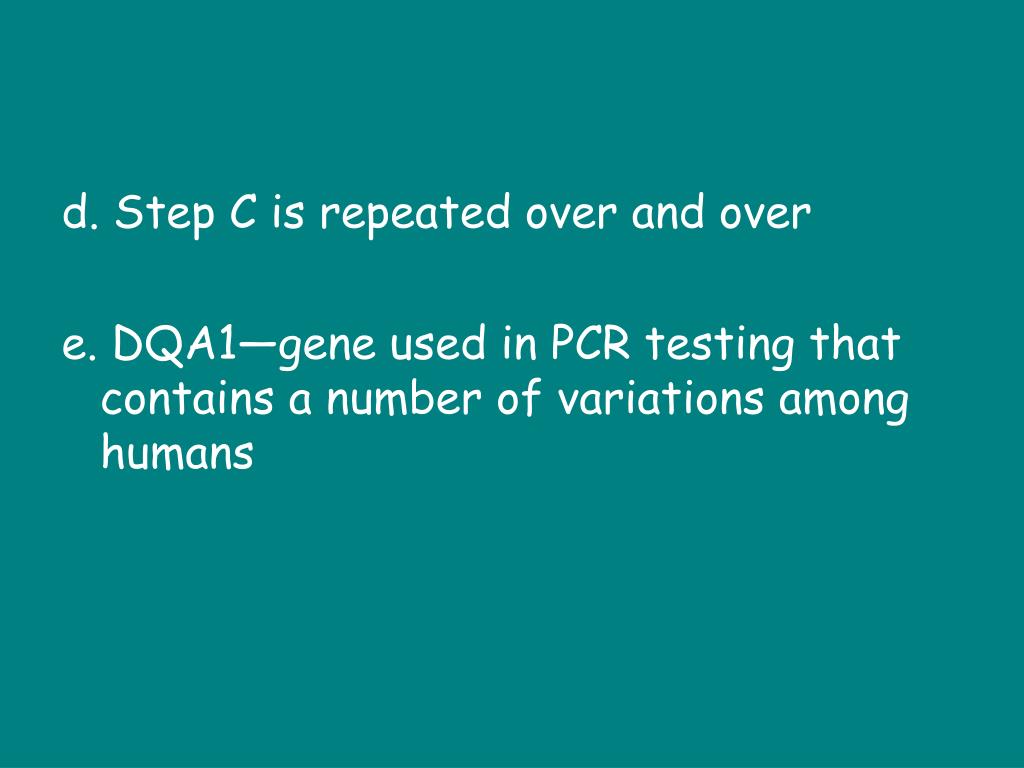

39. d. Step C is repeated over and over e. DQA1—gene used in PCR testing that contains a number of variations among humans

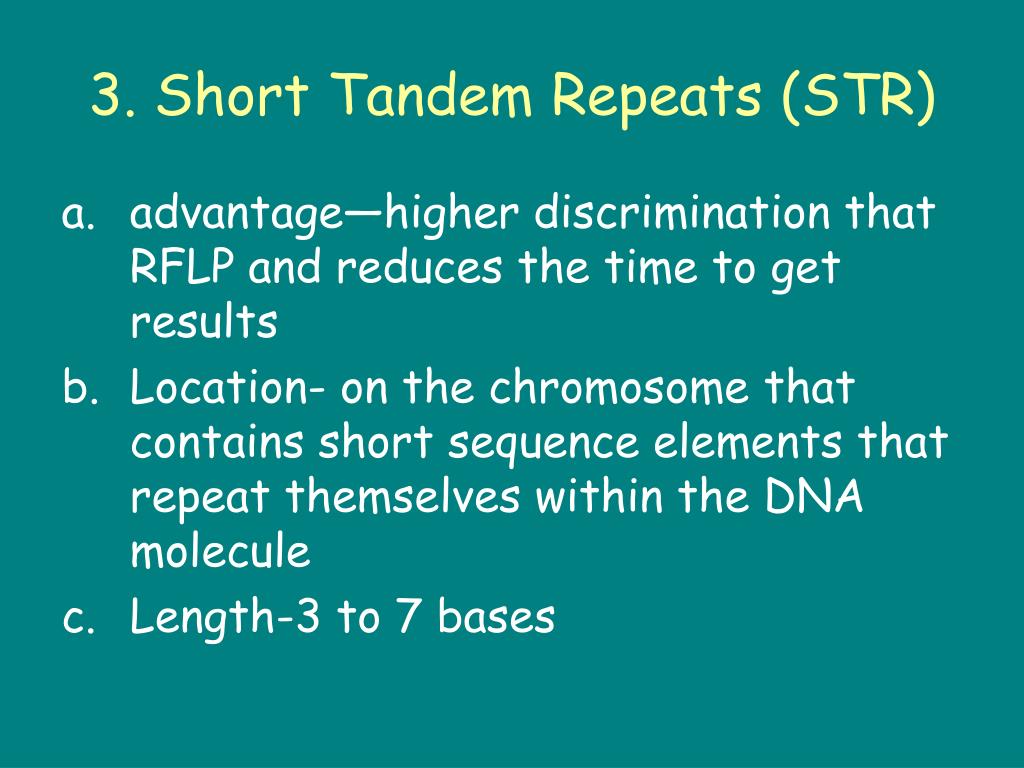

42. 3. Short Tandem Repeats (STR) • advantage—higher discrimination that RFLP and reduces the time to get results • Location- on the chromosome that contains short sequence elements that repeat themselves within the DNA molecule • Length-3 to 7 bases

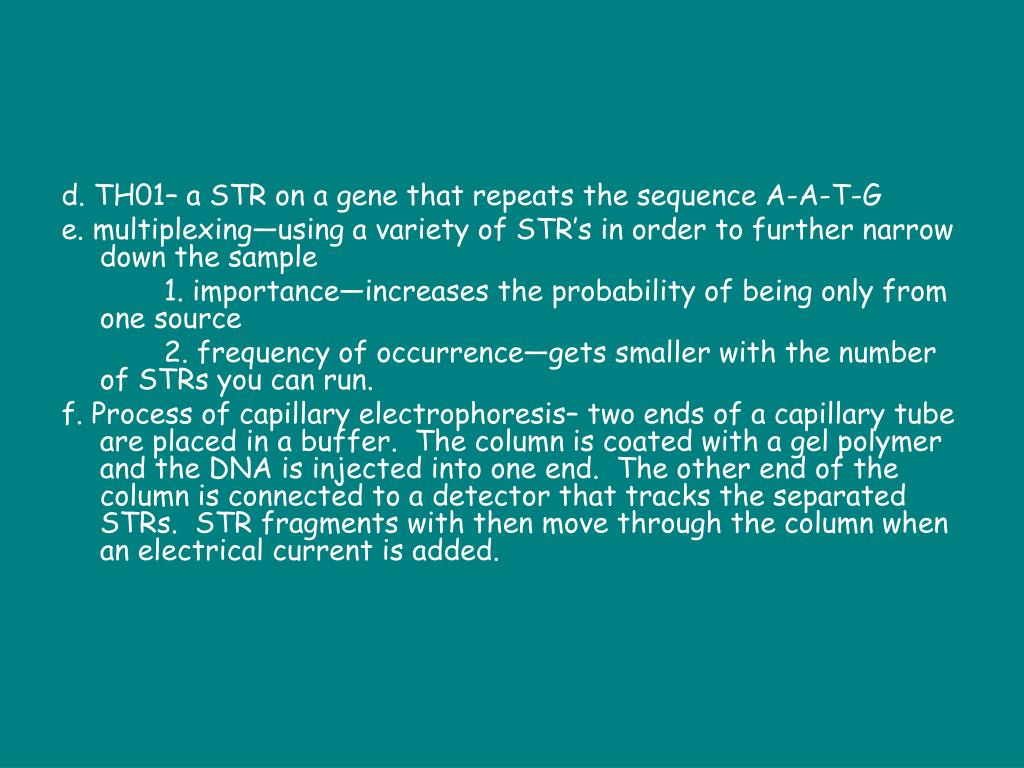

44. d. TH01– a STR on a gene that repeats the sequence A-A-T-G e. multiplexing—using a variety of STR’s in order to further narrow down the sample 1. importance—increases the probability of being only from one source 2. frequency of occurrence—gets smaller with the number of STRs you can run. f. Process of capillary electrophoresis– two ends of a capillary tube are placed in a buffer. The column is coated with a gel polymer and the DNA is injected into one end. The other end of the column is connected to a detector that tracks the separated STRs. STR fragments with then move through the column when an electrical current is added.

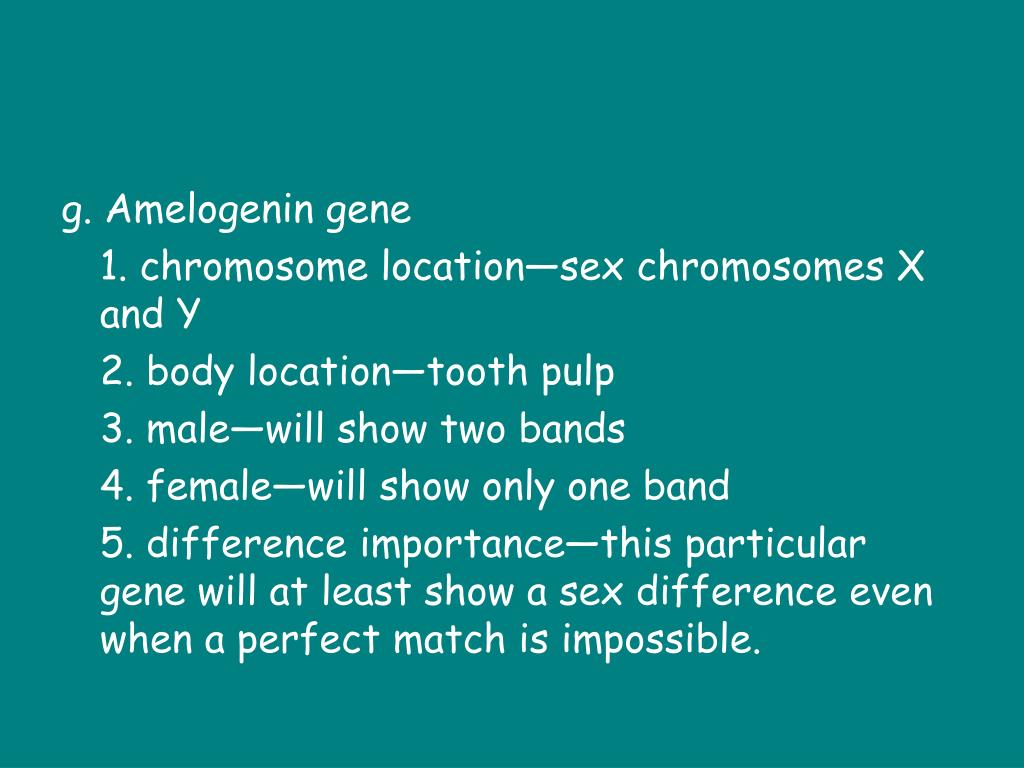

45. g. Amelogenin gene 1. chromosome location—sex chromosomes X and Y 2. body location—tooth pulp 3. male—will show two bands 4. female—will show only one band 5. difference importance—this particular gene will at least show a sex difference even when a perfect match is impossible.

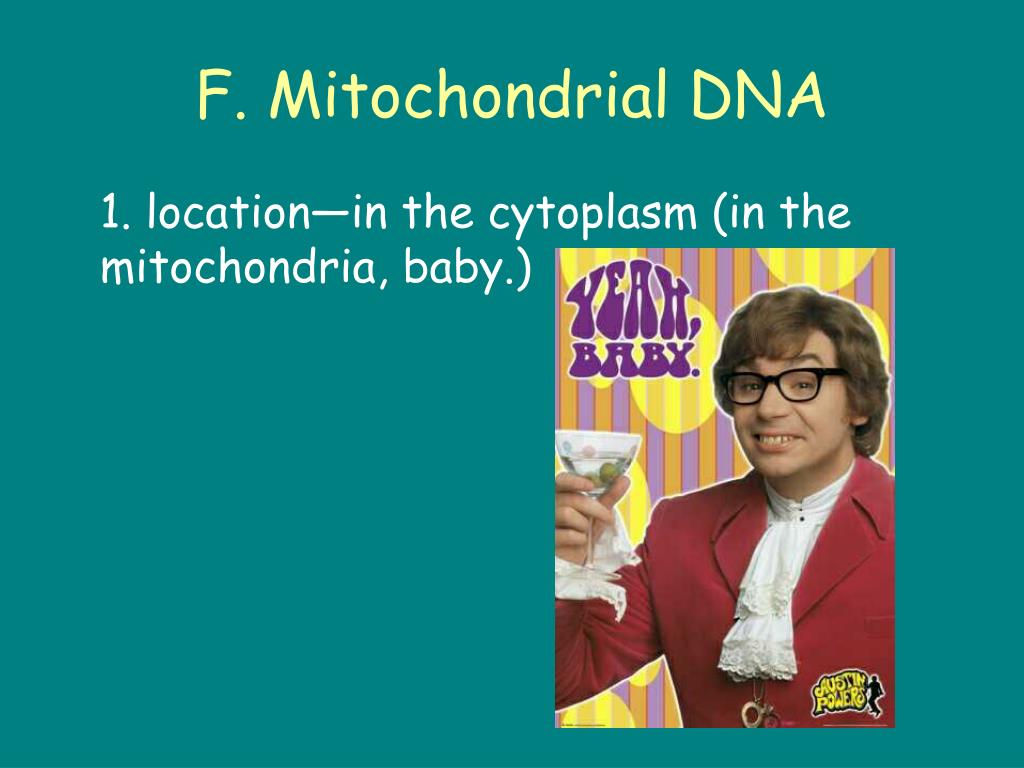

47. F. Mitochondrial DNA 1. location—in the cytoplasm (in the mitochondria, baby.)

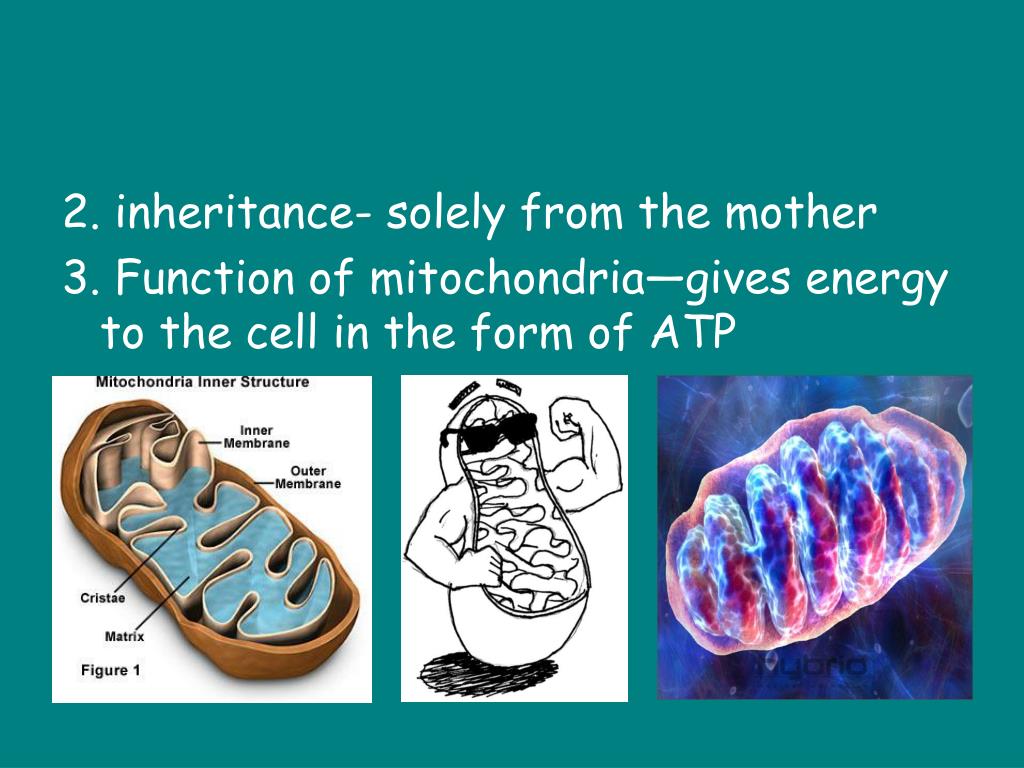

49. 2. inheritance- solely from the mother 3. Function of mitochondria—gives energy to the cell in the form of ATP

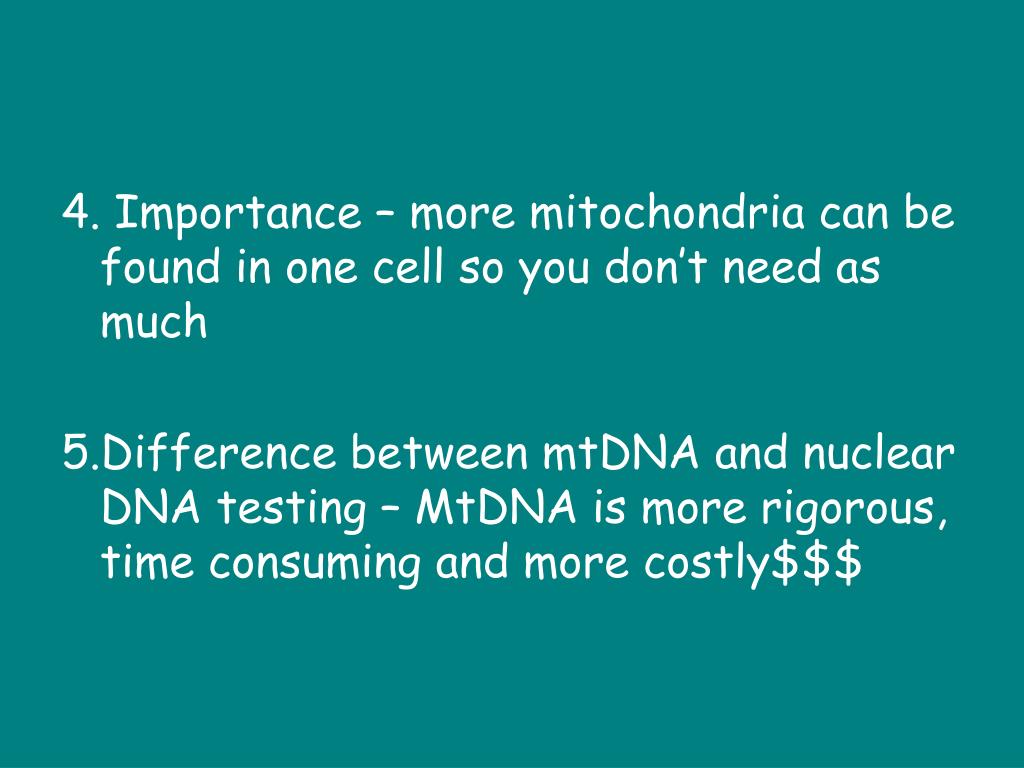

50. 4. Importance – more mitochondria can be found in one cell so you don’t need as much 5.Difference between mtDNA and nuclear DNA testing – MtDNA is more rigorous, time consuming and more costly$$$
