  1. Lighthouse Development Team Rapid Response Team

  2. Opportunities • Most hospitalized patients with cardiac arrest haveabnormal physiological values recorded in the hours precedingthe event • A patient’s baseline condition begins to deteriorate a mean of 6.5 hours before an unexpected critical event or actual cardiac arrest (5) • Schein et al found that 70% of patients show evidence of respiratory deterioration within 8 hours of arrest (6) • At a minimum, the measurement of key clinical indicators must be obtained accurately and recorded with appropriate frequency (7) • Communication of patient deterioration can be improved and physician notification of patient’s condition worsening may only occur in 25% of cases • Ongoing program management and performance improvement is essential to the sustainability of RRT’s (5) Buist MD, Moore GE, Bernard SA, Waxman BP, Anderson JN, Nguyen TV. Effects of a medical emergency team on reduction of incidence of and mortality from unexpected cardiac arrests in hospital: preliminary study. Br Med J. 2002;324:387-390 (6) Schein. Chest. 1990;98:1388-1392. (7) ILCOR Consensus Statement. Recommended Guidelines for Monitoring, Reporting, and Conducting Research on Medical Emergency Team, Outreach, and Rapid Response Systems: An Utstein-Style Scientific Statement. (8)Franklin. Crit Care Med. 1994;22:224-247.

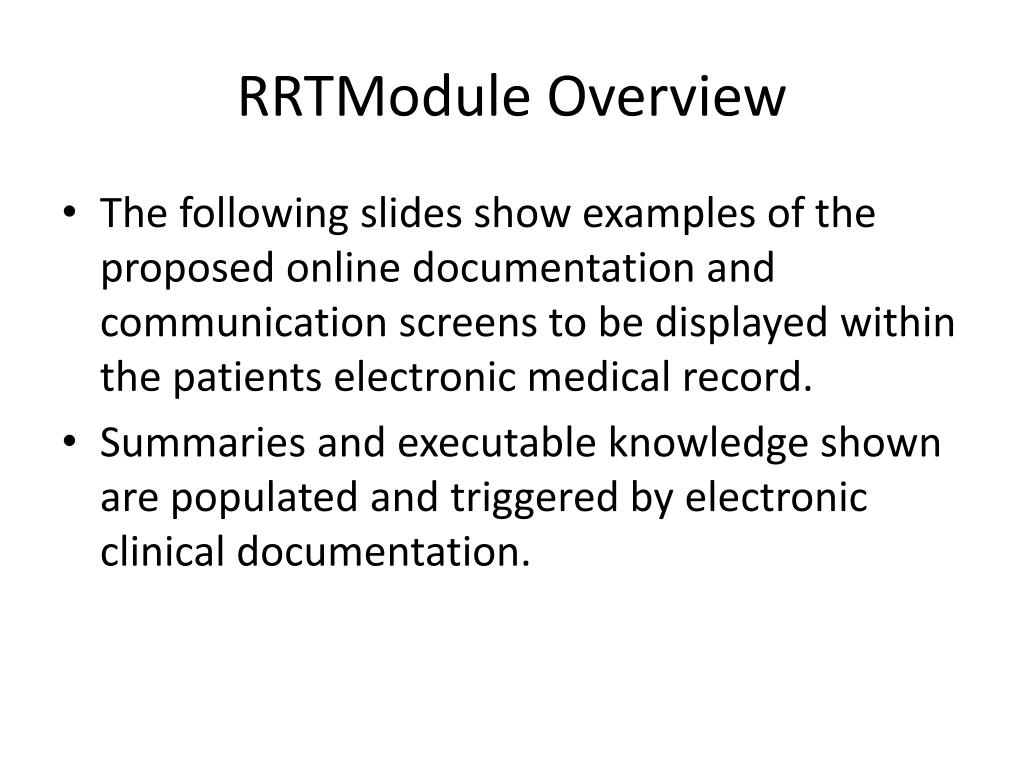

  3. RRTModule Overview • The following slides show examples of the proposed online documentation and communication screens to be displayed within the patients electronic medical record. • Summaries and executable knowledge shown are populated and triggered by electronic clinical documentation.

  4. Review Patient • Mews/Pews scoring assessments are collected leveraging existing electronic nursing clinical documentation. • Diagnostic results are collected and displayed in the clinical repository. • If any result/assessment is out of set parameters, alerts are triggered. • Process Recommendations: • Standardize Triggering Criteria and Protocol • Daily RRT Rounding • Executable Knowledge: • Rule: MEWS/PEWS Scoring/notification • RRT Patient Screening/Scoring: • Bedside Clinician: Document Clinical Assessment • MEWS/PEWS • Summary View : • Review physiologic parameters • RRT Dashboard: • Facilitate daily rounding • Amend/filter screening criteria • Change parameters to meet patient’s clinical concerns

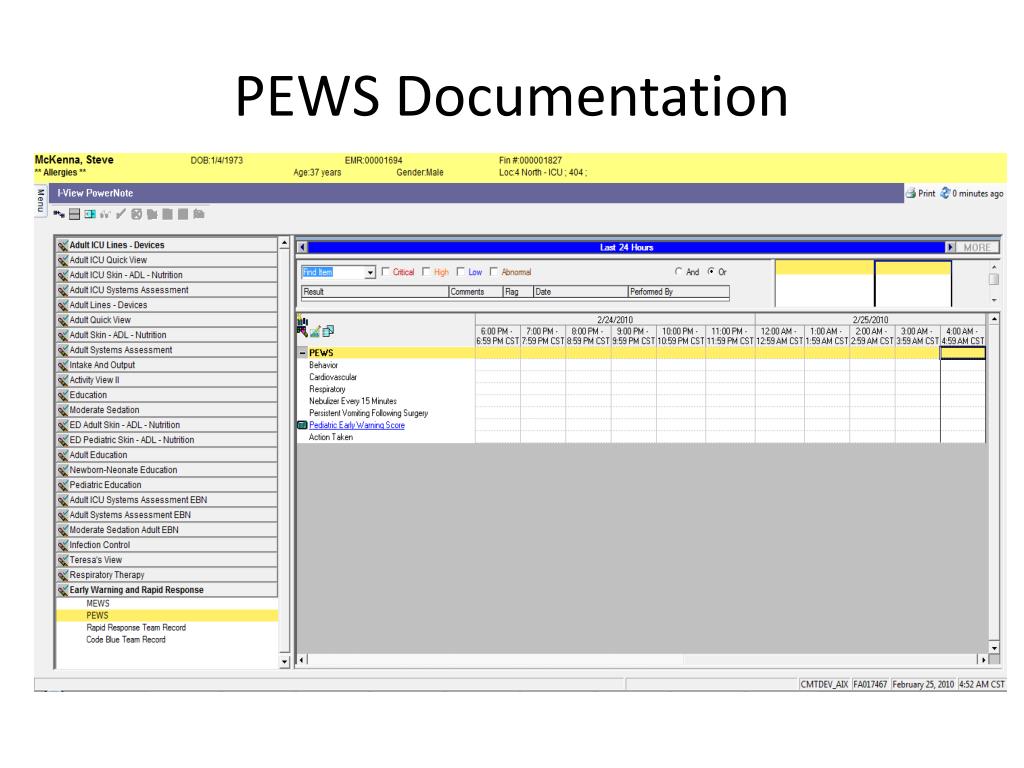

  5. PEWS Documentation

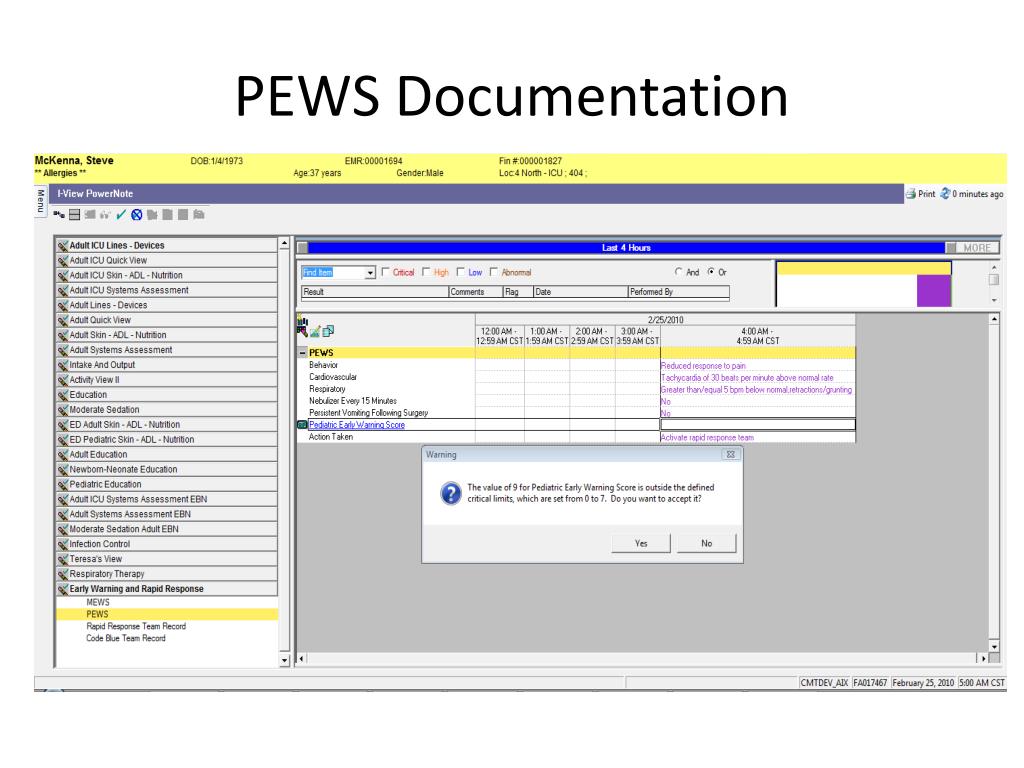

  6. PEWS Documentation

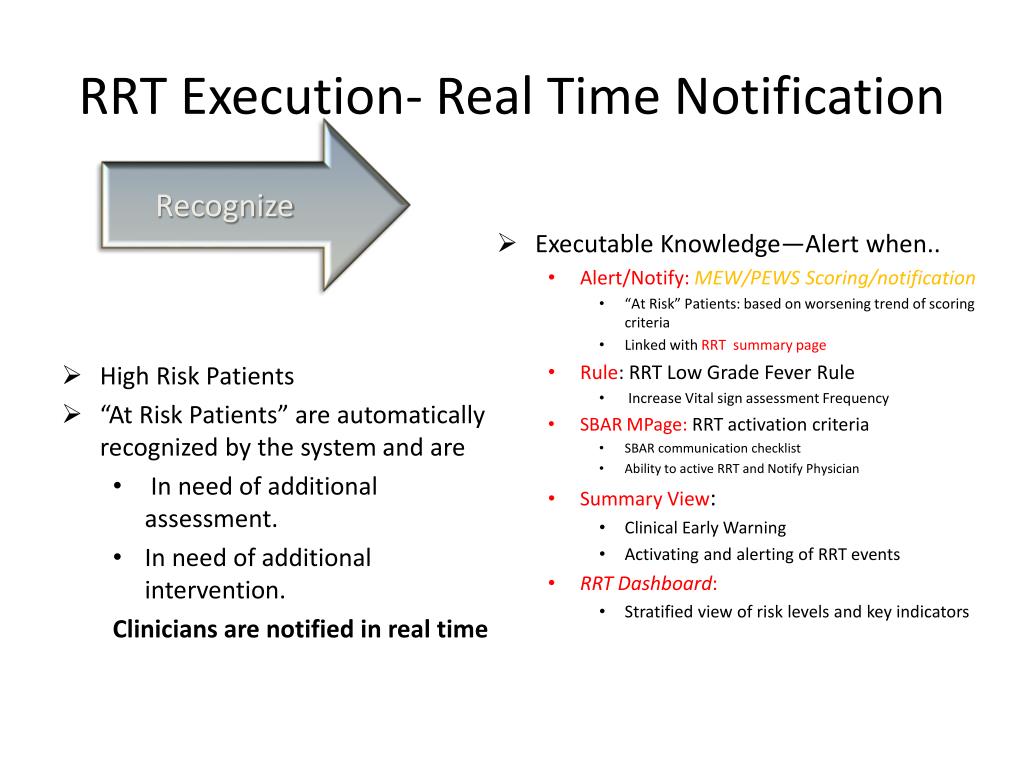

  7. RRT Execution- Real Time Notification • High Risk Patients • “At Risk Patients” are automatically recognized by the system and are • In need of additional assessment. • In need of additional intervention. Clinicians are notified in real time • Executable Knowledge—Alert when.. • Alert/Notify:MEW/PEWS Scoring/notification • “At Risk” Patients: based on worsening trend of scoring criteria • Linked with RRT summary page • Rule: RRT Low Grade Fever Rule • Increase Vital sign assessment Frequency • SBAR MPage: RRT activation criteria • SBAR communication checklist • Ability to active RRT and Notify Physician • Summary View: • Clinical Early Warning • Activating and alerting of RRT events • RRT Dashboard: • Stratified view of risk levels and key indicators Recognize

  8. RRT Response • Clinician or System Trigger to Activate RRT! • RRT assessment, intervention, and disposition • Option to communicate with attending Physician • Executable Knowledge: • Alert/Notifications:RRT Activate • Care Plan: • Suggested with activation • SBAR Summary page: • RRT Intervention/SBAR with “standing orders” • Early Warning/RRT events are recorded • RRT Record • Code Blue Record Respond

  9. RRT Intervention Care Plan/OrdersetWhat gets triggered? • Vital Signs (initially and as indicated) • Blood pressure, heart rate, respiratory rate, temperature, oxygen saturation • Nursing Orders: • P.O.C. Blood glucose, Cardiac monitor • IV Patent IV access IV fluid: Normal saline at _________mL/hour • Respiratory: • Clear and maintain airway, Oxygen therapy to stabilize patient and maintain oxygen of % • via ____nasal cannula ____mask • Ventilation assistance with positive pressure ventilation • Medications • Albuterol _____mg nebulizer as needed for respiratory distress • Nitroglycerin 0.4 mg sublingual for chest pain. May repeat every 5 minutes for total of 3 doses • Naloxone (for narcotic reversal) (0.2-0.4 mg) IV IM or subcutaneously as needed for respiratory depression • Flumazenil (benzodiazepine reversal) 0.2 mg IV; may dose every 60 seconds for a total of 4 doses as needed for respiratory depression (maximum is 1 mg) • D50 IV or other hypoglycemic agents • Lab/Diagnostic Tests: • Chest x-ray (AP Portable) • Other imaging studies • EKG • HGB/HCT CBC Glucose Electrolytes (Na+, K+, Cl -,CO2) BUN/Creatinine • Arterial blood gases

  10. RRT Execution: RecoverTreat and measure • Process Recommendations: • RRT Debriefing: Staff, Patient, Family • Communication Protocol: Physician Notification • Executable Knowledge: • Documentation: • Patient Chart: RapidResponse Team Record /Code Blue • Summary Page: SBAR Documentation • Physician Documentation: RRT Record • Notification: • Physician • Summary View : • Significant Events Component • Communication of event record to care team Recover • Standardized Documentation of RRT Activities and Outcomes • Communication of patient status with RRT, Staff Nurse, Physician, ICU etc.

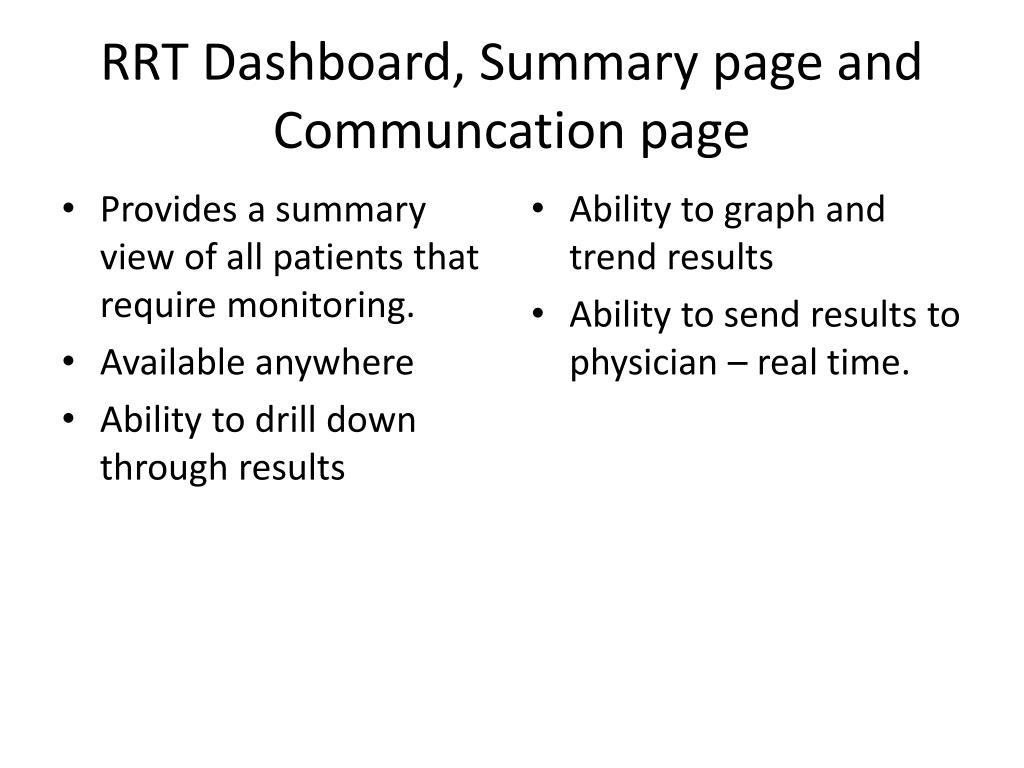

  11. RRT Dashboard, Summary page and Communcation page • Provides a summary view of all patients that require monitoring. • Available anywhere • Ability to drill down through results • Ability to graph and trend results • Ability to send results to physician – real time.

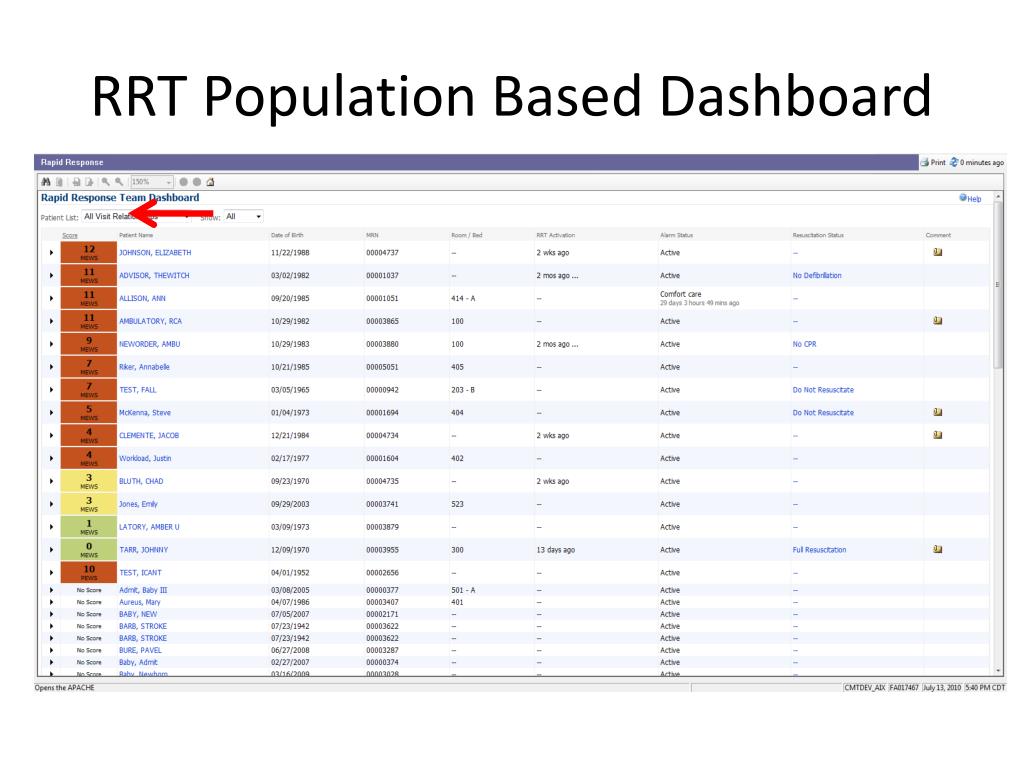

  12. RRT Population Based Dashboard

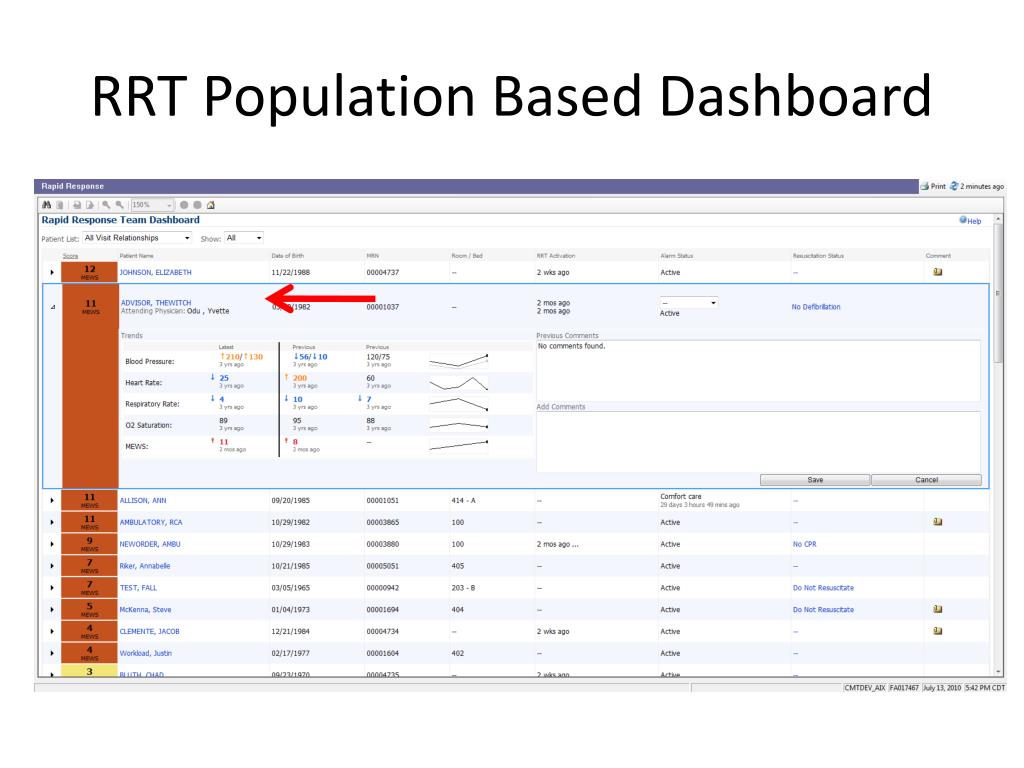

  13. RRT Population Based Dashboard

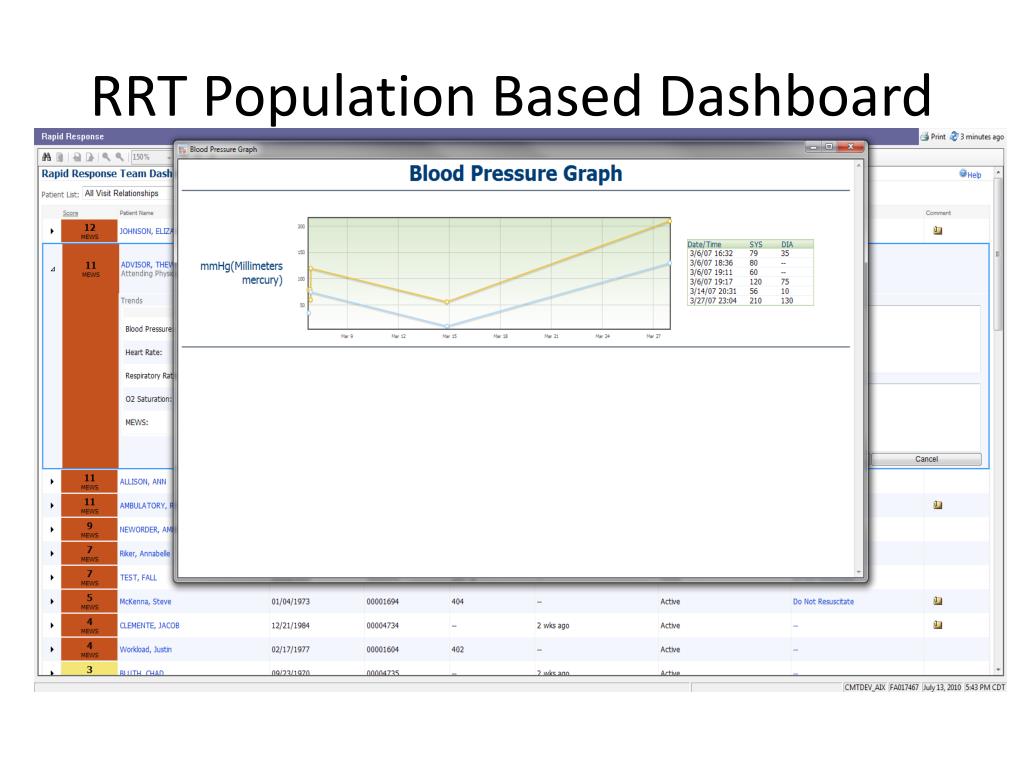

  14. RRT Population Based Dashboard

  15. RRT Inpatient View

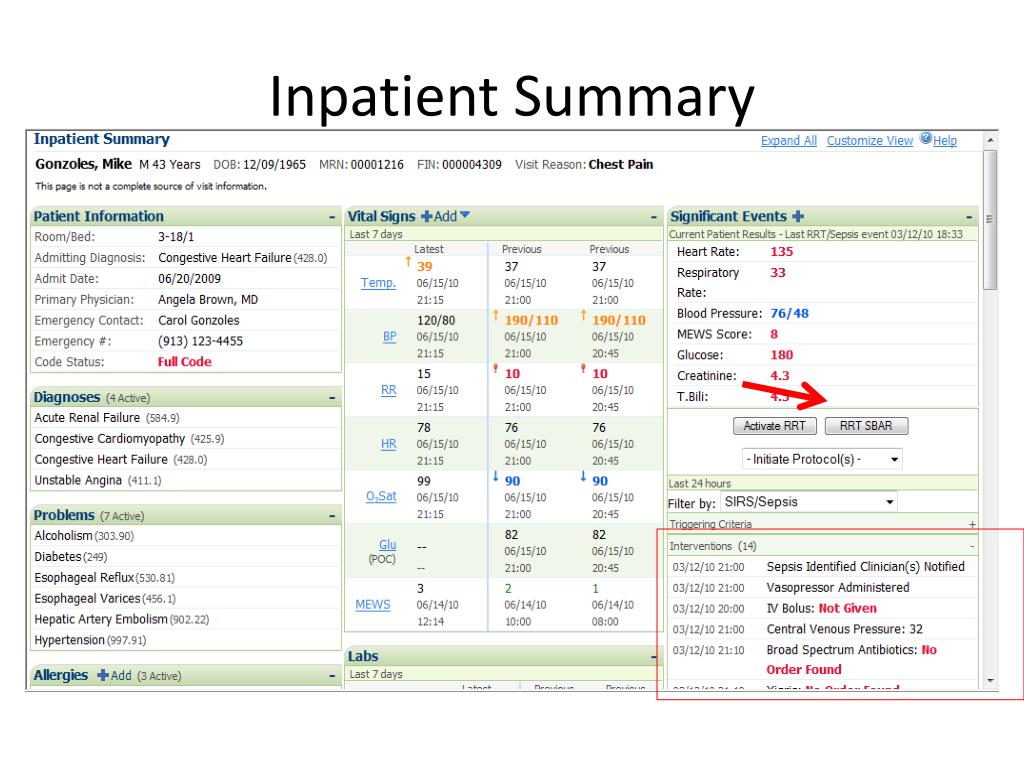

  16. Inpatient Summary

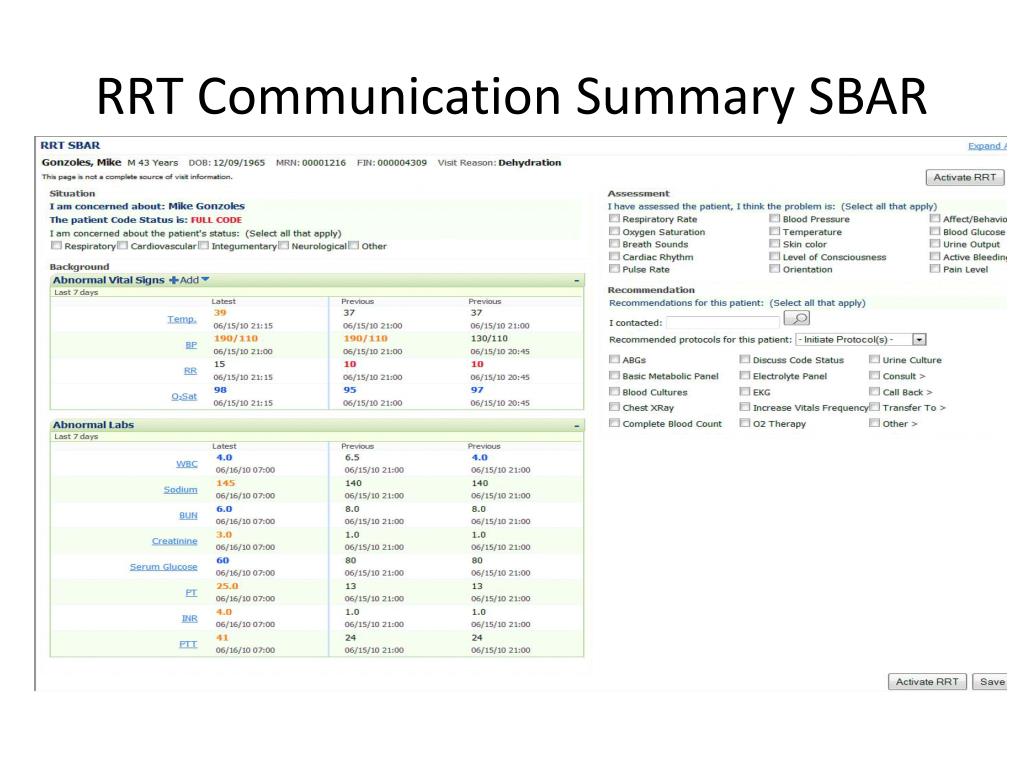

  17. RRT Communication Summary SBAR

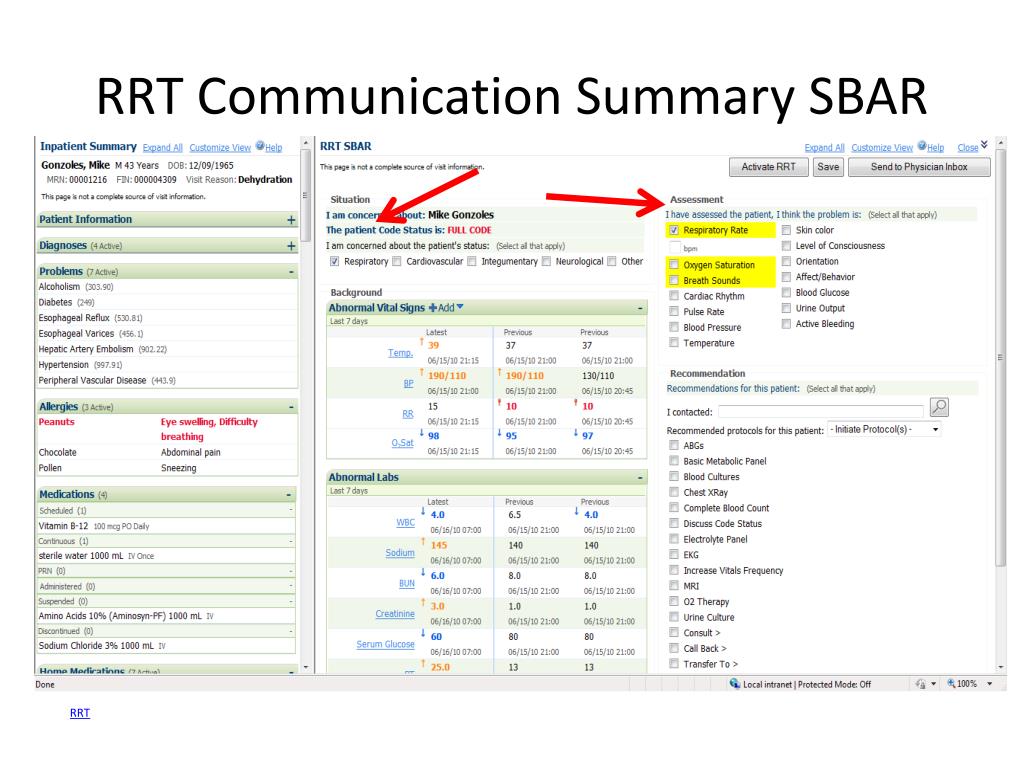

  18. RRT Communication Summary SBAR RRT
