  1. LED Controlli DURASTRIPDURASTRIPcontrollers Configurazioni - Configurations

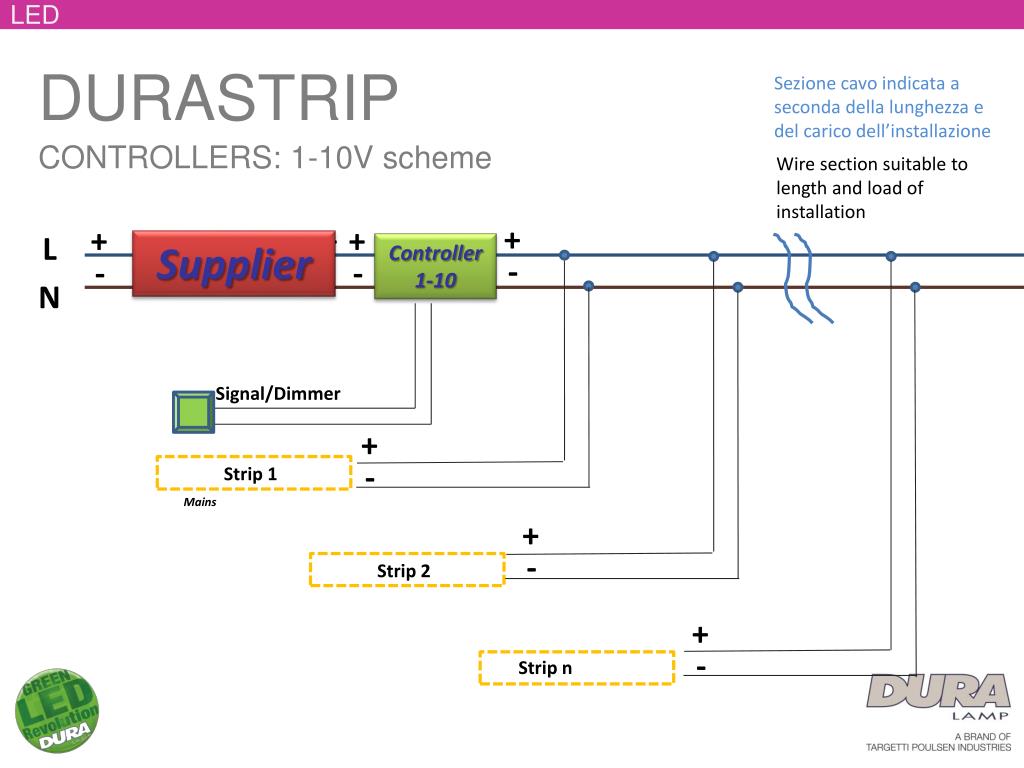

  2. LED DURASTRIP CONTROLLERS: 1-10V scheme Sezione cavo indicata a seconda della lunghezza e del carico dell’installazione Wire sectionsuitable to length and load of installation + + + + L Supplier Controller 1-10 - - - - N Signal/Dimmer + - Strip 1 Mains + - Strip 2 + - Strip n

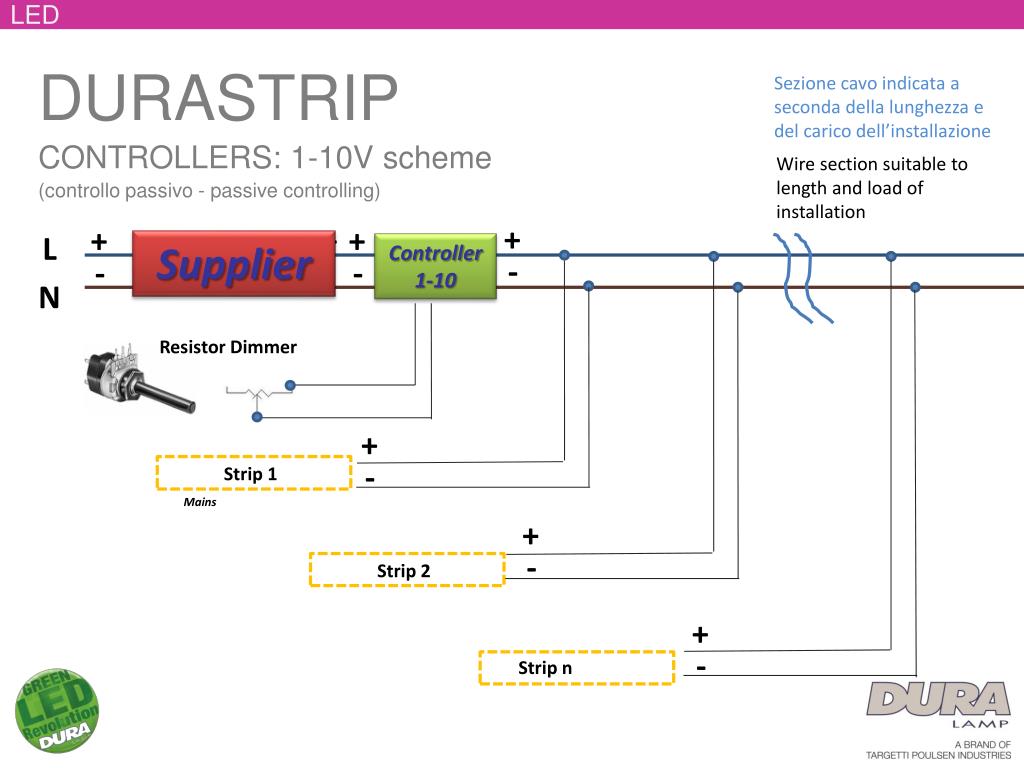

  3. LED DURASTRIP CONTROLLERS: 1-10V scheme (controllopassivo - passive controlling) Sezione cavo indicata a seconda della lunghezza e del carico dell’installazione Wire sectionsuitable to length and load of installation + + + + L Supplier Controller 1-10 - - - - N Resistor Dimmer + - Strip 1 Mains + - Strip 2 + - Strip n

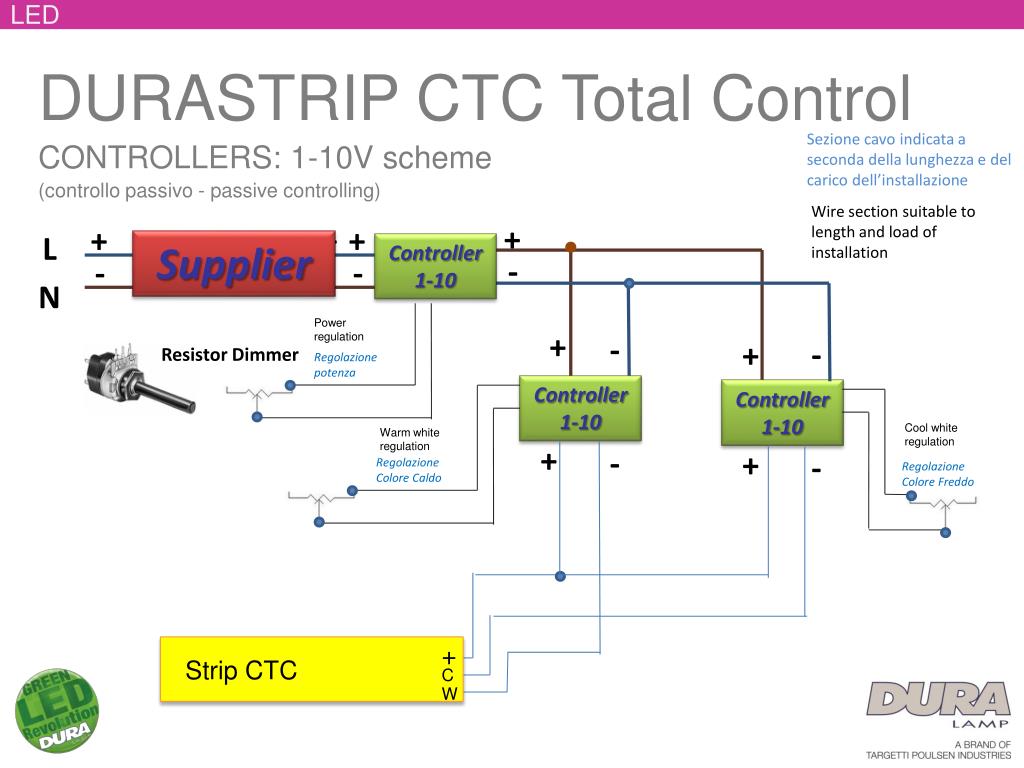

  4. LED DURASTRIP CTC Total Control CONTROLLERS: 1-10V scheme (controllopassivo - passive controlling) Sezione cavo indicata a seconda della lunghezza e del carico dell’installazione Wire sectionsuitable to length and load of installation + + + + L Supplier Controller 1-10 - - - - N Powerregulation + + ResistorDimmer Regolazione potenza Regolazione Colore Caldo - - Controller 1-10 Controller 1-10 Cool white regulation Warm white regulation + + - - Strip CTC Regolazione Colore Freddo + C W

  5. LED - Soluzione per potenzaelevata, alimentazionecentralizzata e dimmerazionesincrona max 240W a ramo – Dimming 1-10 attivo Solution for high power, central power unit and synchronousdimmingmax 240W /channel – Dimming 1-10 active Strip 1 + Mains - Strip 2 + + + Controller 1-10 - - Signal/Dimmer + + + L Supplier Controller 1-10 - - - N + - Strip 1 Mains + Strip 2 -

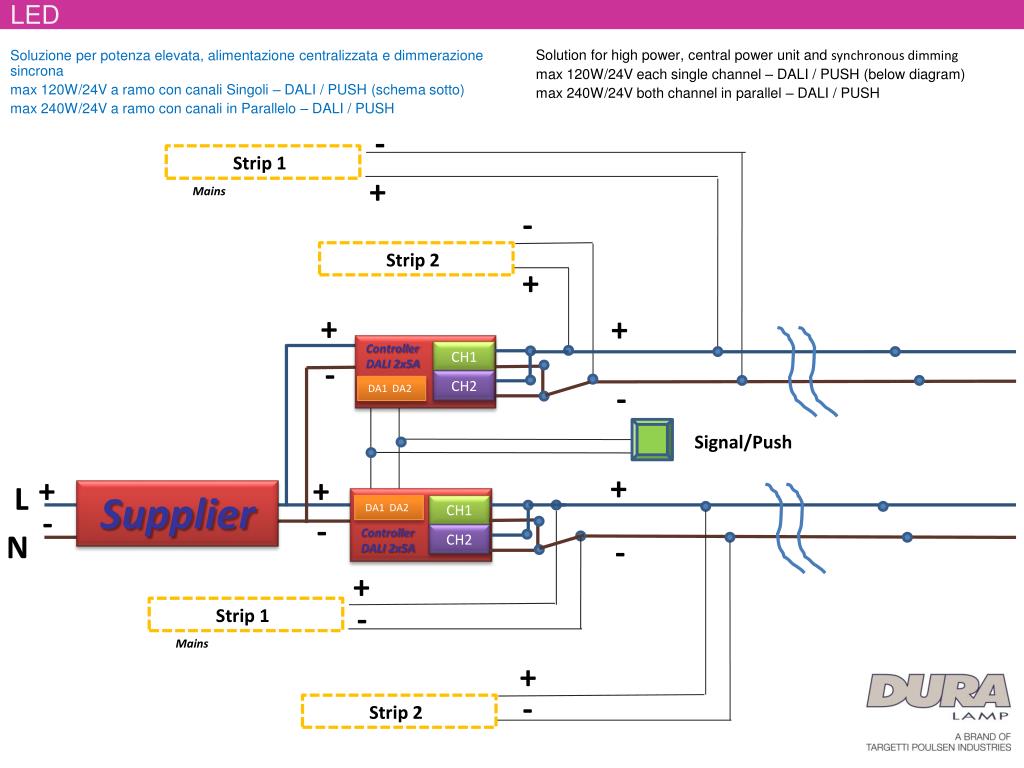

  6. LED Soluzione per potenzaelevata, alimentazionecentralizzata e dimmerazionesincrona max 120W/24V a ramo con canaliSingoli – DALI / PUSH (schema sotto) max 240W/24V a ramo con canali in Parallelo – DALI / PUSH Solution for high power, central power unit and synchronousdimming max 120W/24V each single channel – DALI / PUSH (below diagram) max 240W/24V both channel in parallel – DALI / PUSH - Strip 1 + Mains - Controller DALI 2x5A Controller DALI 2x5A CH1 CH1 DA1 DA2 Strip 2 + CH2 CH2 DA1 DA2 + + - - Signal/Push + + + L Supplier - - N - + - Strip 1 Mains + - Strip 2

  7. LED DURASTRIP CONTROLLERS: DALI scheme (Push) + L Supplier Controller DALI 2x5A CH1 - Max 5A/ch N CH2 DA1 DA2 Driver 100W Strip 2 – 24/48/96W 24V Strip 1 – 24/48/96W 24V Dali IN –Push

  8. LED DURASTRIP CONTROLLERS: DALI scheme (Push) + L Supplier Controller DALI 2x5A CH1 - Max 10A parallel CH N CH2 DA1 DA2 Driver 100W Strip 1 – 192W 24V Dali IN –Push

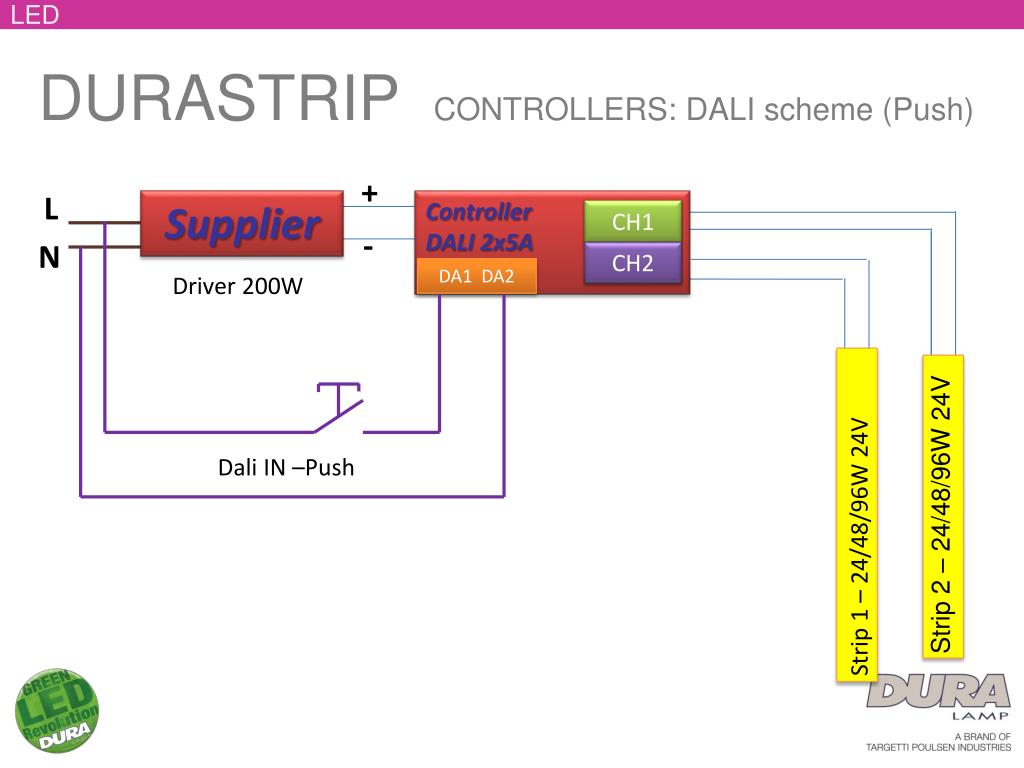

  9. LED DURASTRIP CONTROLLERS: DALI scheme (Push) + L Supplier Controller DALI 2x5A CH1 - N CH2 DA1 DA2 Driver 200W Strip 1 – 24/48/96W 24V Strip 2 – 24/48/96W 24V Dali IN –Push

  10. LED DURASTRIP CONTROLLERS: DALI scheme + L Supplier Controller DALI 2x5A CH1 - Max 5A/ch N CH2 DA1 DA2 Driver 100W Strip 2 – 24/48/96W 24V Strip 1 – 24/48/96W 24V Dali IN – Digital signal Dali IN – SegnaleDigitale

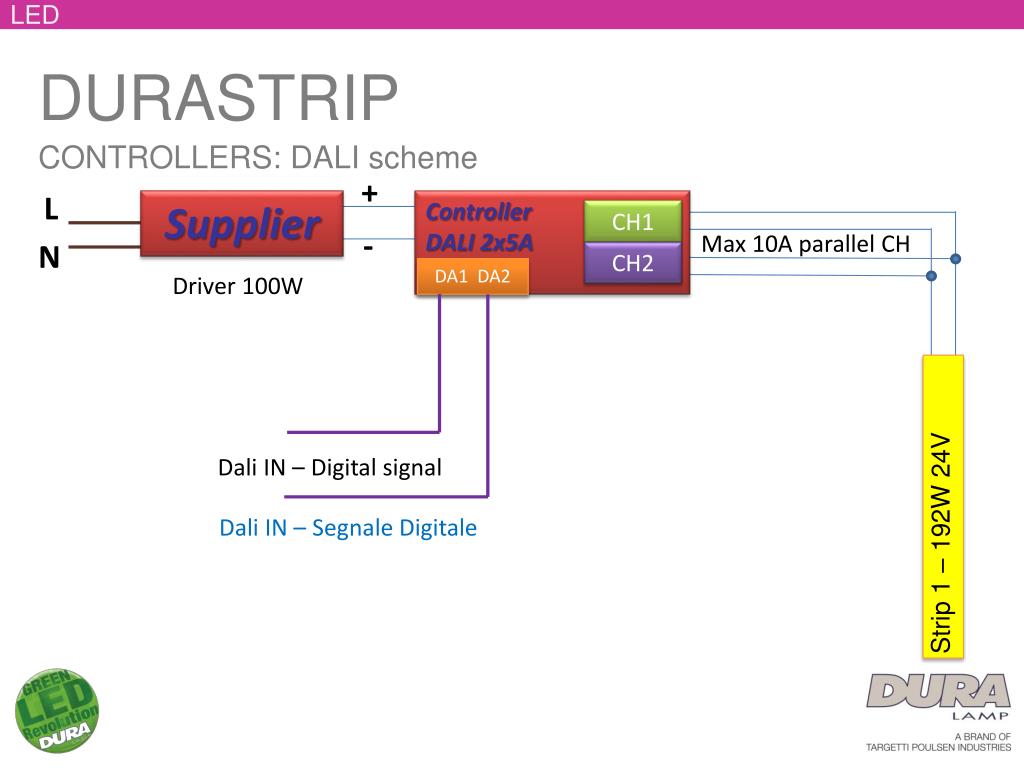

  11. LED DURASTRIP CONTROLLERS: DALI scheme + L Supplier Controller DALI 2x5A CH1 - Max 10A parallel CH N CH2 DA1 DA2 Driver 100W Strip 1 – 192W 24V Dali IN – Digital signal Dali IN – SegnaleDigitale

  12. LED DURASTRIP CONTROLLERS: DALI scheme for CTC + L Supplier Controller DALI 2x5A CH1 - Max 10A parallel CH N CH2 DA1 DA2 Driver 100W + C W Strip CTC Dali IN – Digital signal Dali IN – SegnaleDigitale

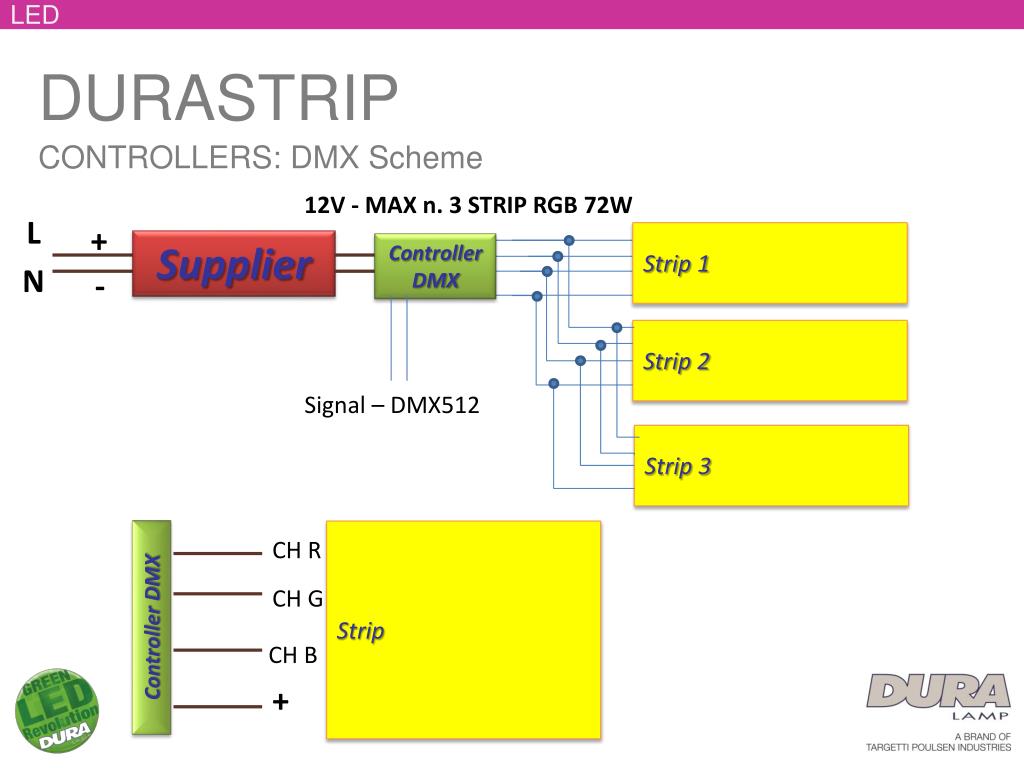

  13. LED DURASTRIP CONTROLLERS: DMX Scheme 12V - MAX n. 3 STRIP RGB 72W L + Strip 1 Supplier Controller DMX N - Strip 2 Signal – DMX512 Strip 3 Strip CH R CH G Controller DMX CH B +
