  1. Respiratory Diagnostics Brian J. Payne, DVM Carthage Veterinary Service, Ltd.

  2. The Presentation • The actual presentation given at AASV is based on actual case studies. • This PowerPoint presentation (based on PRRS diagnostics specifically) describes many of the laboratory tests that were utilized for these actual cases.

  3. One more thing… It has been an enormous benefit for me in a clinical setting to understand each diagnostic test that I request so that I can better interpret the results. I hope this helps!

  4. PRRS…Diagnostics • Serology • PRRSv • PRRS Viral Antigens • PRRS Antibodies • Tissue • PRRSv • Other • Semen PRRSv

  5. PRRS…Serology • ELISA • IFA • PCR • RFLP • Genetic Sequencing • SVN

  6. PRRS…Indirect ELISA • Enzyme-linked immunosorbent assay • Extremely high sensitivity ~100% • 99.5% specificity • Quick to run • Indirect method to determine antigen-specific PRRSv antibodies

  7. • Enzyme-labeled anti-porcine conjugate •Serum sample with PRRSv/Viral antibodies • Antigen • Polymer substrate Indirect ELISA…Process

  8. Indirect ELISA…Results • Bound enzyme allows visual detection • In-house tests usually (+) or (-) • In-lab tests utilize optical densities to give continuous range of numbers University of AZ, 1993

  9. Indirect ELISA...Results • IDEXX HerdChek • Based on S/P ratio • sample/positive • Optical densities (continual range) • < 0.3 = Negative • 0.3-0.4 = Suspect • > 0.3999 = Positive

  10. Indirect ELISA…Antibody Detection • PRRSv Ab detectable 9-13 days PI • Peak at 30-50 days • Rapid decline but still may be detectable in > 10 months (personal experience is > 2 years)

  11. Indirect ELISA…Limitations • Allows evidence of exposure to PRRSv • However, no information on: • Length of exposure • Severity of infection • Which strain is present • Differentiation of vaccine and wild-type virus • Variability of immune responses within a given population

  12. PRRS…IFA • Indirect fluorescent antibody • Specificity 99.5% • Sensitivity (based on laboratory variation) • Culture media • Protocols • Incubation time • Cell types • Technician skill and subjectivity of results • Lab PRRSv genetic sim. to wild-type PRRSv

  13. • Fluorescein-labeled anti-porcine antibody • Serum with PRRSv Antibodies (IgG) • PRRSv (lab) infected cells • Polymer substrate IFA…The Process

  14. IFA…The Results • Magnitude of Ab titer can be determined unlike ELISA Magar, R., 1993

  15. IFA…The Results • < 1:20 or 16 = negative • 1:20 or 16 or greater = positive • Titer endpoints are subjectively determined, therefore variation

  16. IFA…Antibody Detection • IgG against PRRSv detectable 7-11 days PI • Peak at 30-50 days • Rapid decline but still may be detectable in 4-6 months

  17. PRRS…PCR • Polymerase Chain Reaction • In vitro amplification of DNA • RNA of virus extracted from sample • Reverse transcriptase (RNA to DNA) • PCR amplifies DNA • Target most conserved genes • ORF 6 and ORF 7

  18. A C T G PCR…Process Annealing DNA Heat Denaturing Primers and Cooling Taq + Nucleotides Reverse Transcriptase 30 Cycles Complementary Strands RNA

  19. PCR…The Process After 30 cycles, 1000’s of replicates Gel Electrophoresis (Colorimetric, Radioactive, Fluorometric) (+) (-)

  20. PCR…Adv / DisAdv • Rapid turnaround (RT-PCR) - 1-3 days • High sensitivity and specificity • Detects Ag…no need to wait for immune system response • Detection determined by correlation b/w primers and PRRSv • Not indicative of replicating virus

  21. PRRS…RFLP • Restriction Fragment Length Polymorphism • Utilizes RT-PCR of ORF 5 gene • Envelop proteins • Prone to mutation • 3 Restriction Enzymes Used • Their cutting patterns are assigned numbers • I.e. 1-4-2, 2-1-2, 2-6-2, 1-5-2

  22. RFLP…Interpretation • May differentiate between vaccine virus (2-5-2) and wild-type virus • No indication of virulence • No indication on cross-protection • Change in RFLP can be from 1 base pair substitution…careful interpretation • Little indication of homology (4%)

  23. “Open reading frame 5 of PRRSV was sequenced. This PRRSV has a predicted RFLP cut pattern of 2-5-2 and differs from each of the 3 modified-live PRRS vaccine viruses (Ingelvac/RespPRRS, Ingelvac ATP, PrimePac) by more than .5%.” University of MN RFLP…Example

  24. “RFLP cut patterns are usually an inaccurate measure of PRRSV relatedness.” University of MN RFLP…Example

  25. PRRS Genetic Sequencing • Provides exact nucleotide sequence of ORF • Utilize ORF 5 b/c most variable • Therefore, more informative than RFLP • Dendograms (phylogenetic tree) can be made and homologies can be seen

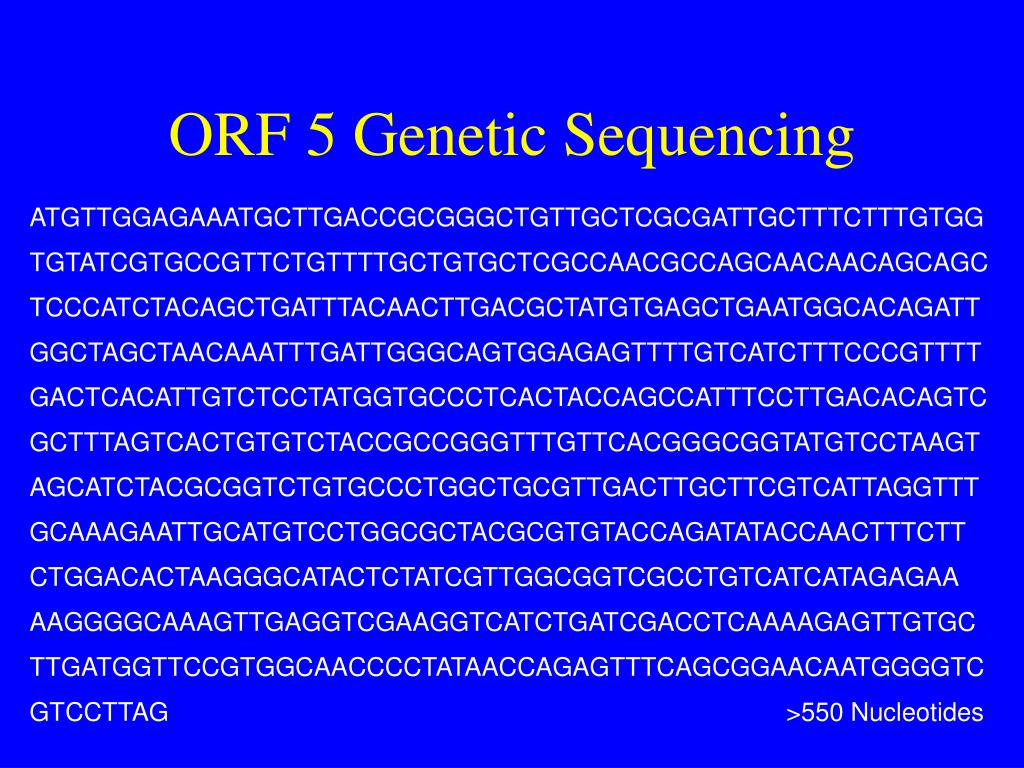

  26. ORF 5 Genetic Sequencing ATGTTGGAGAAATGCTTGACCGCGGGCTGTTGCTCGCGATTGCTTTCTTTGTGG TGTATCGTGCCGTTCTGTTTTGCTGTGCTCGCCAACGCCAGCAACAACAGCAGC TCCCATCTACAGCTGATTTACAACTTGACGCTATGTGAGCTGAATGGCACAGATT GGCTAGCTAACAAATTTGATTGGGCAGTGGAGAGTTTTGTCATCTTTCCCGTTTT GACTCACATTGTCTCCTATGGTGCCCTCACTACCAGCCATTTCCTTGACACAGTC GCTTTAGTCACTGTGTCTACCGCCGGGTTTGTTCACGGGCGGTATGTCCTAAGT AGCATCTACGCGGTCTGTGCCCTGGCTGCGTTGACTTGCTTCGTCATTAGGTTT GCAAAGAATTGCATGTCCTGGCGCTACGCGTGTACCAGATATACCAACTTTCTT CTGGACACTAAGGGCATACTCTATCGTTGGCGGTCGCCTGTCATCATAGAGAA AAGGGGCAAAGTTGAGGTCGAAGGTCATCTGATCGACCTCAAAAGAGTTGTGC TTGATGGTTCCGTGGCAACCCCTATAACCAGAGTTTCAGCGGAACAATGGGGTC GTCCTTAG >550 Nucleotides

  27. 5.14.06 6.2.06

  28. Sequencing and Dendograms • = Phylogenetic analysis • Nucleotide sequencing

  29. Genetic Sequencing • Homologies do not indicate cross-protection • Homologies do not predict pathogenicity • Homologies only indicate relatedness

  30. PRRS…SVN (SN) • Serum Virus Neutralization • PRRS SVN not used widely • Possible direct correlation with protective antibodies in vivo • Alpha and beta procedures • Beta utilized for PRRS

  31. SVN…Procedure • Beta Procedure • Known levels of standard virus incubated with serial dilutions of test serum • Serum is then added to sensitive cell lines • Titer of serum = Highest dilution of serum that neutralizes known dose of virus • End points are shown by cytopathology

  32. SVN Results • Less sensitive than IFA or ELISA • Neutralizing Ab produced slow PI ( >21 days) • Levels of nAb are pig-dependent • Detectable 9-28 days PI • Max titers at 2-3 months PI • Persistent titers > 1 year PI

  33. SVN…Interpretation • Assumed that shedding of virus is nill if nAb is present • However, PRRS produces carrier-state animals • REMEMBER: • ARTERIVIRUS

  34. PRRSv Detection in Tissues • Histopathology • PCR • VI • IHC • DFA

  35. PRRS…Histopathology • Interstitial pneumonia • Thickened alveolar walls • Pneumocyte hypertrophy/hyperplasia • Alveolar spaces filled with necrotic debris and WBC’s

  36. PRRS…Histopathology Normal Interstitial pneumonia T. Opriessnig, 2004

  37. A C T G PCR…Process Annealing DNA Heat Denaturing Primers and Cooling Taq + Nucleotides Reverse Transcriptase 30 Cycles Complementary Strands RNA

  38. PRRS…VI • Virus Isolation • Lung, Tonsil, Lymph nodes • Autolysis greatly affects sensitivity • Much easier to find in serum

  39. PRRS…IHC • Immunohistochemistry • Antibody coupled to horseradish peroxidase • H2O2/Benzidine derivative added • Colored insoluble precipitate formed Halbur, AASV

  40. PRRS…DFA • Direct Fluorescent Antibody • Fluorescein conjugated to antiviral antibody • PRRSv infected tissue

  41. DFA…Results • Quick, Cheap • Specific • Less sensitive…autolysis

  42. Semen PRRSv PCR

  43. Semen PRRSv PCR • Specific • Less Sensitive • Intermittent Shedding • Detectable Levels > Infectious Levels

  44. Other Respiratory Diagnostics • I request many of the same diagnostic tests for different respiratory diseases. • If you feel like you are lost when you are out in practice, call the lab you are working with and the diagnosticians are more than happy to help you out and explain more about what they do.
