  1. An Analysis of Efficient Multi-Core Global Power Management Policies Authors: Canturk Isci†, Alper Buyuktosunoglu†, Chen-Yong Cher†, Pradip Bose† and Margaret Martonosi The 39th Annual IEEE/ACM International Symposium on Microarchitecture (MICRO'06) Speaker: Jun Shen

  2. Agenda • Background • Motivation • Contribution • Details of the contributions • Overview of the global power management policy • Briefs of the simulation • Comparison of the different policies • Evaluation methodology • Three neglected issues • Advance and Drawback of the paper • The relationship between the paper and the course • The impact of the paper on project • Q&A

  3. Background • Multicore architecture is more and more popular and widespread due to the famous “walls” • Power and temperature problems are becoming more and more crucial

  4. Motivation To solve two “How” questions • How to enforce a power budget through global power manager? • How to minimize power given a performance target?

  5. Contributions Primarily three contributions • The creation of Global power manager (PM) • A fast static power management analysis tool • Evaluation of different PM policies (with different focus such as prioritization, fairness, throughput)

  6. Overview of global PM (1) • Why we need global power manager? • To exploit the widely known variability in demand and characteristics of the workloads (e.g. those across threads (cores)) • To cooperate with the adaptive action of each core with a given power budget

  7. Overview of global PM (2)

  8. Overview of global PM (3) Some preconditions Each core • has its own dynamic controller • has its power-performance monitor (e.g. current monitor, perf monitoring counter hw) • can be running in multiple power modes

  9. Overview of global PM (4) the loop of PM’s work • PM periodically collects power-performance data from local monitors • PM reports it to OS • OS returns power budget, thread affinities, high-level scheduling and load-balancing plan to PM • PM decides the power-mode of each core based on those info

  10. Overview of global PM (5) Optional implementation of PM • Separate ondie microcontroller with some foxton-alike underlying monitors • Separate helper daemon on a dedicated core • Low level hypervisor-like program interface

  11. Brief of simulation (1) • Based on IBM Turandot simulator • Power statistics from IBM PowerTimer • The list of core parameter

  12. Brief of simulation(2) • Use single-threaded Turando result for each power mode simulation • Simulating multicore by simultaneously progressing over Turando-traces, and these traces are the execution of different benchmarks. • Validate simulation with a cycle-accurate full CMP imple. of Turandot(???)

  13. Brief of simulation (3) • New ideas: • Time-driven L2 • Thread synchronization to handle multiple clock domain mode • Experiment result: • Simulation power variation with CMP less than 5% • Performance variation [9%,30%] note:the upper bound is achieved with a highly memory-bound app

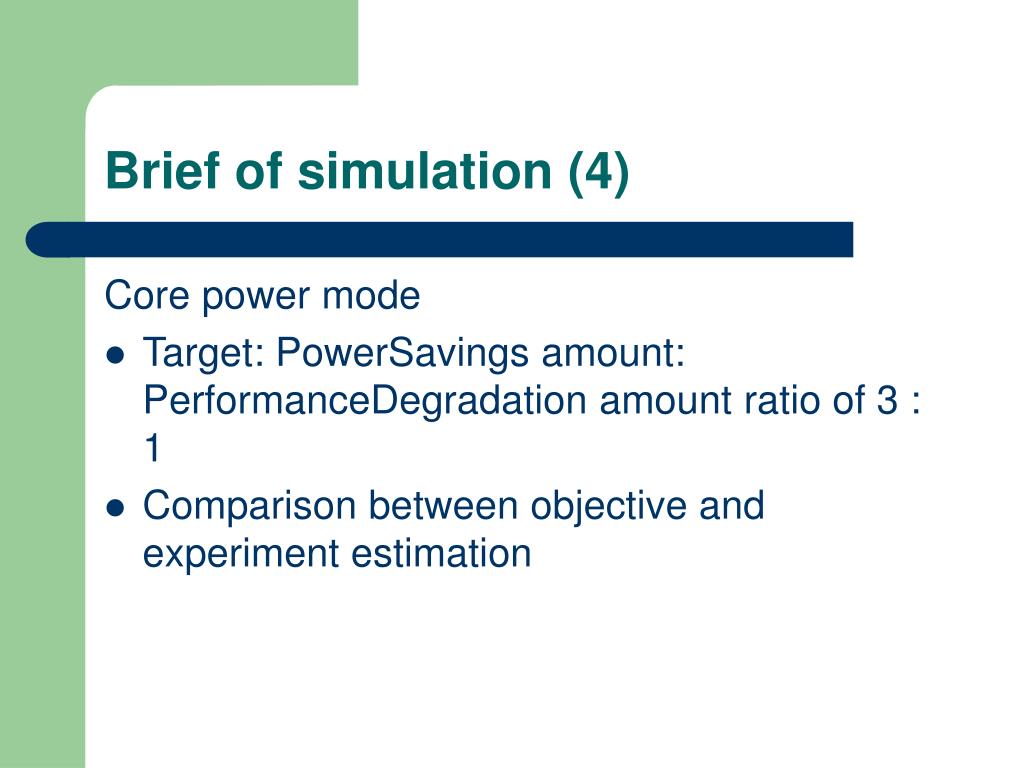

  14. Brief of simulation (4) Core power mode • Target: PowerSavings amount: PerformanceDegradation amountratio of 3 : 1 • Comparison between objective and experiment estimation

  15. Brief of simulation (5) • Target • estimation

  16. Global PM policies (1) Policy Introduction • Priority: every core has a pre-defined priority, the core with higher priority, then the core has higher voltage---higher throughput • Power balancing: try to equal the power consumption of every core. • Throughput Optimization: pick up a combination of power mode so that maximizing throughput

  17. Global PM policies (2) • Chip-wide DVFS– an alternative • Advantage: simple implementation (no synchronization across cores) • Disadvantage: • high penalty with few power mode for small power overshoot • Great performance deviation for different type of tasks

  18. Global PM policies (3)

  19. Evaluation Methodology (1) • Proposed Evaluation Methodology • Policy curve • Overall performance degradation under several budget (wrt all turbo execution) • Budget curve • Plot the percent of power consumed( with one specific policy) over the original power budget.

  20. Evaluation Methodology (2) Policy Curve

  21. Evaluation Methodology (3) • Budget Curve

  22. Evaluation Methodology (4) • Other issues: • How about the fairness?--- some cores always get full budget while others always in starvation • Some metrics on fairness: weighted speedup, harmonic mean of thread speedups • Weighted slowdown = harmonic mean of individual speedup wrt turbo execution(harmonic mean stress the most unfairness) • Formula of Speedup = performance with enhancement / baseline performance, in this paper, this is actually a slowdown

  23. Evaluation Methodology (5) • Weighted slowdown

  24. Evaluation Methodology (6)

  25. Evaluation Methodology (7) • Dynamic adaptability

  26. Issues (1) • How to get the knowledge of power/performance behavior of applications? • Careful exploration---try small scale of power change?? • Not suitable for harsh adaptation policy • Set up a profile of each application from past experience?? • Not always reliable

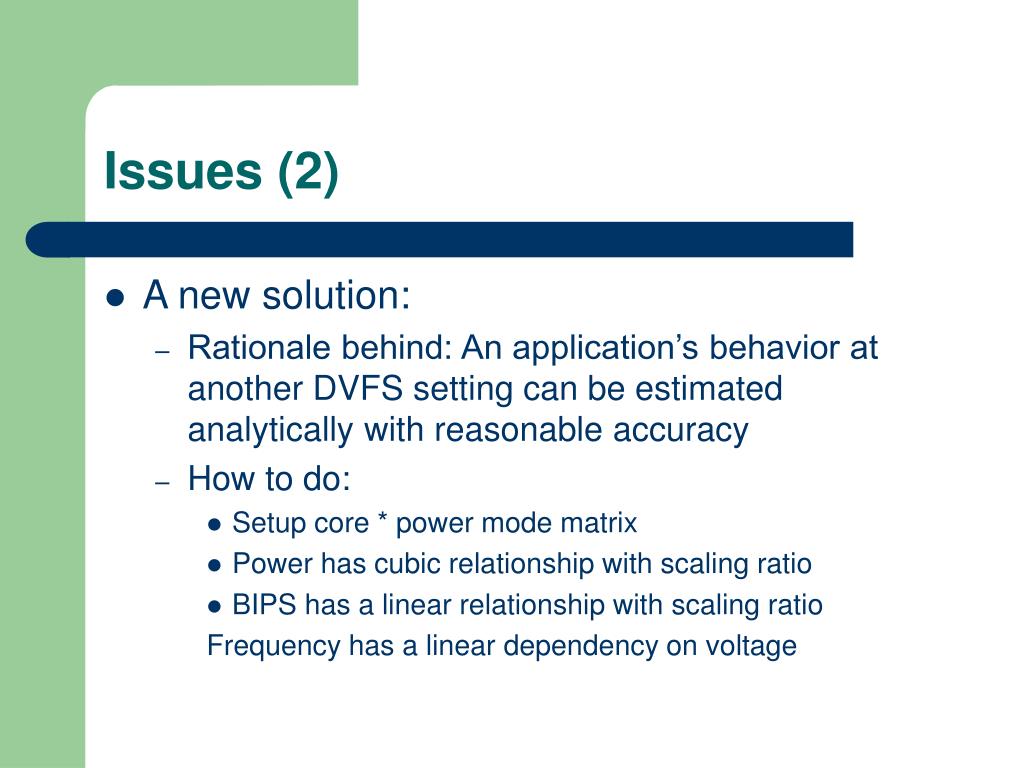

  27. Issues (2) • A new solution: • Rationale behind: An application’s behavior at another DVFS setting can be estimated analytically with reasonable accuracy • How to do: • Setup core * power mode matrix • Power has cubic relationship with scaling ratio • BIPS has a linear relationship with scaling ratio Frequency has a linear dependency on voltage

  28. Issues (3) • Validity of the solution • With SPEC, power estimation error range 0.1%~0.3% • BIPS estimation error range 2%-4%

  29. Issues (4) • Where is the ceiling of optimization? • If we can know the future, everything will be easy. (sorry, I don’t know how to get the data from oracle)

  30. Issues (5) • How about the efficiency of MaxBIPS in general cases?

  31. Issues (6)

  32. Advance and Drawback • Advance • Refer to the contribution • Drawback • Some important details are skipped, such as how to get data of oracle policy • How to keep power saving / performance degradation ratio 3:1 • The authors fail to reveal the relationship between number of power mode and power management efficiency

  33. Link btween this paper and the cse520 • Explore the power and performance relationship in a CMP system • The optimization thought can extend to the architecture design

  34. Project • My project plans to explore how the number of power modes can influence the efficiency of power management policy

  35. Q&A The End
