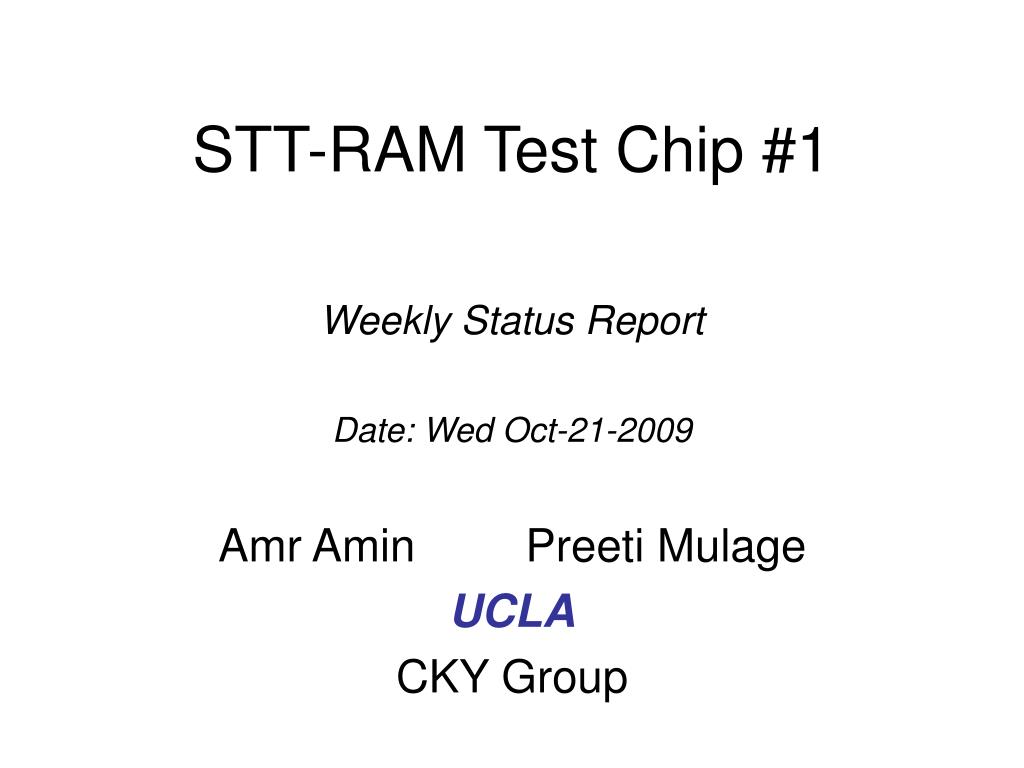

  1. STT-RAM Test Chip #1 Weekly Status Report Date: Wed Oct-21-2009 Amr Amin Preeti Mulage UCLA CKY Group

  2. Previous Action Items • Cell Design: • Investigating LVT devices, 1.2V supply, boosted WL voltage  Done • Sensitivity analysis  In progress (need data about MTJ variations) • Memory Array • Reference cells for current sensing  Done • Array schematic and layout  Done • Column MUX schematic  Done • Sense amp and “write” driver schematic  Done • Connecting Top Cell  In progress

  3. MTJ Design Space

  4. Available Sensing Signal • I-Sense: ΔISIG vs. TMR for different values of RON

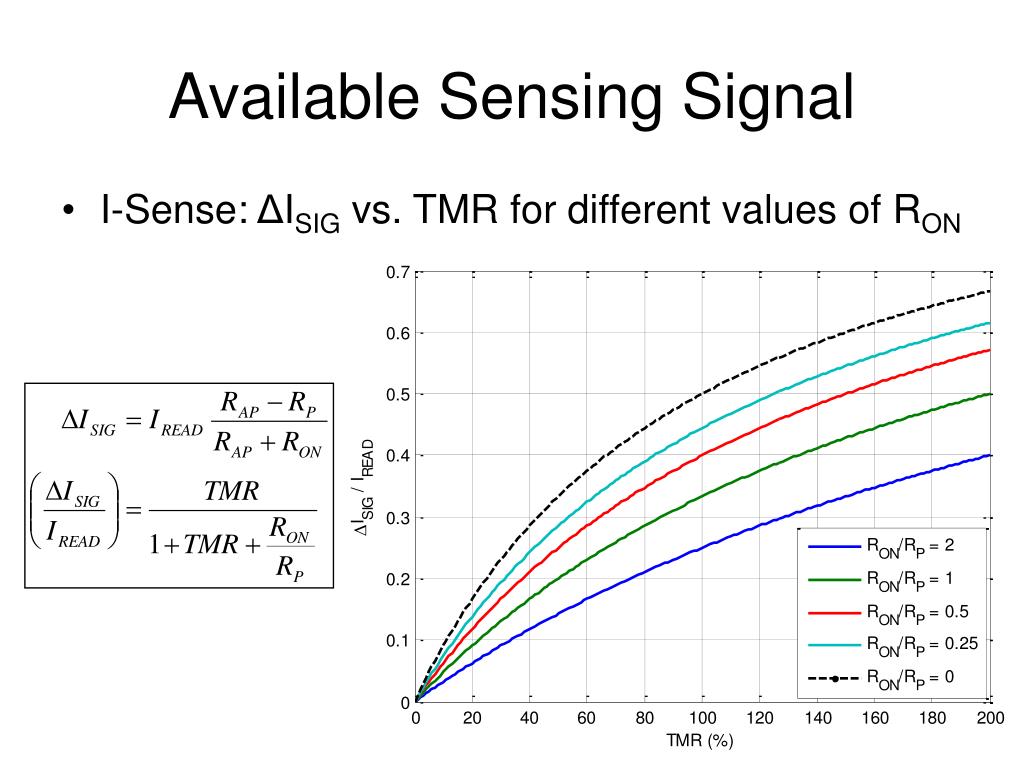

  5. Available Sensing Signal • I-Sense: Contours of constant ΔISIG in the MTJ Space

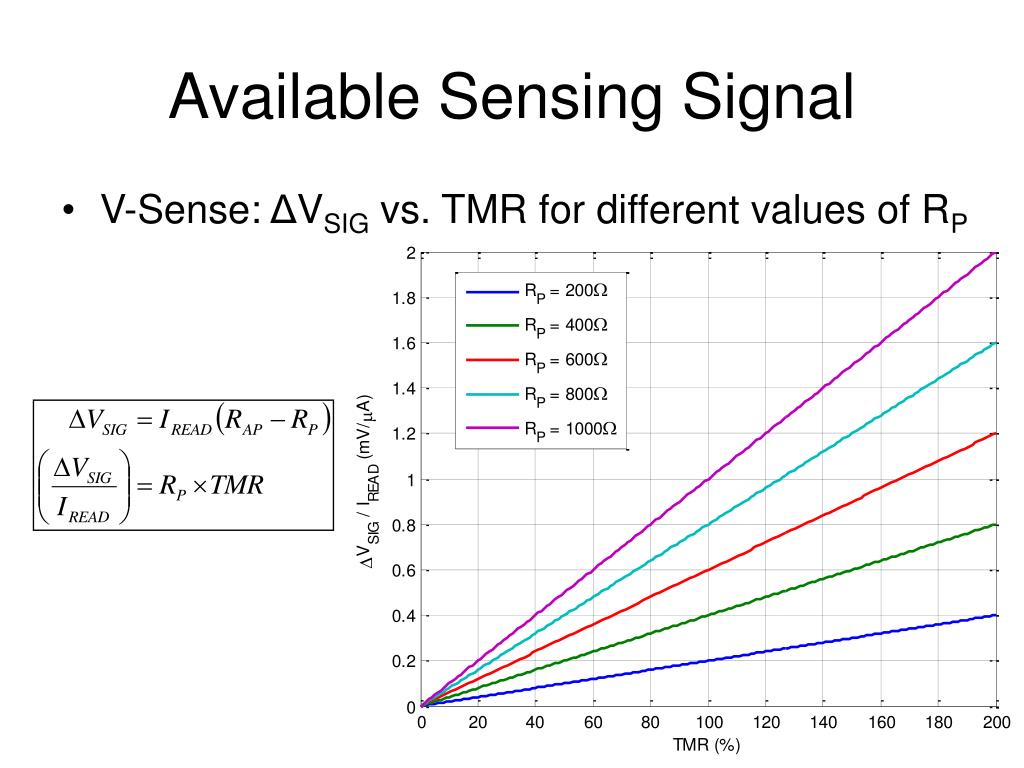

  6. Available Sensing Signal • V-Sense: ΔVSIG vs. TMR for different values of RP

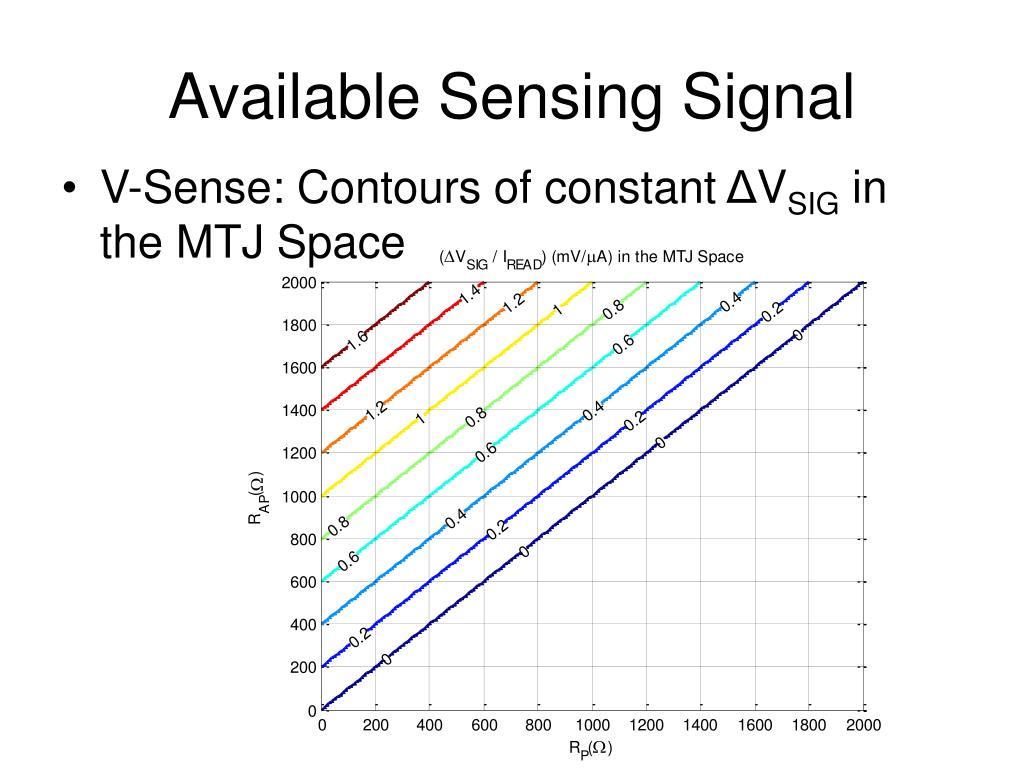

  7. Available Sensing Signal • V-Sense: Contours of constant ΔVSIG in the MTJ Space

  8. Sense Amp Schematic
