  1. Robust Global Registration Natasha Gelfand Niloy Mitra Leonidas Guibas Helmut Pottmann

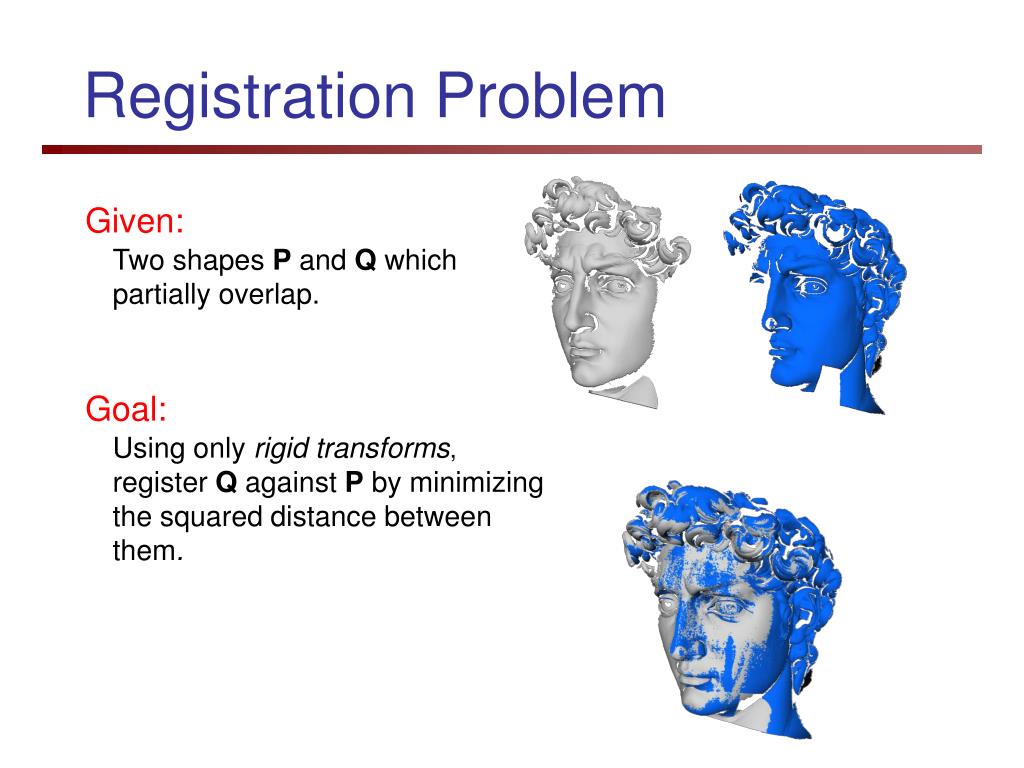

  2. Registration Problem Given: Two shapes P and Q which partially overlap. Goal: Using only rigid transforms, register Q against P by minimizing the squared distance between them.

  3. Applications • Shape analysis • similarity, symmetry detection, rigid decomposition • Shape acquisition [Anguelov 04] [Koller 05] [Pauly 05]

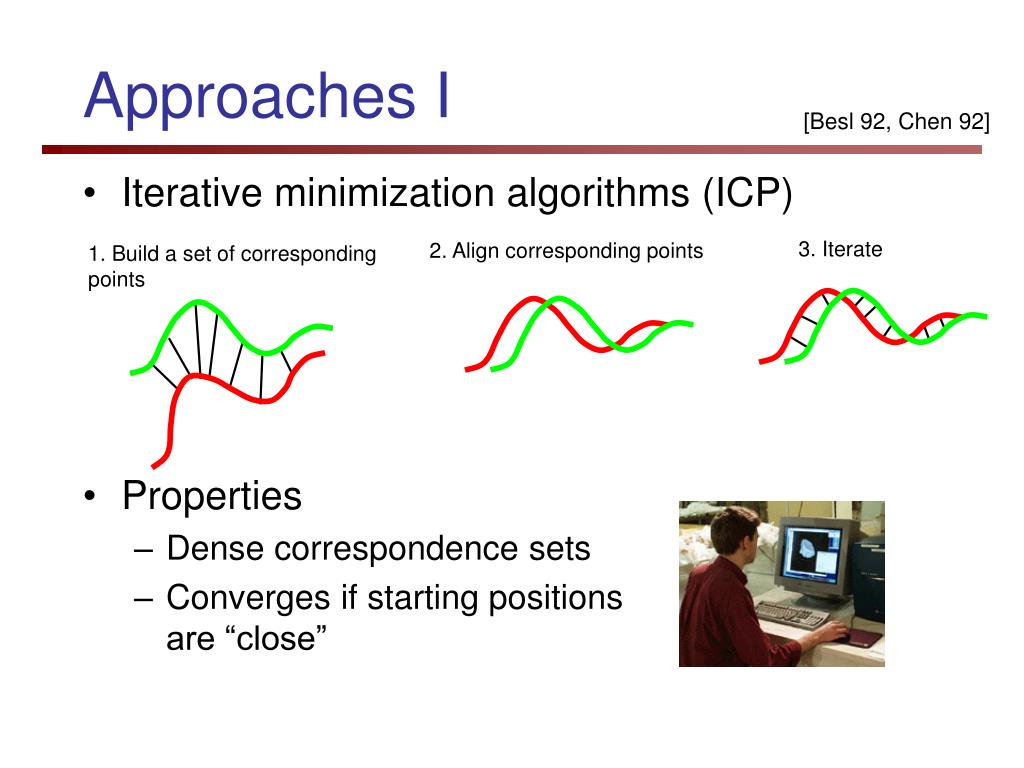

  4. Approaches I [Besl 92, Chen 92] • Iterative minimization algorithms (ICP) • Properties • Dense correspondence sets • Converges if starting positions are “close” 3. Iterate 2. Align corresponding points 1. Build a set of corresponding points

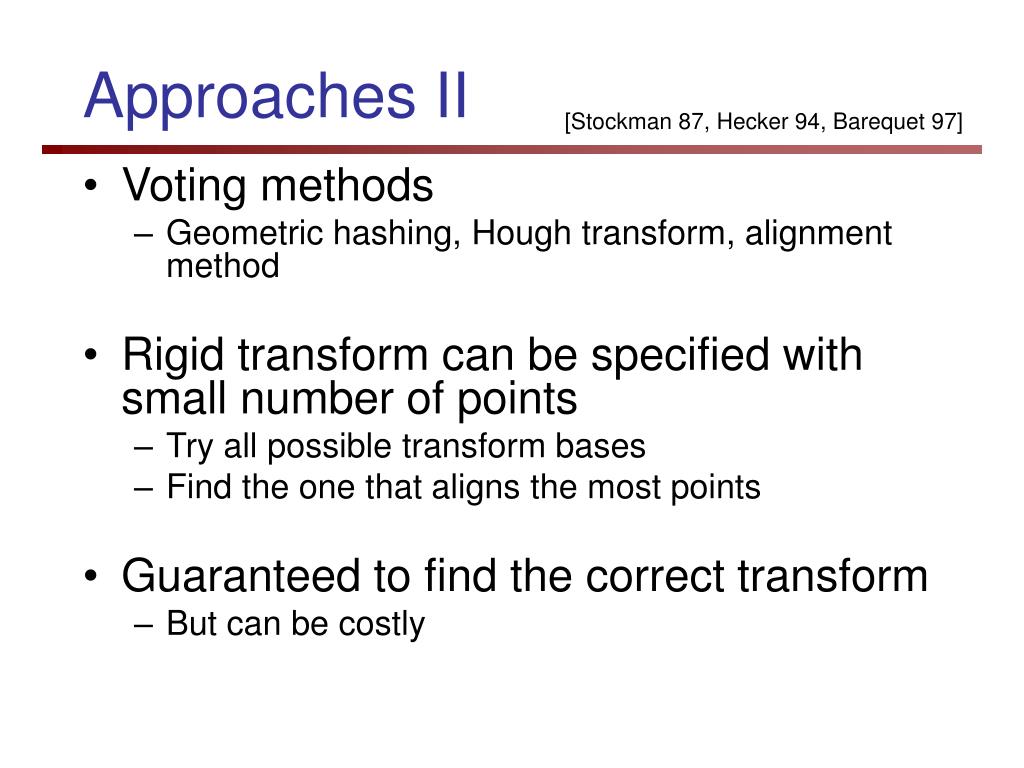

  5. Approaches II [Stockman 87, Hecker 94, Barequet 97] • Voting methods • Geometric hashing, Hough transform, alignment method • Rigid transform can be specified with small number of points • Try all possible transform bases • Find the one that aligns the most points • Guaranteed to find the correct transform • But can be costly

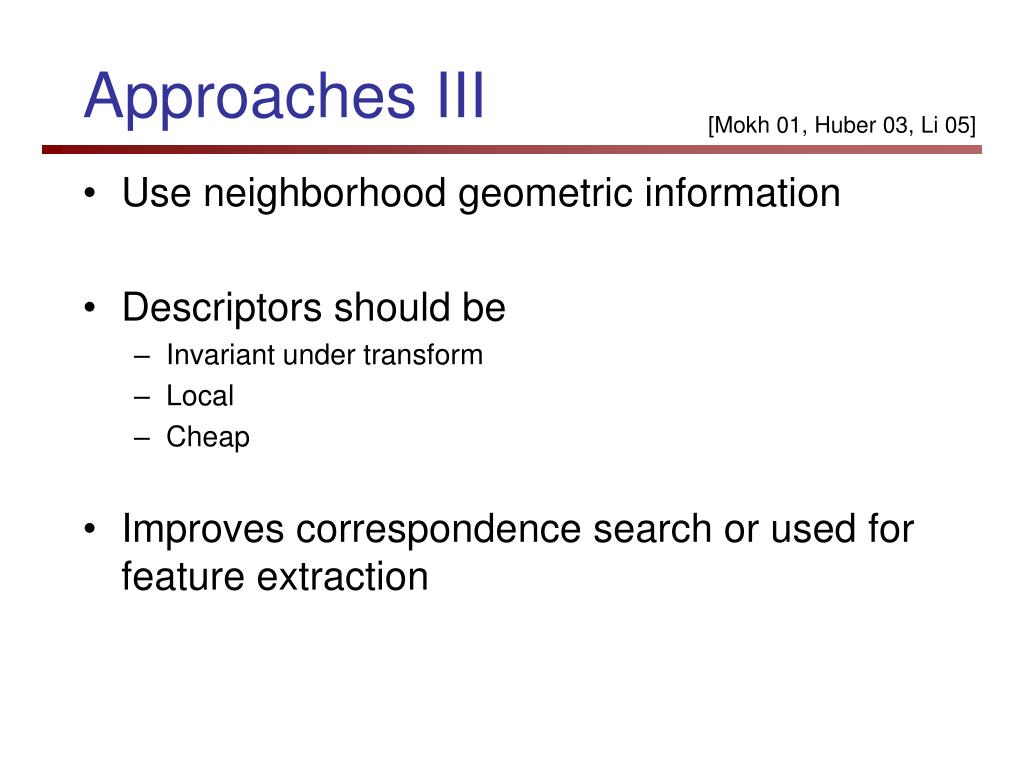

  6. Approaches III [Mokh 01, Huber 03, Li 05] • Use neighborhood geometric information • Descriptors should be • Invariant under transform • Local • Cheap • Improves correspondence search or used for feature extraction

  7. Registration Problem • Why it’s hard • Unknown areas of overlap • Have to solve the correspondence problem • Why it’s easy • Rigid transform is specified by small number of points • Prominent features are easy to identify We only need to align a few points correctly.

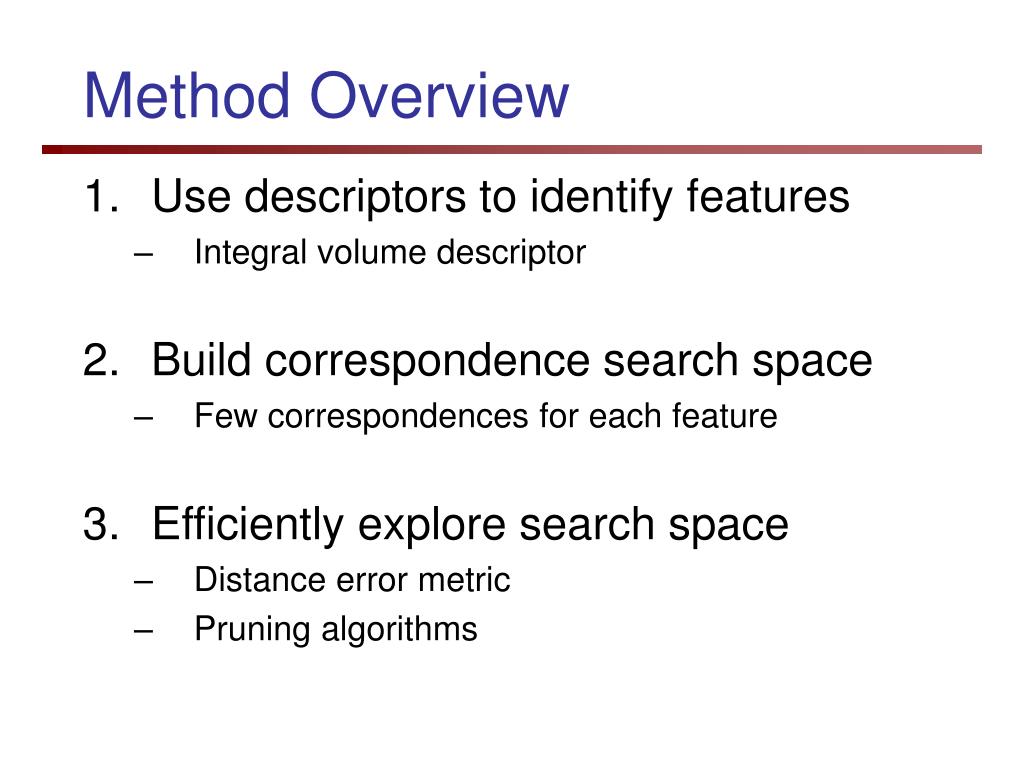

  8. Method Overview • Use descriptors to identify features • Integral volume descriptor • Build correspondence search space • Few correspondences for each feature • Efficiently explore search space • Distance error metric • Pruning algorithms

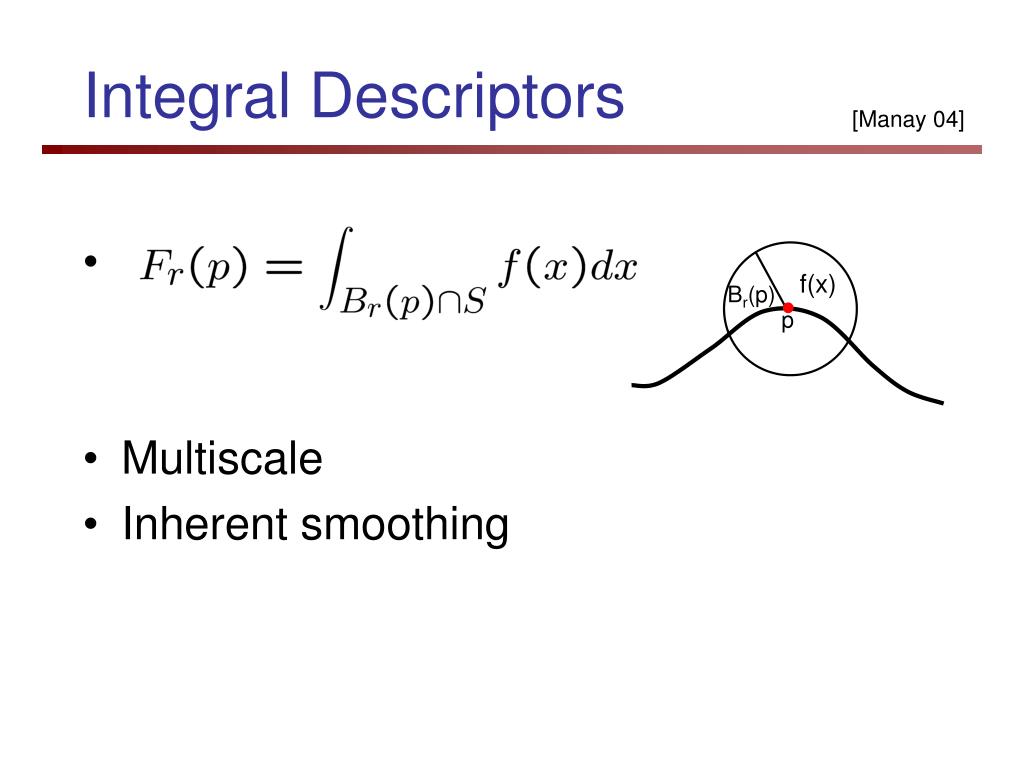

  9. Integral Descriptors [Manay 04] • Multiscale • Inherent smoothing f(x) Br(p) p

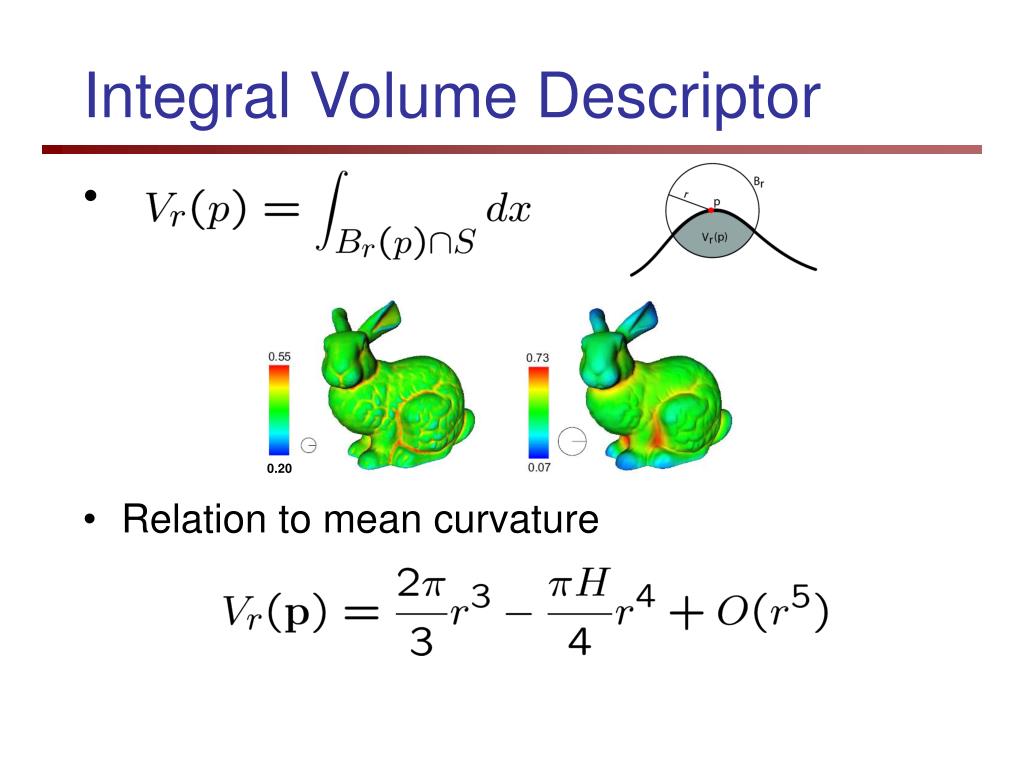

  10. 0.20 Integral Volume Descriptor • Relation to mean curvature

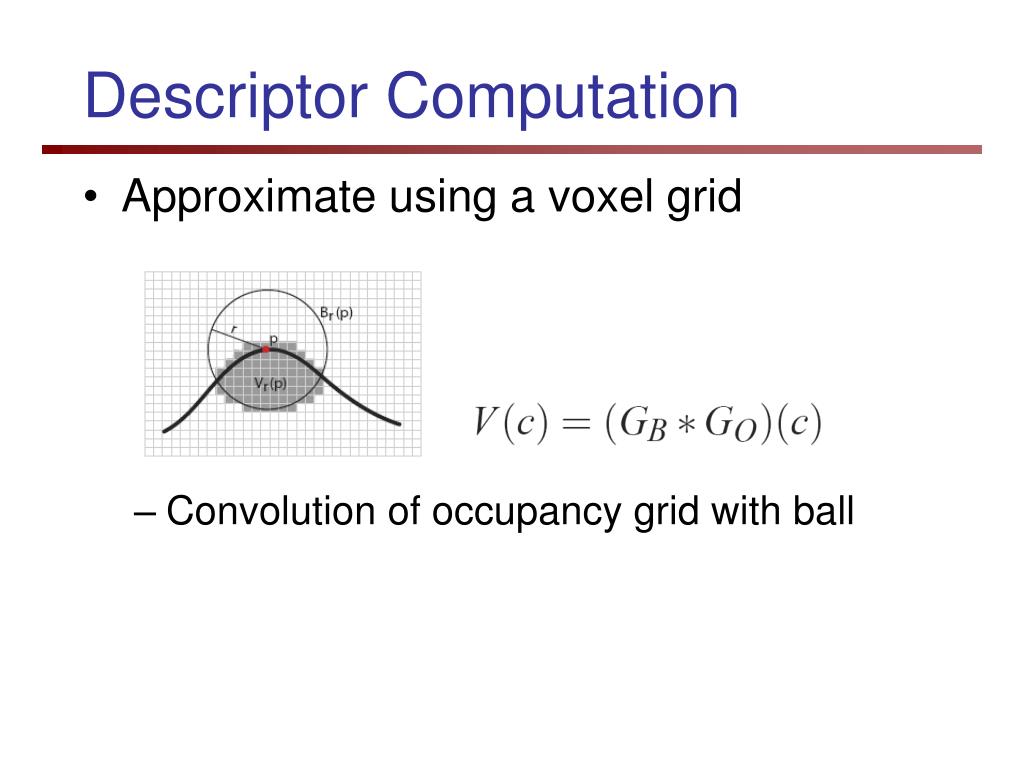

  11. Descriptor Computation • Approximate using a voxel grid • Convolution of occupancy grid with ball

  12. Feature Identification • Pick as features points with rare descriptor values • Rare in the data [ rare in the model [ few correspondences • Works for any descriptor Features

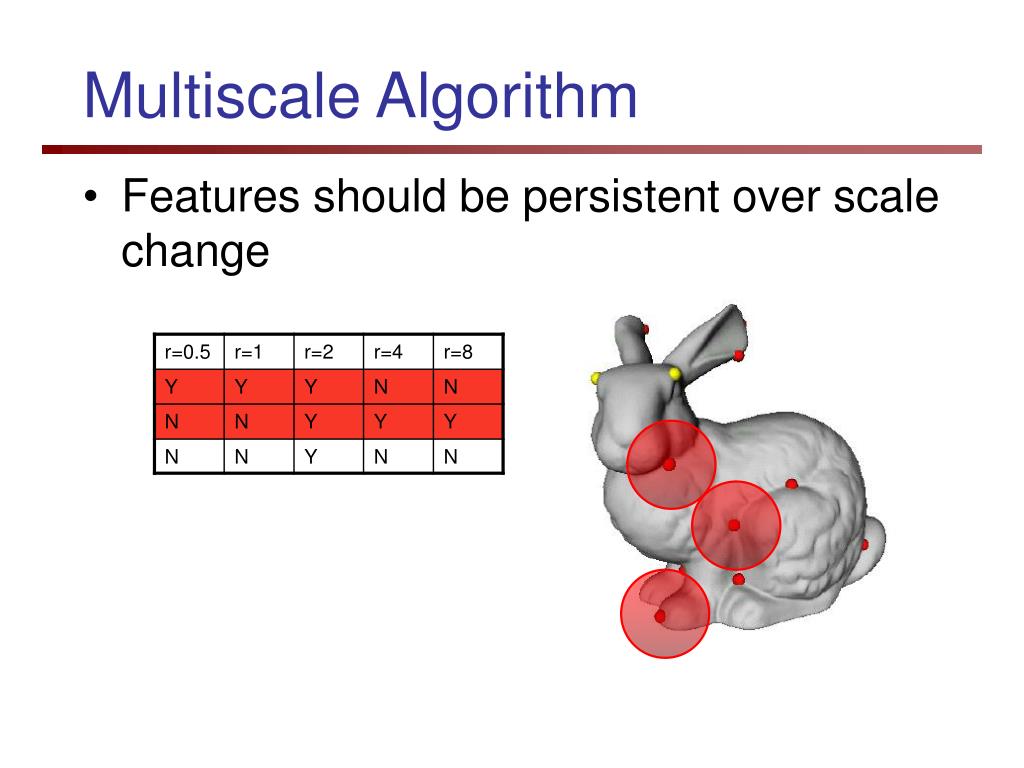

  13. Multiscale Algorithm • Features should be persistent over scale change

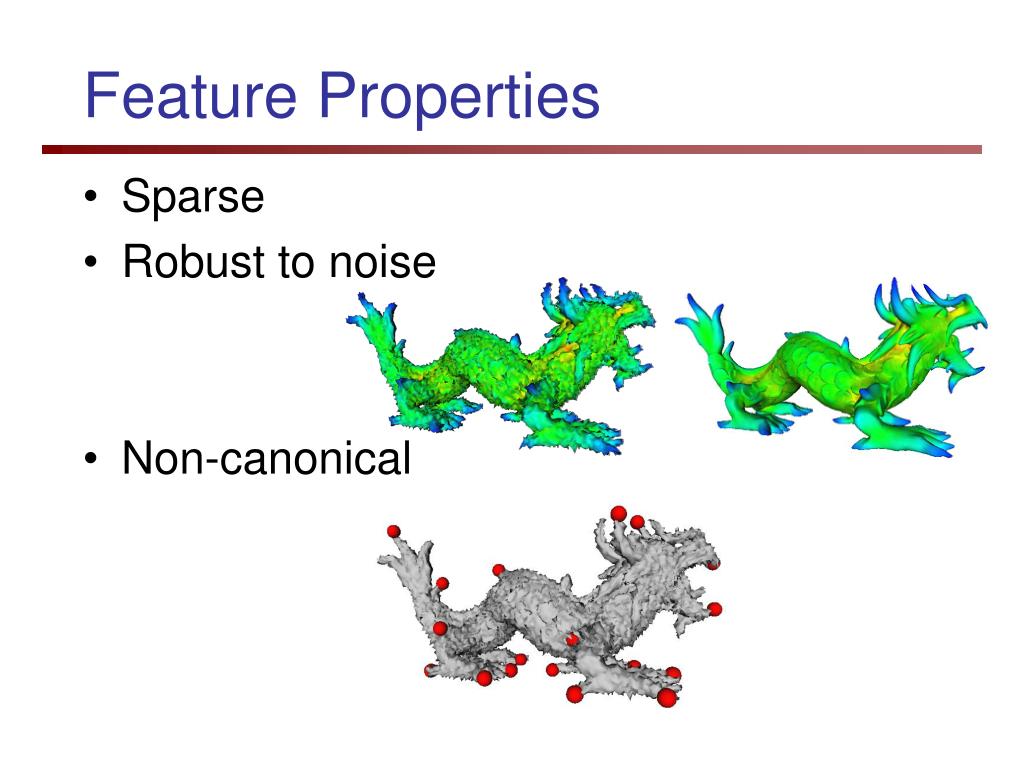

  14. Feature Properties • Sparse • Robust to noise • Non-canonical

  15. Correspondence Space • Search the whole model for correspondences • Range query for descriptor values • Cluster and pick representatives Q P

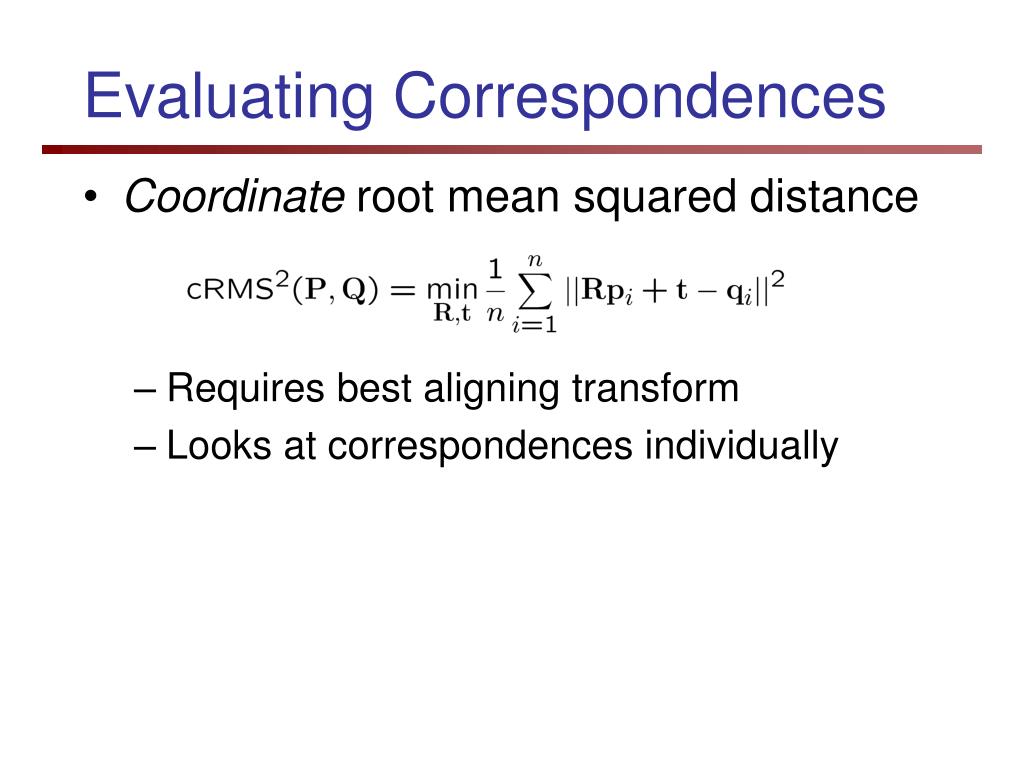

  16. Evaluating Correspondences • Coordinate root mean squared distance • Requires best aligning transform • Looks at correspondences individually

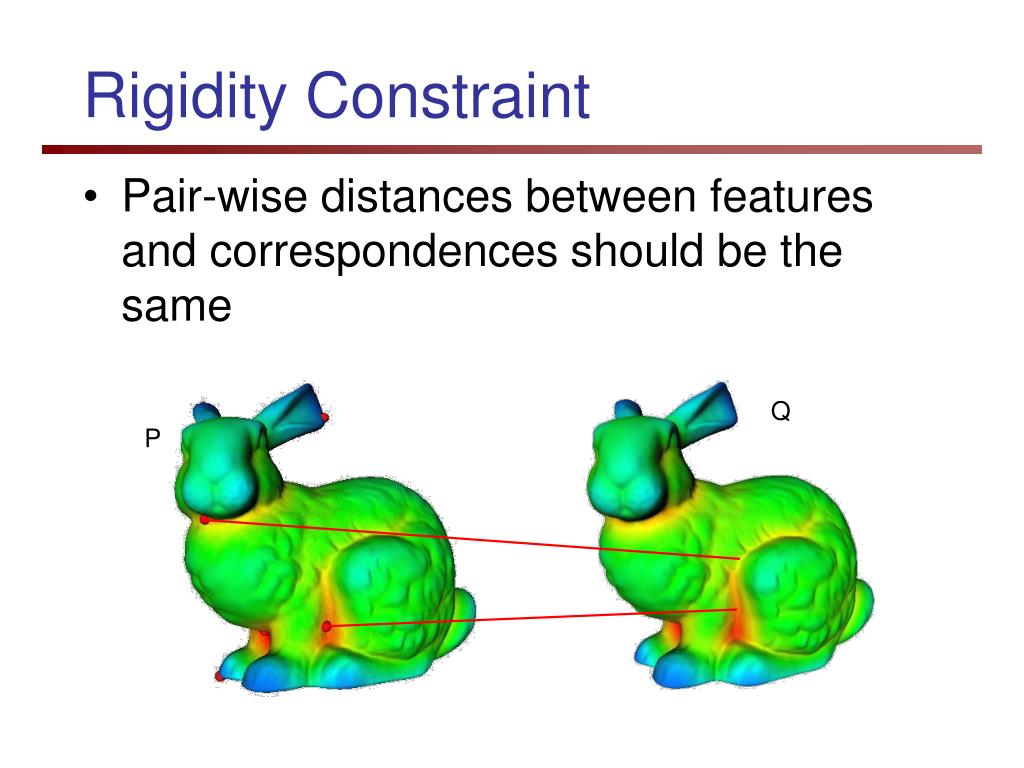

  17. Rigidity Constraint • Pair-wise distances between features and correspondences should be the same Q P

  18. Rigidity Constraint • Pair-wise distances between features and correspondences should be the same Q P

  19. Rigidity Constraint • Pair-wise distances between features and correspondences should be the same Q P

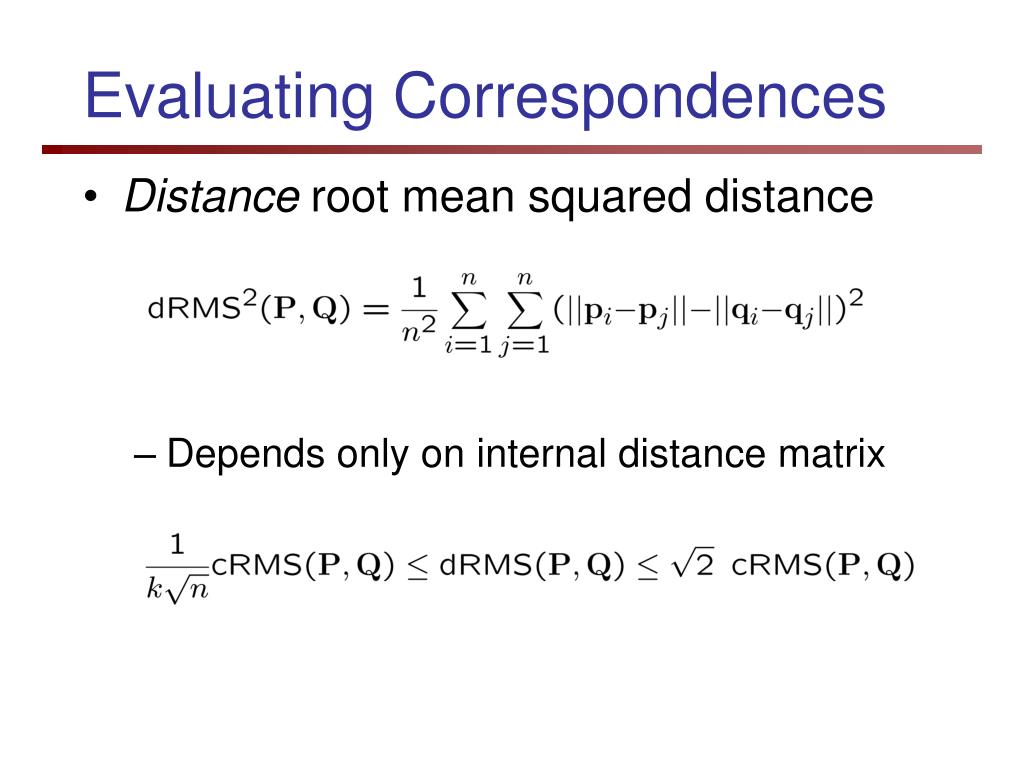

  20. Evaluating Correspondences • Distance root mean squared distance • Depends only on internal distance matrix

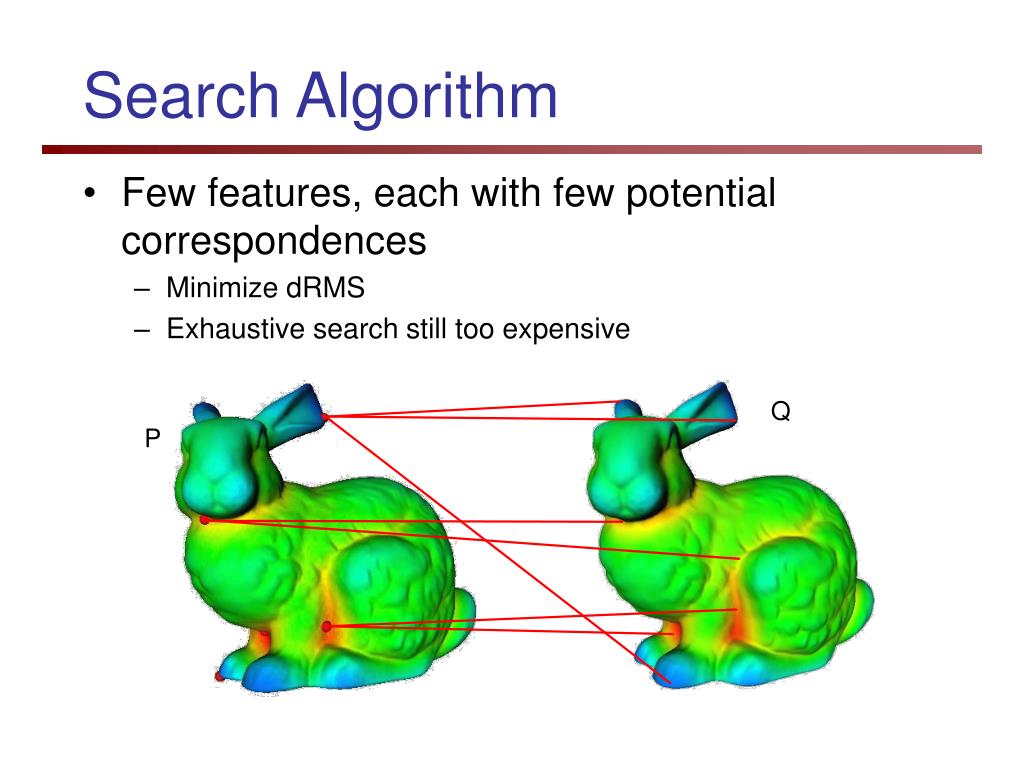

  21. Q P Search Algorithm • Few features, each with few potential correspondences • Minimize dRMS • Exhaustive search still too expensive

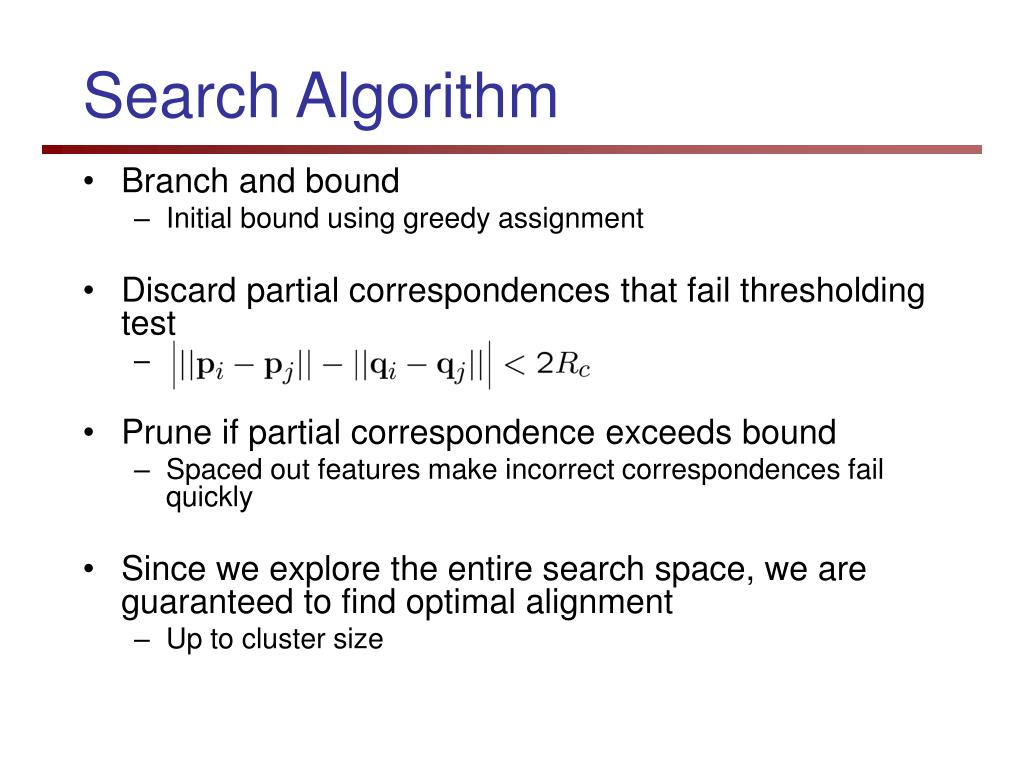

  22. Search Algorithm • Branch and bound • Initial bound using greedy assignment • Discard partial correspondences that fail thresholding test • Prune if partial correspondence exceeds bound • Spaced out features make incorrect correspondences fail quickly • Since we explore the entire search space, we are guaranteed to find optimal alignment • Up to cluster size Rc qi pi pj qj

  23. Search Algorithm • Branch and bound • Initial bound using greedy assignment • Discard partial correspondences that fail thresholding test • Prune if partial correspondence exceeds bound • Spaced out features make incorrect correspondences fail quickly • Since we explore the entire search space, we are guaranteed to find optimal alignment • Up to cluster size

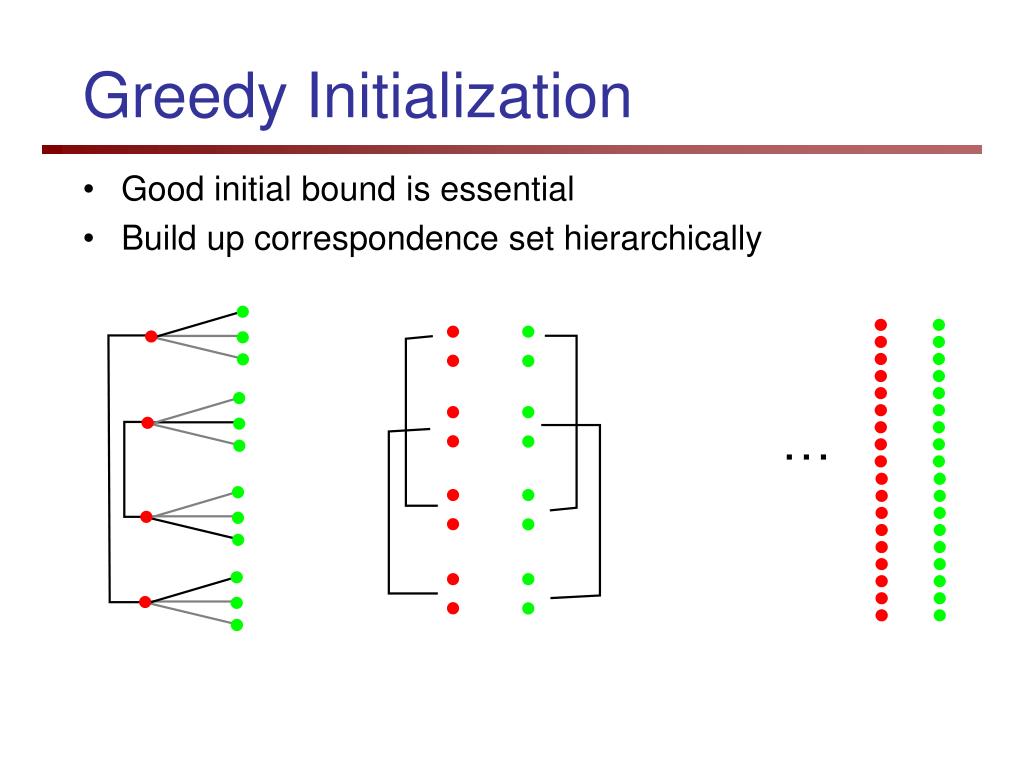

  24. Greedy Initialization • Good initial bound is essential • Build up correspondence set hierarchically …

  25. Greedy Initialization • Good initial bound is essential • Build up correspondence set hierarchically … …

  26. Greedy Initialization • Good initial bound is essential • Build up correspondence set hierarchically …

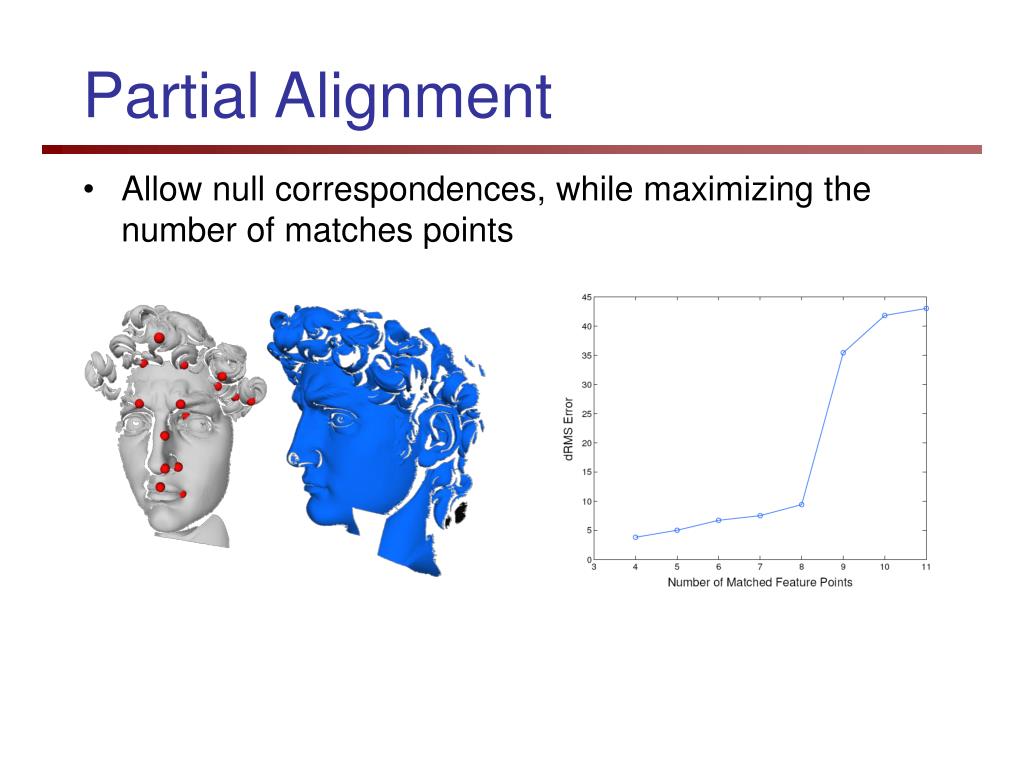

  27. Partial Alignment • Allow null correspondences, while maximizing the number of matches points

  28. Alignment Results Input: 2 scans Our alignment Refined by ICP

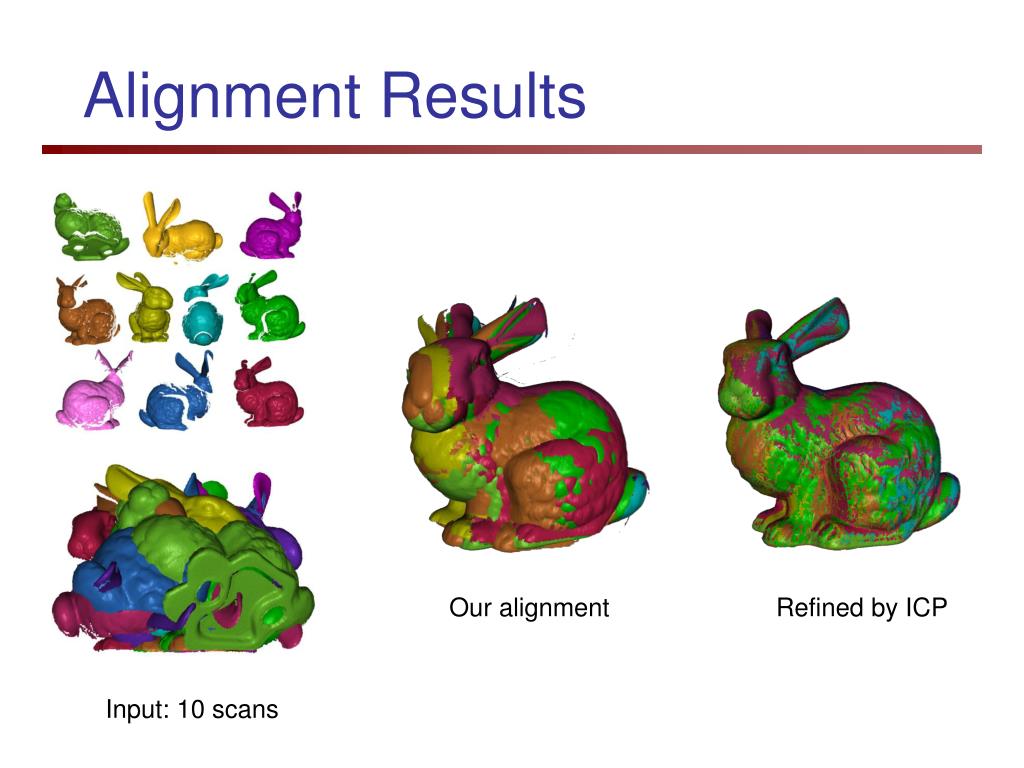

  29. Alignment Results Our alignment Refined by ICP Input: 10 scans

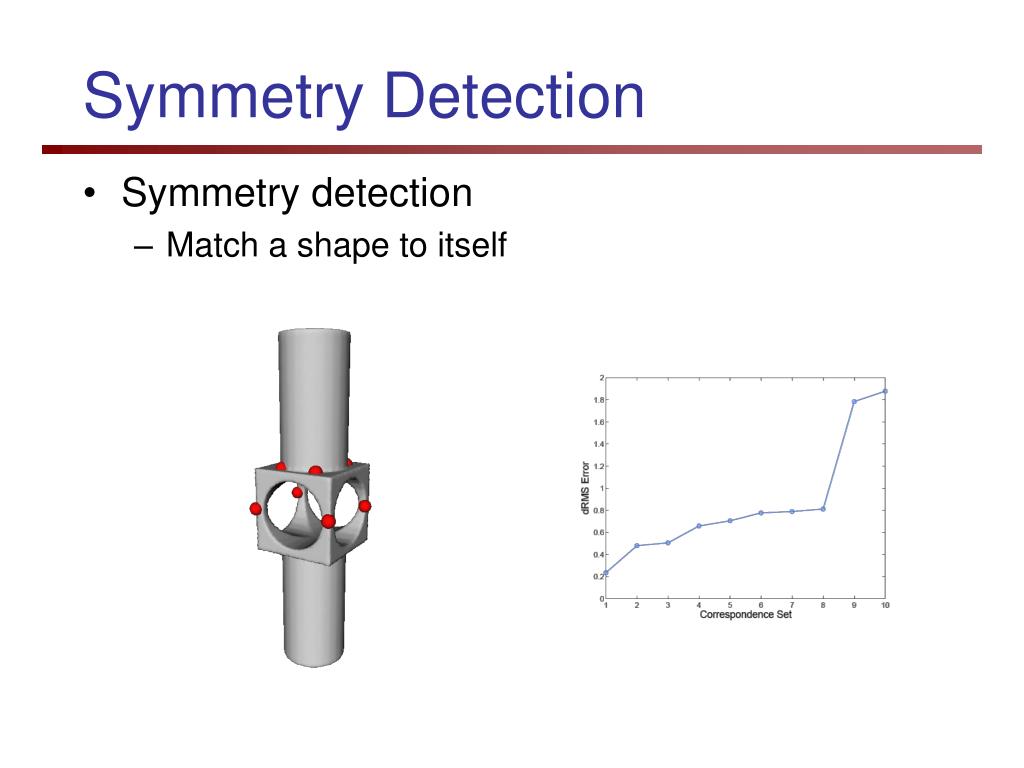

  30. Symmetry detection Match a shape to itself Symmetry Detection

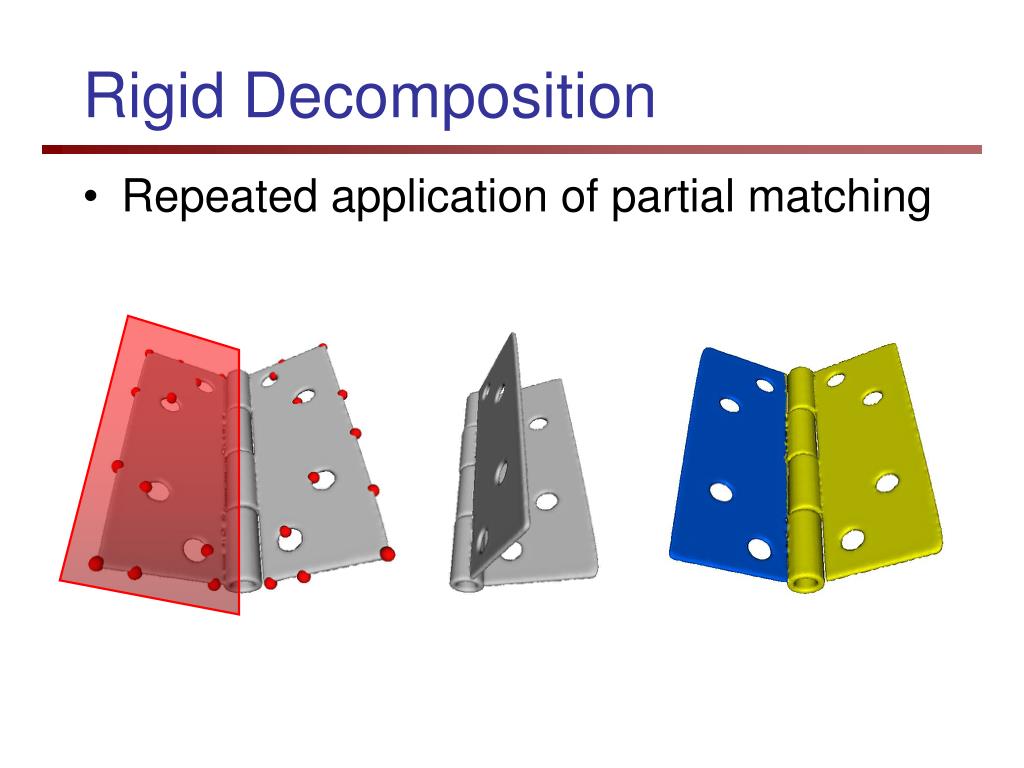

  31. Rigid Decomposition • Repeated application of partial matching

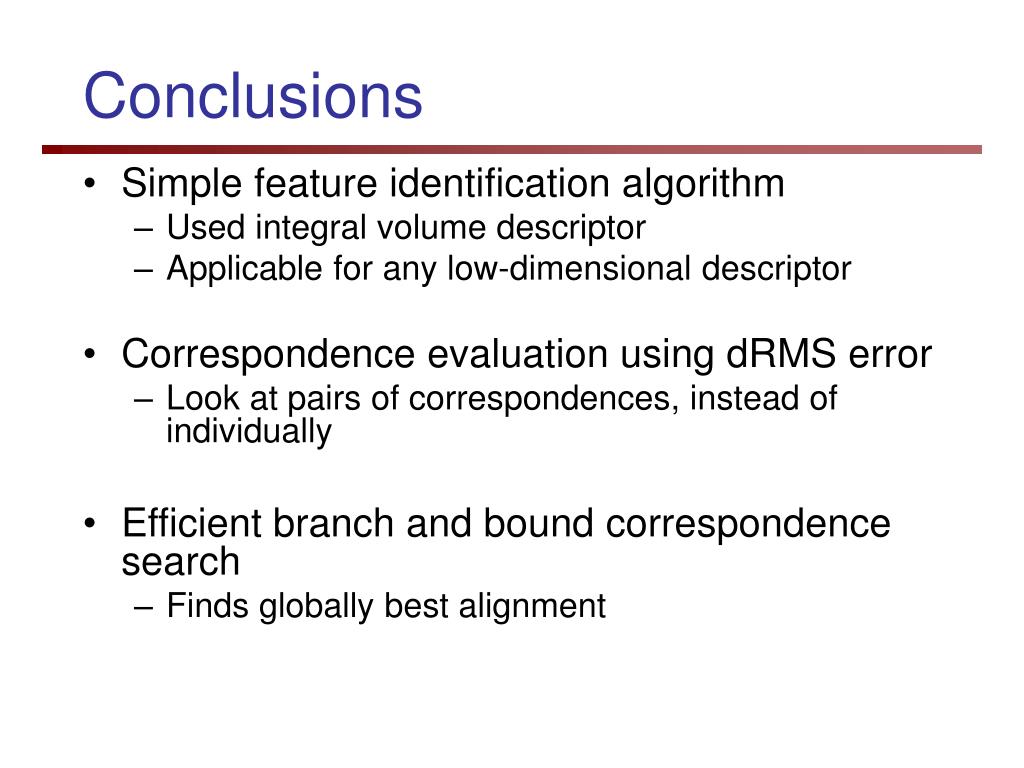

  32. Conclusions • Simple feature identification algorithm • Used integral volume descriptor • Applicable for any low-dimensional descriptor • Correspondence evaluation using dRMS error • Look at pairs of correspondences, instead of individually • Efficient branch and bound correspondence search • Finds globally best alignment

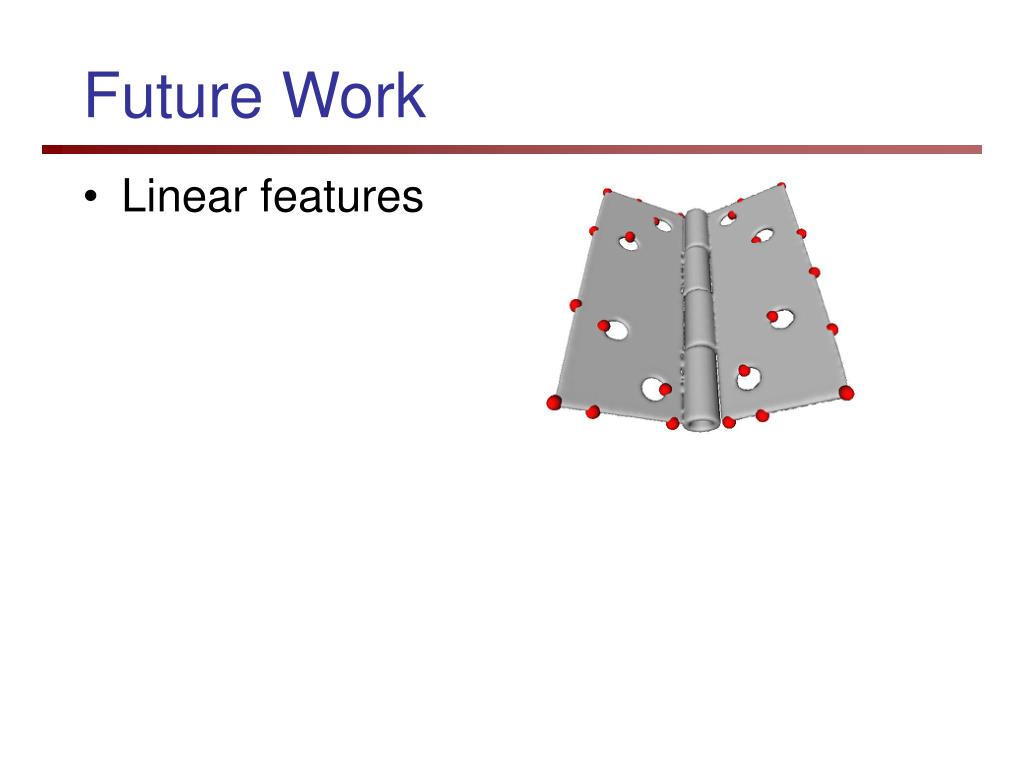

  33. Future Work • Linear features

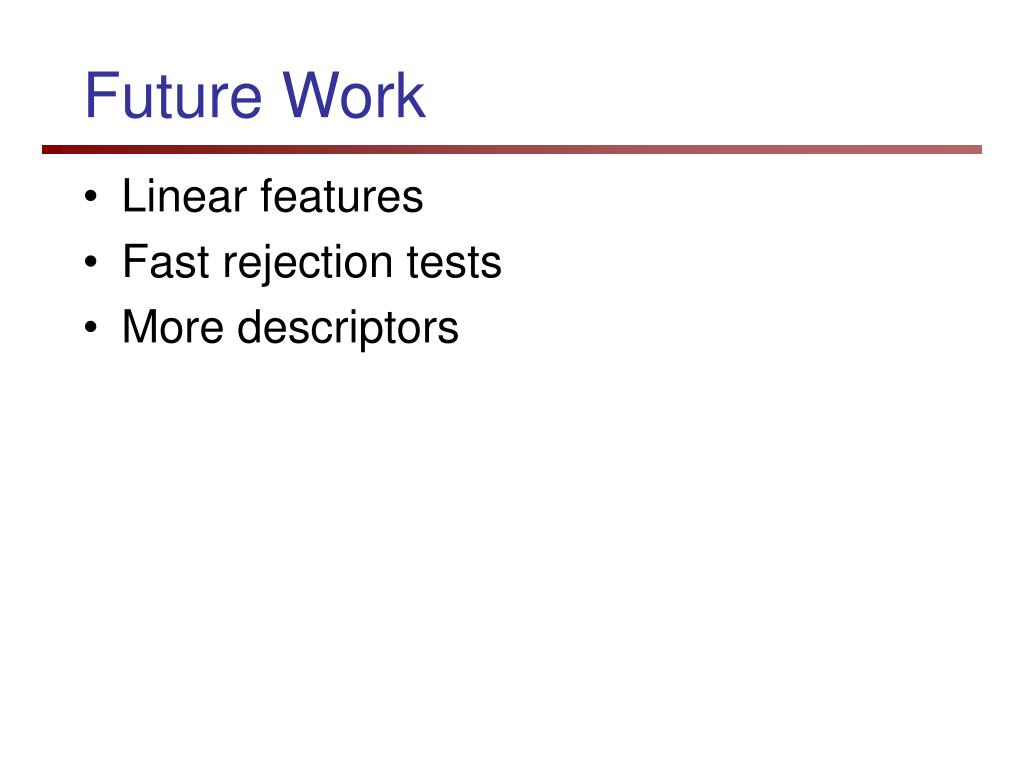

  34. Future Work • Linear features • Fast rejection tests • More descriptors

  35. Acknowledgements • Daniel Russel • An Nguyen • Doo Young Kwon • Digital Michelangelo Project • NSF CARGO-0138456, FRG-0454543, ARO DAAD 19-03-1-033, Max Plank Fellowship, Stanford Graduate Fellowship, Austrian Science Fund P16002-N05

  36. Questions?
