  1. Security of NIS (YP) Gary Lam Lamg@vwl.medc.umn.edu

  2. Security of N I S • NIS Overview • NIS benefits and Goals • Possible attacks • Possible solutions • Conclusion

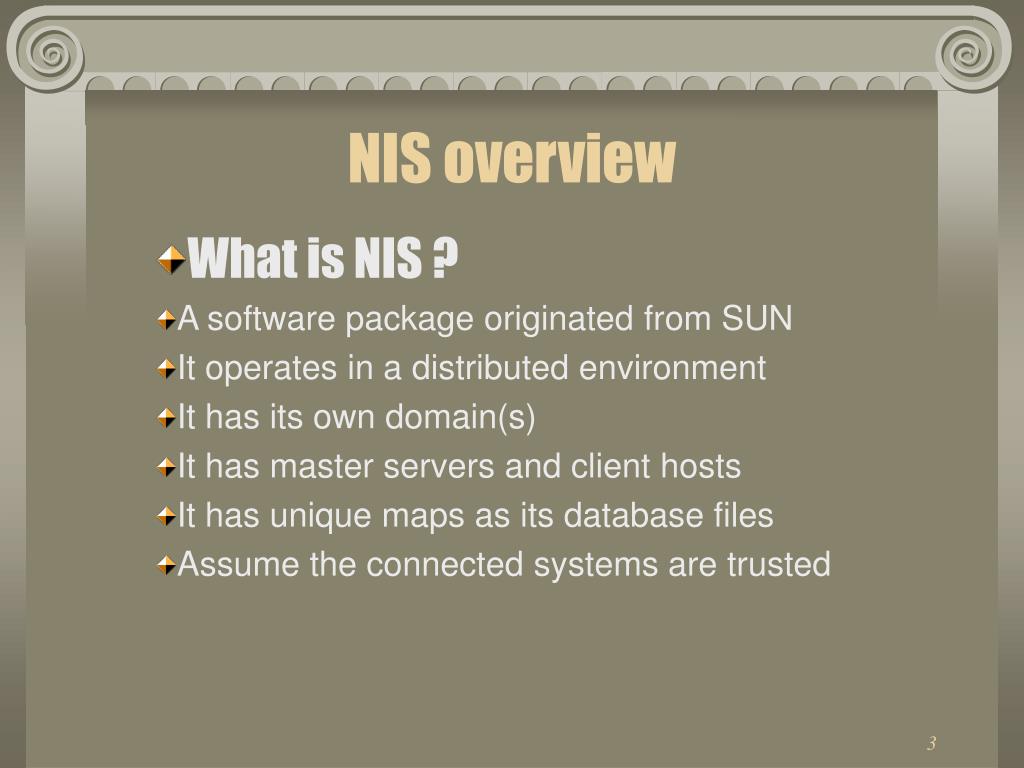

  3. NIS overview • What is NIS ? • A software package originated from SUN • It operates in a distributed environment • It has its own domain(s) • It has master servers and client hosts • It has unique maps as its database files • Assume the connected systems are trusted

  4. A typical scenario • User logs in to a machine(Client) on the network Client A Client B Client C Server Username: Password: bob Network providing NIS services

  5. NIS Domain(s) • Machines share the same NIS maps are logically grouped together • Each domain needs a master server • Can have slave servers that act as backup • Client hosts must be in the domain to use NIS services

  6. NIS main components • Mater server, slave servers • ypserv, rpc.passwdd, ypbind • Client hosts • ypbind • NIS maps • NIS database is comprised of a group of files known as maps

  7. NIS maps • Maps are in the dbm format(database management) • Maps are composed of keys and values • Key: a field in the map client must specify whenever it queries the map • Values: attributes of the key returned from the query • For example: /etc/hosts Key Value moose 123.123.123.100 Generates the “hosts.byname” & “hosts.byaddr” map KEY name Hosts map KEY address

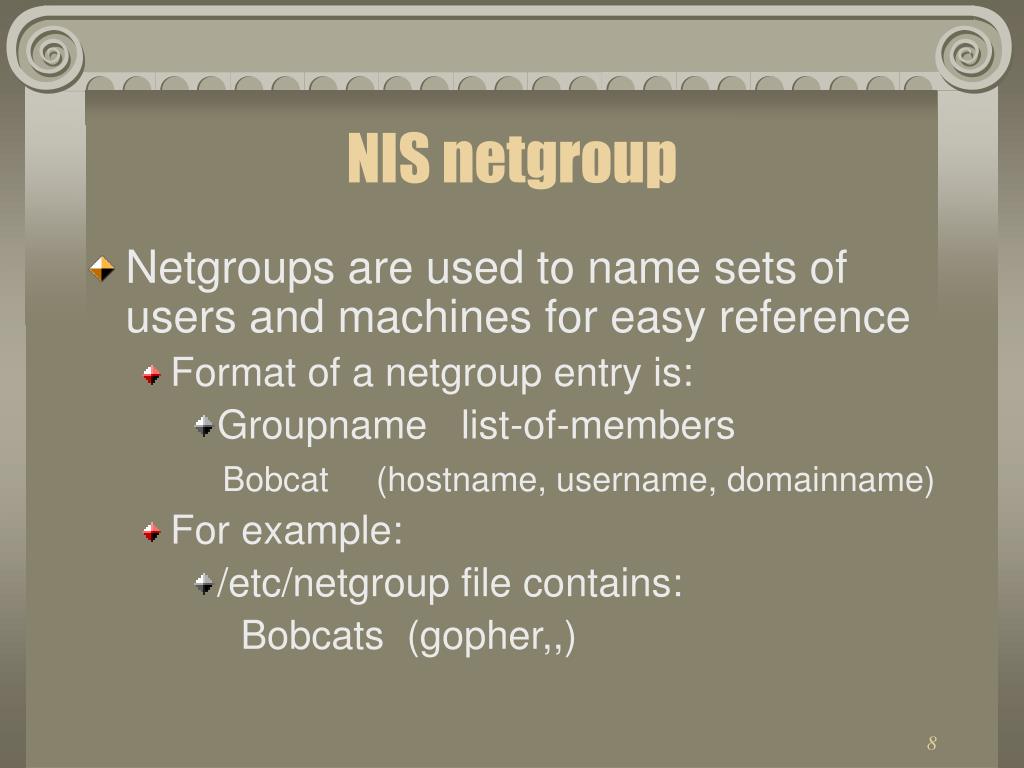

  8. NIS netgroup • Netgroups are used to name sets of users and machines for easy reference • Format of a netgroup entry is: • Groupname list-of-members Bobcat (hostname, username, domainname) • For example: • /etc/netgroup file contains: Bobcats (gopher,,)

  9. How does it work? • A client – Server model • A NIS client requires “ypbind” to request data from an NIS server database. • ypbind remembers which server and its port for binding • A NIS server “ypserv” provides data from the NIS database to the requesting client.

  10. The big picture ypbind ypbind ypserv rpc.passwdd ypbind ypserv c s Slave Server M c c ypbind Master Server ypbind

  11. NIS Operation Application ypserv portmap C Library ypbind C Library NIS Maps

  12. NIS benefits & Goals • Users • One password goes any where!! • Use the global UID and GID • System administrators • Ease of network administration • Never bother with individual file on machines • Save time !!!

  13. Why is NIS not secure? • Its connection is wide open • No protection between the client/server connection • Mounting an attack is easy • The domain concept is flawed • Could mount a dictionary attack • It is based on trust in a distributed environment • Allow intrusion unintentionally • None or insufficient authentication • Leads to Spoofing the server

  14. Trusting relationship…? Part 1: Trusted Hosts • Host level equivalence • /etc/hosts.equiv file • Contains a list of hostnames • Can log in to any hosts in the domain without password Falcon Gopher Gopher Badger Raven No password checking

  15. Trusting Relationship…? Part 2: Trusted account • Account level equivalence • $HOME/.rhosts file • File contains a list of hostname and usernames • Format: hostname [username, username,..] .rhosts file Falcon Gopher Gopher Tom Badger Drew Raven Brad No password checking

  16. Implication of trust • Trust relationships are transitive • If B trusts A and C trusts B then A trusts C • If A is compromised, then B and C is also compromised! A B C A B

  17. Using the Domain • Hosts are authenticated by the Domain • Attack can be done by guessing the NIS domain name Scenario: An user can obtain the password map file. e.g. use the “ypcat” command

  18. Dictionary Attack • Given a thousand people each to choose their own password, the odds are excellent that at least one person will choose a password in the attacker’s dictionary. • Attacker can crack your password offline. • Password of six characters or less could be cracked in 2 days or less

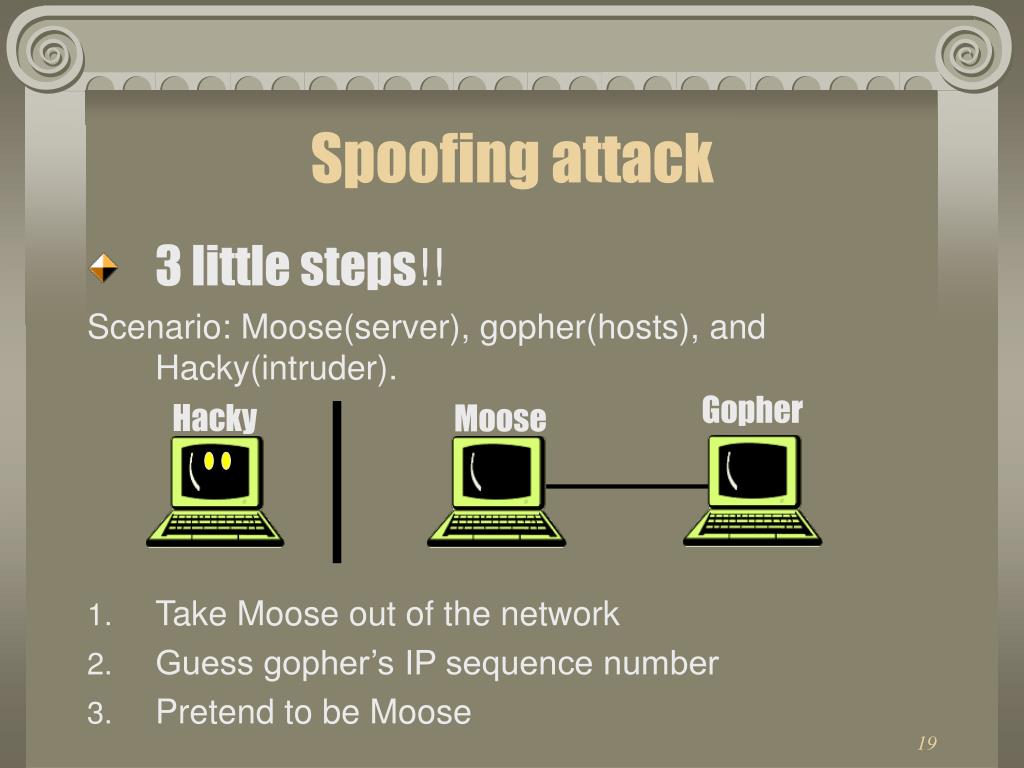

  19. Spoofing attack • 3 little steps!! Scenario: Moose(server), gopher(hosts), and Hacky(intruder). • Take Moose out of the network • Guess gopher’s IP sequence number • Pretend to be Moose Gopher Hacky Moose

  20. Spoofing (cont.) Take moose out • Attacker(hacky) can forge a series of connection requests to moose using an improper protocol • A connection request packet with non-existent return address • Server is busy handling those bogus connection requests from hacky • Server’s queue filled up and no longer can handle requests from other hosts

  21. Spoofing (cont.) Guess gopher’s IP sequence number • Attacker can then guess IP sequence number • Sounds difficult in reality but it is NOT • Because many implementations use a well defined algorithm to generate initial sequence number • Can make an educated guess!!

  22. Spoofing (cont.) Moose Hacky Gopher Respond Attack packet Fake packet Internal network

  23. Denial of Service Attack • Bring down the NIS network service • Use the finger service • e.g. finger bob@gopher.com • client send its NIS request to find “bob” • Over load NIS server with NIS requests • The NIS server searches the map to find bob. • NIS “finger” traffic eventually congests the network • Other NIS services are disrupted.(e.g. password lookup)

  24. Possible Solutions • Against login equivalence • Do not use the login equivalence • If you have to use it, then: • Use full qualified host name(no “moose”) • Use: moose.cs.umn.edu • Ask for password no matter who is requesting the connection • Limited to specific , trusted hosts • Never be granted to hosts outside of Sys.Admin control • Restrict equivalence to host-based which can be placed directly under the administrator’s control

  25. Possible Solution (cont.) • Against Dictionary attack • Do not choose password from a dictionary! • Disable or block ypcat command • Have good password selection strategies • Perform password checking • Proactive checker • Reactive checker

  26. Possible Solution (cont.) • Against spoofing • Use encrypted IP Sequence number • Packet filtering firewall that checks “from” field • Session encryption

  27. Possible Solution (cont.) • Against Denial-of-Service attack • Disable finger service on any NIS based system • Restrict service to the minimum number of hosts or to host that do not participate in NIS.

  28. Conclusion • NIS is great but at the cost of security • Try a different approach for distributing files • Do not use it if possible!!

  29. Thank you!

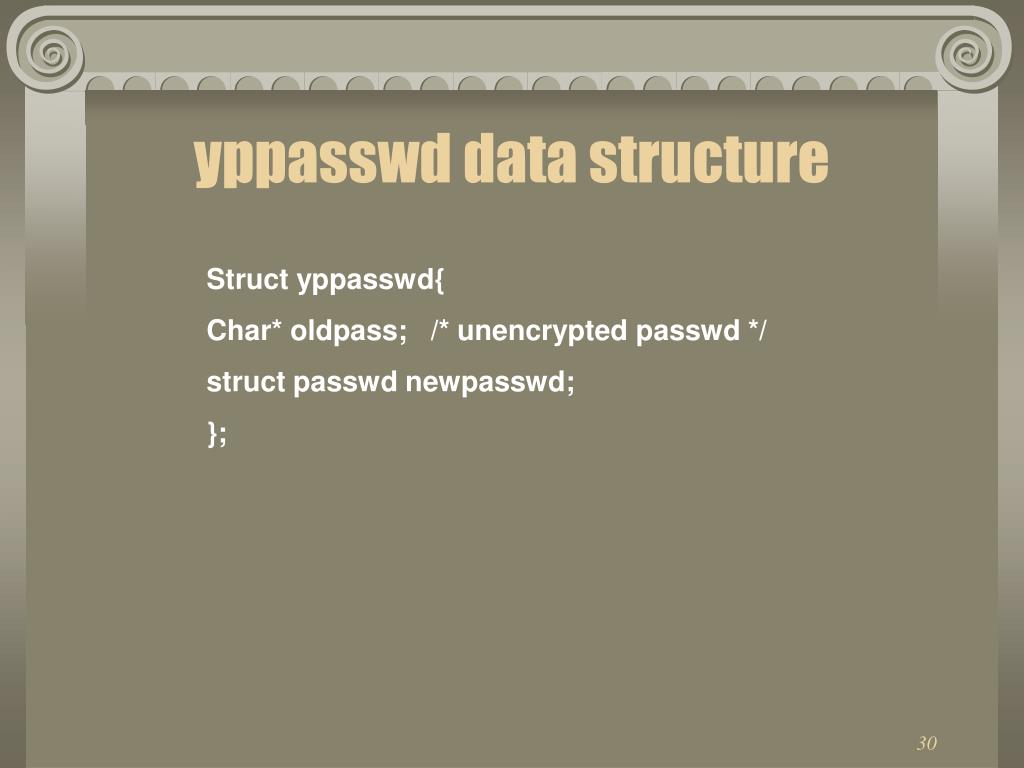

  30. yppasswd data structure Struct yppasswd{ Char* oldpass; /* unencrypted passwd */ struct passwd newpasswd; };

  31. NIS vs. NIS+
