Coldfire Exceptions and Interrupts Computer Science & Engineering DepartmentArizona State University Tempe, AZ 85287 Dr. Yann-Hang Leeyhlee@asu.edu(480) 727-7507

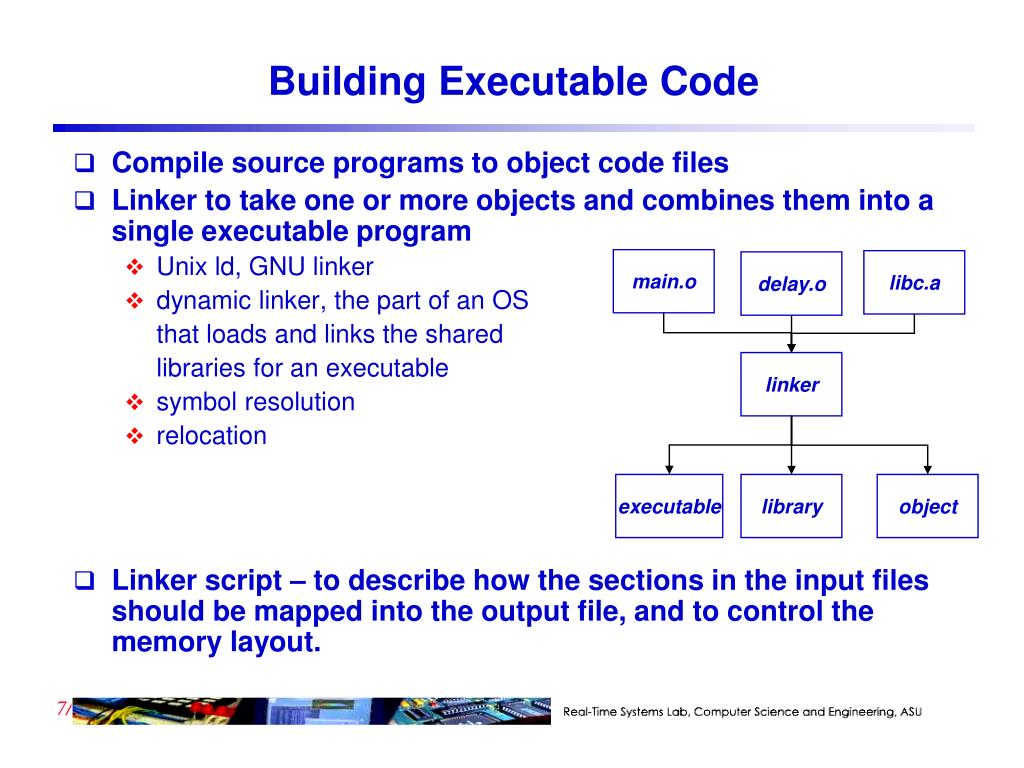

Building Executable Code Compile source programs to object code files Linker to take one or more objects and combines them into a single executable program Unix ld, GNU linker dynamic linker, the part of an OS that loads and links the shared libraries for an executable symbol resolution relocation Linker script – to describe how the sections in the input files should be mapped into the output file, and to control the memory layout. main.o libc.a delay.o linker executable library object

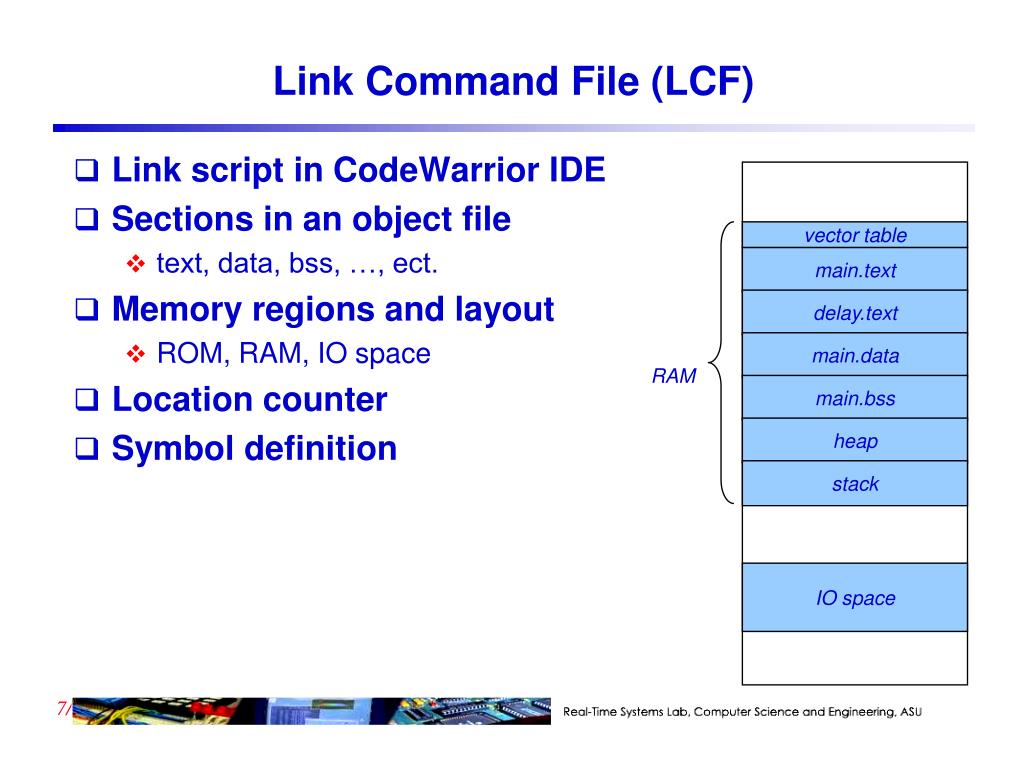

Link Command File (LCF) Link script in CodeWarrior IDE Sections in an object file text, data, bss, …, ect. Memory regions and layout ROM, RAM, IO space Location counter Symbol definition vector table main.text delay.text main.data RAM main.bss heap stack IO space

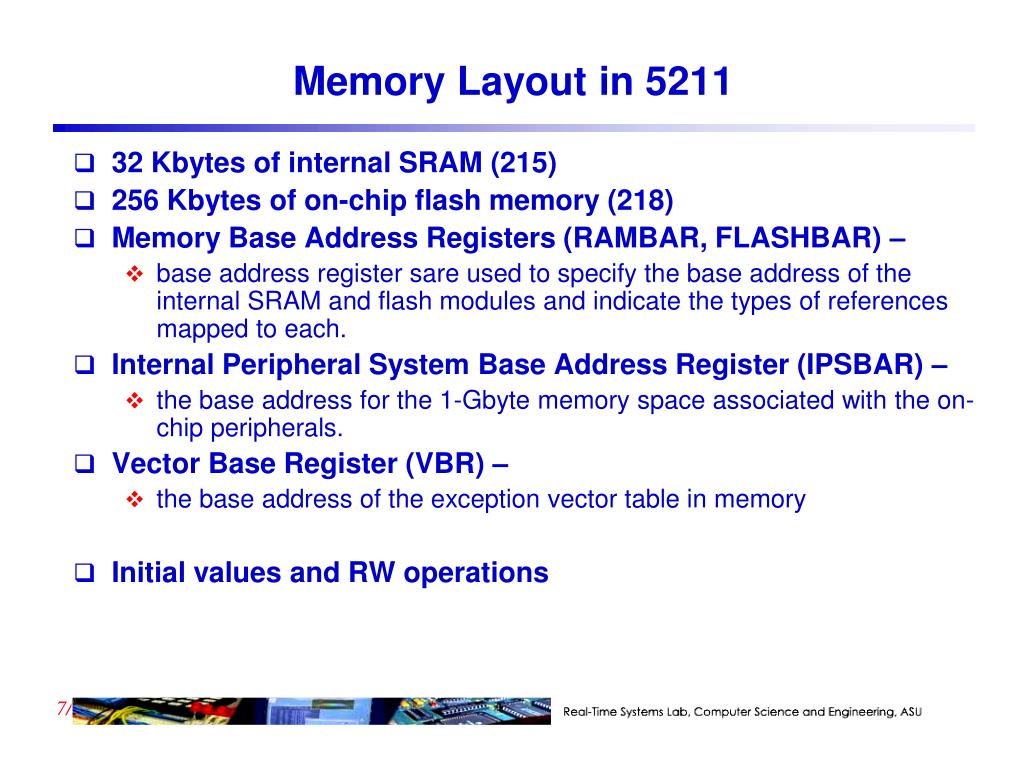

Memory Layout in 5211 32 Kbytes of internal SRAM (215) 256 Kbytes of on-chip flash memory (218) Memory Base Address Registers (RAMBAR, FLASHBAR) – base address register sare used to specify the base address of the internal SRAM and flash modules and indicate the types of references mapped to each. Internal Peripheral System Base Address Register (IPSBAR) – the base address for the 1-Gbyte memory space associated with the on-chip peripherals. Vector Base Register (VBR) – the base address of the exception vector table in memory Initial values and RW operations

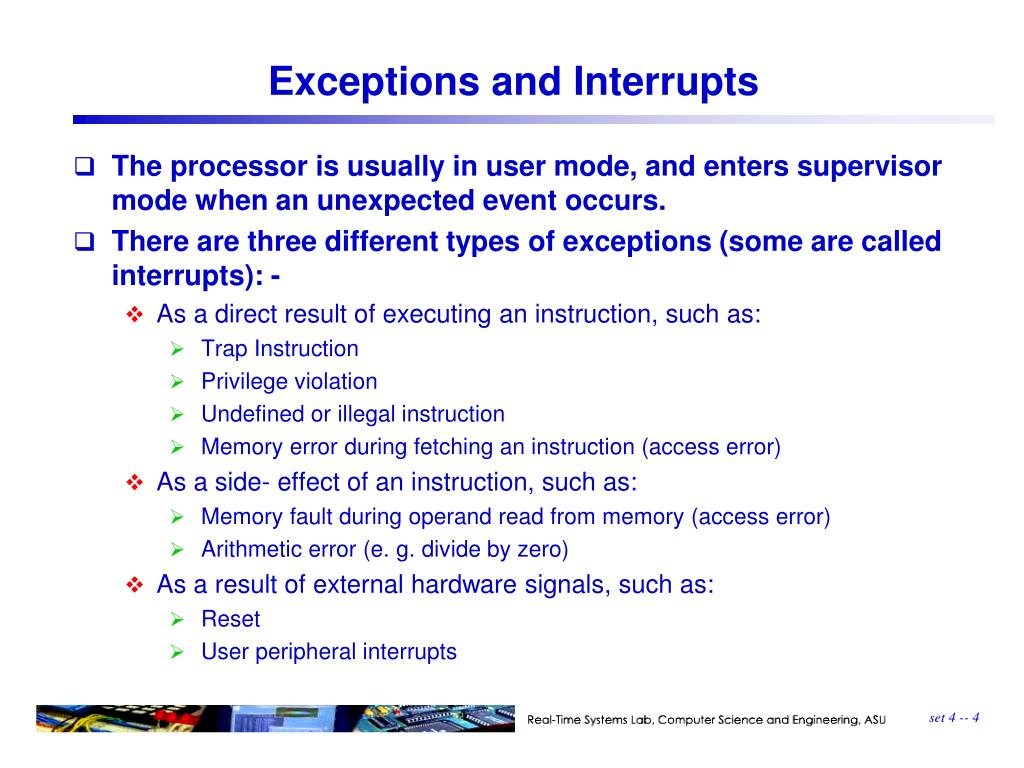

Exceptions and Interrupts • The processor is usually in user mode, and enters supervisor mode when an unexpected event occurs. • There are three different types of exceptions (some are called interrupts): - • As a direct result of executing an instruction, such as: • Trap Instruction • Privilege violation • Undefined or illegal instruction • Memory error during fetching an instruction (access error) • As a side- effect of an instruction, such as: • Memory fault during operand read from memory (access error) • Arithmetic error (e. g. divide by zero) • As a result of external hardware signals, such as: • Reset • User peripheral interrupts

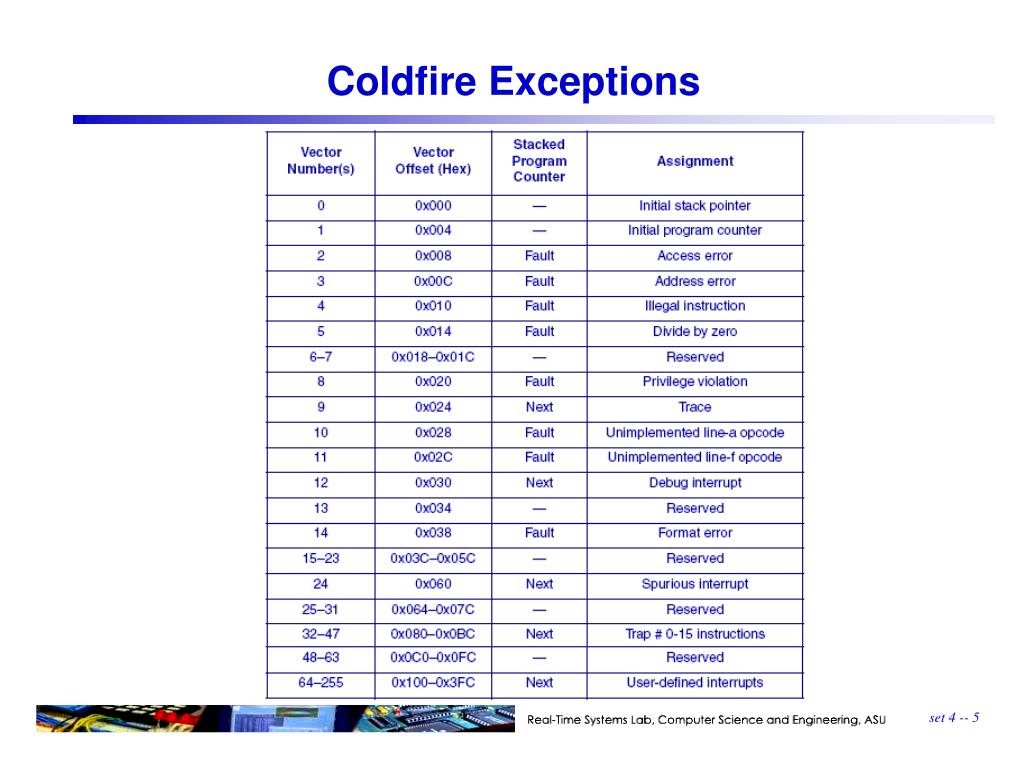

Coldfire Exceptions

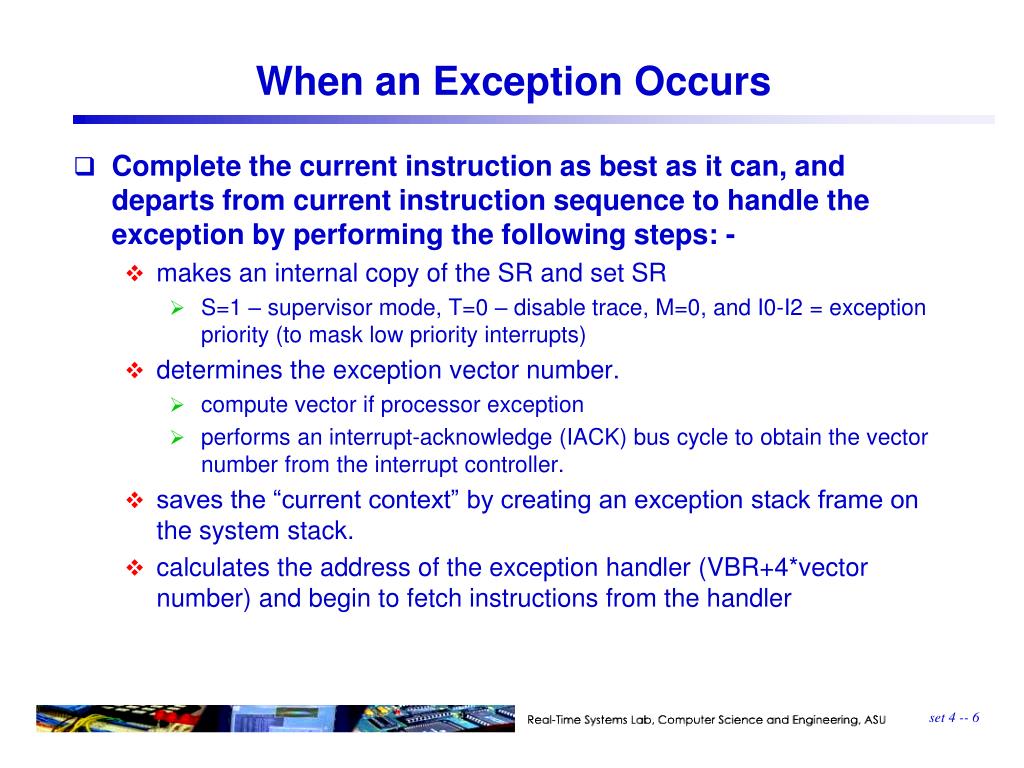

When an Exception Occurs • Complete the current instruction as best as it can, and departs from current instruction sequence to handle the exception by performing the following steps: - • makes an internal copy of the SR and set SR • S=1 – supervisor mode, T=0 – disable trace, M=0, and I0-I2 = exception priority (to mask low priority interrupts) • determines the exception vector number. • compute vector if processor exception • performs an interrupt-acknowledge (IACK) bus cycle to obtain the vector number from the interrupt controller. • saves the “current context” by creating an exception stack frame on the system stack. • calculates the address of the exception handler (VBR+4*vector number) and begin to fetch instructions from the handler

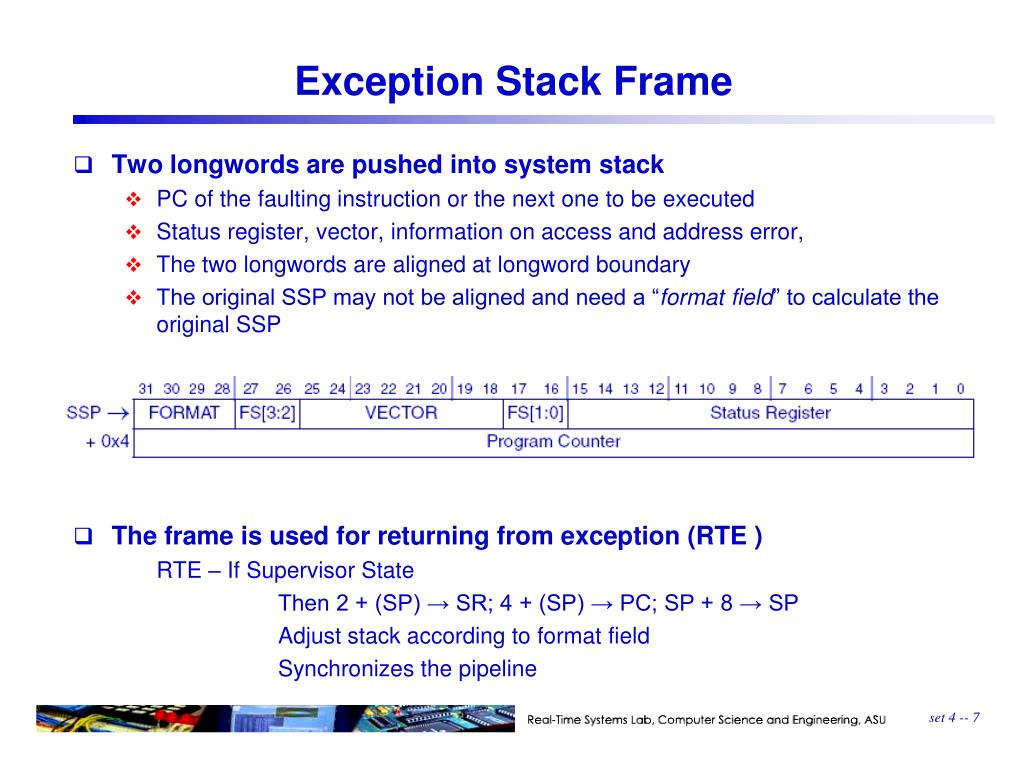

Exception Stack Frame • Two longwords are pushed into system stack • PC of the faulting instruction or the next one to be executed • Status register, vector, information on access and address error, • The two longwords are aligned at longword boundary • The original SSP may not be aligned and need a “format field” to calculate the original SSP • The frame is used for returning from exception (RTE ) RTE – If Supervisor State Then 2 + (SP) → SR; 4 + (SP) → PC; SP + 8 → SP Adjust stack according to format field Synchronizes the pipeline

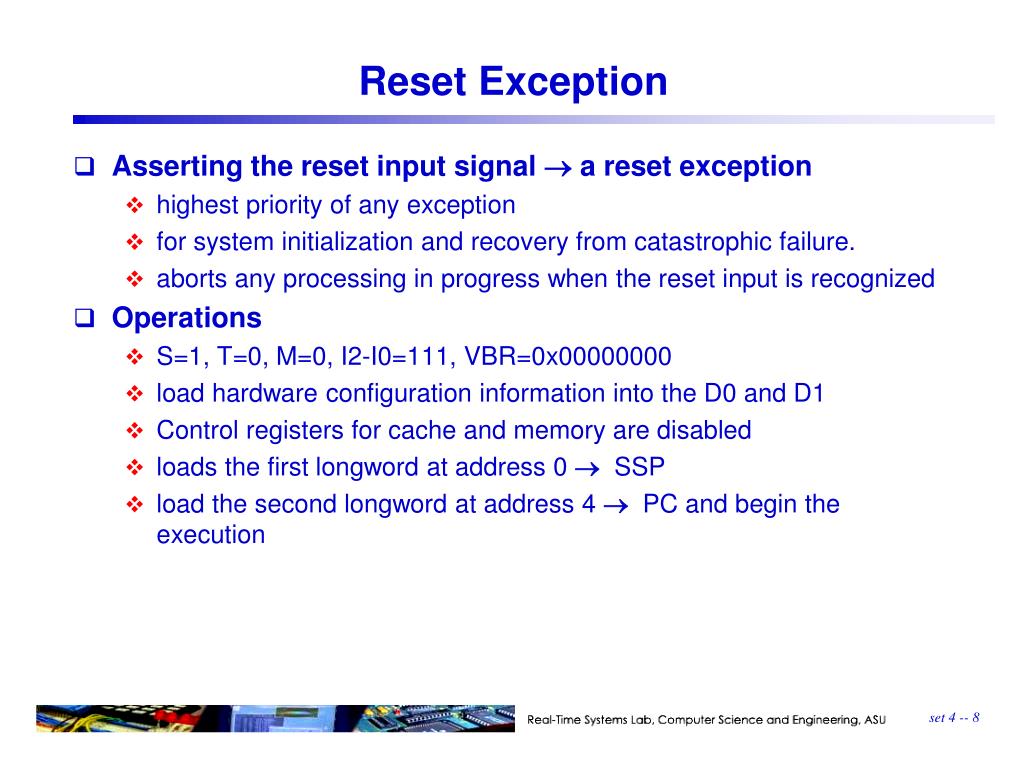

Reset Exception • Asserting the reset input signal  a reset exception • highest priority of any exception • for system initialization and recovery from catastrophic failure. • aborts any processing in progress when the reset input is recognized • Operations • S=1, T=0, M=0, I2-I0=111, VBR=0x00000000 • load hardware configuration information into the D0 and D1 • Control registers for cache and memory are disabled • loads the first longword at address 0  SSP • load the second longword at address 4  PC and begin the execution

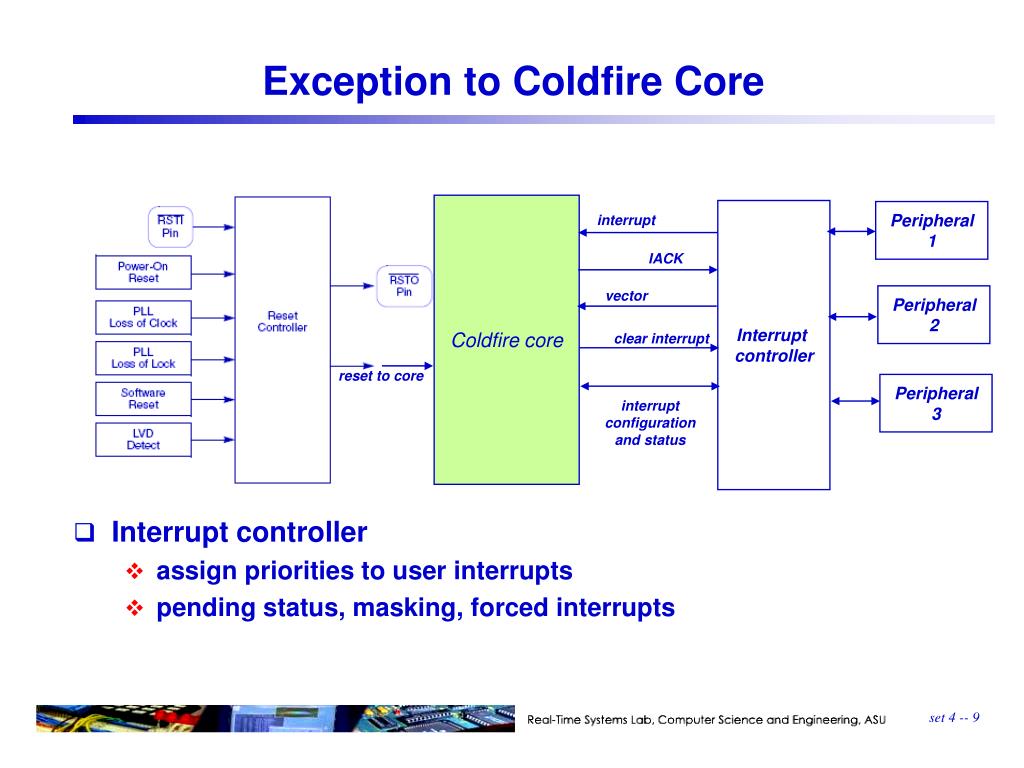

Exception to Coldfire Core • Interrupt controller • assign priorities to user interrupts • pending status, masking, forced interrupts Coldfire core Interrupt controller Peripheral 1 interrupt IACK vector Peripheral 2 clear interrupt reset to core Peripheral 3 interrupt configuration and status

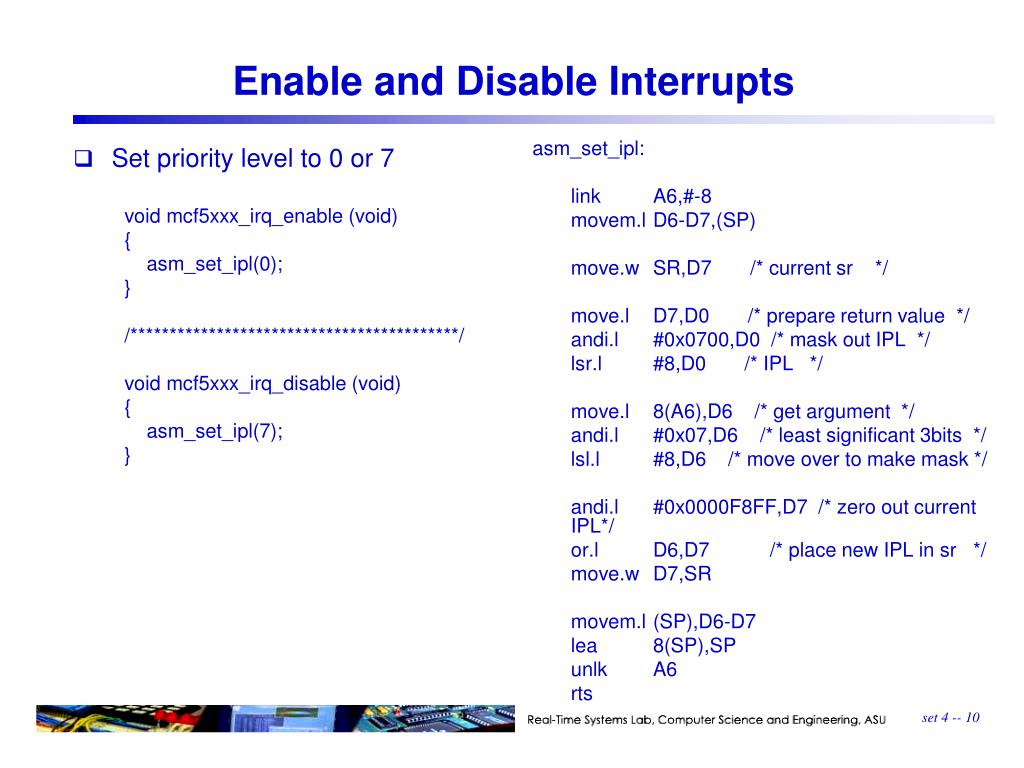

Set priority level to 0 or 7 void mcf5xxx_irq_enable (void) { asm_set_ipl(0); } /******************************************/ void mcf5xxx_irq_disable (void) { asm_set_ipl(7); } asm_set_ipl: link A6,#-8 movem.l D6-D7,(SP) move.w SR,D7 /* current sr */ move.l D7,D0 /* prepare return value */ andi.l #0x0700,D0 /* mask out IPL */ lsr.l #8,D0 /* IPL */ move.l 8(A6),D6 /* get argument */ andi.l #0x07,D6 /* least significant 3bits */ lsl.l #8,D6 /* move over to make mask */ andi.l #0x0000F8FF,D7 /* zero out current IPL*/ or.l D6,D7 /* place new IPL in sr */ move.w D7,SR movem.l (SP),D6-D7 lea 8(SP),SP unlk A6 rts Enable and Disable Interrupts

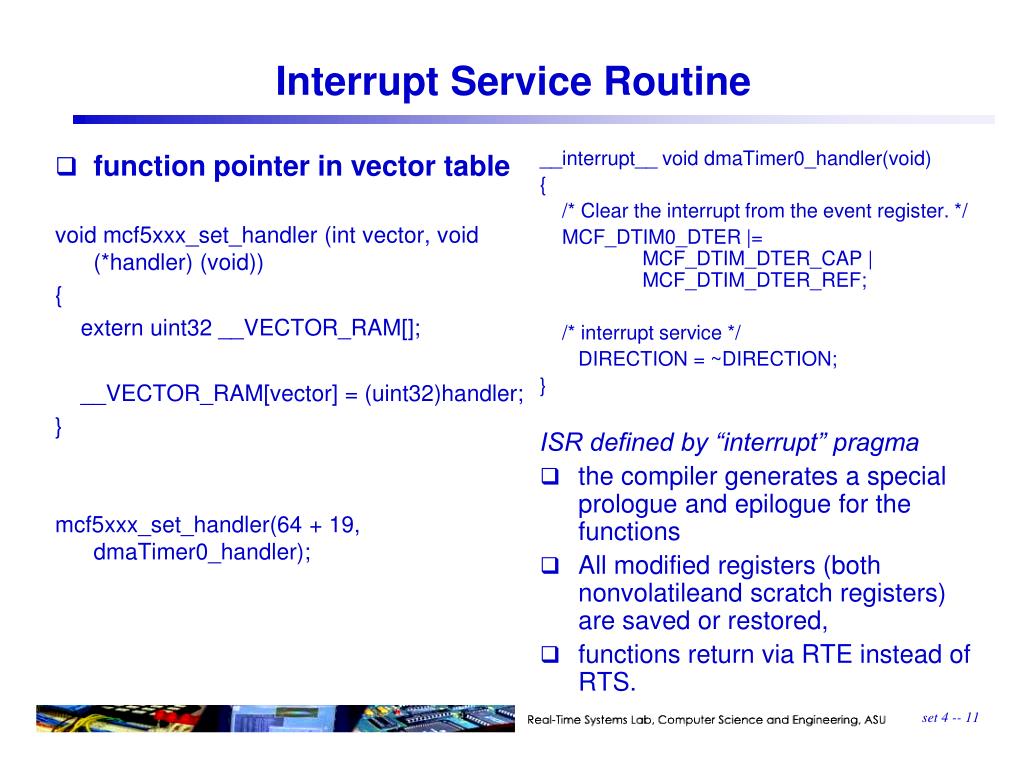

function pointer in vector table void mcf5xxx_set_handler (int vector, void (*handler) (void)) { extern uint32 __VECTOR_RAM[]; __VECTOR_RAM[vector] = (uint32)handler; } mcf5xxx_set_handler(64 + 19, dmaTimer0_handler); __interrupt__ void dmaTimer0_handler(void) { /* Clear the interrupt from the event register. */ MCF_DTIM0_DTER |= MCF_DTIM_DTER_CAP | MCF_DTIM_DTER_REF; /* interrupt service */ DIRECTION = ~DIRECTION; } ISR defined by “interrupt” pragma the compiler generates a special prologue and epilogue for the functions All modified registers (both nonvolatileand scratch registers) are saved or restored, functions return via RTE instead of RTS. Interrupt Service Routine
