BIOMASS . Expert working group on biomass. Prepared by Veronika Valentar. Your logo. Energy use in Slovenia. The importance of wood biomass in Slovenia: Annual use of renewable energy sources in Slovenia Annual use of energy in households (Source: stat.si).

caron
Download Presentation

BIOMASS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BIOMASS Expertworkinggroup on biomass Preparedby Veronika Valentar

  2. Yourlogo • Energyuse in Slovenia The importance of wood biomass in Slovenia: Annual use of renewable energy sources in Slovenia Annual use of energy in households (Source: stat.si) Enduseofenergy in households 2012

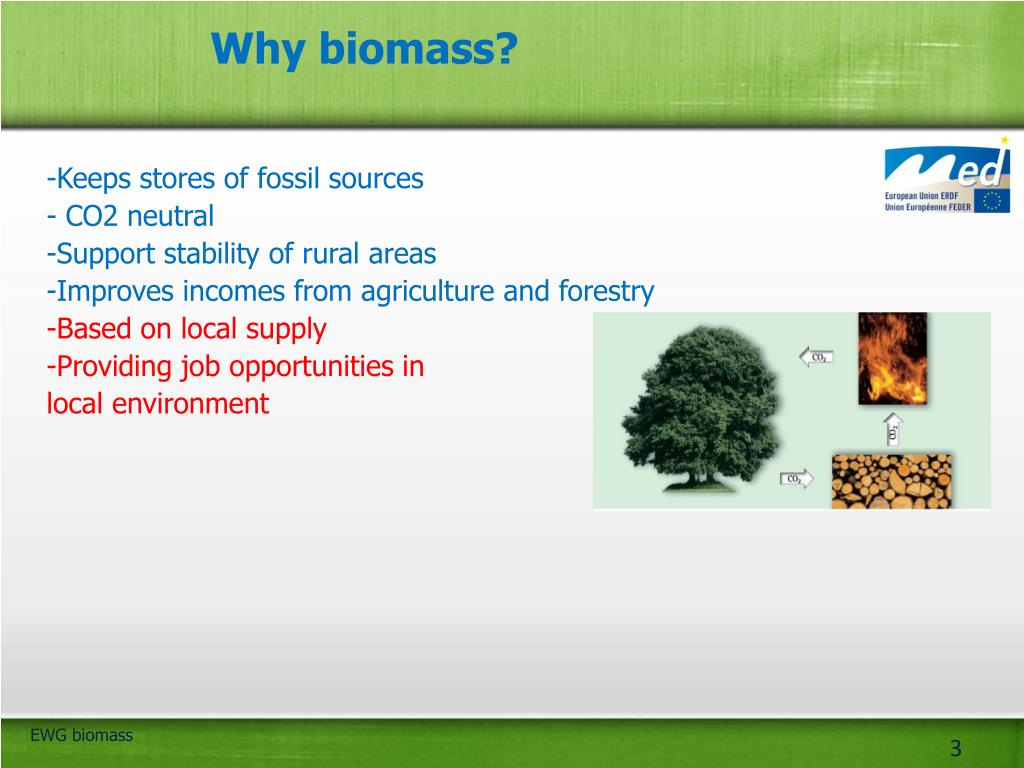

  3. Whybiomass? Keeps stores of fossil sources CO2 neutral Support stability of rural areas Improves incomes from agriculture and forestry Based on localsupply Providingjobopportunities in localenvironment

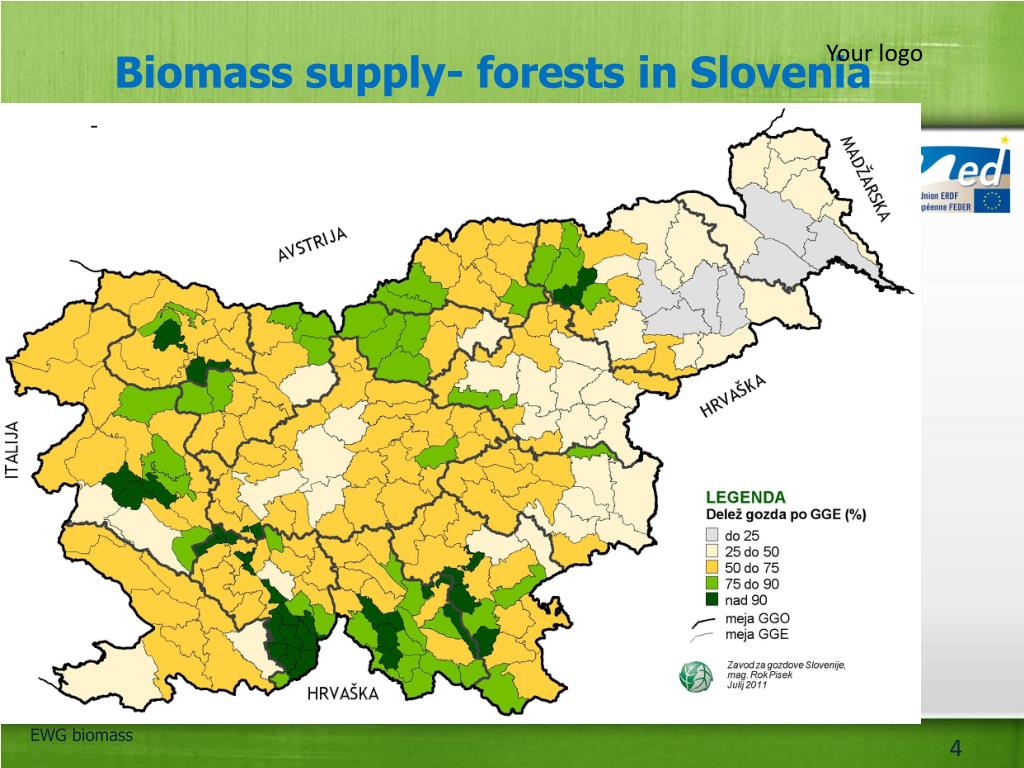

  4. Yourlogo • Biomass supply- forests in Slovenia -

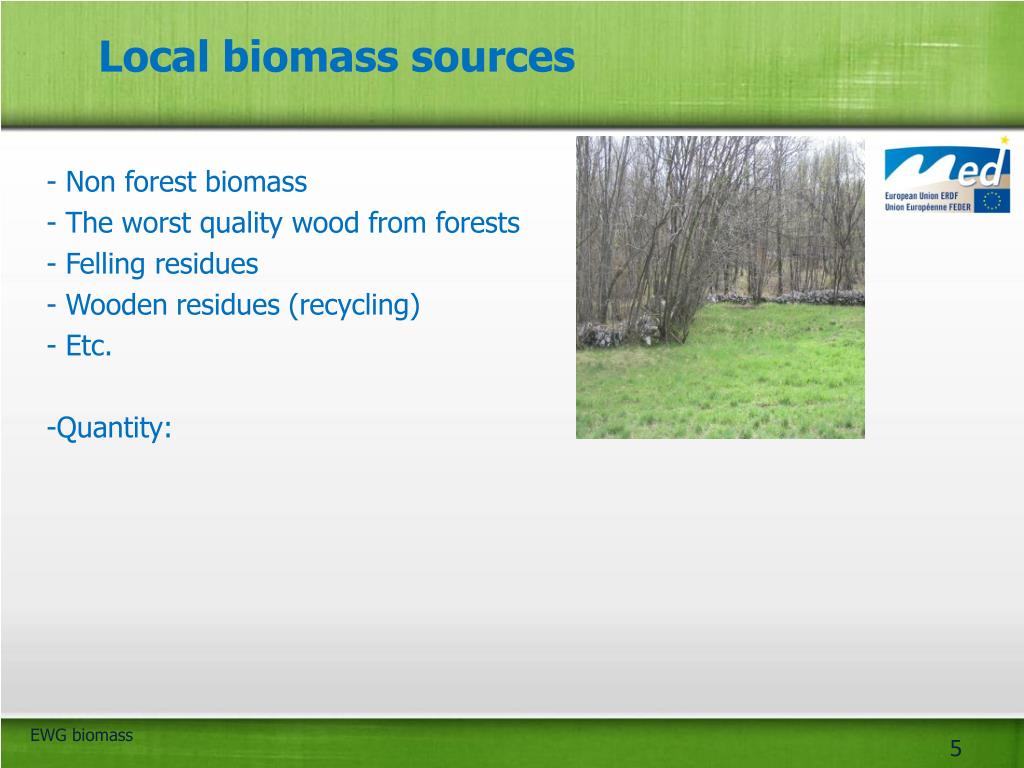

  5. Localbiomasssources Non forest biomass The worst quality wood from forests Felling residues Wooden residues (recycling) Etc. Quantity:

  6. Typesofwoodbiomassfuelsandproductiontechnologies Firewood Woodchips Wood (andnonwood) pellets Woodbriquets

  7. Organizationofbiomasssupplychain This is a symbolicpicture- Addthechartofthe most usualsupplyprocess

  8. Biomasslogistics • Wood drying: • Biomass trade center, storing of biomass • Biomasslogistics

  9. Mikro mreža Heatingnetworks Individualheatingsystem Microsystemheatingnetwork Districtheatingnetwork

  10. Biomass heating contracting for public building Heating system= heating boiler (wood chips, supplied by automatic system + boiler room) Investor is authorized for operation, service, maintenance and possible new investments The contract lasts at least 15 years

  11. Heatingcontract Based on usual heating contracts for district heating systems Use of heating energy is measured regarding heating value of wood (measured by heating supplier) Use of heat is accounting based on actual energy consumption The system is insured together with the insurance for building

  12. Administrative barriers Decision making process with municipality Permissions of land owners/ public (impact on environment) Subscription fee? Investment reimbursement (subvention)? Building permissions

  13. Technicalquestions • Sanitary warm water in summer season • Basic requests regarding: • Heating room • Boiler • Installations • Biomass supply (driveways)

  14. Investment plan Investment costs: 600-700 €/kW installed power Heatingboiler, supplyingsystem: 200-300 €/kW installed power Hotwatersystem: 80-100 €/m’ route Variablecosts: Biomass (17- 21 €/sm3) Power Maintenance

  15. Investment plan Incomes: Subscription fee 160-250 €/kW installed power Energy price (70- 90€/MWh)- 2500 working hours/a

  16. Simplefeasibilitystudy

  17. Publicawarenessrising Identification and promotion of project Working with different target groups: public, Excursions, best practices exchange

  18. Typicalproblems: Too late: other plan, heating system on gas, heating room is constructed Not enough demand on heating Projectengineers are not flexible enough ADVISE: NEVER GIVE UP!!!

  19. Questions? THANK YOU FOR YOUR ATTENTION!
