  1. Are youprepared? A geo-guide for non-specialists Underground risks – face them, don’thidefromthem!

  2. Who’sitfor? For you: the principal, the architect, the realestatedeveloper (Fromus: the geotechnicalspecialist) • You have building plans • With time, quality and budget requirements • Youneedspecialists – youcan’tknoweverything • Keyquestion: When to call the specialist?

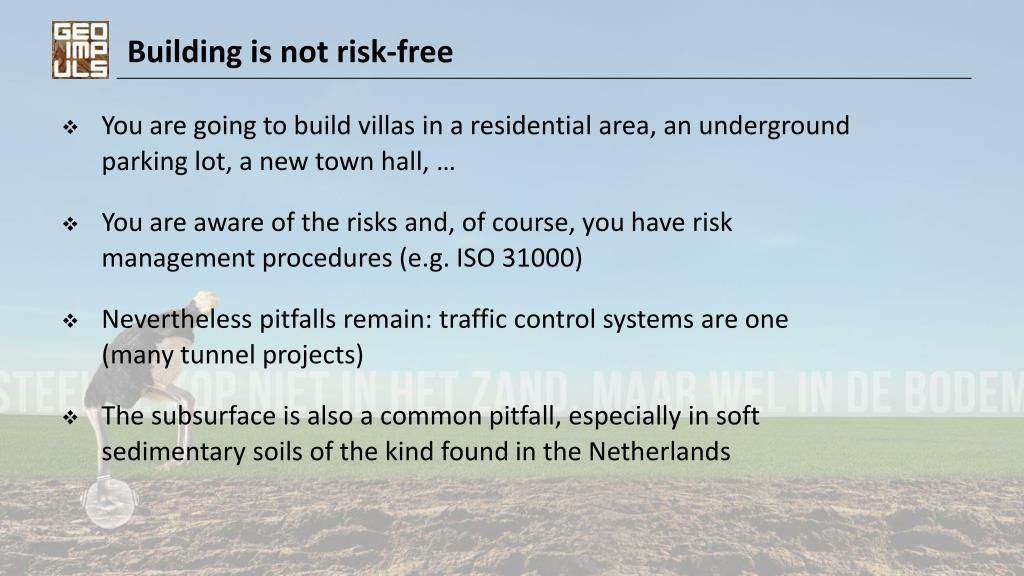

  3. Building is not risk-free • You are going to build villas in a residential area, an underground parking lot, a new town hall, … • You are aware of the risks and, of course, you have risk management procedures (e.g. ISO 31000) • Nevertheless pitfalls remain: traffic control systems are one (many tunnel projects) • The subsurface is also a common pitfall, especially in soft sedimentary soils of the kind found in the Netherlands

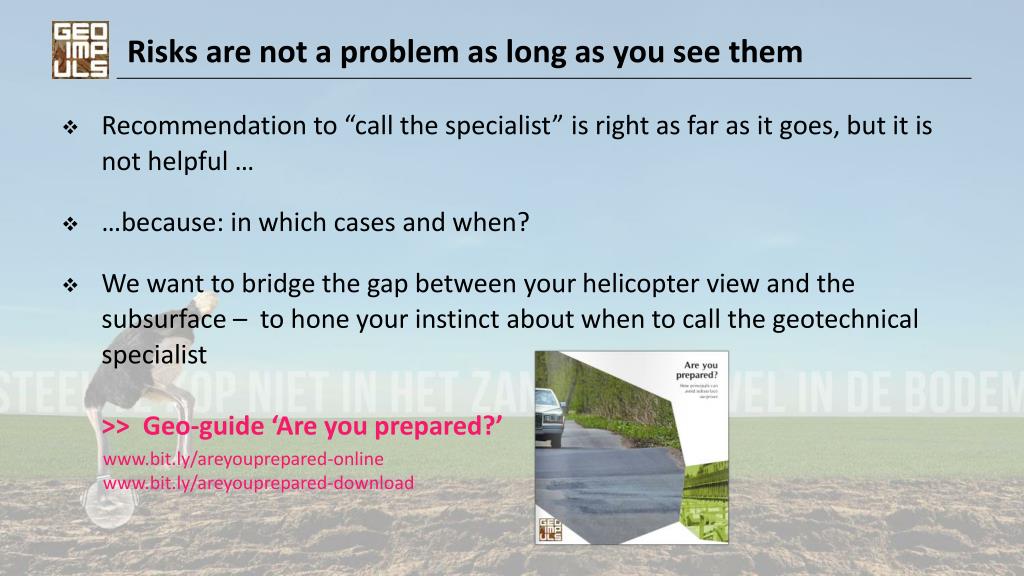

  4. Risks are not a problem as long as you seethem • Recommendation to “call the specialist” is right as far as it goes, but it is not helpful … • …because: in which cases and when? • We want to bridge the gap between your helicopter view and the subsurface – to hone your instinct about when to call the geotechnical specialist>> Geo-guide ‘Are you prepared?’ www.bit.ly/areyouprepared-onlinewww.bit.ly/areyouprepared-download

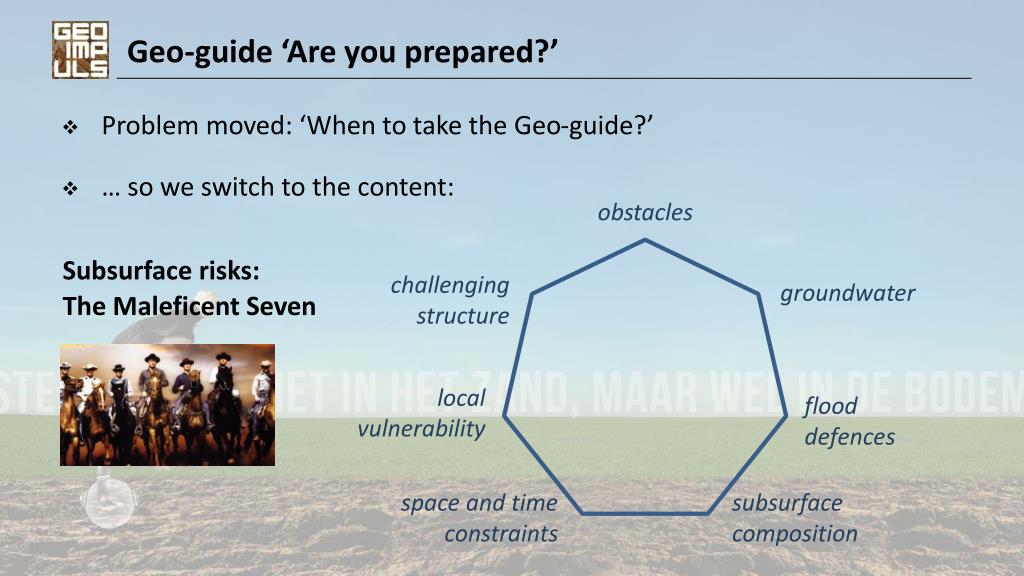

  5. Geo-guide ‘Are youprepared?’ • Problem moved: ‘When to take the Geo-guide?’ • … so we switch to the content: obstacles • Subsurface risks: • The Maleficent Seven challengingstructure groundwater localvulnerability flooddefences space and time constraints subsurfacecomposition

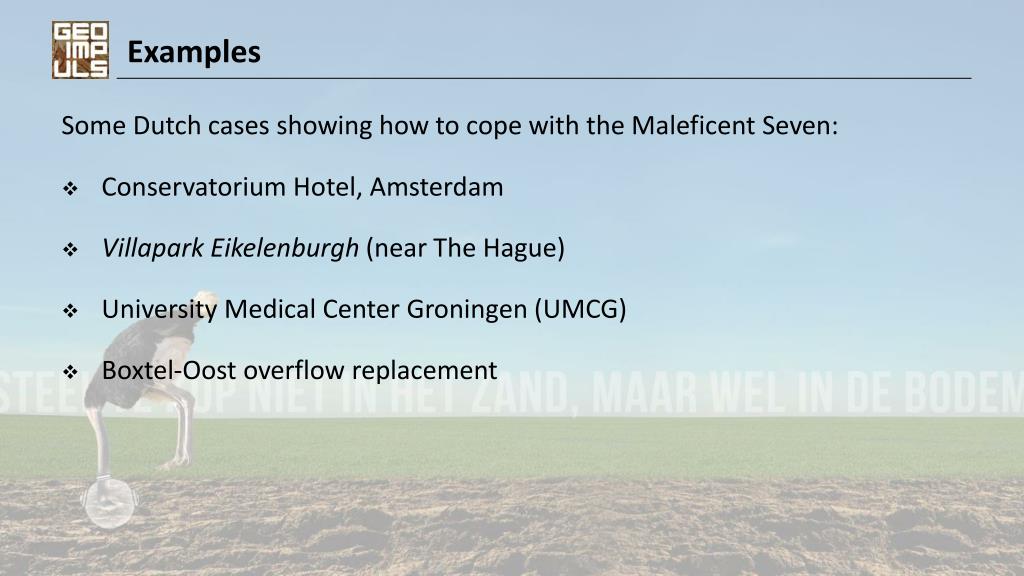

  6. Examples SomeDutch cases showinghow to copewith the MaleficentSeven: • Conservatorium Hotel, Amsterdam • Villapark Eikelenburgh (near The Hague) • UniversityMedical Center Groningen (UMCG) • Boxtel-Oost overflow replacement

  7. Conservatorium Hotel Amsterdam • 1897 building, former conservatory, listed building • Requirement: swimming pool in courtyard • Issues: • local vulnerability • challenging structure • space constraints • groundwater

  8. Villapark Eijkelenburgh(near The Hague) • Area for 300 villas • Soft soil (peat and clay), high water table • Issues: • groundwater • subsurface composition

  9. University Medical Center Groningen • Underground parking lot • Variable geology • Issues: • Subsurface composition • Groundwater

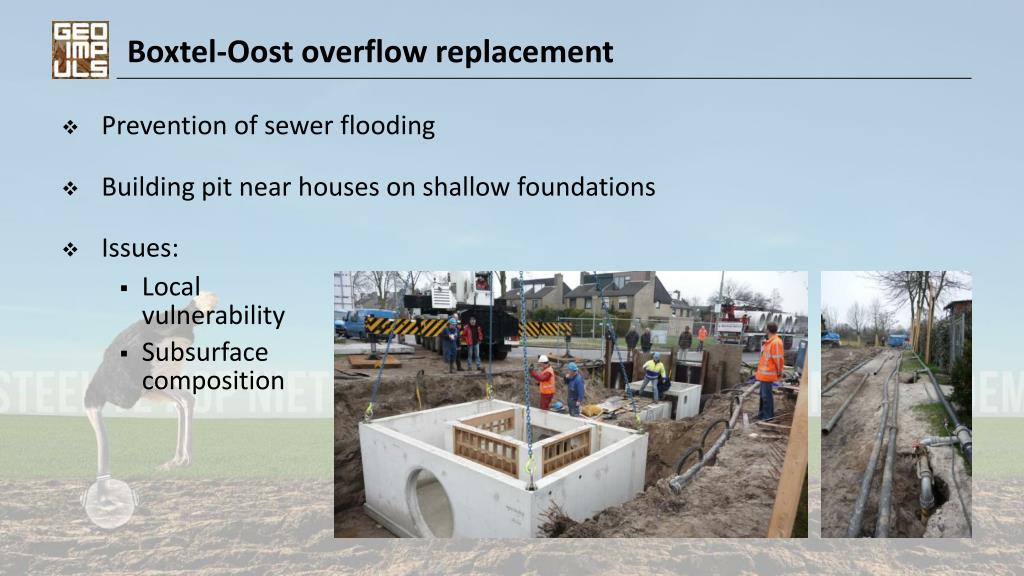

  10. Boxtel-Oost overflow replacement • Prevention of sewer flooding • Building pit near houses on shallow foundations • Issues: • Local vulnerability • Subsurface composition

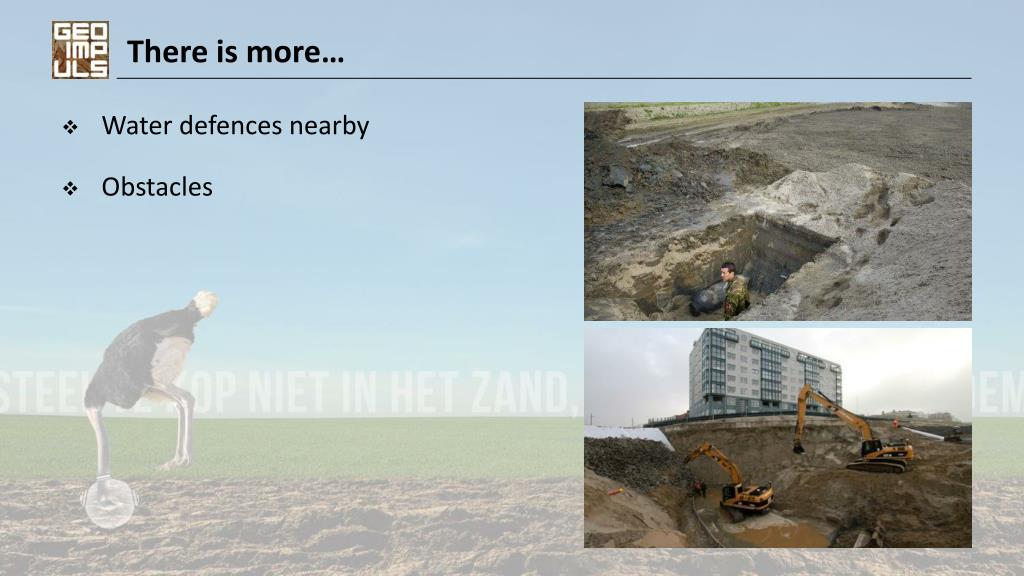

  11. There is more… • Water defencesnearby • Obstacles

  12. The MaleficentSeven Face the risks, don’thidefromthem obstacles challengingstructure groundwater localvulnerability flooddefences space and time constraints subsurfacecomposition

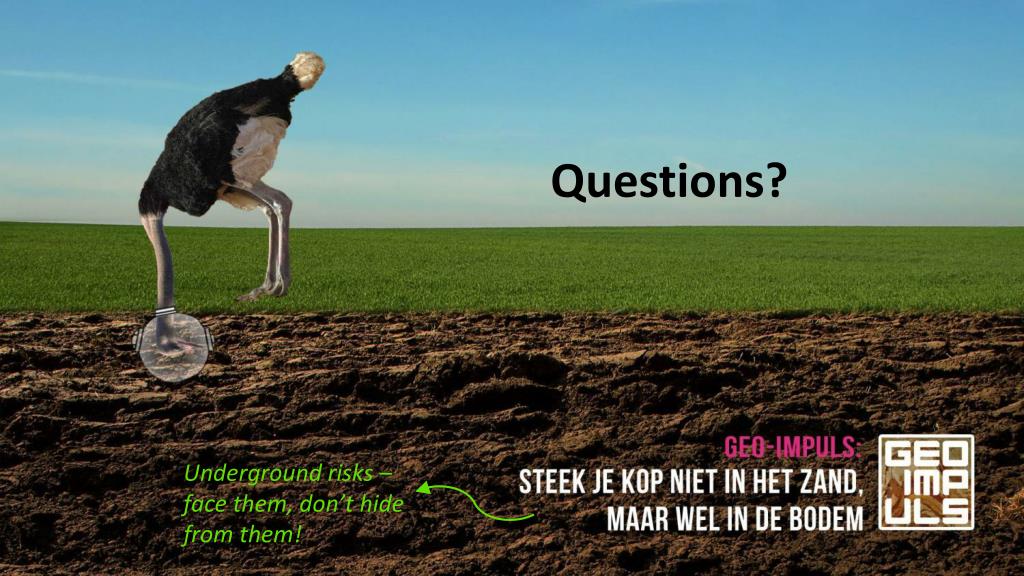

  13. Questions? Underground risks – face them, don’thidefromthem!

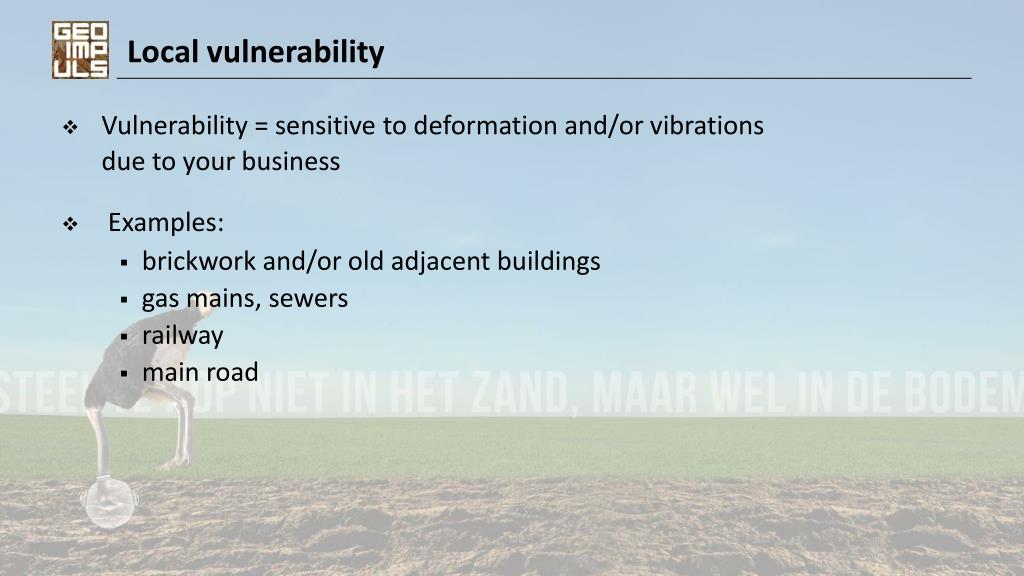

  14. Localvulnerability • Vulnerability = sensitive to deformation and/or vibrations due to your business • Examples: • brickwork and/or old adjacent buildings • gas mains, sewers • railway • main road

  15. Yourstructure has special demands • Examples: • Annex to an existing building • Sensitive to vibrations? • Uneven load on subsurface (e.g. tower at one side)?

  16. Space and time constraints • Constraining boundary conditions: there is little space, or you have to hurry • Examples: • Construction within a building, or close to the neighbours • Building site difficult to reach for heavy / large equipment • Time pressure due to external factors

  17. Water defences Within the city, water defencestructures are often hidden, but nevertheless present, and regulations apply (generally: keep off!)

  18. Groundwater • The groundwater level in the Netherlands is generally close to the surface. To keep dry feet during building we often need to pump the water out. • Examples: • Pumping of an open trench can influence a large area • Building pit may leak through steel or concrete wall (joints) or through floor

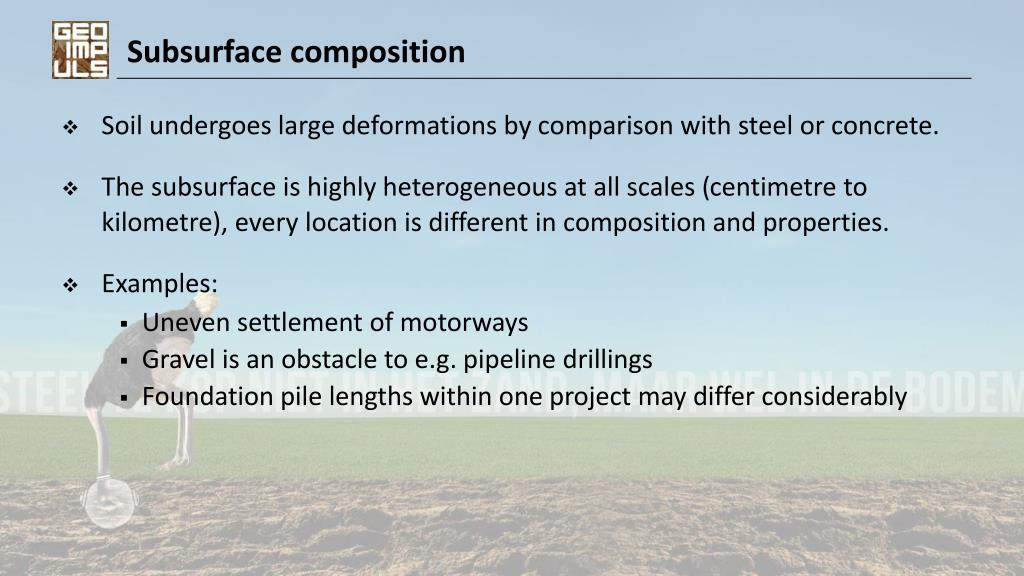

  19. Subsurfacecomposition • Soil undergoes large deformations by comparison with steel or concrete. • The subsurface is highly heterogeneous at all scales (centimetre to kilometre), every location is different in composition and properties. • Examples: • Uneven settlement of motorways • Gravel is an obstacle to e.g. pipeline drillings • Foundation pile lengths within one project may differ considerably

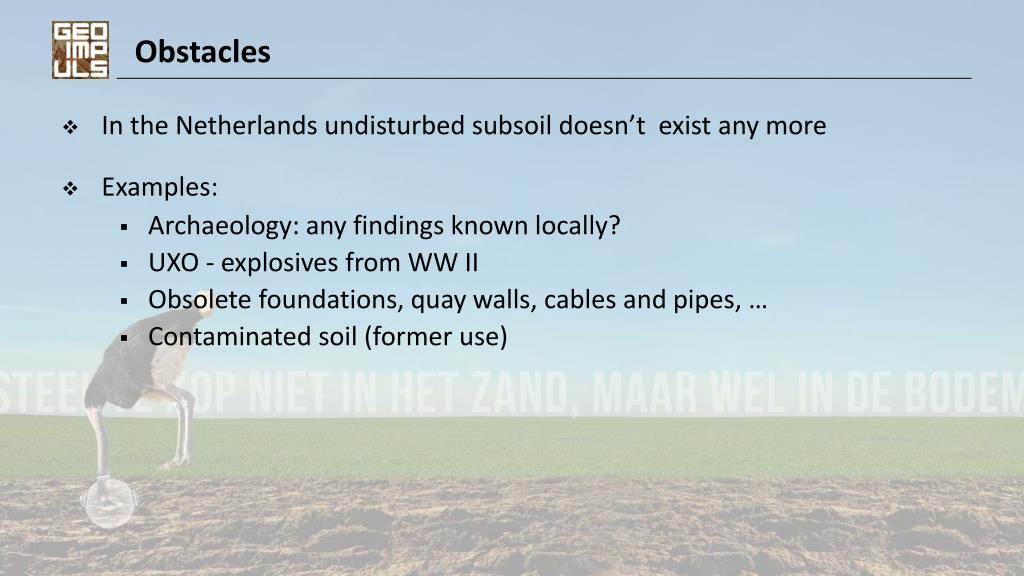

  20. Obstacles • In the Netherlands undisturbed subsoil doesn’t exist any more • Examples: • Archaeology: any findings known locally? • UXO - explosives from WW II • Obsolete foundations, quay walls, cables and pipes, … • Contaminated soil (former use)

  21. The MaleficentSeven Face the risks, don’thidefromthem obstacles challengingstructure groundwater localvulnerability flooddefences space and time constraints subsurfacecomposition

  22. Questions? Underground risks – face them, don’thidefromthem!
