Multiplexers (MUX)

Bibliography: http:// www.mtl-inst.com/product/mtl830_series_multiplexers http:// simple.wikipedia.org/wiki/Multiplexer. Multiplexers are also known as MUX. MUX is a type of integrated circuit.

Download Presentation

Multiplexers (MUX)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

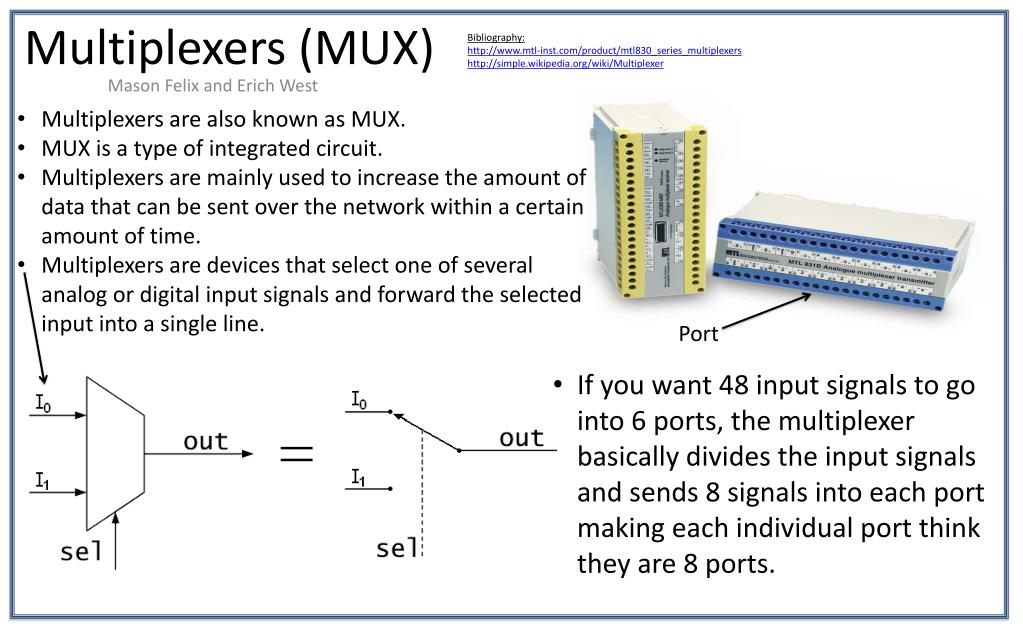

  1. Bibliography: http://www.mtl-inst.com/product/mtl830_series_multiplexers http://simple.wikipedia.org/wiki/Multiplexer • Multiplexers are also known as MUX. • MUX is a type of integrated circuit. • Multiplexers are mainly used to increase the amount of data that can be sent over the network within a certain amount of time. • Multiplexers are devices that select one of several analog or digital input signals and forward the selected input into a single line. Multiplexers (MUX) Port Mason Felix and Erich West • If you want 48 input signals to go into 6 ports, the multiplexer basically divides the input signals and sends 8 signals into each port making each individual port think they are 8 ports.
